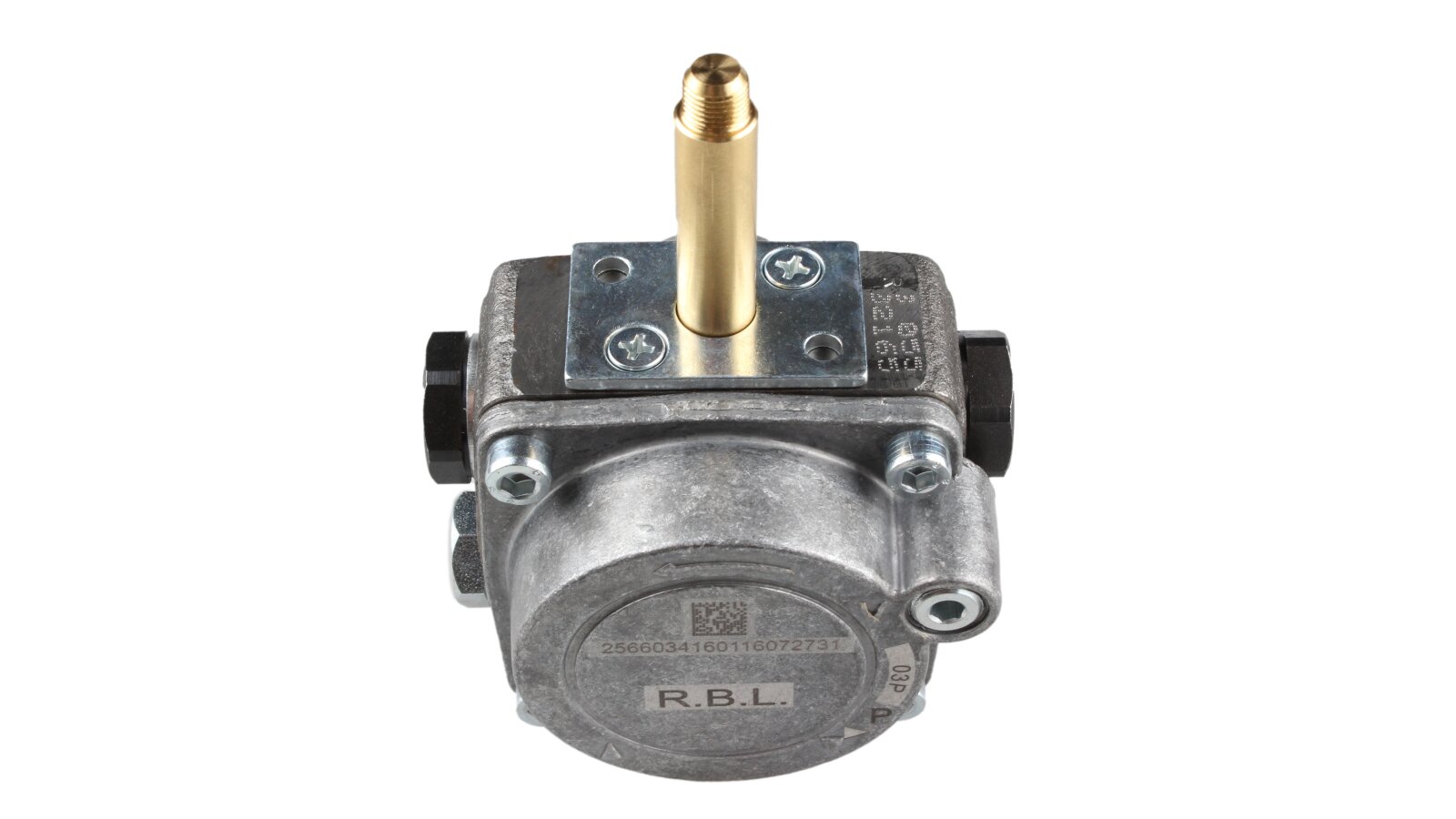

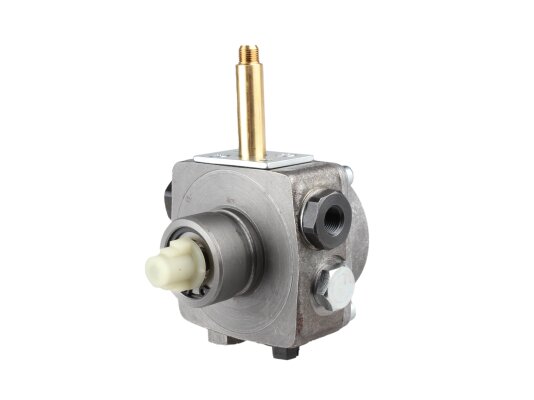

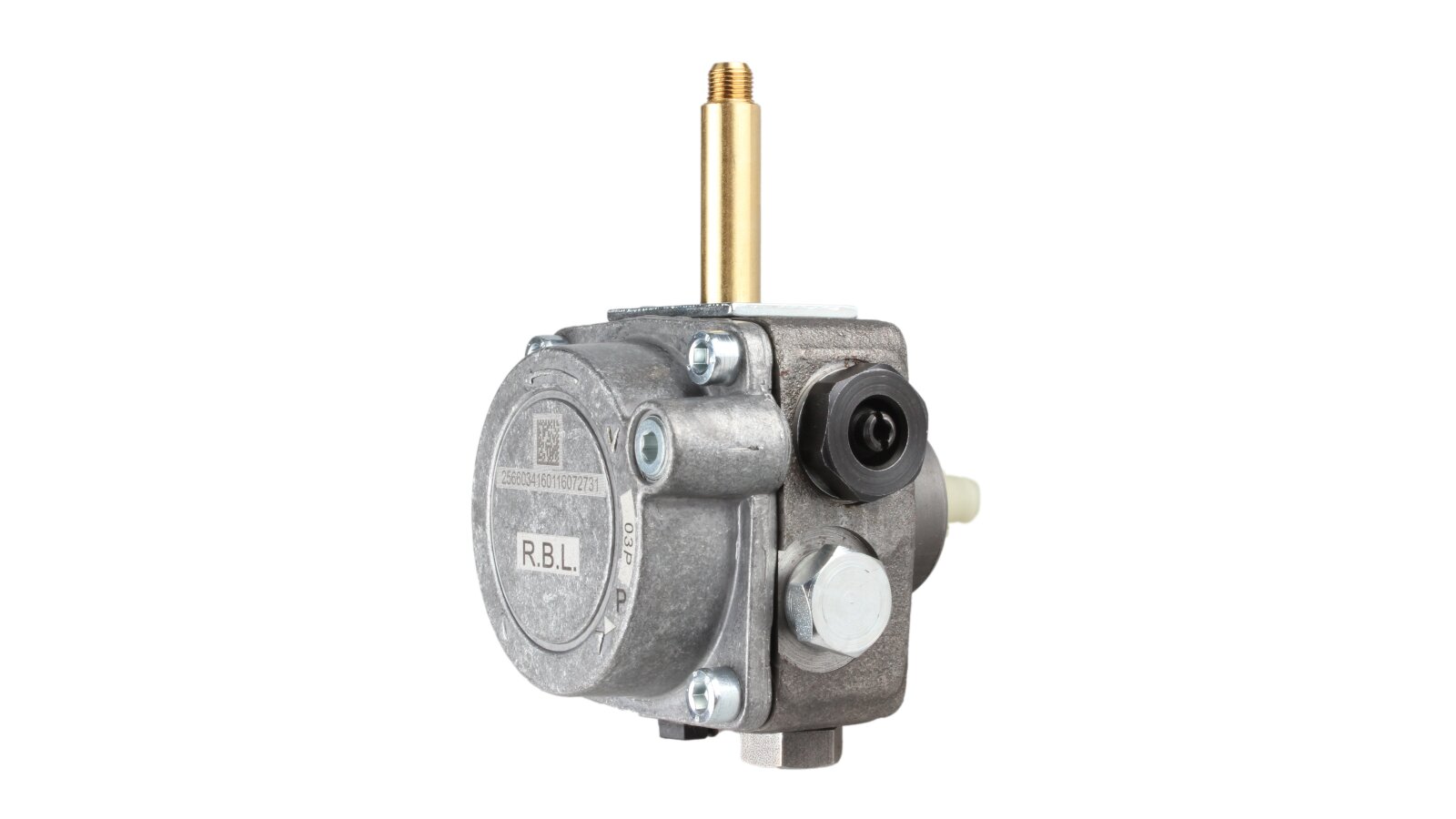

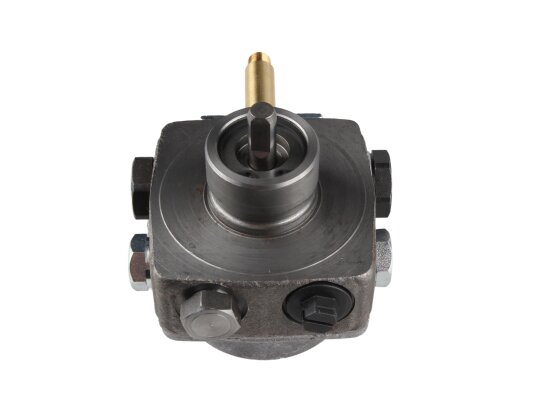

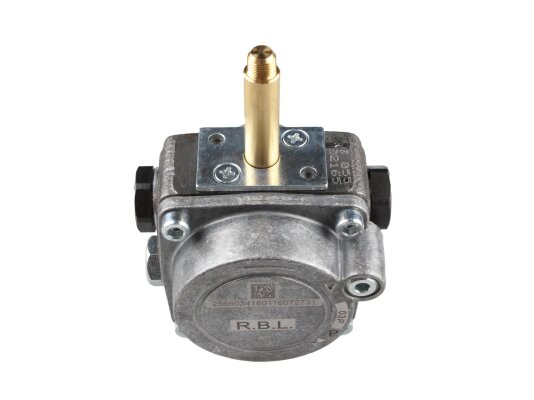

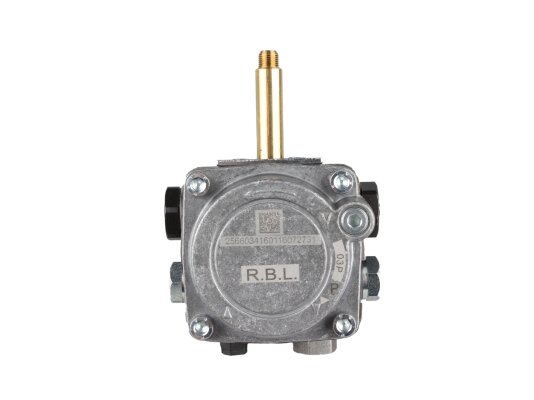

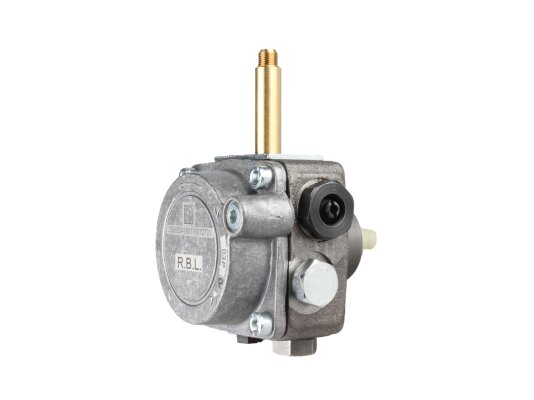

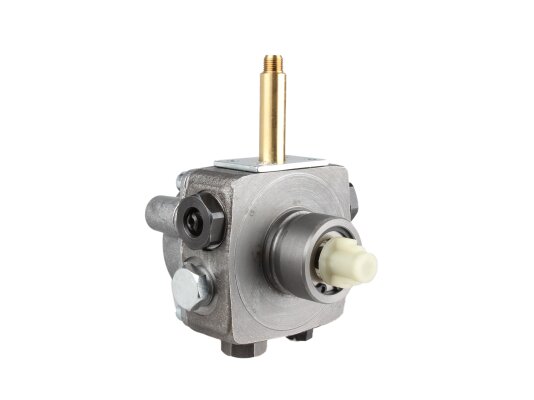

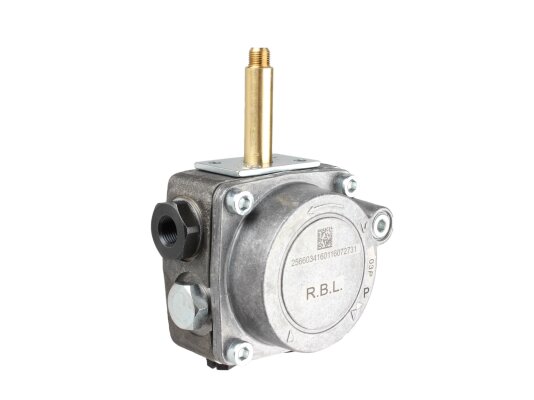

Burner Pump Riello 2566034

Riello3007807
AED 1,450
  1. Oil Burner Pumps

Description

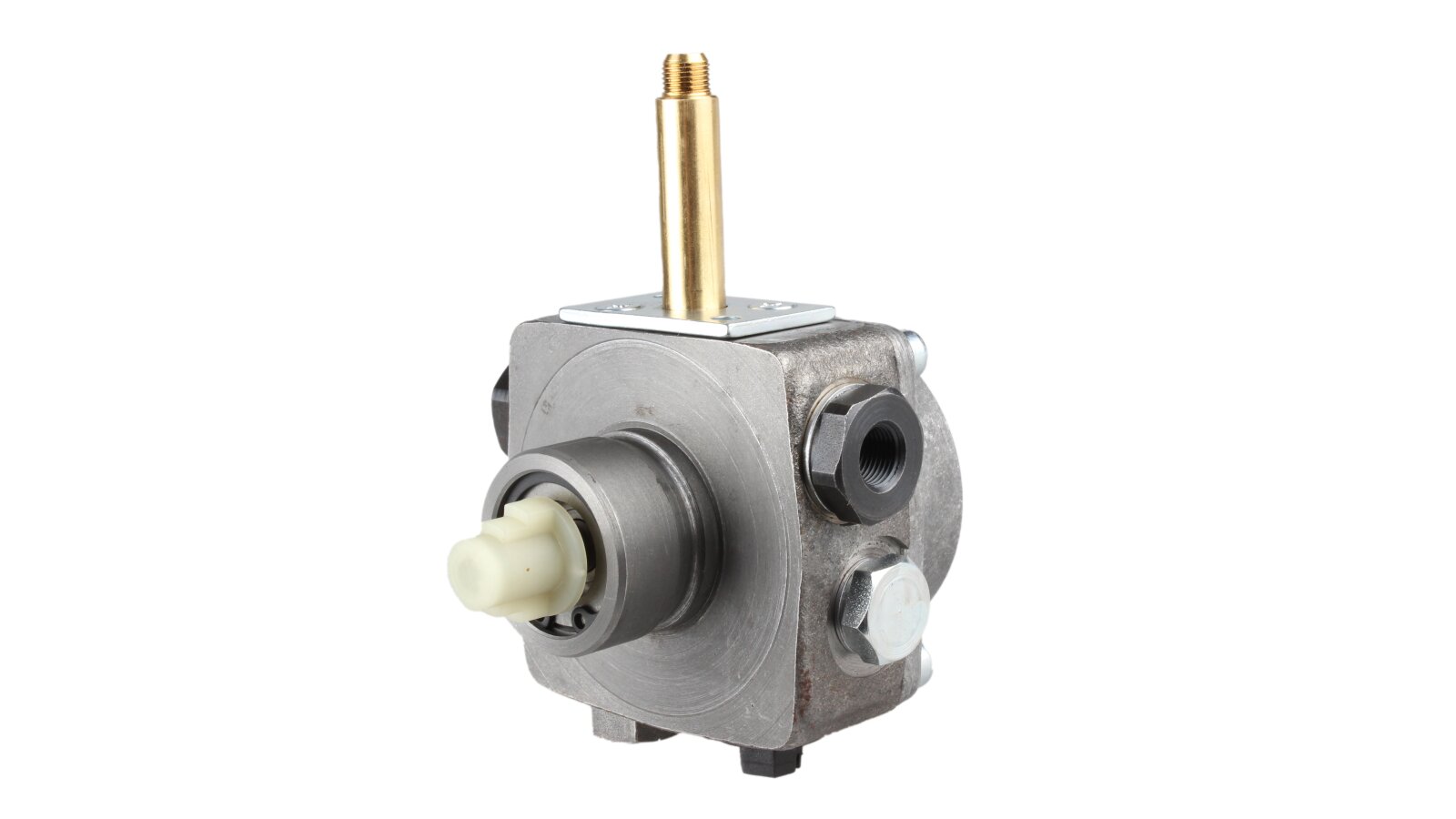

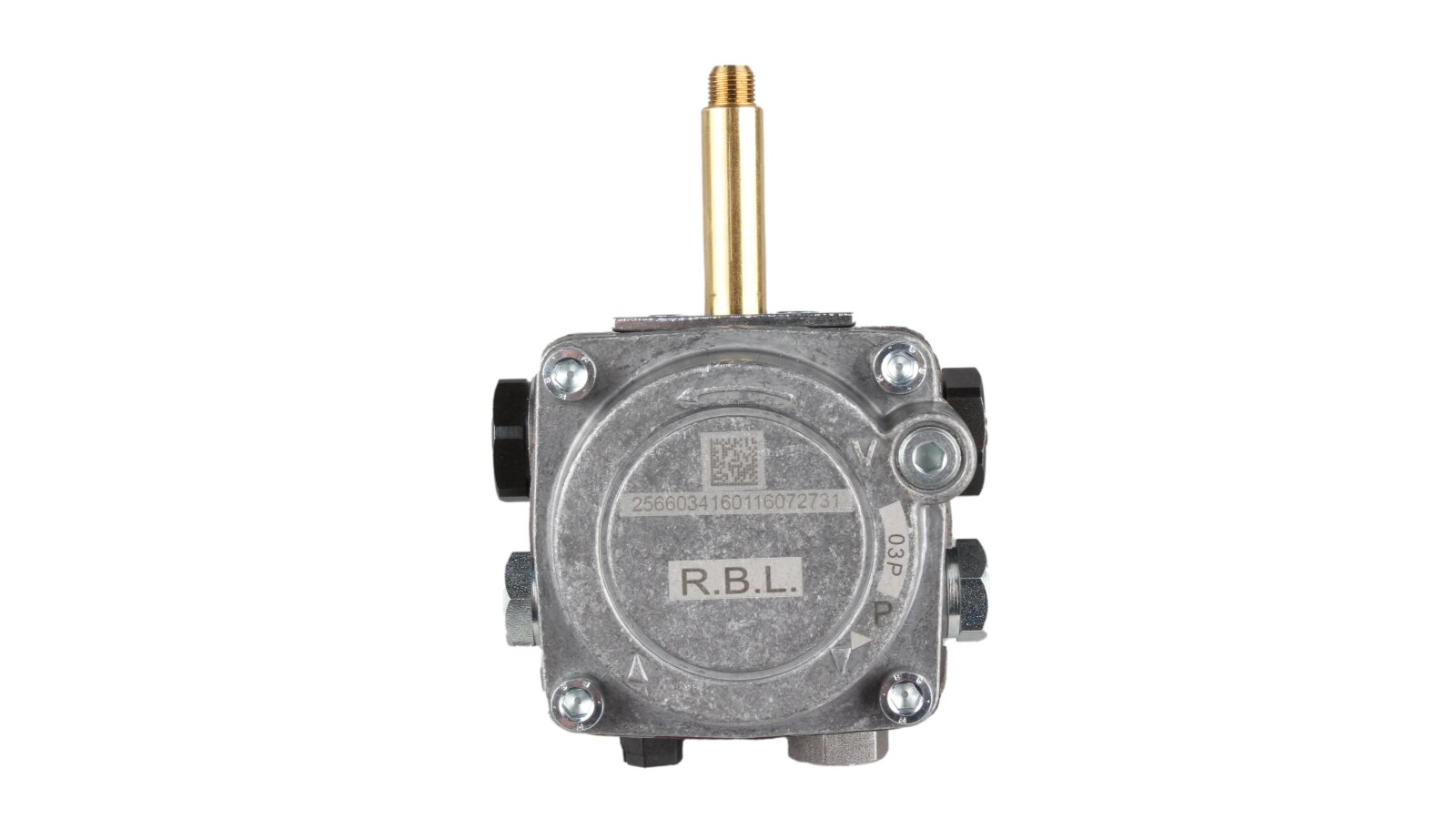

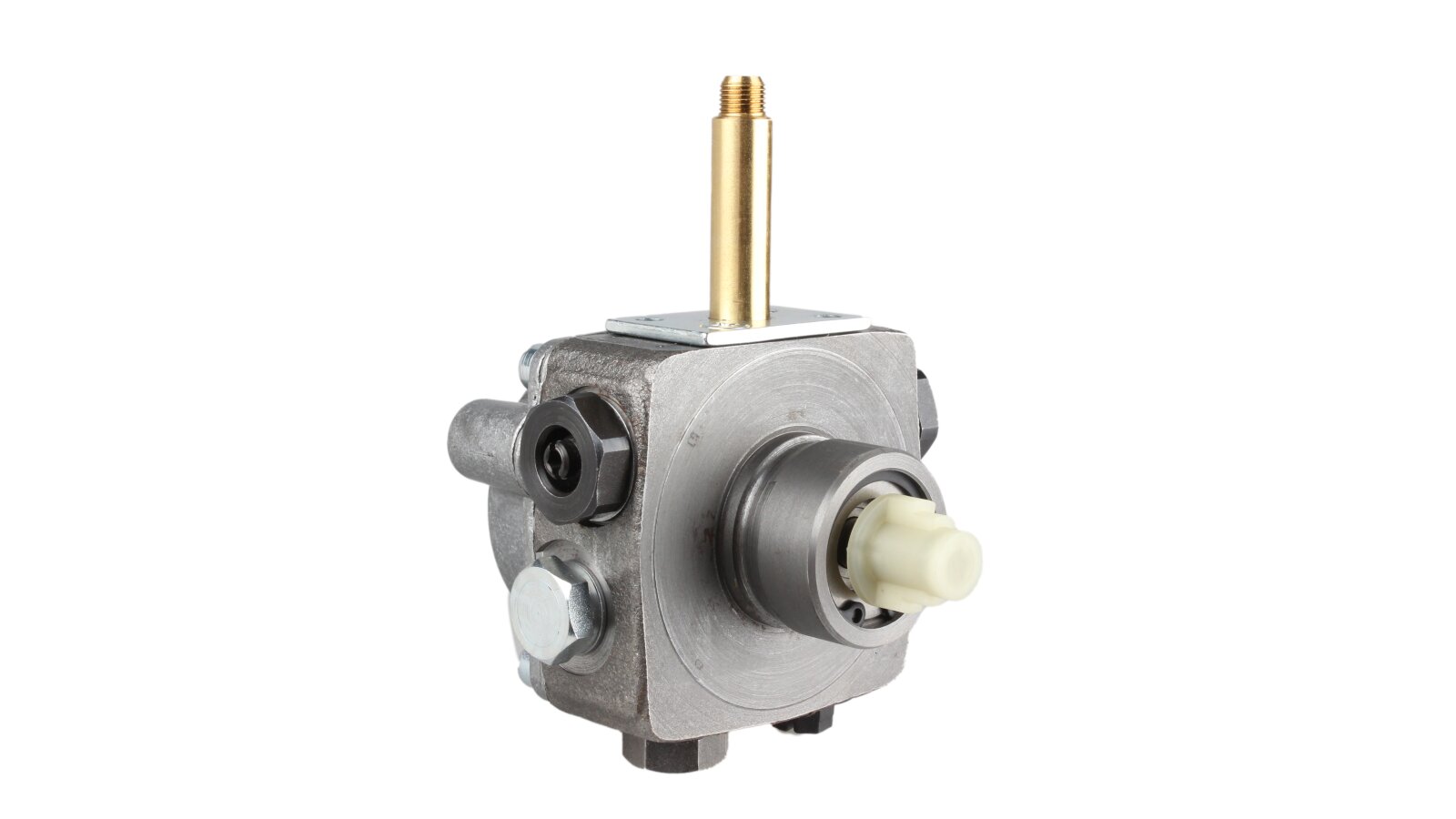

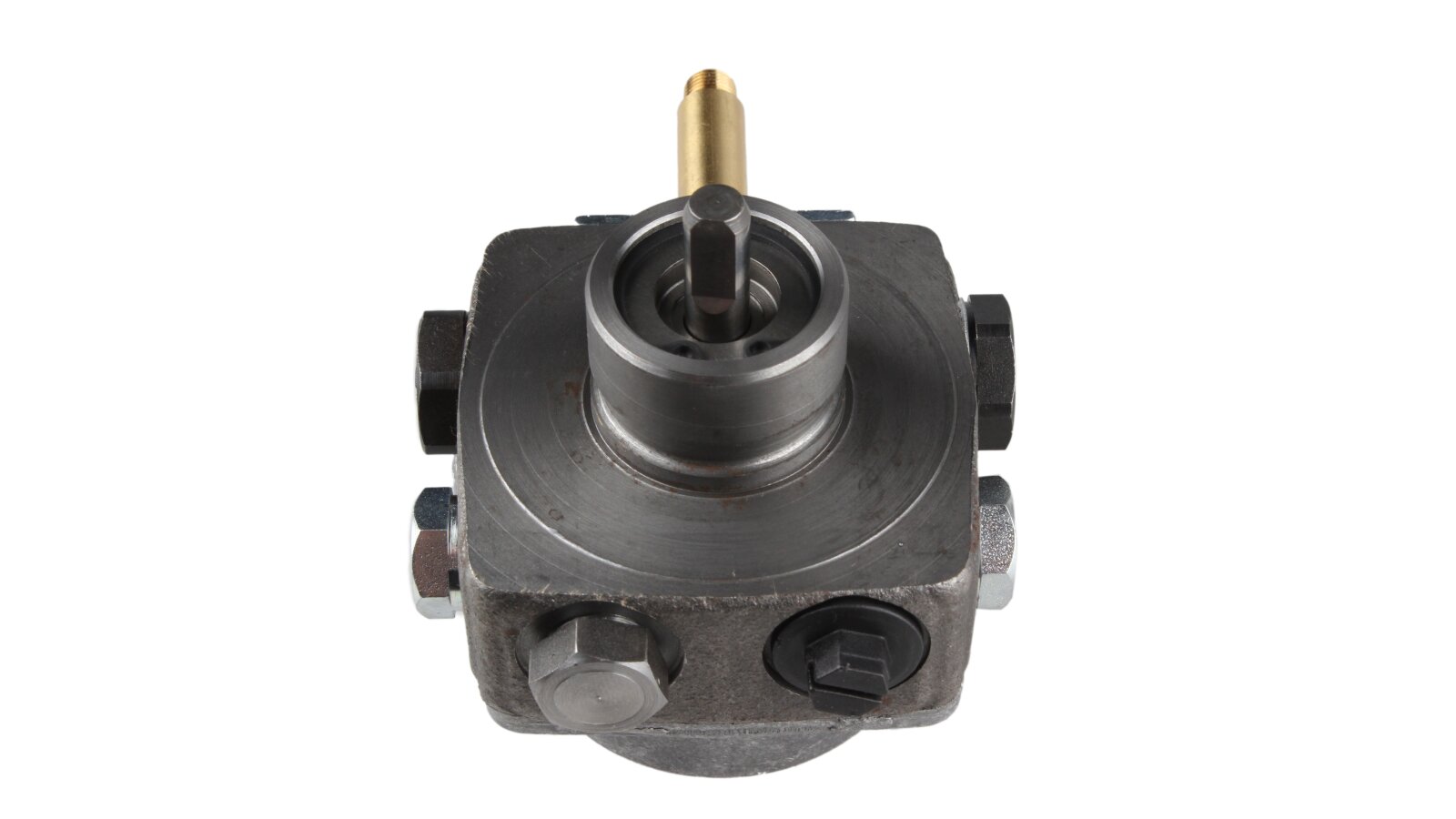

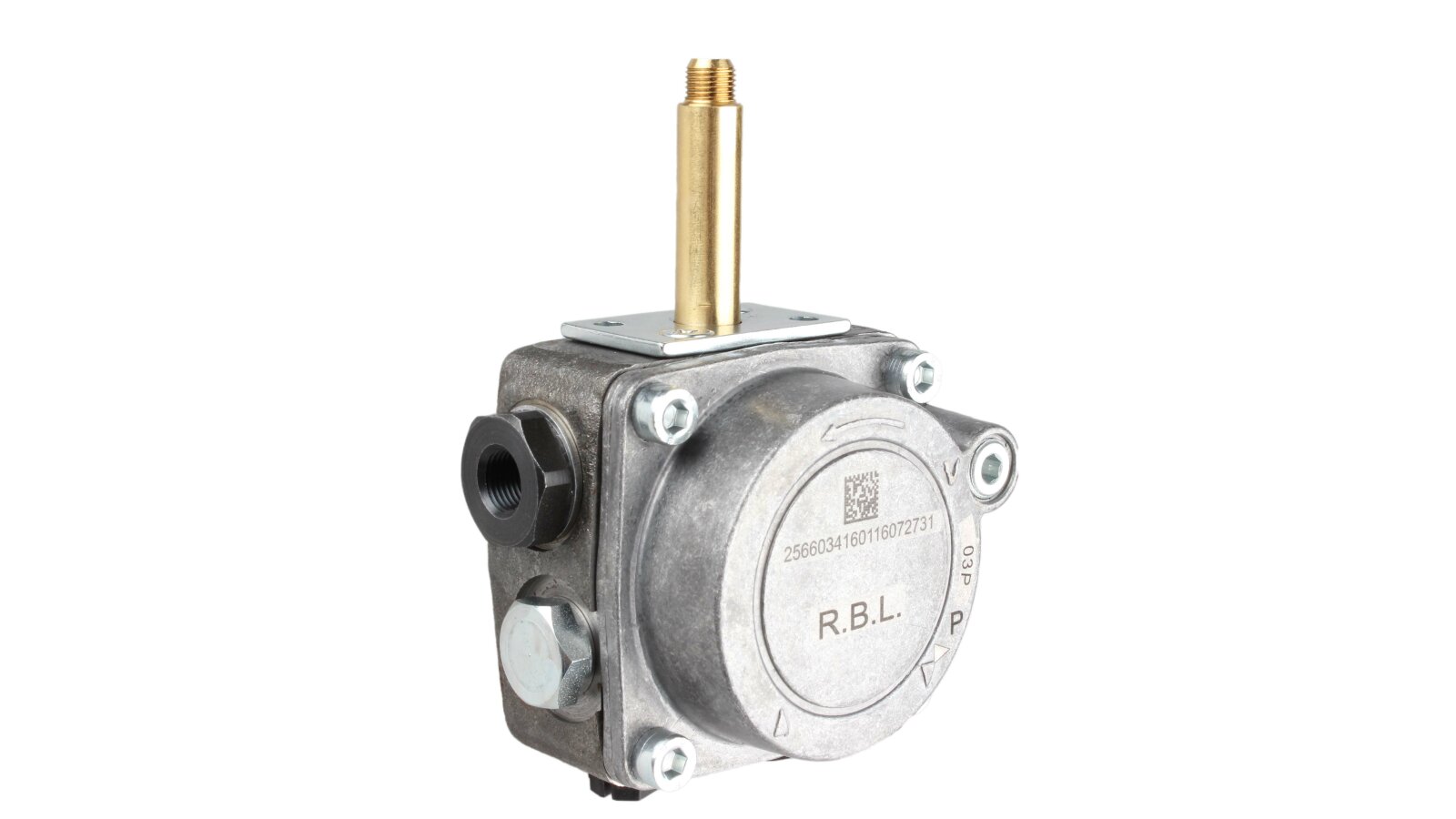

The Riello 2566034 pump is used to pump liquid fuel to the burner under pressure up to 15 bar. It is installed in Riello burner devices.

Main parameters:

  • Working pressure range: 8-15 bar.

  • Installation method: Ø32 mm sleeve.

  • Base pressure: 12 bar.

  • Suction line connection parameters: G¼".

Design and features:

  • The Riello 2566034 pump is reliable equipment with a sleeve fit and a gear working mechanism.

  • The shaft rotates clockwise. The outlet pipe for connection to the nozzle is located on the right.

  • The suction line is connected via a G¼" cylindrical pipe thread.

  • The fuel supply pressure can be adjusted within 7-15 atm. The pump is factory set to 12 atm.

  • The kit includes an electromagnetic solenoid.

  • The return line is plugged for a 1-pipe system.

You can ask a question to a consultant and buy a Riello 2566034 pump on the ANKAS website. Use the online assistant to quickly contact a specialist.

Characteristics

Manufacturer Part Number: 3007807Factory pressure setting: 12 barSuction and return line: ¼ inchNozzle pressure range: from 8 to 15 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightType of pumped liquid: dieselModel type: 1 stage with electromagnetic valve
