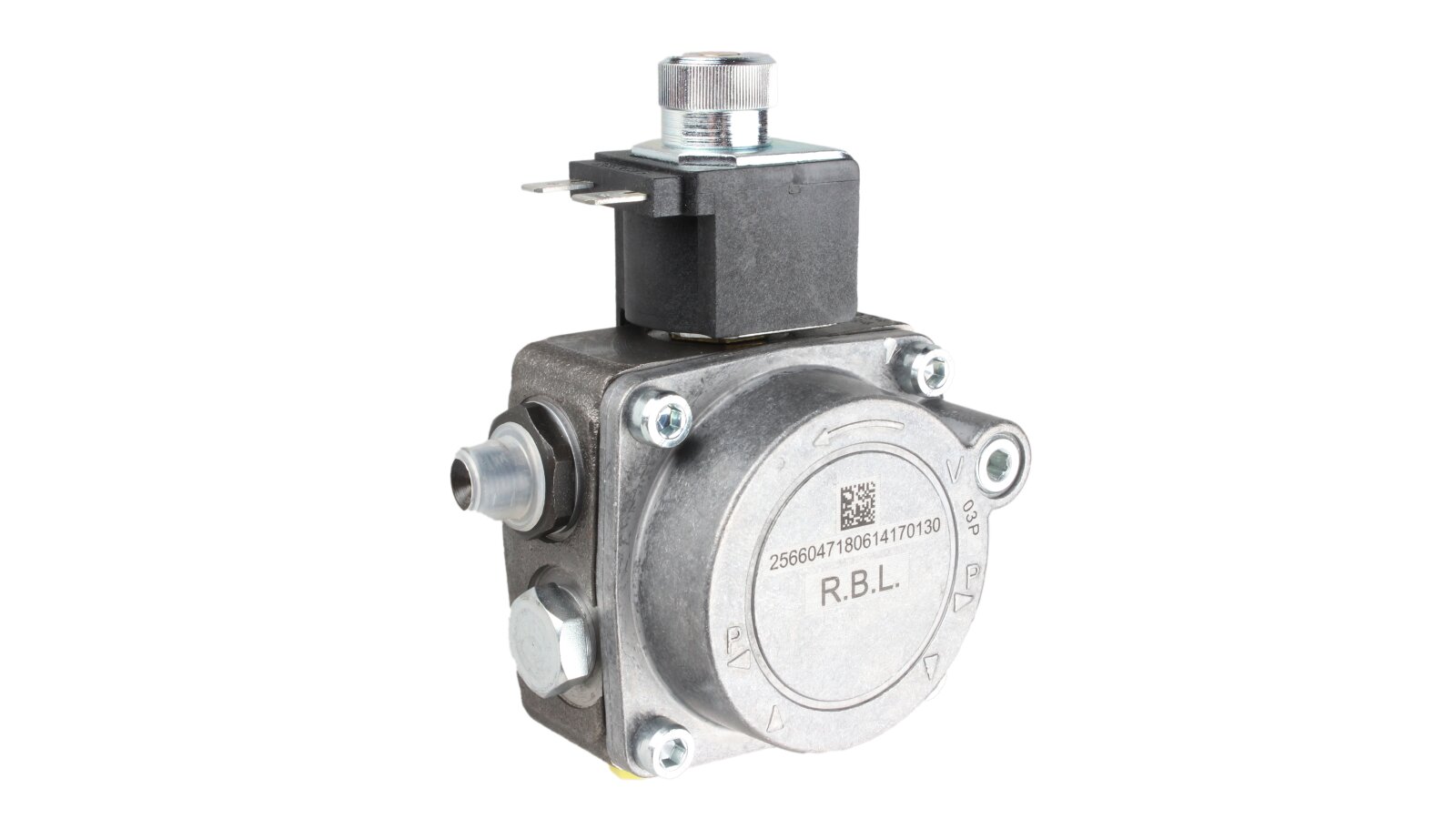

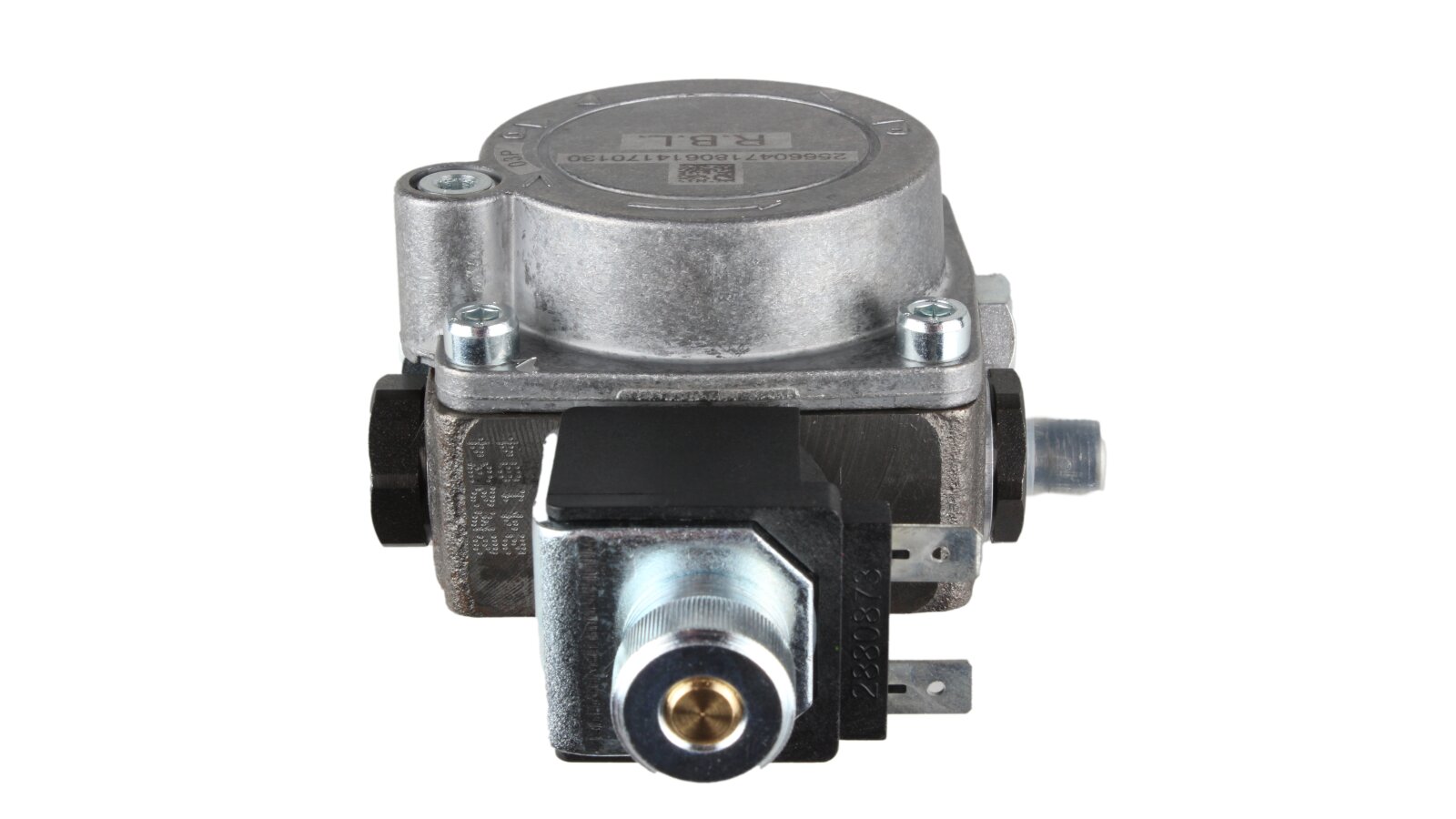

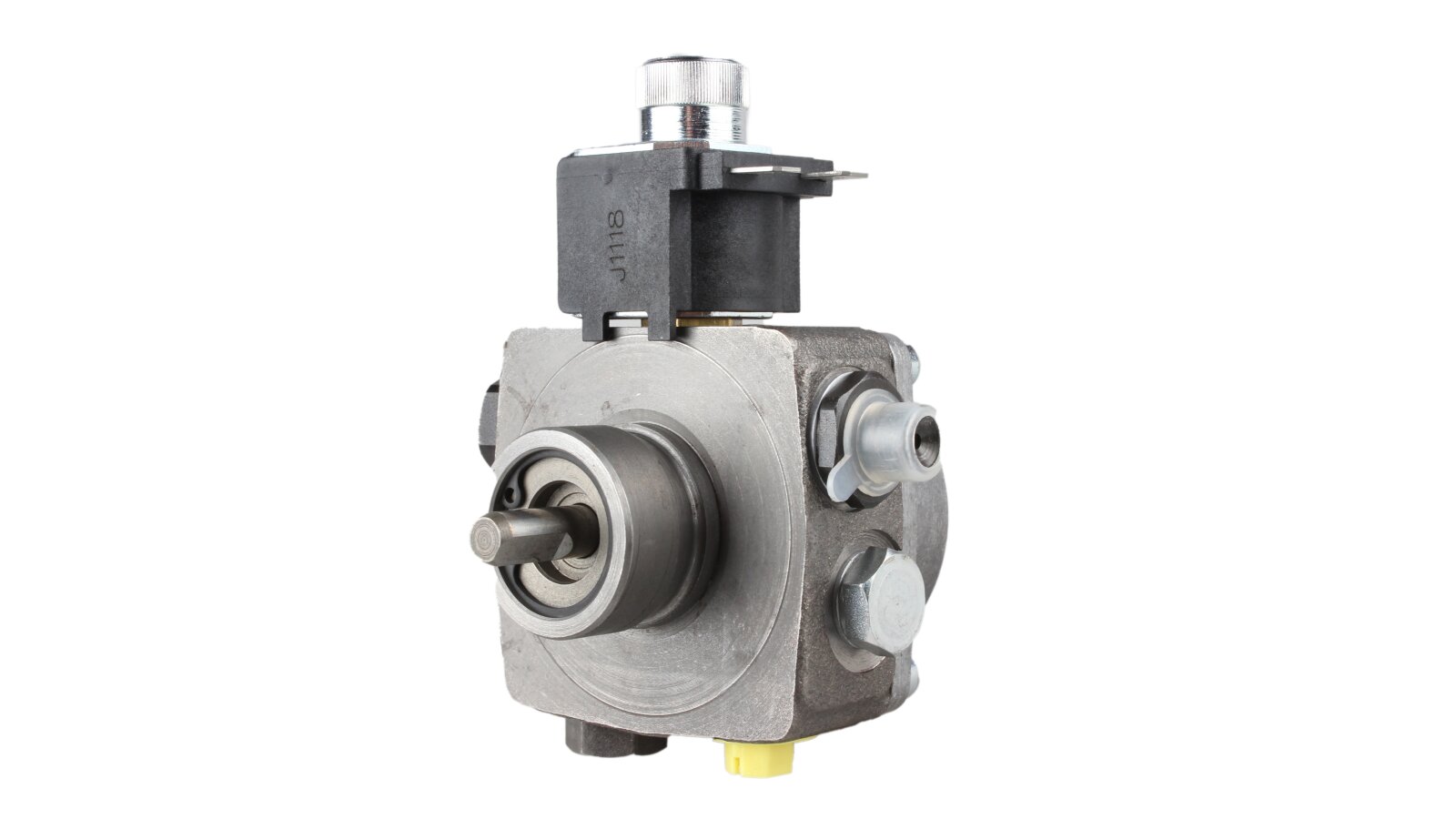

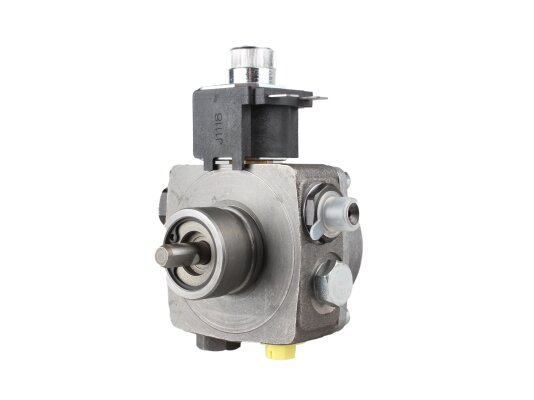

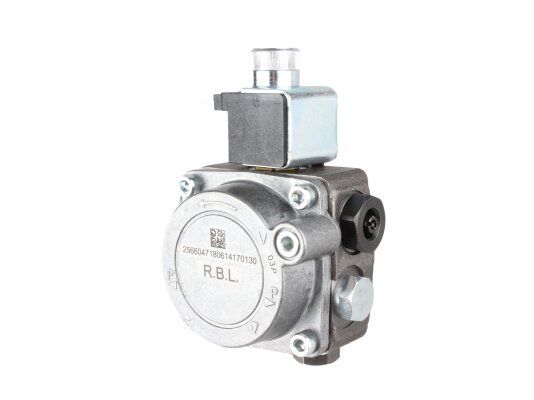

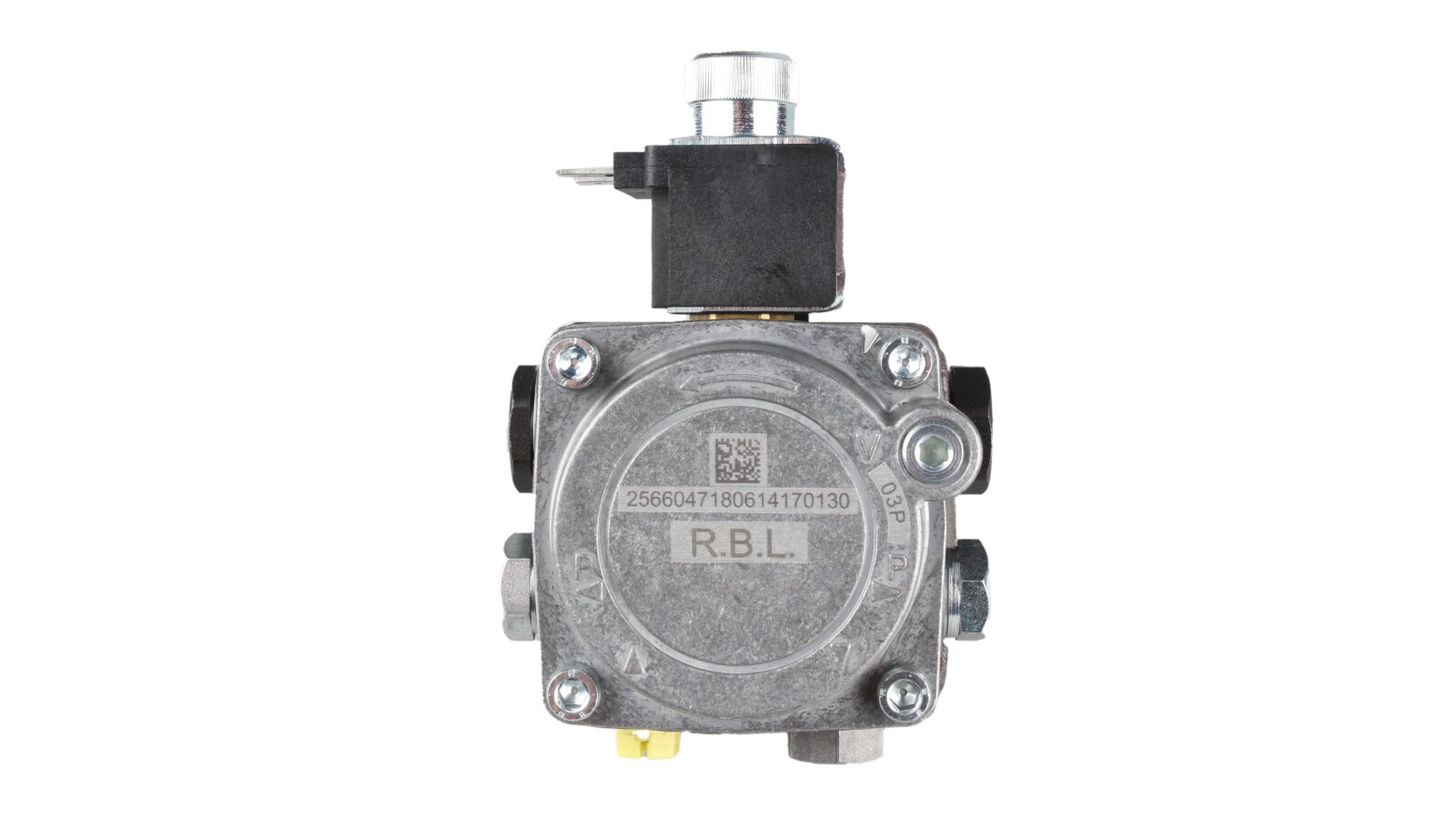

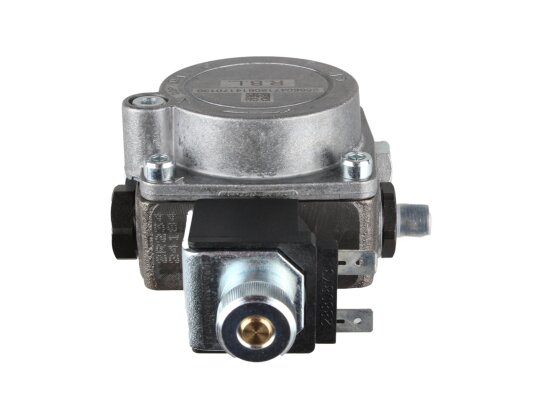

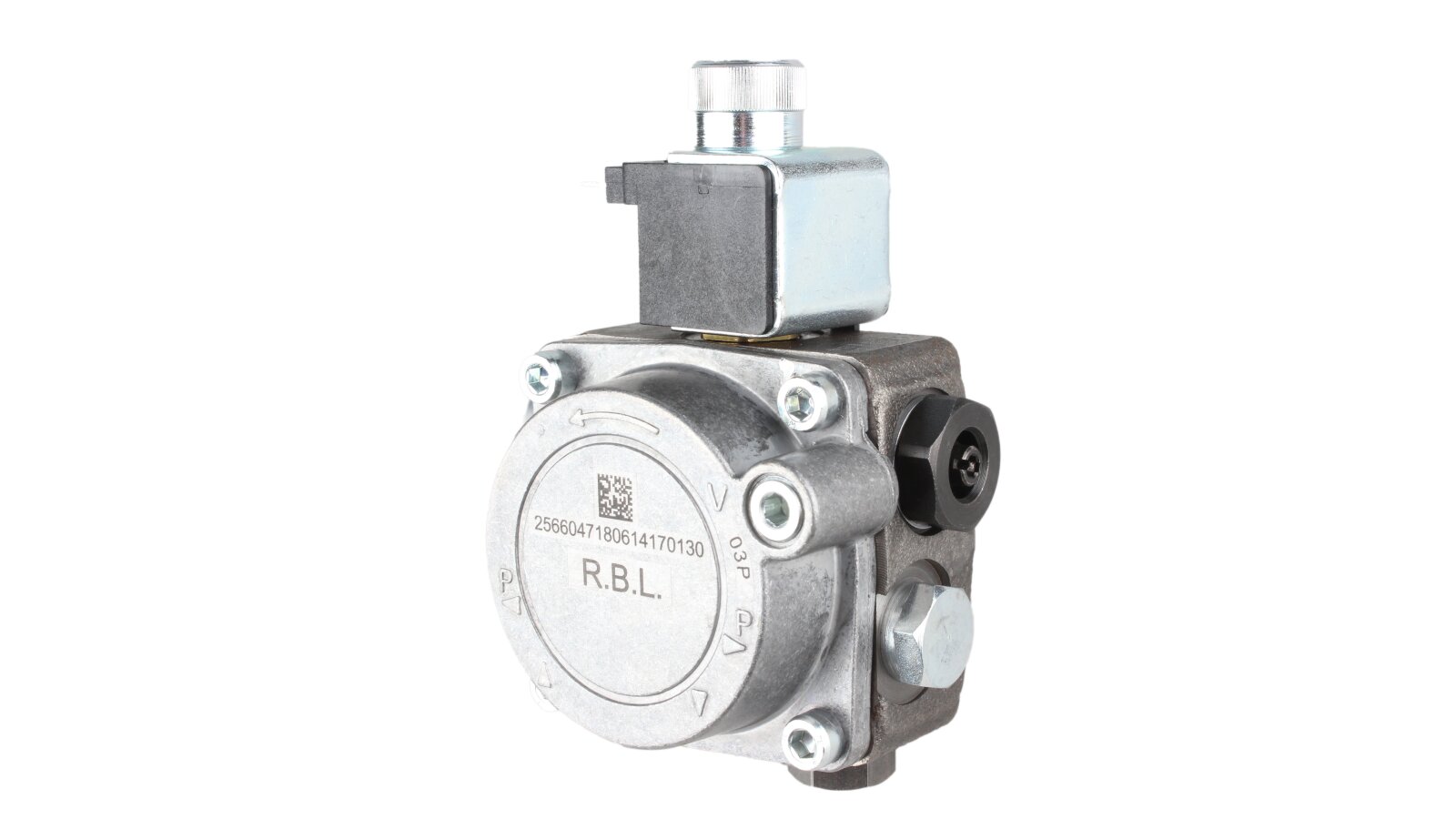

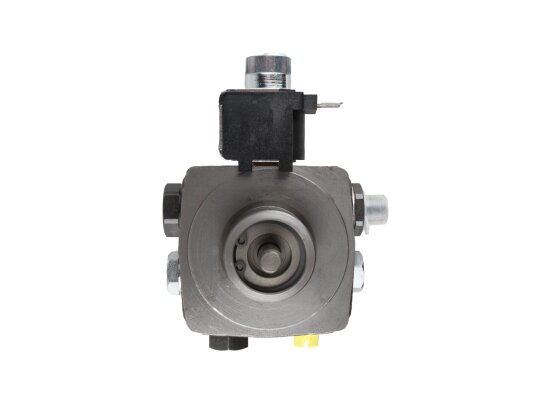

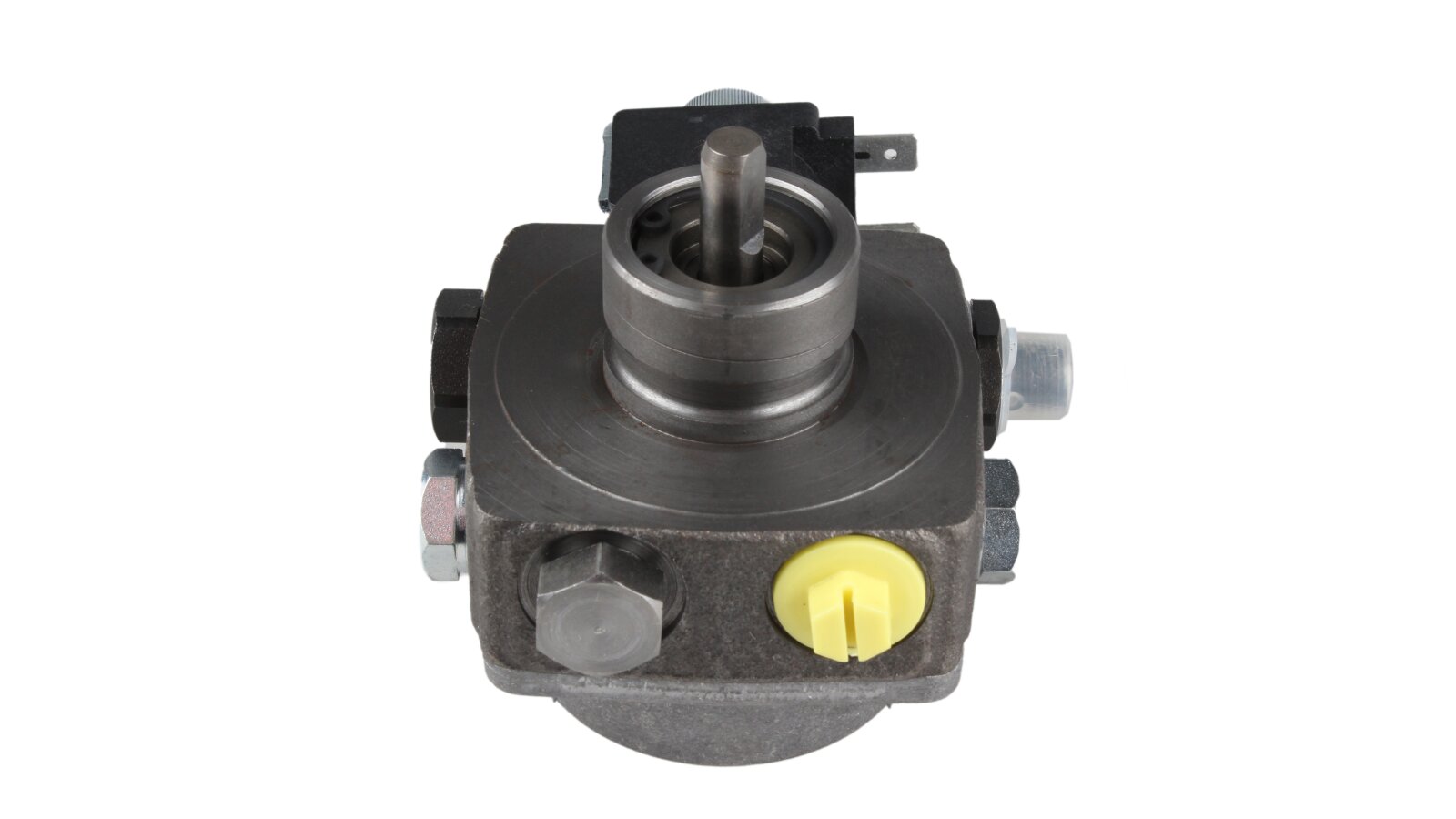

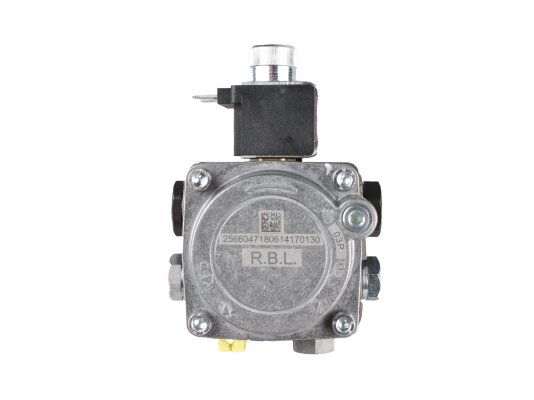

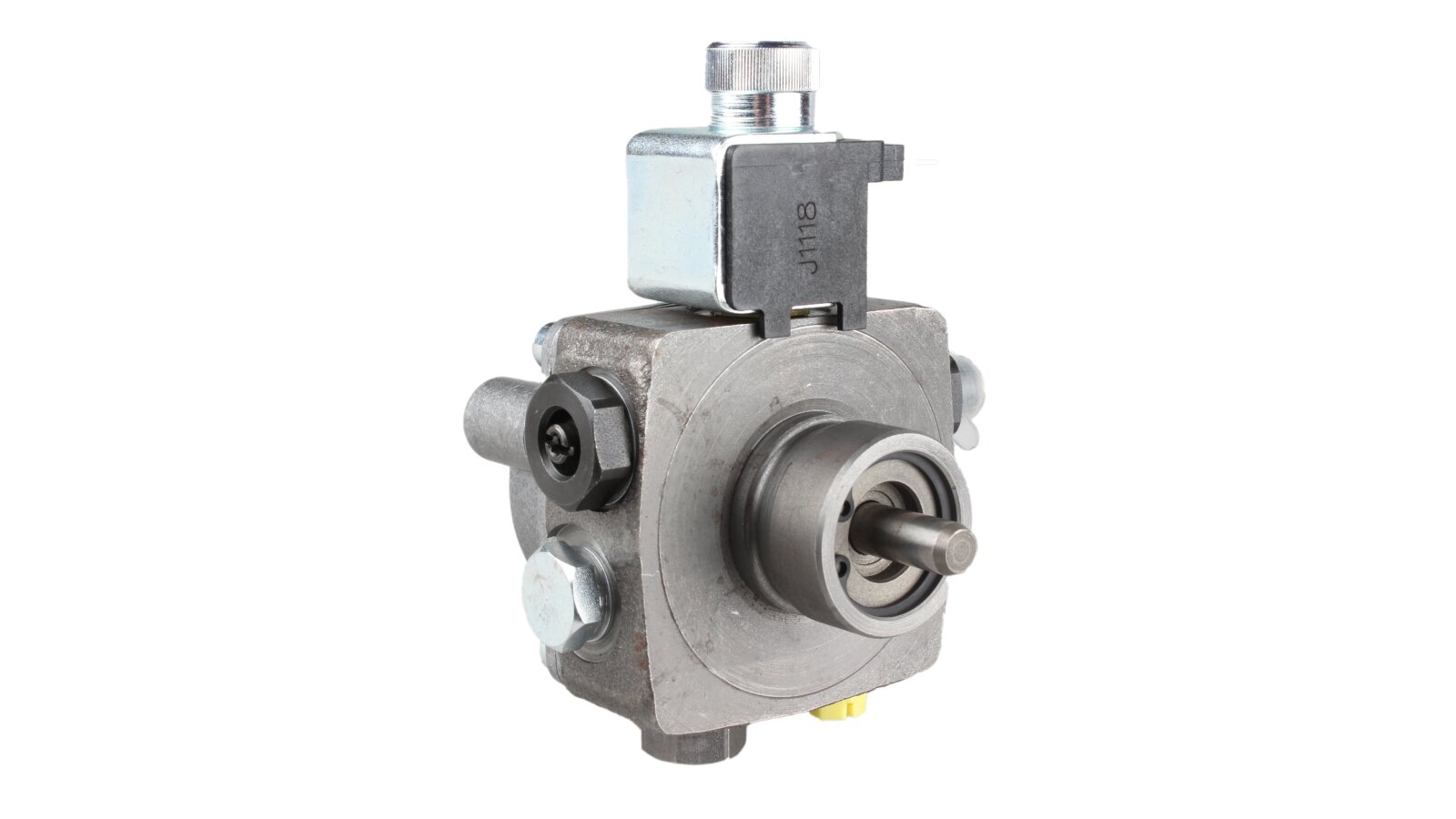

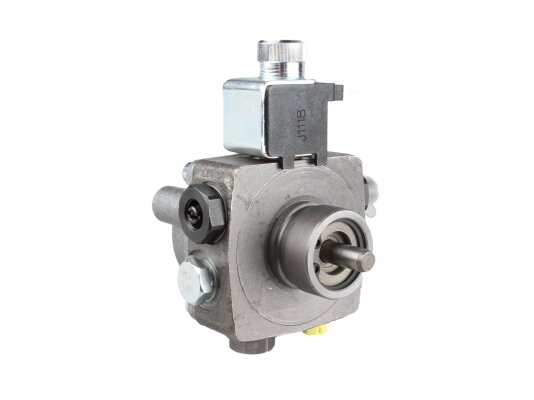

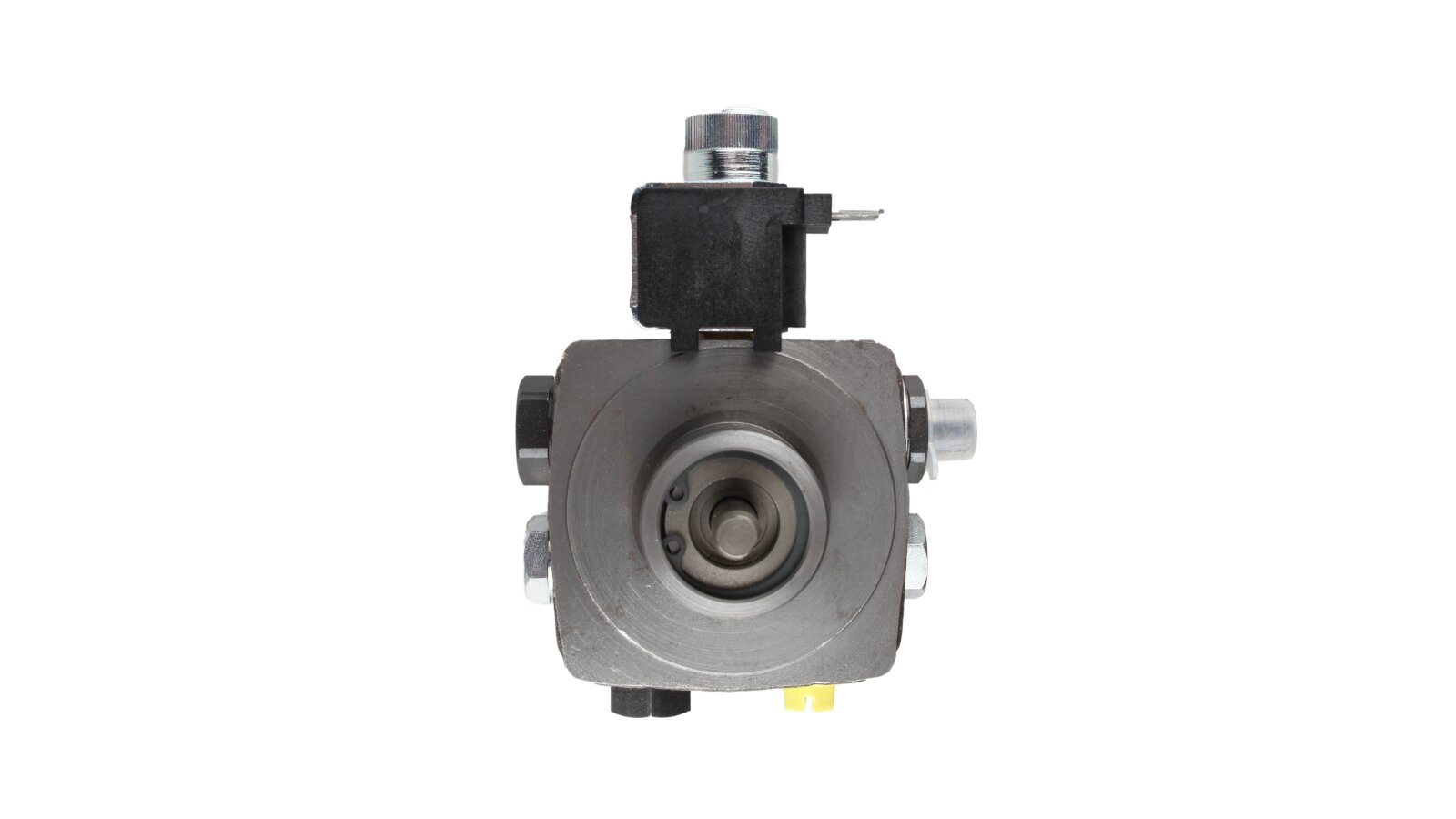

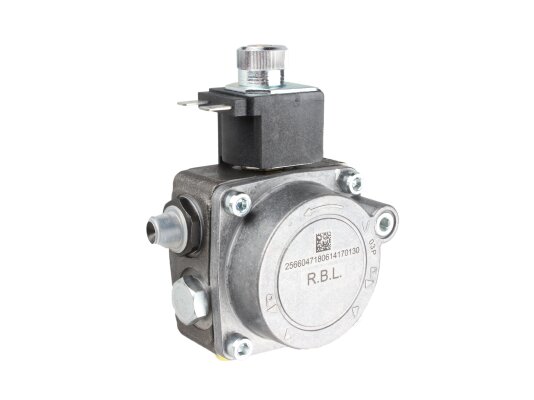

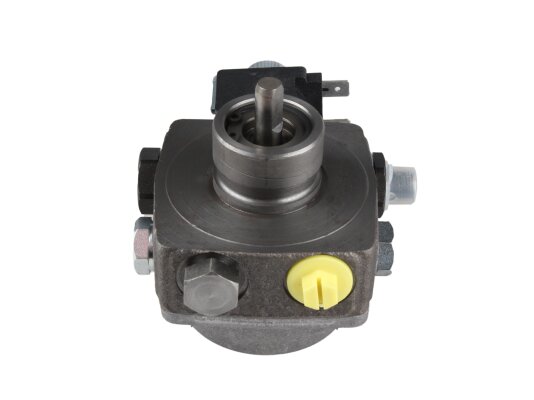

Burner Pump Riello 2566047

The Riello 2566047 burner pump with additional accessories, art.: 3002495, is used to supply fuel to the nozzle under pressure up to 15 bar. It is used in diesel burners with one stage of power regulation. The performance depends on the characteristics of the pumped fuel and the set pressure parameters.

Features:

• Pumped medium: diesel fuel;

• Built-in pressure regulator;

• Feed pressure setting range 7-15 bar, factory setting - 12 bar;

• Maximum temperature of the pumped fuel +60°C;

• Solenoid valve;

• Pressure in the feed and return lines - no more than 2 bar;

• Sleeve fit ∅ 32 mm;

• ⅛ inch hole for connection to the nozzle line;

• Connection to the suction and return lines ¼ inch;

• Hermetically sealed shaft;

• Main working unit - gear mechanism;

• reliable, wear-resistant design;

• long-term operation;

• port for connecting a pressure gauge;

• closed bypass line.

Riello 2566047 burner pump is used to equip Riello liquid fuel burners. Additional information can be obtained from ANKAS specialists.
