Description

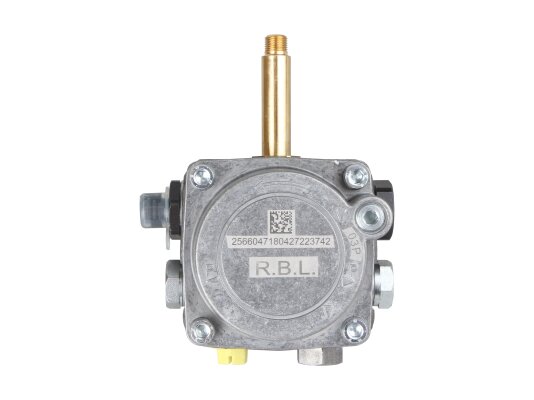

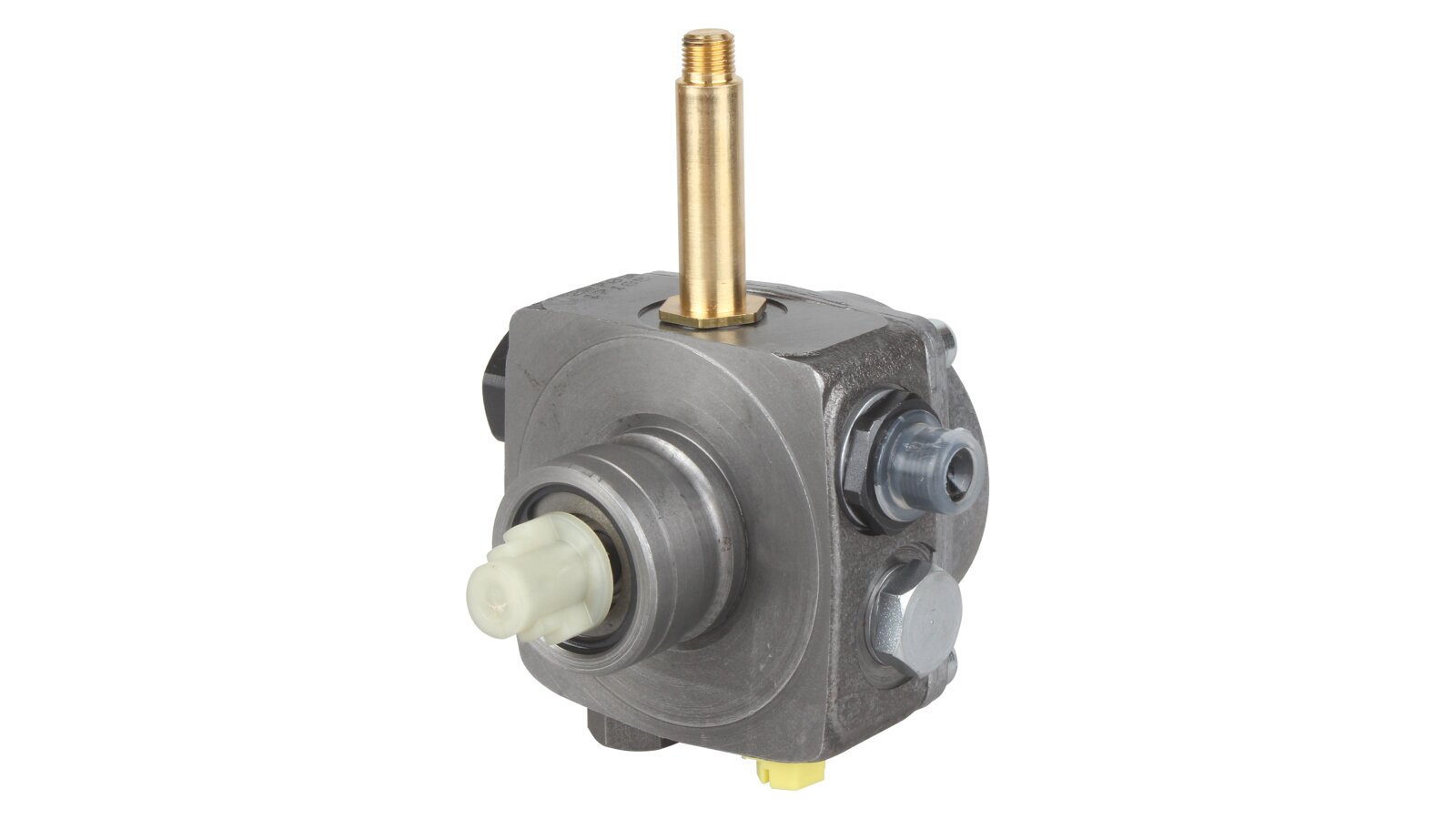

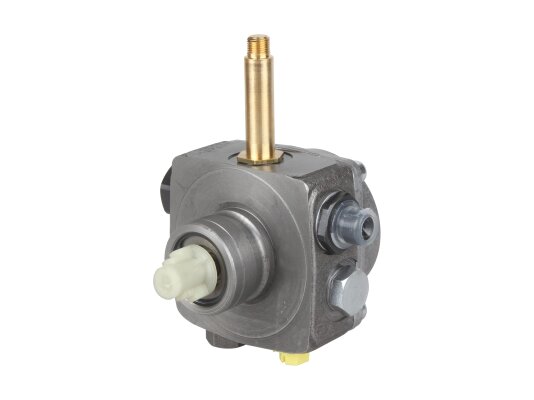

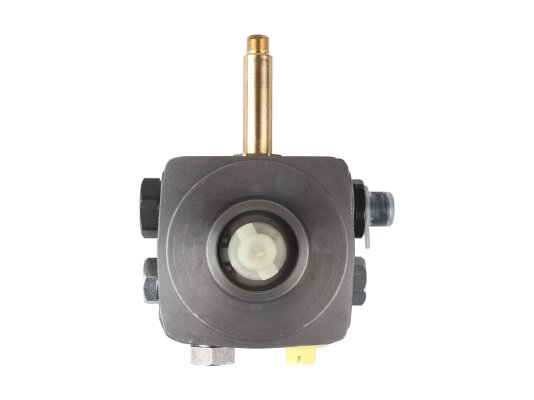

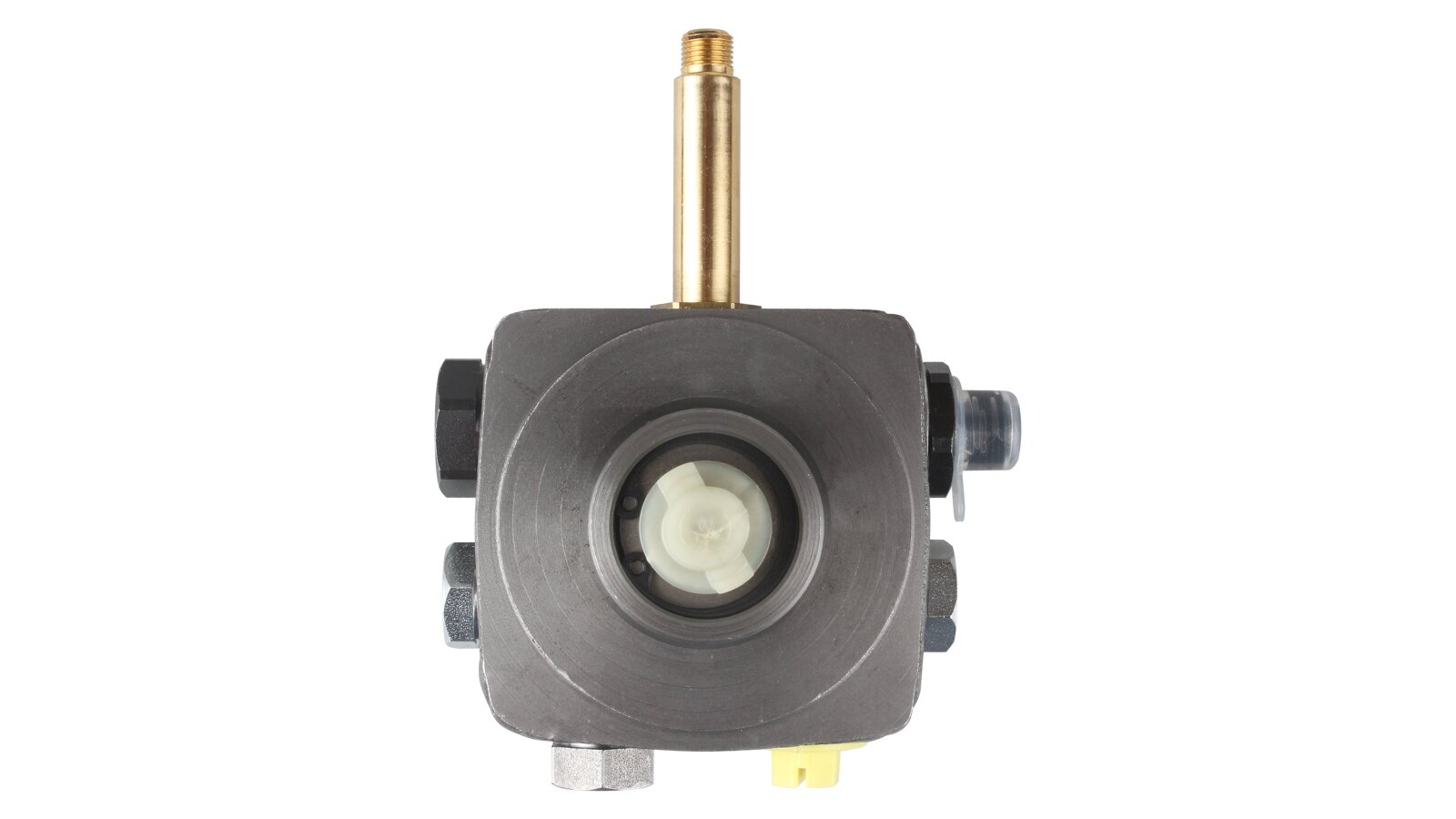

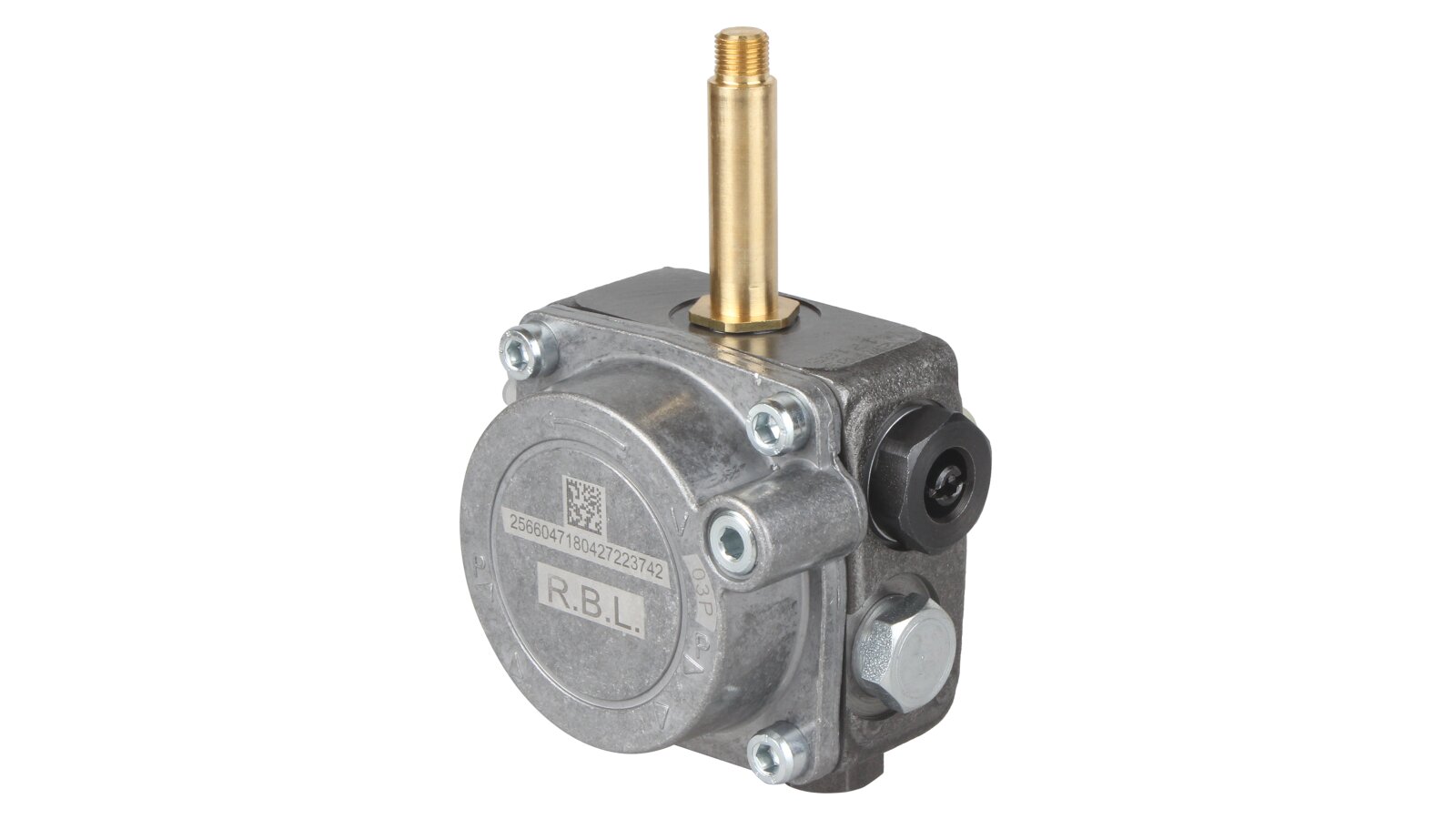

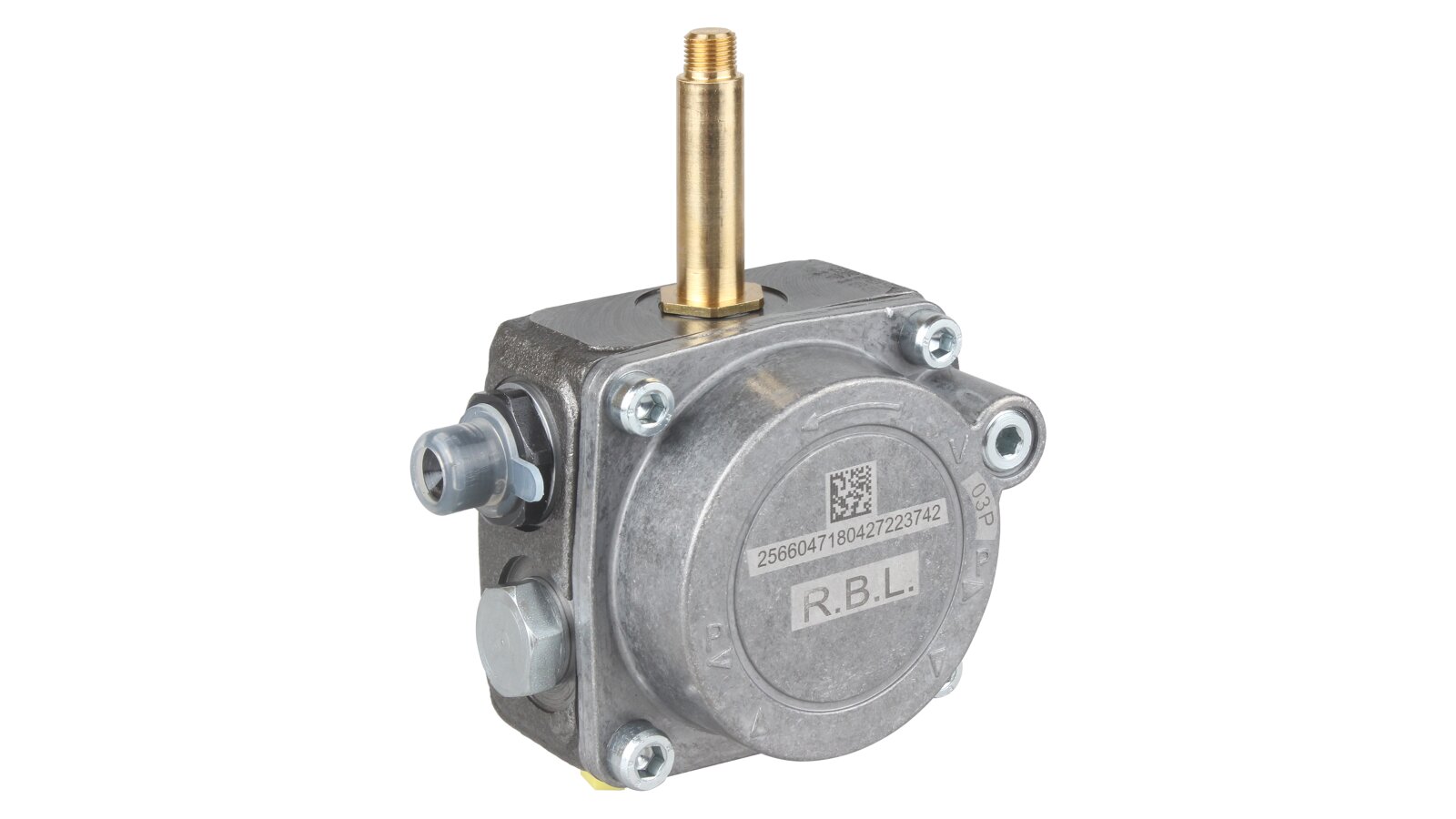

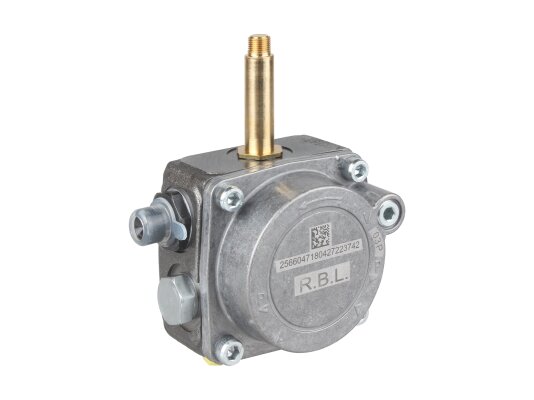

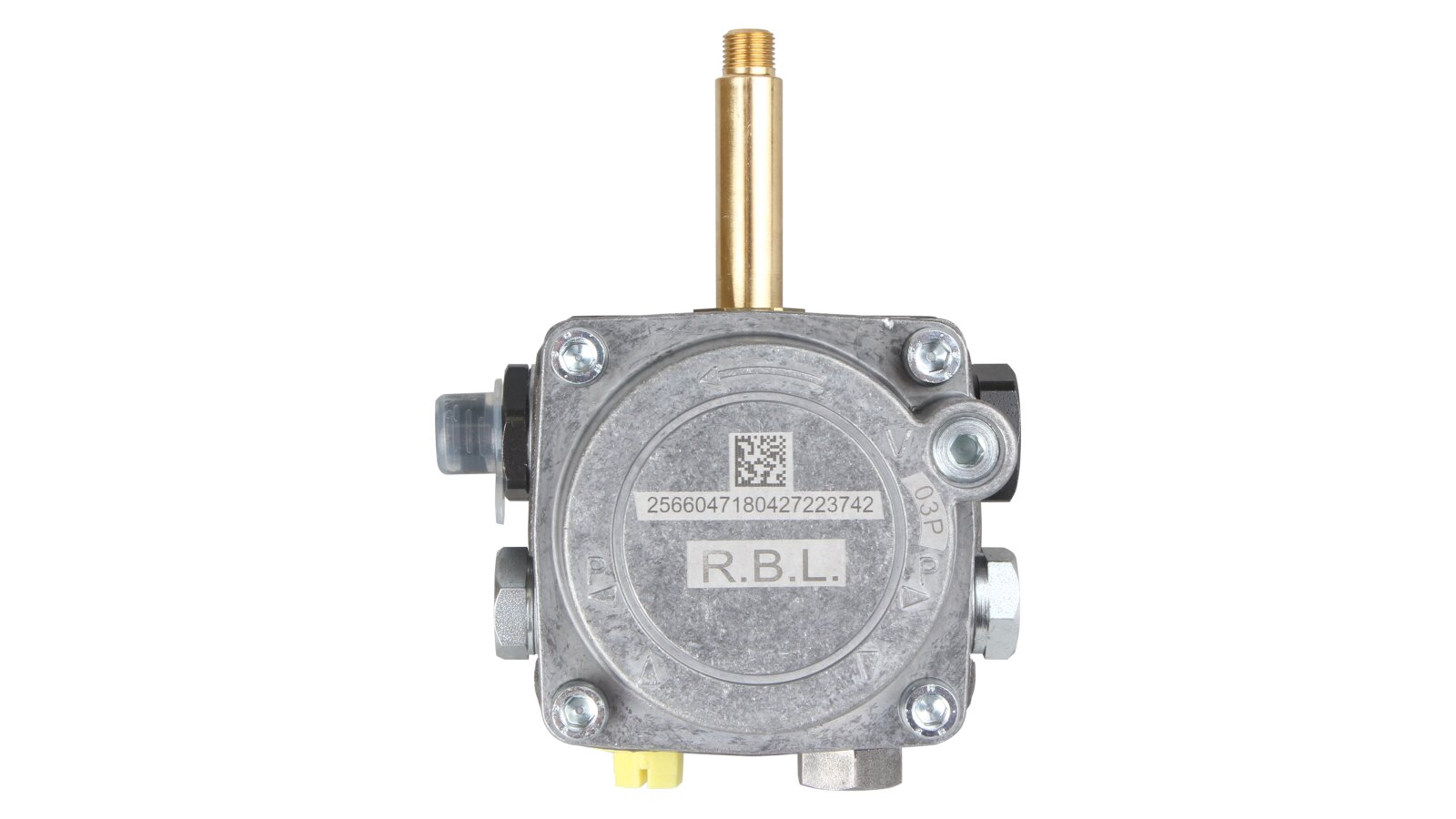

The Riello R.B.L. 2566047 pump pumps liquid fuel to the burner under pressure up to 15 bar. The pump is installed on the Riello burner device.
Technical specifications:
Working pressure range: 7-15 bar.
Installation method: Ø32 mm sleeve.
Factory pressure: 12 bar.
Suction line connection parameters: G¼" thread.
Working medium: diesel fuel.
Design and features:

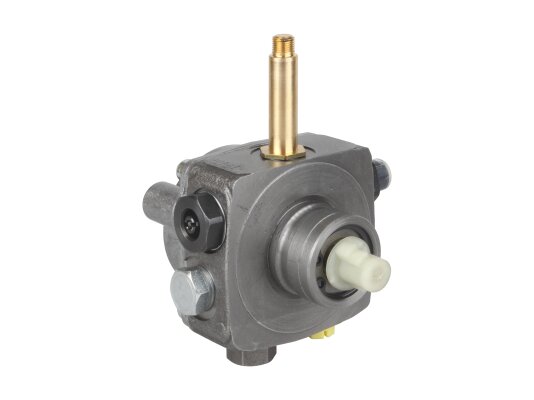

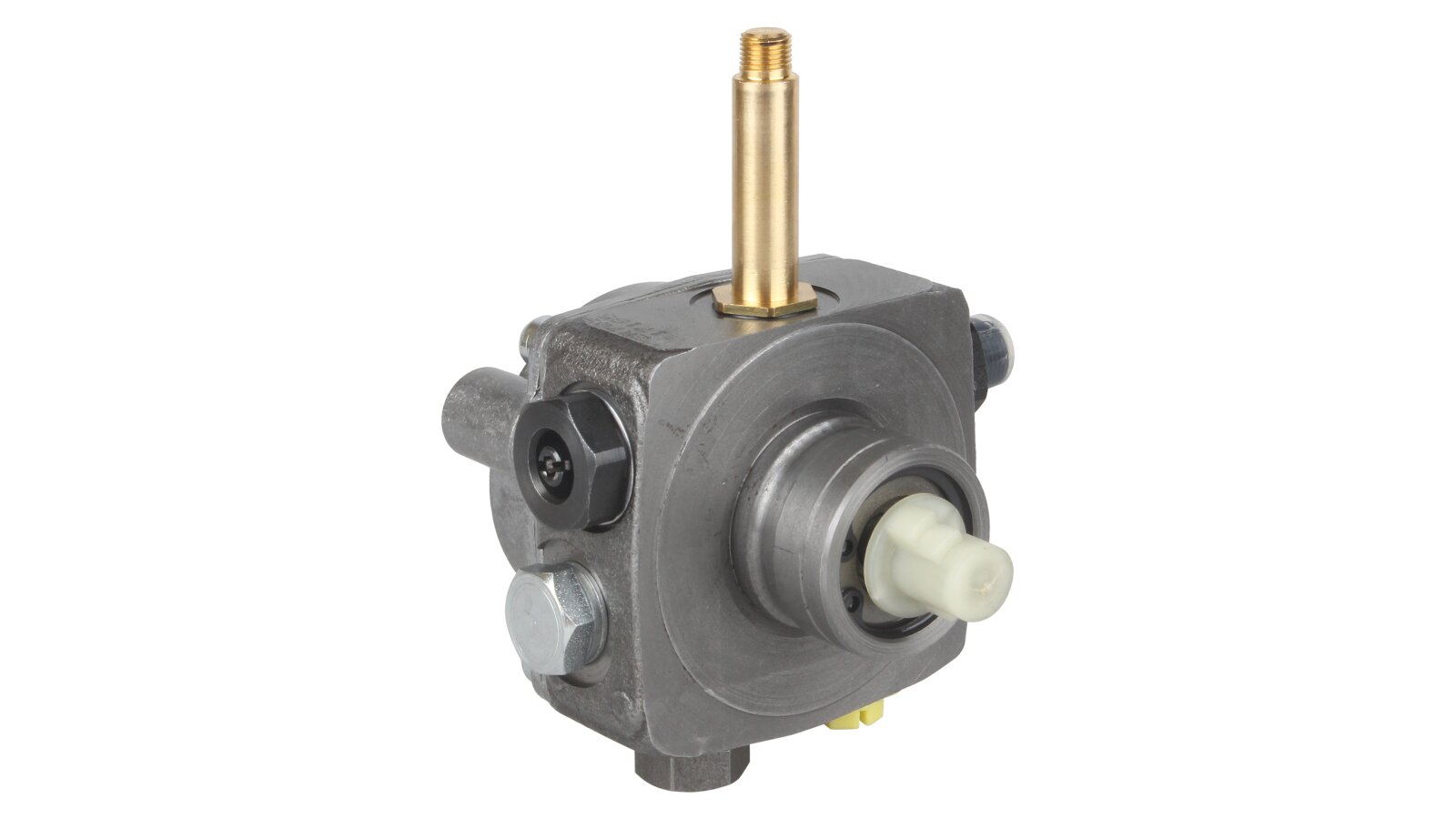

The Riello 2566047 pump is mounted on a 32 mm diameter sleeve.
The main functional unit is a gear mechanism with a clockwise rotating shaft.
A cylindrical pipe thread G¼" is provided for connecting the supply line.
The outlet pipe for connection to the nozzle is located on the right.
The fuel injection pressure can be adjusted to suit current tasks in the range of 7-15 bar by changing the factory setting (12 atm.).
The pump is equipped with an electromagnetic solenoid.
The housing has a hole for a pressure gauge.
A plug for a 1-pipe system is mounted on the return line.
You can learn more about the model from our specialists. In order to buy a Riello R.B.L. pump at a dealer price, fill out the order form in the basket.
