Description

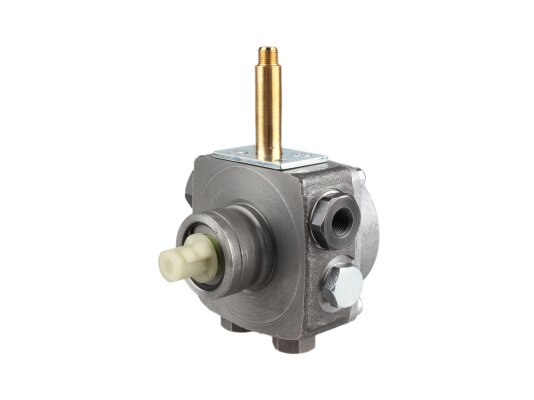

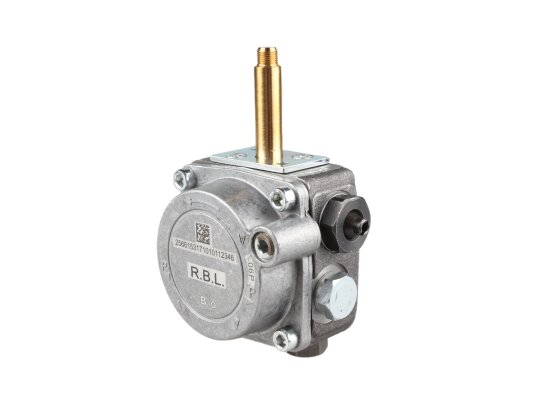

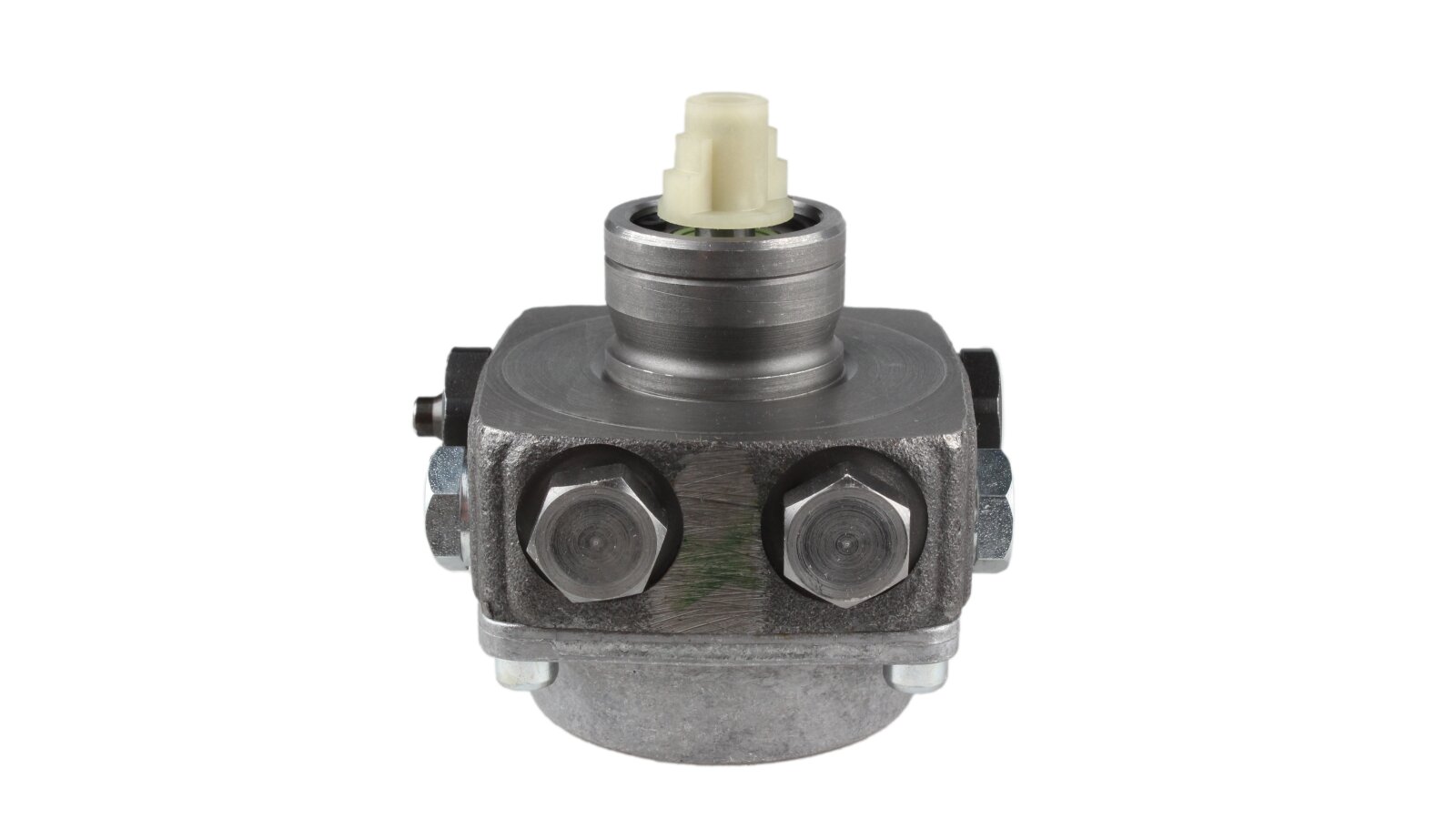

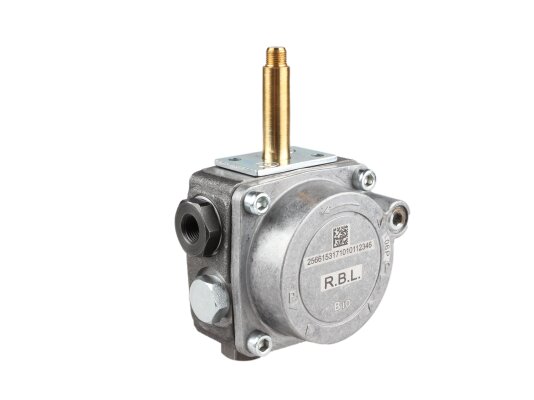

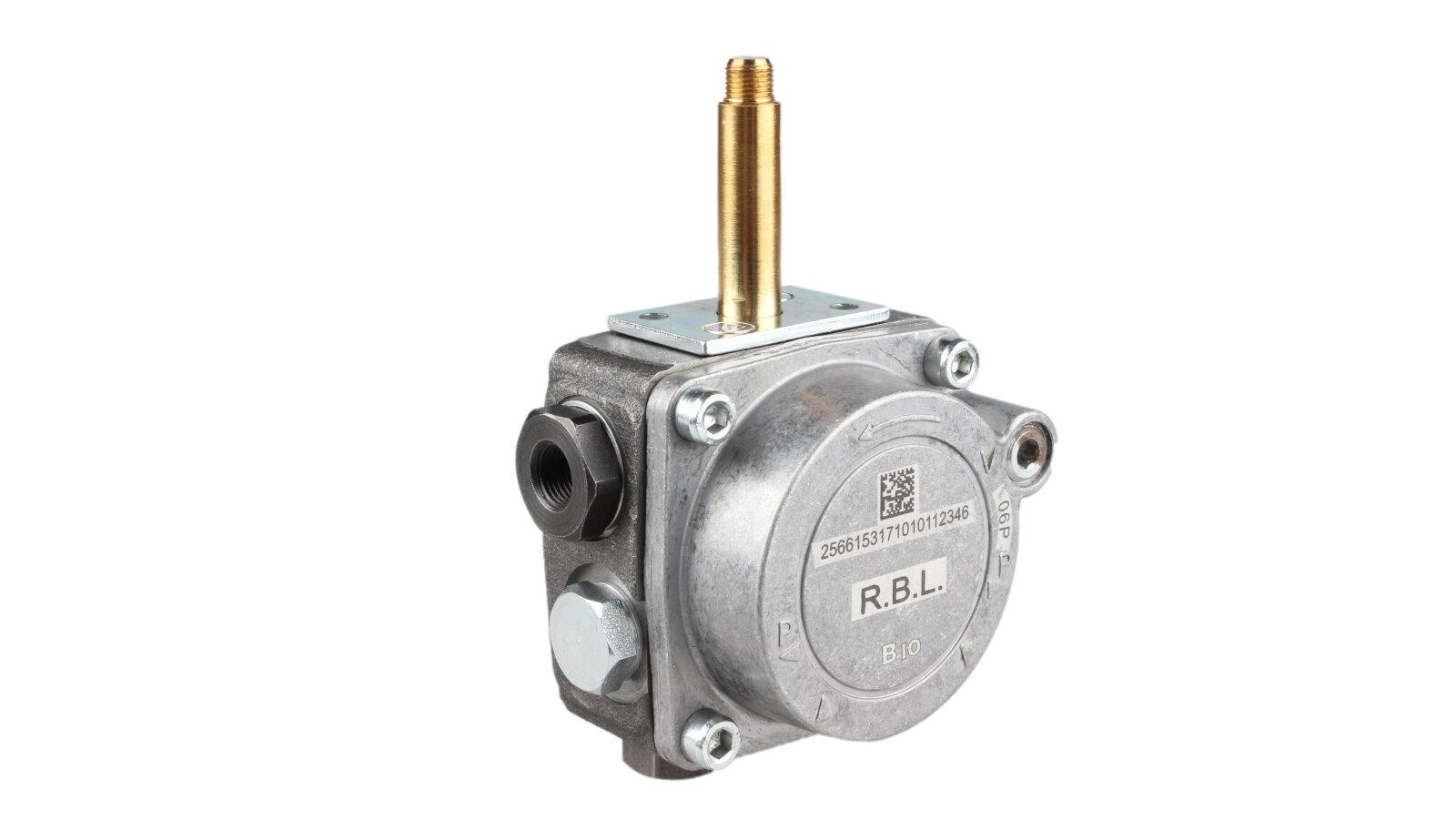

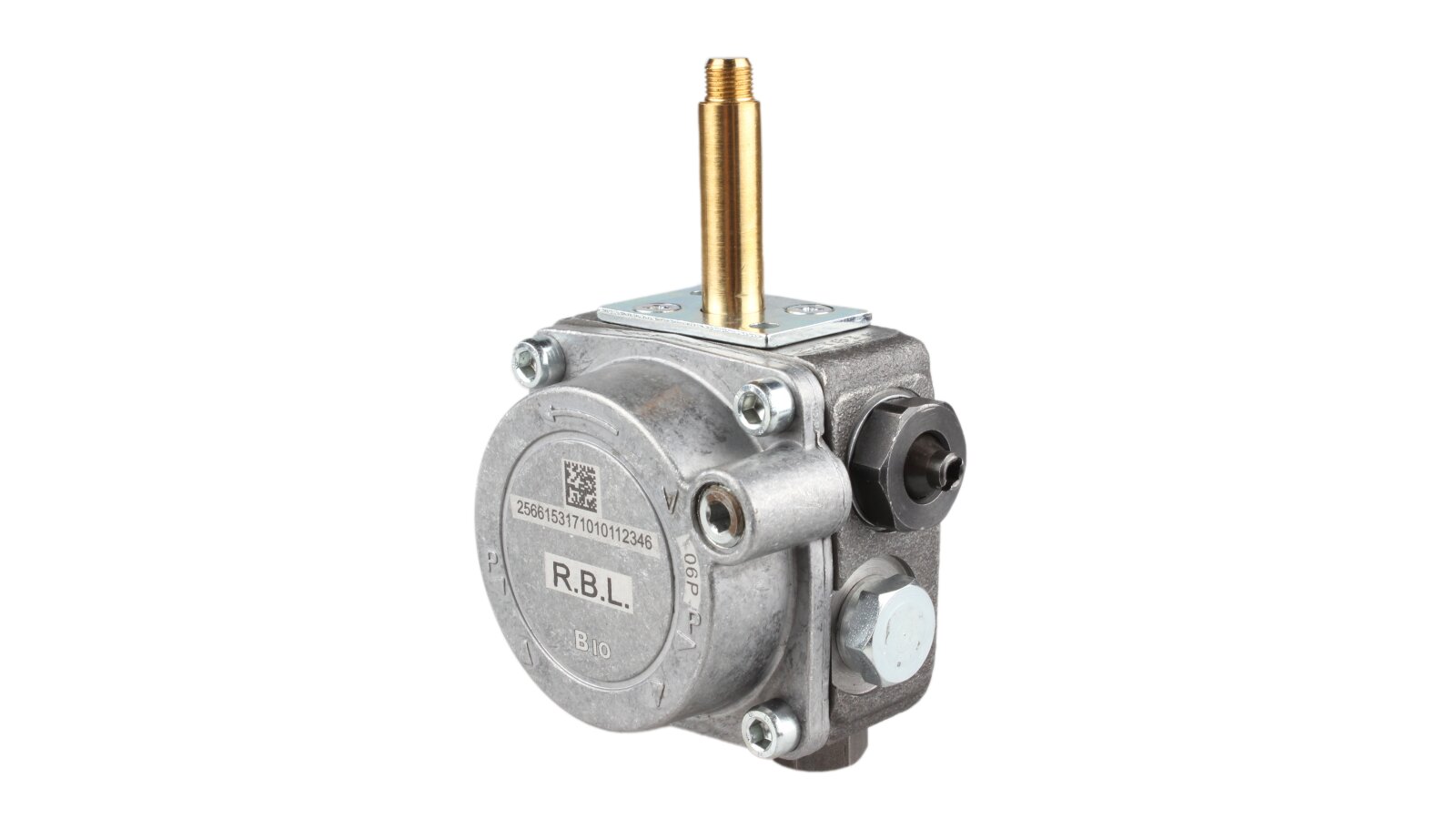

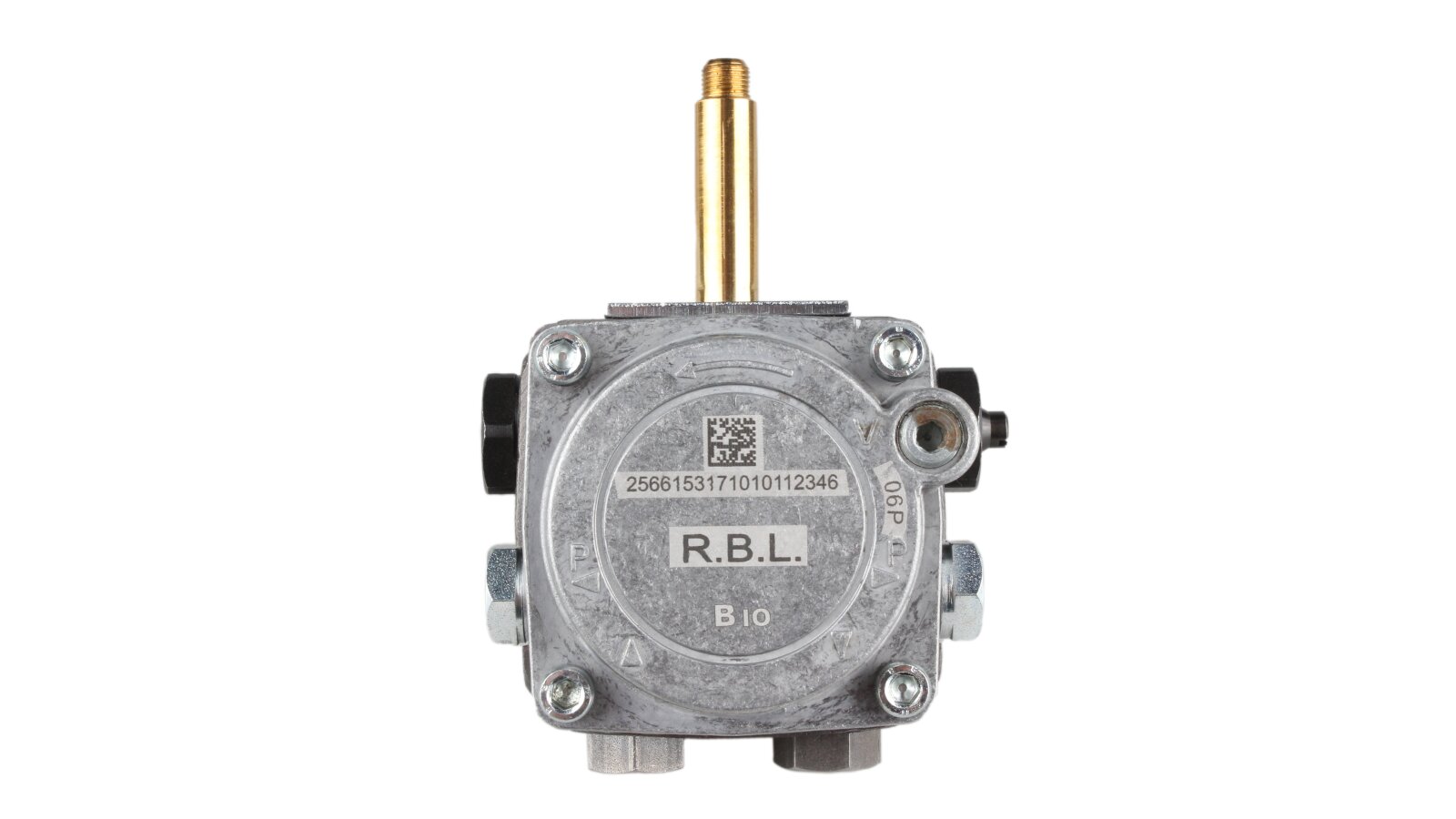

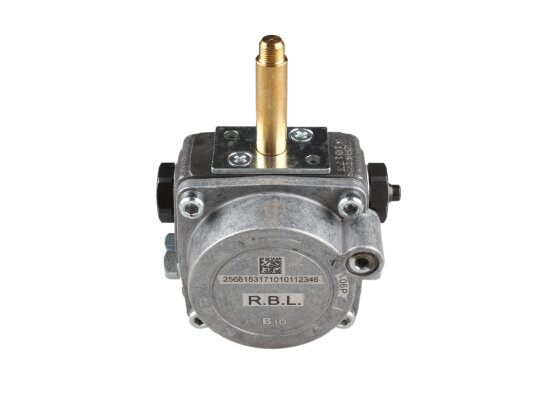

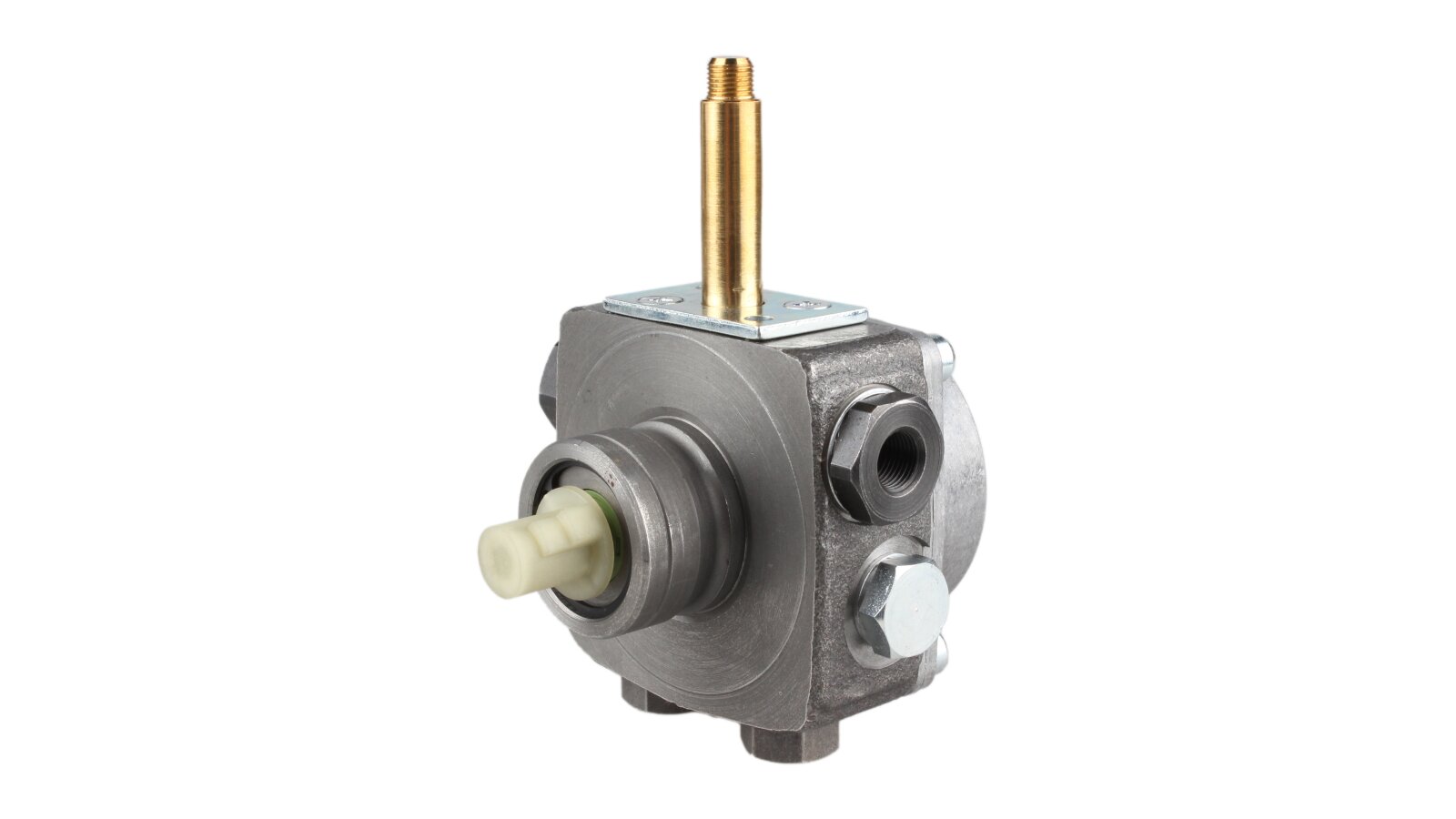

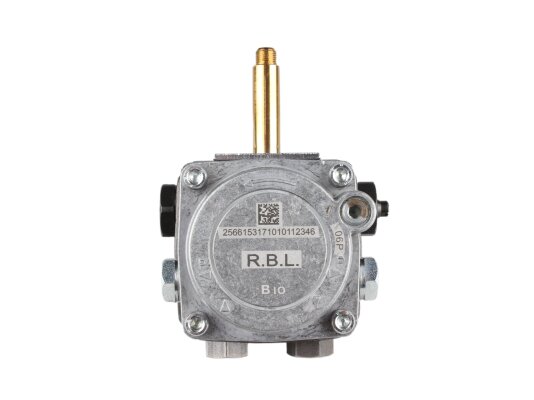

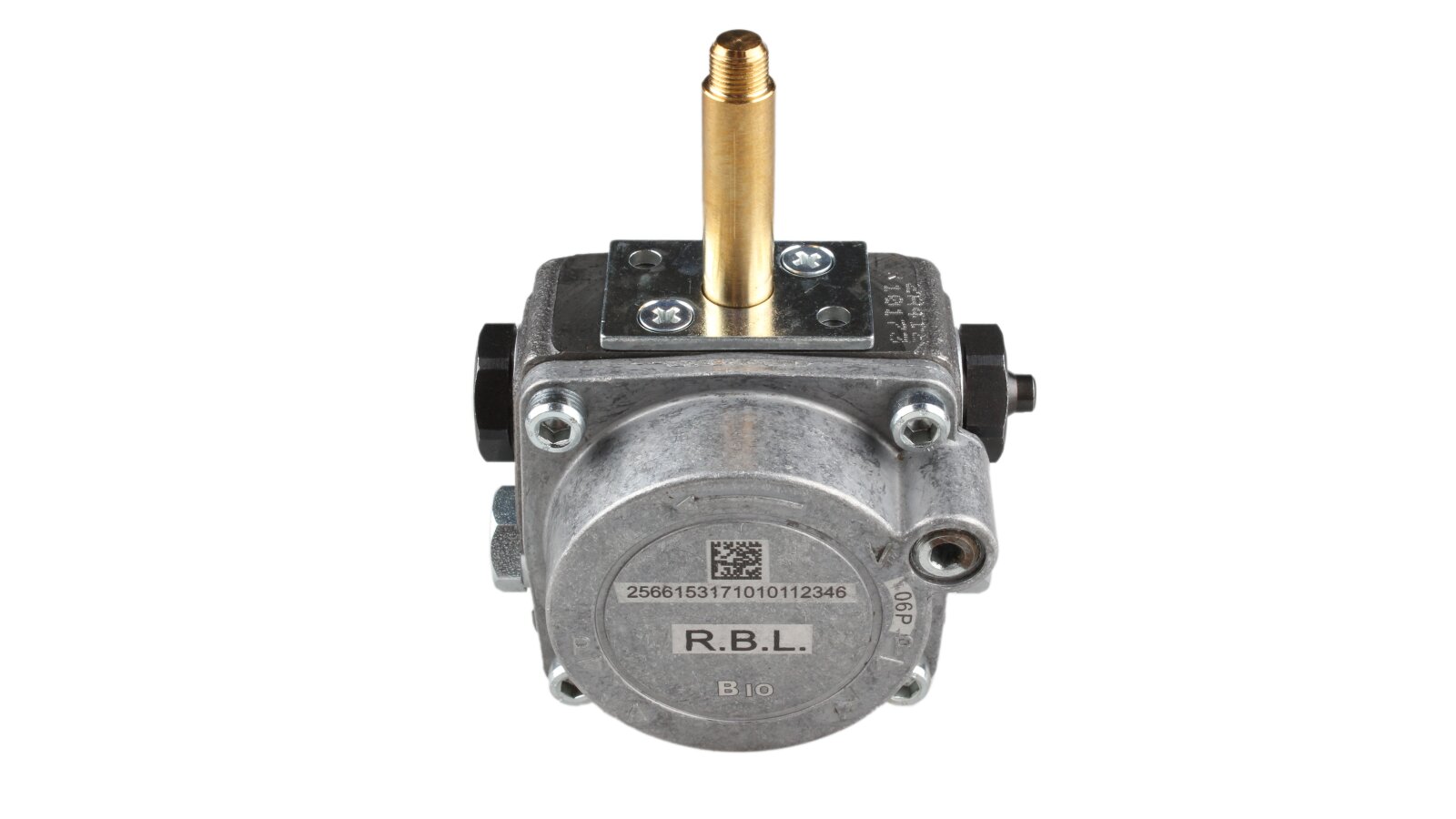

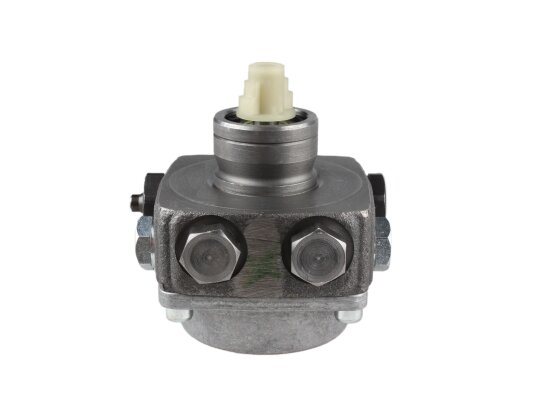

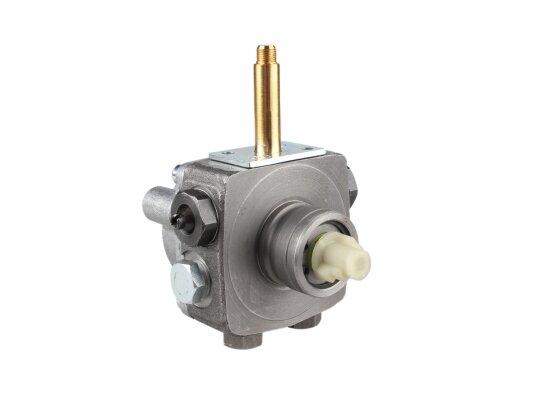

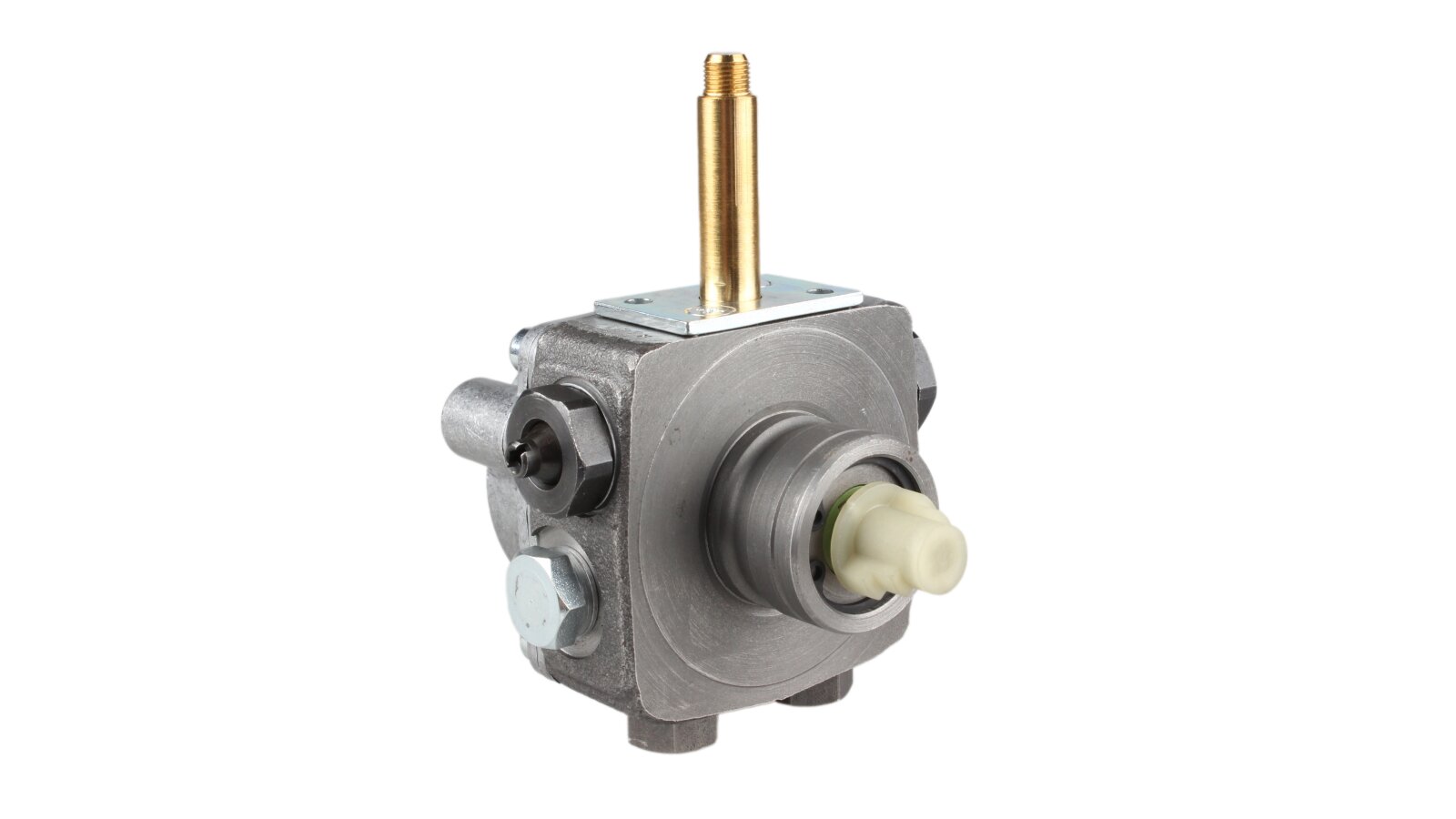

The Riello 2566153 B10 burner pump, art.: 3020499, supplies diesel fuel and biofuel to the injector for further combustion. Equipped with an electromagnetic solenoid.
Features:
Right-side outlet for connection to the injector;
Standard sleeve seat with a diameter of 32 mm;
Forcing diesel fuel onto the injector line under a pressure of 7-15 bar ("default" - 8 bar);
Connection of the suction line and return drain to the G¼" thread;
Universality - for diesel fuel and biofuel;
No bypass plug, the drain channel is blocked for a 1-pipe system;
Clockwise shaft rotation;
Equipped with an electromagnetic solenoid;
Durable construction, wear-resistant design.
You can find out more about the model from ANKAS consultants.
Characteristics
Manufacturer Part Number: 3020499Suction and return line: ¼ inchNozzle pressure range: from 7 to 15 barFactory pressure setting: 8 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightModel type: 1 stage with electromagnetic valveInstalling the bypass plug: M: no bypass plug, return line closed to single pipe systemType of pumped liquid: diesel
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
