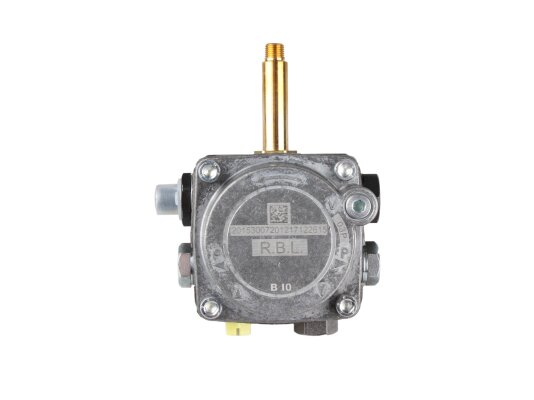

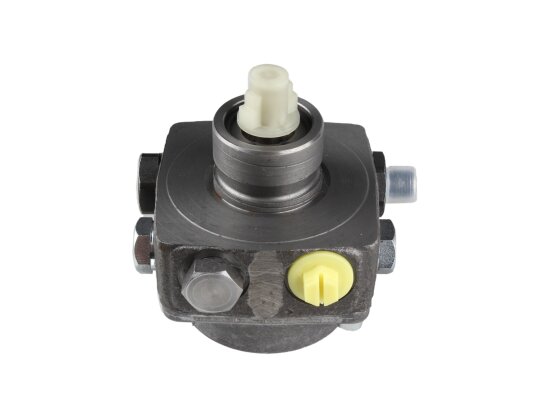

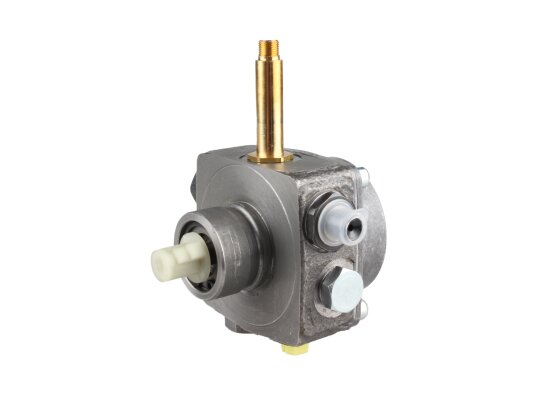

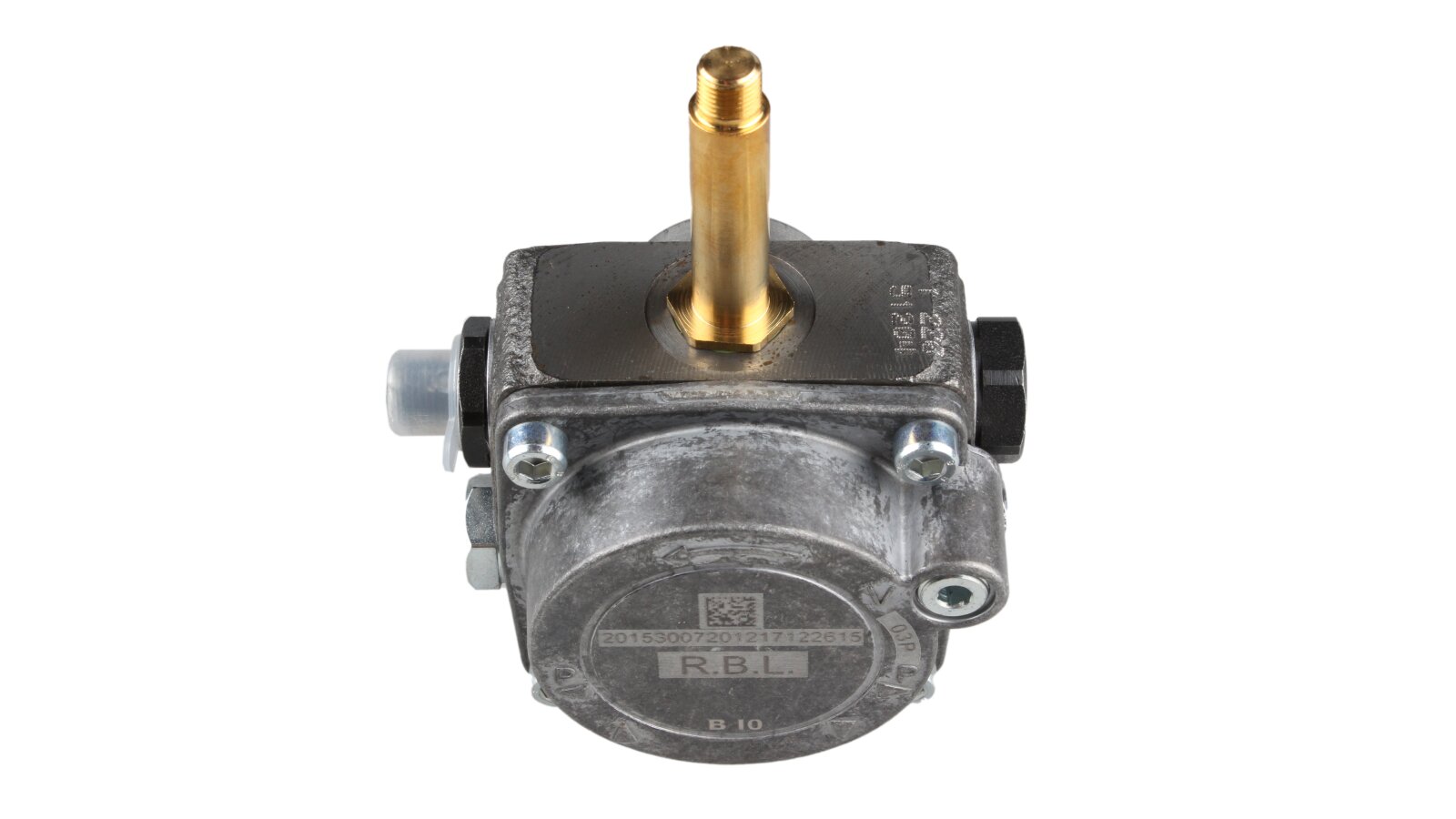

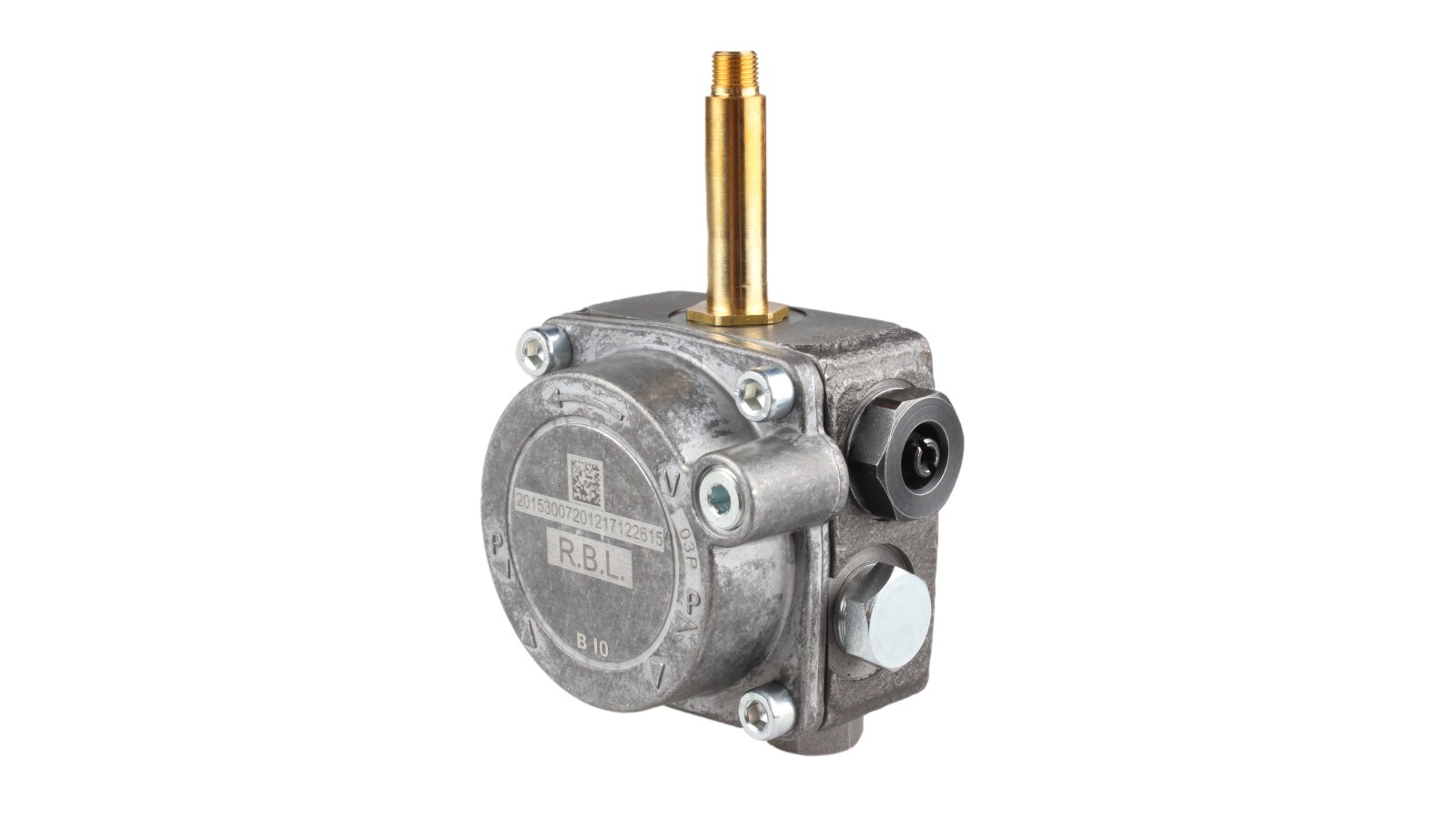

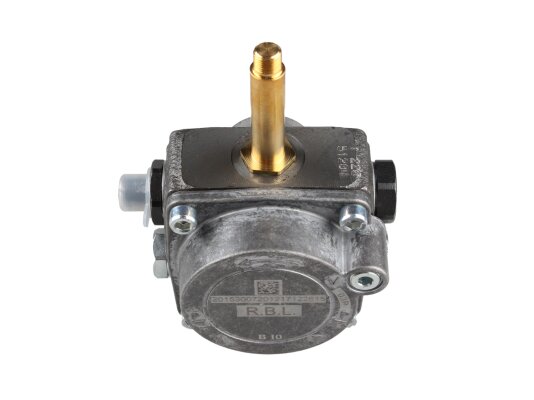

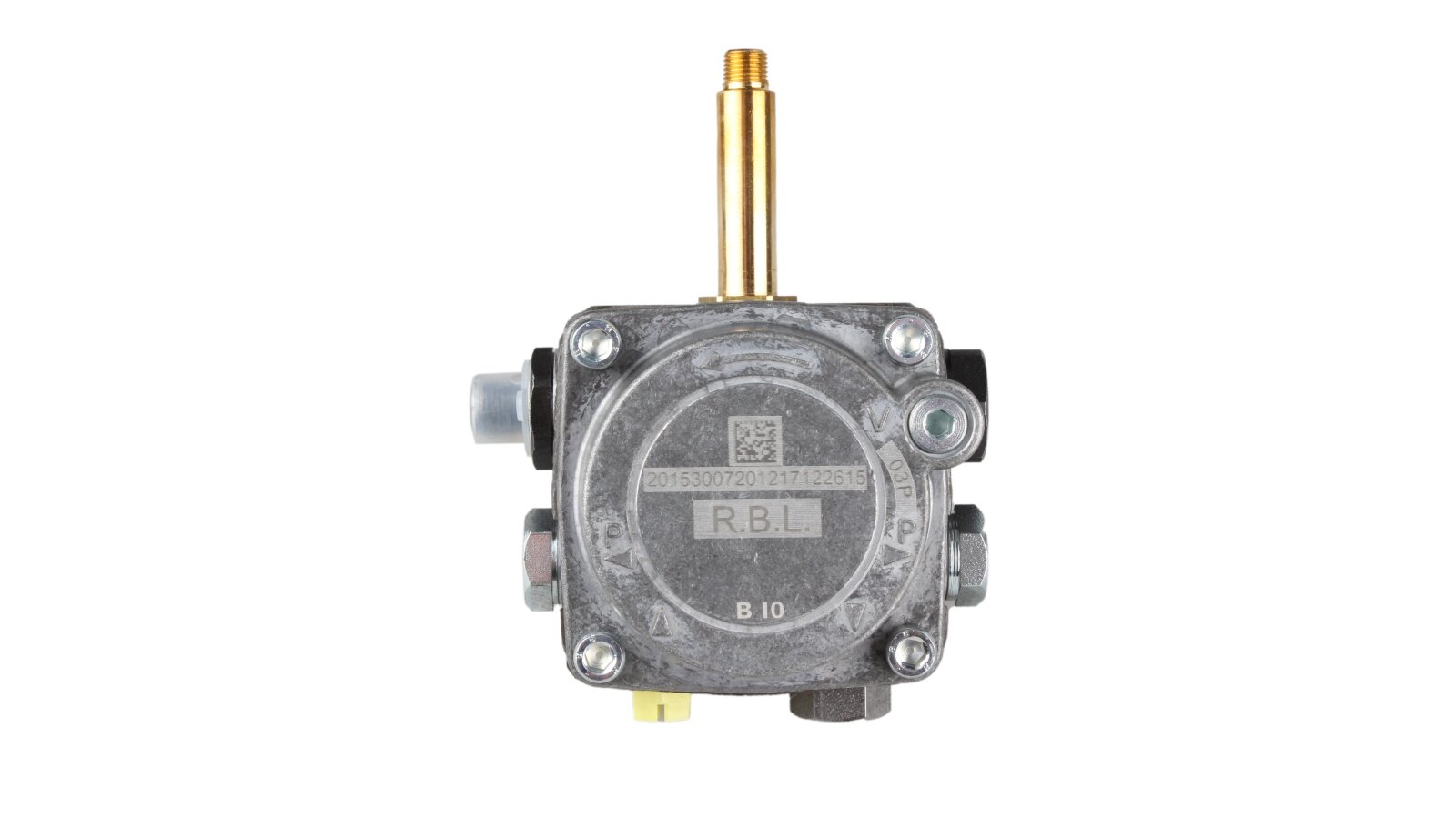

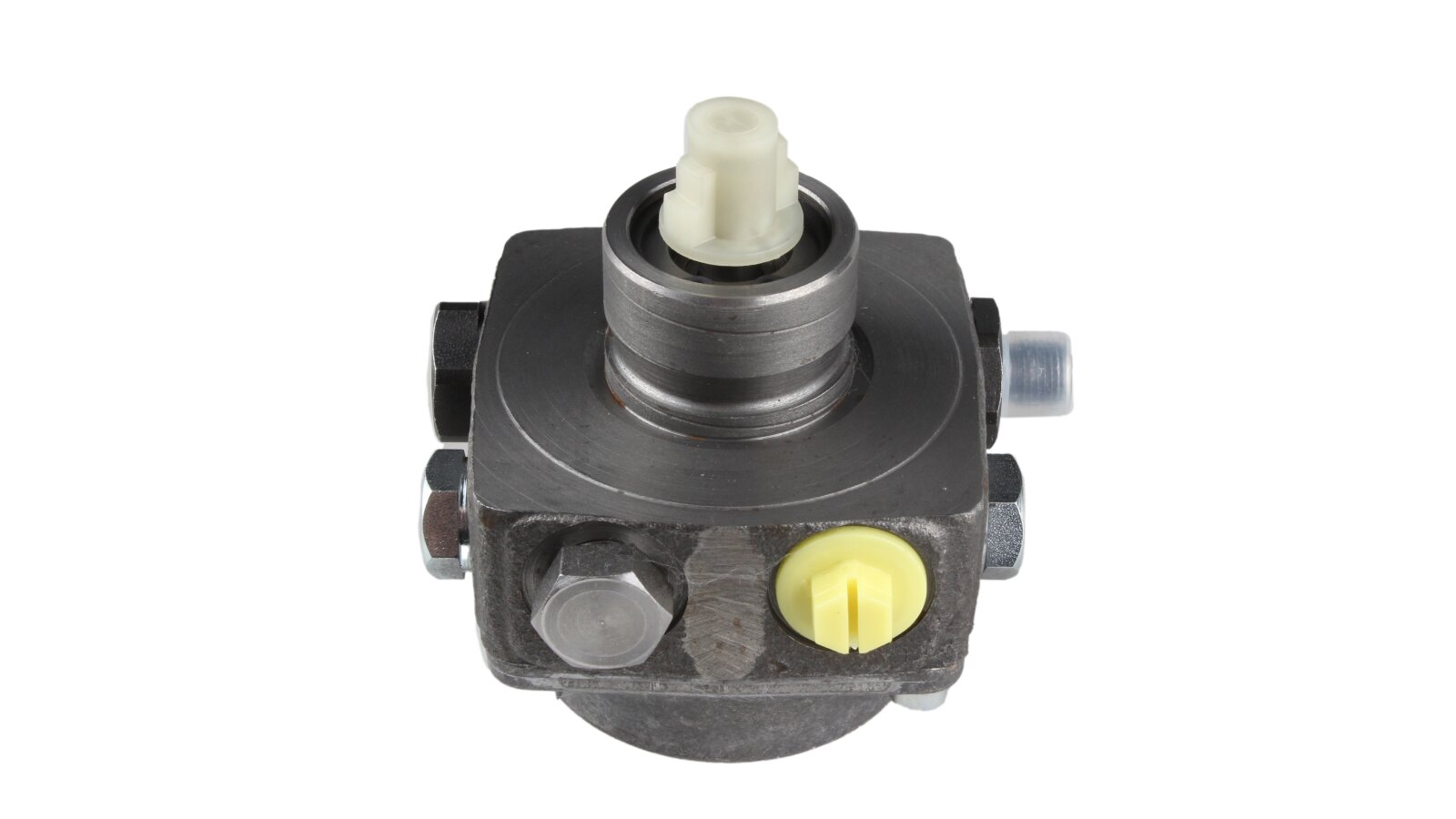

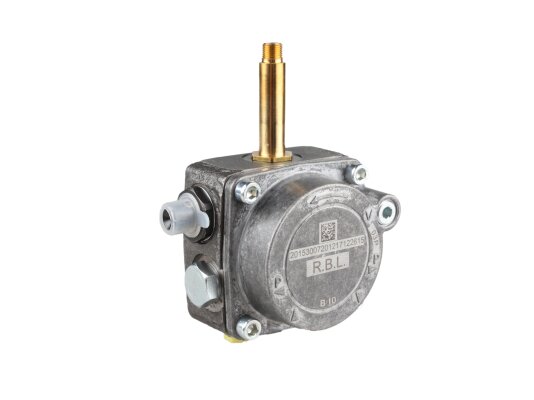

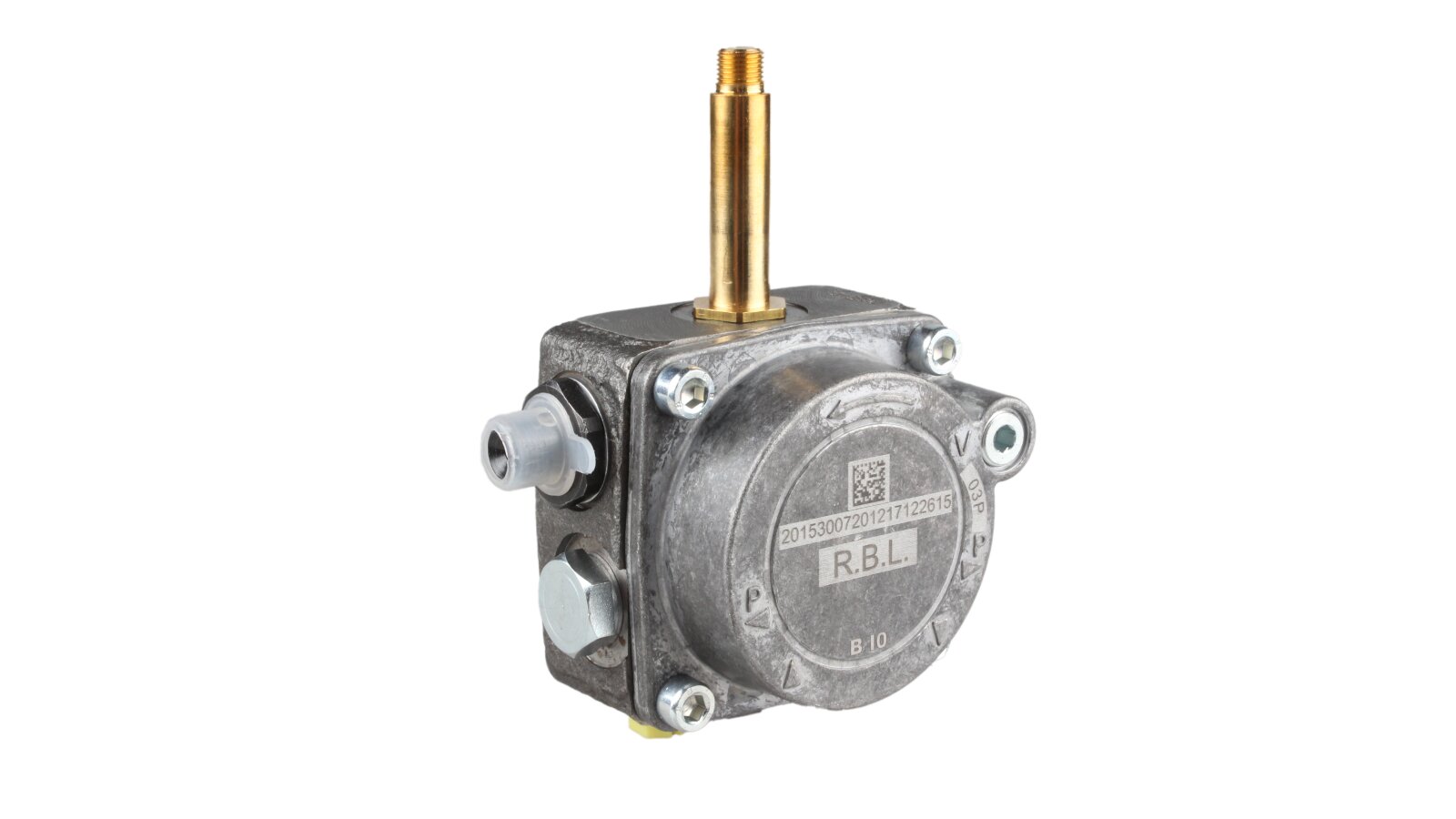

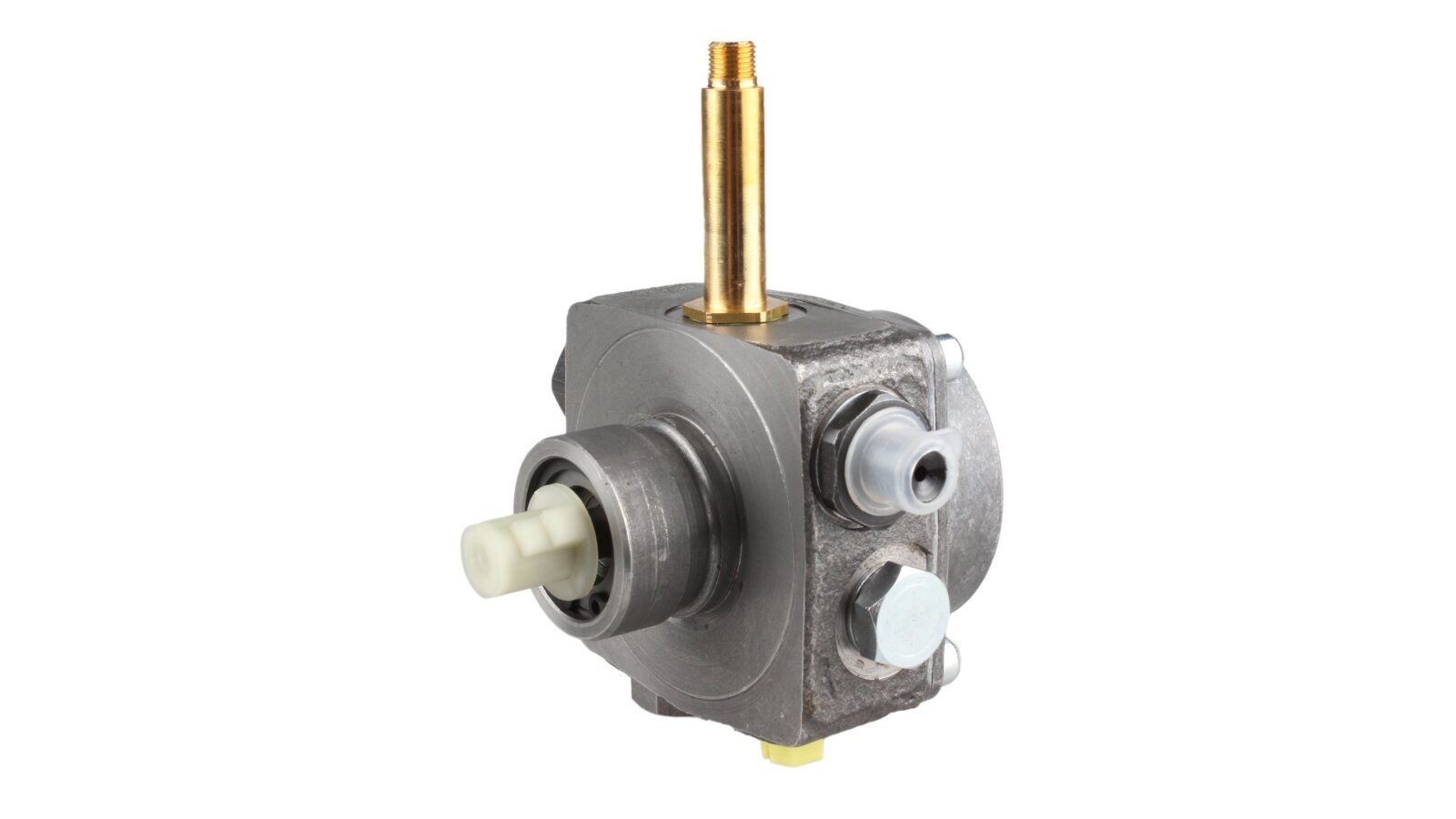

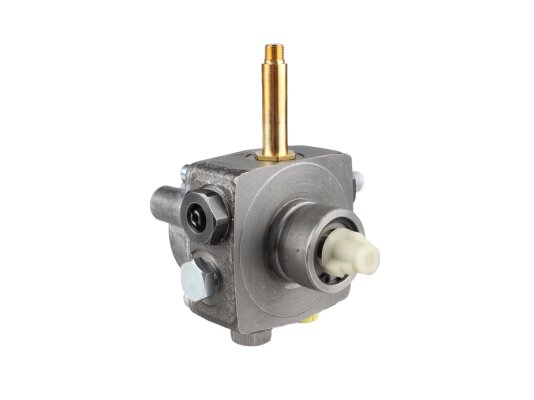

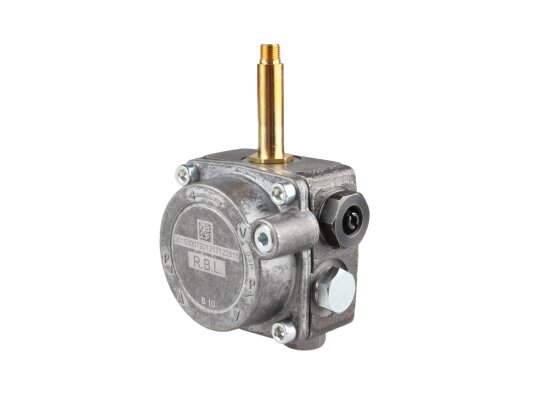

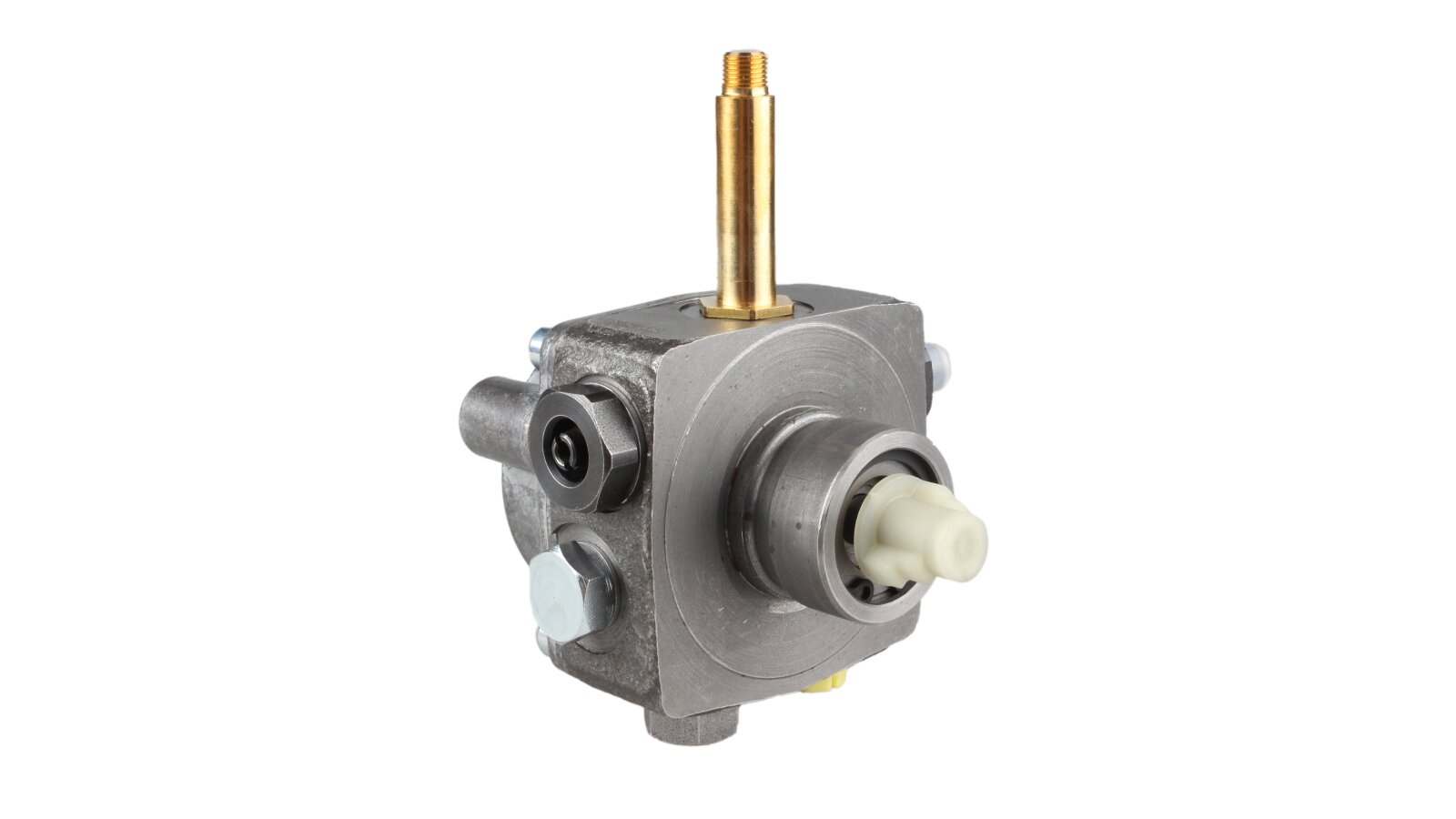

Burner Pump Riello, 3007808

Riello3007808
AED 1,025
  1. Oil Burner Pumps

Description

The Riello 3007808 burner pump is designed to pump diesel fuel to the nozzle under pressure from 7 to 15 bar. The performance depends on the characteristics of the pumped fuel and the specified pumping parameters.

Parameters and features:

  • working environment: diesel fuel;

  • pressure regulator;

  • feed pressure setting range 7-15 bar, preset pressure - 8 bar;

  • maximum temperature of the pumped fuel +60°C;

  • pressure in the feed line and return line - no more than 2 bar;

  • sleeve fit ∅ 32 mm;

  • filter at the flow inlet to clean the fuel from contaminants;

  • hermetic shaft seal;

  • reliable, wear-resistant design;

  • long-term operation;

  • closed bypass line.

The Riello 3007808 burner pump is used to equip liquid fuel burners. Detailed information about the model can be obtained from ANKAS consultants.

Characteristics

Manufacturer Part Number: 3007808Nozzle outlet: ¼ inchNozzle pressure range: from 7 to 15 barFactory pressure setting: 8 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstalling the bypass plug: M: no bypass plug, return line closed to single pipe systemType of pumped liquid: diesel
