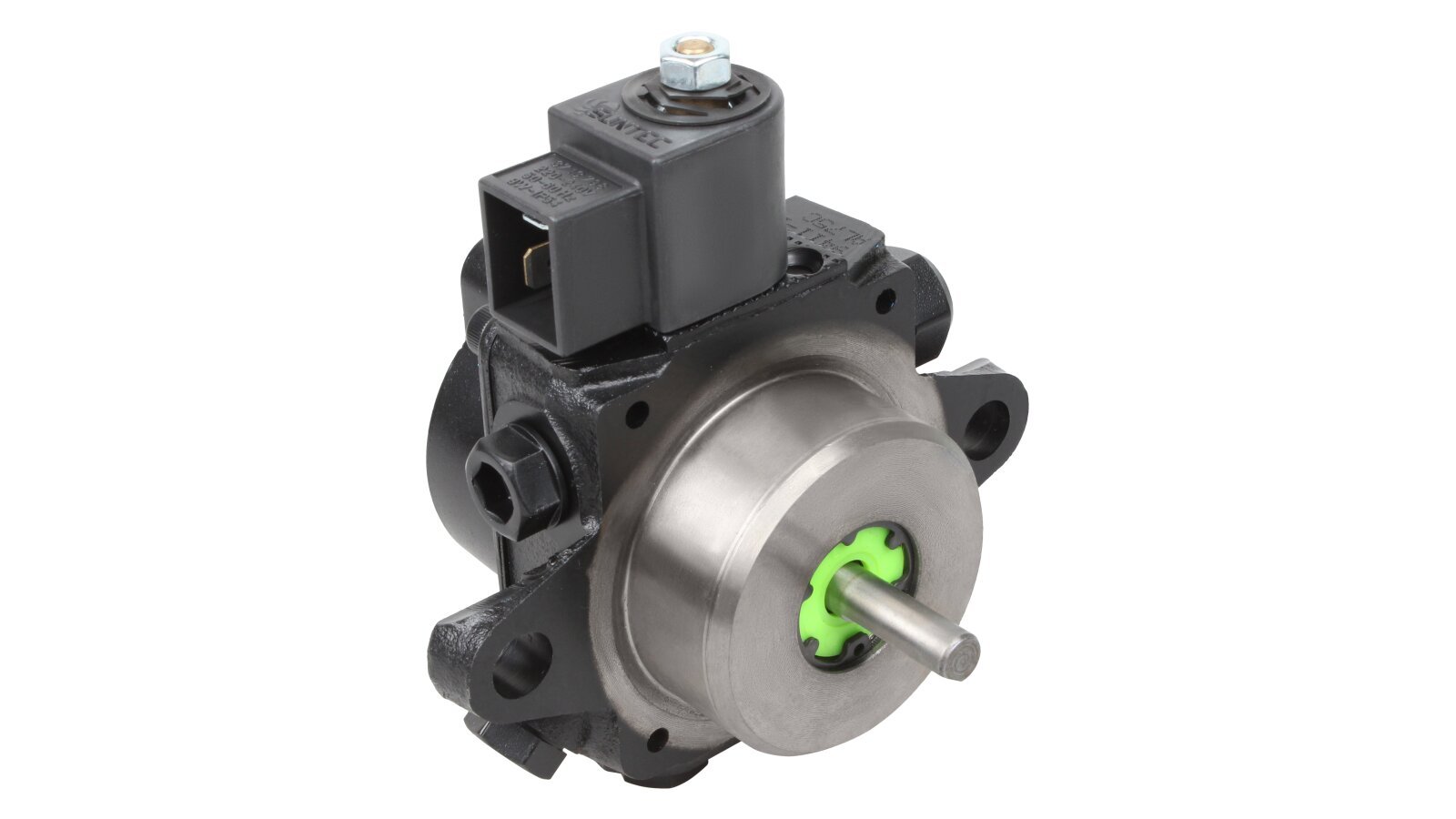

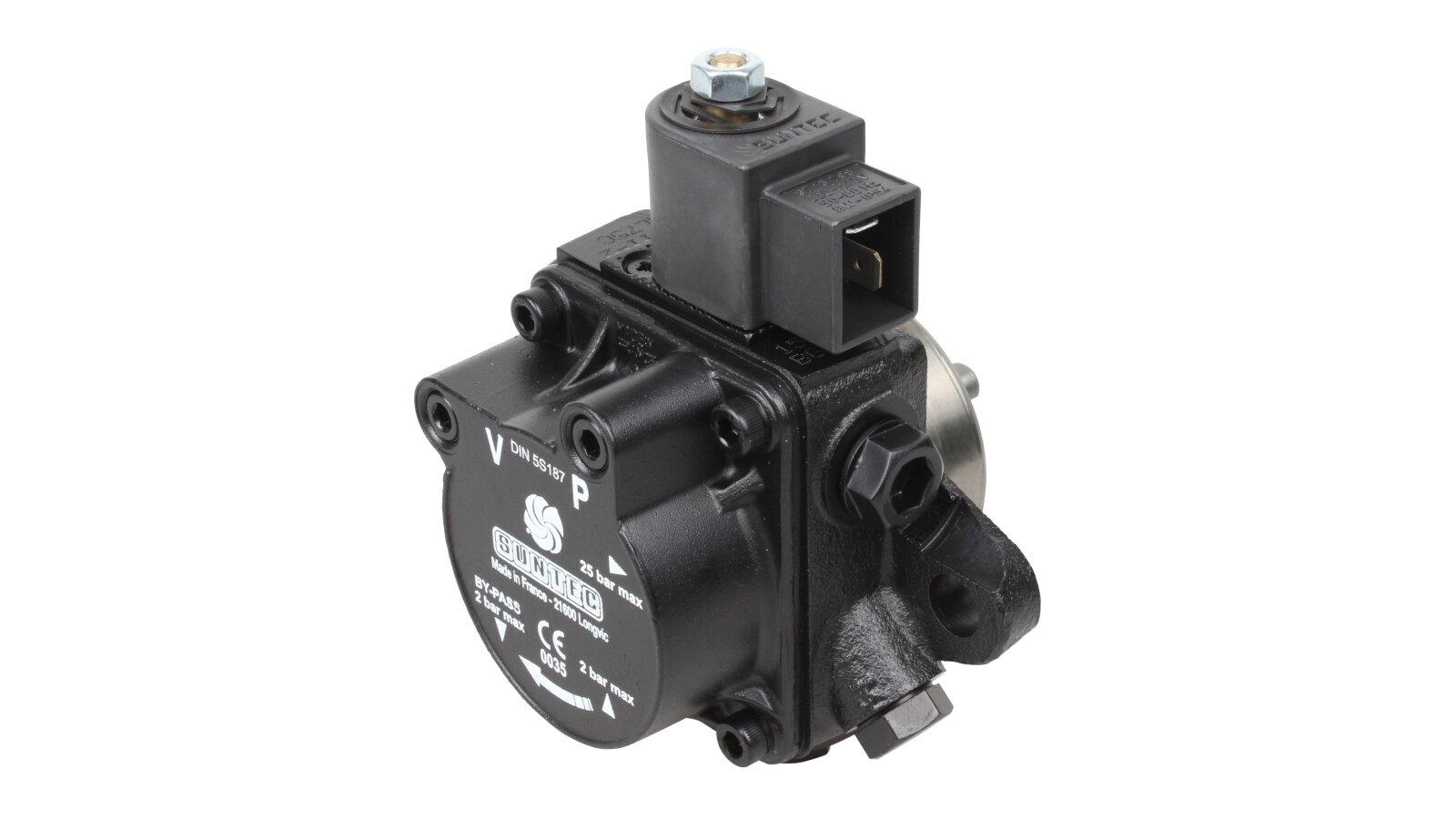

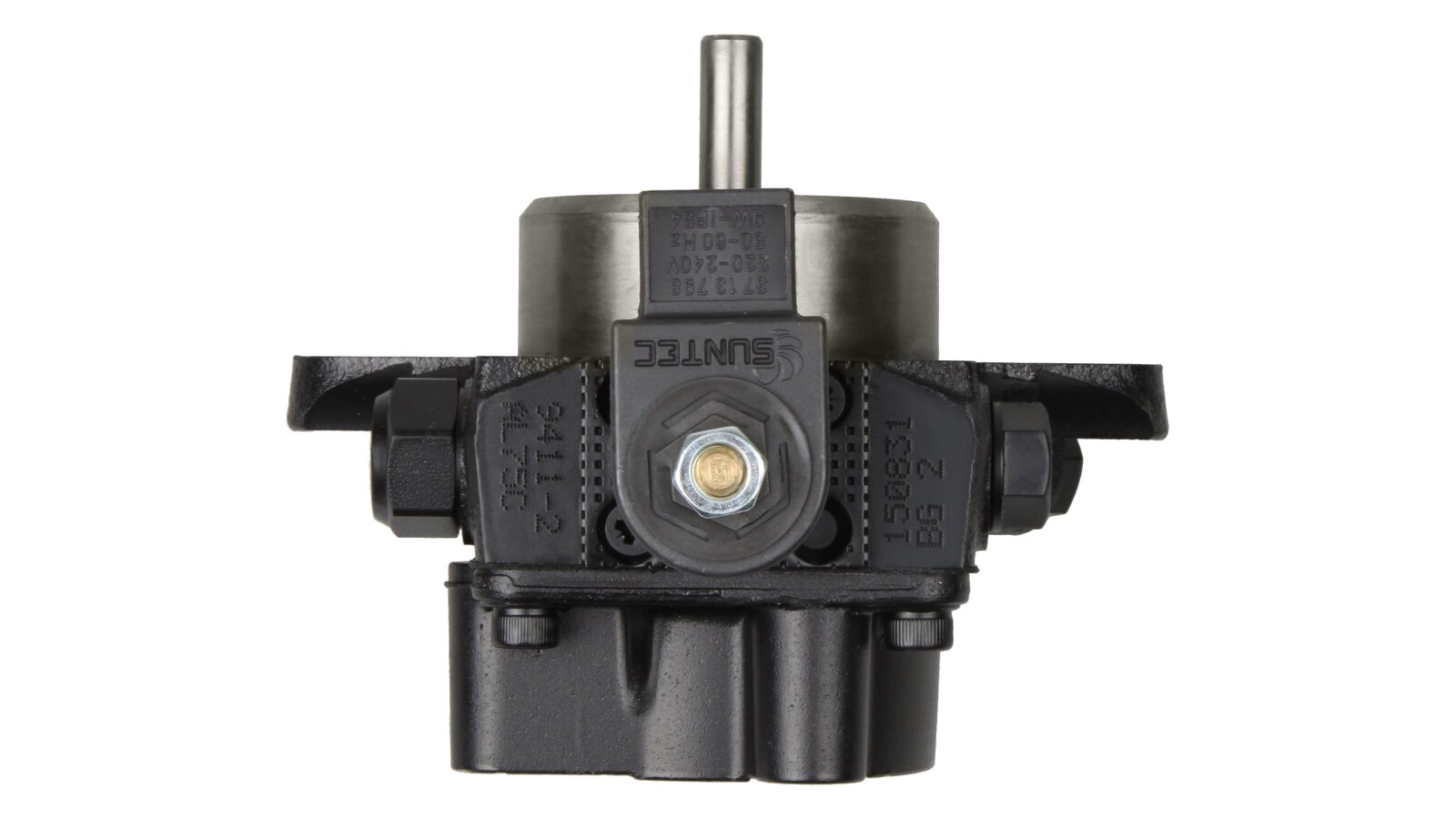

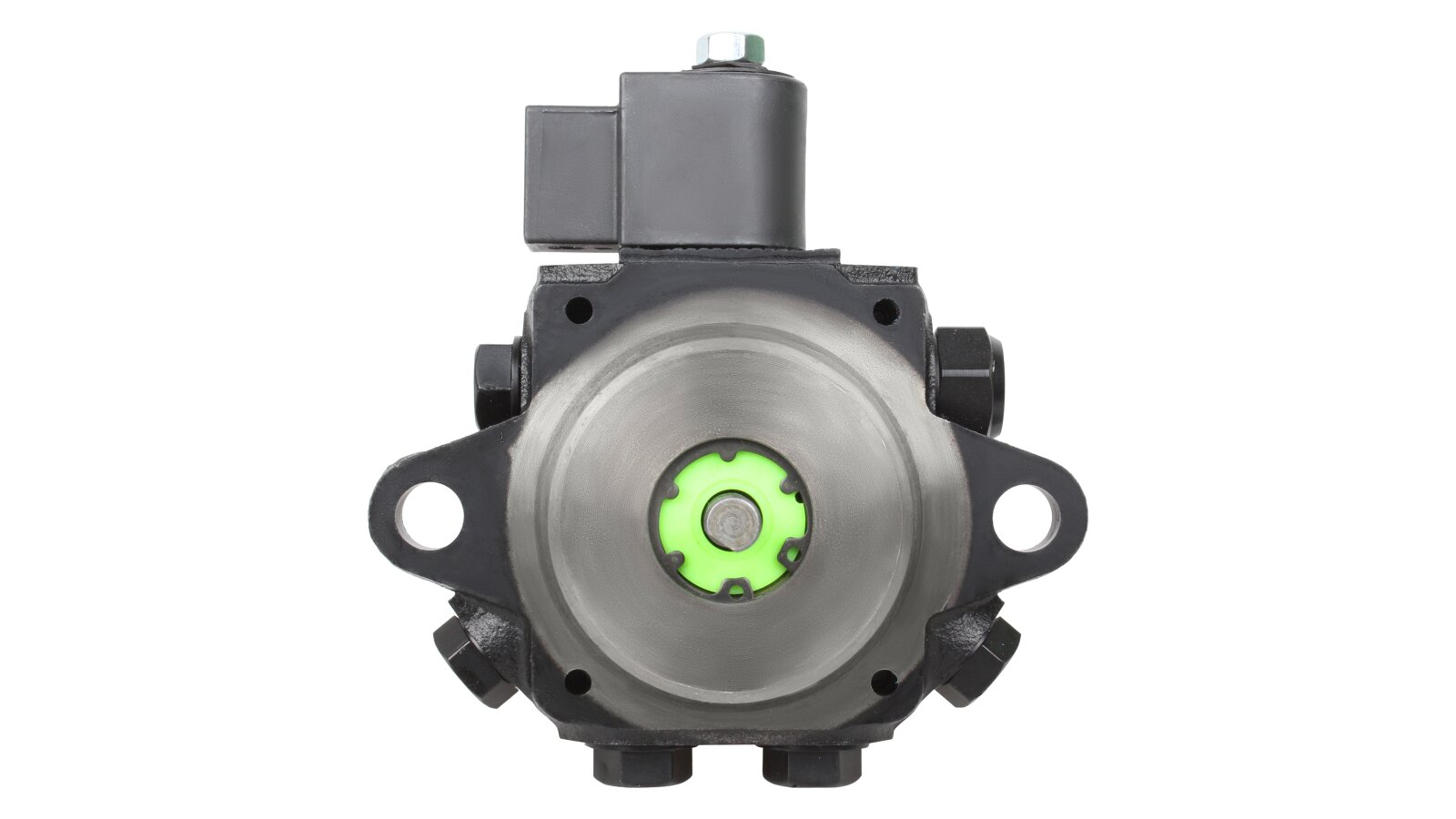

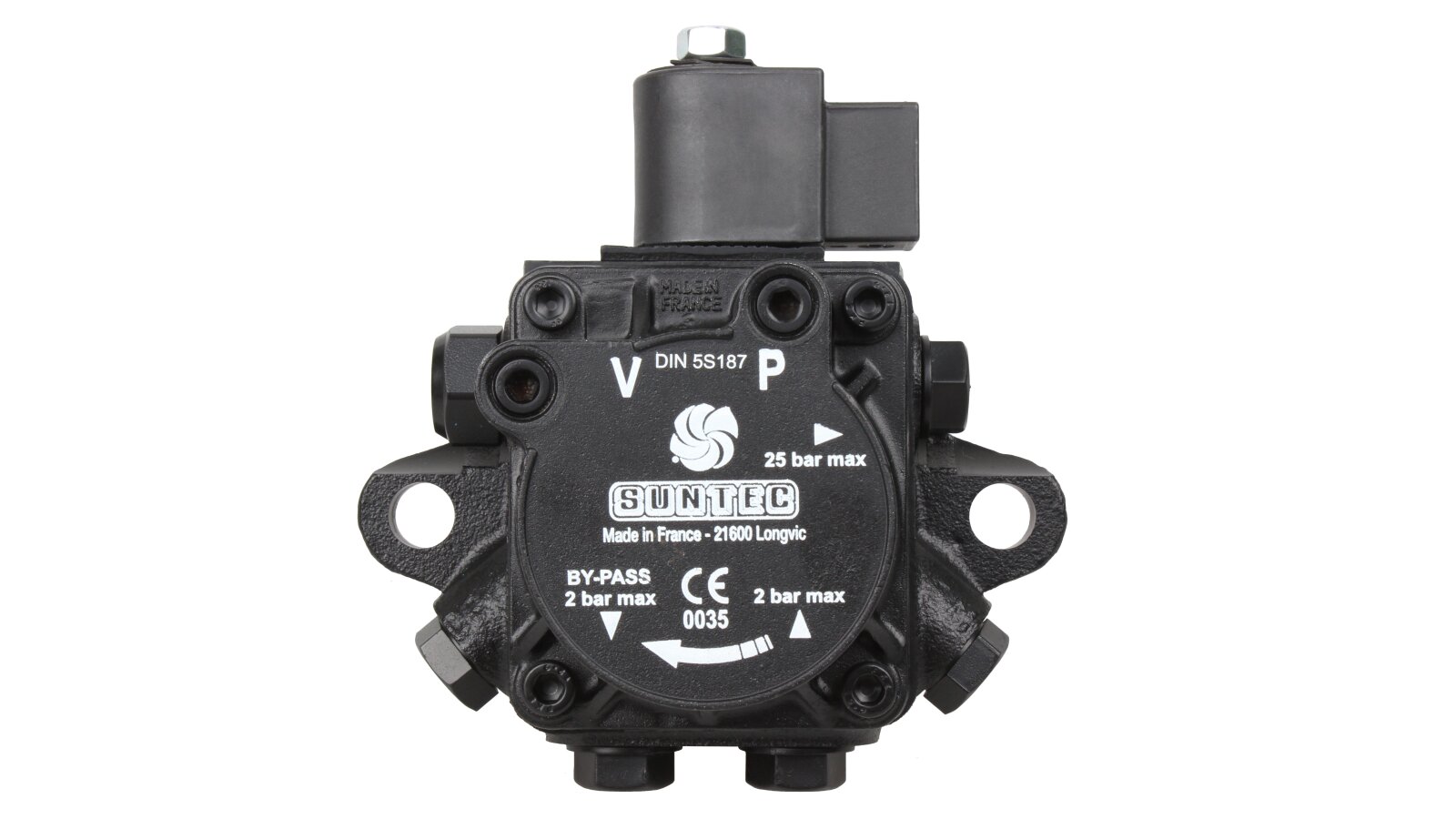

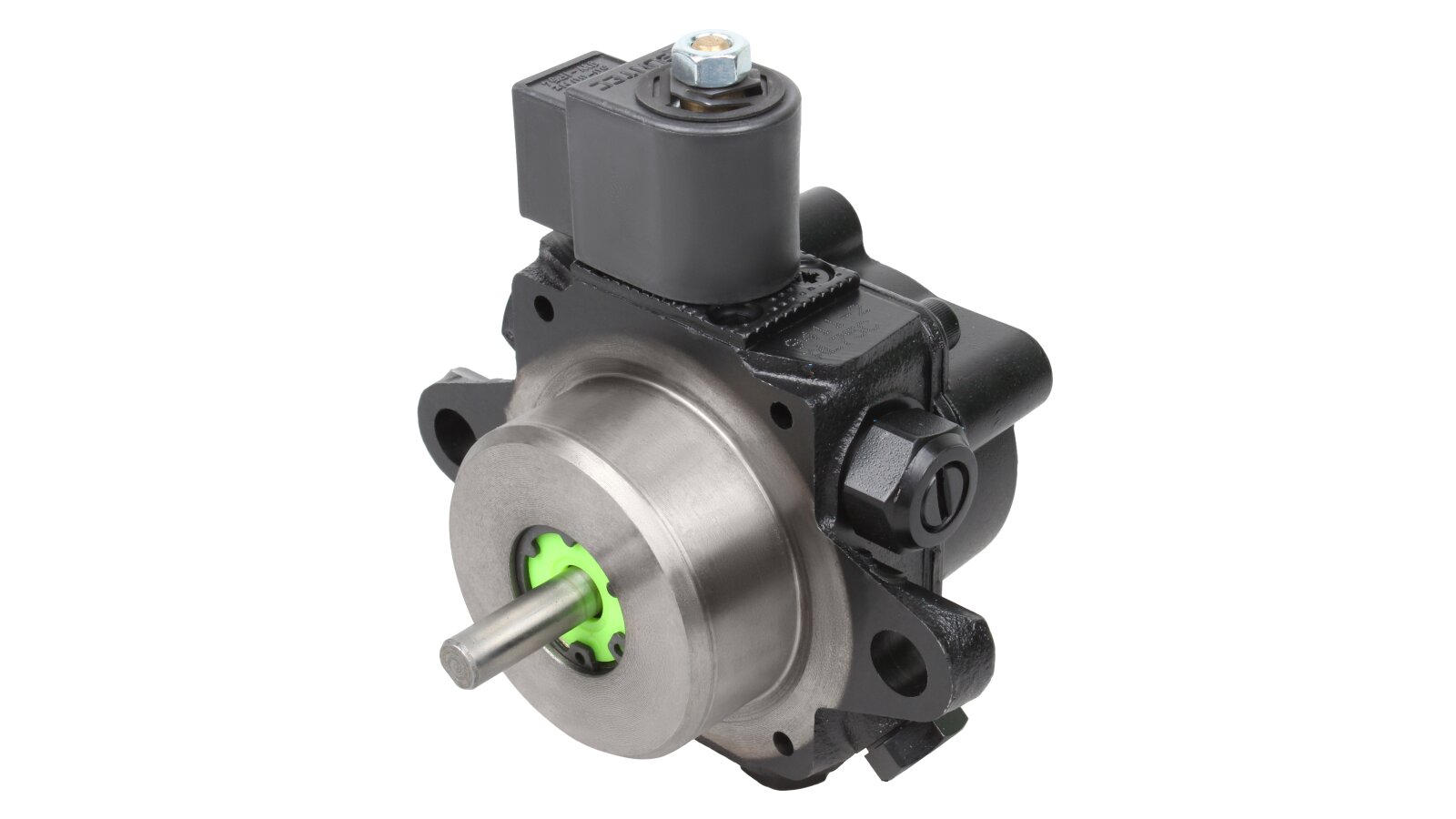

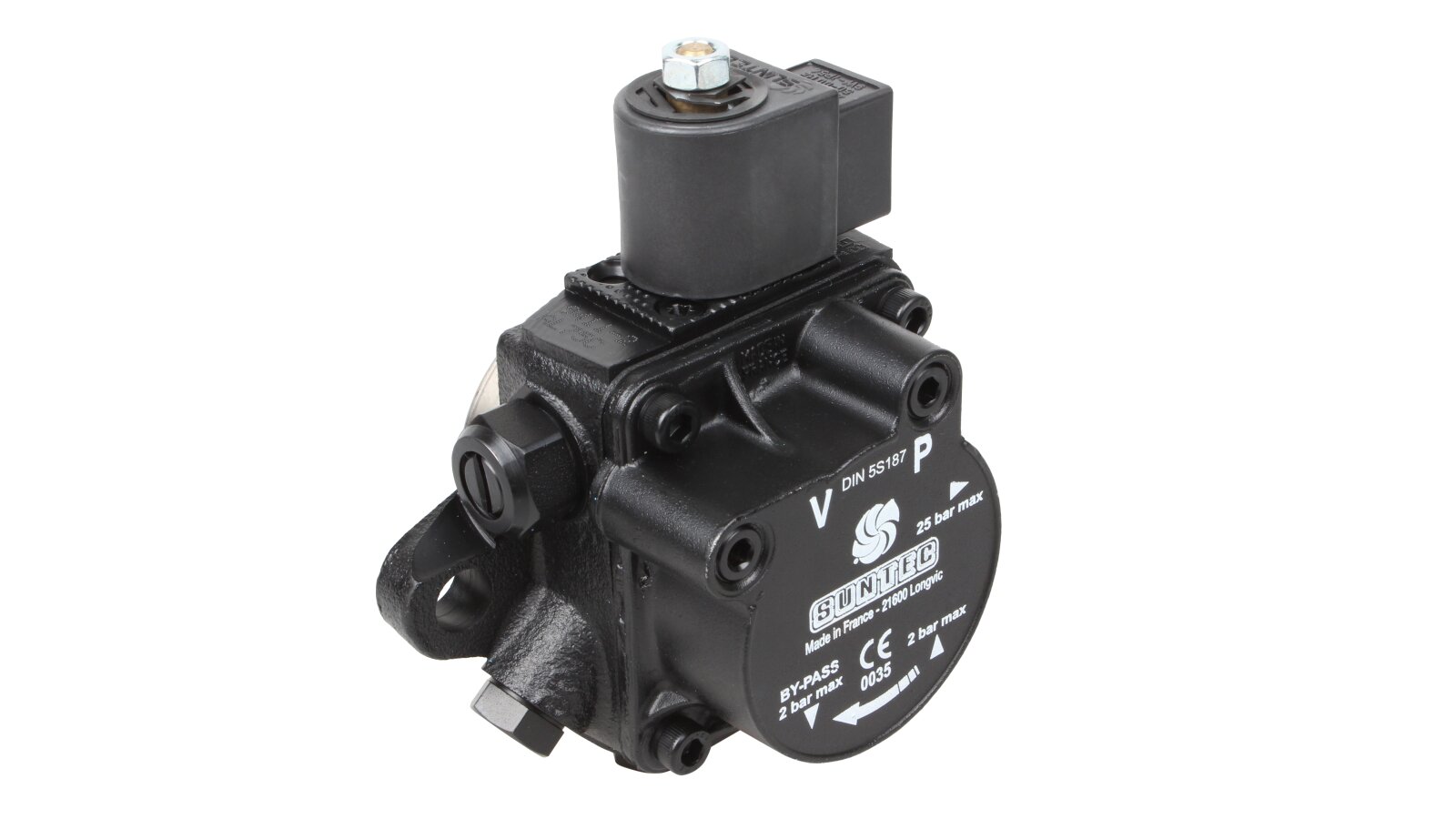

Burner Pump Riello AL 75 C 9411 4P 0700

Riello3003835
AED 2,100
  1. Oil Burner Pumps

Description

The pump for the Riello AL 75 C 9411 4P 0700 burner, art: 3003835, is equipped with an electromagnetic valve with a shut-off function. It is used in single-stage liquid fuel systems for pumping diesel fuel under pressure up to 15 bar. The performance depends on the viscosity characteristics of the fuel and pressure settings, reaching 109 l / h at a pressure of 11 bar and a viscosity of 5 cSt.

Design and features

The main working element of the pump is a gear mechanism, in the manufacture of which materials with high wear and corrosion resistance were used. To protect the gears, a mesh filter is placed at the flow inlet, retaining coarse mechanical particles of 150 microns in size. The dust and moisture protection level of the pump complies with the IP54 standard. Permissible operating temperatures: 0 ... + 60 ºC.

The pressure control valve maintains the specified fuel supply parameters. The electromagnetic valve is triggered by a signal from the control device, shutting off the fuel supply to the injector.

The pump is suitable for systems with 1 or 2 pipes. In the standard version, it is prepared for a 2-pipe connection. For operation in single-pipe systems, the bypass plug must be removed and replaced with a steel plug with a washer. Excess diesel fuel that does not pass through the injector is drained into the tank or fed to the gears, depending on the connection scheme used.

Installation is carried out using a flange connection ∅ 54 mm. At the factory, the pump is adjusted to a pressure of 12 bar. The set value can be adjusted to meet needs in the range of 8-15 bar using a screw regulator. The pump body for the Riello AL burner has standard ports for connecting measuring devices.

Advantages:

  • high performance;

  • the ability to adjust the pressure;

  • built-in filter made of metal mesh;

  • compact dimensions, standard fit;

  • wear-resistant gear mechanism;

  • standard ports for pressure measuring devices.

Important! For long-term service of the nozzle, it is recommended to install a fine filter.

You can buy burner pumps and all the necessary components for assembling fuel combustion systems from us.

Characteristics

Manufacturer Part Number: 3003835Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 109 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 1 stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AL: pressure regulation and interlock solenoid valve with shut-off functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 109 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: flange ∅ 54 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barTorque: 0.14 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
