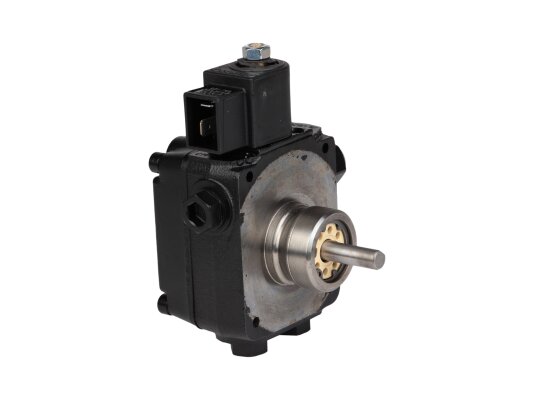

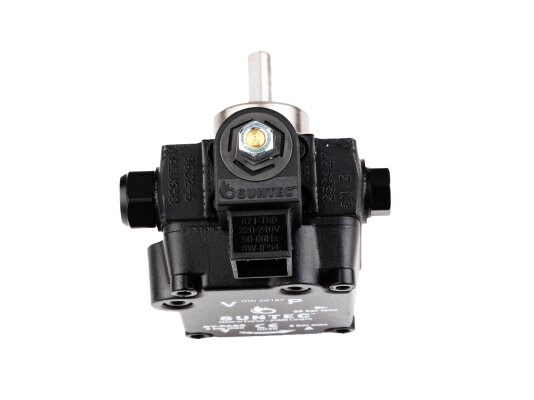

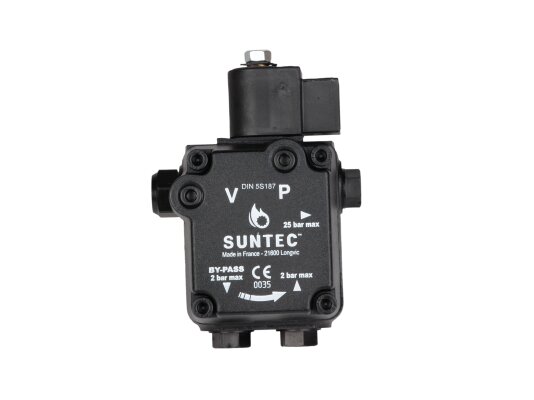

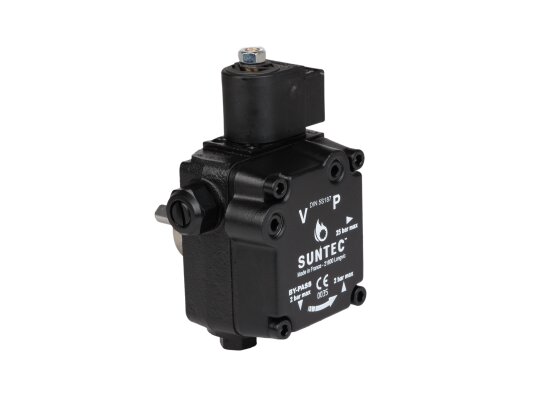

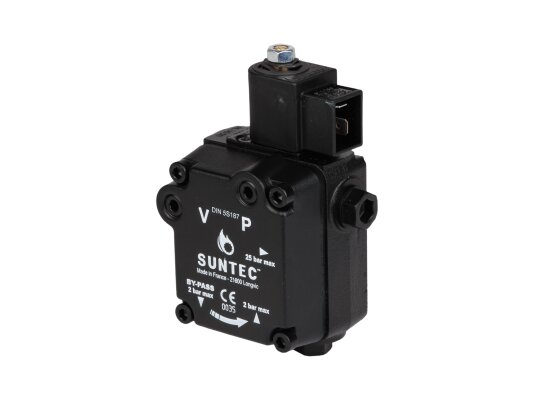

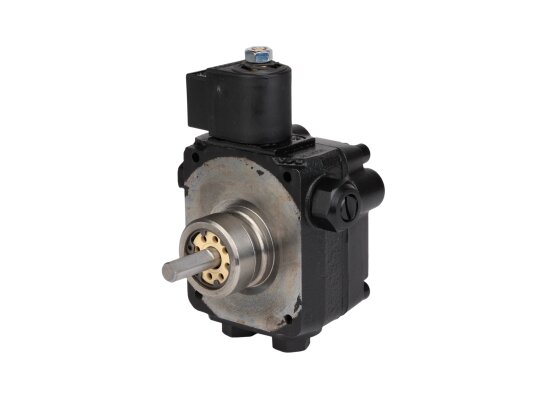

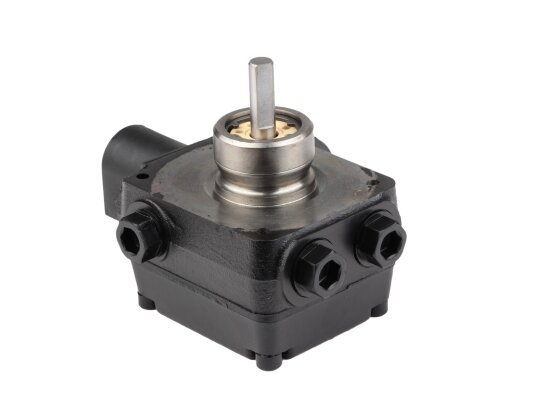

Burner Pump Riello AL V 65 B 9632 6P 0700

Riello20033463

Alternative Part Number

Riello 3012293
AED 1,725
  1. Oil Burner Pumps

Description

The Riello AL V 65 B 9632 6P 0700 burner pump, art.: 20033463, is built into systems with single-stage power regulation. Thanks to reliable shaft seals, it can be used to pump diesel and biodiesel fuel. The performance depends on the viscosity characteristics of the working medium and pressure settings, reaching 81 l / h at a pressure of 11 bar and a viscosity of 5 cSt. The pump is equipped with a normally closed electromagnetic shut-off valve with quick response.

Design and features

The pump gear mechanism is made of materials highly resistant to abrasion and corrosion. Moves fuel from the tank to the nozzle line, passing it through a built-in mesh filter at the inlet.

The pump includes an electromagnetic shut-off valve and a regulating valve that maintains a set pressure value. Electrical components are protected from dust and moisture according to the IP54 standard. Permissible fuel temperatures inside the pump: 0...+60ºC. Viton shaft seals allow safe operation with biodiesel.

The pump is suitable for installations with or without a return line. The basic assembly is prepared for a 2-pipe connection. When operating in single-pipe systems, the bypass plug must be unscrewed and replaced with a blind plug with a washer. Excess fuel that does not pass through the nozzle is drained into a tank or fed to the gears, depending on the connection option.

The pump is installed using a ∅ 32 mm sleeve connection. At the factory, it is adjusted to a pressure of 9 bar. The set pressure can be changed to suit needs in the range of 8-15 bar, using a screw regulator. The pump body for the Riello AL burner has standard ports to which measuring equipment is connected.

Advantages:

  • versatility, operation with diesel fuel and B10 biodiesel;

  • Viton seals;

  • built-in 150 micron metal mesh filter;

  • compact dimensions, standard fit;

  • wear-resistant gear mechanism;

  • high level of dust and moisture protection;

  • 2-pipe or 1-pipe connection.

You can buy burner pumps and other system components from us. To protect the nozzle, the manufacturer recommends using a fine filter (purchased separately).

Characteristics

Manufacturer Part Number: 20033463Type of pumped liquid: diesel, biodiesel fuel blend B10Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: sleeve ∅ 32 mmDegree of protection: IP54
