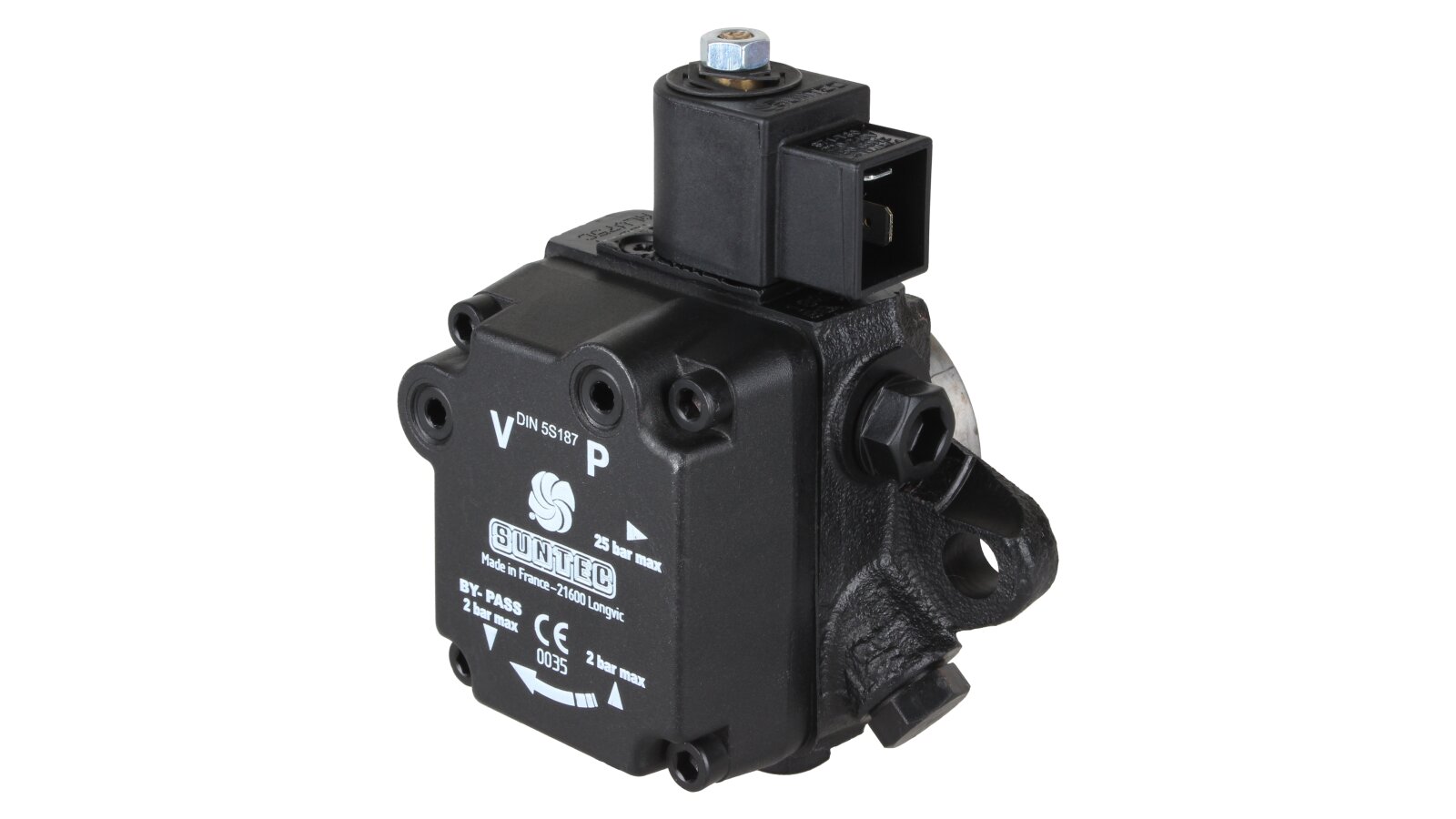

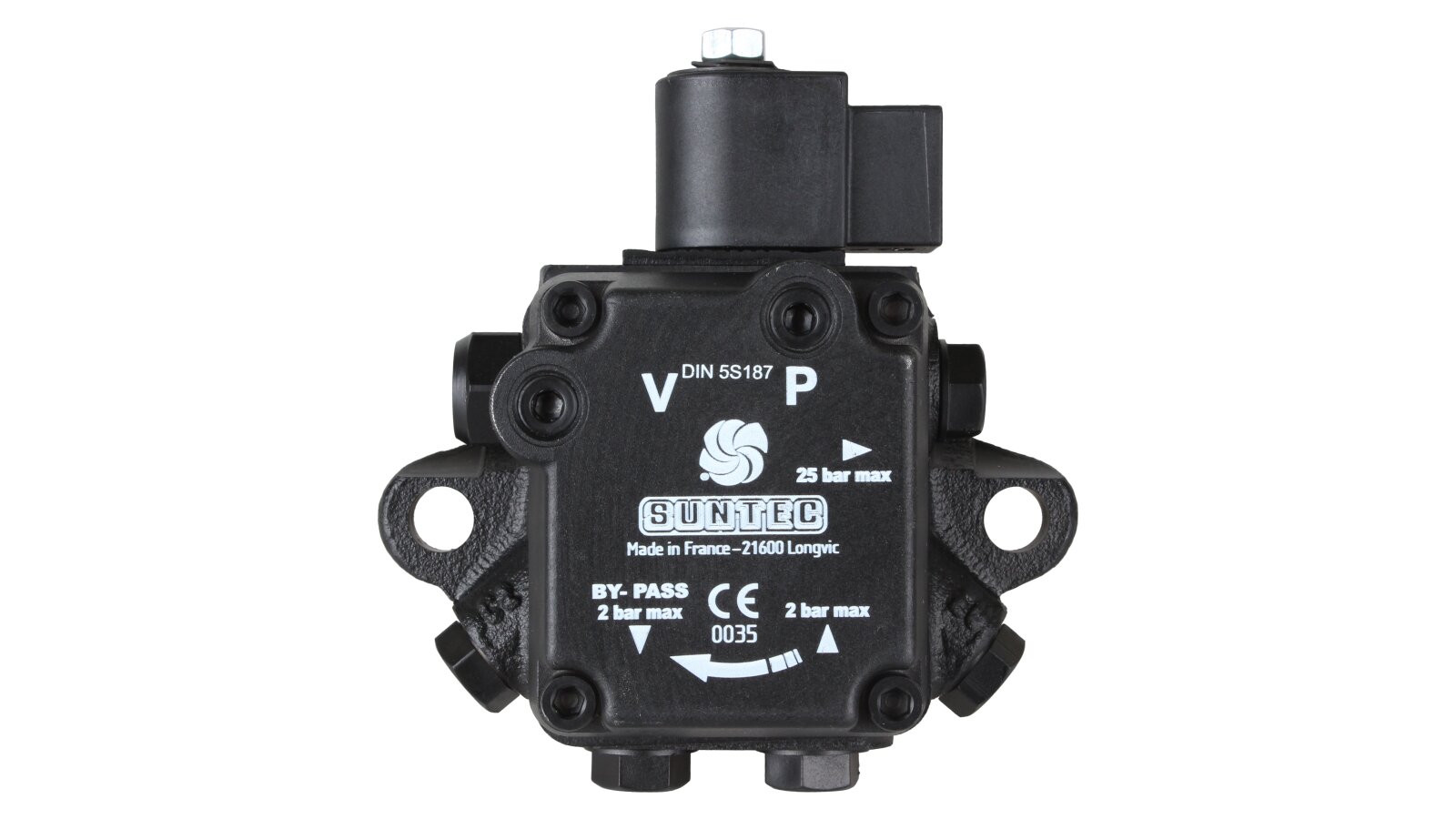

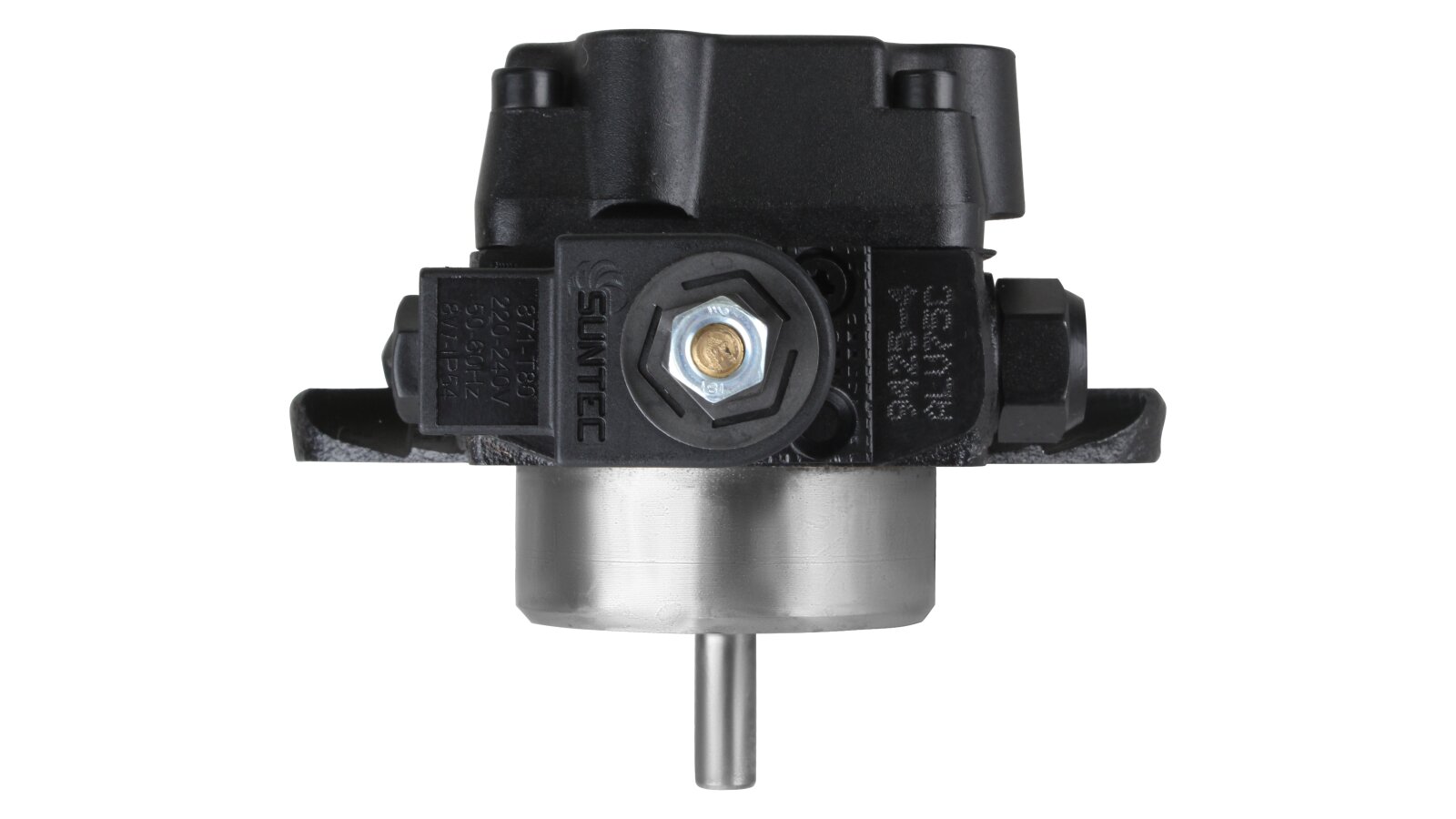

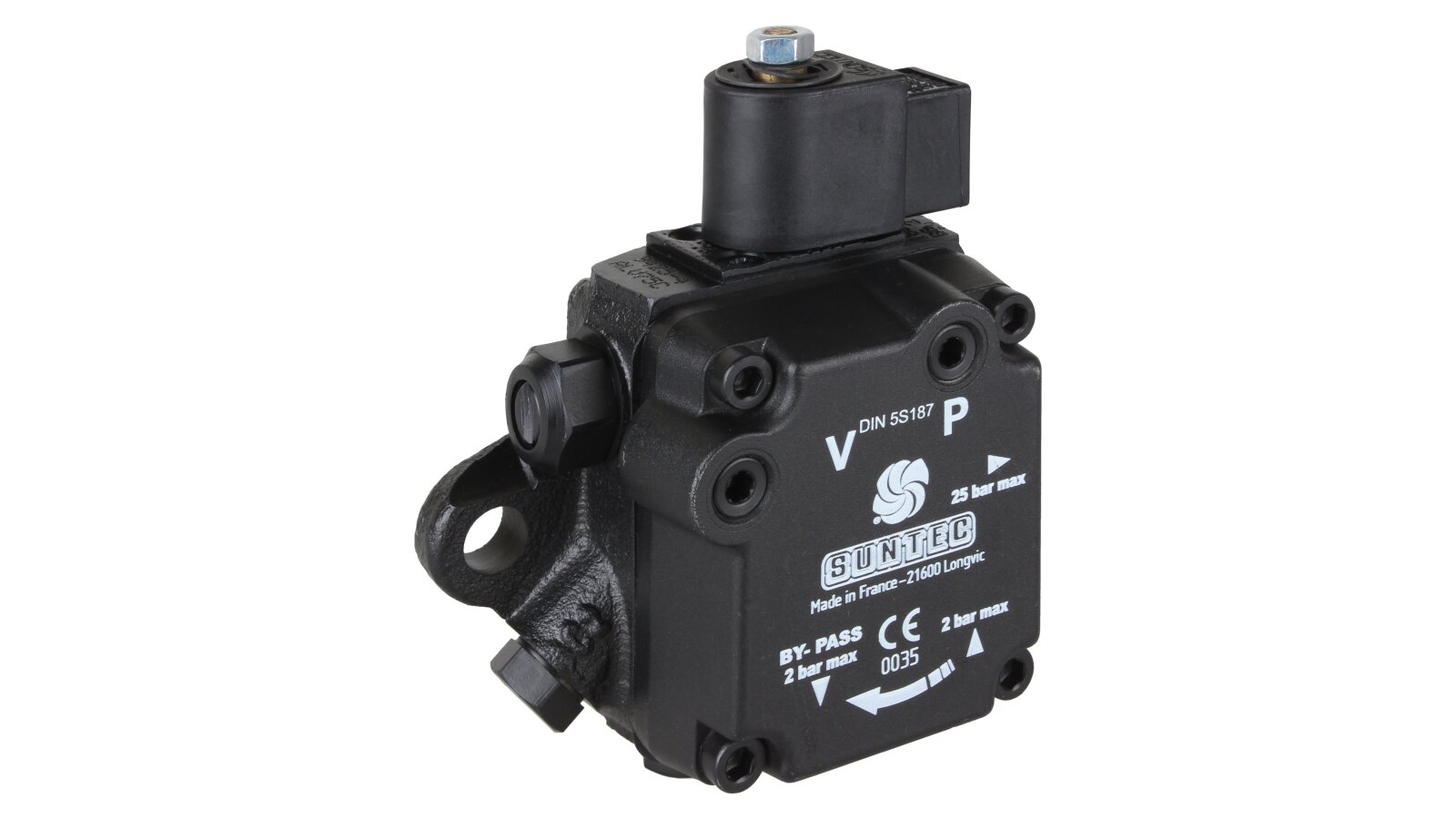

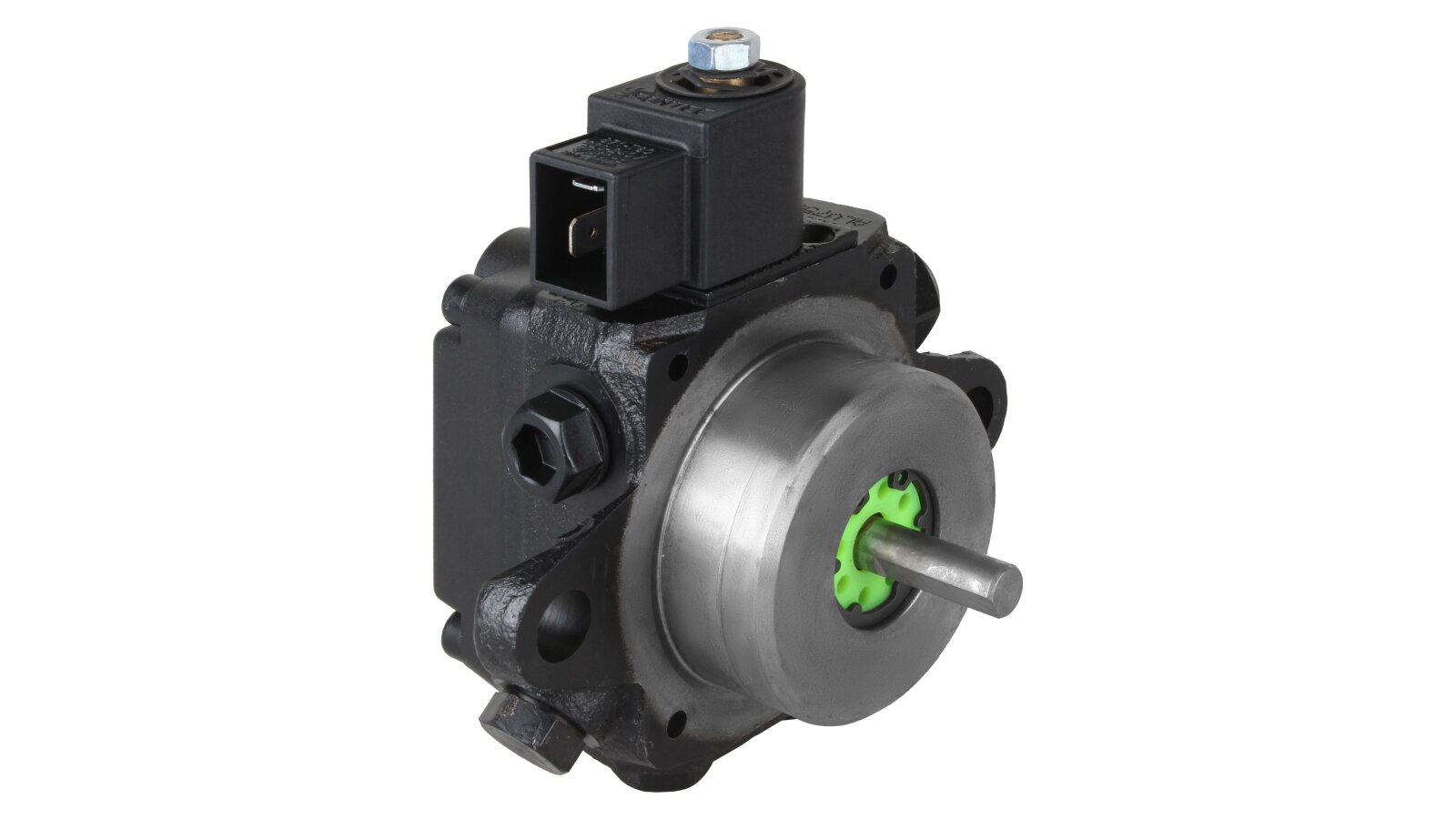

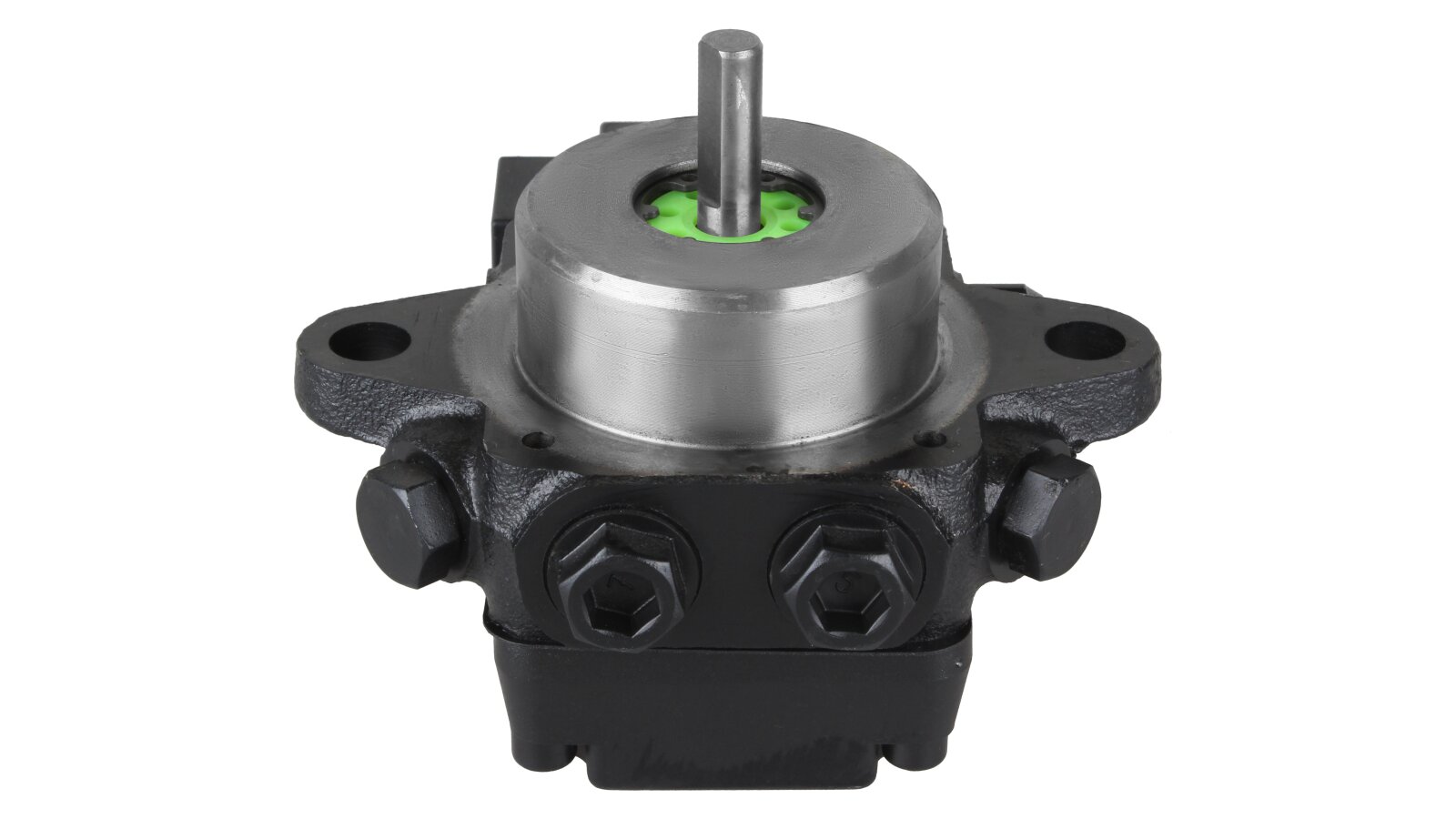

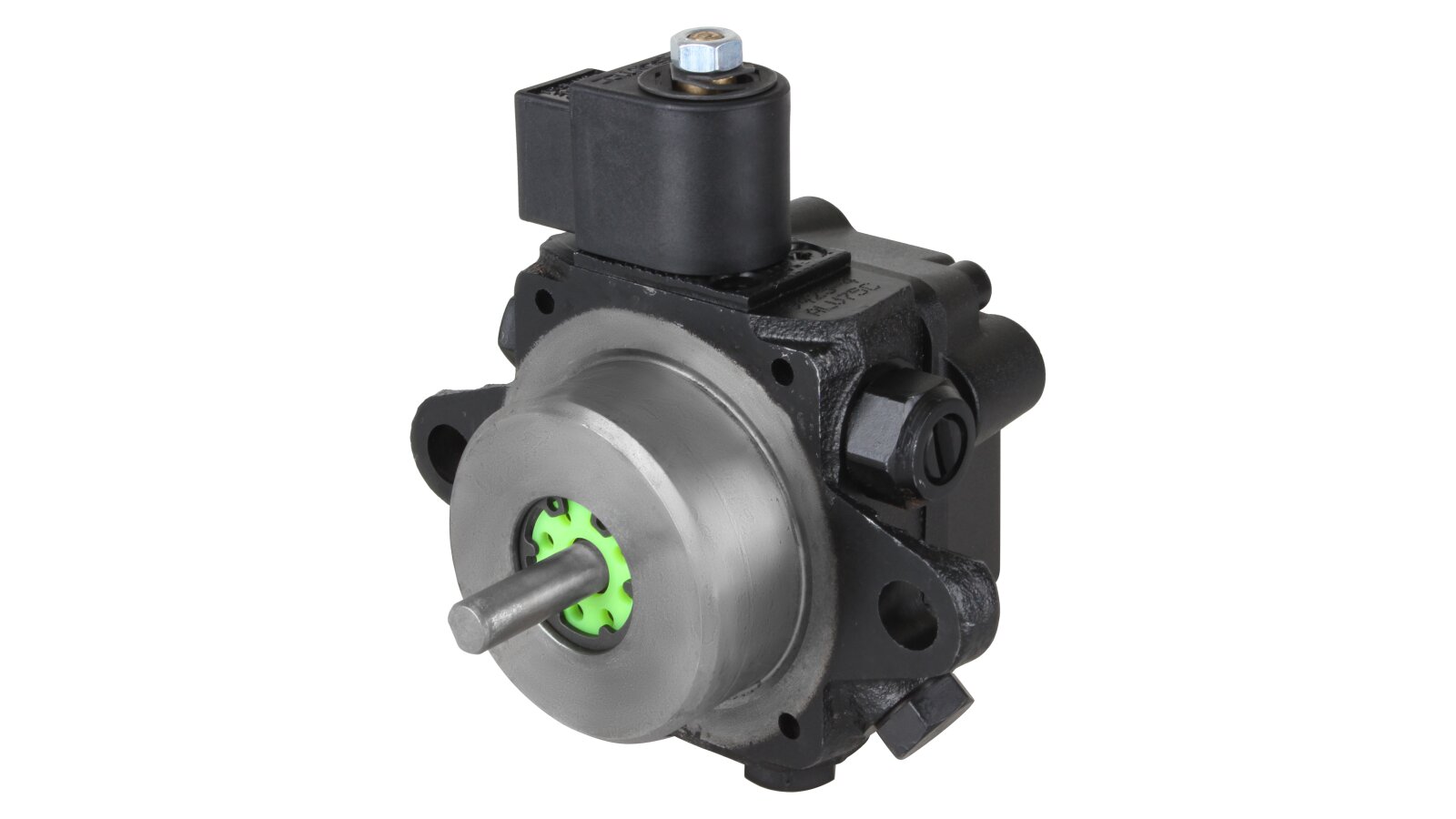

Burner Pump Riello AL V 75 C 9425 4P 0700

Riello20033547

Alternative Part Number

Riello 3003835
AED 1,975
  1. Oil Burner Pumps

Description

The Riello AL V 75 C 9425 4P 0700 burner pump, art: 20033547, can be used to pump not only diesel but also biodiesel fuel due to Viton seals. Suitable for systems with single-stage power control. The capacity varies depending on the viscosity and discharge pressure, reaching 109 l/h at a pressure of 11 bar and a viscosity of 5 cSt. The pump includes a normally-closed electromagnetic shut-off valve, characterized by rapid response.

Device and features

The pump body and units are made of wear-resistant, corrosion-resistant materials designed for intensive use. The main working element is a gear mechanism, during operation of which fuel is sucked in from the tank and moved to the nozzle line. A mesh filter located at the flow inlet removes coarse impurities from 150 microns in size.

The electromagnetic valve is located in the nozzle line and quickly responds to a corresponding signal from the control device. The regulating valve is responsible for maintaining the pressure at a given level.

The coil electrical protection complies with the IP54 standard. The design is designed for pumping fuel at a temperature of 0...+60ºC. Viton shaft seals allow safe operation with biodiesel.

The pump is ready for installation in a 2-pipe system. It can be used in installations without a return line. To do this, remove the bypass plug and replace it with a blind steel plug with a washer. Unused fuel returns to the tank or goes to the gears, depending on the connection diagram.

Installation is carried out using a flange connection ∅ 54 mm. The pump is set to 12 bar. The discharge pressure can be changed within 8-15 bar by turning the screw regulator. The pump body for the Riello AL burner has ports for measuring devices used when setting up the equipment.

Advantages:

  • versatility (for pumping diesel fuel and biodiesel B10);

  • wear-resistant seals made of Viton;

  • high efficiency and reliability;

  • built-in filter 150 microns made of metal mesh;

  • compact size, standard fit;

  • high level of dust and moisture protection;

  • possibility of use in two- and single-pipe systems.

On the ANKAS website you can buy pumps for burners and additional equipment for fuel combustion systems. Installation of a fine filter will maximally protect the nozzle from clogging and damage (purchased separately).

Characteristics

Manufacturer Part Number: 20033547Type of pumped liquid: diesel, biodiesel fuel blend B10Strainer: Open area: 6 cm²Solenoid valve voltage: 220-240V~, 50-60HzNominal rotation speed: 2850 rpmVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchSolenoid valve consumption: 9 WPerformance for stage 2 at 11 bar and 5 cSt viscosity: 109 l/hPump series: AL: pressure regulation and interlock solenoid valve with shut-off functionDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftStrainer: Opening size: 150 µmOil temperature: from 0 to 60 °C in the pumpModel type: 1 stage with electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemValve function: pressure regulatingOperating viscosity: from 2 to 12 mm²/sPerformance at 11 bar pressure and 5 cSt viscosity: 109 l/hMaximum pressure of the solenoid valve: 25 barTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 15 barFactory pressure setting: 12 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmInstallation method: flange ∅ 54 mmDegree of protection: IP54
