Burner Pump Riello AN 67 C 7233 4P

Riello3013805
AED 1,950
  1. Oil Burner Pumps

Description

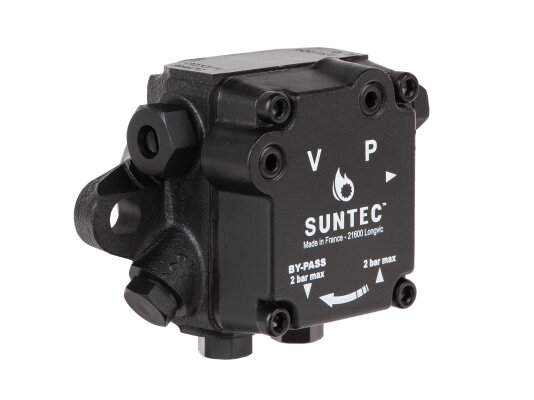

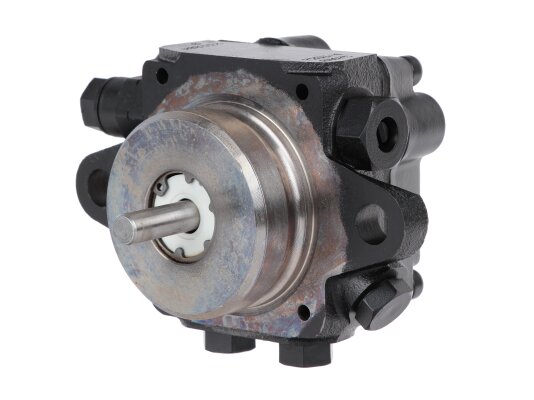

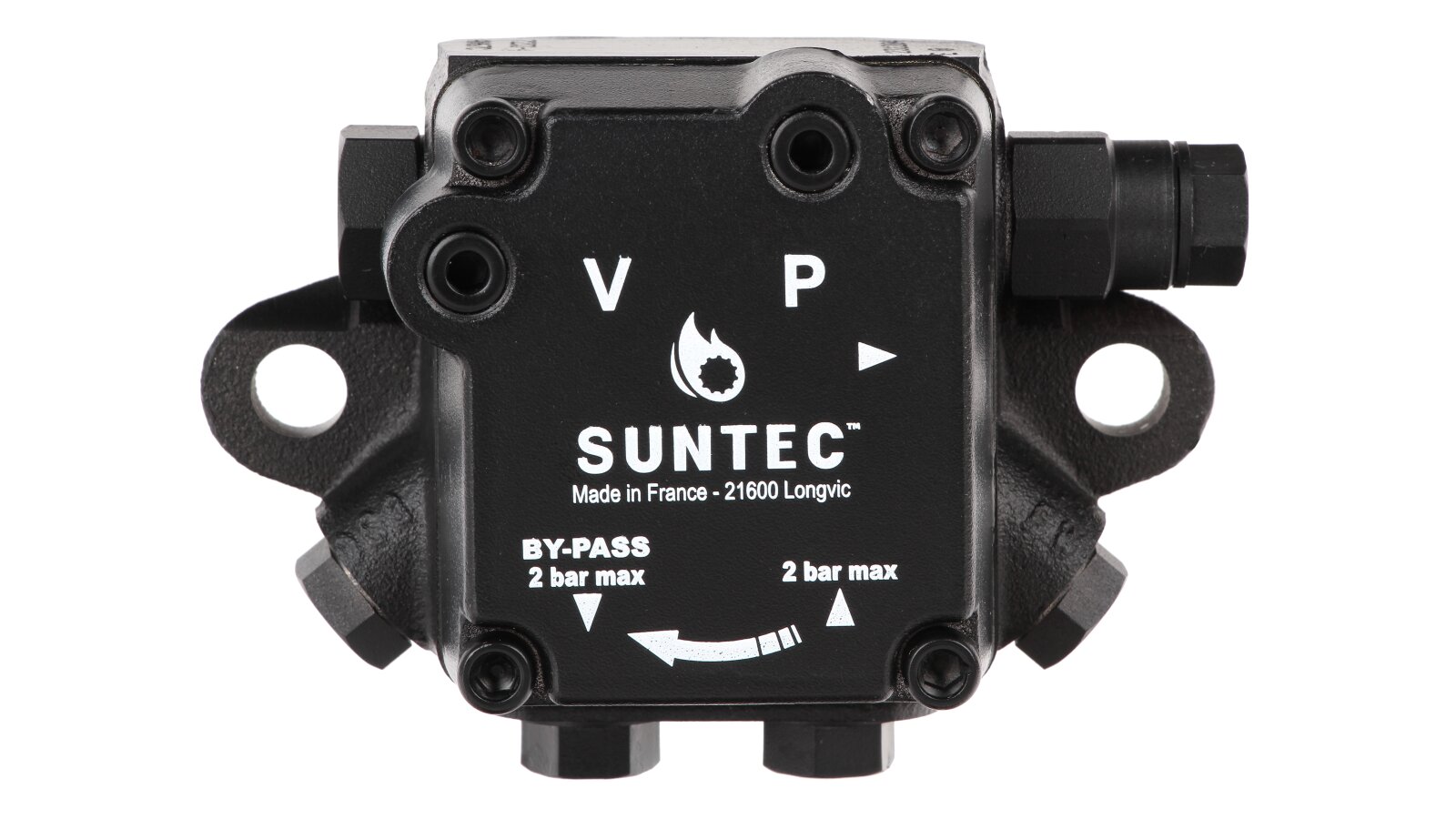

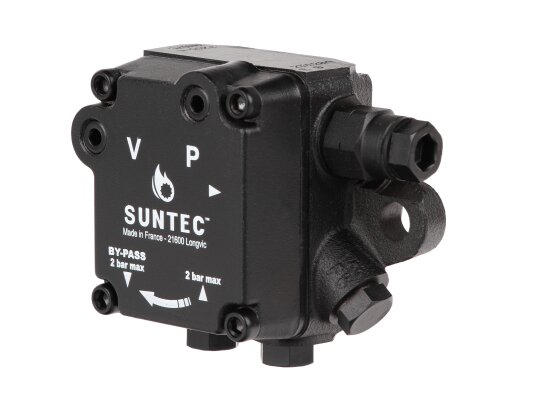

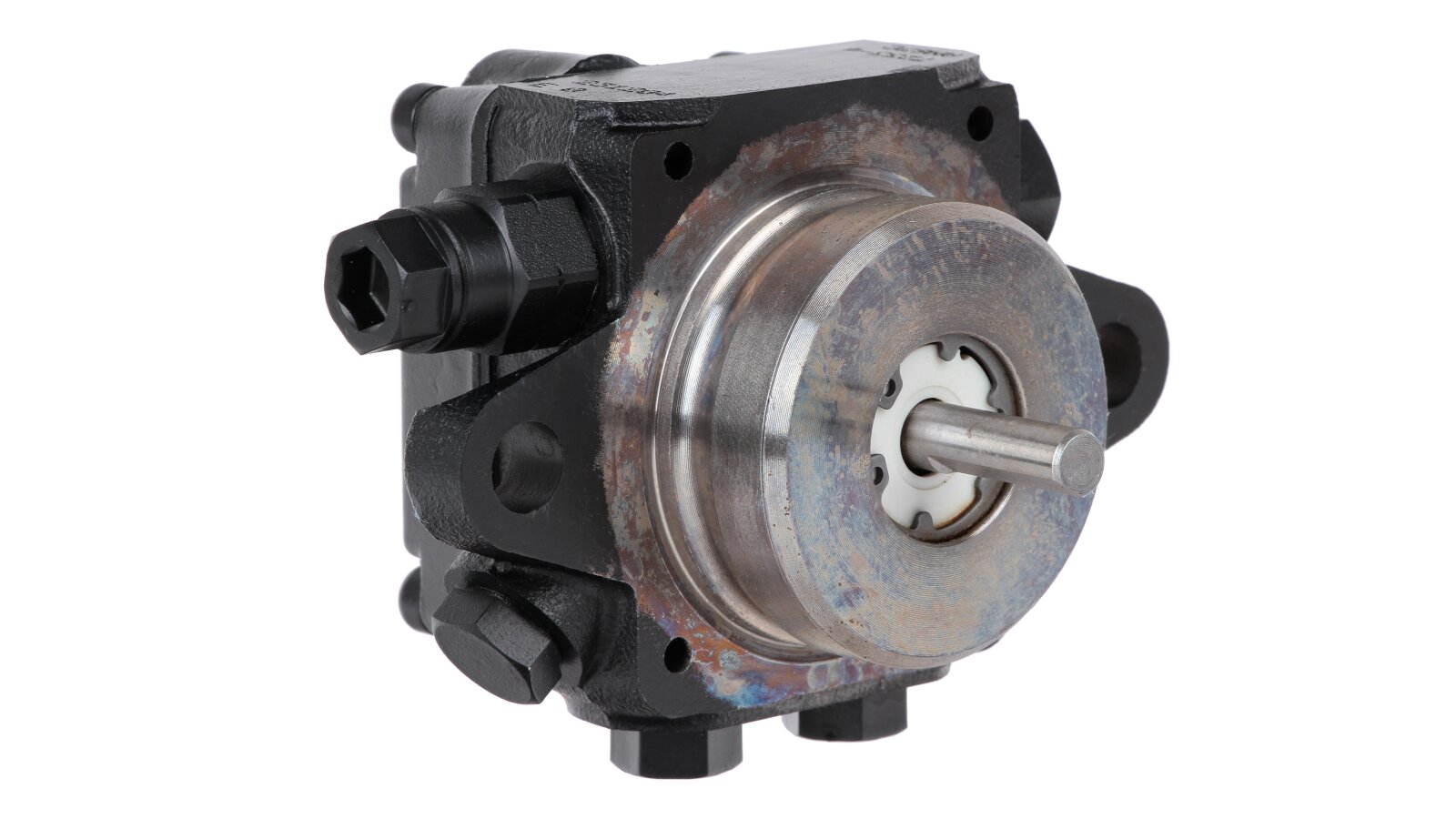

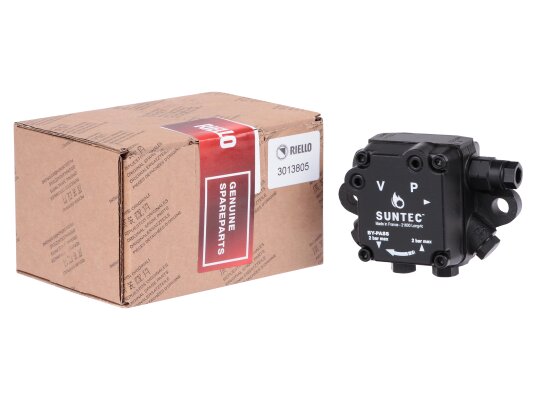

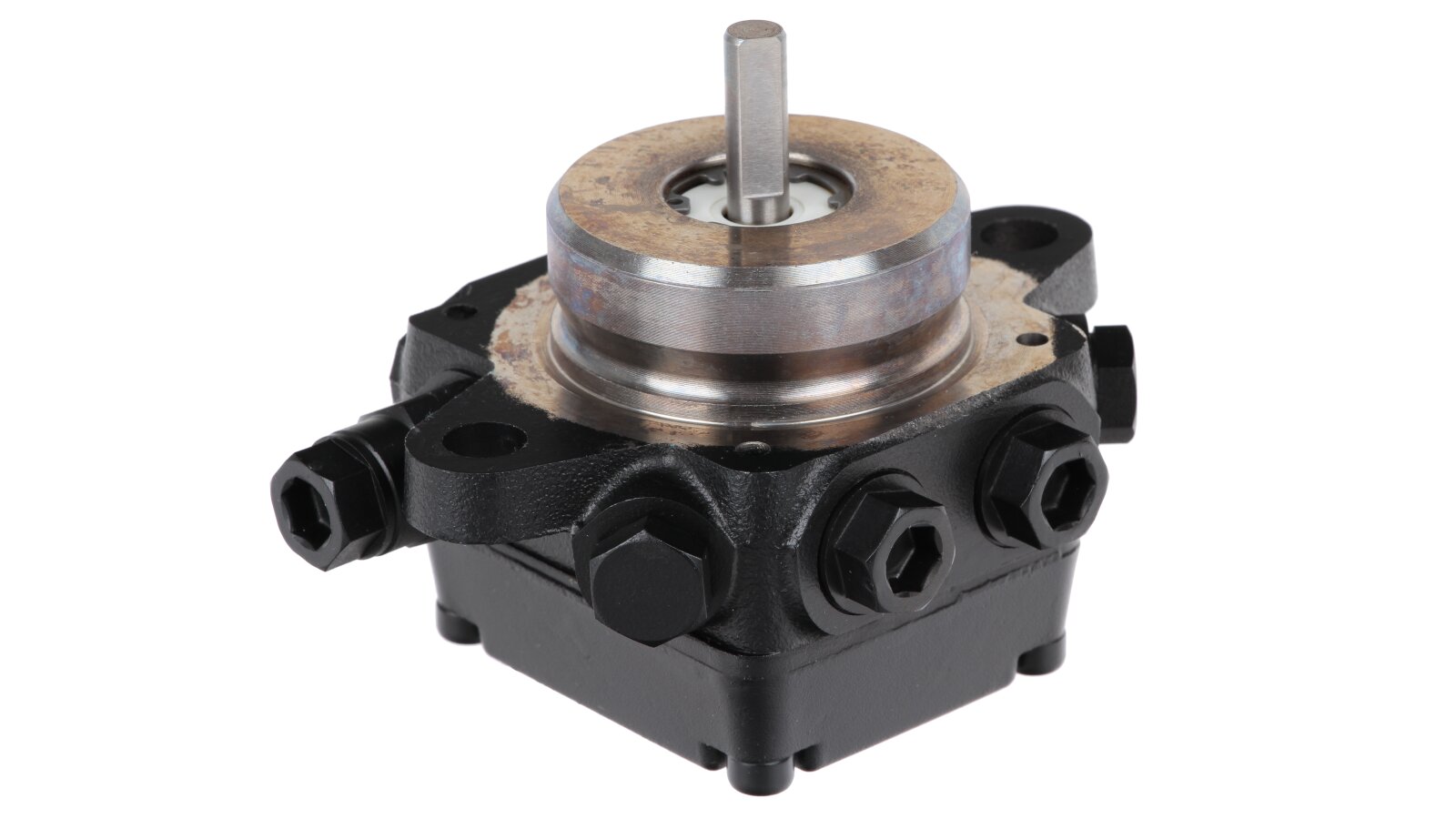

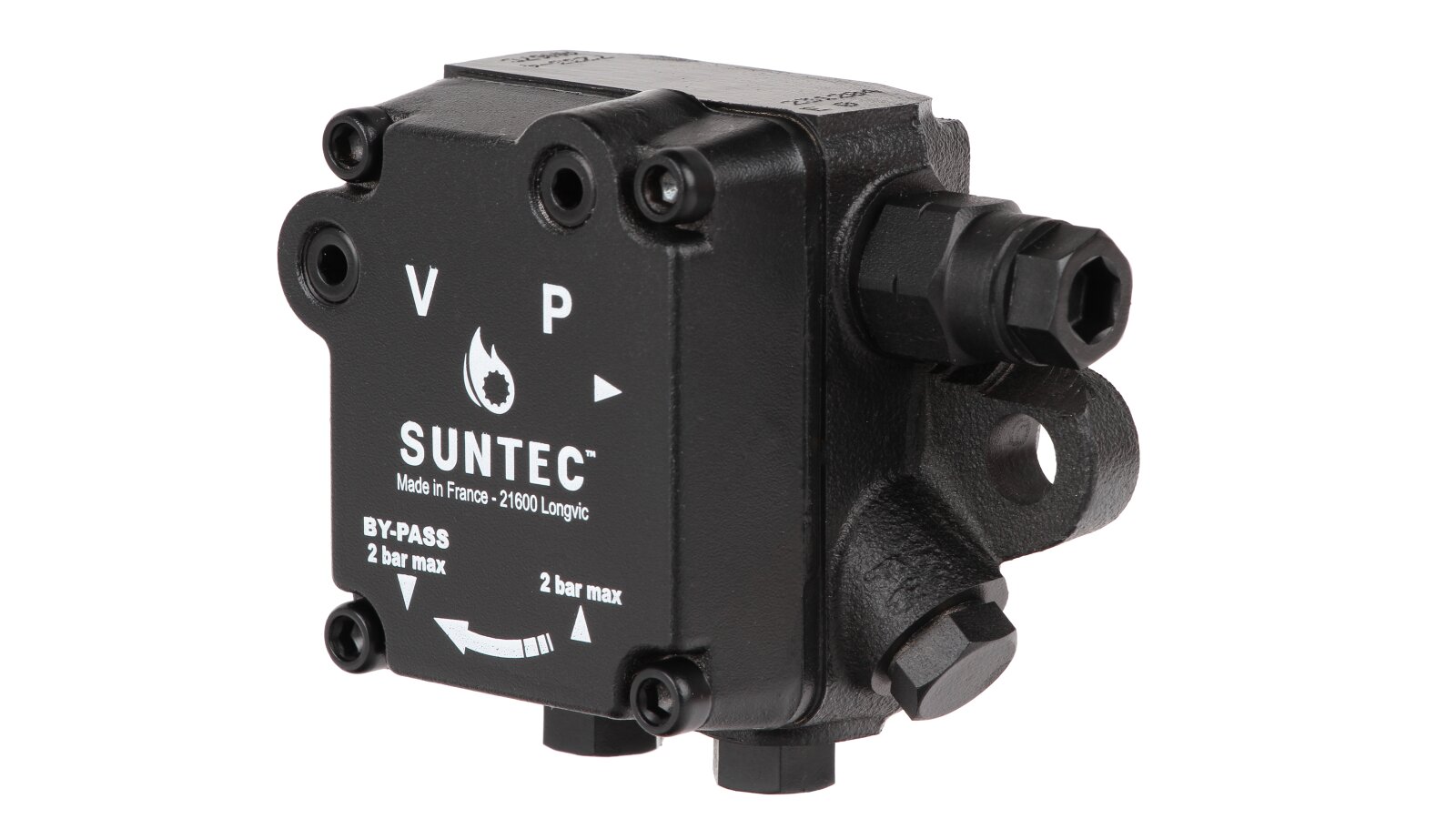

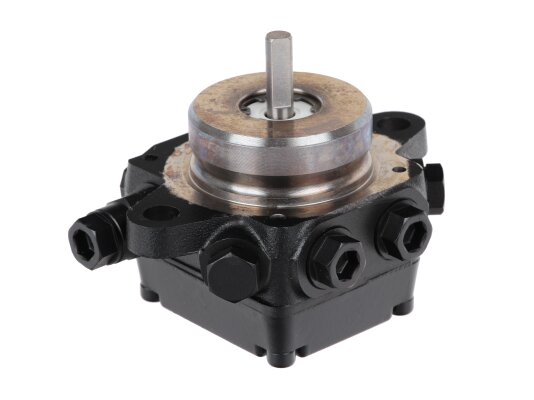

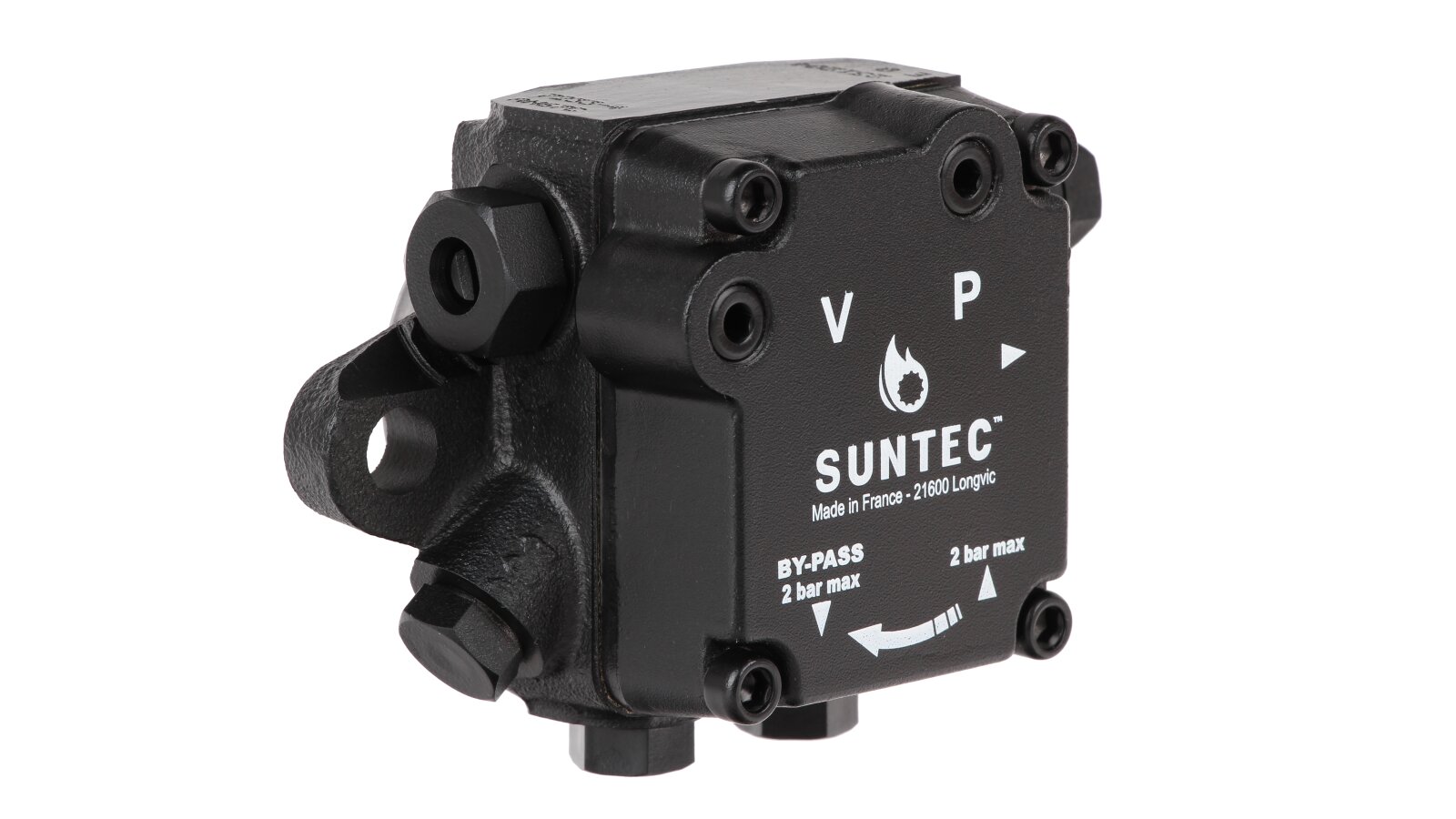

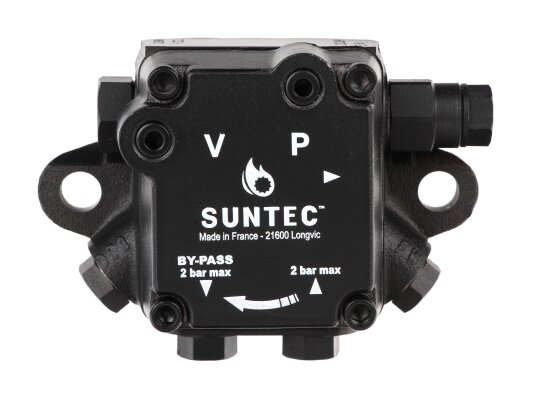

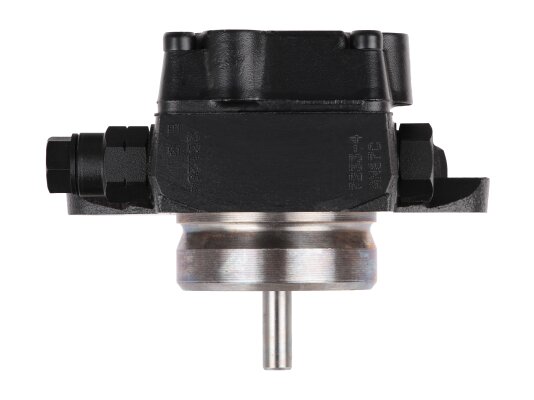

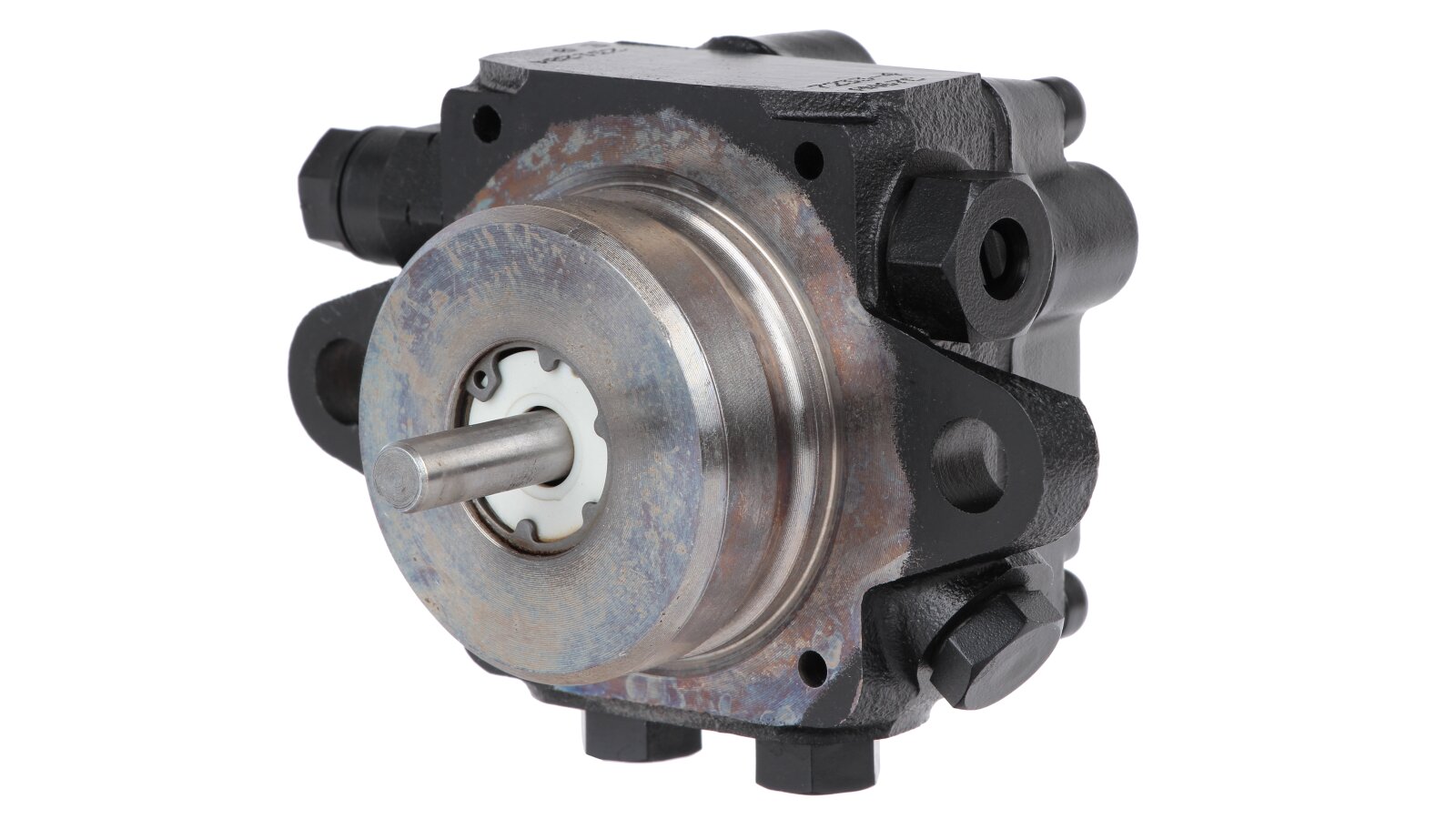

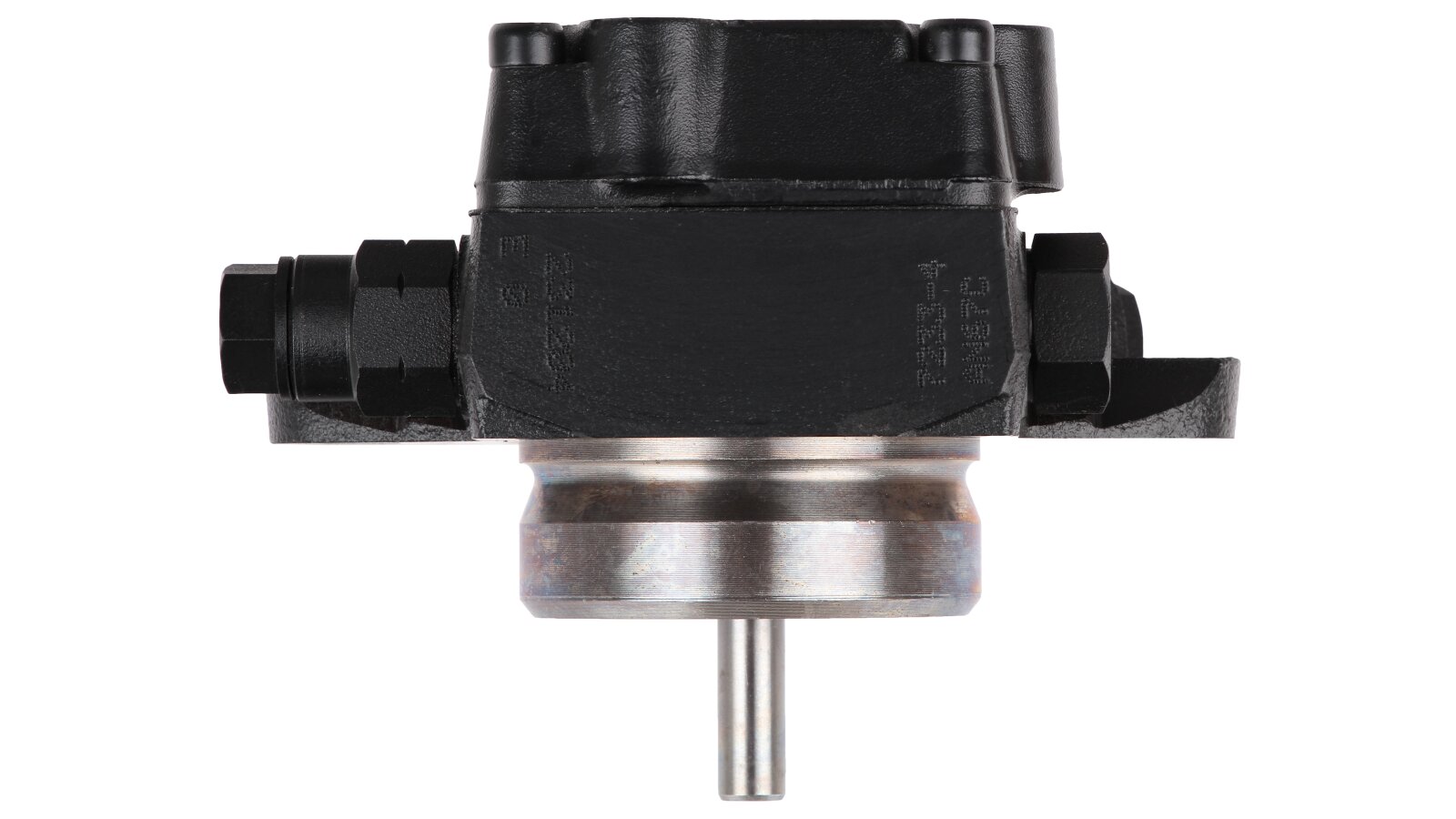

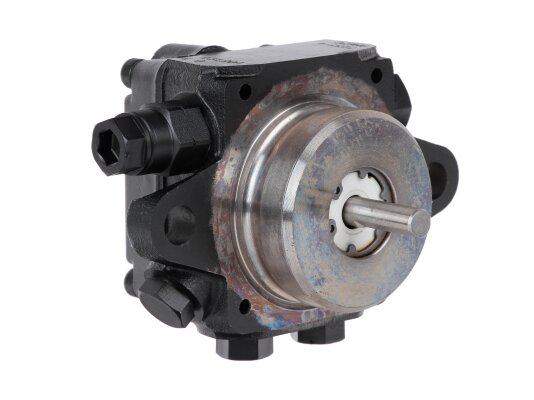

The Riello AN 67 C 7233 4P burner pump, art.: 3013805, is designed to equip liquid fuel heating equipment. Pumps diesel fuel to the nozzle under pressure up to 20 bar. In the factory assembly, it is ready for a 2-pipe connection. When used in systems without a return line, the bypass plug must be replaced with a blind one.

Features of the AN 67 pump:

  • working medium - diesel fuel;

  • built-in pressure regulating valve with shut-off function;

  • external solenoid valve (optional) for automatic feeding;

  • fuel temperature inside the pump 0 ... + 60 ºC;

  • pressure setting range on the nozzle: 10-20 bar (factory set to 14 bar);

  • wear-resistant design, undemanding in maintenance;

  • use in systems of 2-pipe and 1-pipe configuration;

  • mesh metal filter with 150 micron holes.

Design and installation

The gear mechanism sucks fuel from the tank and pumps it onto the nozzle. Fuel passes through the built-in filter and pressure regulating valve. Excess fuel is returned to the tank in a two-pipe system or fed to the gear pair in a single-pipe connection. It is recommended to install an additional fine filter in the pressure part to protect the nozzle from contamination. The pump is attached using a flange connection ∅ 54 mm.

Advantages:

  • use in two- and single-pipe systems;

  • optimal pumping speed;

  • reliability, wear resistance of the design;

  • adjustment of the feed pressure in the range of 10-20 bar;

  • mesh filter to protect the gears from wear;

  • reliable flange connection;

  • ports for pressure control devices.

The pump for the Riello AN burner meets safety and reliability standards. It does not require special maintenance and is designed for long-term, uninterrupted operation.

Characteristics

Manufacturer Part Number: 3013805Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 79 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 79 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmShaft diameter: 8 mmTorque: 0.12 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barInstallation method: flange ∅ 54 mmNozzle pressure range: from 10 to 20 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityMaximum rotation speed: 3600 rpmType of pumped liquid: diesel
