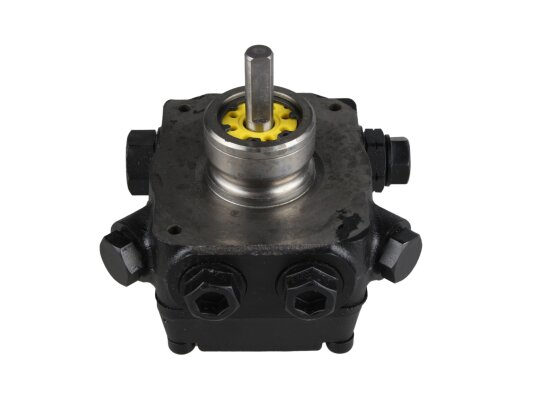

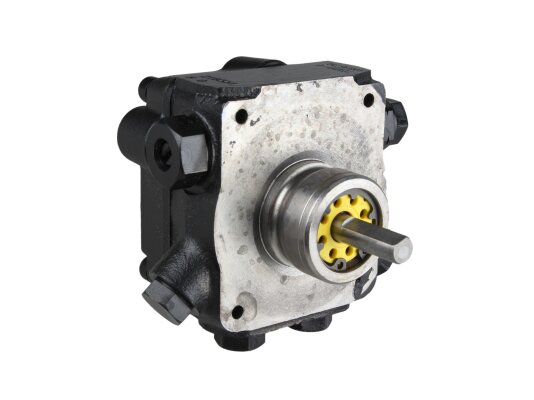

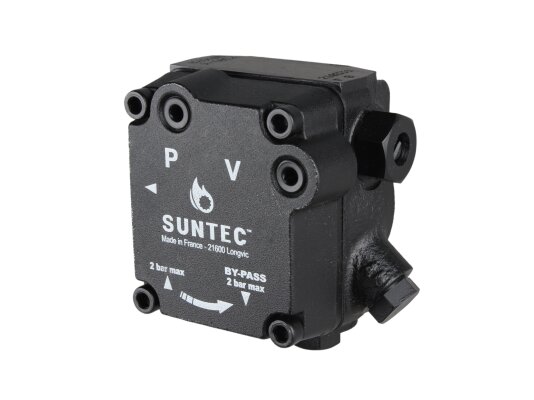

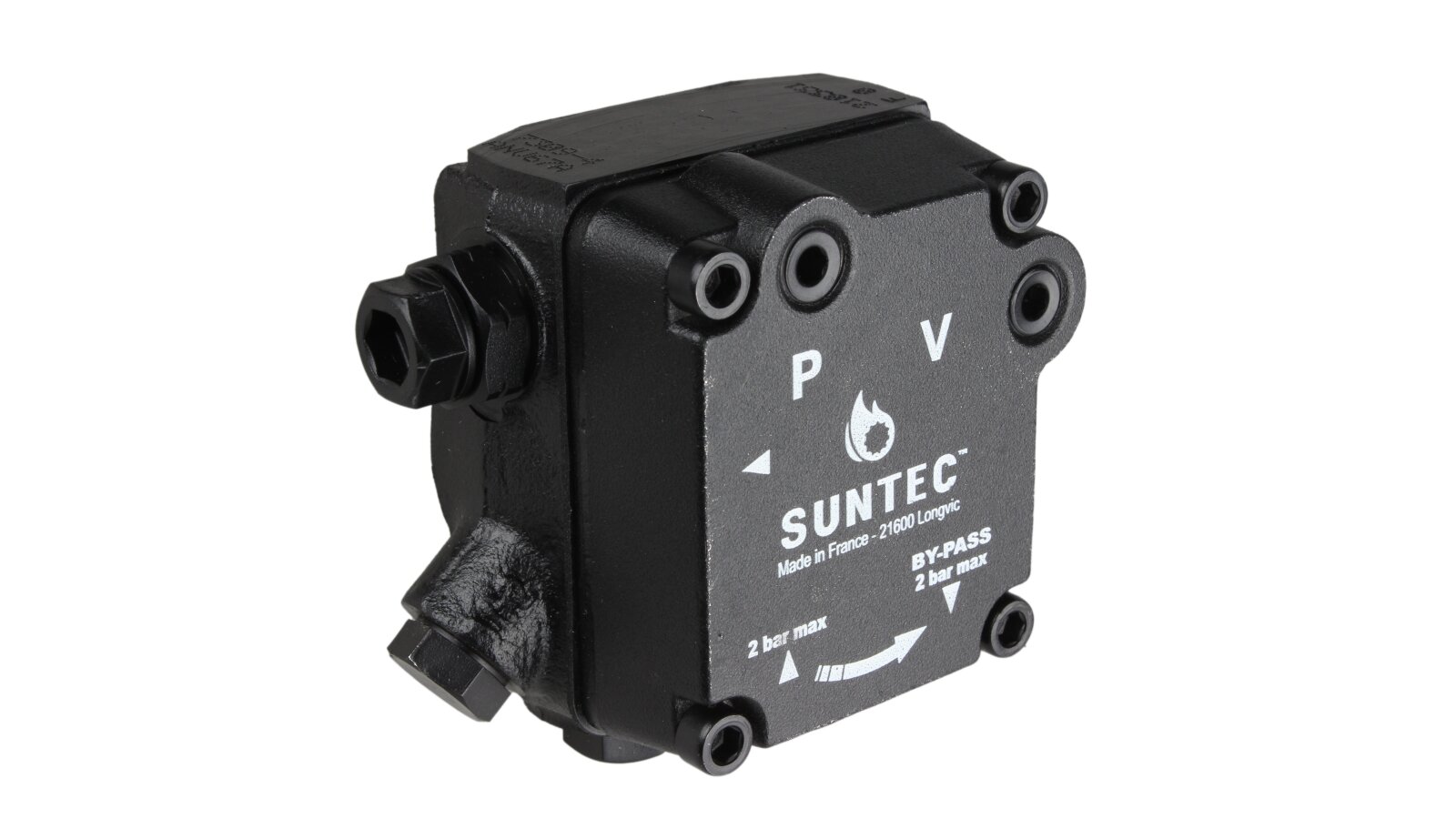

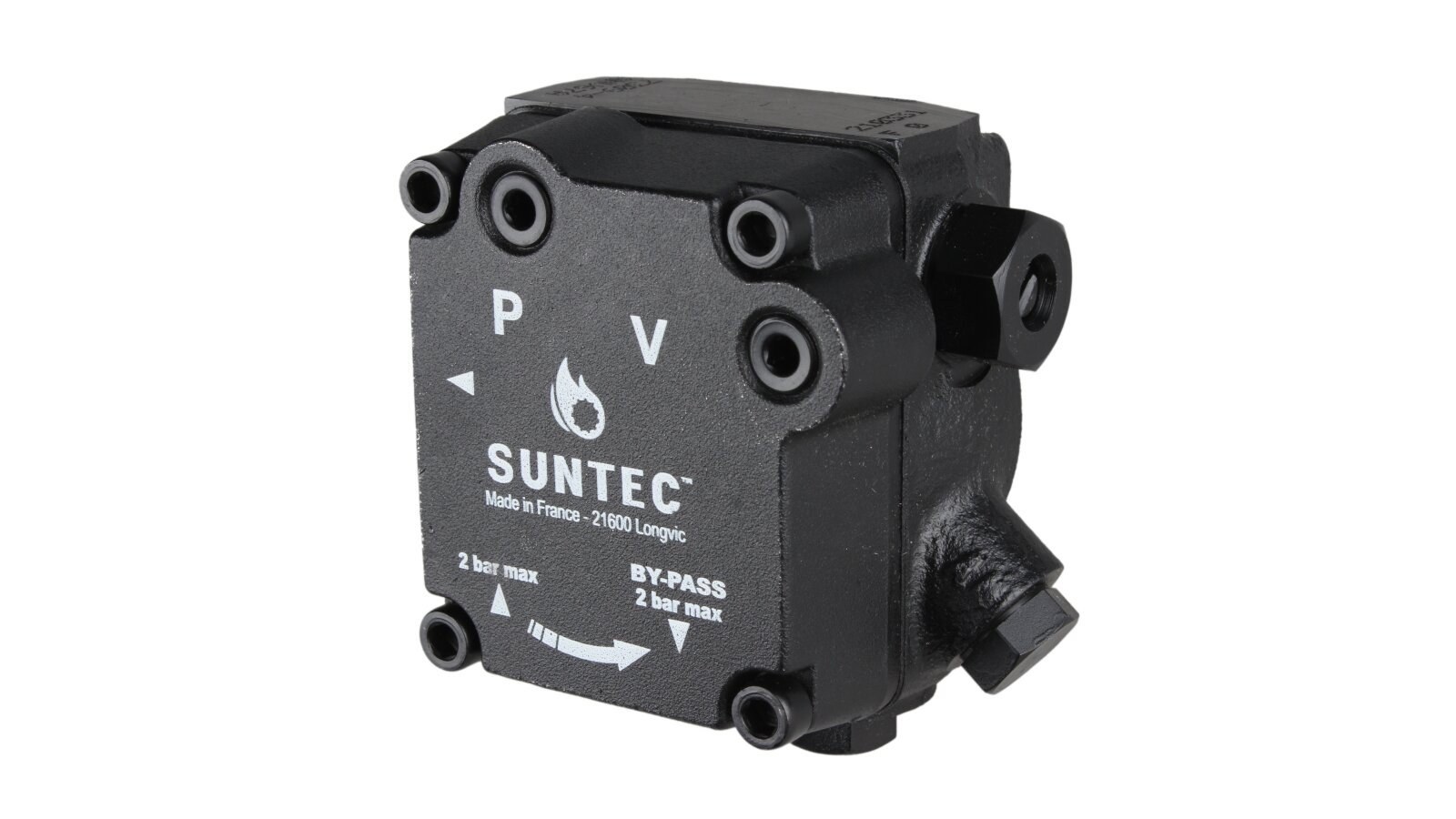

Burner Pump Riello AN V 67 A 7309 4P

Riello20033142
AED 1,450
  1. Oil Burner Pumps

Description

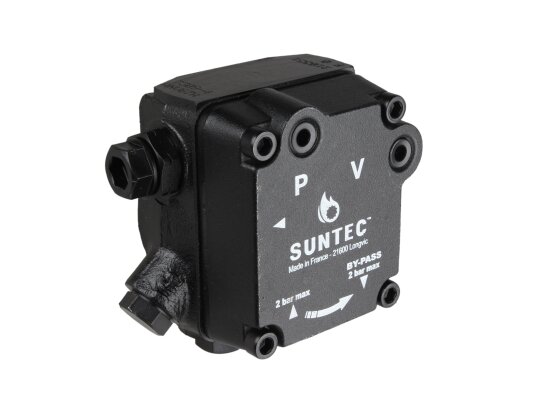

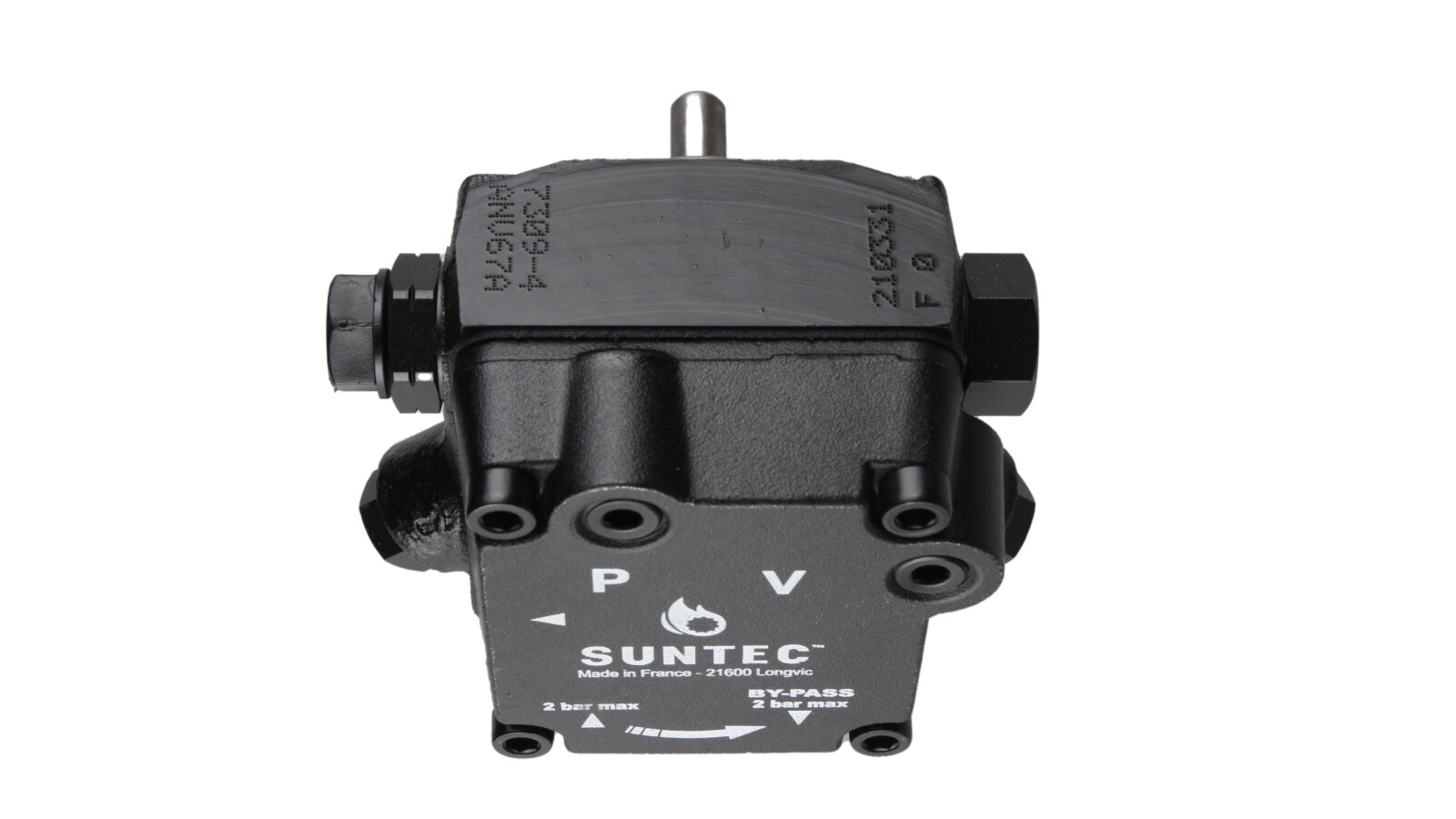

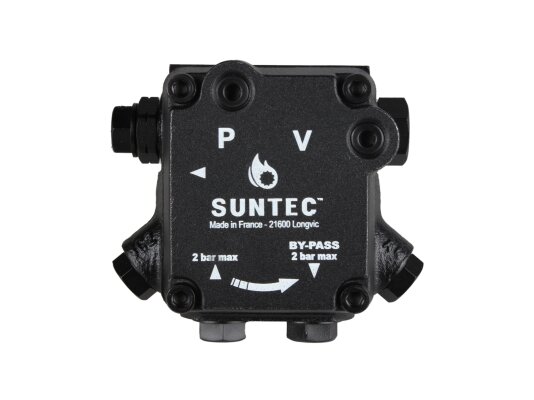

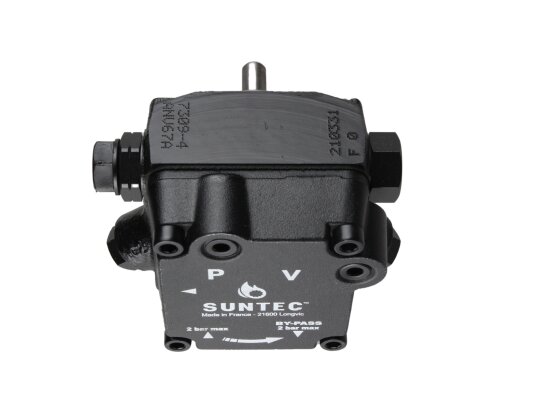

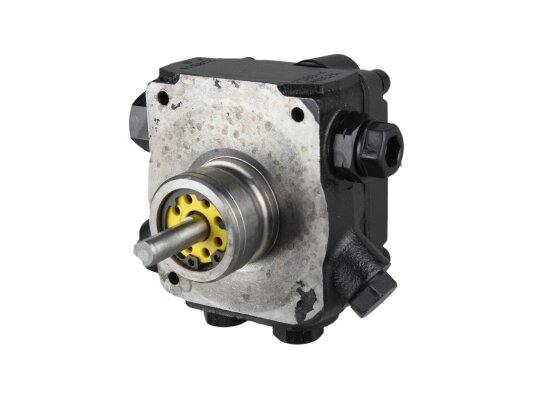

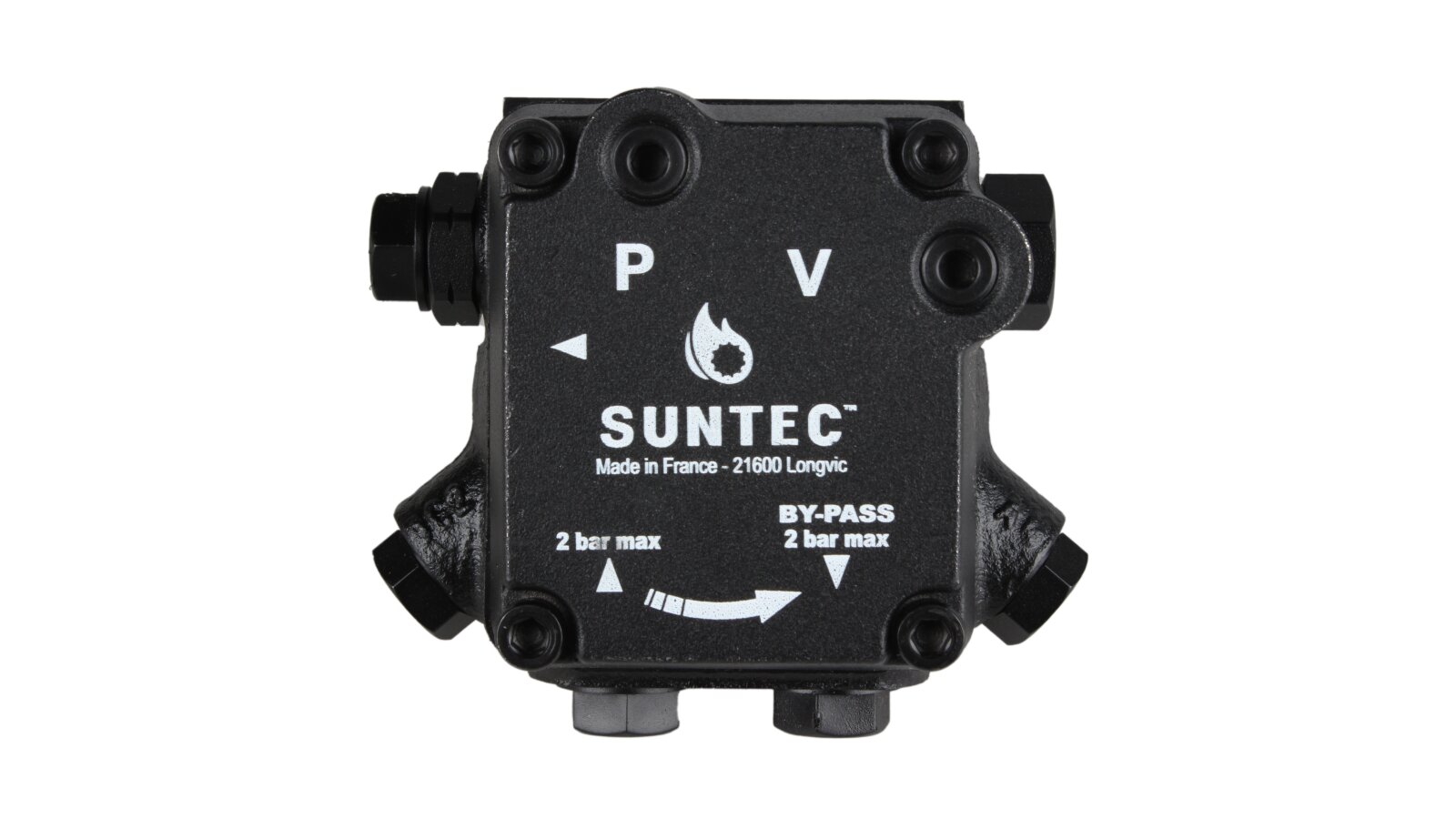

The Riello AN V 67 A 7309 4P burner pump, art.: 20033142, is designed to pump diesel fuel and B10 biodiesel. Prepared for a two-pipe connection. It can also be built into systems without a return line by replacing the bypass plug with a steel plug with a washer. The fuel pumping speed varies based on operating parameters and is 80 l/h at a viscosity of 5 cSt and a pressure of 11 bar. The pump includes a pressure regulating valve with a shut-off function.

Characteristics and features:

  • use in systems burning diesel fuel and biodiesel fuel;

  • feed pressure adjustment in the range of 10-20 bar, by default - 14 bar;

  • use with an external solenoid valve;

  • mesh filter at the inlet to remove foreign particles from 150 μm in size;

  • design for single-pipe and dual-pipe systems (factory-assembled with bypass plug);

  • Viton seals for safe operation with biofuel;

  • clockwise rotation / outlet to the nozzle on the right side;

  • pressure regulating valve with flow shut-off;

  • gear-type working mechanism, resistant to wear;

  • installation in any position, except with the axis up;

  • operating temperature range (fuel inside the pump): 0...+60 °C;

  • automatic bleed of excess air in dual-pipe systems;

  • permissible viscosity of the working medium: 2...75 cSt.

Design

The pump is equipped with a wear-resistant gear mechanism. To protect the gears from damage, a serviceable mesh filter is mounted at the inlet, which must be cleaned of dirt in a timely manner. ⅛ inch outputs are provided for connecting a pressure gauge and a vacuum gauge. Connection to the suction pipe and return line is made using G¼" connections. The pump design is suitable for a wide range of burners.

Diesel pumps for Riello AN burners are equipped with a filter, but for the best protection the manufacturer recommends installing an additional fuel filter.

Characteristics

Manufacturer Part Number: 20033142Type of pumped liquid: diesel, biodiesel fuel blend B10Direction of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 80 l/hOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: AN: base valve with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 108 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmMaximum rotation speed: 3600 rpmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 10 to 20 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityInstallation method: sleeve ∅ 32 mm
