Description

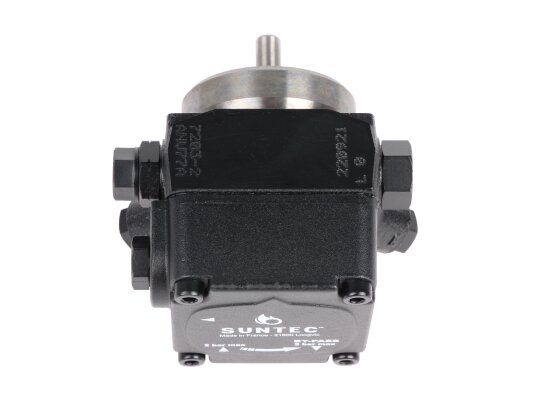

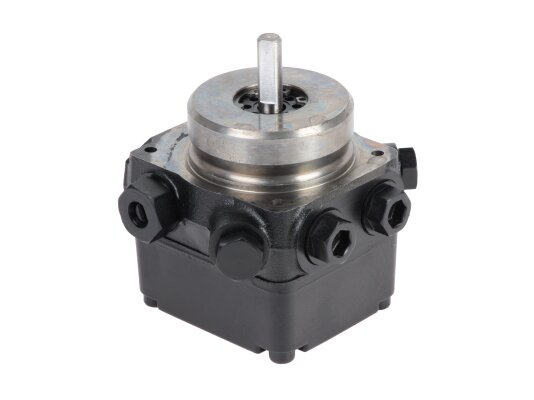

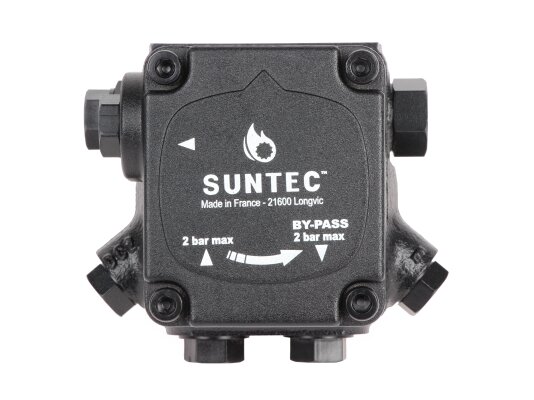

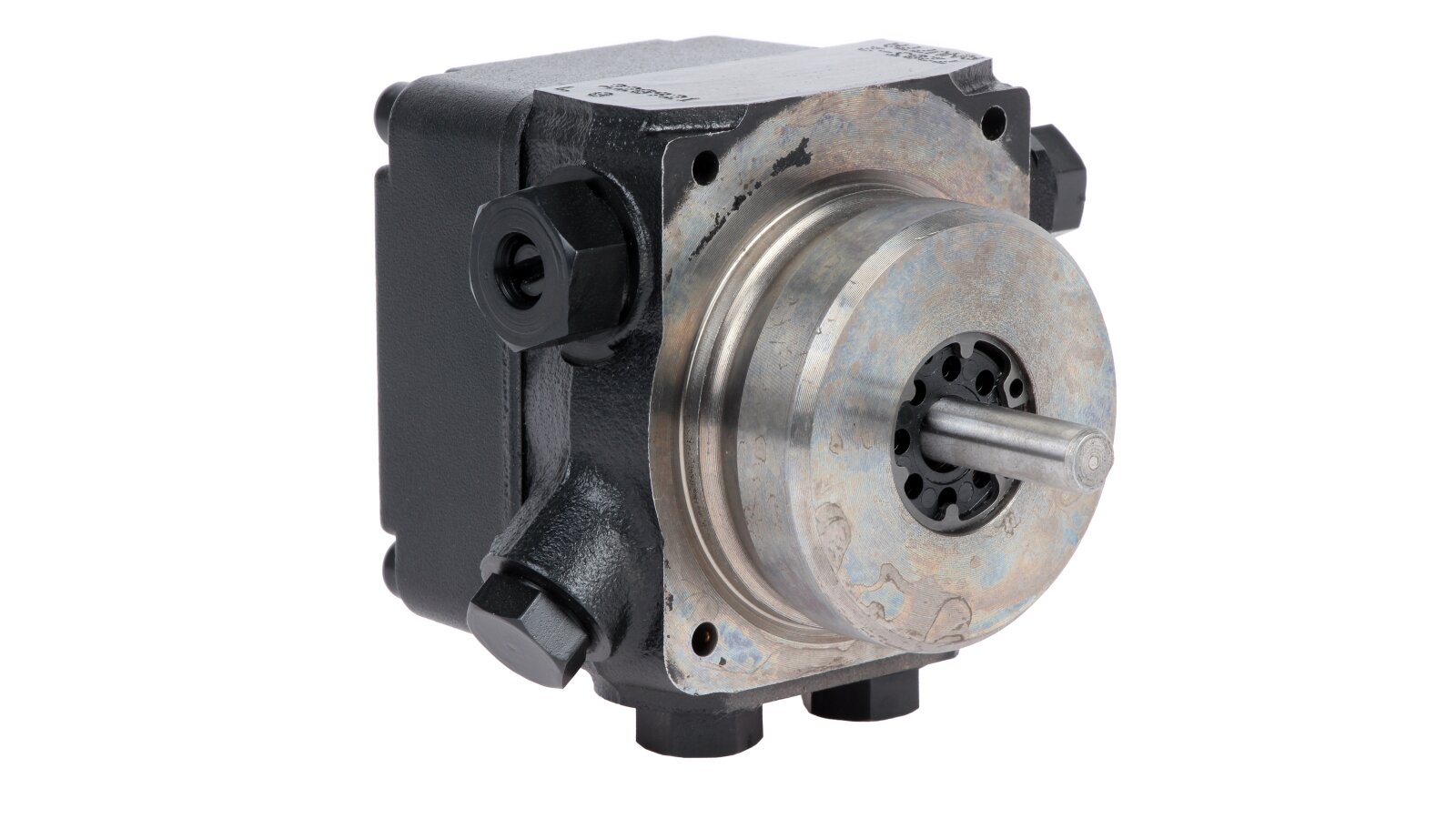

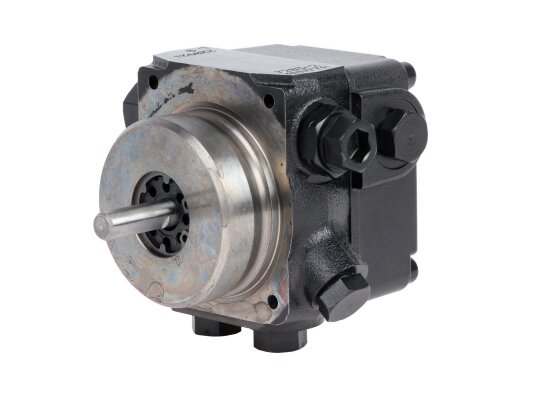

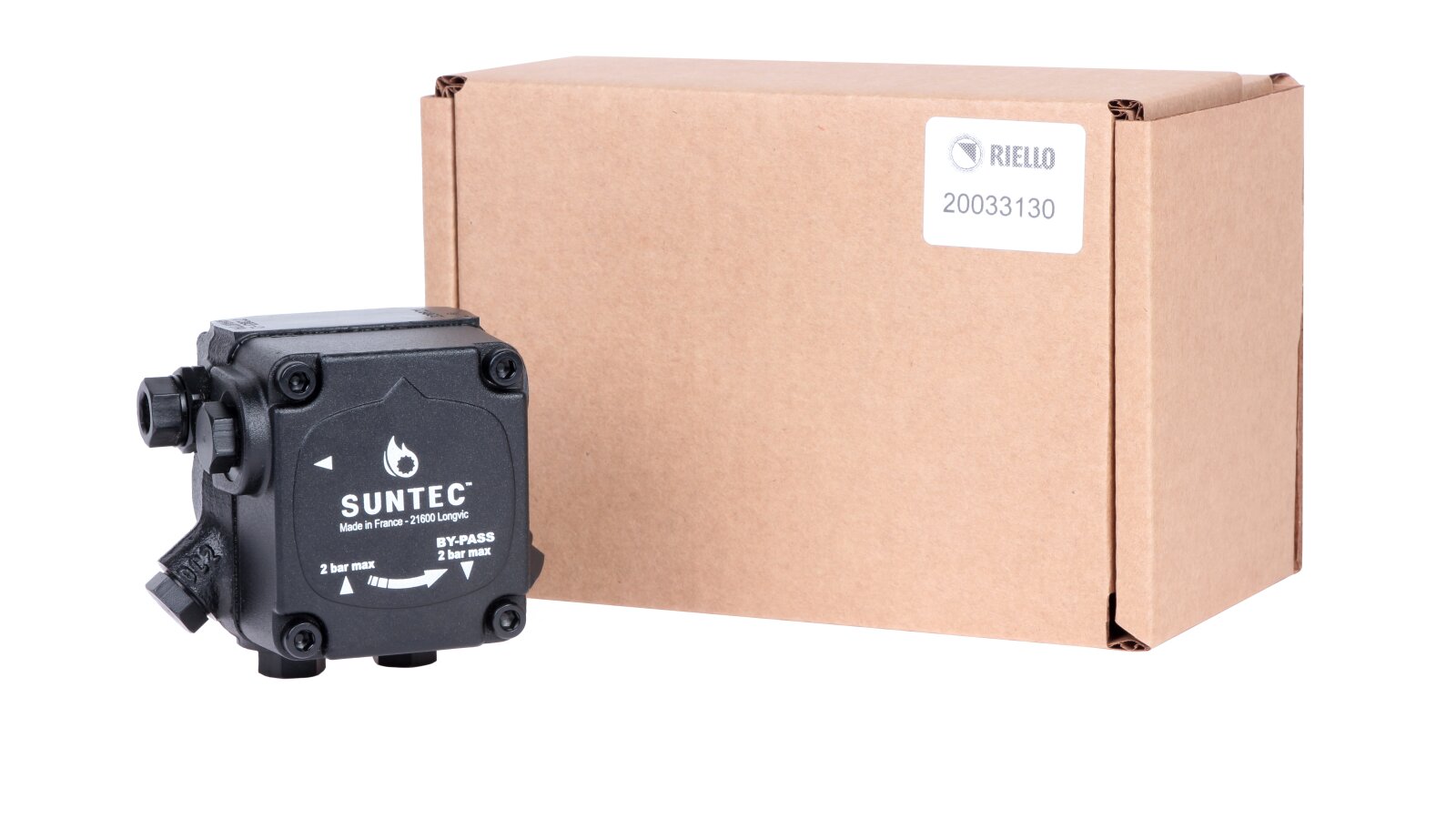

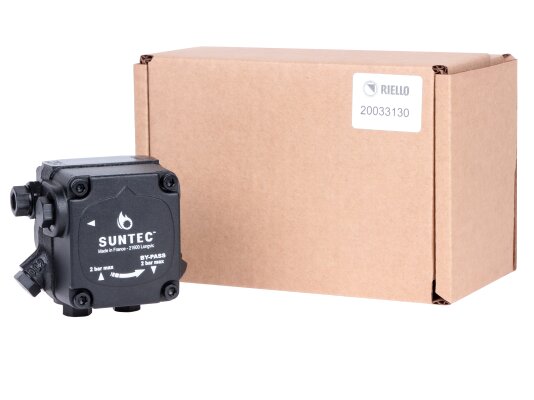

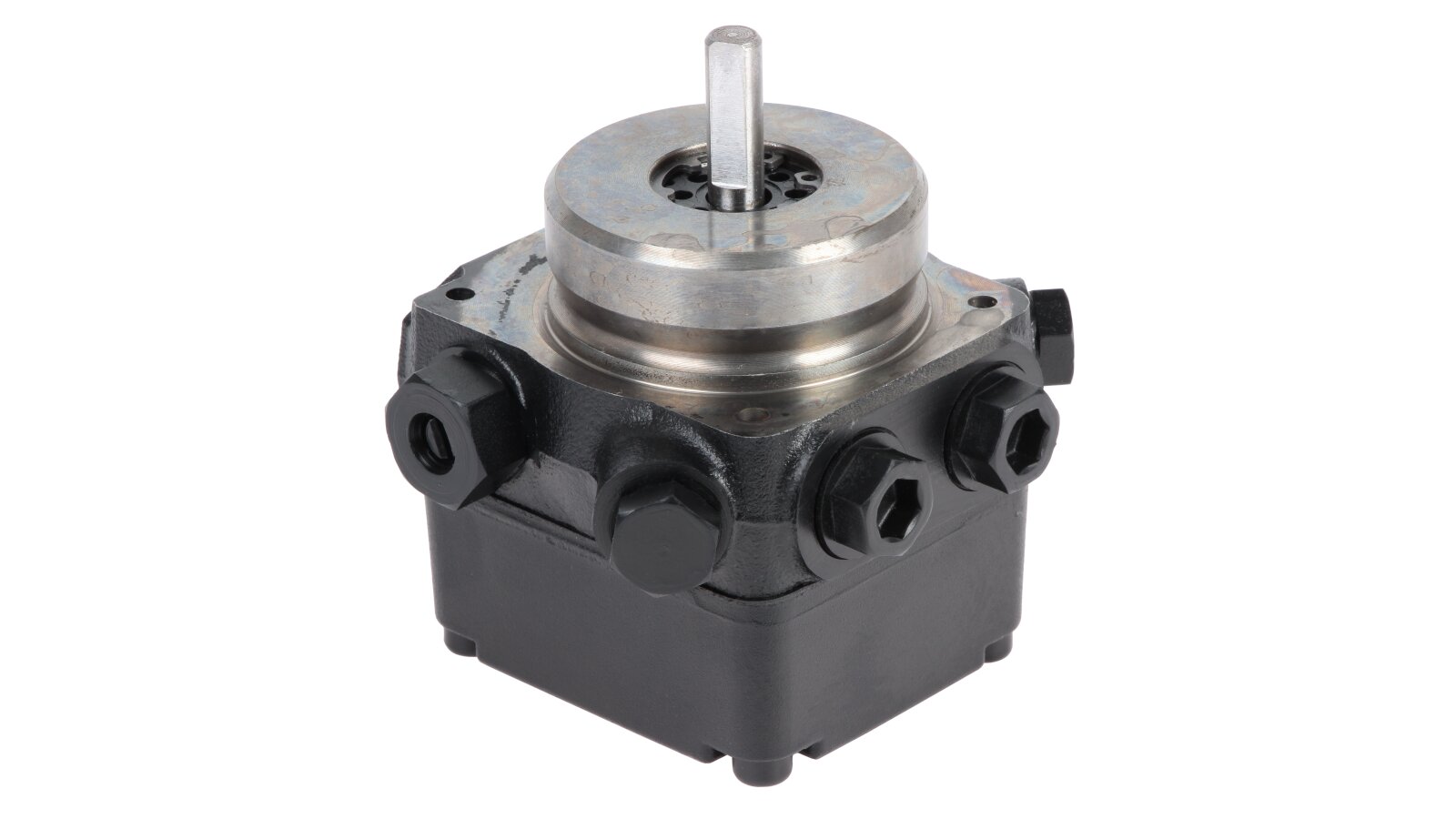

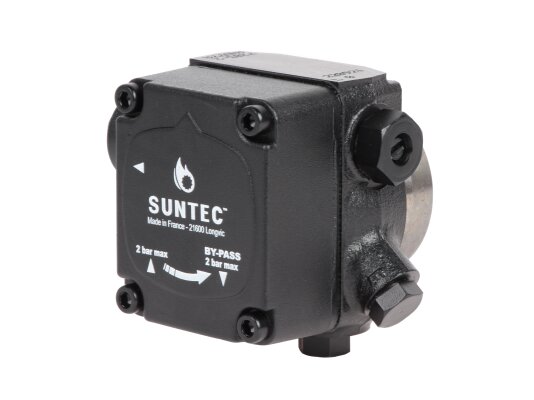

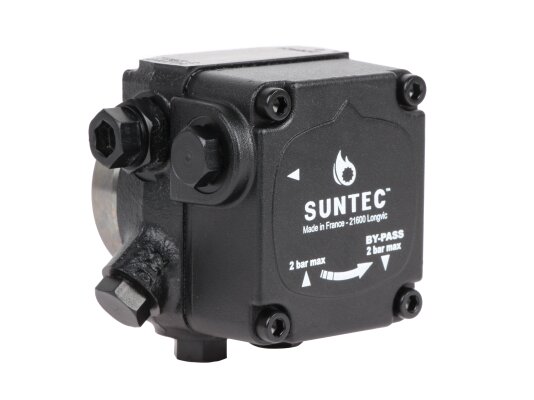

The Riello AN V 77 A 7203 2P burner pump, art.: 20033130, is designed to work with diesel fuel and a B10 biodiesel mixture. The capacity is 108 l/h when the pressure is set to 11 bar and the viscosity of the pumped fuel is 5 cSt. The device is equipped with a pressure regulating valve with a shut-off function. It is used mainly in systems with an external solenoid valve.
Features of the AN V 77 pump:
special shaft seals for working with biodiesel fuel;
built-in valve for regulating pressure and shutting off the flow;
external automatic valve;
standard thread according to ISO 228/1 for connection to the fuel line;
fuel temperature inside the pump 0...+60 ºC;
pressure on the nozzle: 10-20 bar (factory setting - 14 bar);
placement in two-pipe and one-pipe systems;
built-in mesh filter of detachable design;
automatic air bleeding with two-pipe connection.
Design
In the factory version, the pump is ready for installation in a two-pipe system. In case of use in one-pipe installations, it is necessary to unscrew the bypass plug and hermetically close the drain with a steel plug and washer.
A gear mechanism consisting of a wear-resistant gear pair is responsible for moving the fuel from the tank to the injector line. To protect the gears from wear, the fuel is pre-cleaned from abrasive inclusions larger than 150 microns. The regulating valve maintains the pressure at the set level and provides a shut-off function.
Advantages:
hermetic seals for safe operation with biodiesel;
high performance;
feed pressure adjustment in the range of 10-20 bar;
use in two- and one-pipe systems;
fuel filtration before entering the gears;
built-in pressure control valve with shut-off function;
standard ports for connecting pressure control devices.
AN series diesel pumps are highly reliable and undemanding in maintenance. In order to buy a pump for the Riello AN burner and other components for the heating system, leave a request on the website.
