Characteristics

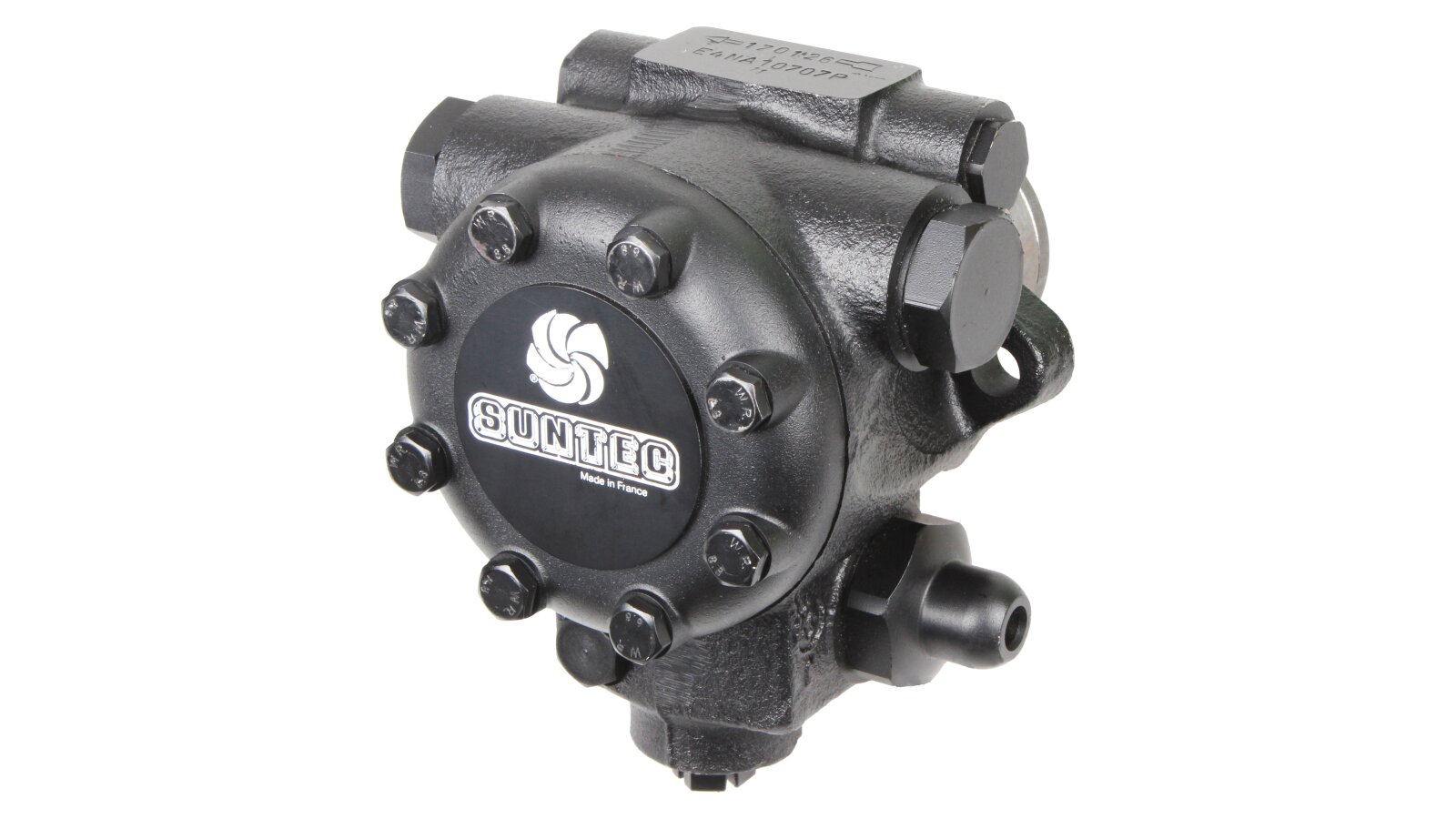

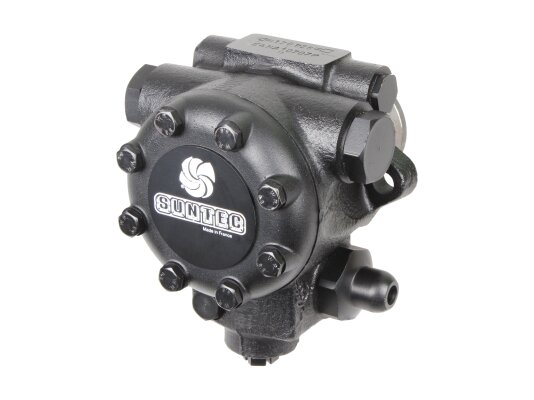

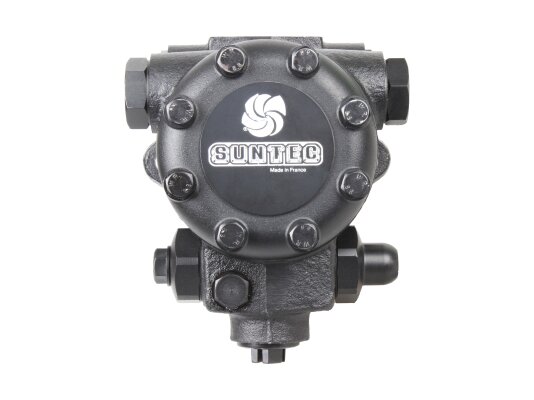

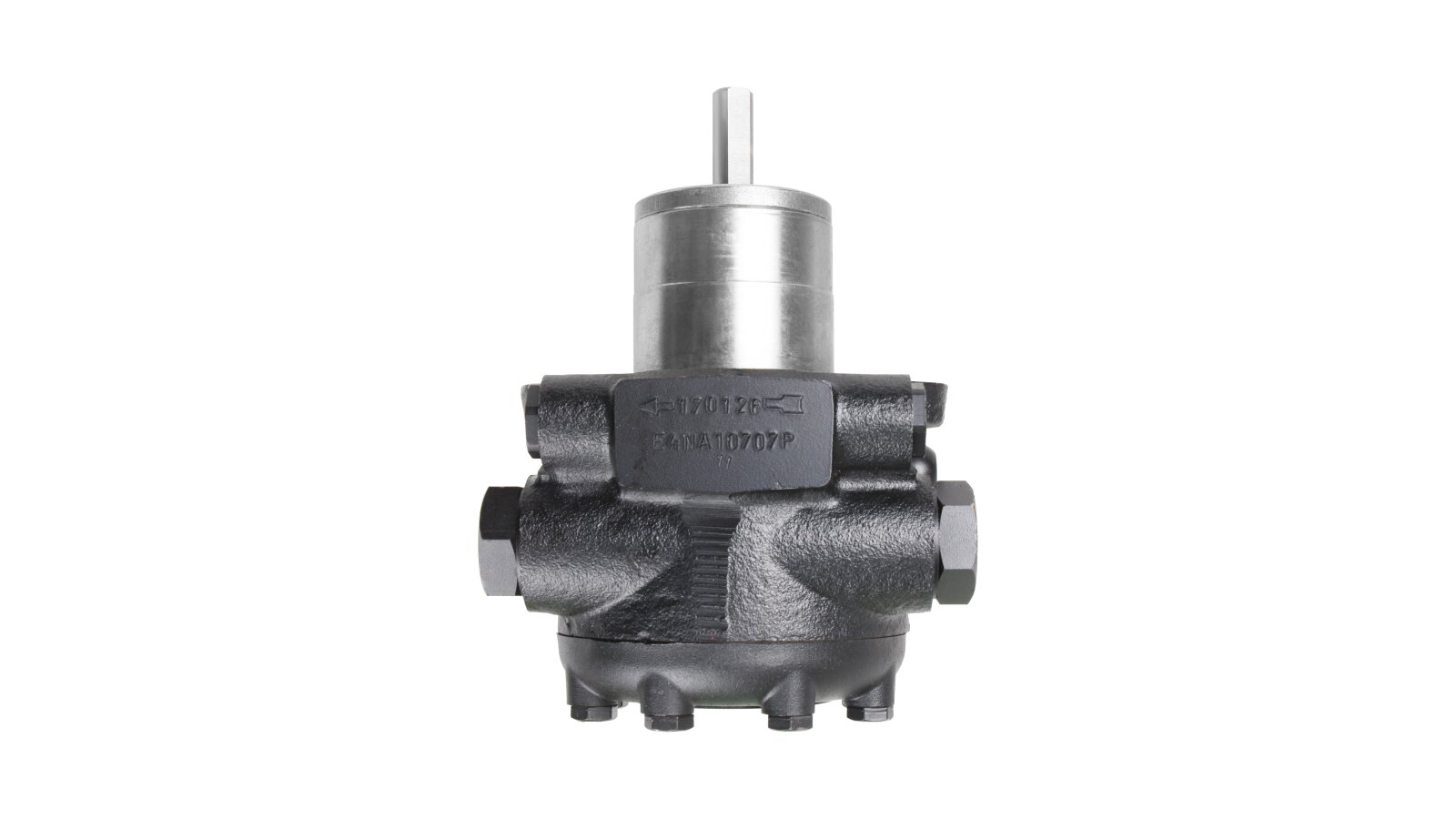

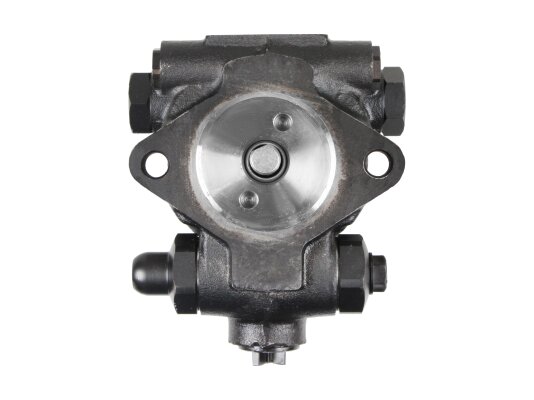

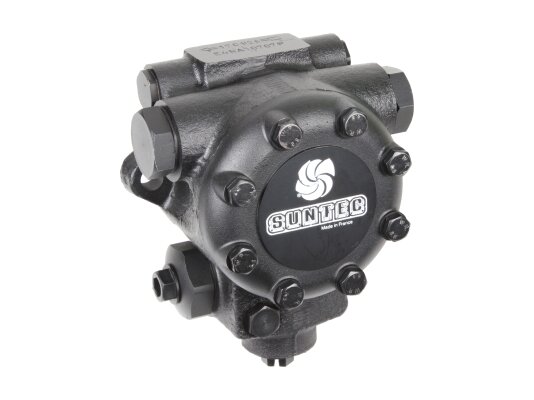

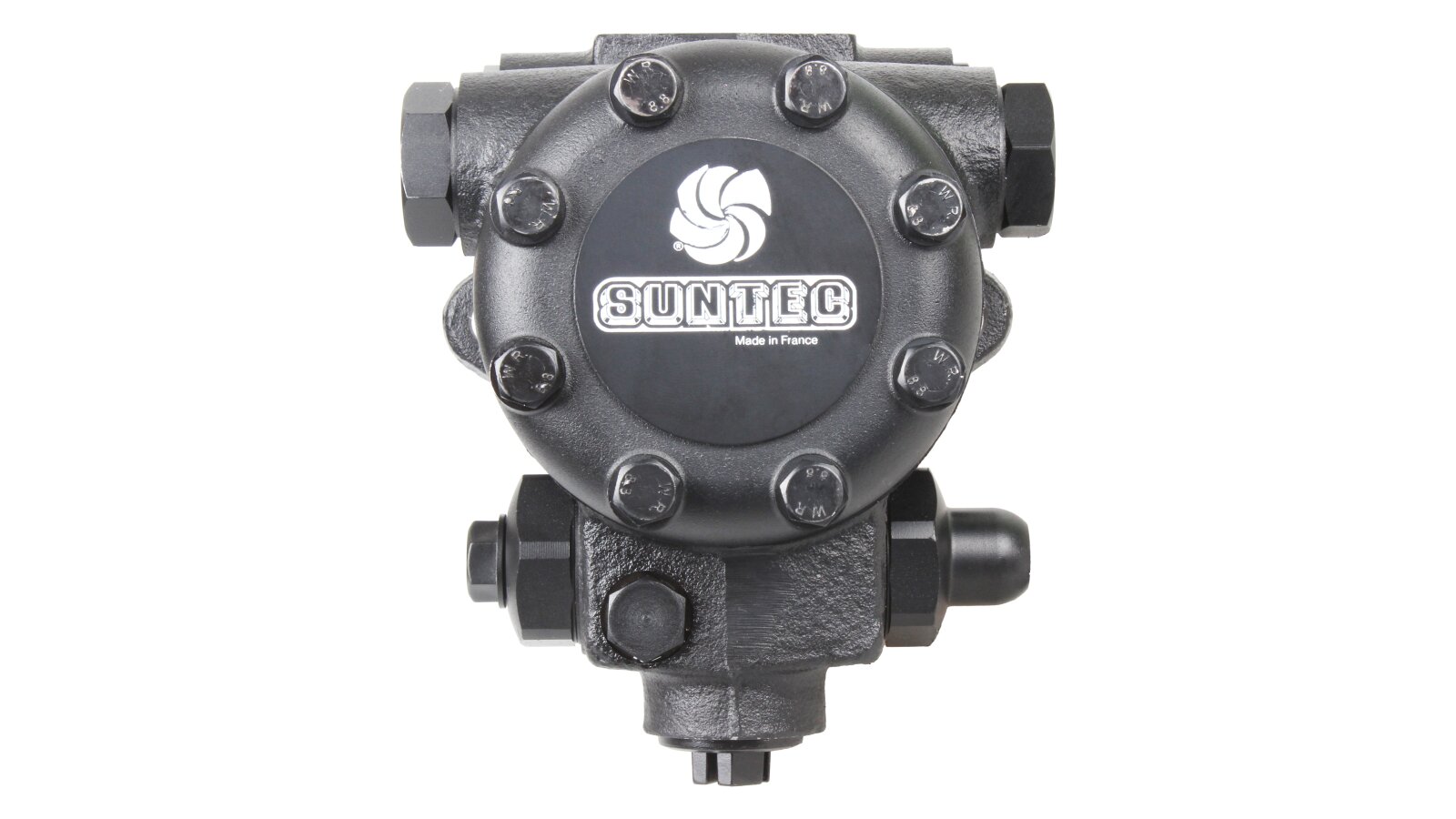

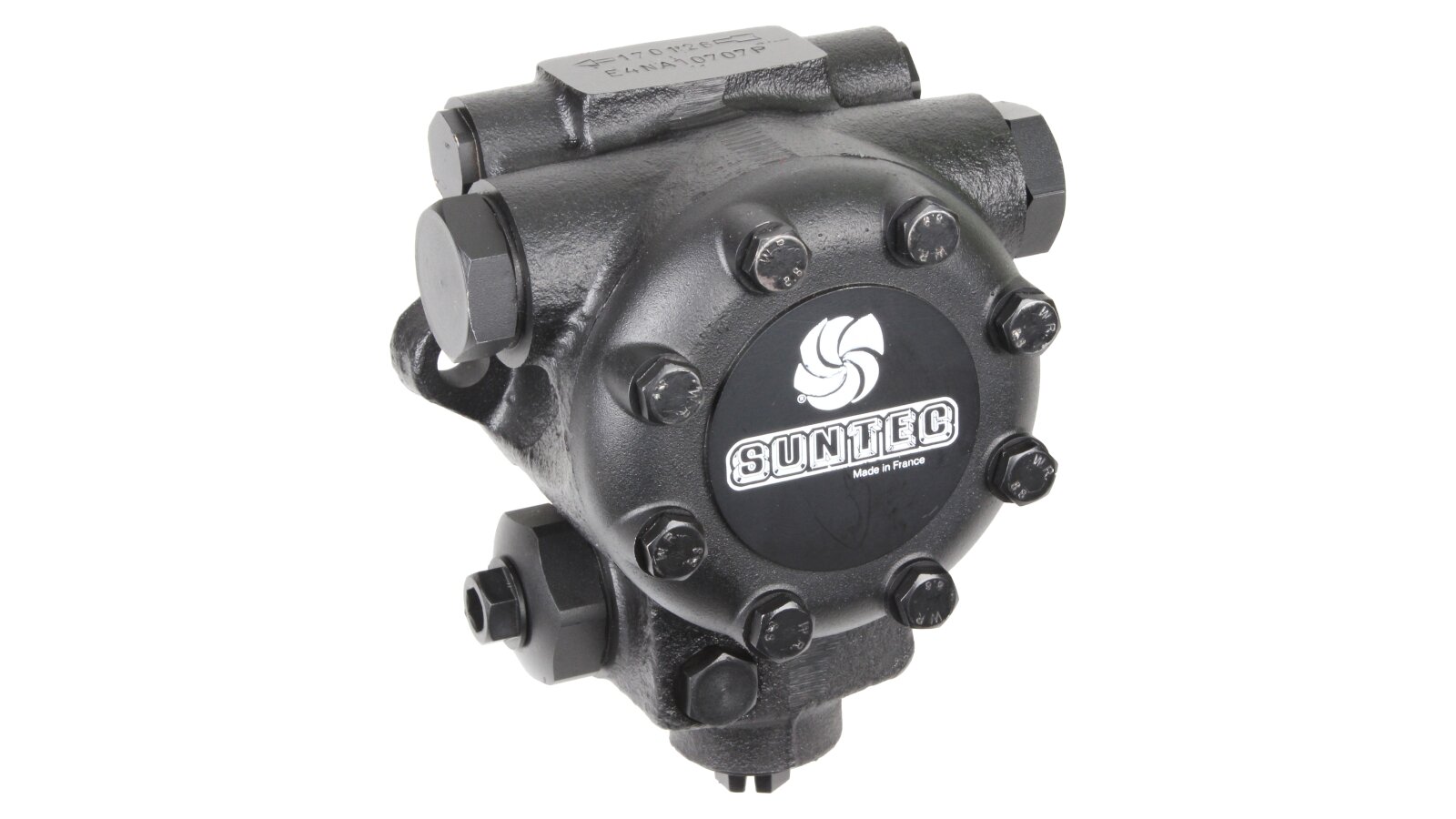

Manufacturer Part Number: 3003026By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 180 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 20 barInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mValve function: pressure regulating and cut-offOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, biodiesel fuel blend B20, sea water
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
