Characteristics

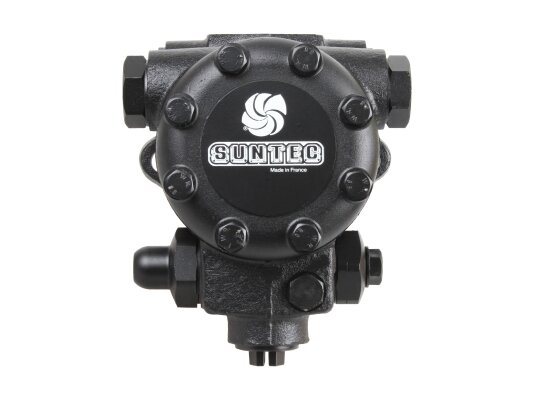

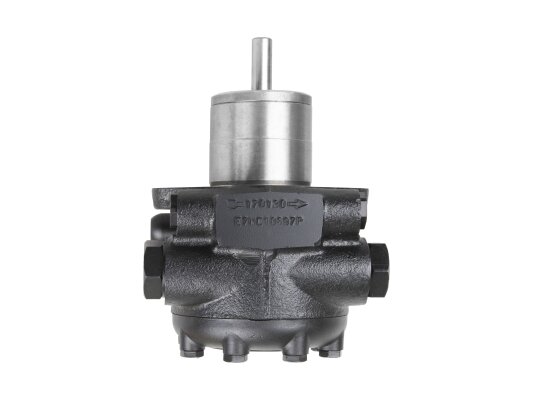

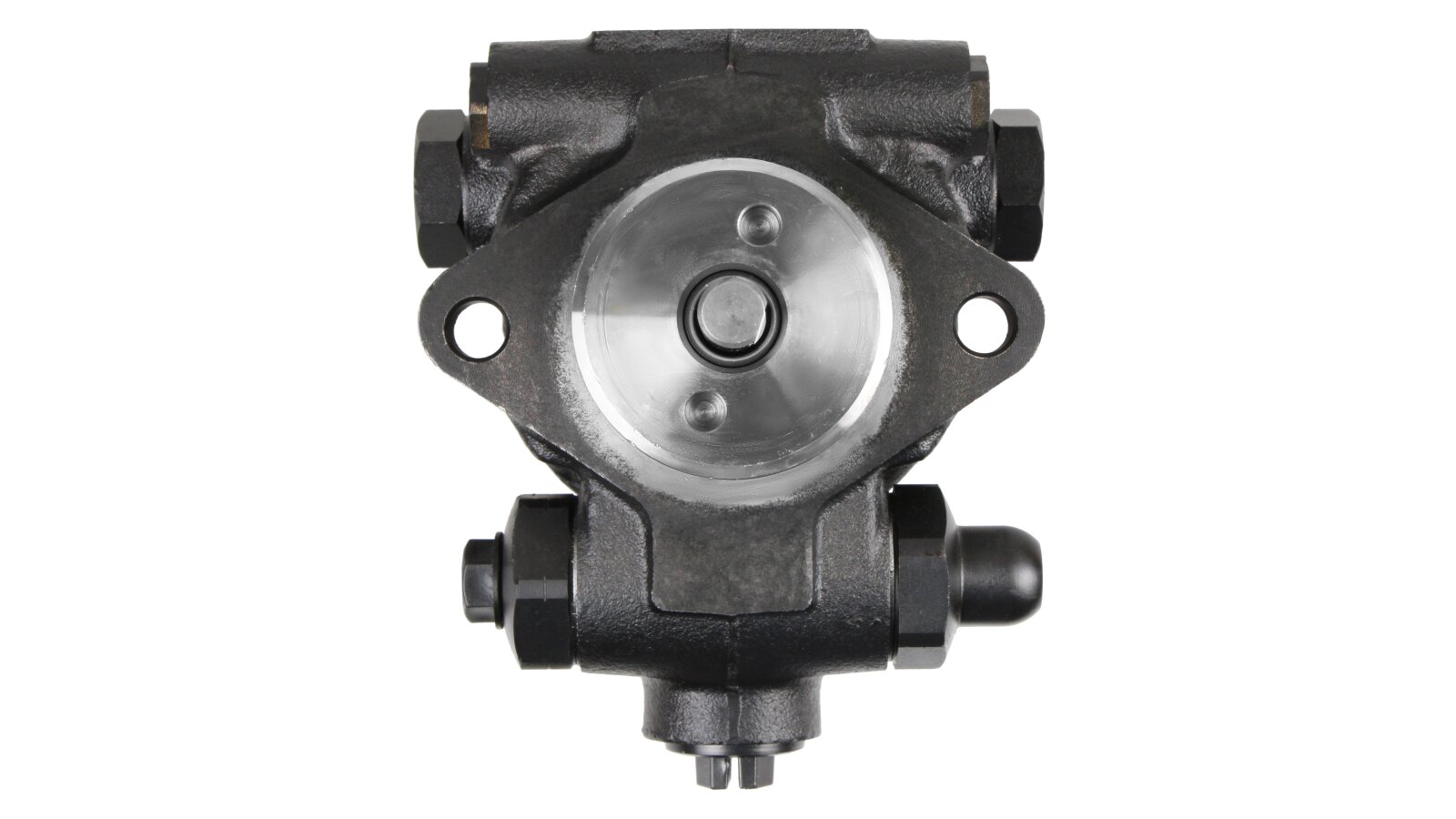

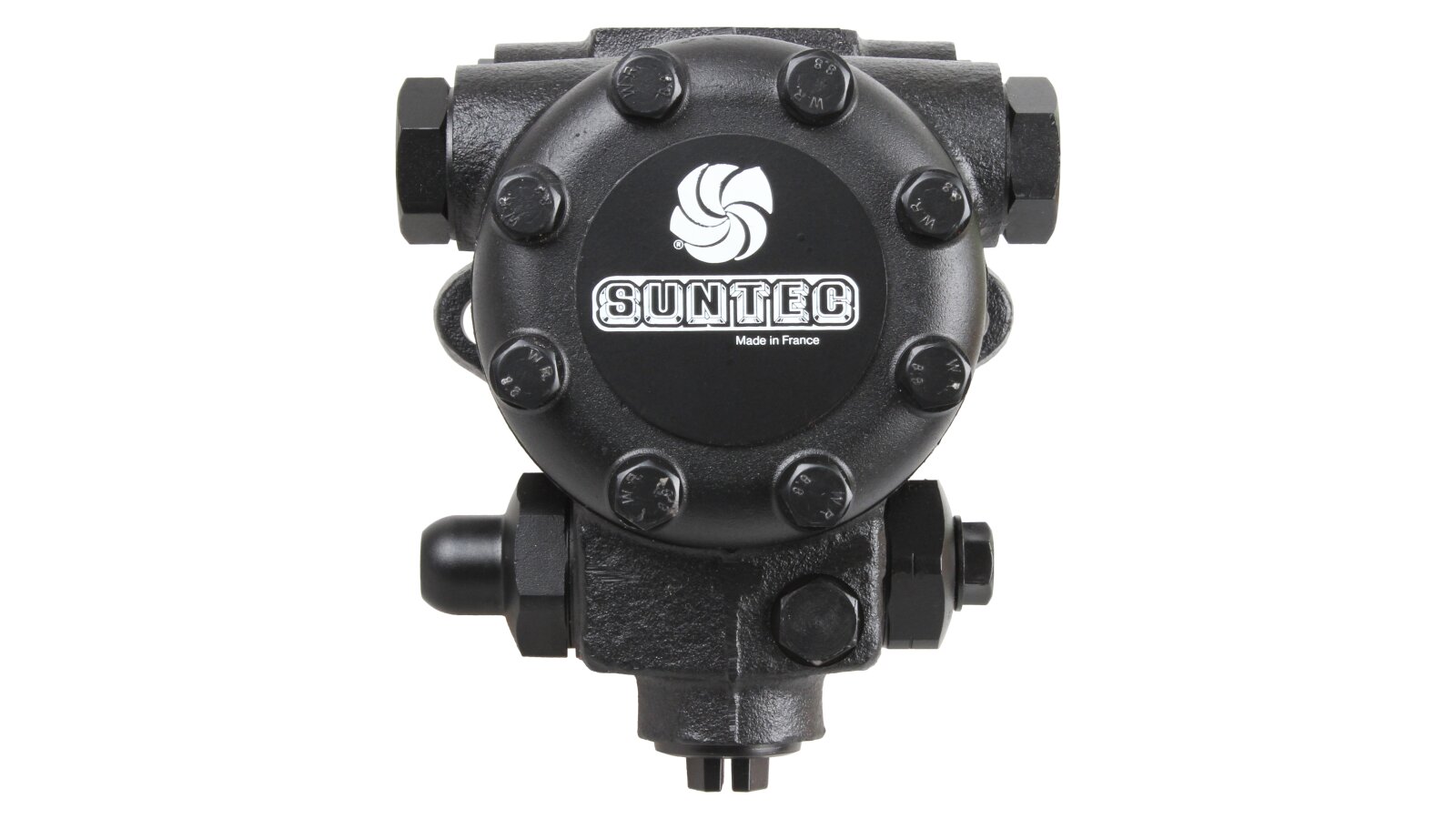

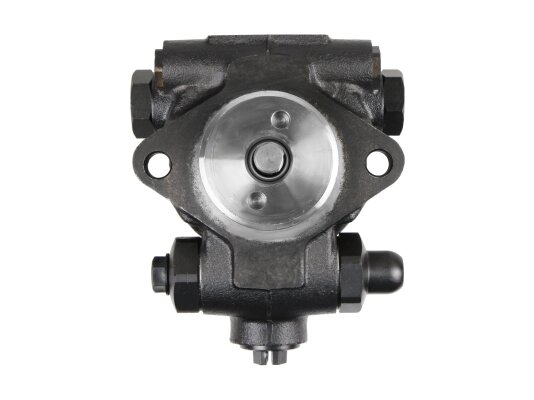

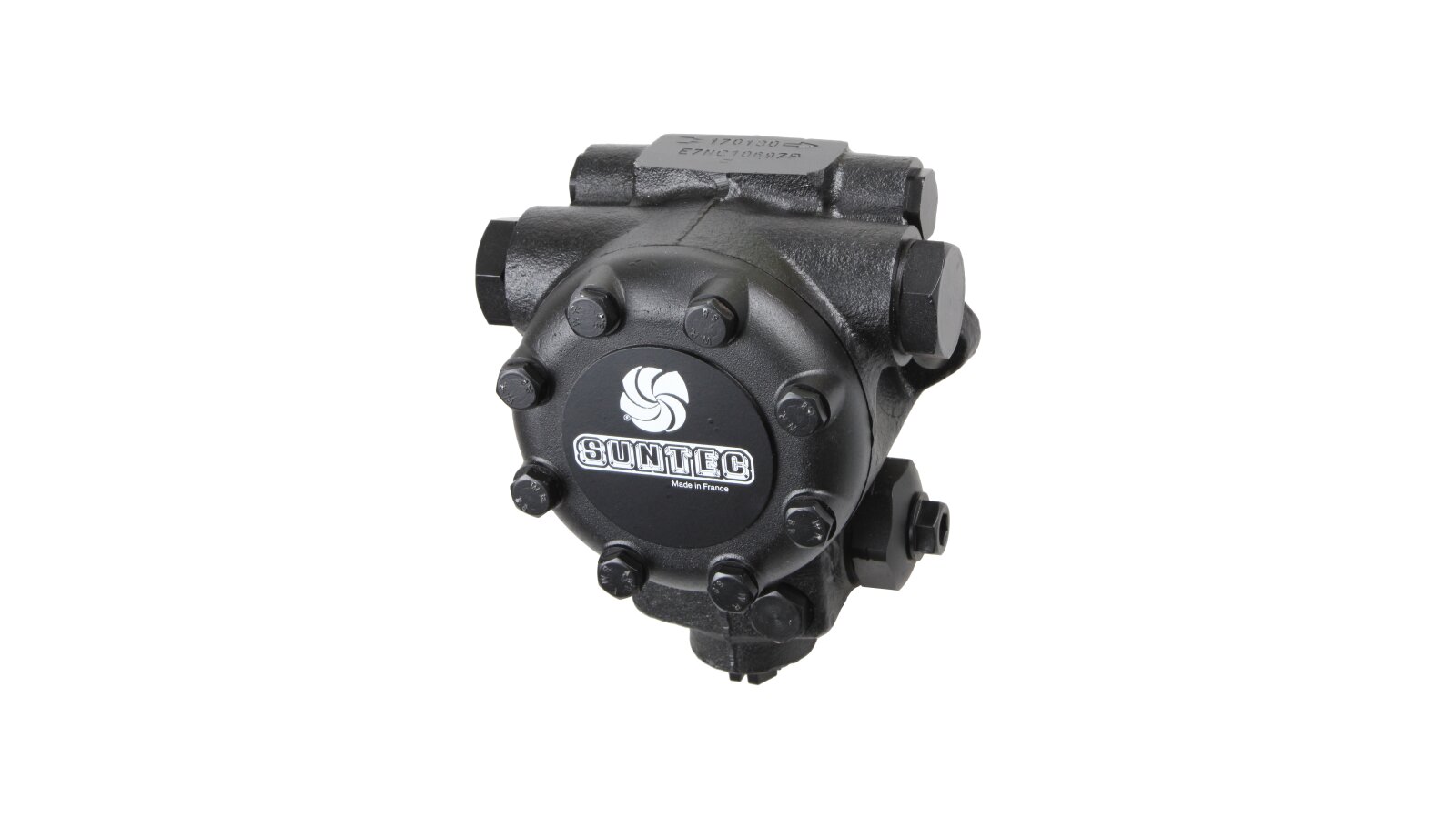

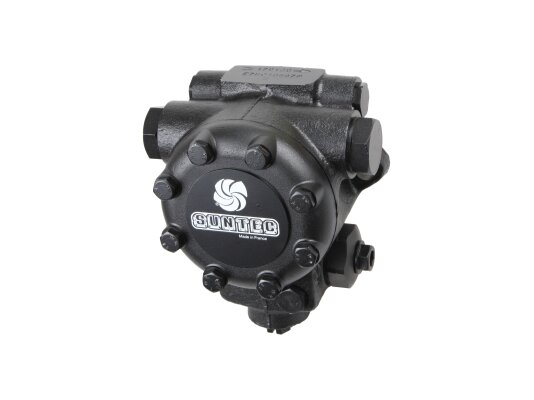

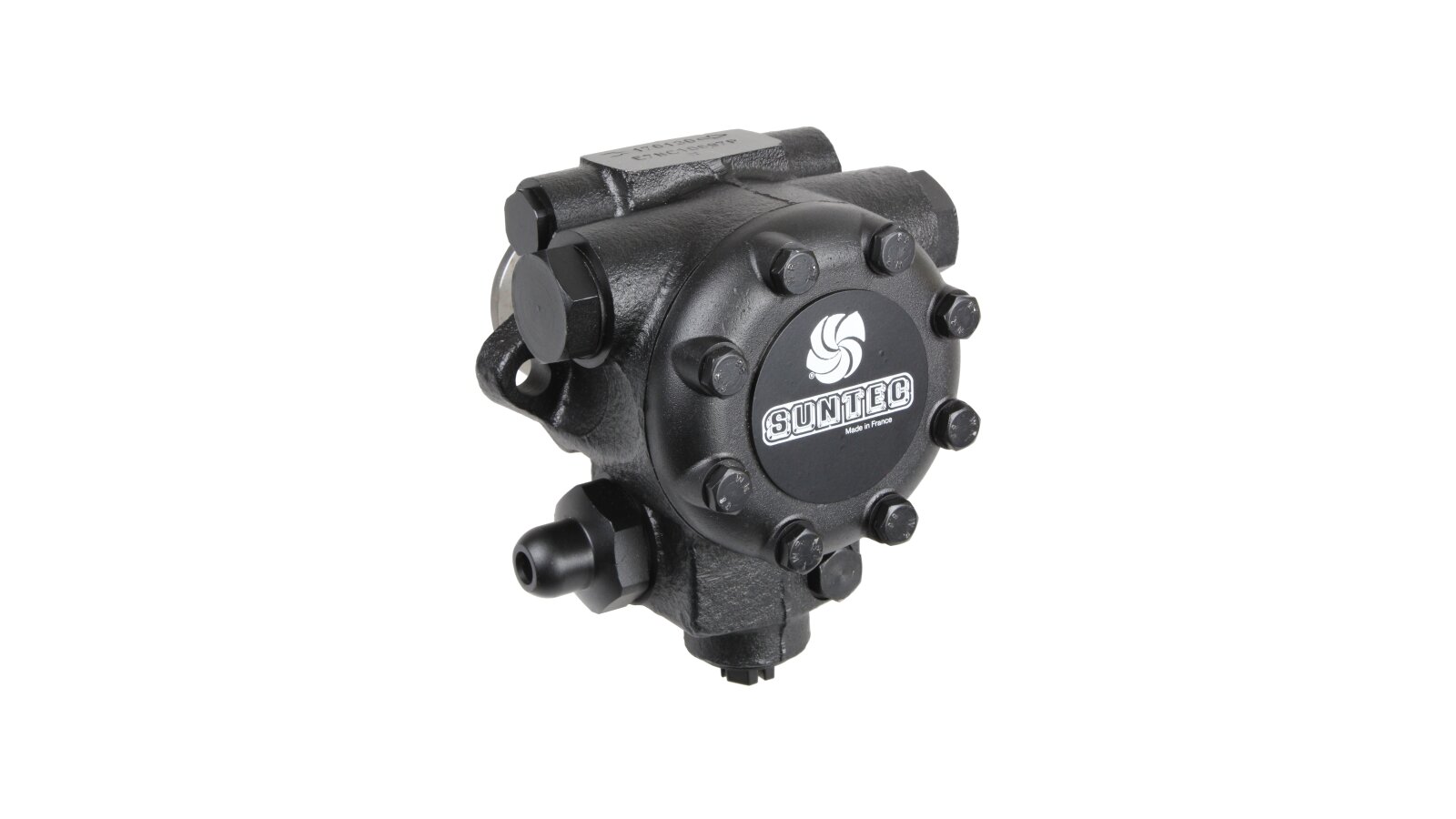

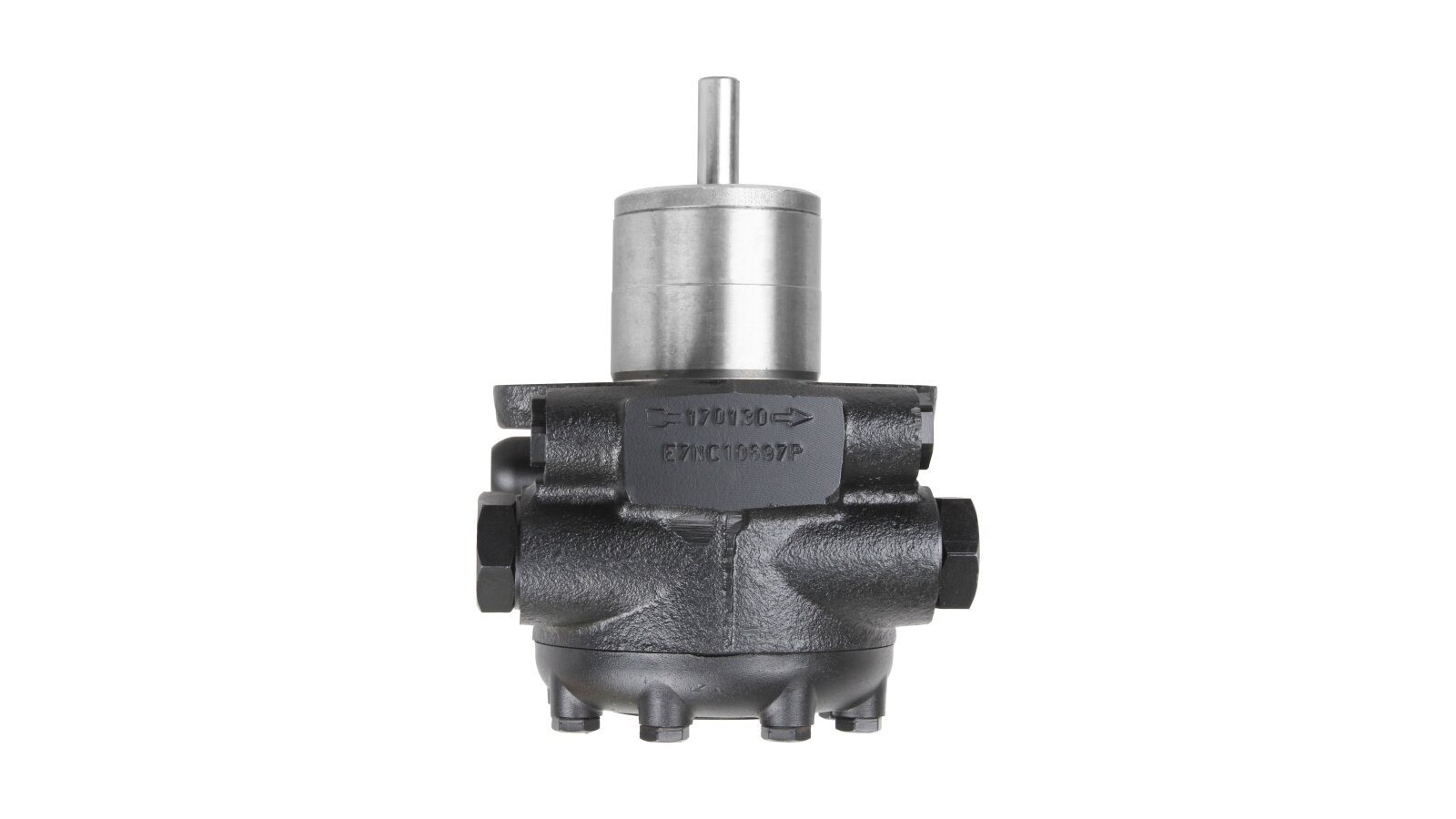

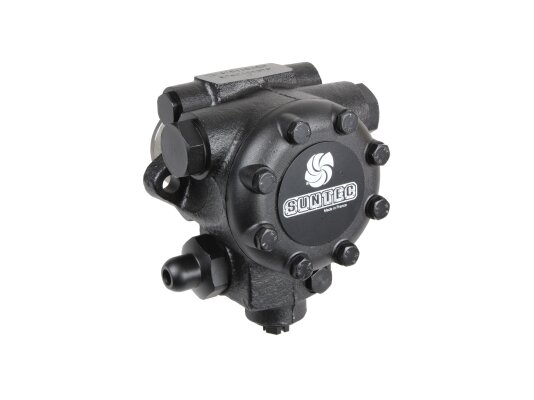

Manufacturer Part Number: 3006156Shaft design: one cavityModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 0 to 130 °C in the pumpStrainer: Opening size: 550 µmStrainer: Open area: 45 cm²Pump series: E: pressure regulationPerformance at 20 bar pressure and 20 cSt viscosity: 360 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 20 barValve function: pressure regulating and cut-offNozzle pressure range: from 14 to 30 barShaft diameter: 11 mmReturn pressure: 3.5 barInlet pressure: 3.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: diesel, sea water
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
