Characteristics

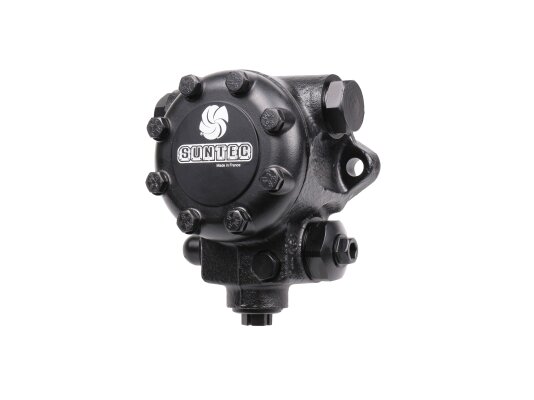

Manufacturer Part Number: 3006369Shaft design: one cavityModel type: without electromagnetic valveInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemOil temperature: from 1 to 90 °C in the pumpStrainer: Opening size: 170 µmStrainer: Open area: 45 cm²Pump series: J: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 287 l/hPressure gauge port: ⅛ inchVacuum gauge port: ½ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 21 barShaft diameter: 11 mmReturn pressure: 1.5 barInlet pressure: 1.5 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mType of pumped liquid: medium viscosity fuel, diesel
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
