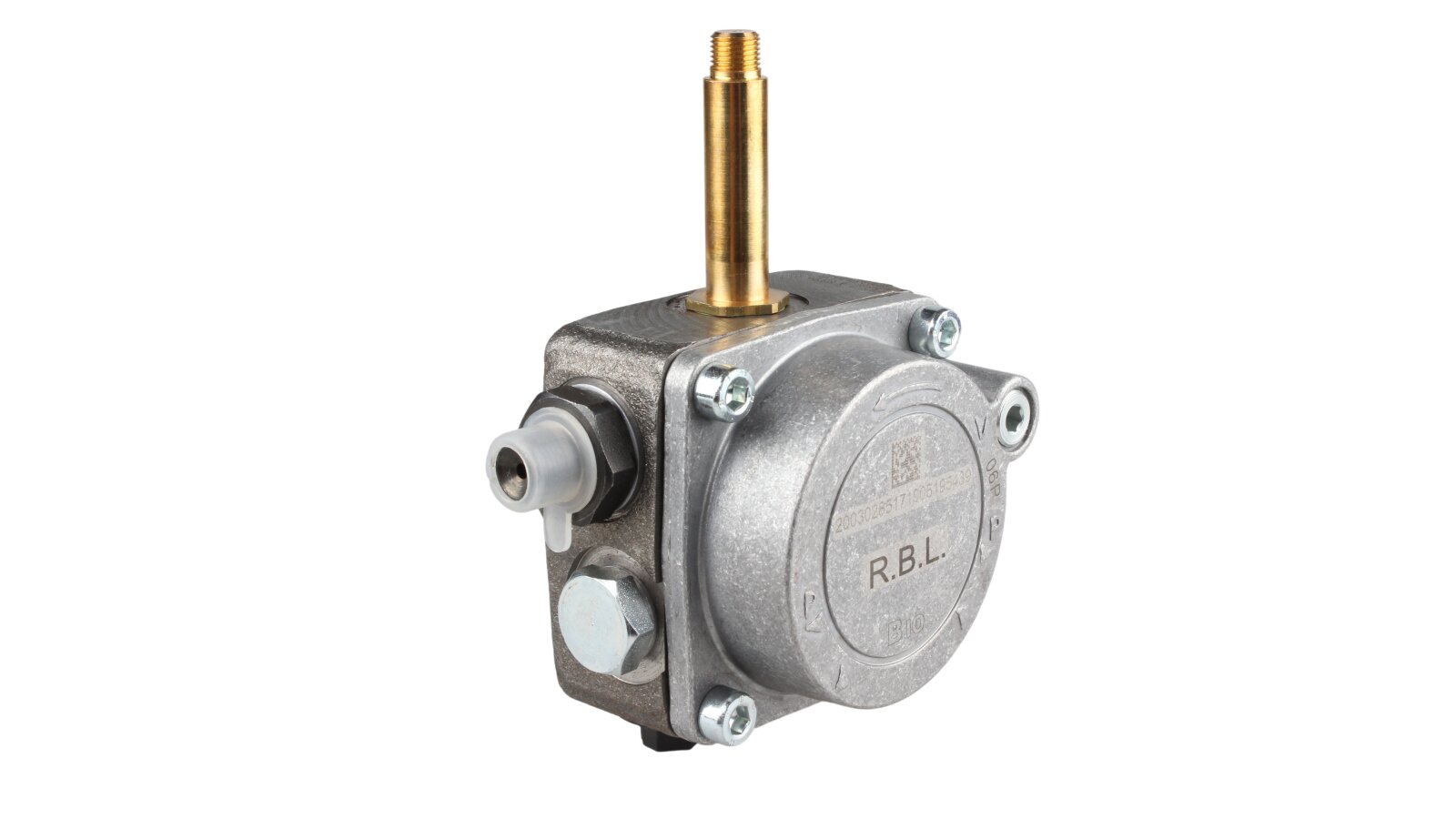

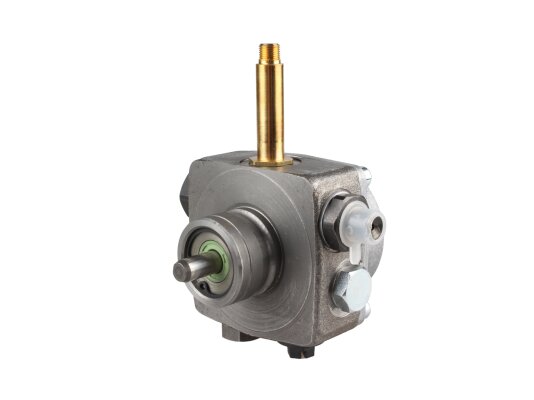

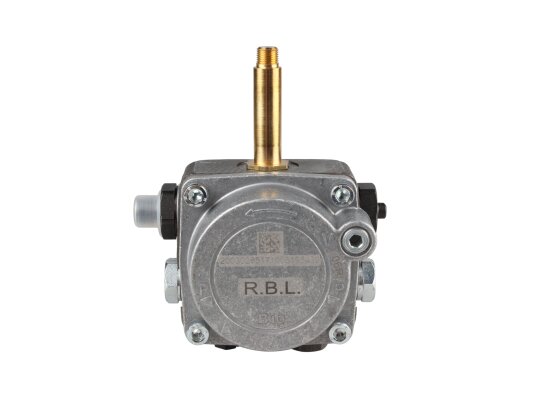

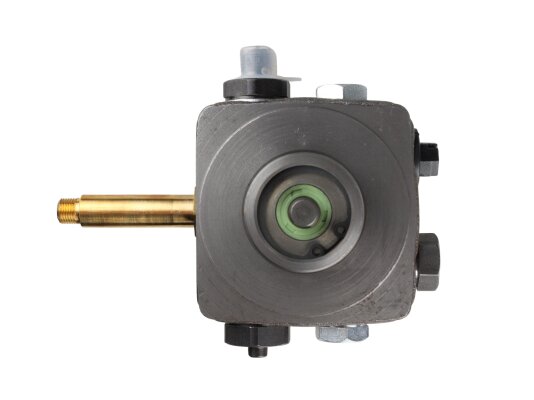

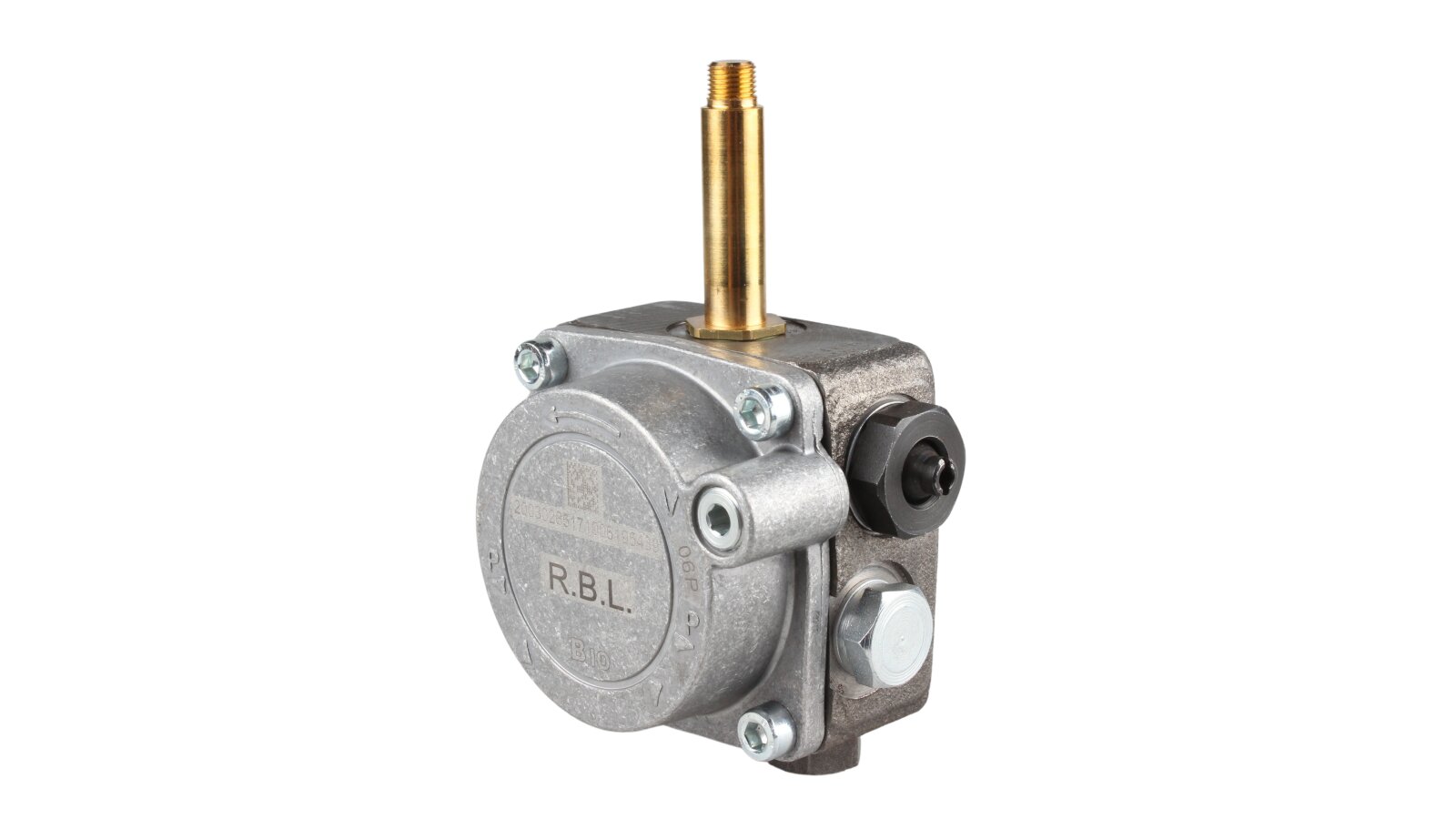

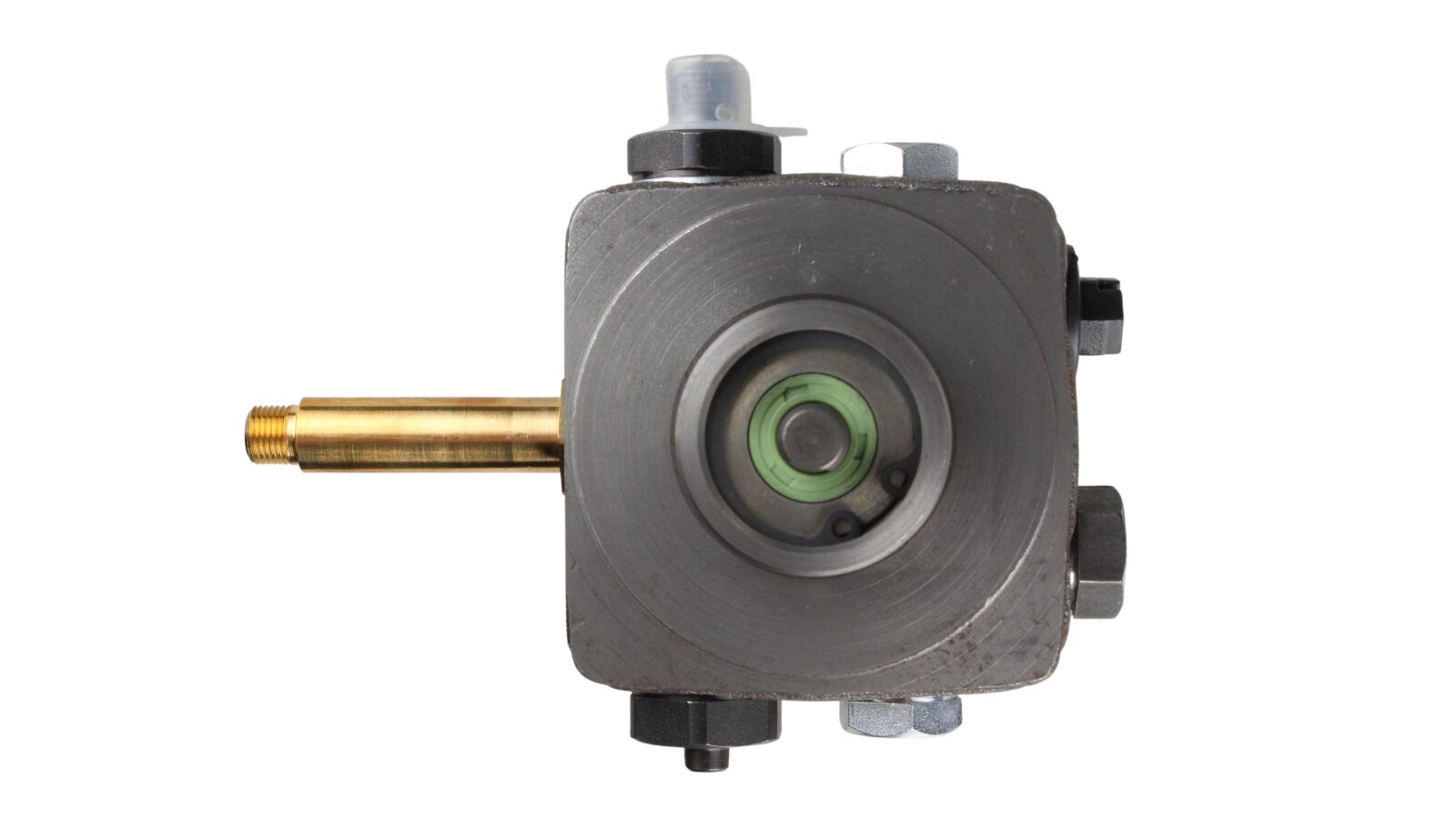

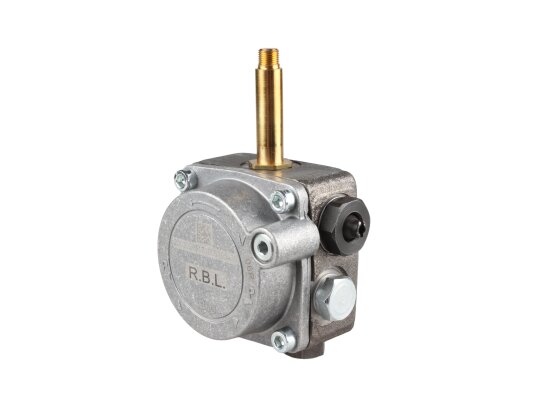

Burner Pump Riello R.B.L. 20030285 B10

Riello20030953
AED 1,400
  1. Oil Burner Pumps

Description

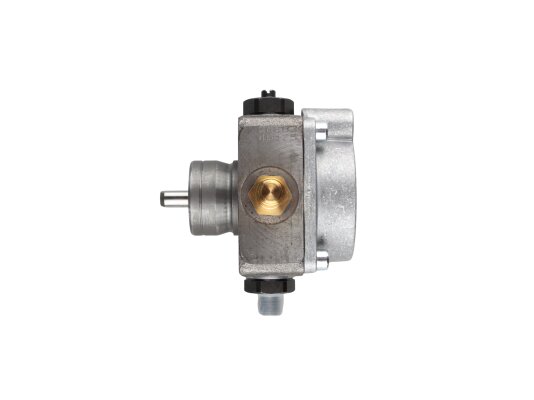

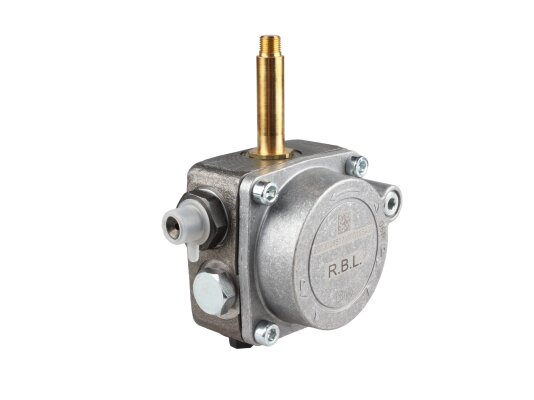

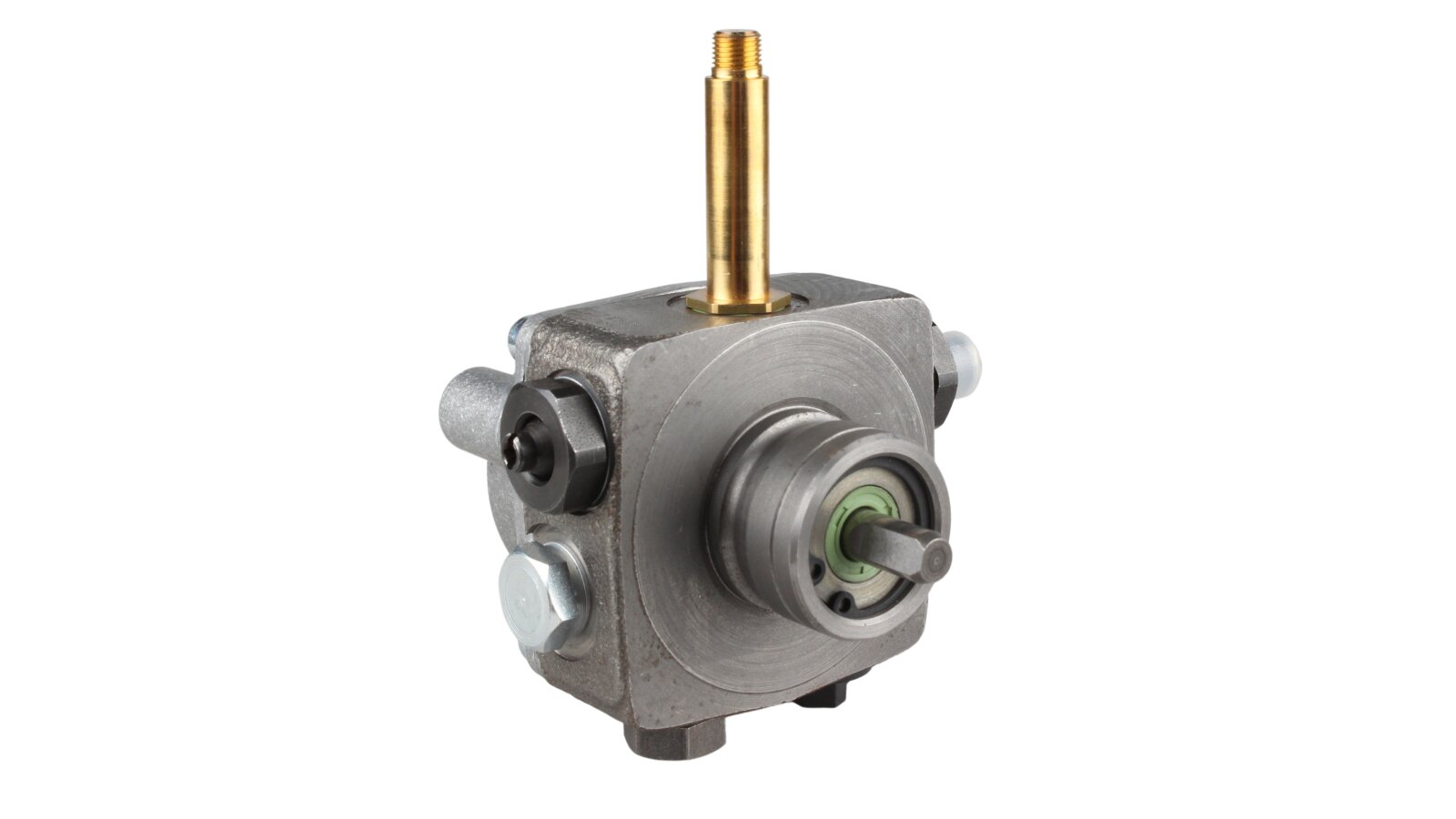

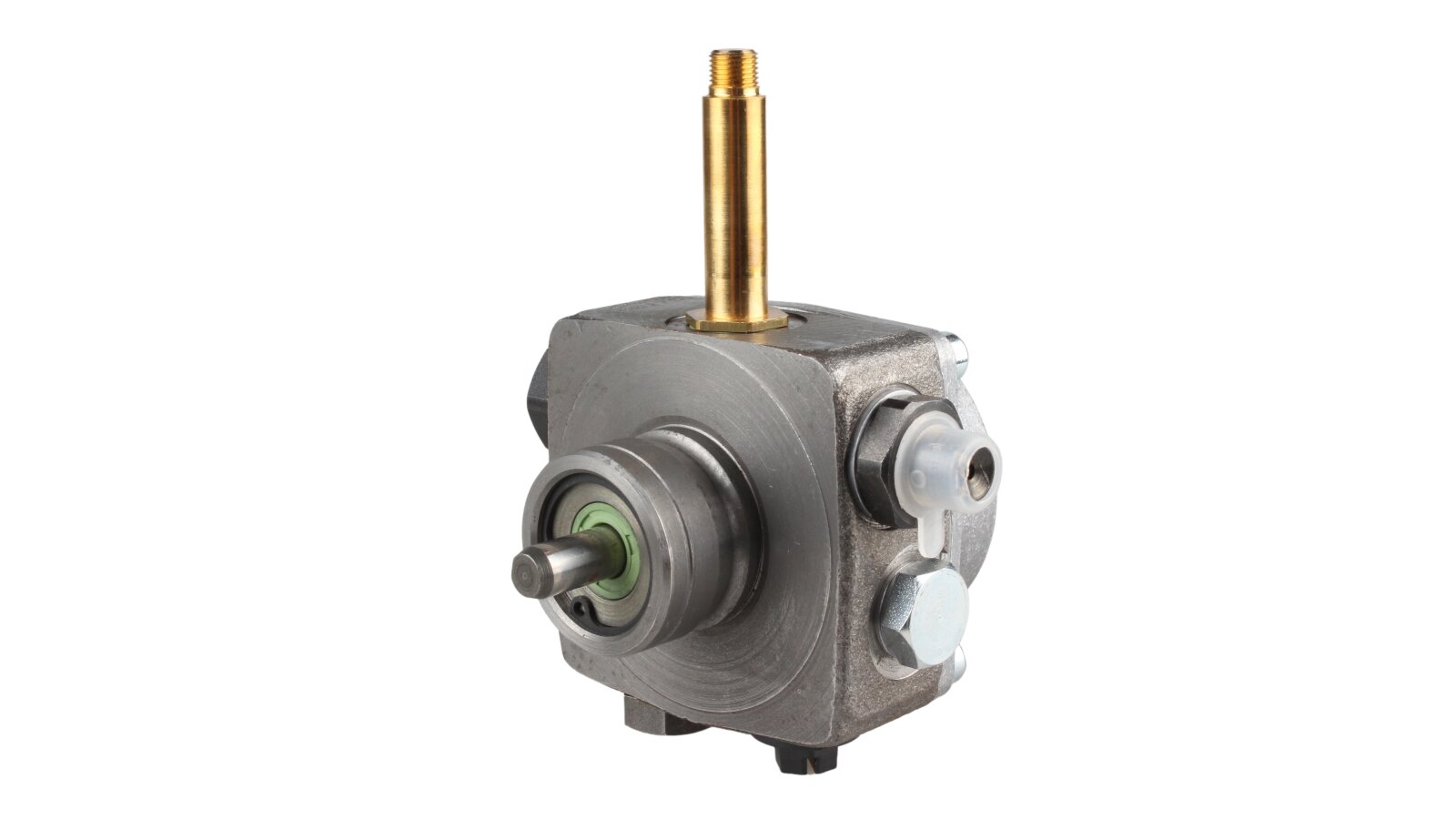

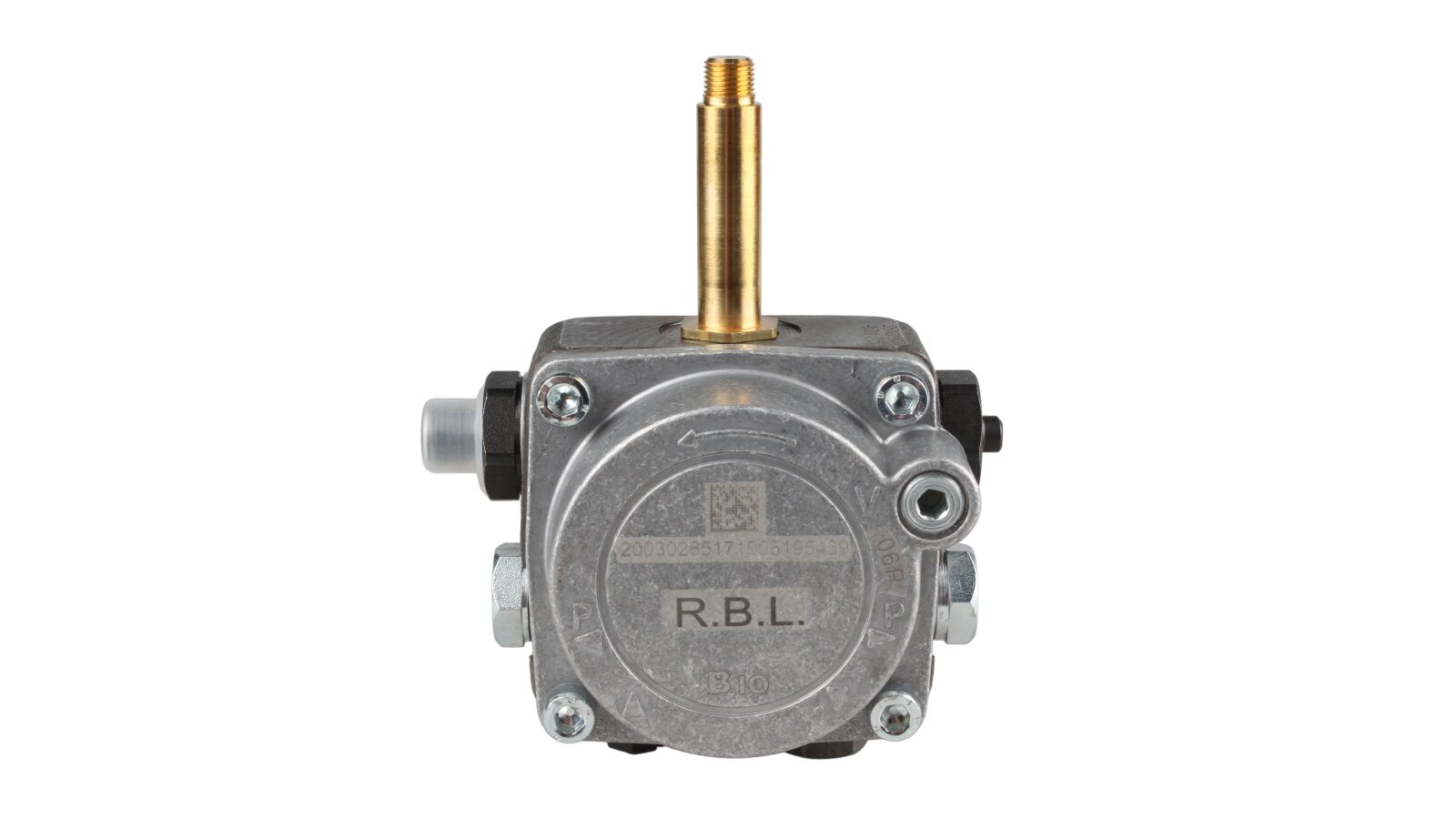

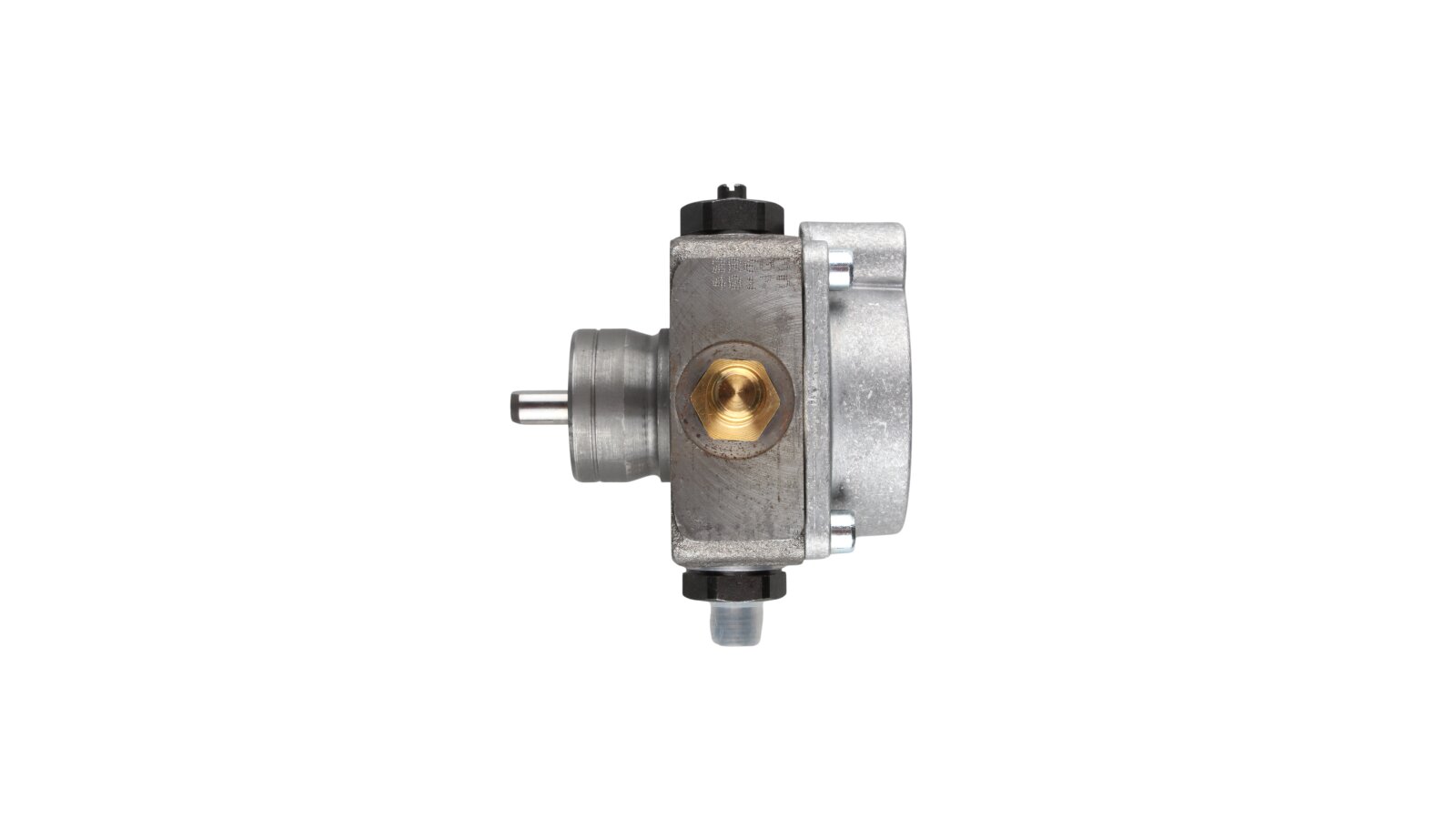

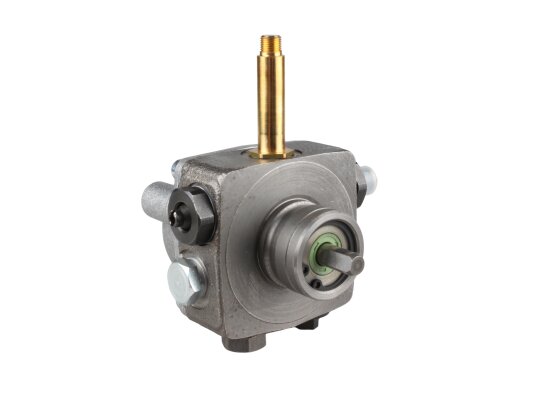

The pump for the Riello R.B.L. burner. 20030285 B10, art.: 20030953 pumps fuel to the nozzle for further combustion. It is used for working with diesel and biofuels. Equipped with an electromagnetic solenoid.

Features:

  • standard sleeve seat with a diameter of 32 mm;

  • right-hand placement of the outlet for connection to the nozzle;

  • supply of diesel fuel to the nozzle line under a pressure of 7-15 bar (factory setting - 8 bar);

  • connection of the suction line and return drain to the G¼" thread;

  • universal purpose - for diesel fuel and biofuel;

  • no bypass plug, drain channel is closed for a 1-pipe system;

  • complete with electromagnetic solenoid;

  • clockwise shaft rotation;

  • wear resistance, reliable design, easy installation.

You can clarify the data on the model with ANKAS consultants.

Characteristics

Manufacturer Part Number: 20030953Suction and return line: ¼ inchNozzle pressure range: from 7 to 15 barFactory pressure setting: 8 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstalling the bypass plug: M: no bypass plug, return line closed to single pipe systemType of pumped liquid: diesel
