Description

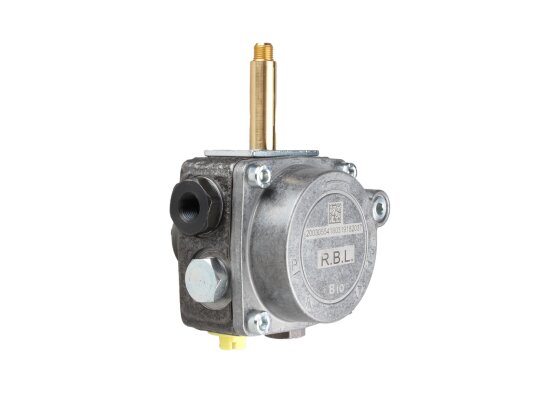

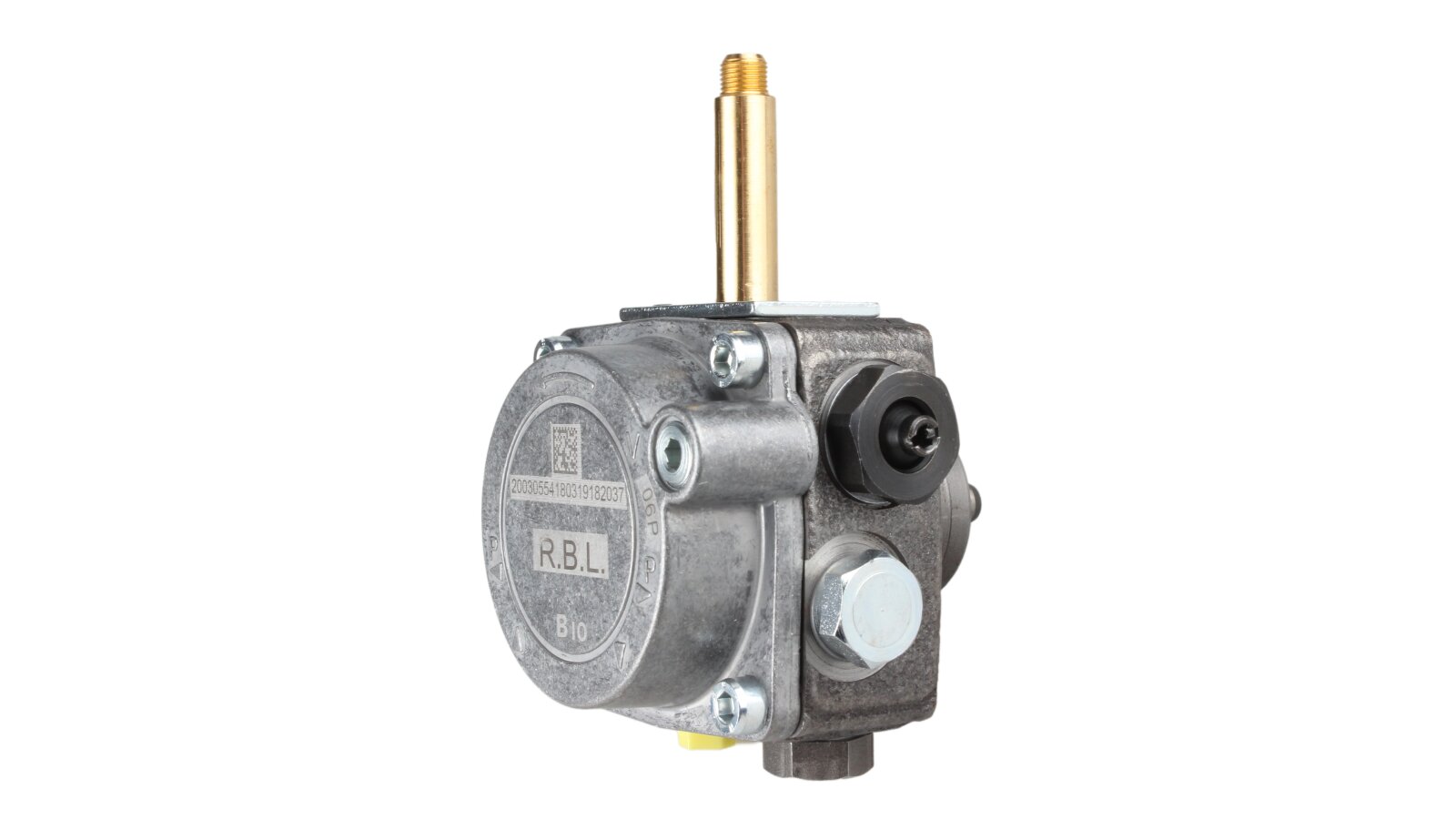

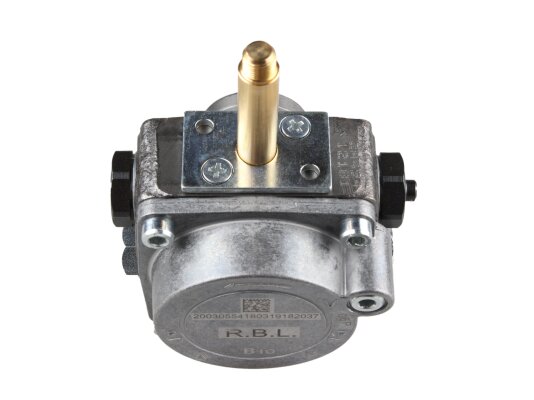

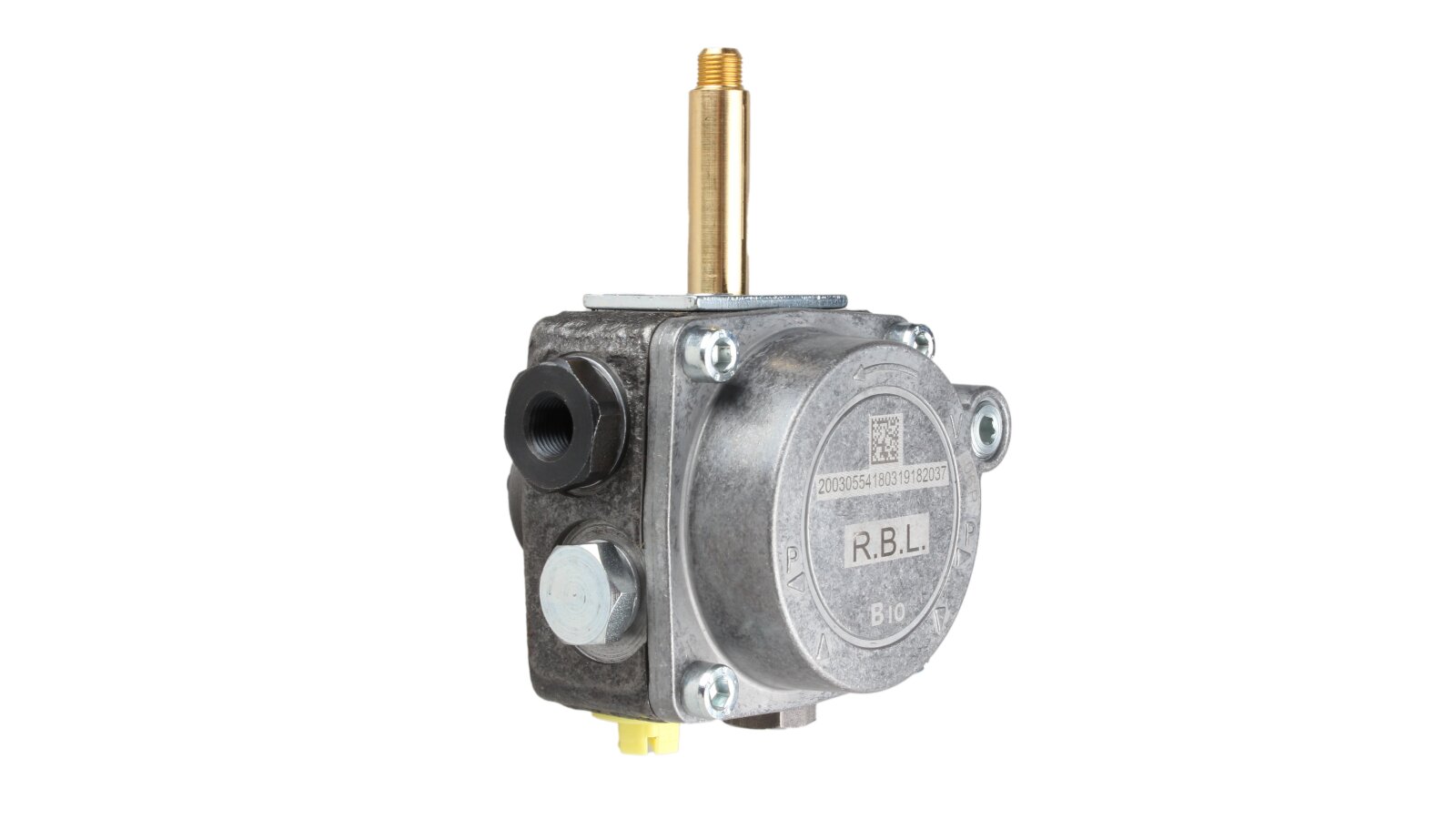

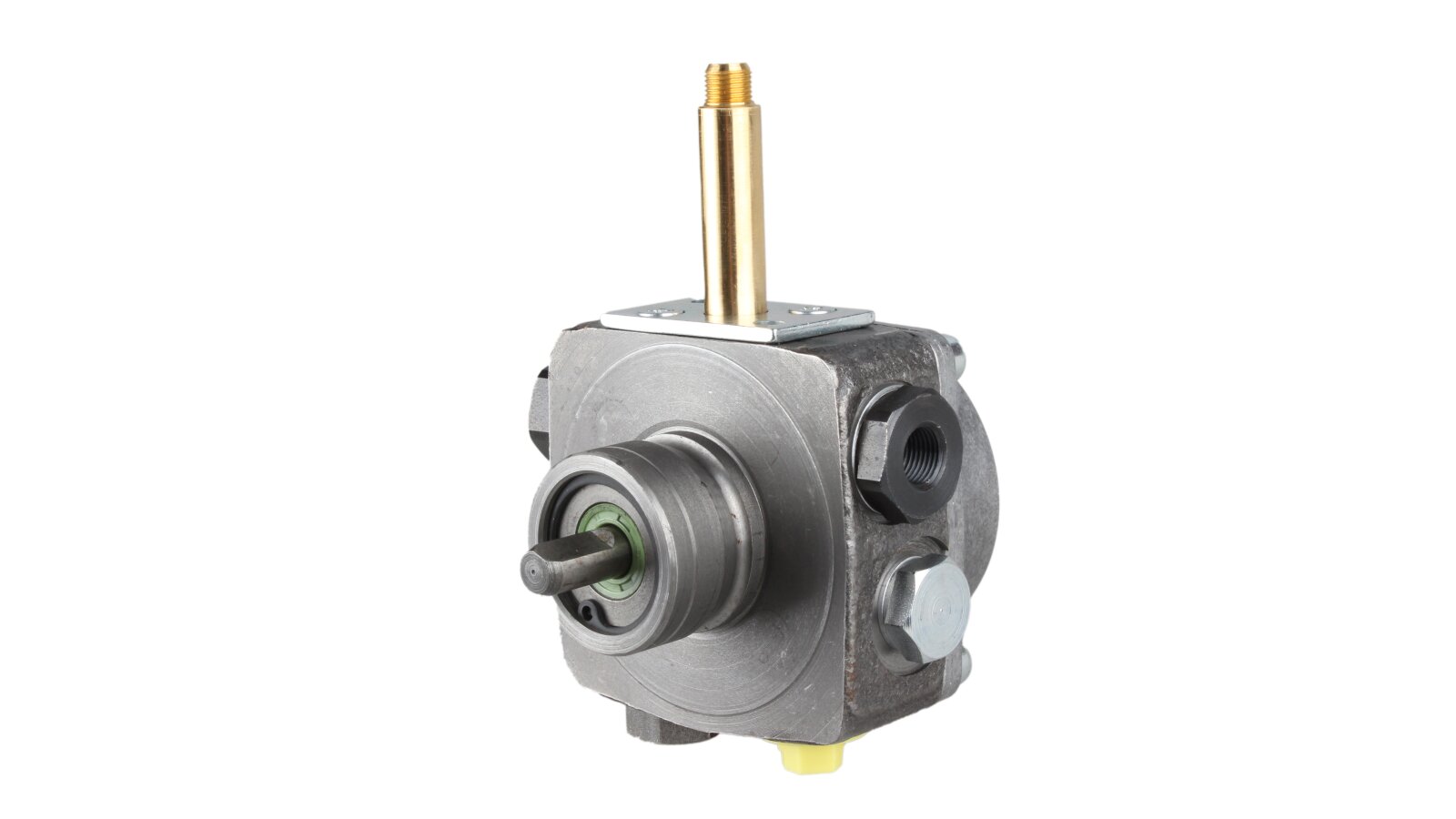

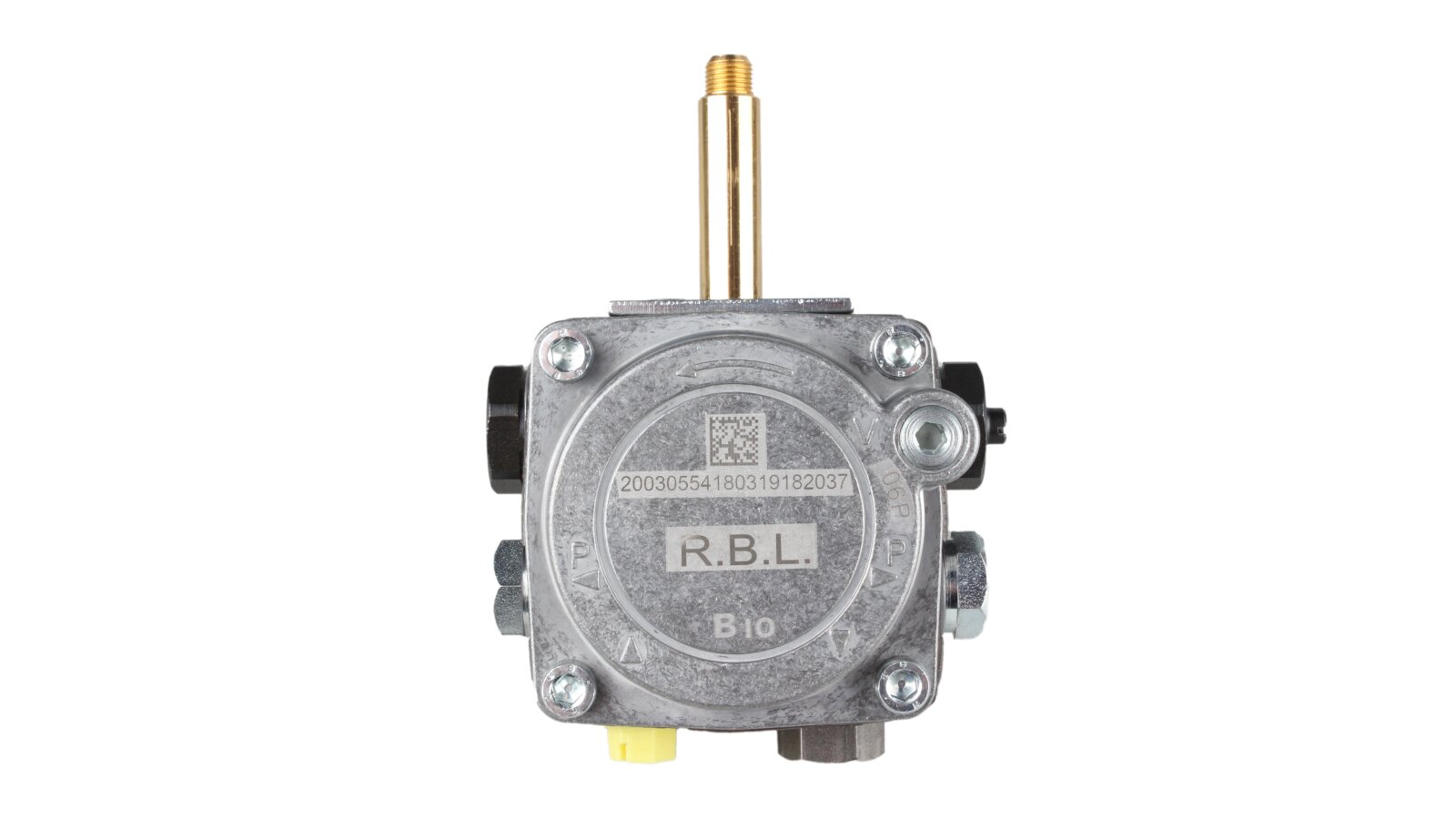

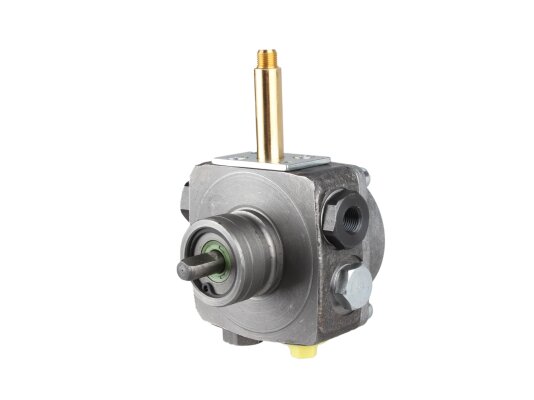

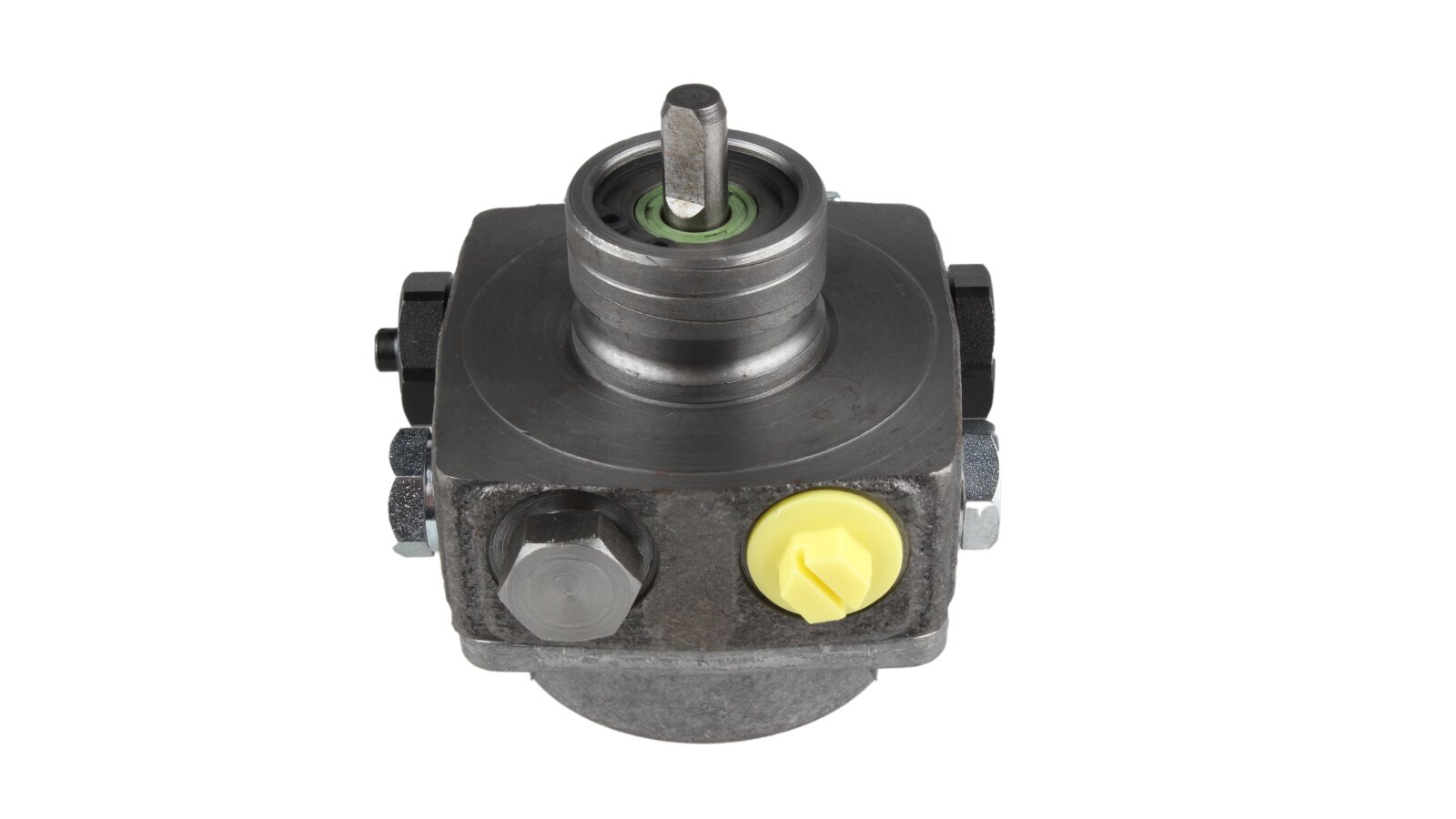

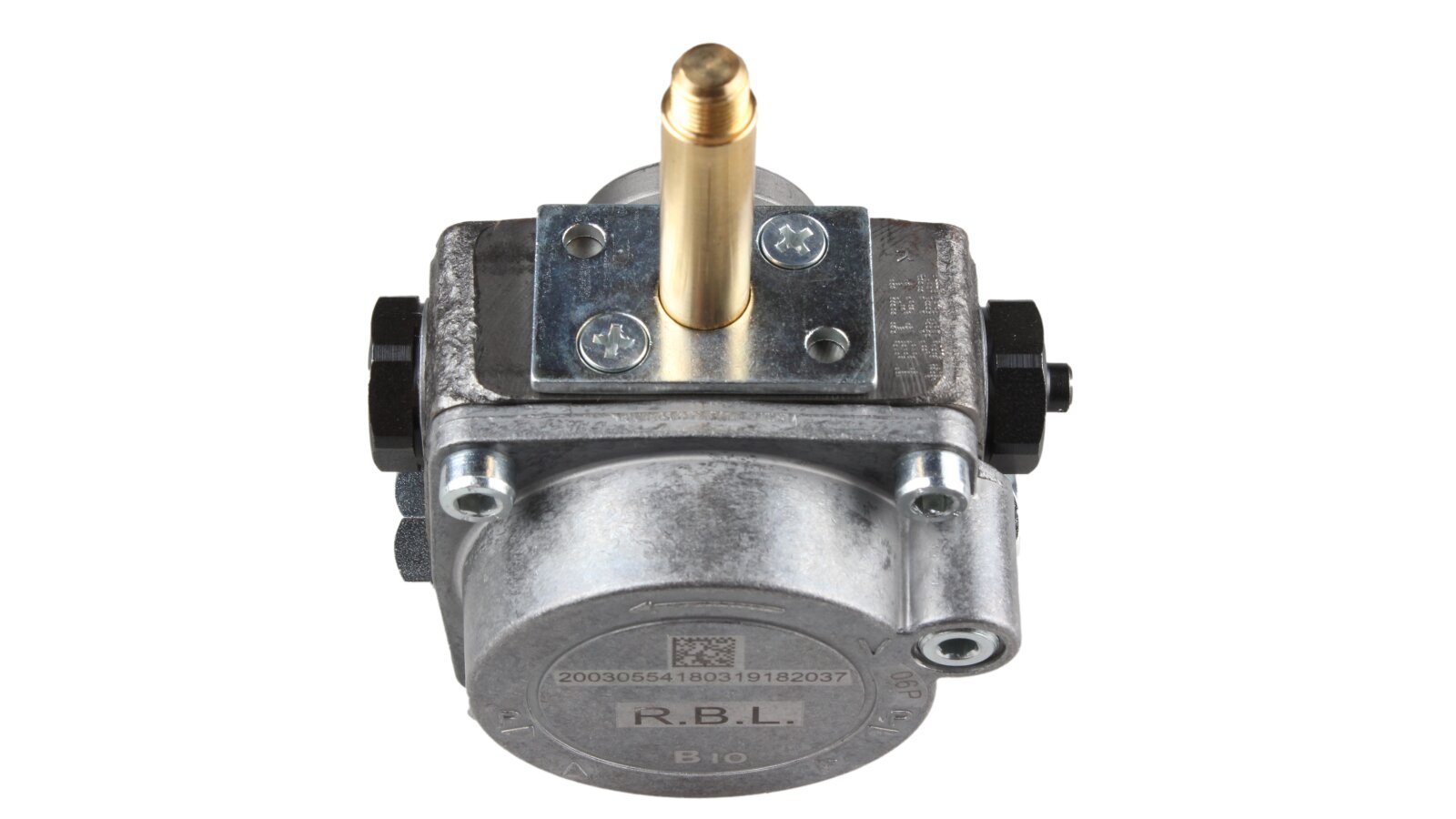

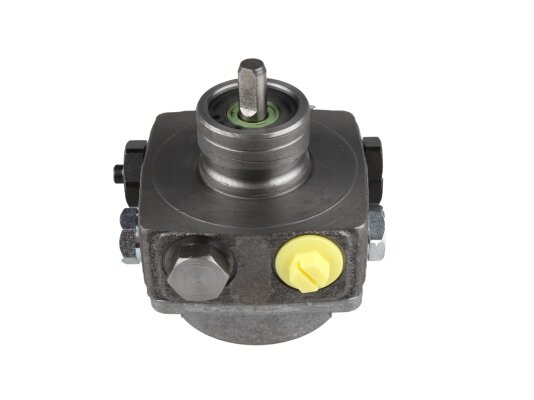

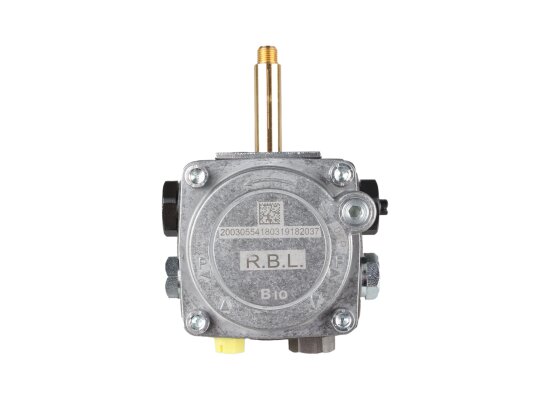

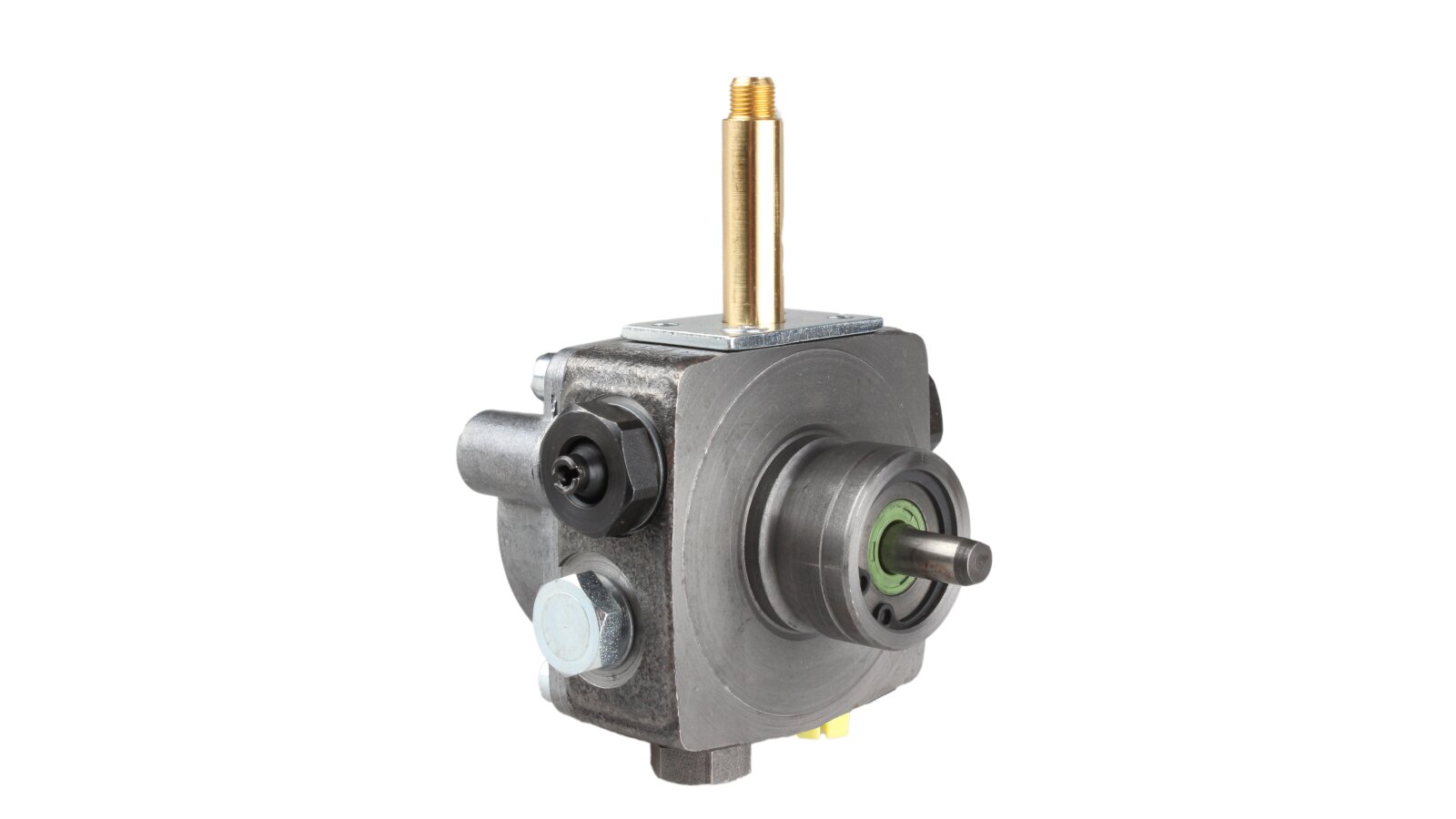

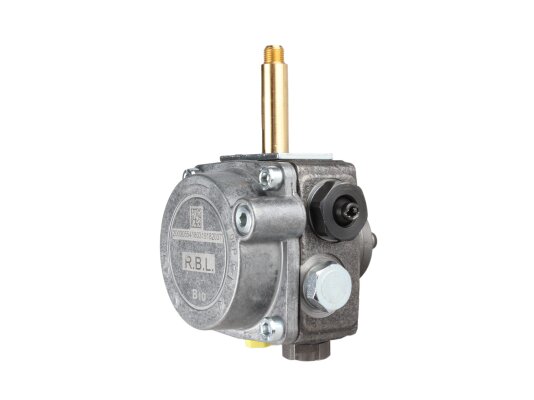

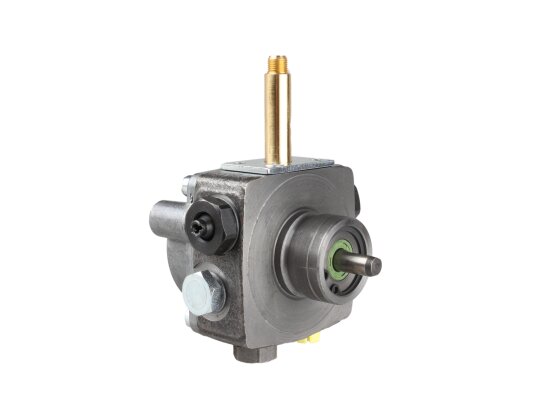

The Riello R.B.L. 2003055 B10 burner pump, art.: 20031996, is used in single-stage systems for feeding diesel and biofuel to the injector line. Equipped with an electromagnetic solenoid.
Features:
wear-resistant design, easy installation;
standard fit on a 32 mm diameter bushing;
right-hand outlet for connection to the injector;
fuel injection under pressure of 7-15 bar (factory setting - 8 bar);
connection of the suction and return line to the G¼" thread;
versatility - for pumping diesel fuel and biofuel B10;
bypass plug is missing, the drain channel is closed for a 1-pipe system;
equipped with an electromagnetic solenoid;
shaft rotation clockwise.
Additional information can be obtained from ANKAS consultants.
Characteristics
Manufacturer Part Number: 20031996Suction and return line: ¼ inchNozzle pressure range: from 7 to 15 barFactory pressure setting: 8 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightModel type: 1 stage with electromagnetic valveInstalling the bypass plug: M: no bypass plug, return line closed to single pipe systemType of pumped liquid: diesel
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
