Description

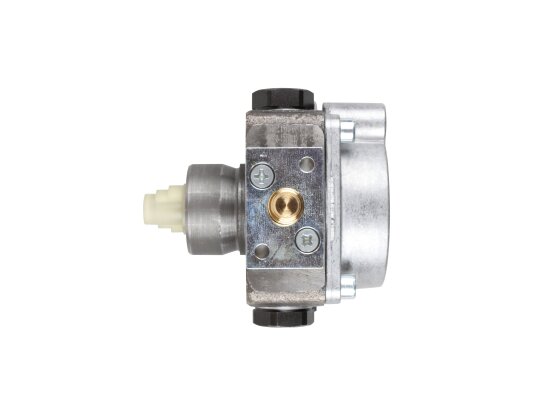

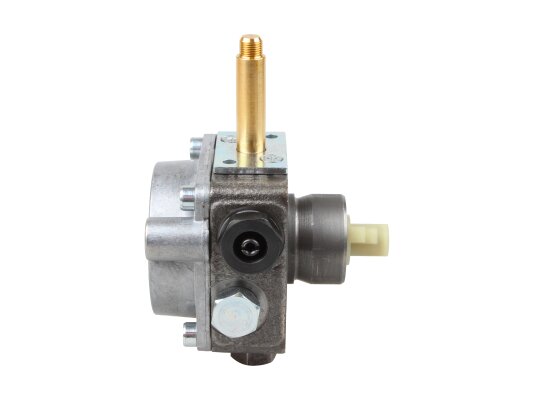

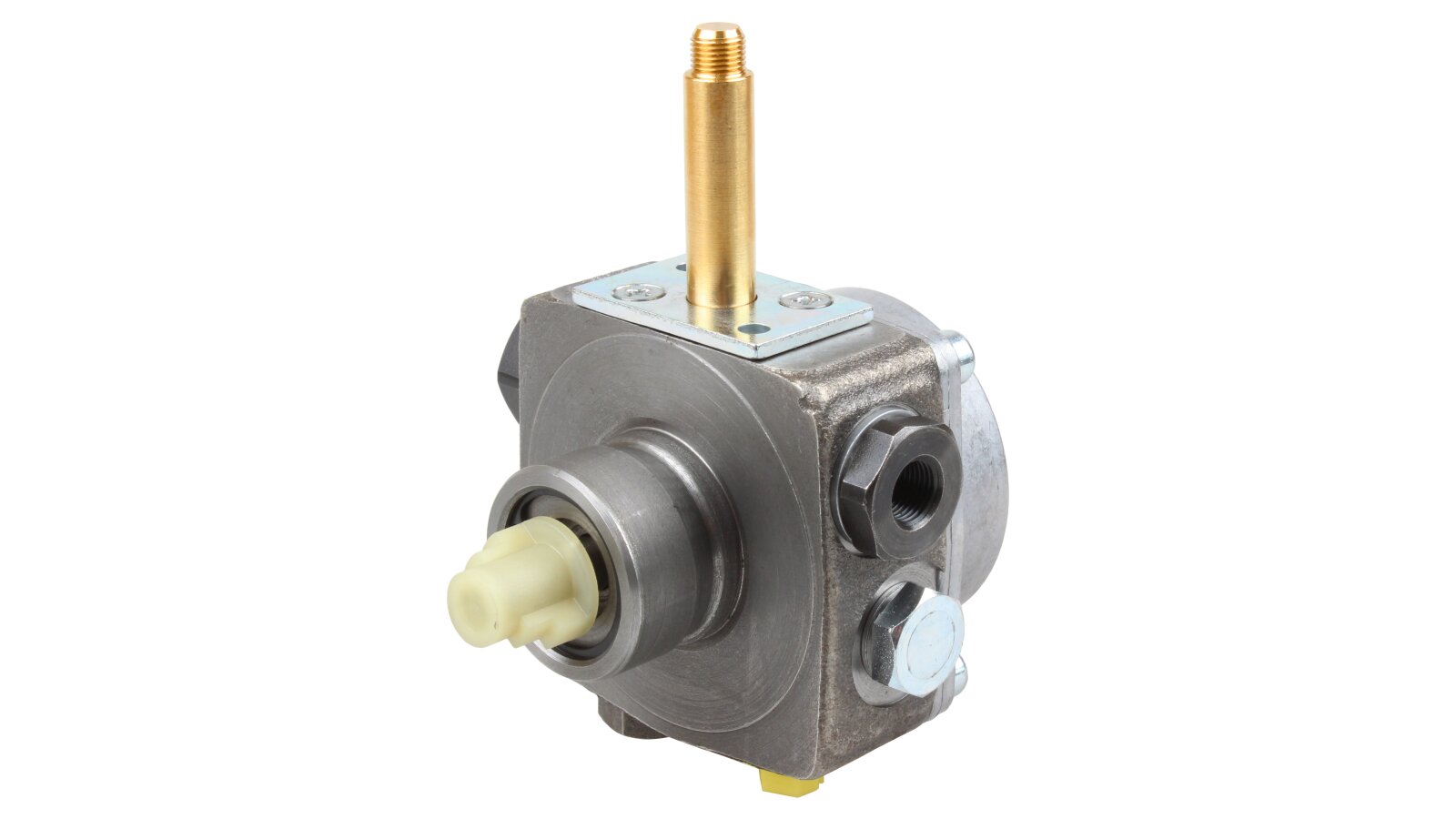

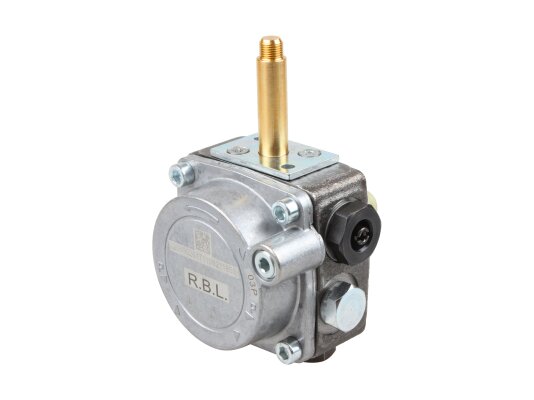

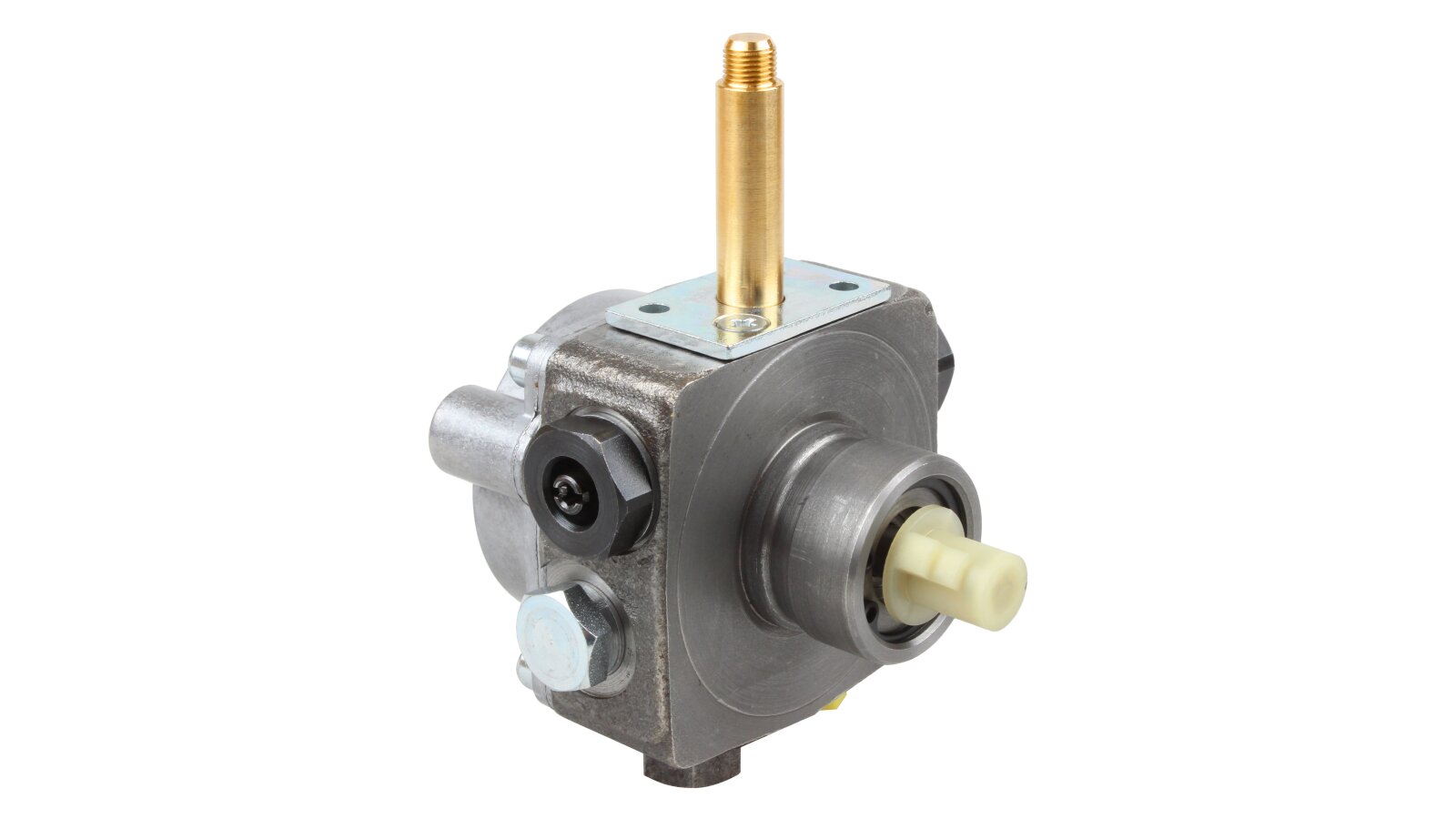

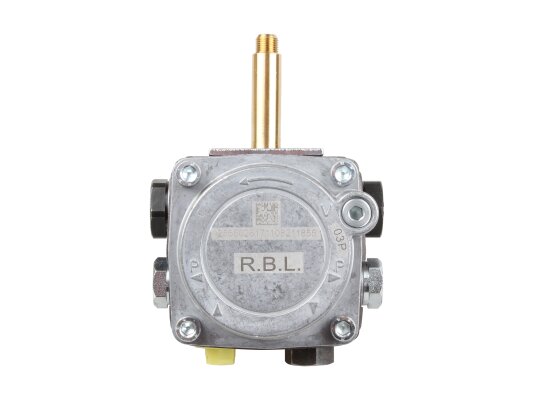

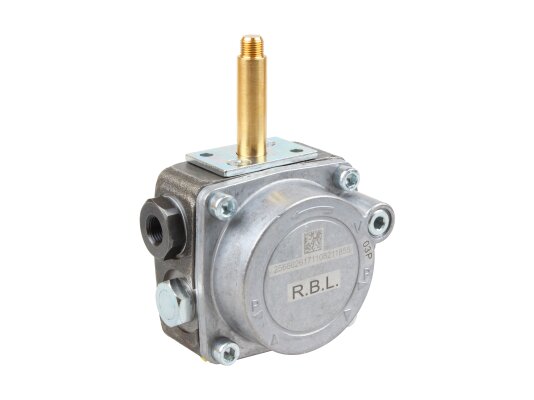

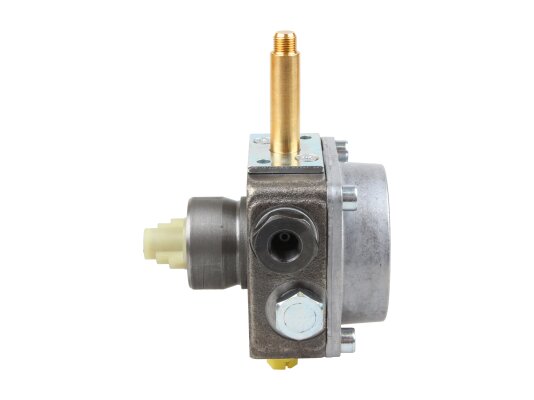

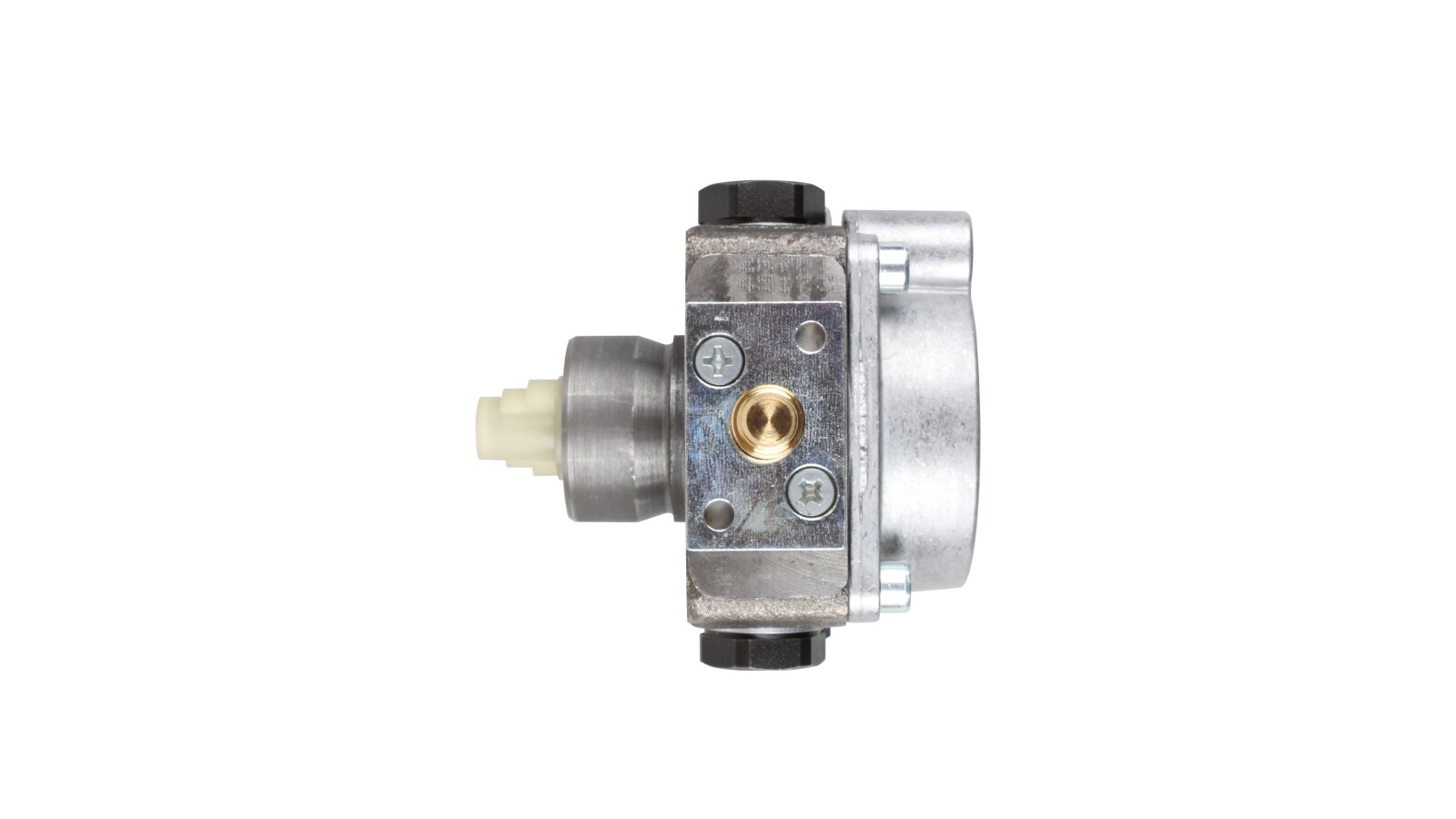

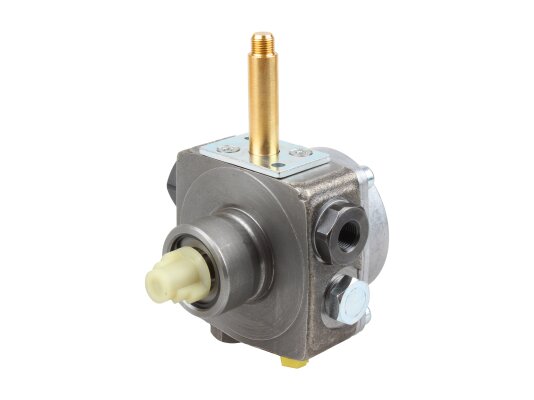

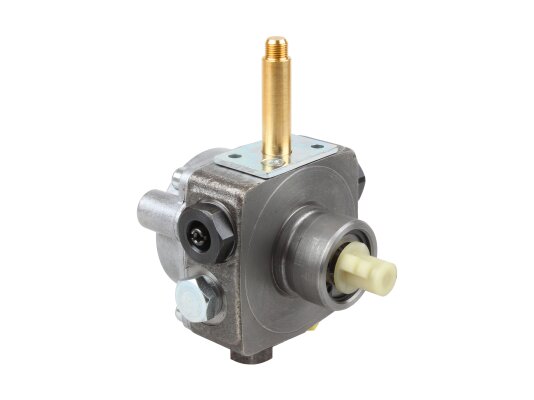

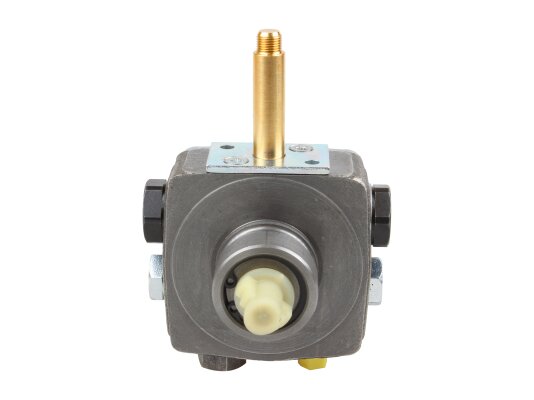

The Riello R.B.L. 2566026 liquid fuel pump pumps up to 15 atmospheres of pressure, which is necessary to supply diesel fuel to the injector. The model is manufactured to complete Riello low-power burners.
Technical specifications:
Working pressure range: 7-15 bar.
Fixing method: Ø32 mm sleeve.
Factory pressure: 12 bar.
Suction line connection parameters: G¼" thread.
Working environment: diesel fuel.
Design and features:
The Riello 2566026 pump is installed using a sleeve fit.
The main working mechanism is a gear pair, the movement of which moves the fuel. The shaft rotates clockwise.
A cylindrical pipe thread G¼" is provided for connecting the discharge line.
The outlet pipe for connecting to the injector is on the right. The pump is equipped with an electromagnetic solenoid.
The nozzle pressure parameters can be adjusted in the range of 7-15 atm., changing the factory setting (12 atm.).
A plug for a 1-pipe system is installed on the return line.
Detailed information about the product is contained in the manufacturer's instructions. To buy a Riello R.B.L. pump at the official dealer's price, go to the basket and place an online order.
