Description

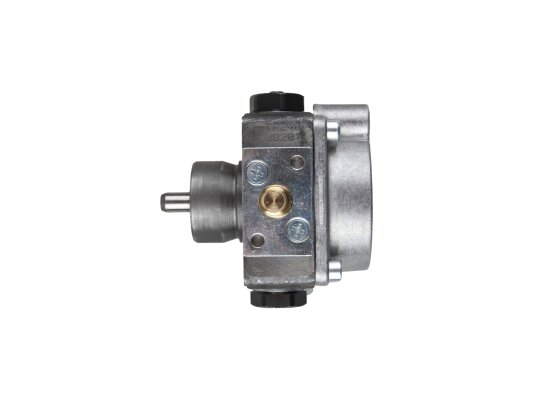

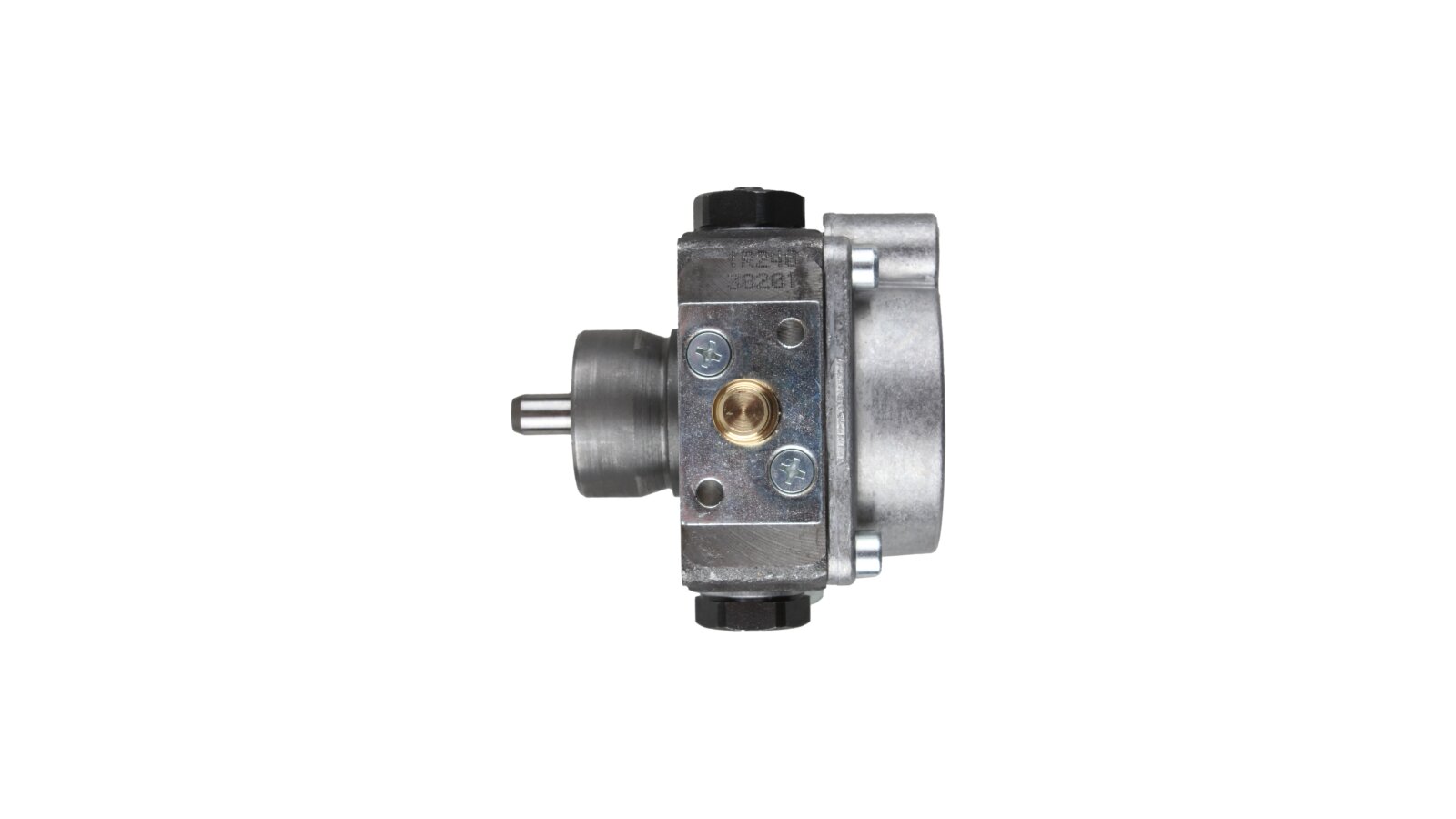

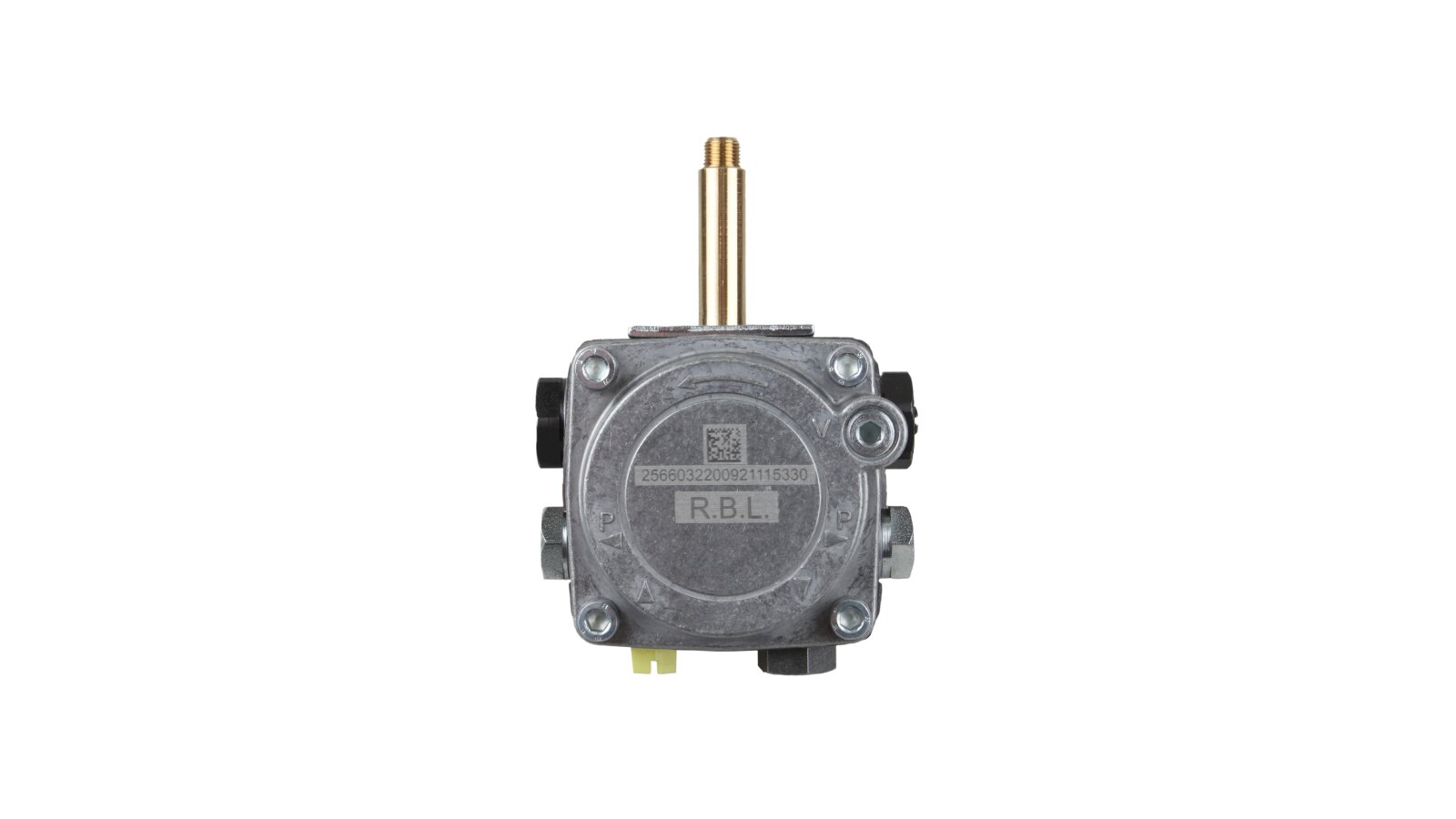

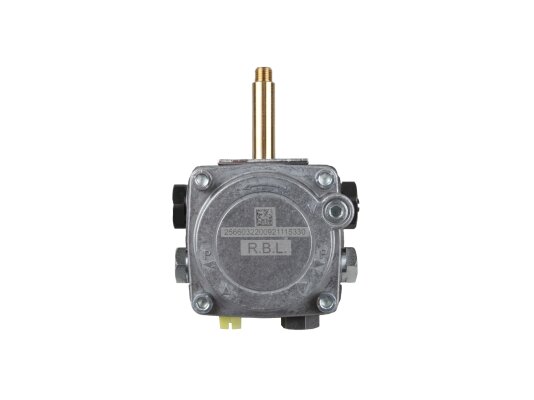

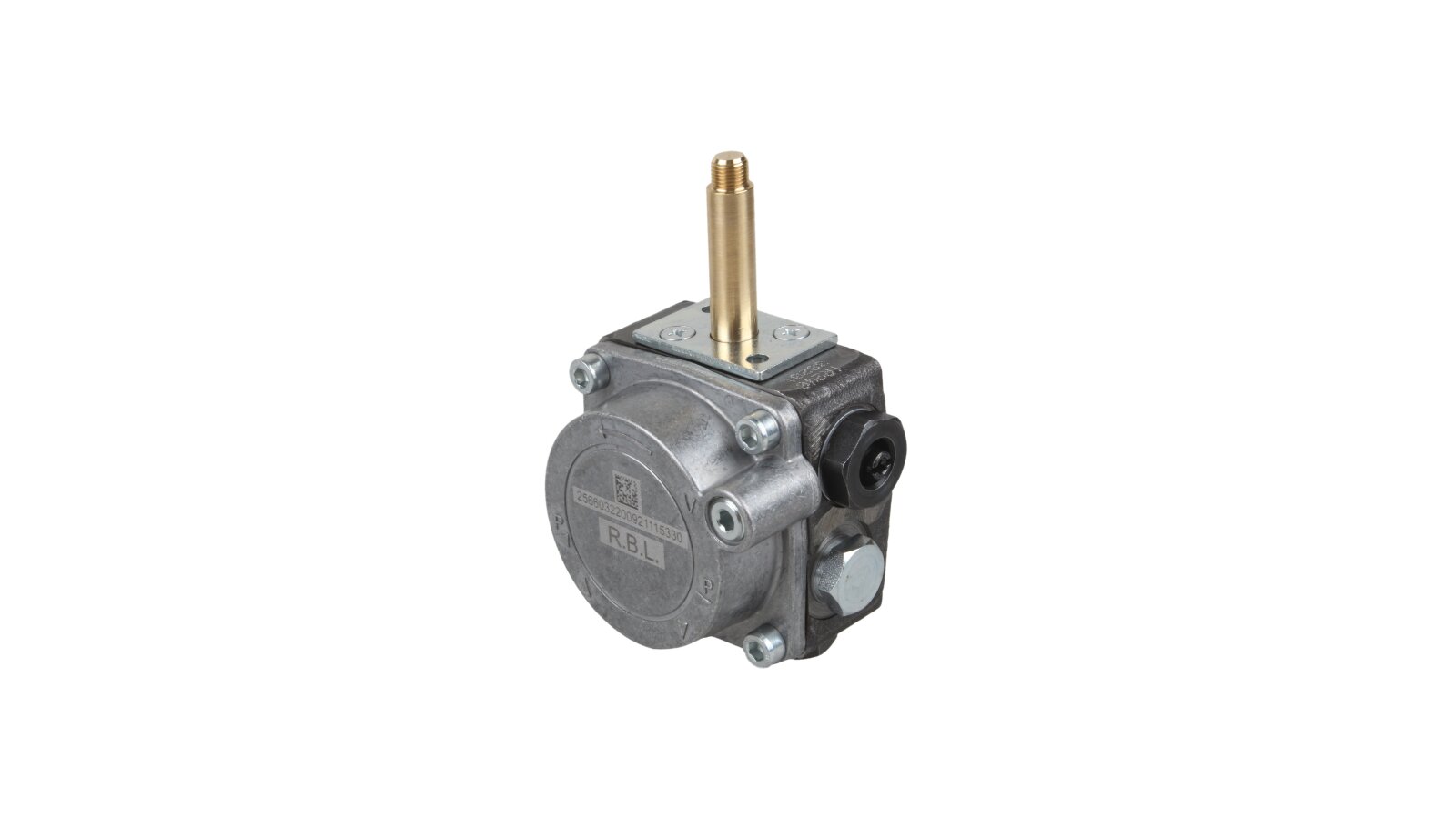

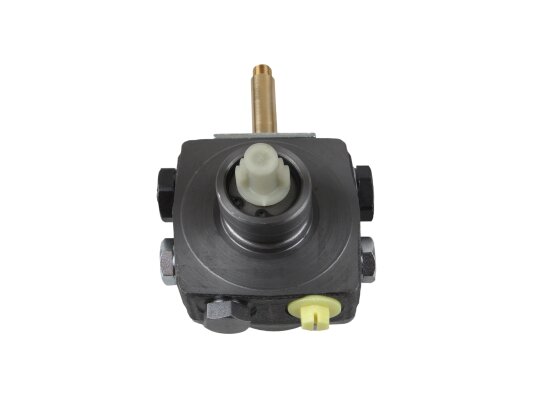

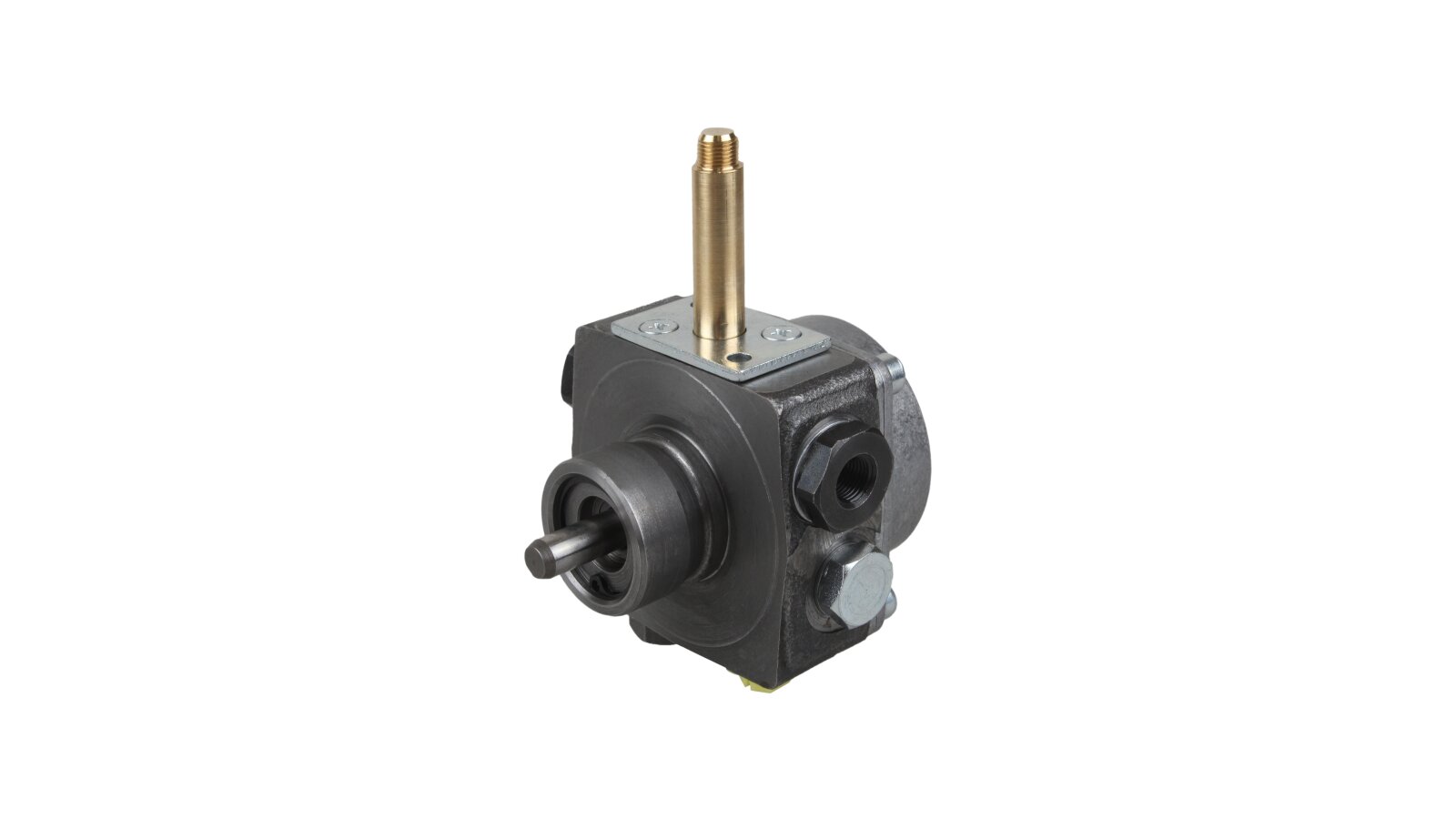

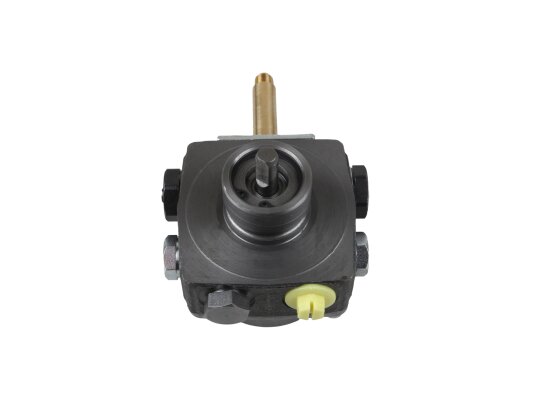

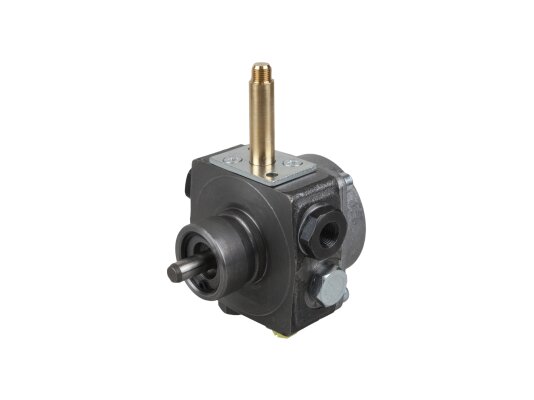

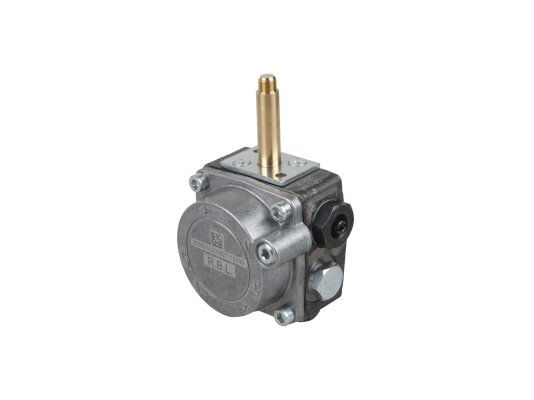

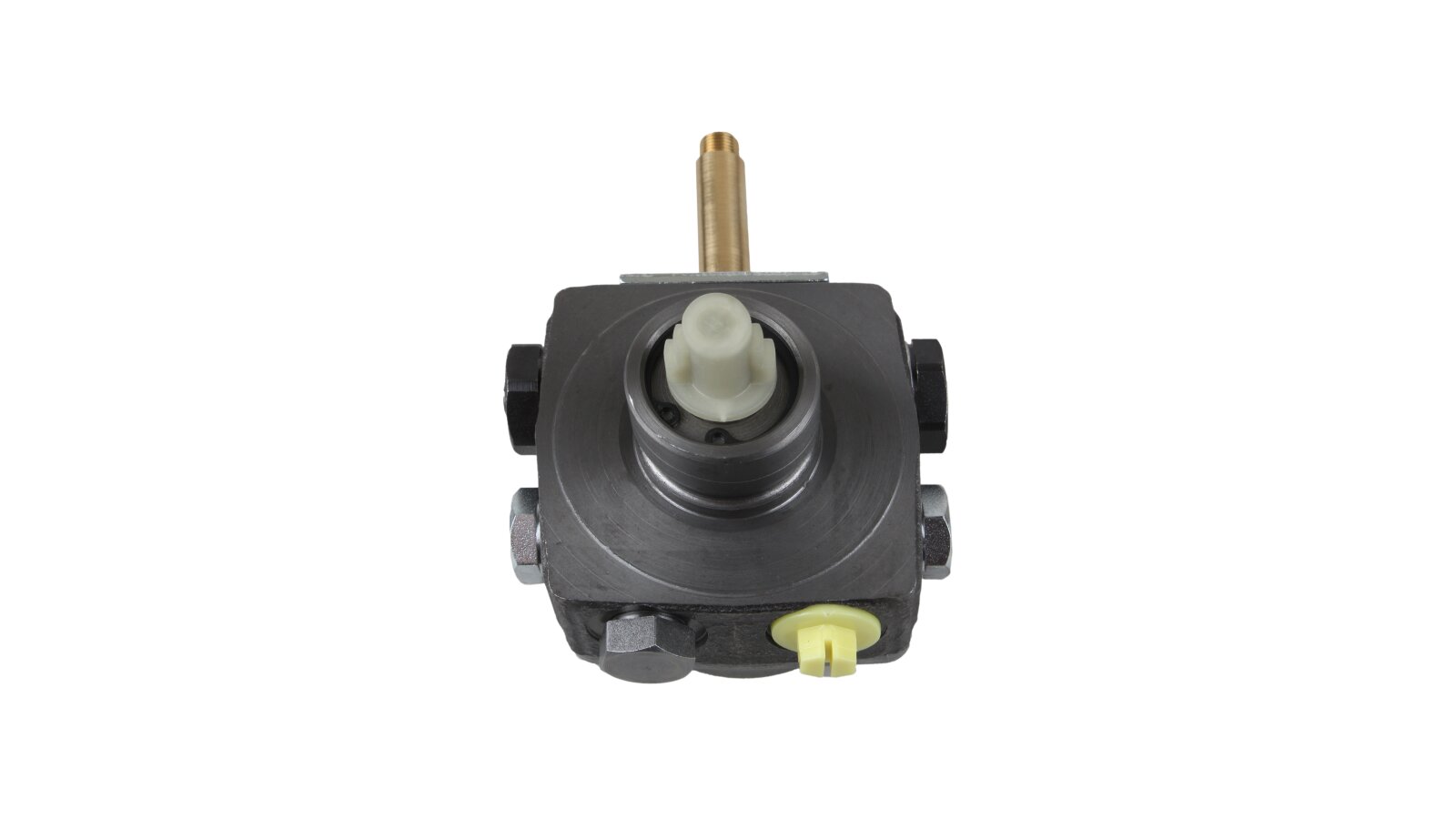

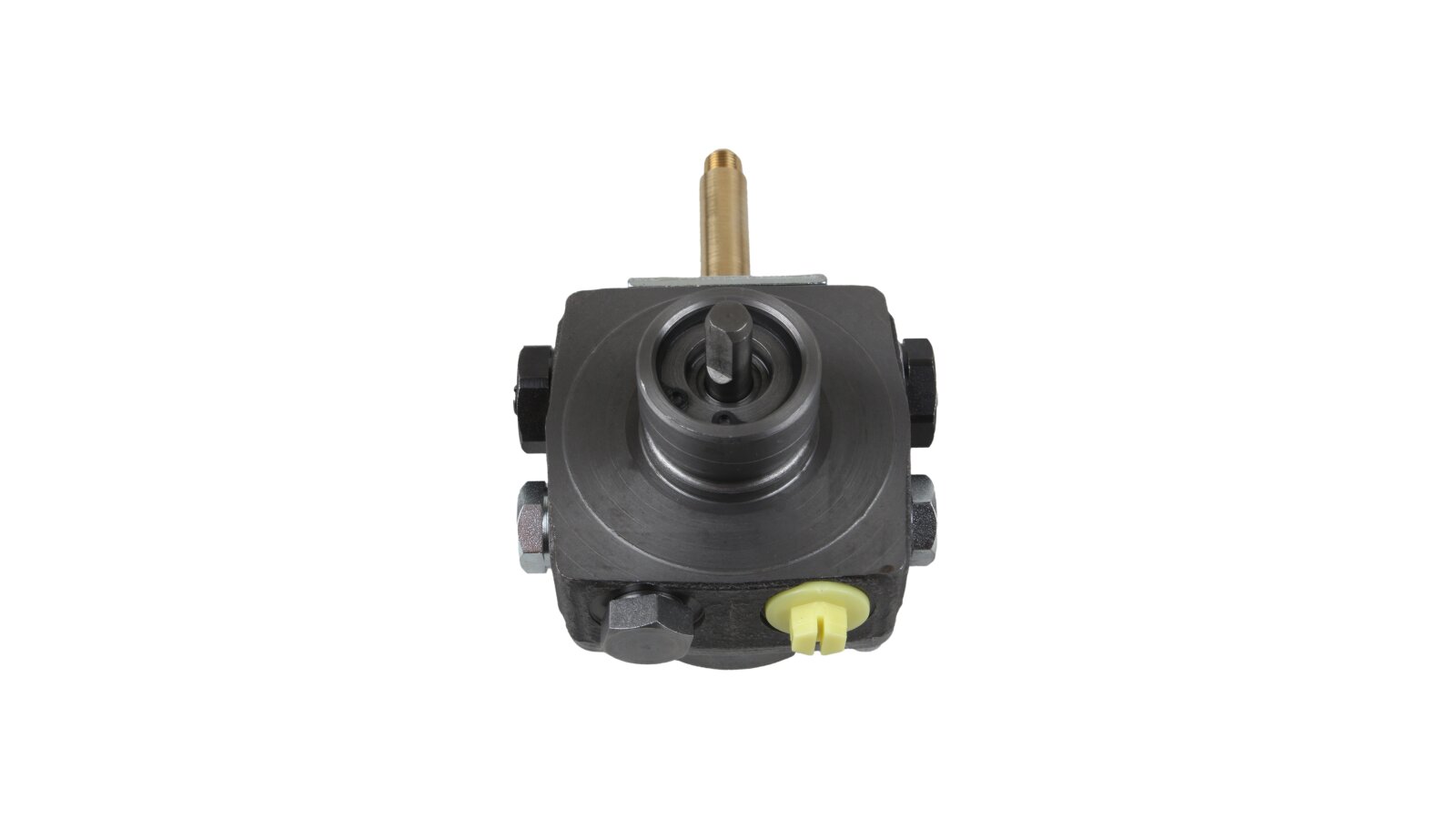

The Riello R.B.L. 2566032 pump pumps liquid fuel to the heating device under pressure up to 15 bar. The model is adapted for the Riello diesel burner.
Key parameters:
Working pressure range: 7-15 bar.
Installation method: Ø32 mm sleeve.
Base pressure: 12 bar.
Suction line connection parameters: G¼".
Working medium: diesel fuel.
Design and features:
The Riello 2566032 pump has a sleeve fit and a cylindrical pipe thread G¼" for connecting the supply line.
The main working unit is a gear mechanism with a shaft rotating clockwise.
The outlet pipe for connecting to the nozzle is located on the right.
The diesel fuel injection pressure is regulated taking into account production needs, within 7-15 atm. The pressure is set at 12 atm at the factory.
The pump is supplied complete with an electromagnetic solenoid.
The return line is plugged for a 1-pipe system.
You can find out the characteristics of the model and buy a Riello R.B.L pump on our website. Write your question in the chat, our consultant will answer you online.
