Description

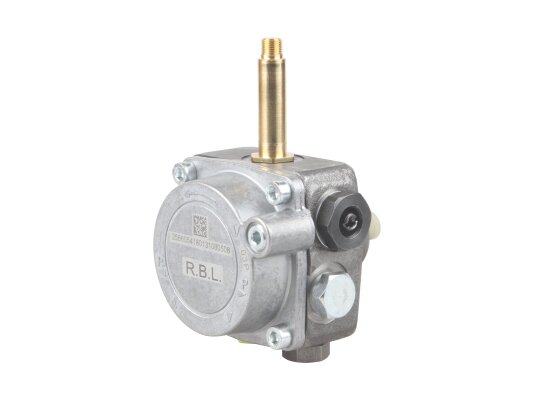

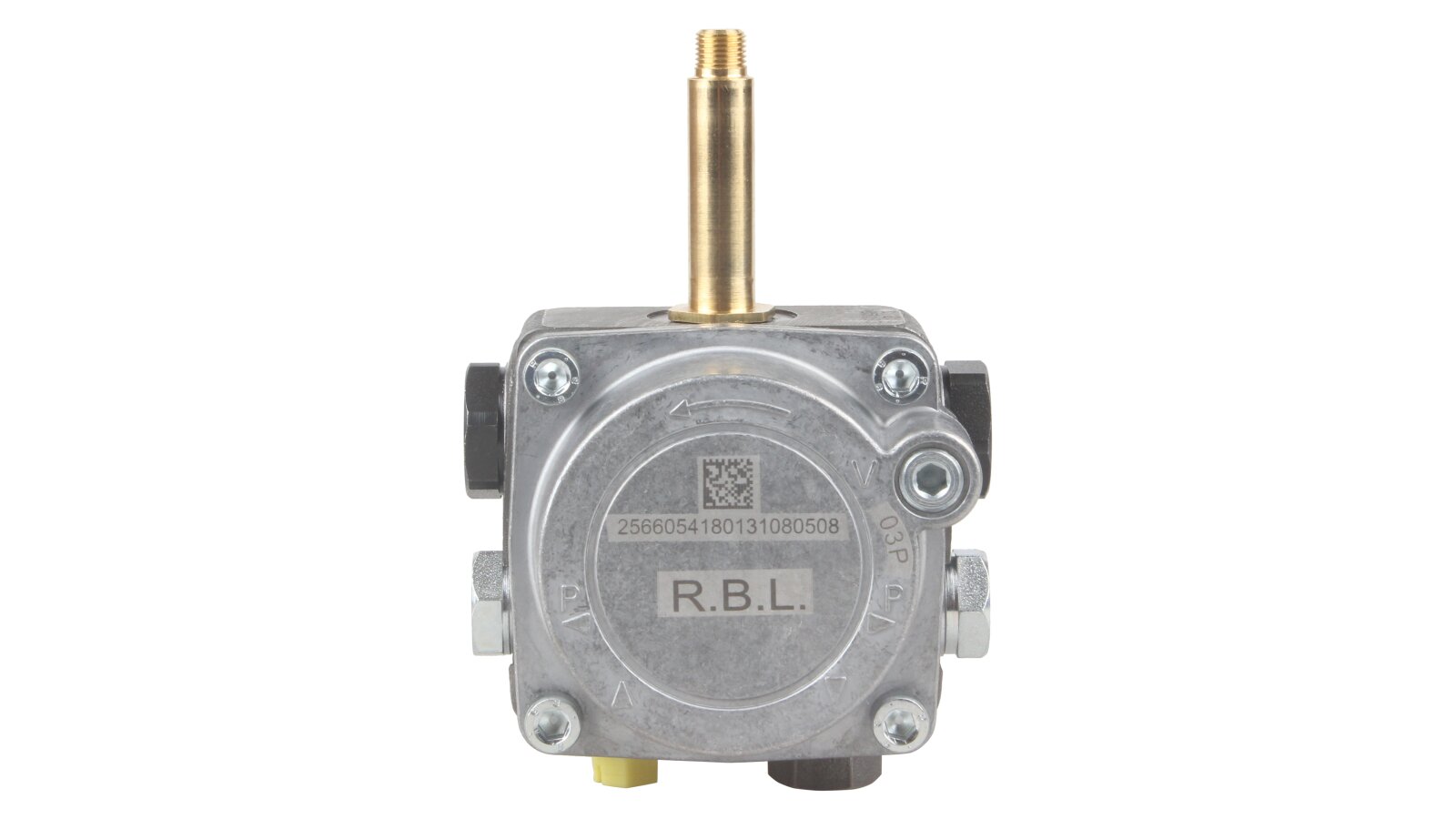

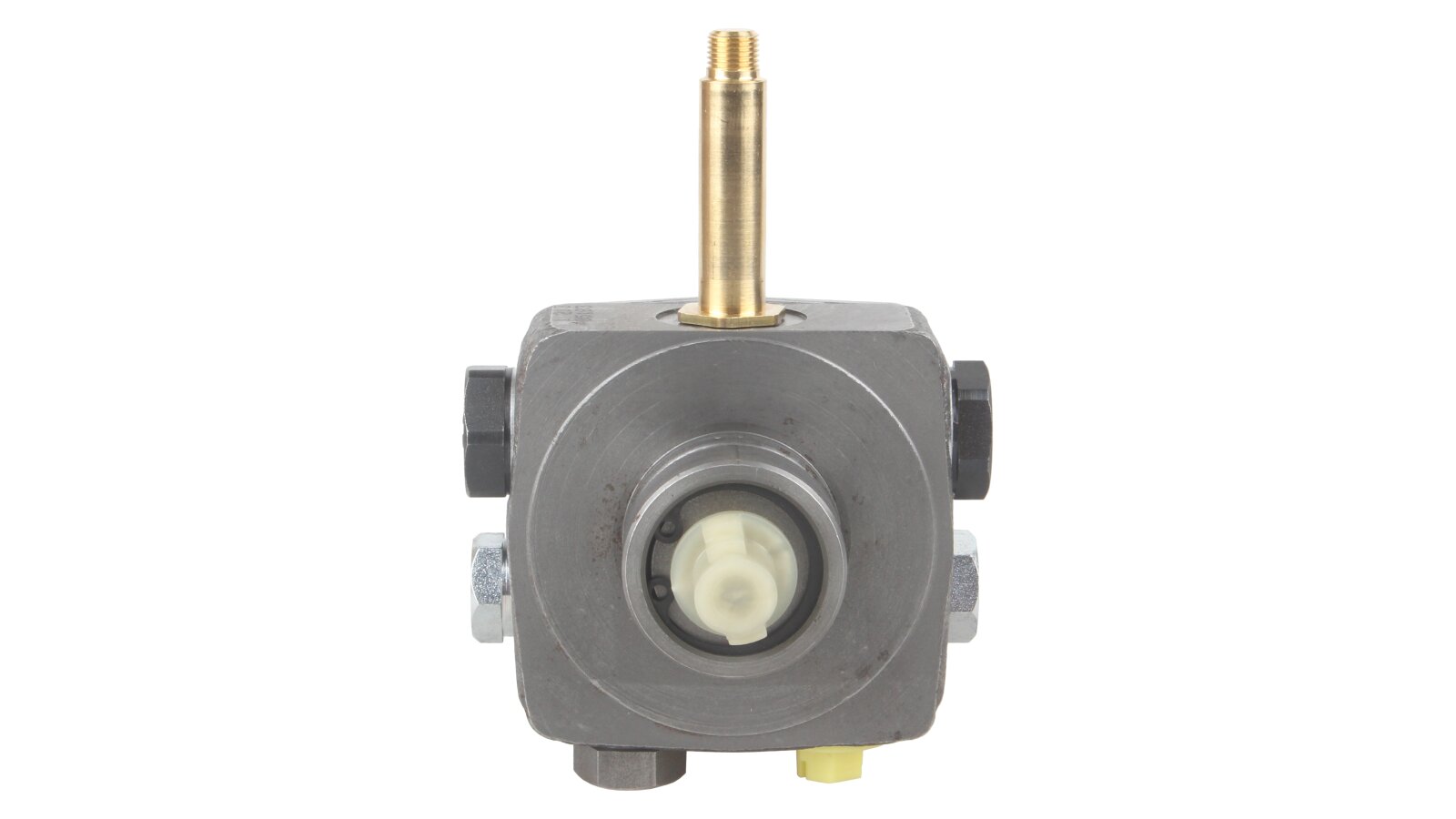

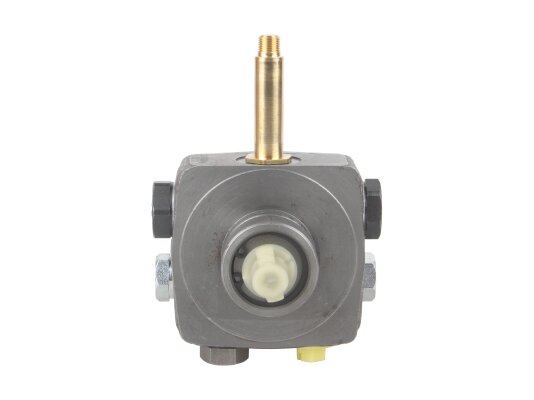

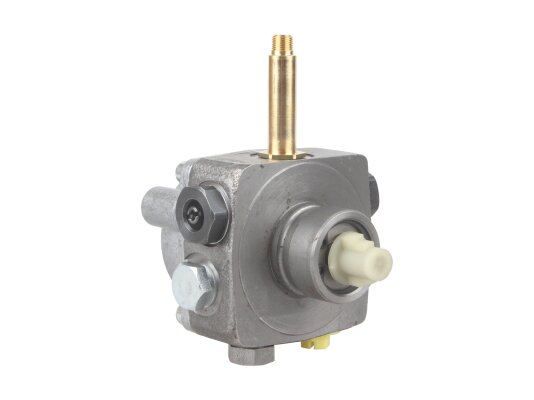

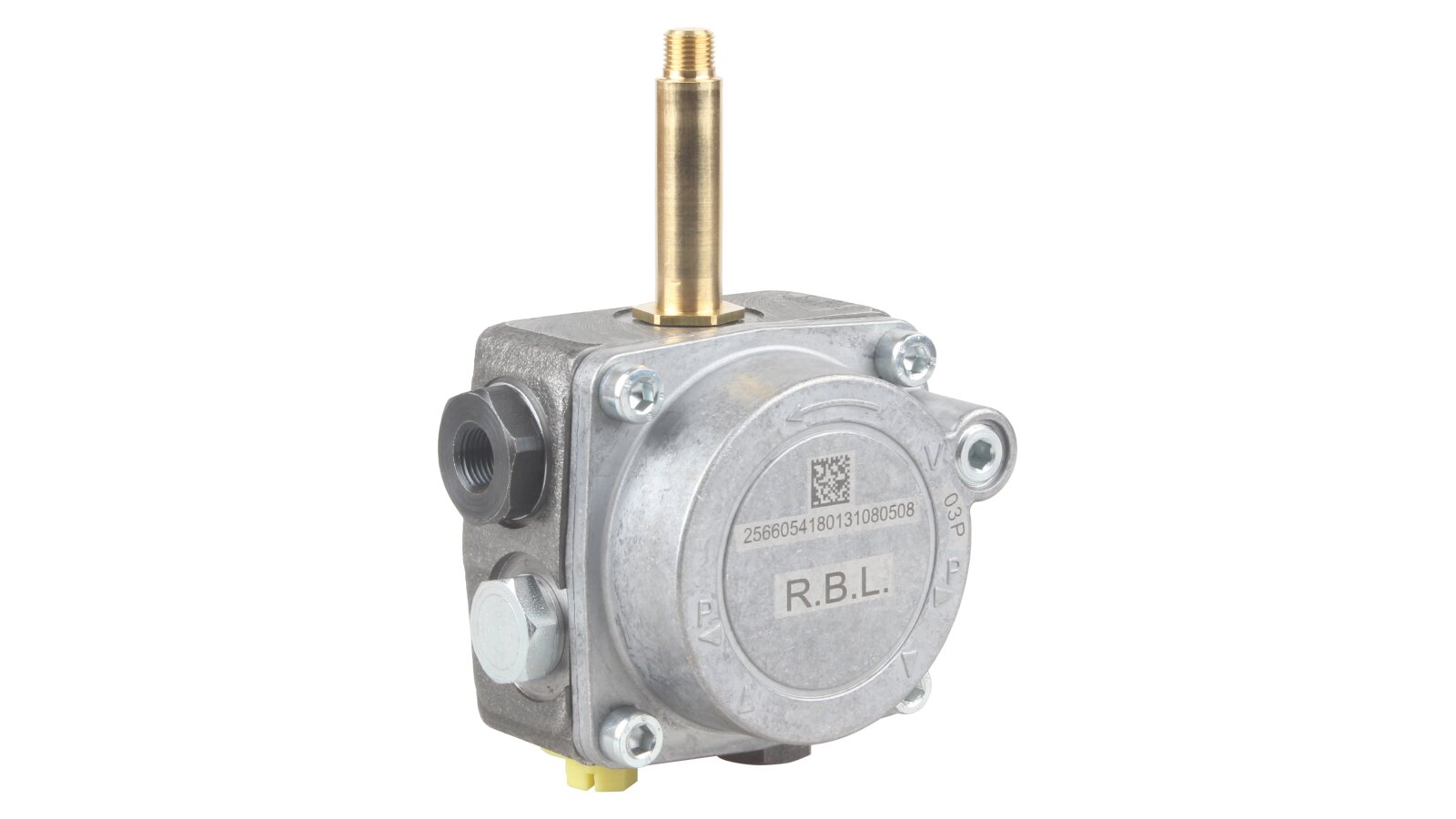

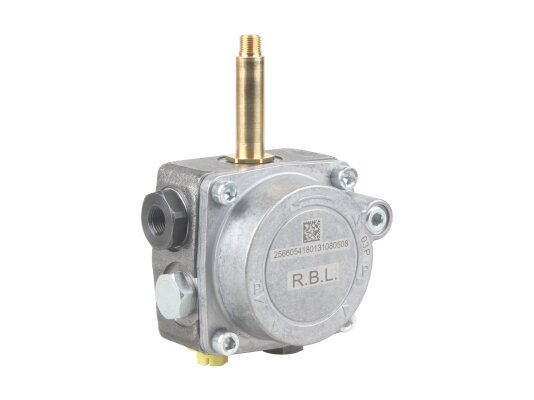

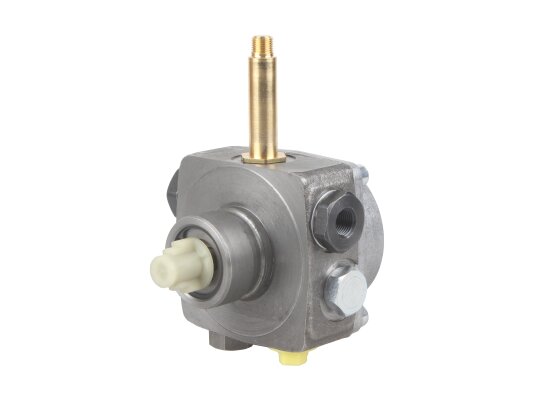

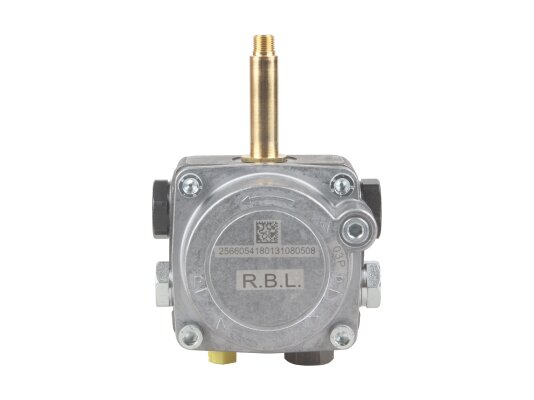

The Riello R.B.L. 2566054 pump pumps liquid fuel under pressure up to 15 bar. Compact, easy to install, reliable in operation. Designed to equip Riello burners.
Main parameters:
Nozzle pressure range: 7-15 bar.
Factory setting of feed pressure: 12 bar.
Fastening: sleeve seat Ø32 mm.
Suction line connection: threaded G¼".
Working fluid: diesel fuel.
Design and features:
Riello pump 2566054, art: 3008570 is installed using a sleeve connection.
The gear mechanism is the main working unit. The shaft rotates clockwise.
The fuel supply pressure can be adjusted in the range of 7-15 atm.
A cylindrical thread G¼" is provided for connecting the suction pipeline.
The outlet to the injector line is located on the right side of the housing.
The pump is equipped with an electromagnetic solenoid, clutch.
To create a single-pipe system, the return line hole is closed with a plug.
Check the technical parameters before buying a Riello R.B.L. pump. For advice, contact an ANKAS specialist.
