Description

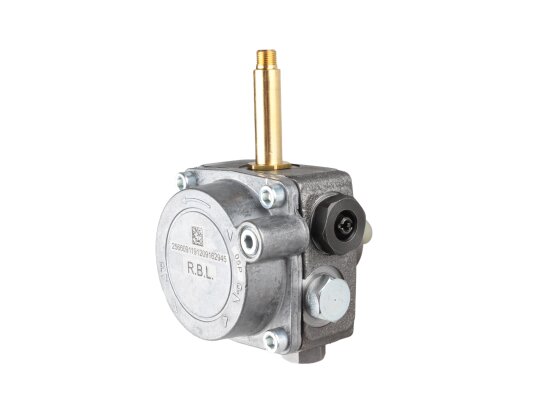

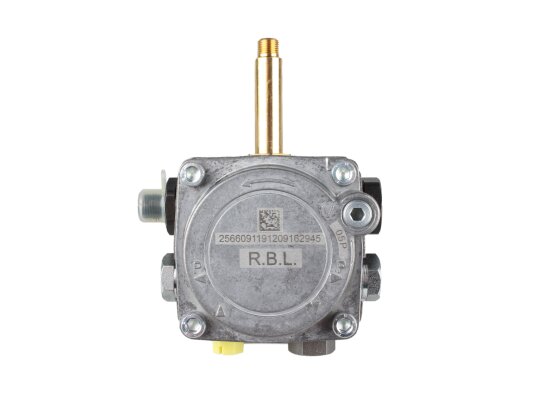

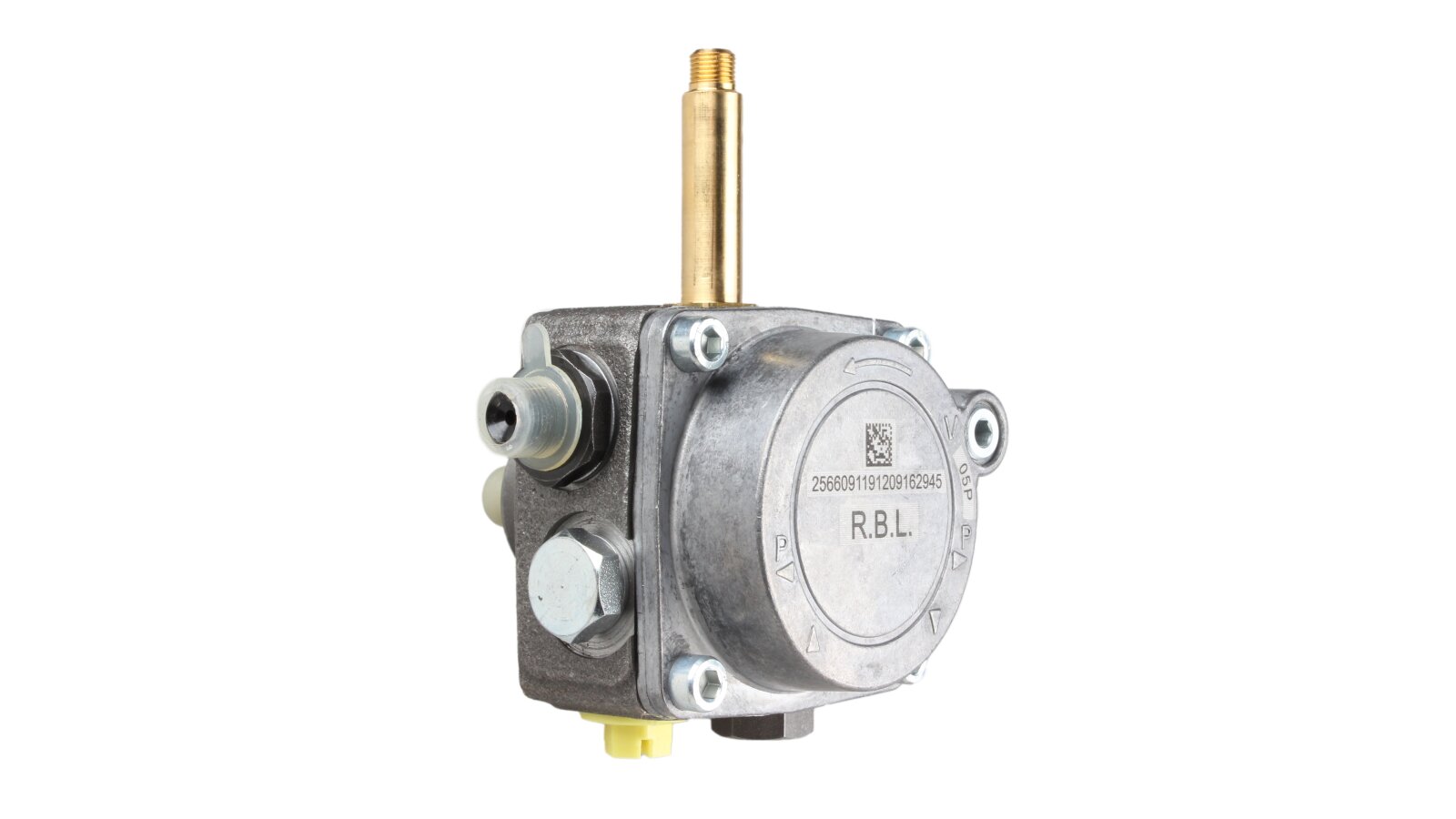

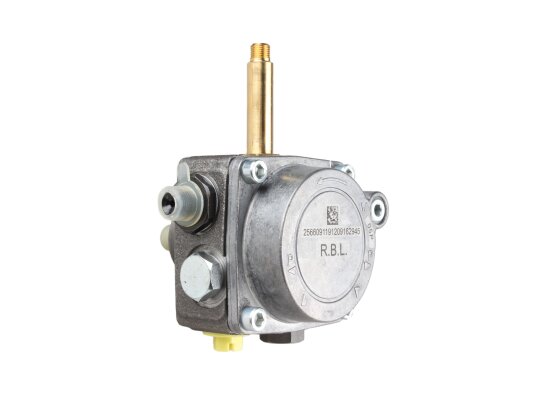

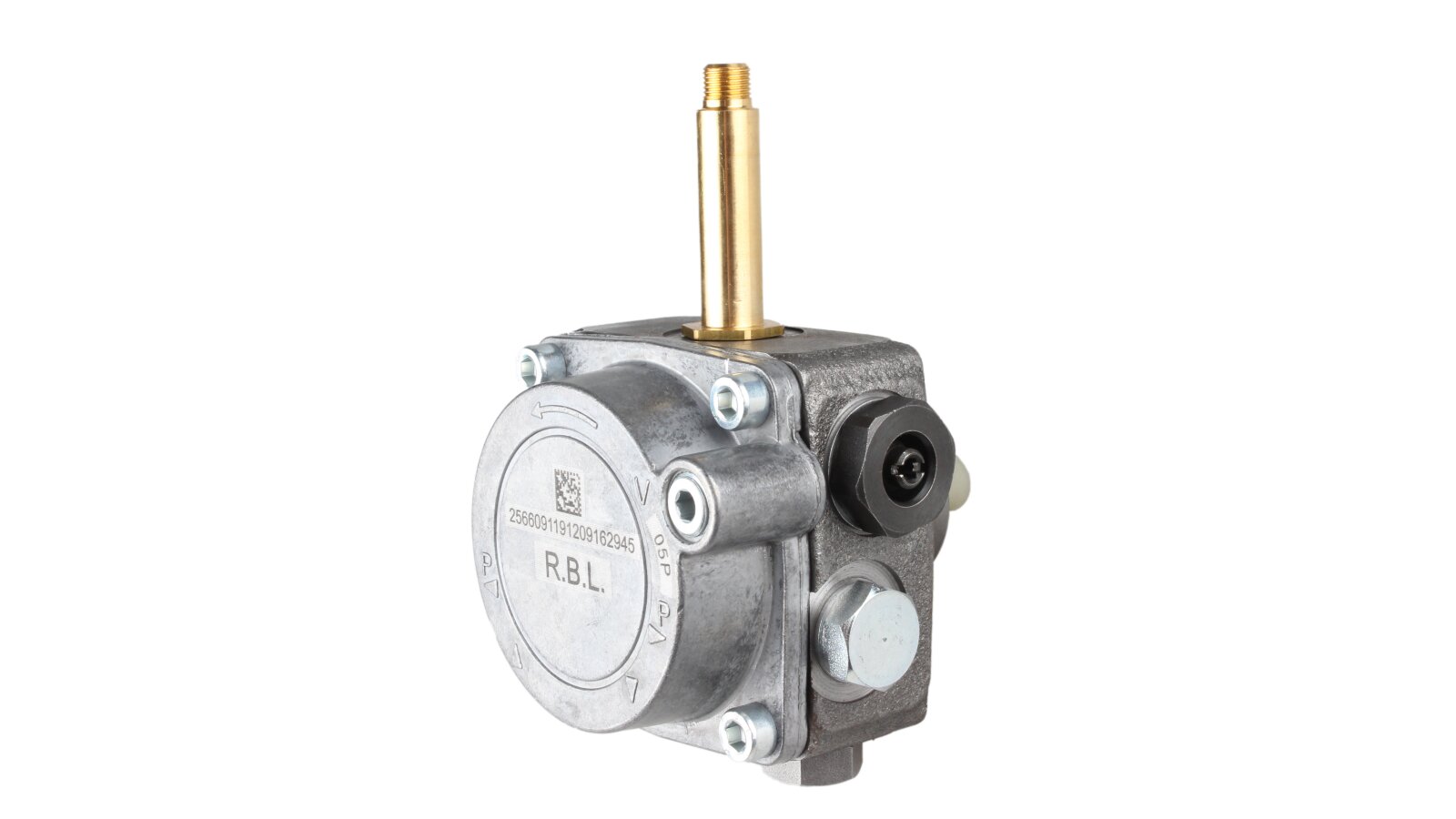

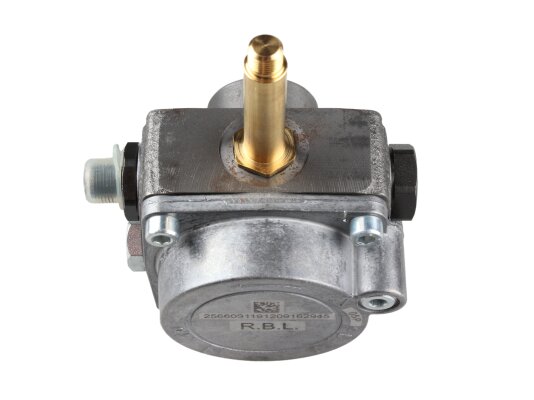

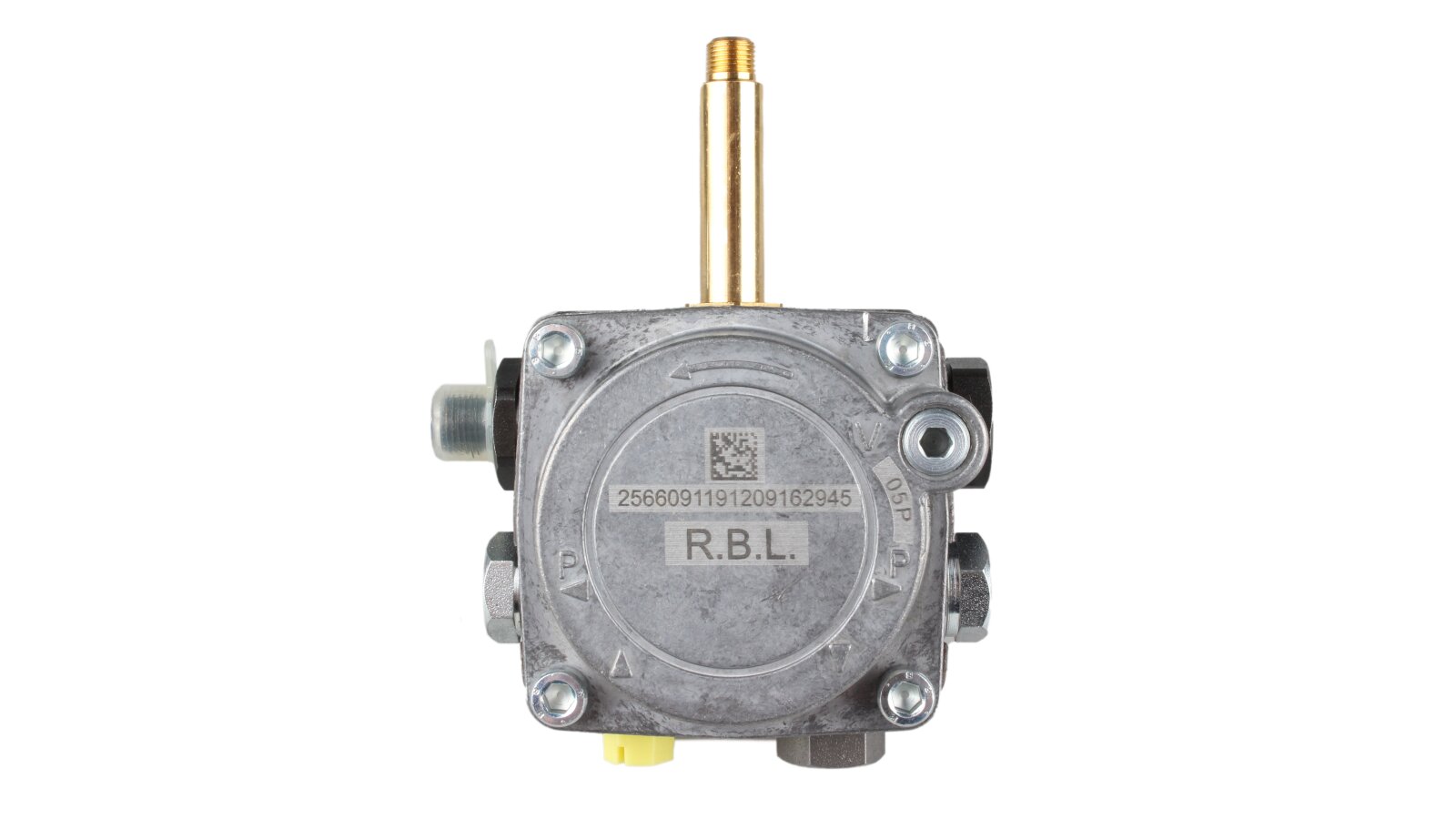

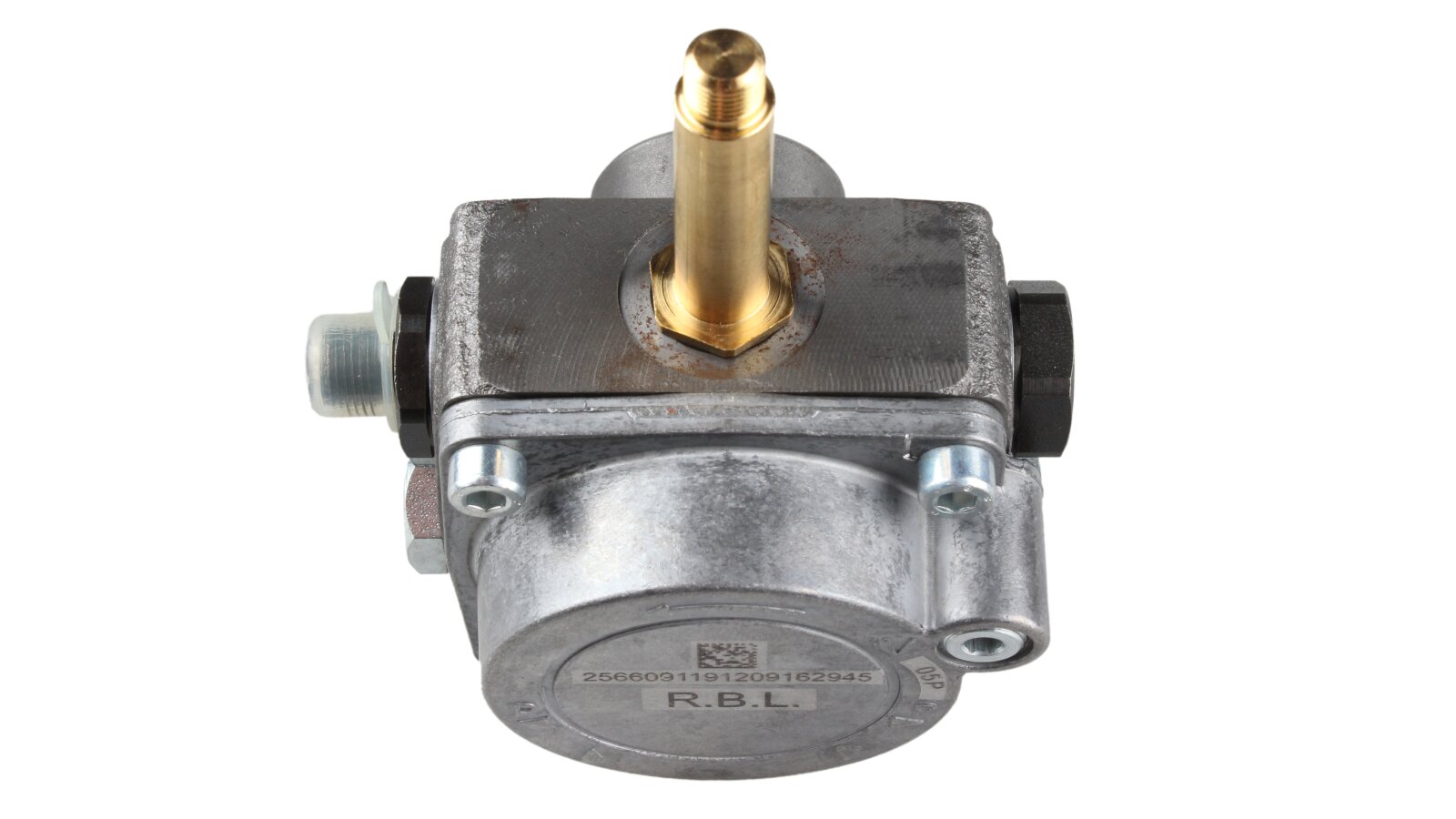

The Riello R.B.L. 2566091 pump is used to pump liquid fuel to the nozzle. It is used for low-power Riello burners. Maximum feed pressure is 15 atmospheres.
Working characteristics:
Nozzle pressure range: 7-15 bar.
Mounting method: Ø32 mm sleeve.
Set pressure: 12 bar.
Suction line connection parameters: G¼" thread.
Media: diesel fuel.
Device and features:

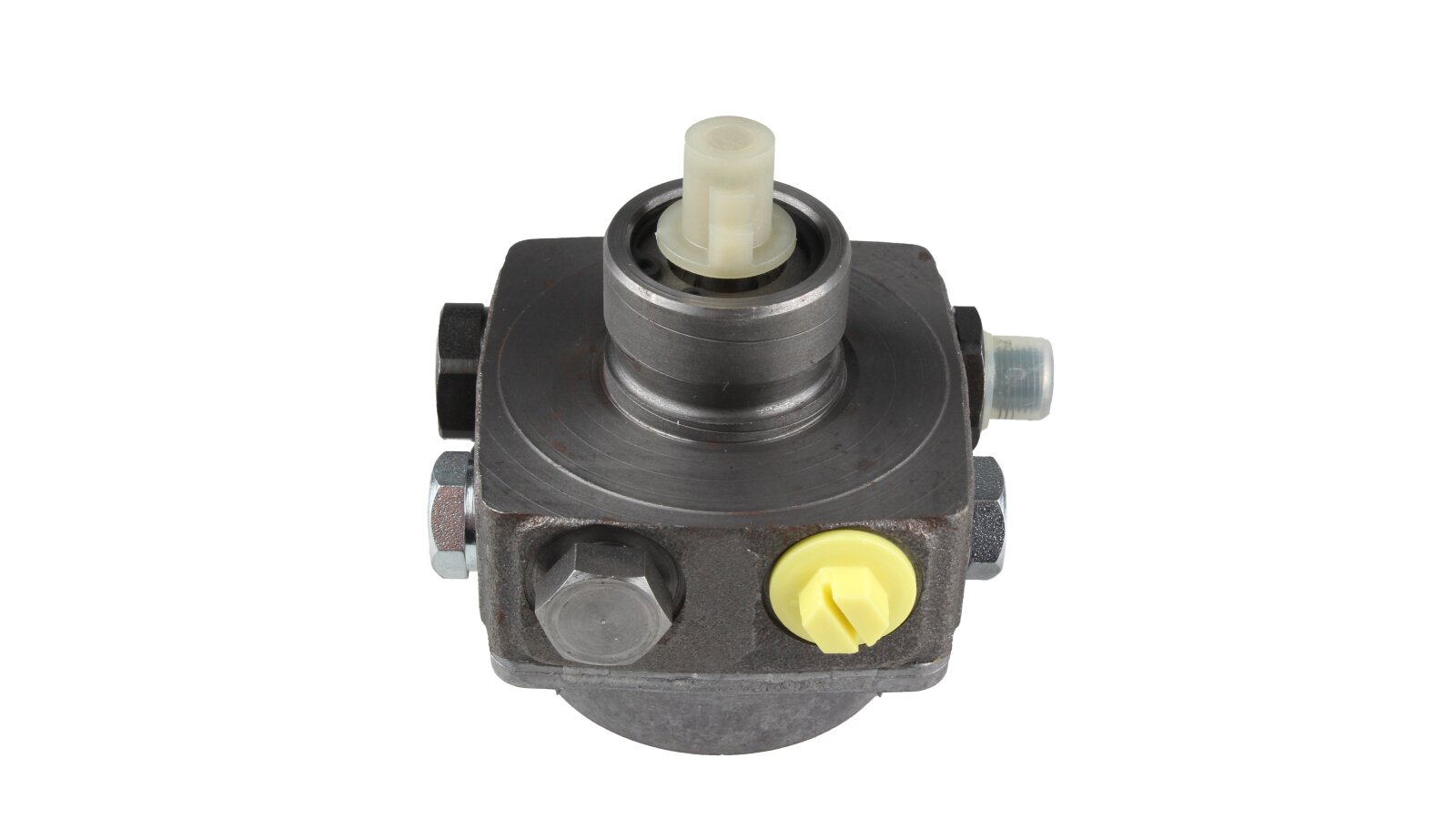

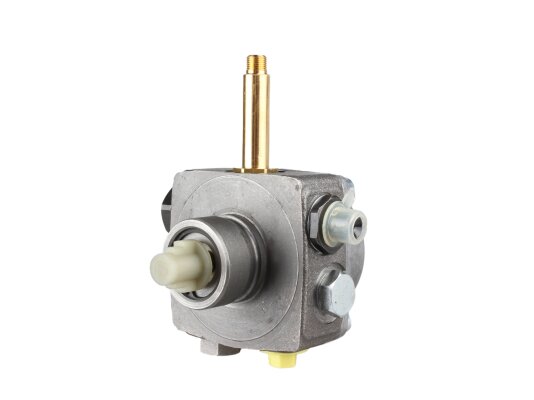

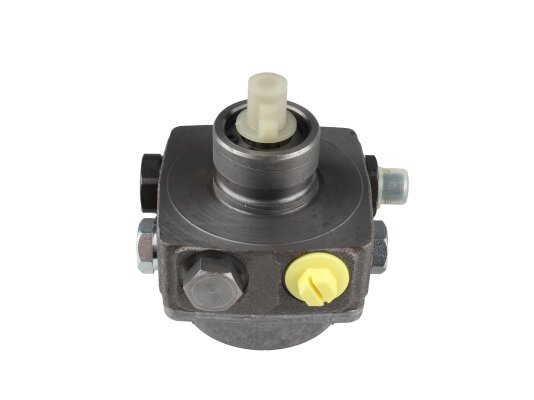

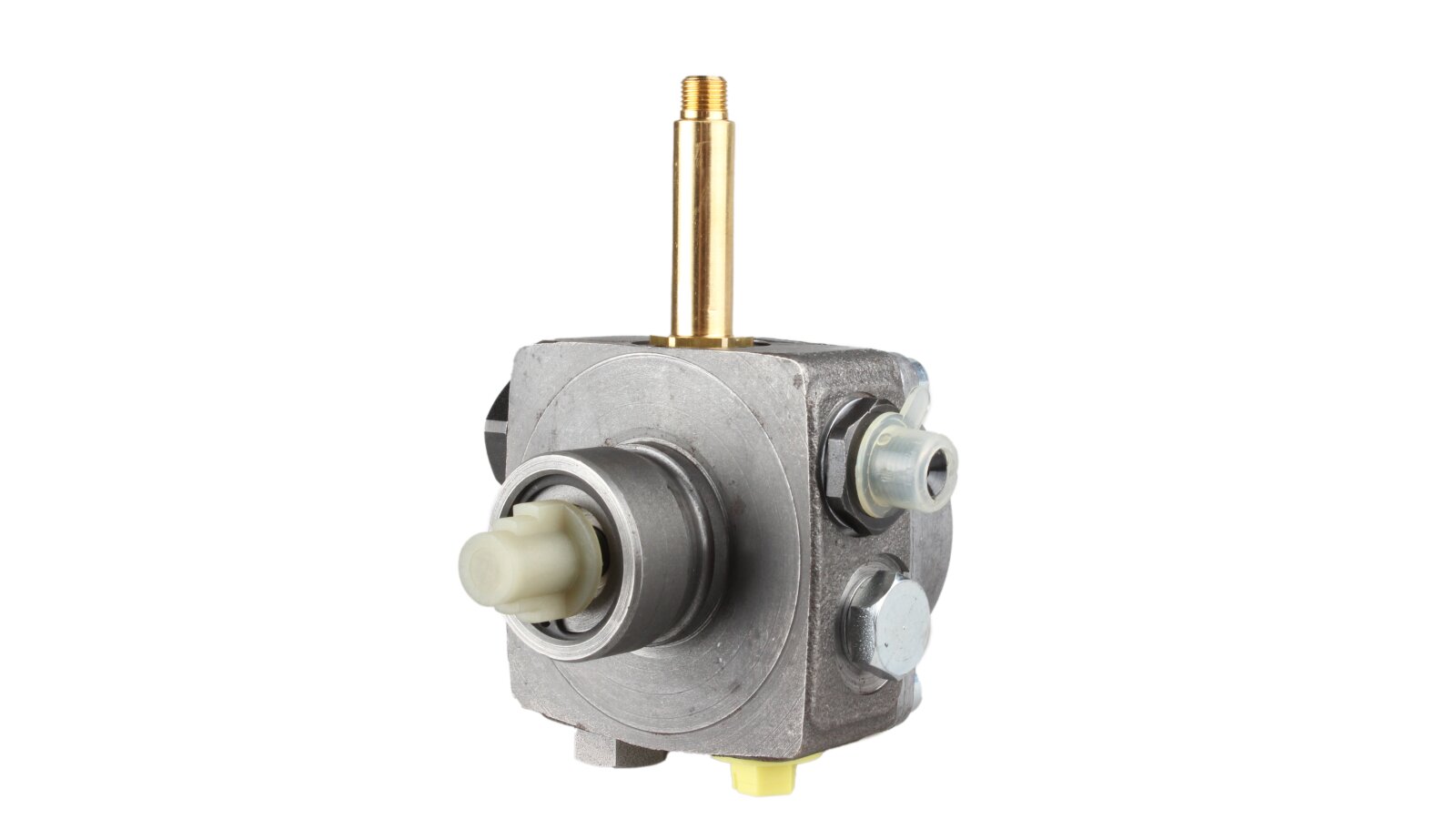

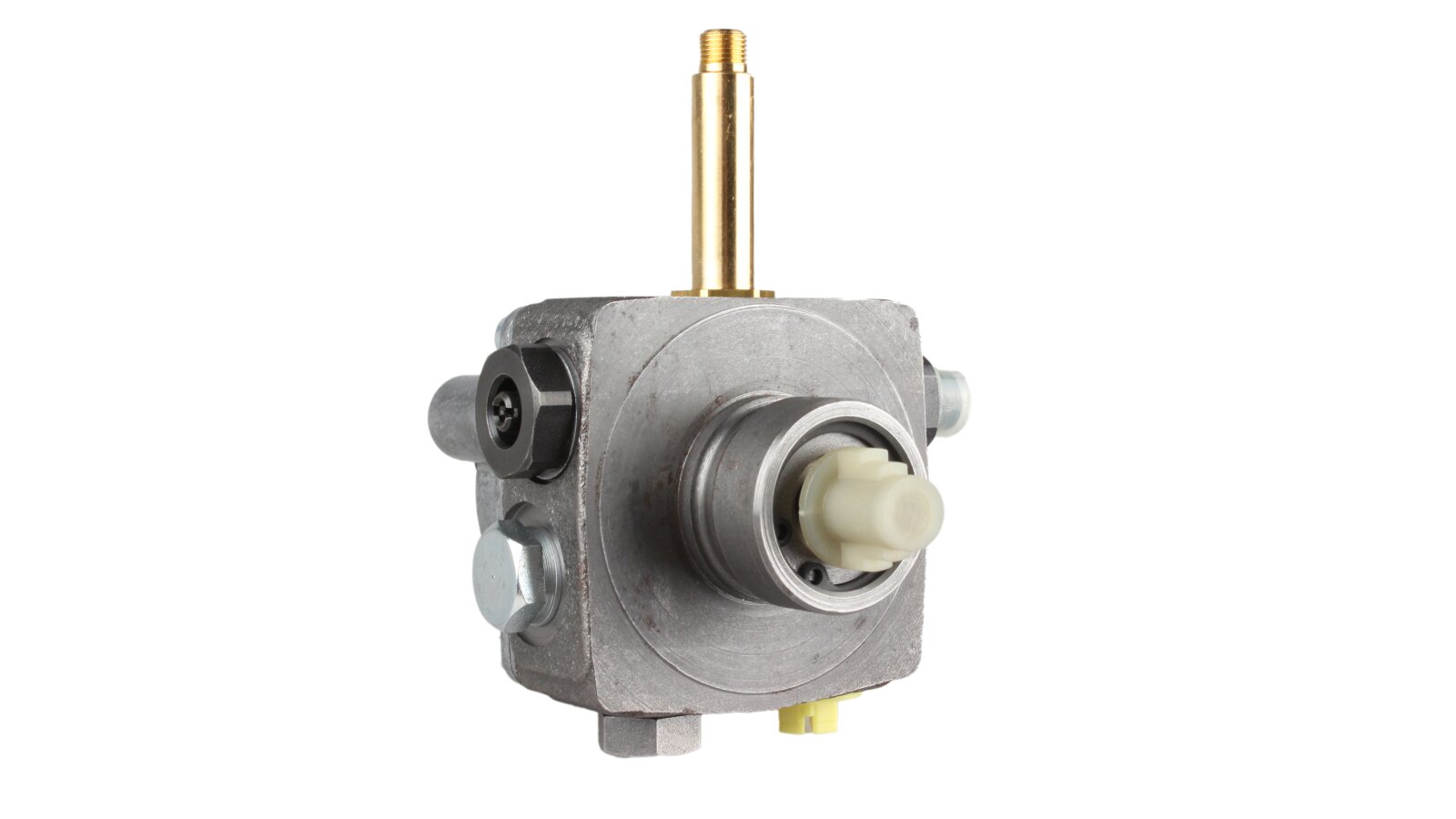

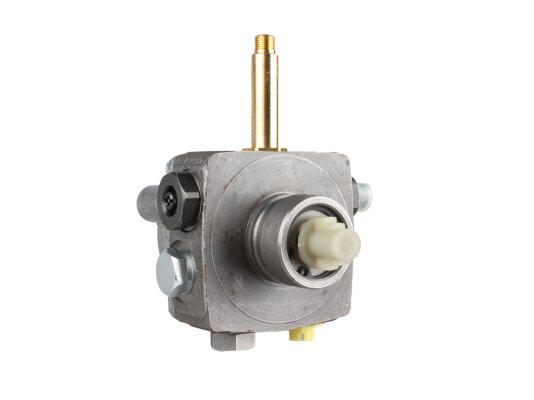

The Riello 2566091 pump, art: 3007812-RL, is built into the burner on a 32 mm diameter sleeve.
The pump operates on the movement of a gear mechanism. The shaft rotates clockwise.
A cylindrical G¼" thread is provided for connecting the suction pipeline. The outlet pipe for connection to the nozzle is located on the right.
The pump is supplied complete with an electromagnetic solenoid.
The nozzle pressure can be changed within the range from 7 to 15 atm., adjusting the factory setting (12 atm.).
A plug is inserted into the return line to create a 1-pipe system.
Full information about the features and parameters of the model is reflected in the specification of the manufacturer. You can buy a Riello R.B.L. pump and other components for burners from us at dealer prices by placing an online order.
