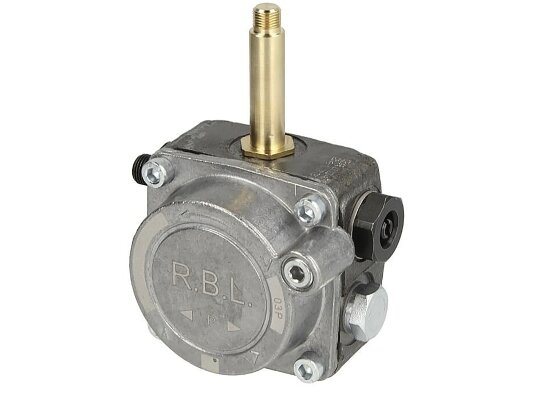

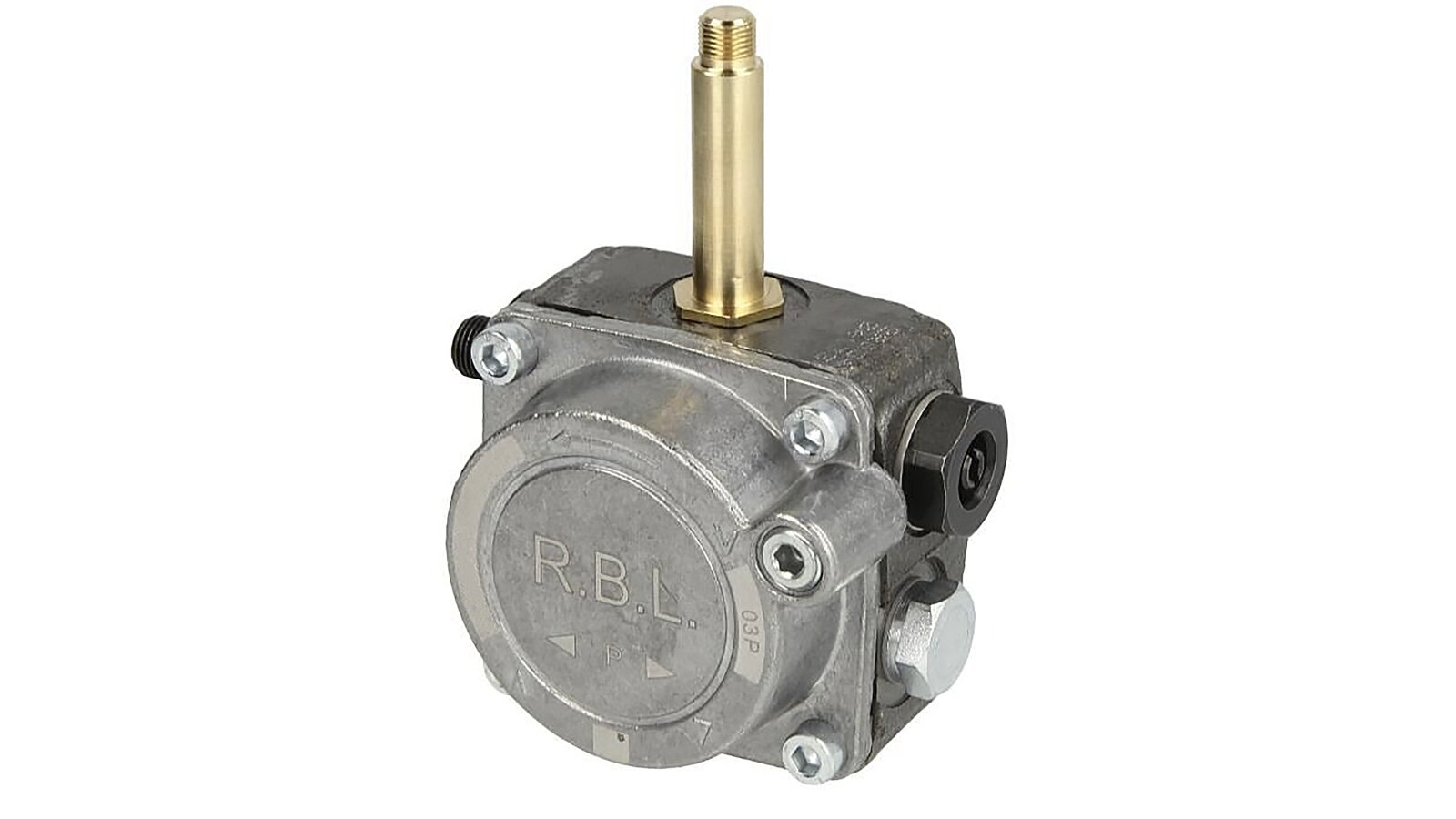

Burner Pump Riello R.B.L. 2566142

Riello3002449
AED 1,425
  1. Oil Burner Pumps

Description

The Riello R.B.L. 2566142 pump with additional accessories is a ready-made solution for equipping burner devices that consume liquid fuel. The maximum discharge pressure is 15 atm. The pump is designed to equip low-power Riello burners.

Main parameters:

  • Nozzle pressure range: 7-15 bar.

  • Installation: on a Ø32 mm sleeve.

  • Factory pressure: 12 bar.

  • Suction line opening: threaded, G¼".

  • Pumped liquid: diesel fuel.

Features and accessories:

  • The Riello R.B.L. 2566142 pump is supplied complete with an electromagnetic solenoid, copper tube, clutch, fittings, gaskets.

  • It is installed using a 32 mm diameter sleeve.

  • The working unit is a gear pair. The shaft rotates clockwise.

  • The basic pressure value (12 atm.) can be changed within 7-15 atm.

  • The suction line is connected via a G¼" cylindrical pipe thread.

  • The outlet to the nozzle is on the right side of the housing.

  • A plug is inserted into the opening to close the return line.

Characteristics

Manufacturer Part Number: 3002449Factory pressure setting: 12 barSuction and return line: ¼ inchNozzle outlet: ⅛ inchNozzle pressure range: from 7 to 15 barShaft design: one cavityInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightModel type: 1 stage with electromagnetic valveType of pumped liquid: diesel
