Description

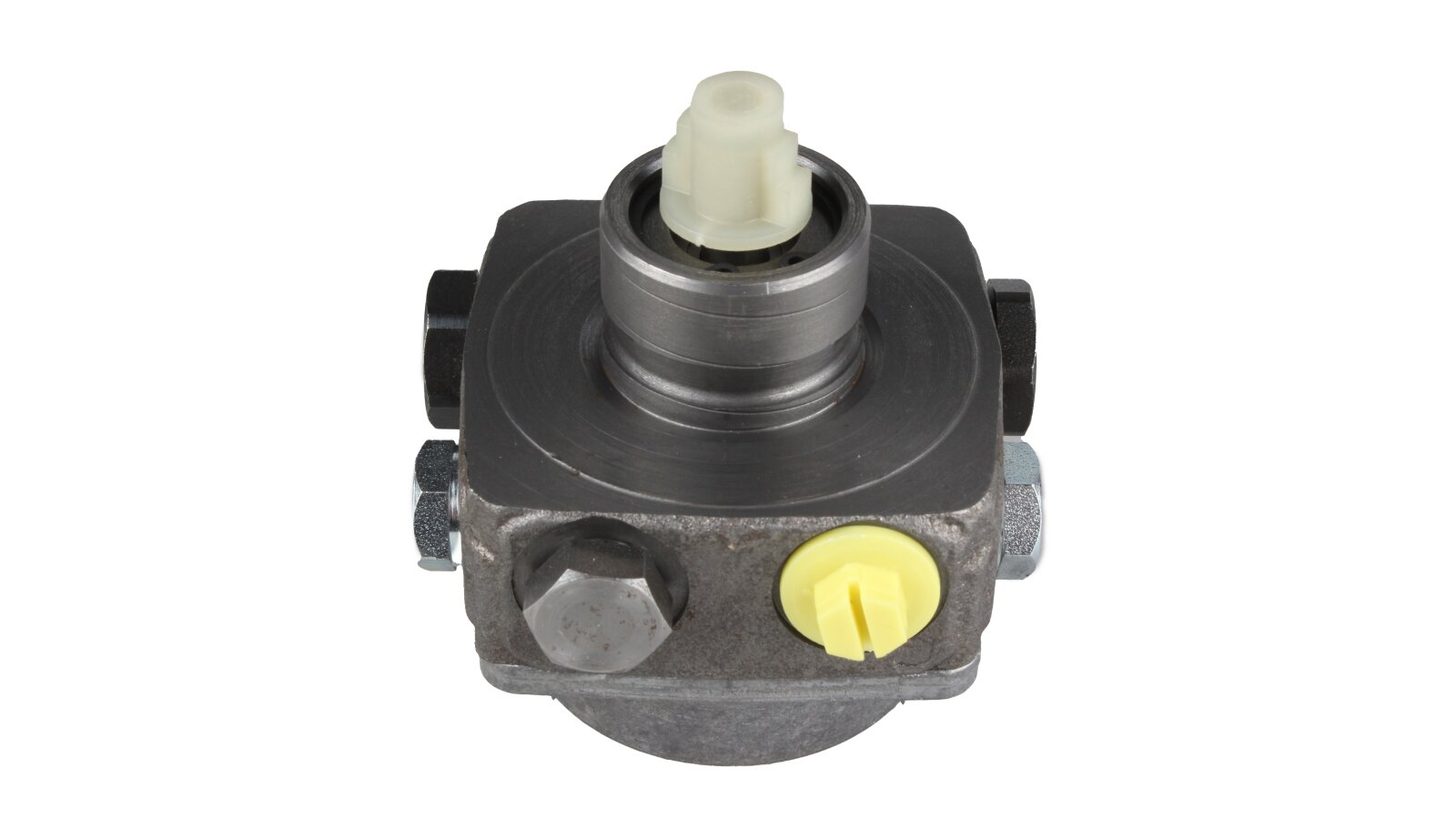

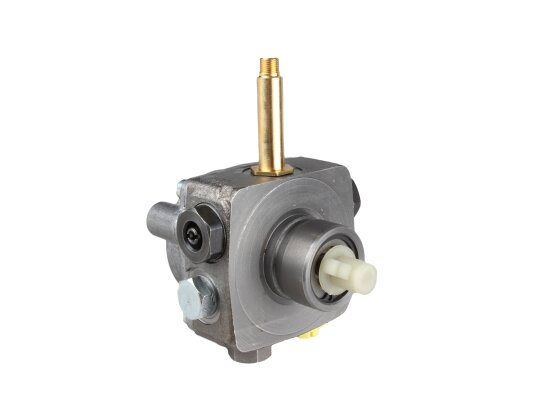

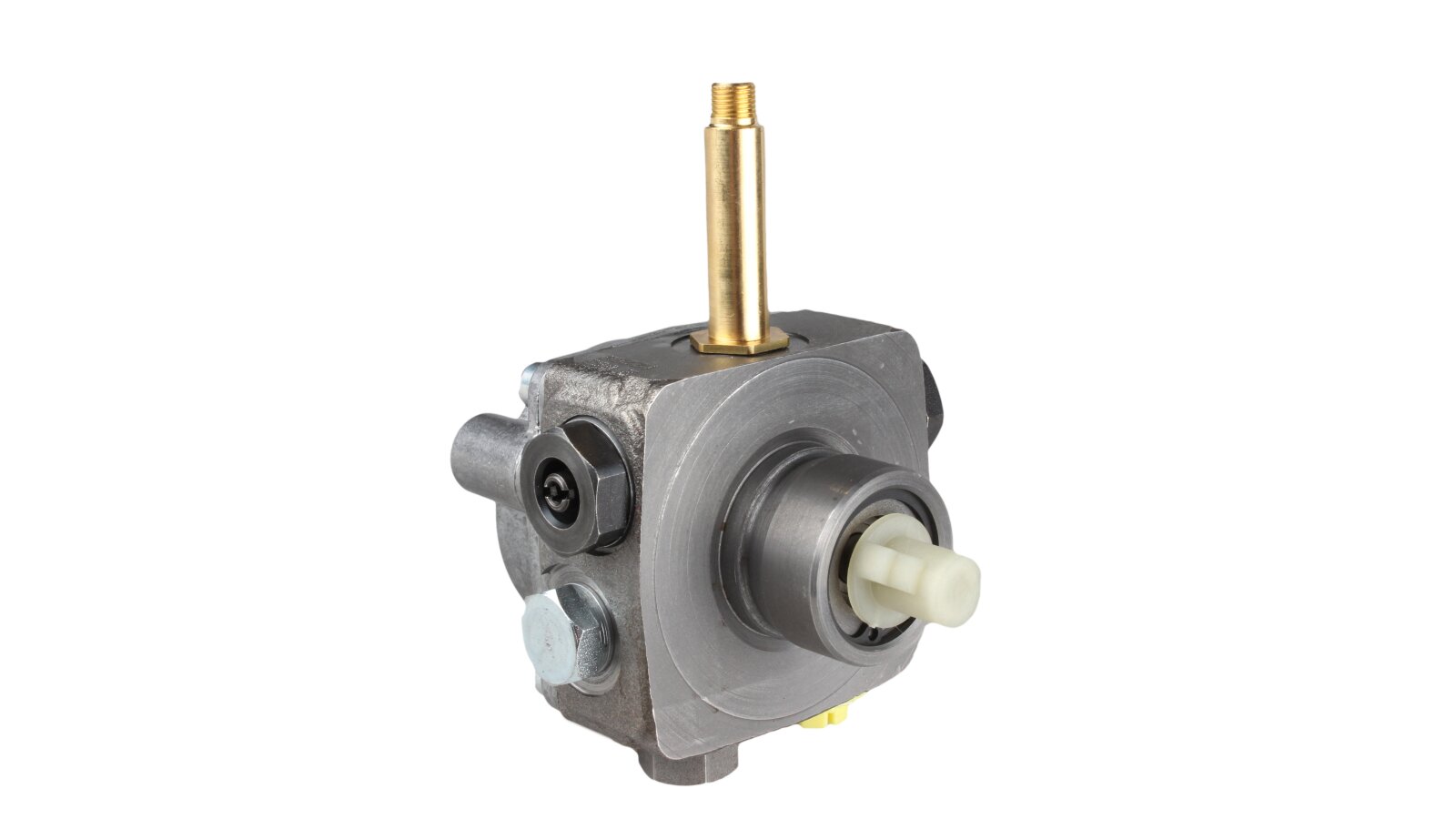

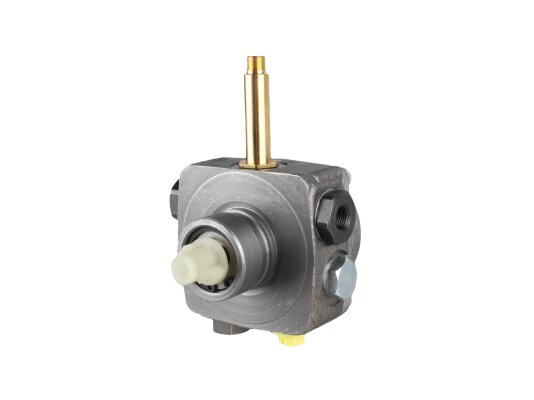

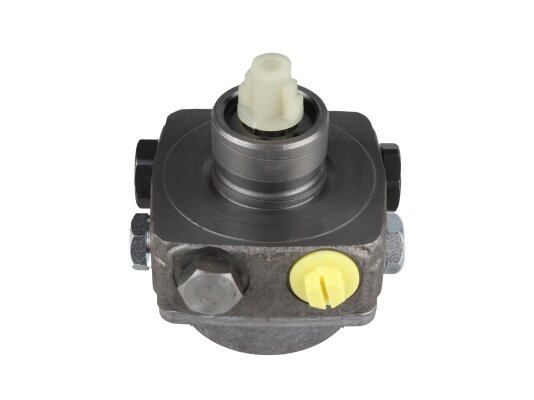

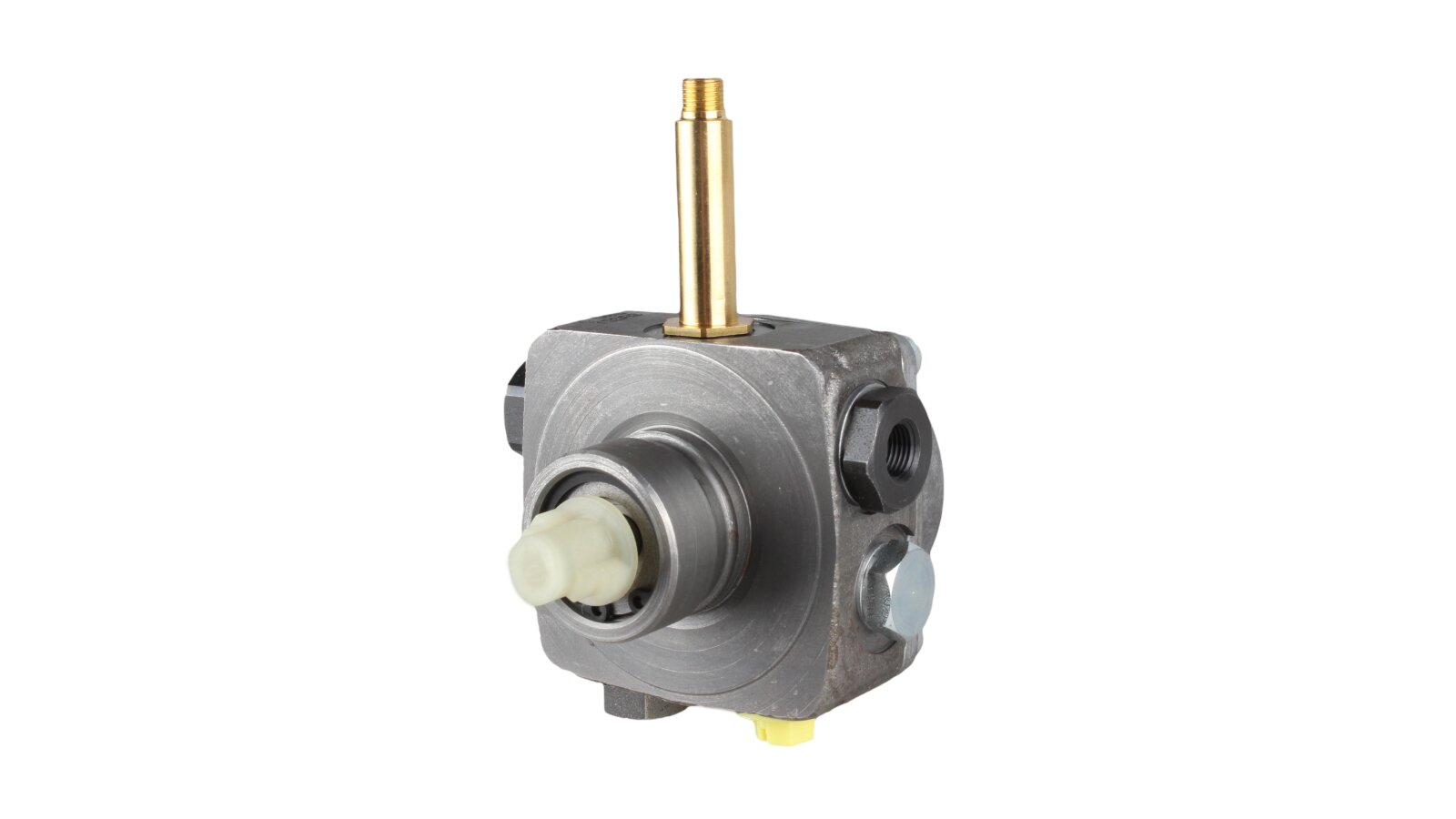

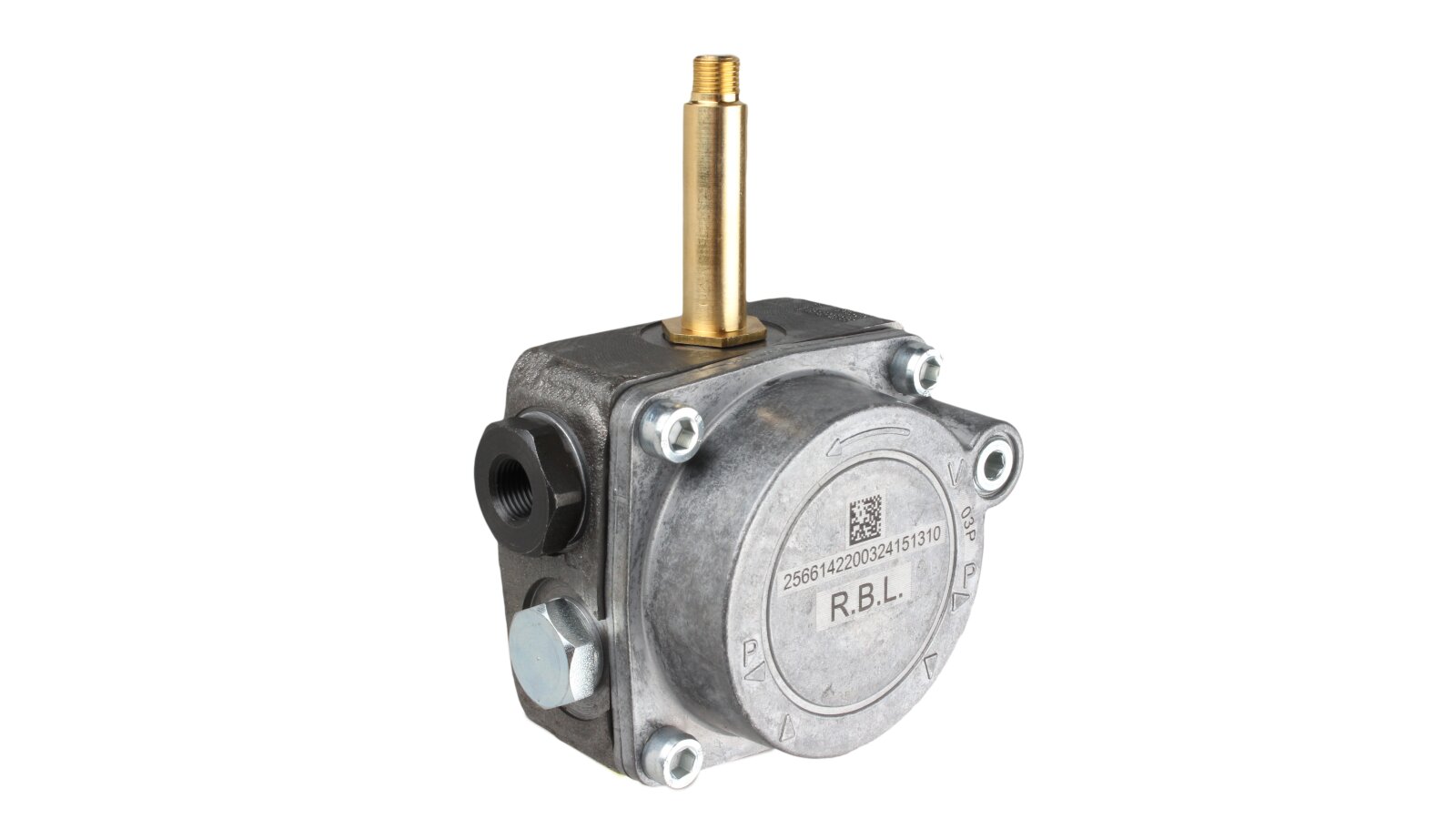

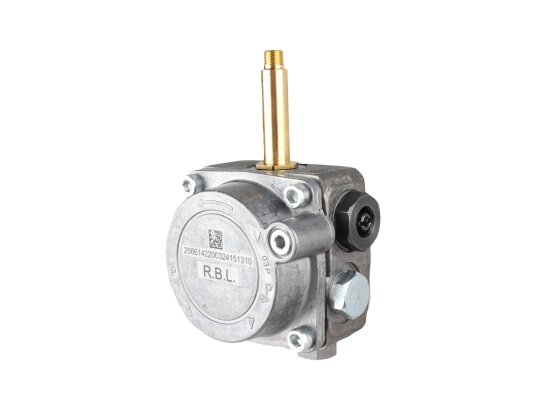

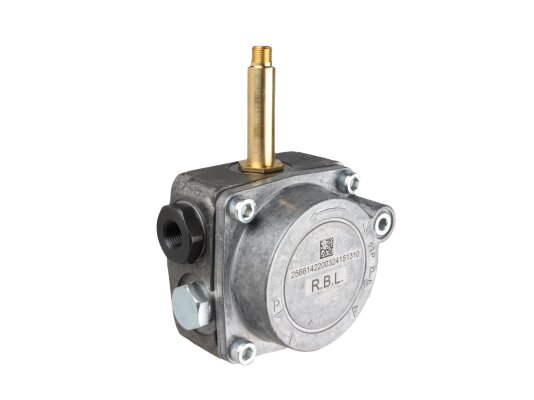

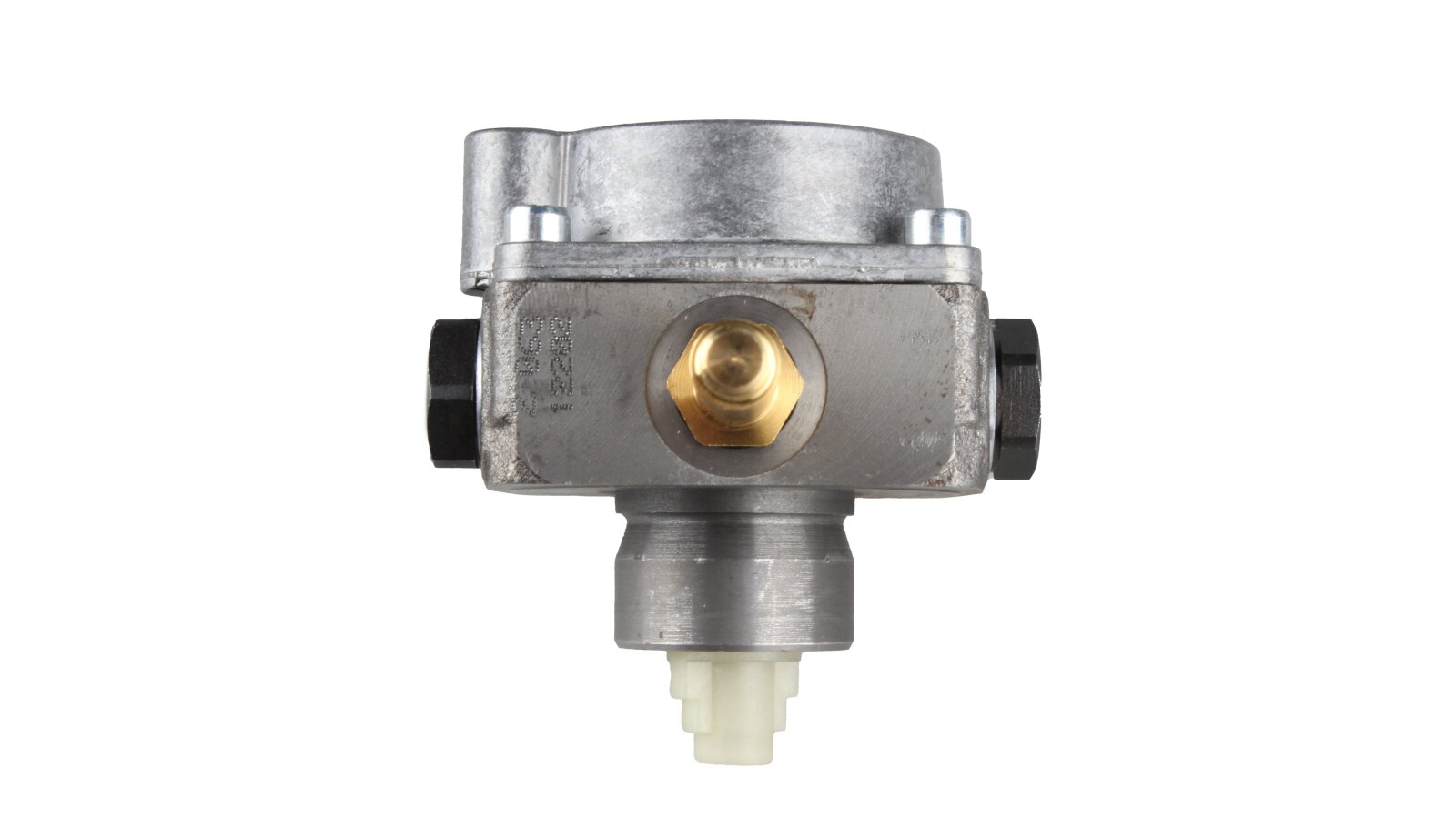

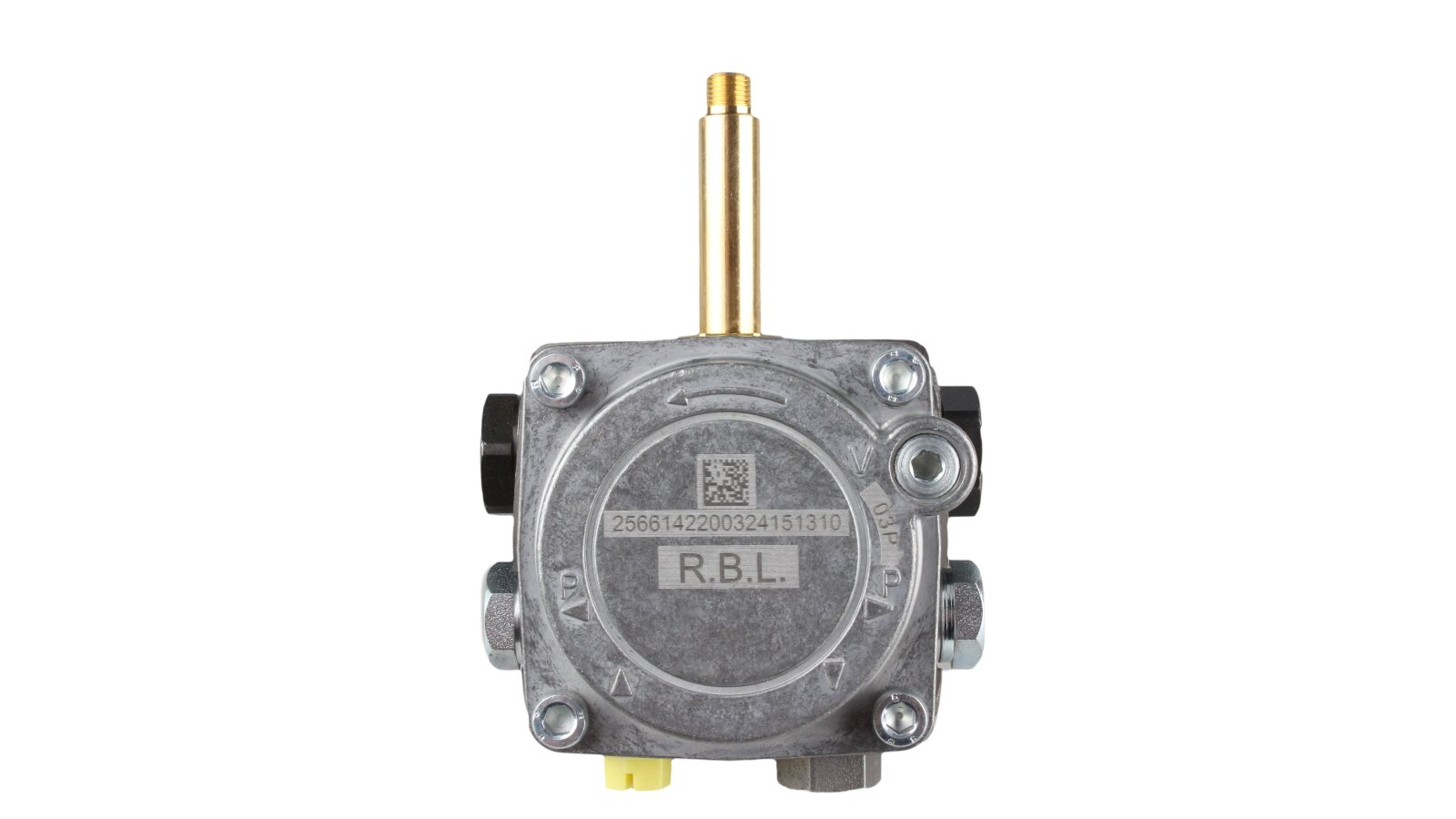

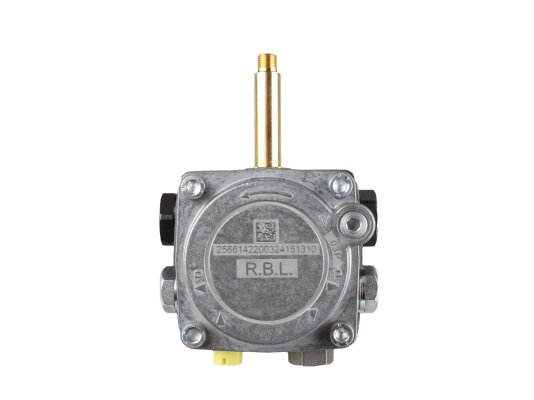

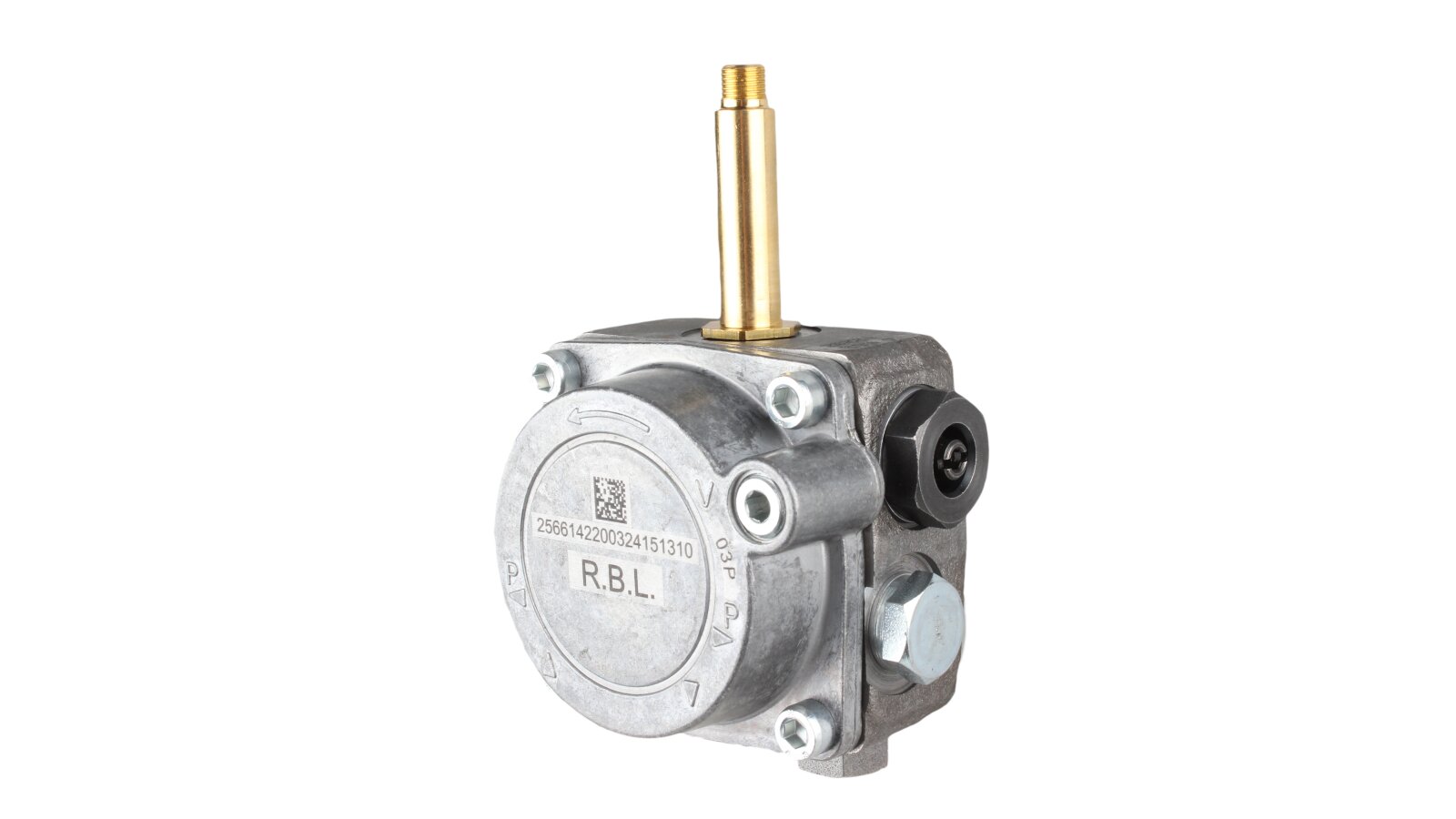

The Riello R.B.L. 2566142 gear pump is used to pump diesel fuel under pressure up to 15 bar. It is installed in Riello low-power burners.
Characteristics:
Nozzle pressure range: 7-15 bar.
Installation method: sleeve fit Ø32 mm.
Factory setting of the feed pressure: 12 bar.
Opening for the suction line: G¼".
Pumped liquid: diesel fuel.
Device and features:
The Riello 2566142 pump is fixed with a sleeve with a diameter of 32 mm.
The main part of the pump is a gear mechanism. The shaft rotates clockwise.
The factory pressure setting (12 atm.) can be changed within 7-15 atm.

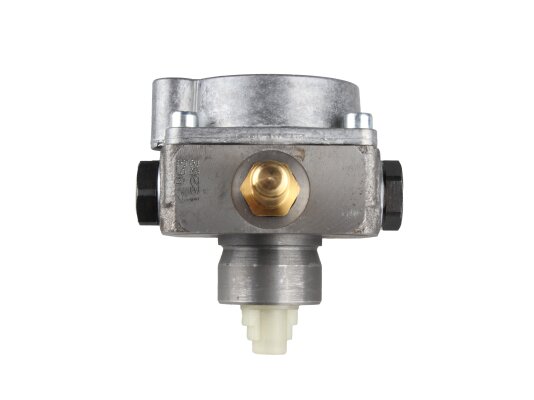

A cylindrical pipe thread G¼" is provided for connecting the suction line. The nozzle outlet is located on the right side of the housing.
The pump is supplied with an electromagnetic solenoid, clutch.
To form a single-pipe system, a plug is installed in the return line opening.
Before buying a Riello R.B.L. pump and other burner components, we recommend checking the technical parameters with the specification of the equipment used.
