Description

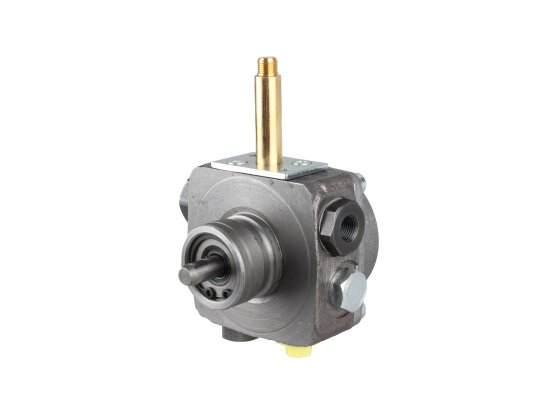

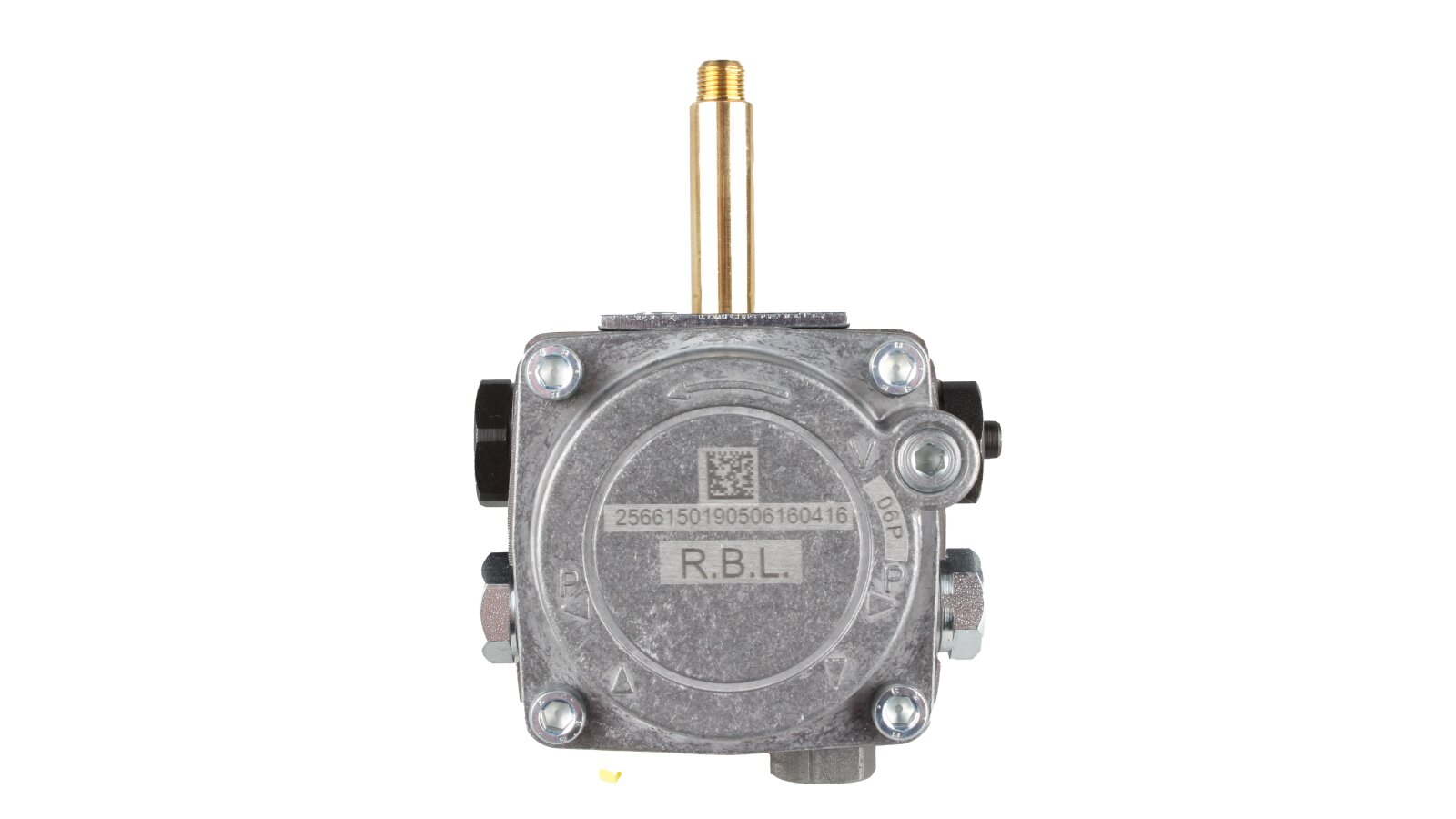

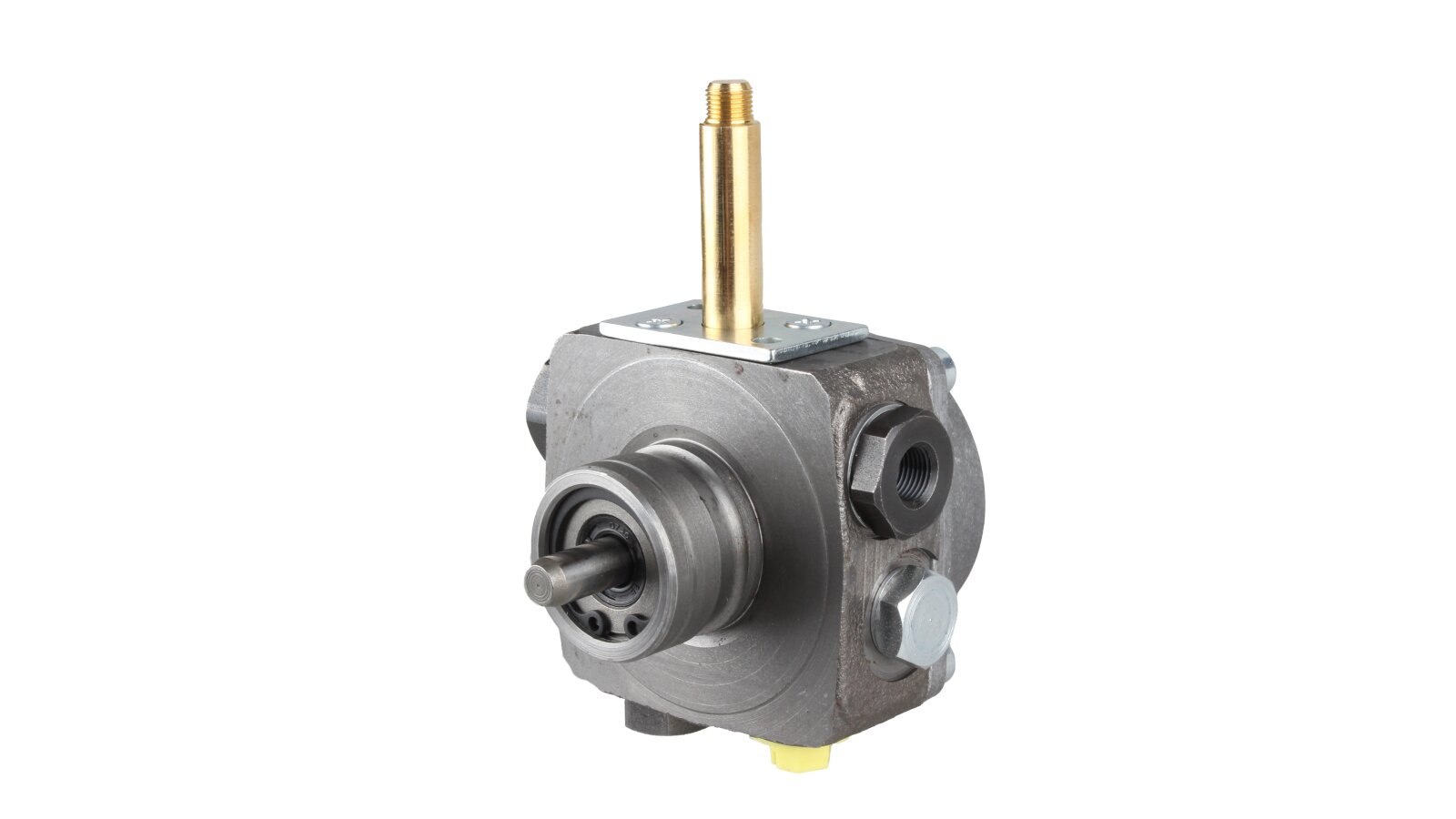

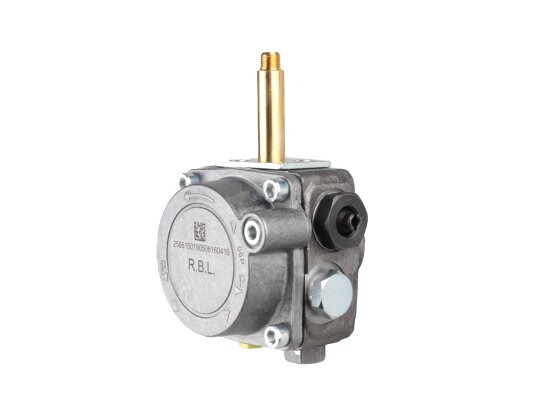

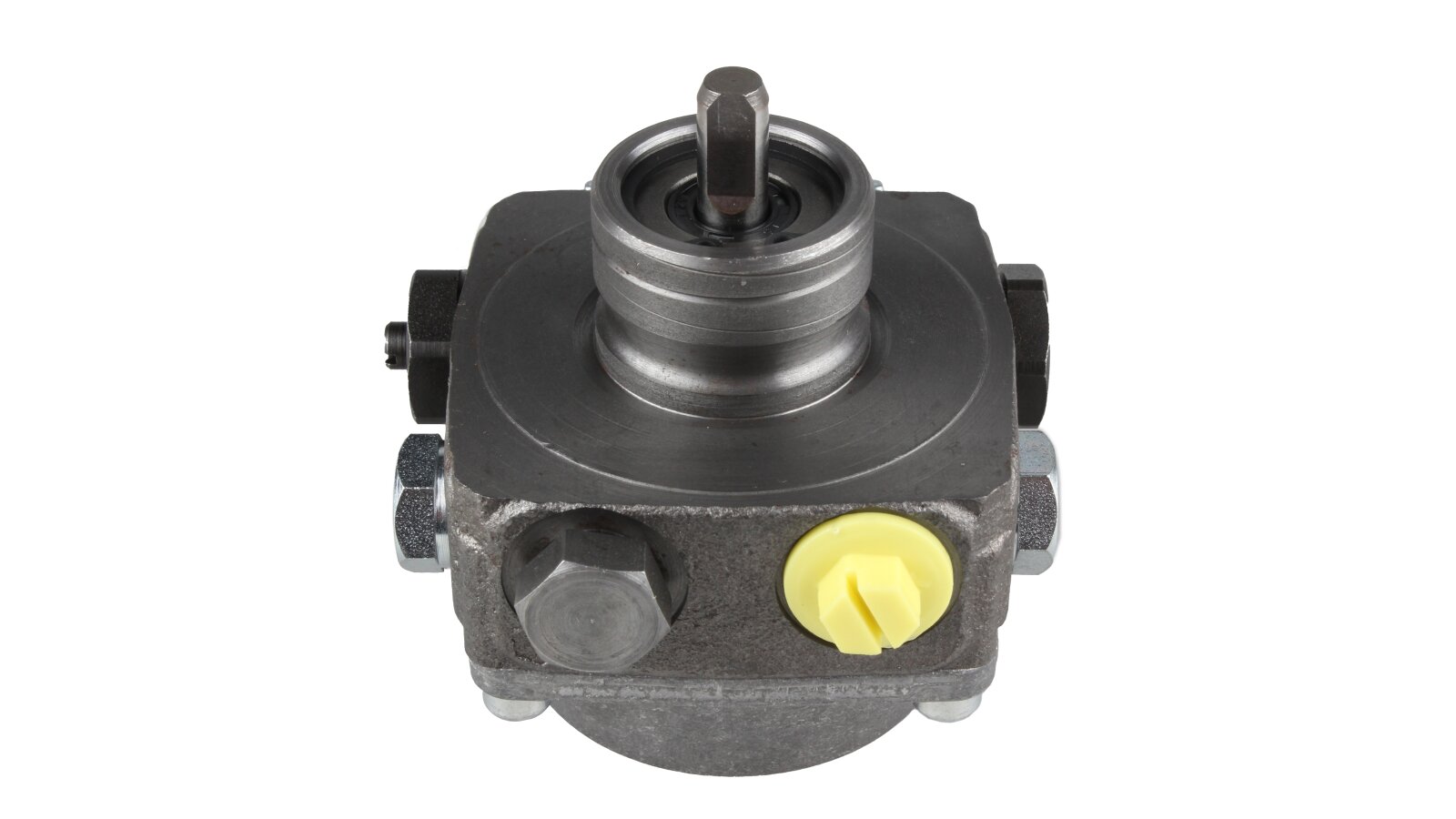

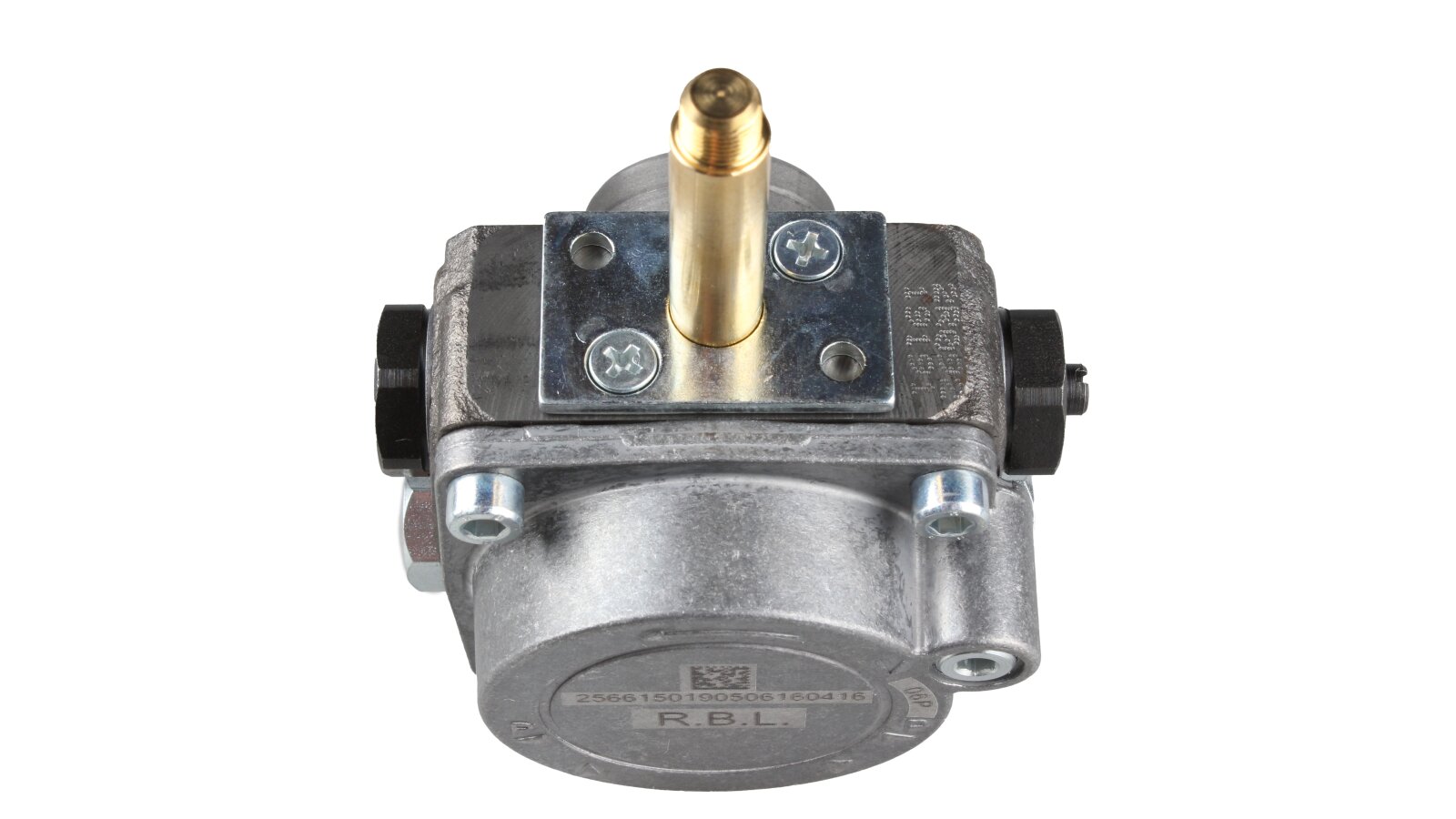

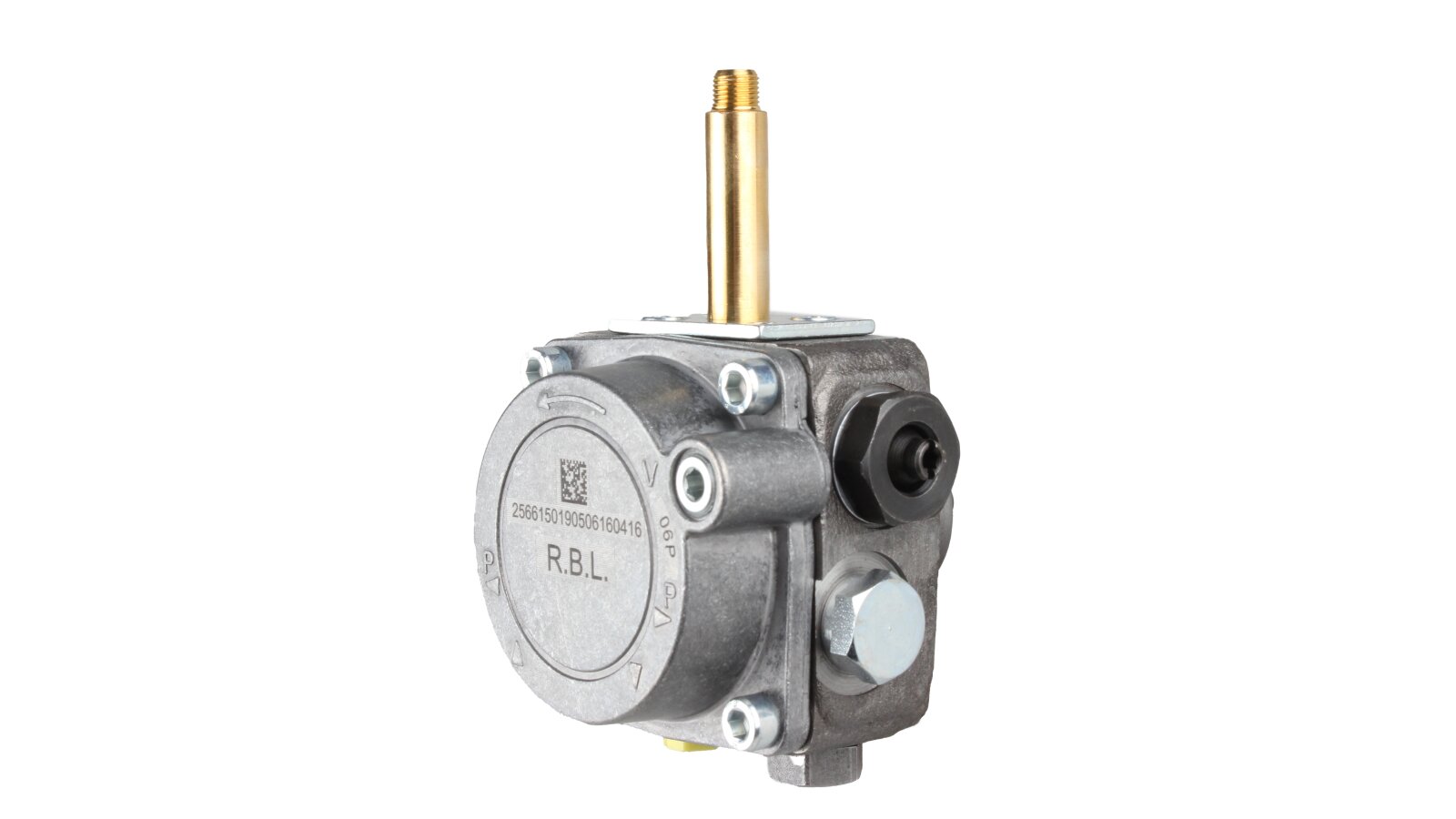

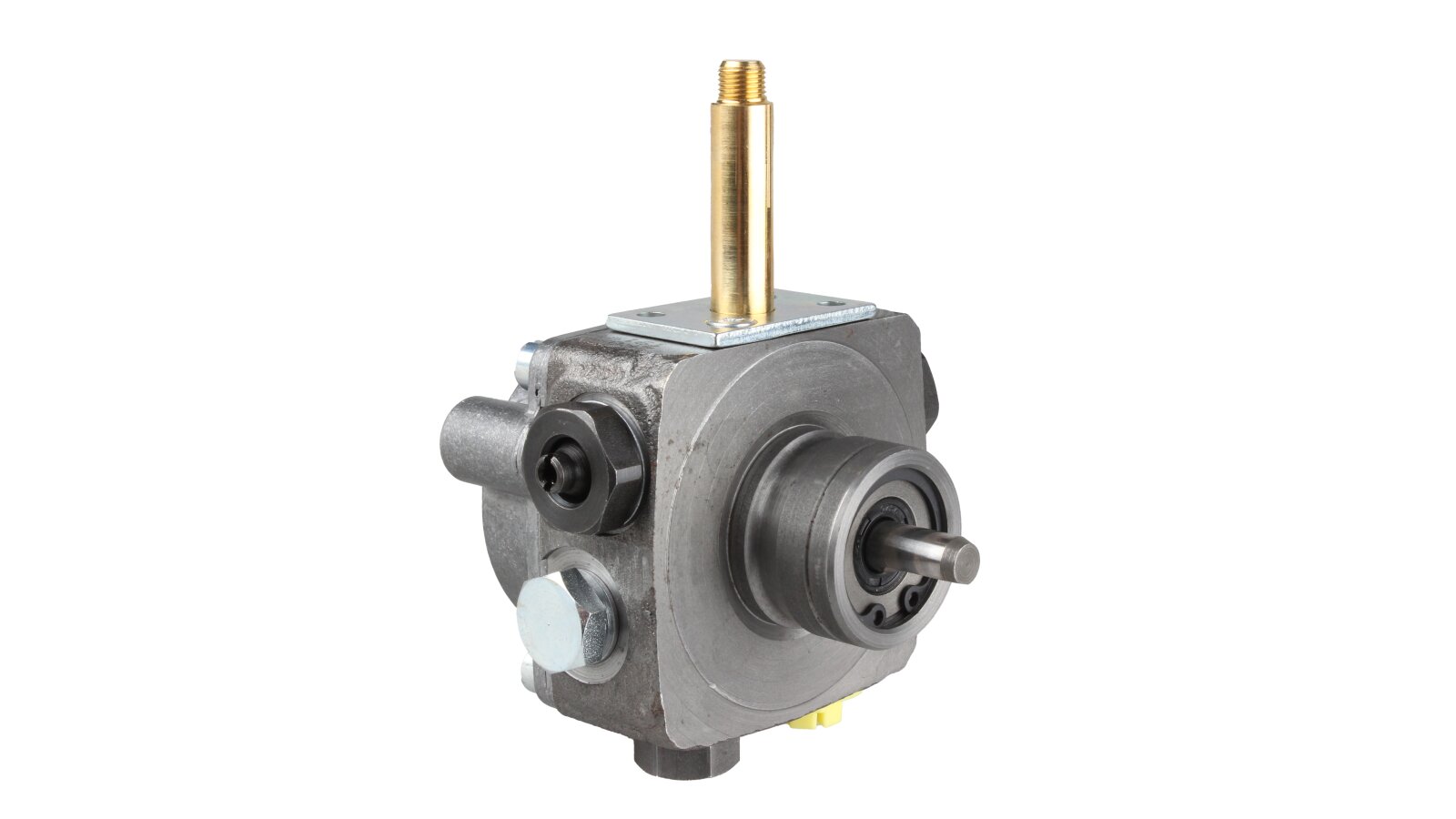

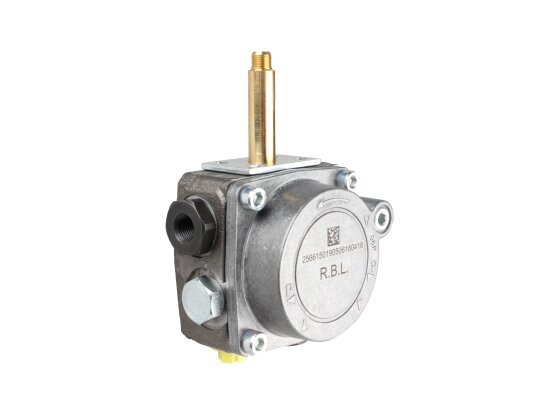

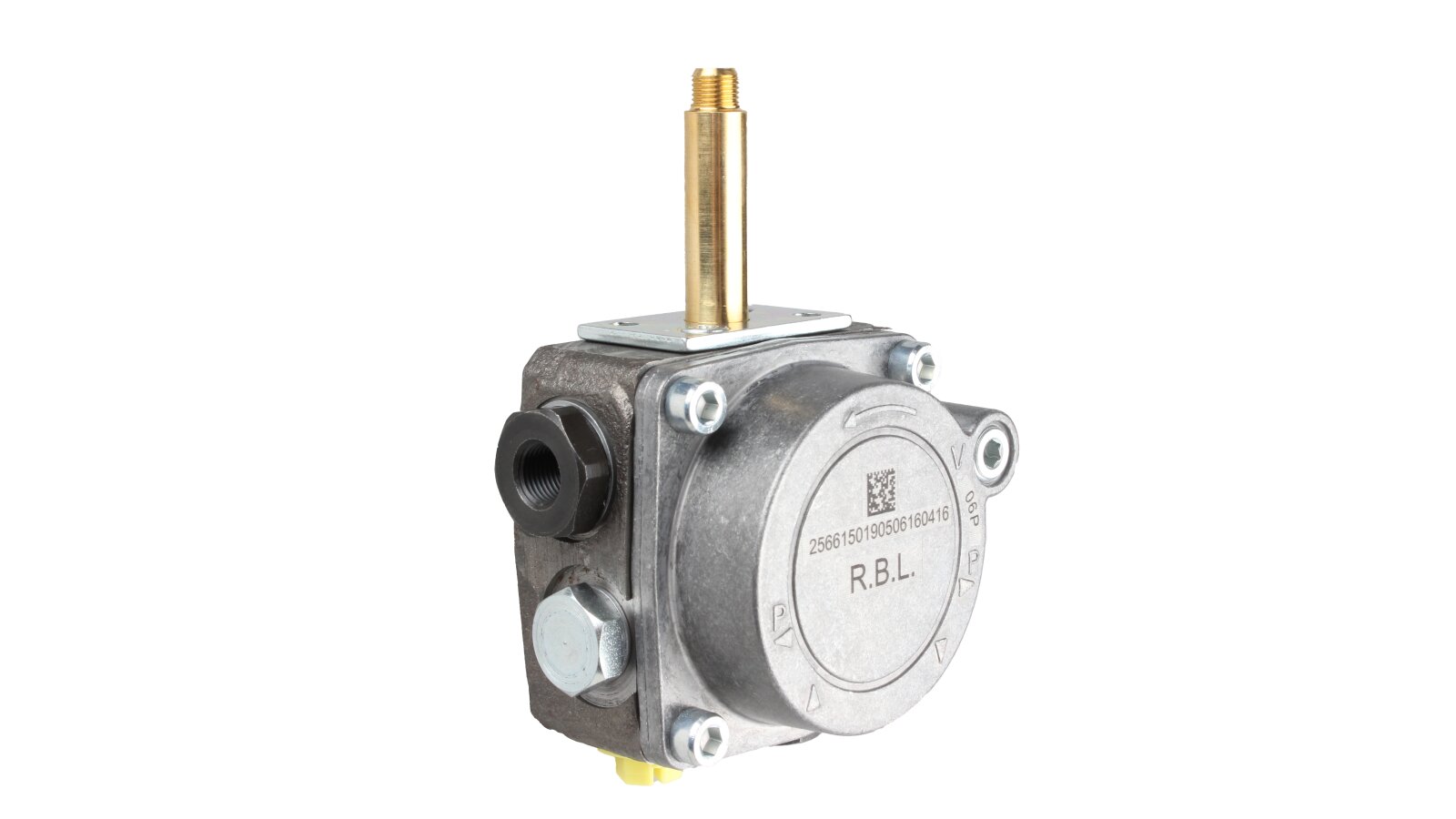

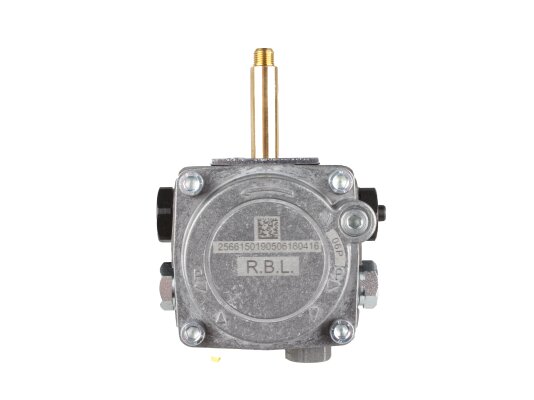

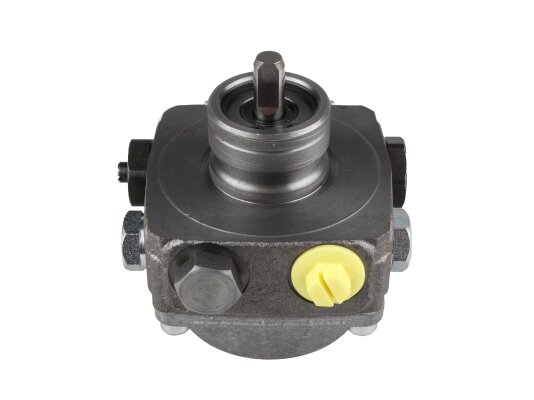

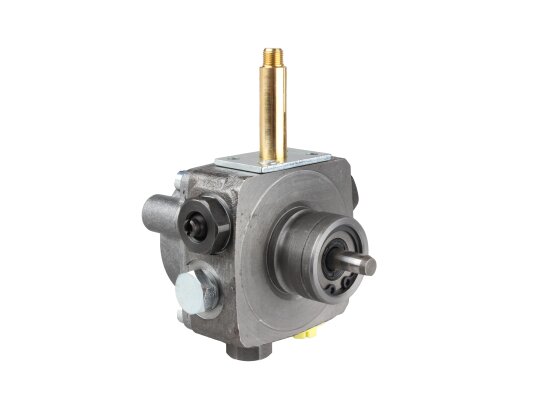

The Riello R.B.L. 2566150 burner pump, art.: 3020476, is designed to supply diesel fuel to the injector. Equipped with a built-in electromagnetic solenoid.
Features:
for systems operating on diesel fuel;
right-hand placement of the nozzle connection pipe;
standard sleeve fit Ø32 mm;
diesel fuel supply to the injector under a pressure of 7-15 bar;
preset value - 8 bar;
suction and return line connection to the G¼" thread;

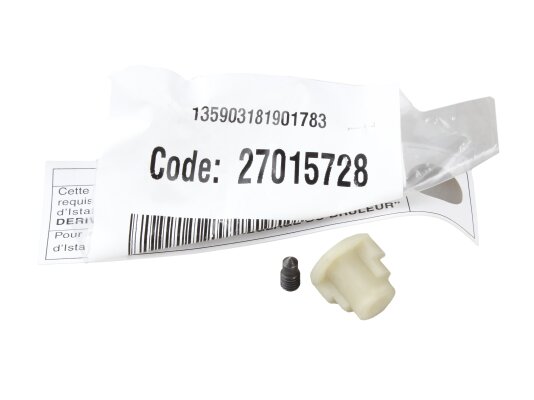

no bypass plug, the drain channel is blocked for a single-pipe system;
shaft rotates clockwise;
equipped with an electromagnetic solenoid;
robust construction, wear-resistant design.
Detailed information about the model can be clarified with ANKAS consultants.
Characteristics
Manufacturer Part Number: 3020476Suction and return line: ¼ inchNozzle pressure range: from 7 to 15 barFactory pressure setting: 8 barInstallation method: sleeve ∅ 32 mmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstalling the bypass plug: M: no bypass plug, return line closed to single pipe systemType of pumped liquid: diesel
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
