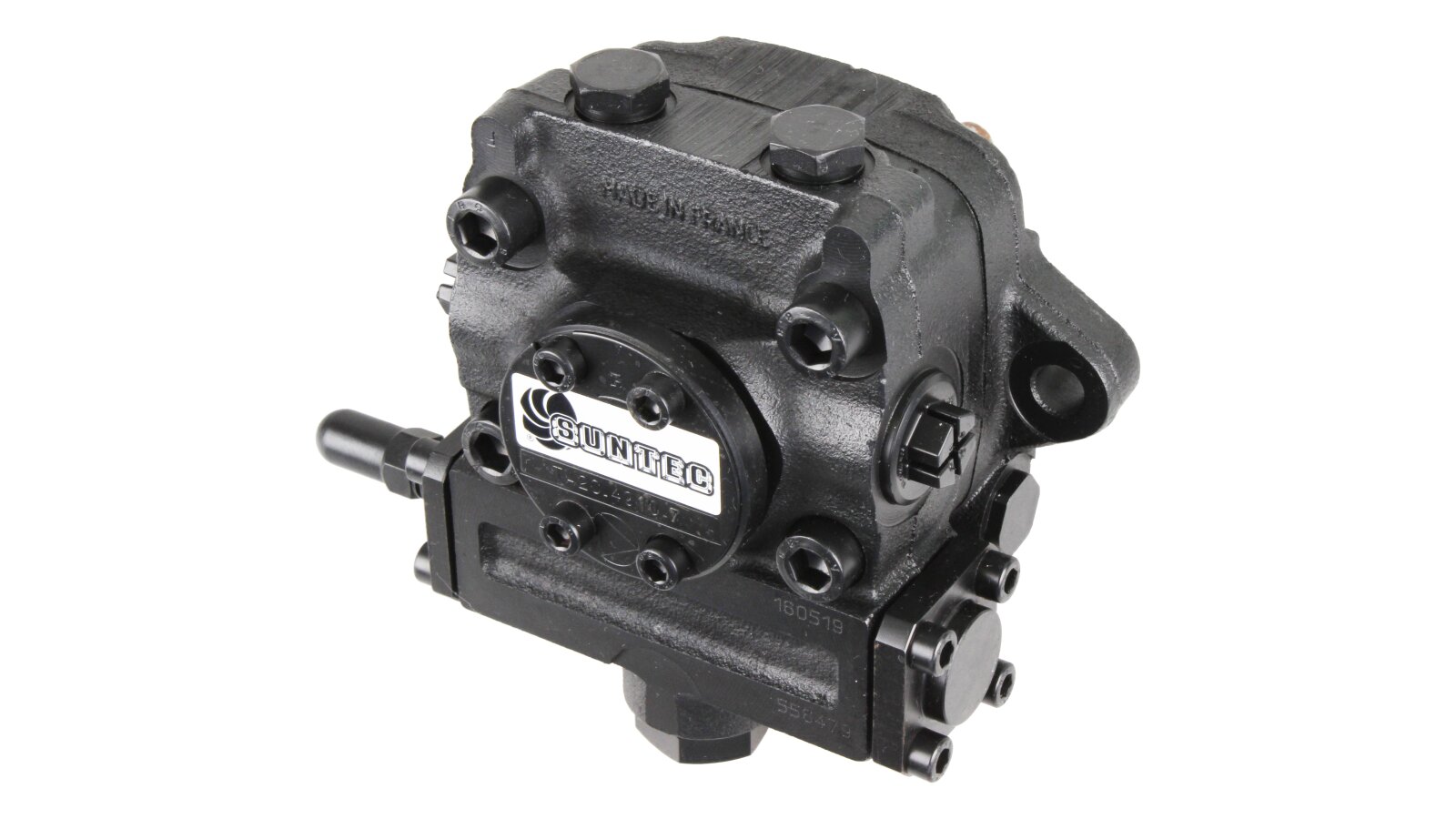

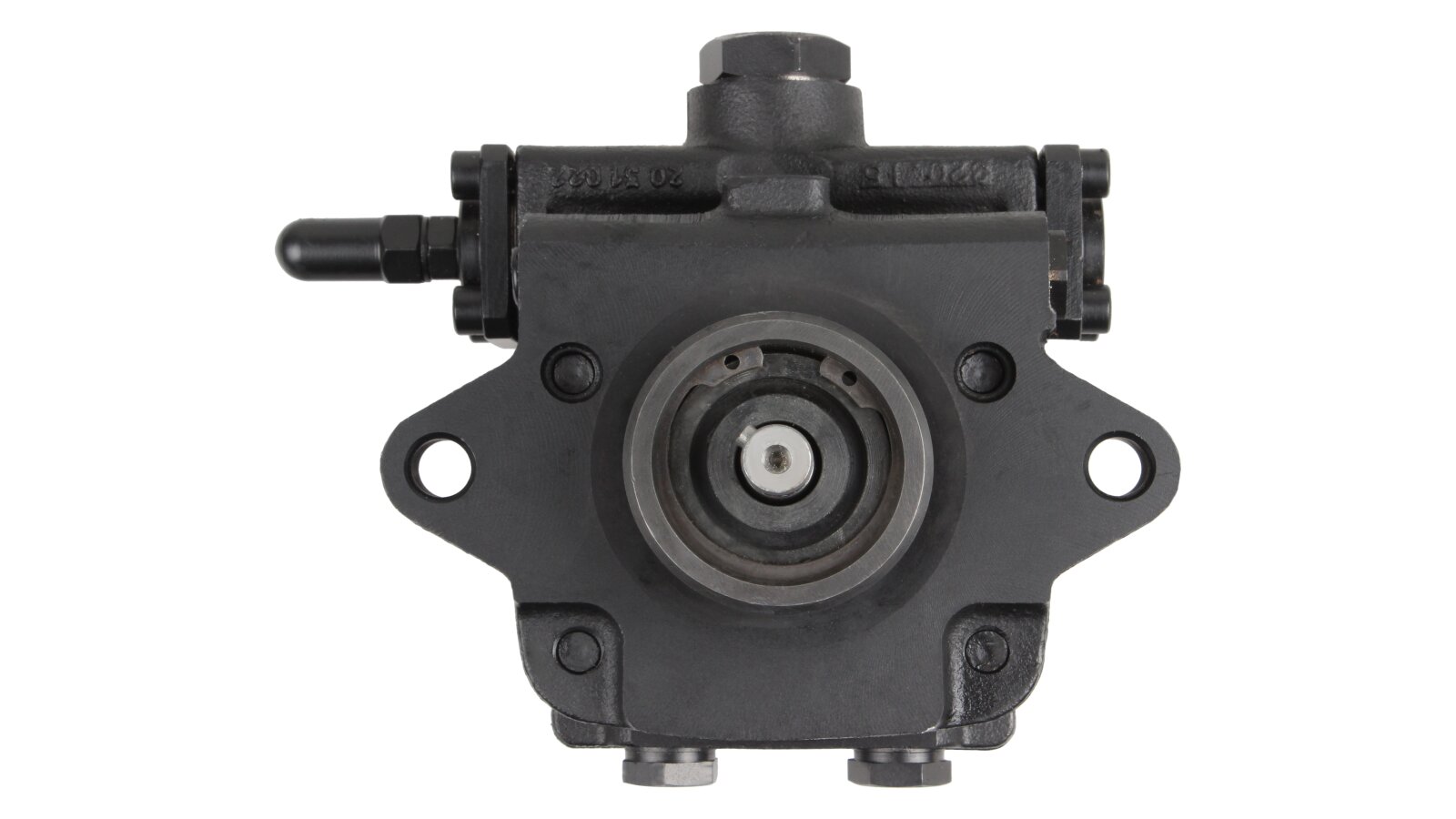

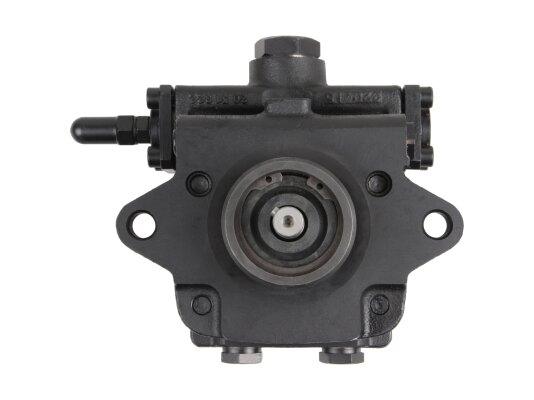

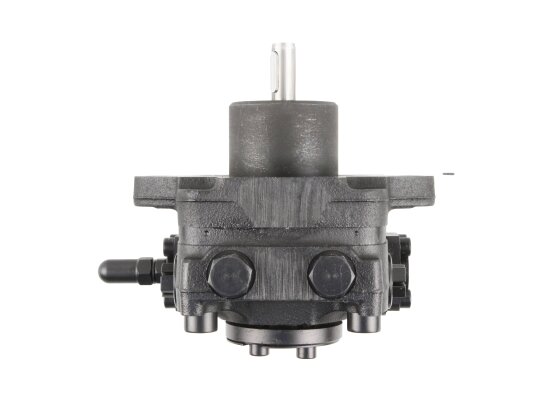

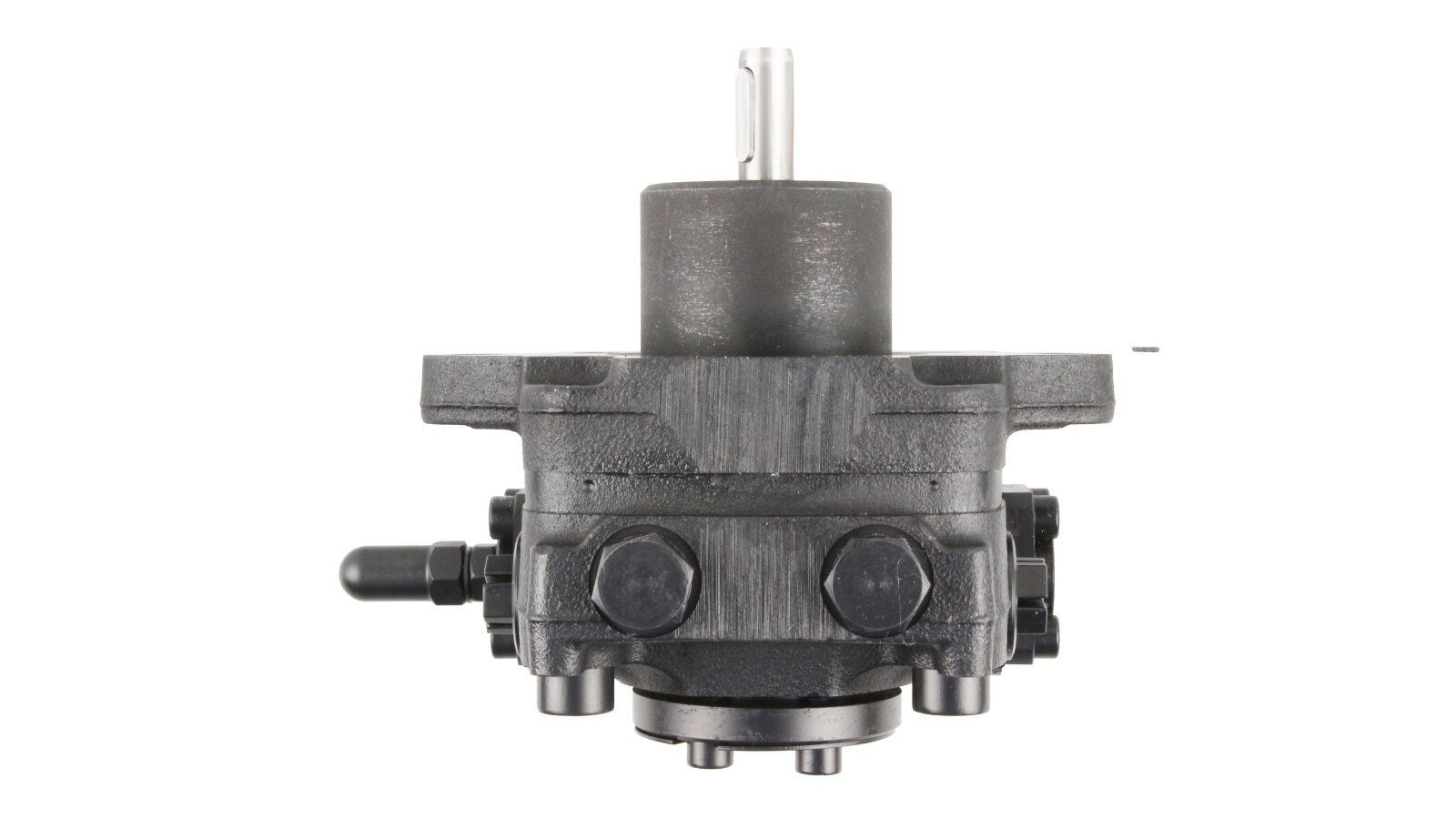

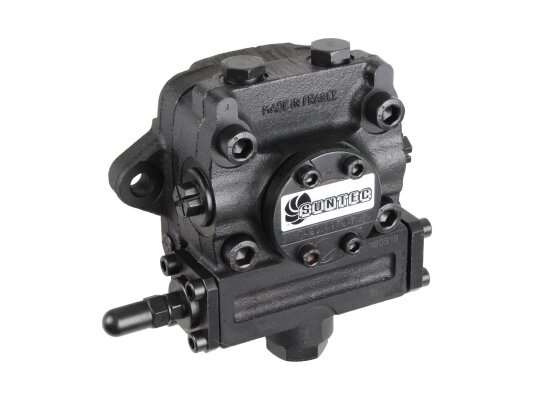

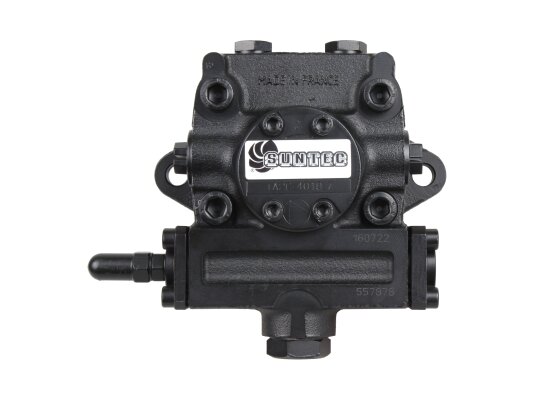

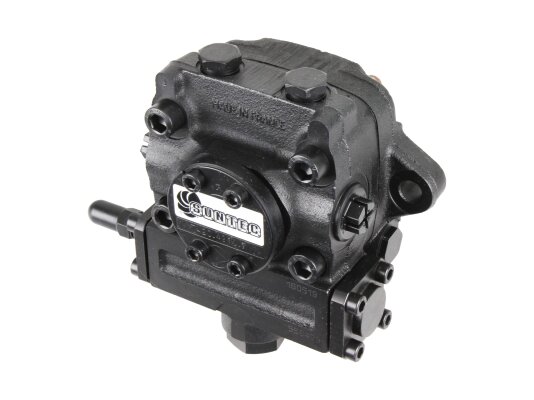

Burner Pump Riello TA 2 C 4010 7

Riello3006157
AED 18,300
  1. Oil Burner Pumps

Description

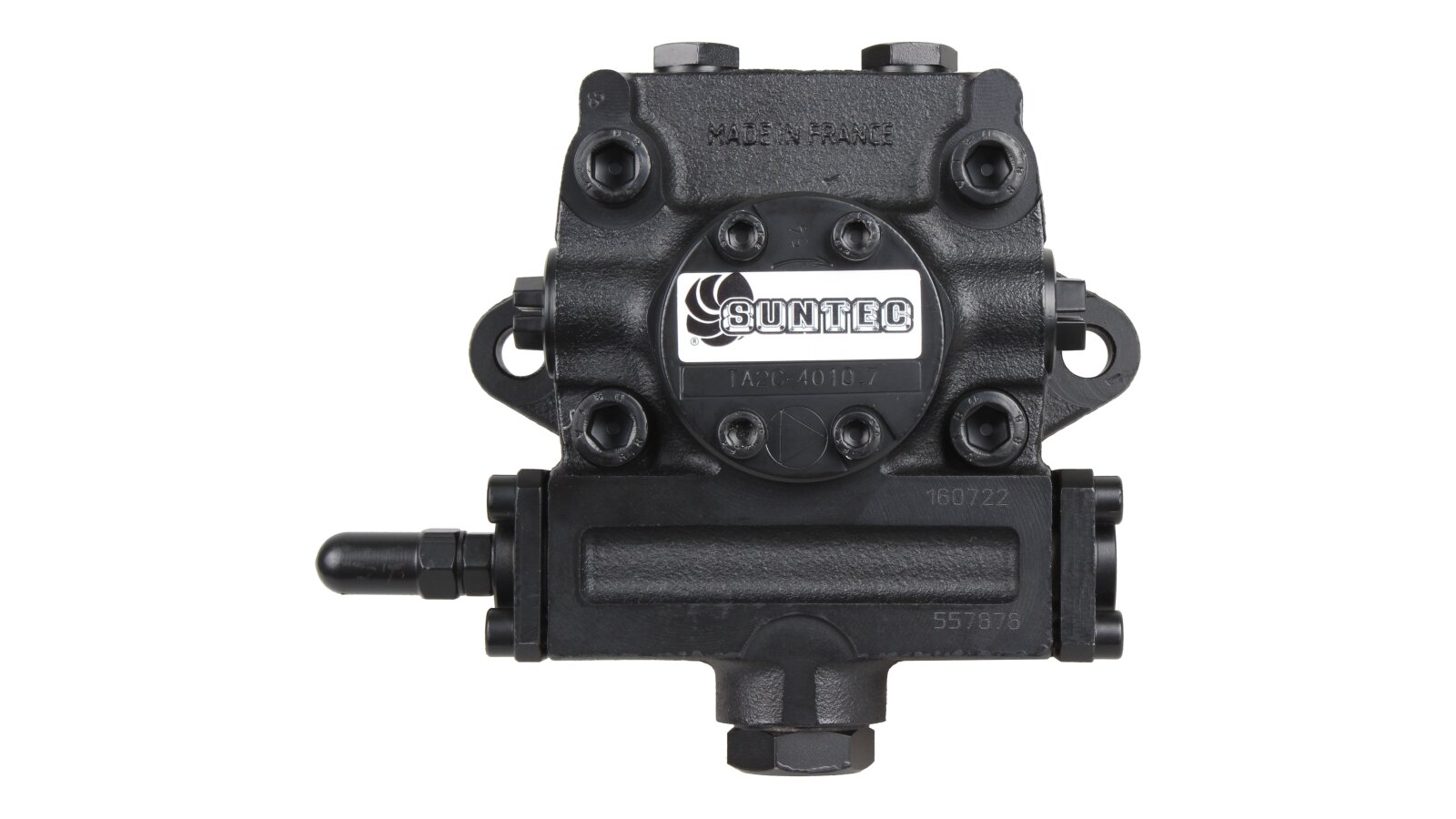

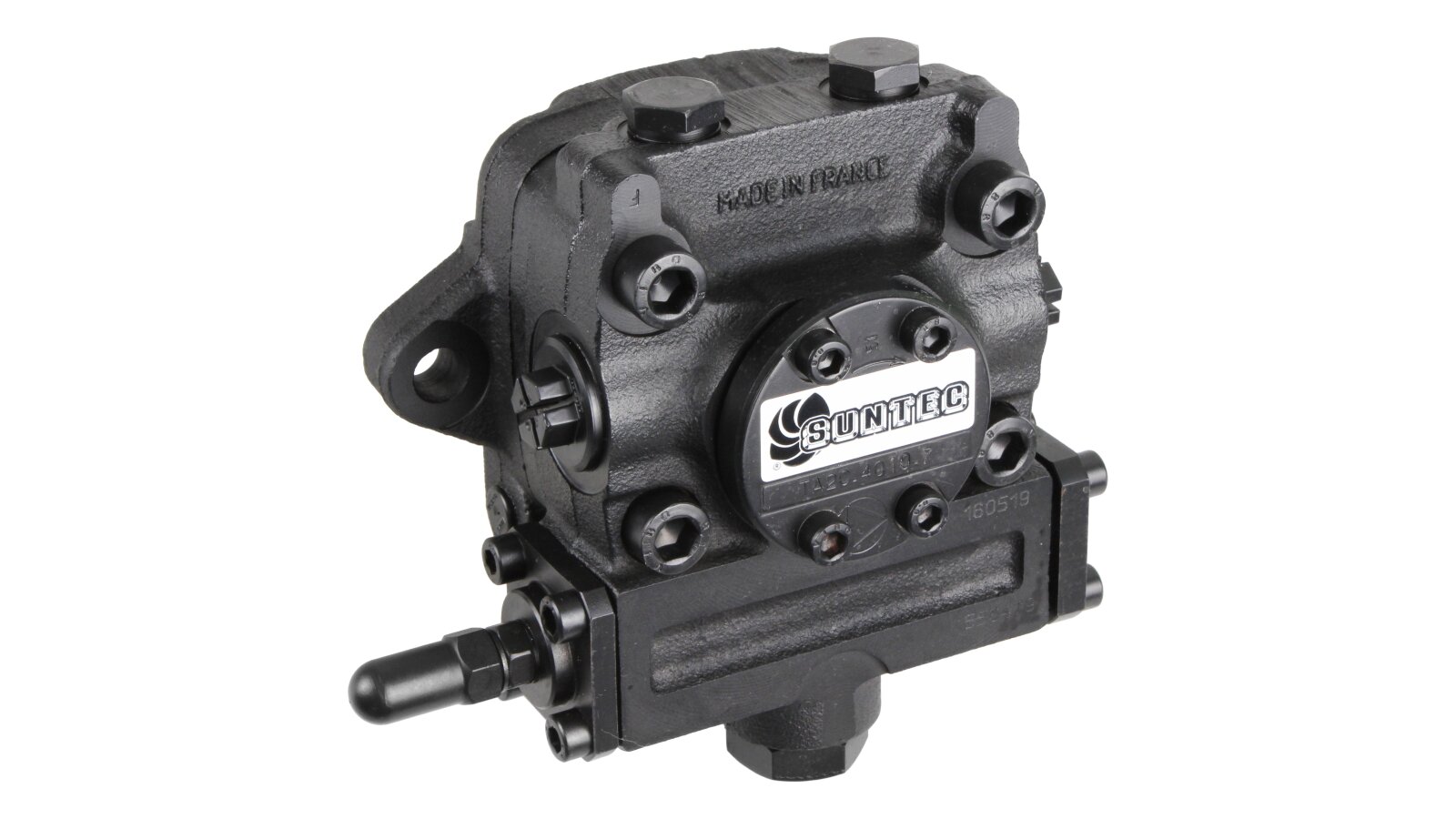

The Riello TA 2 C 4010 7 burner pump, art: 3006157, is a specially designed device for industrial use and working with heavy fuels. It features high performance, heat resistance, and a reinforced design. The flow rate reaches 530 l/h at a pressure of 30 bar and a viscosity of 75 cSt, which allows the pump to be used to equip large boiler plants used to heat the premises of factories, workshops, production facilities, and warehouses.

Features:

  • for working with fuel oil, petroleum, diesel fuel with a viscosity of 3-75 cSt;

  • equipped with a valve regulating pressure without a shut-off function;

  • a seat for mounting a heater and facilitating a cold start;

  • a design with increased heat resistance, fuel temperature 0 ... + 150 ºC;

  • pressure adjustment in a wide range, 7-40 bar;

  • for equipping two-pipe and one-pipe systems.

Design and installation

The pump is made of highly reliable materials for operation with heated fuel and intensive industrial use. The housing has a ∅12 mm hole for placing the preheater. Cold start of the pump is prohibited when working with high-viscosity fuel to avoid damage to the clutch. The heater must be turned on in advance of starting the pump so that the fuel becomes less viscous. The location of the heating element is optimally selected, taking into account the exclusion of contact with the fuel and maximum heat transfer.

In the basic version, the pump for the Riello TA burner is prepared for a 2-pipe connection. But it can also be used in systems with one pipe. To do this, you need to dismantle the bypass plug and seal the drain hole tightly.

Retrofitting

The burner pump does not include a fuel filter. For a long service life of the nozzle, it is recommended to install a filter with a filtration degree of 200 μm after the pump. To work with fuel oil, it is necessary to equip the pump with a degasser flask to minimize the negative impact of light fractions of heated fuel on the working components and to increase the service life of the equipment.

Advantages:

  • design for heavy-duty operating conditions;

  • for fuel of various viscosities, including fuel oil;

  • high fuel pumping speed;

  • sealed shaft seals;

  • flange connection according to EN225;

  • place for heater;

  • use in two- and single-pipe systems;

  • pressure adjustment in a wide range.

You can buy fuel oil pumps for industrial burners from us, as well as the necessary additional equipment. Full information about the model is reflected in the attached instructions for the TA series.

Characteristics

Manufacturer Part Number: 3006157Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 530 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 400 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
