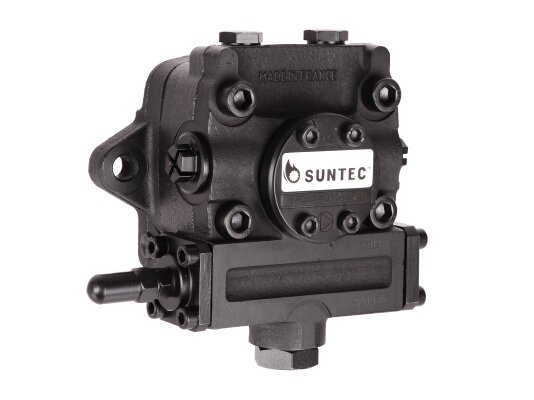

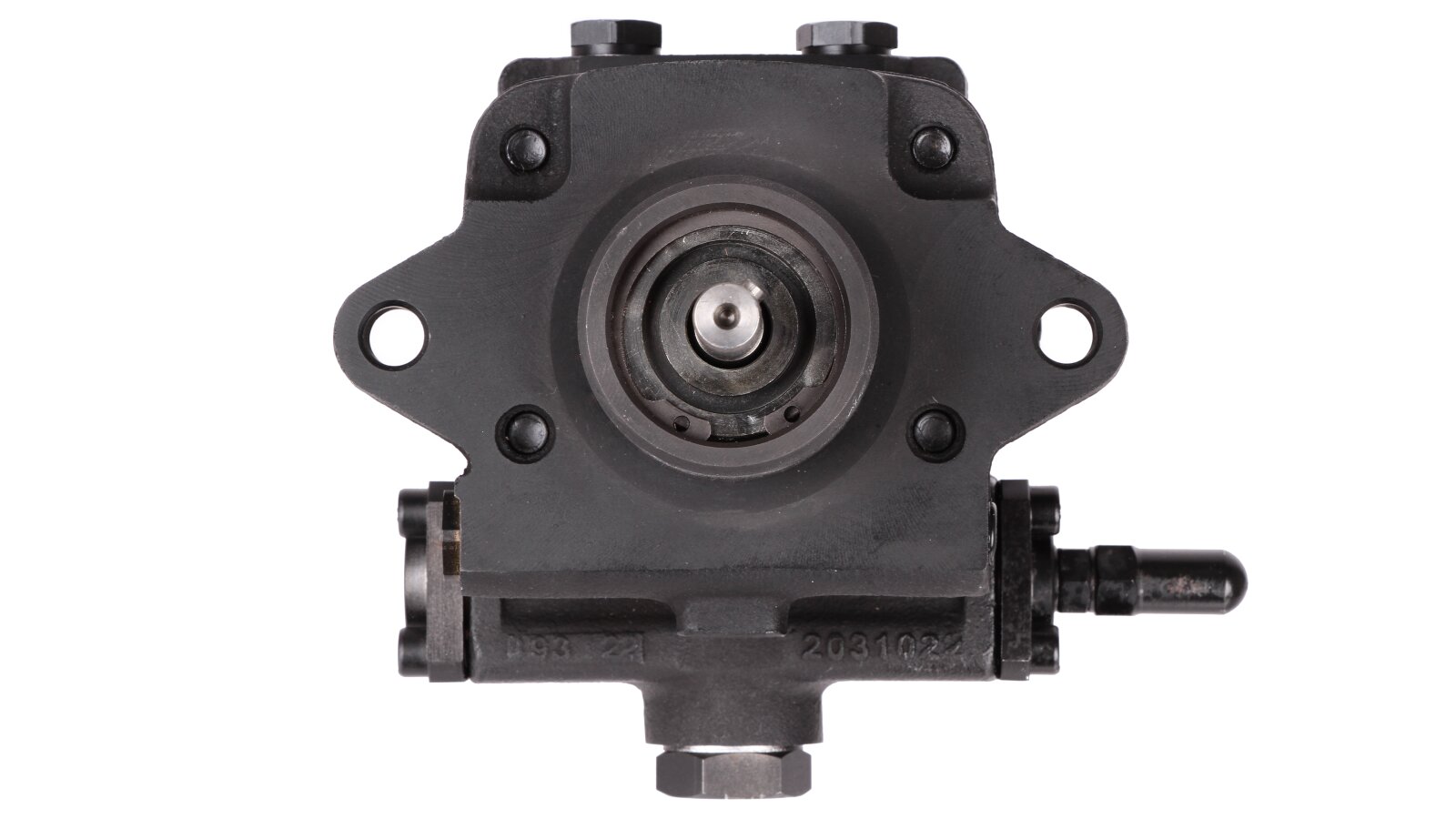

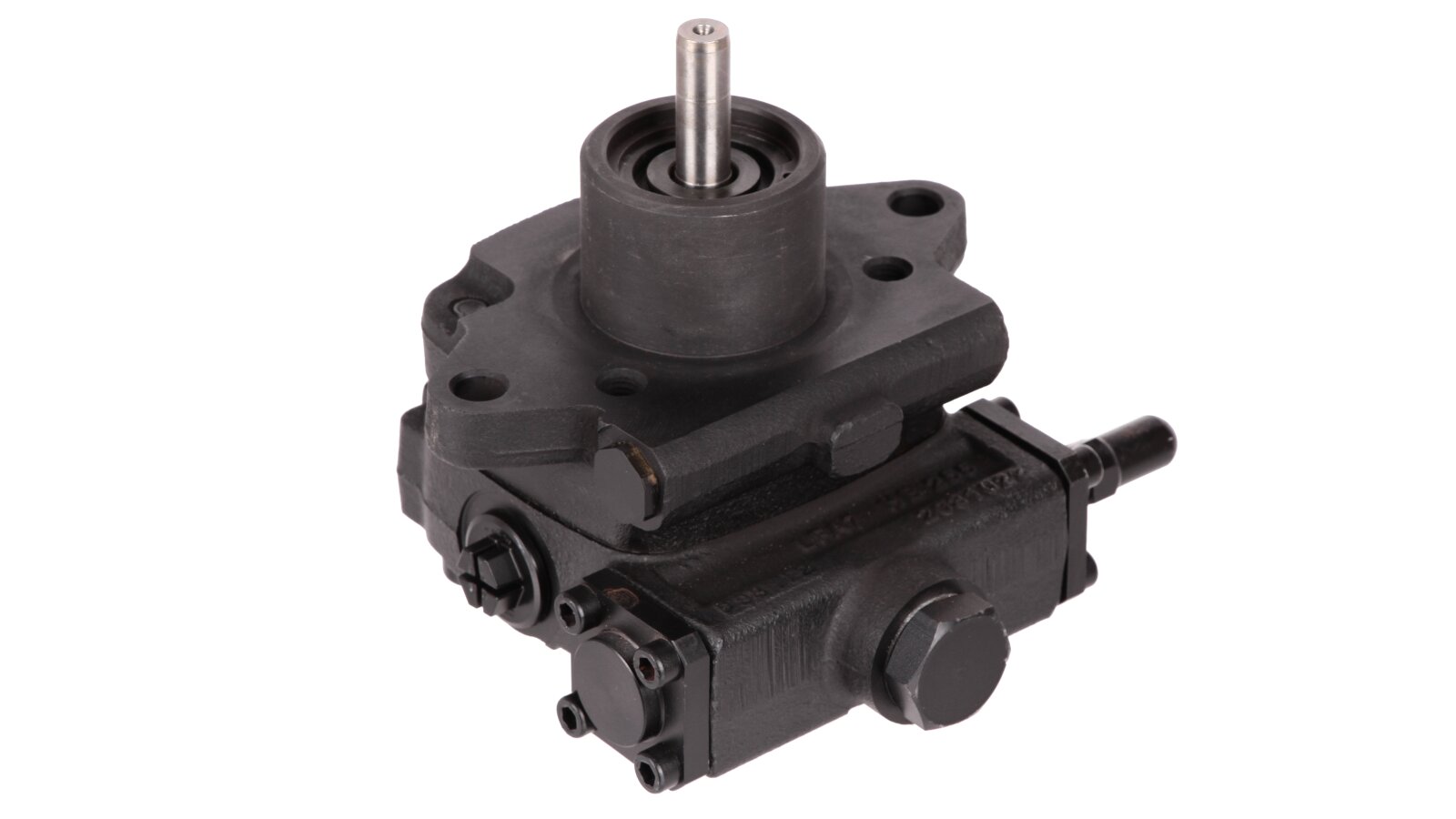

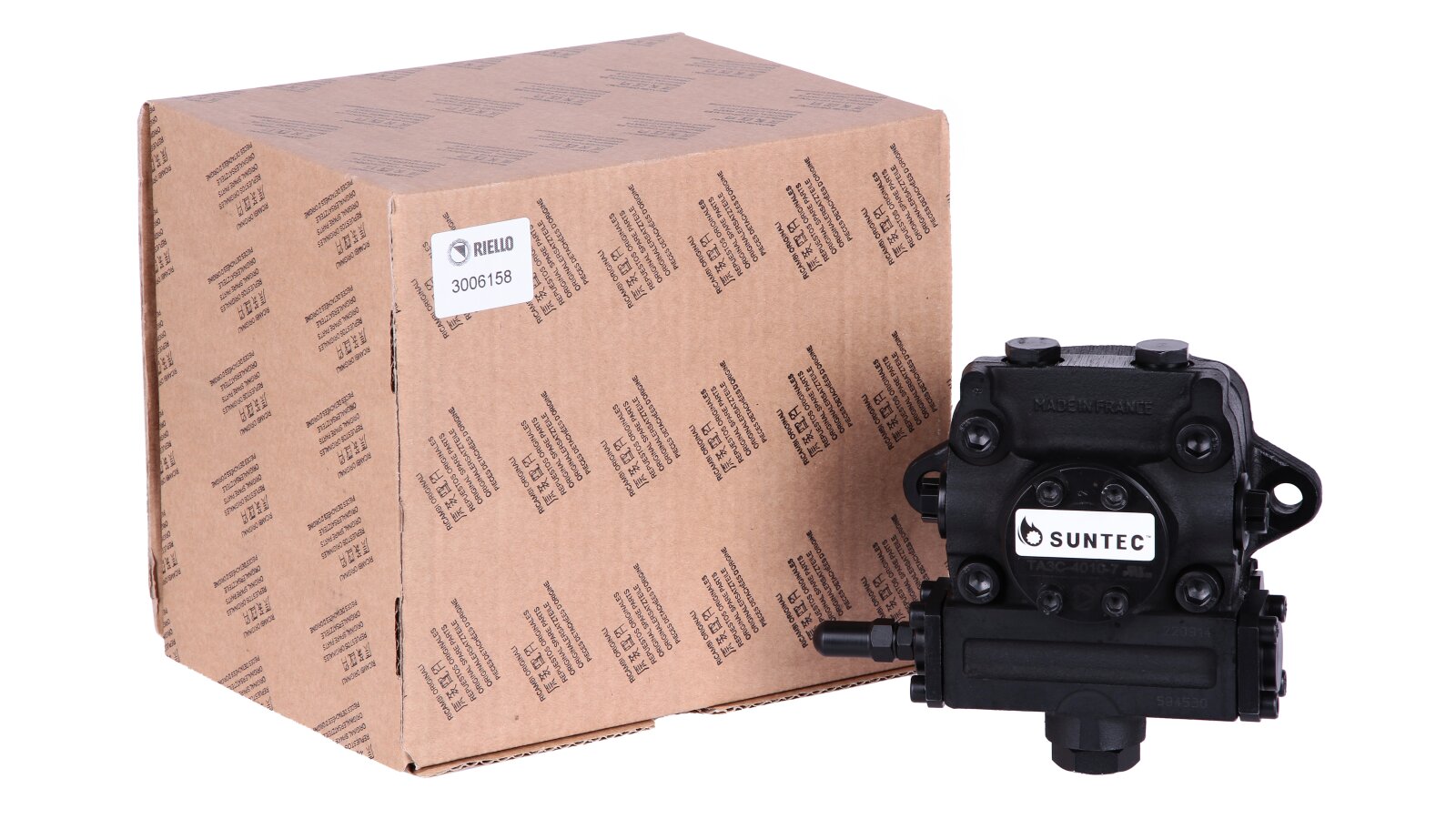

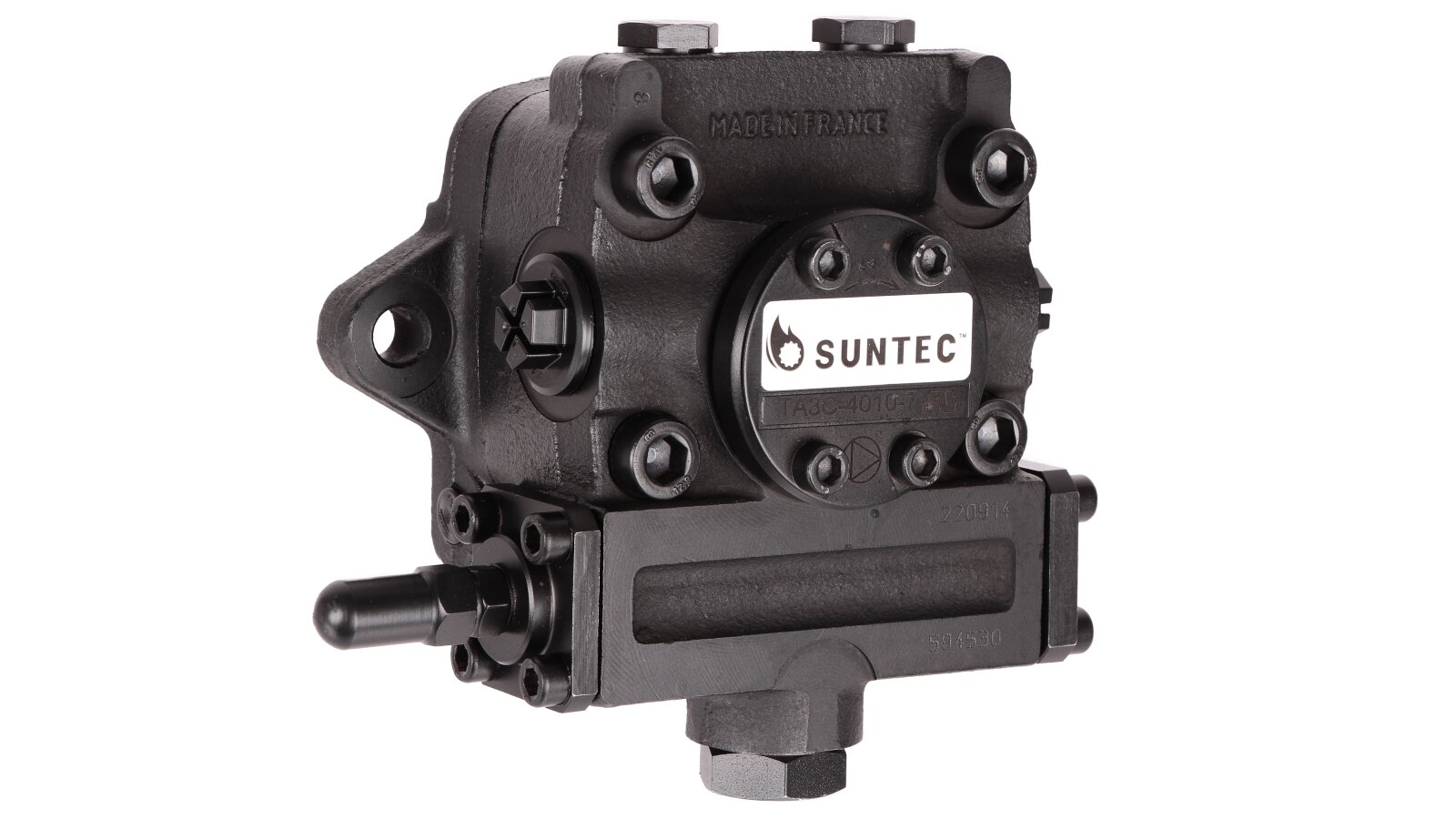

Burner Pump Riello TA 3 C 4010 7

Riello3006158
AED 19,000
  1. Oil Burner Pumps

Description

The Riello TA 3 C 4010 7 burner pump, art: 3006158, is equipment for heavy-duty operation and large volumes of fuel pumping. It features high performance, versatility, resistance to high temperatures, and a reinforced design. The performance reaches 780 l/h at a pressure of 30 bar and a viscosity of 75 cSt, which allows the pump to be used as part of large heating systems at factories, warehouses, and production facilities.

Features:

  • for working with fuel oil, petroleum, diesel fuel with a viscosity of 3-75 cSt;

  • equipped with a valve regulating pressure without a shut-off function;

  • hole for installing a heater and facilitating a cold start (optional);

  • high reliability and heat resistance, permissible fuel temperature 0...+150 ºC;

  • wide range of pressure adjustment on the nozzle: 7-40 bar;

  • can be used in two-pipe and one-pipe systems.

Design and installation

The Riello TA pump has a special design for heavy industrial conditions. The design can withstand high temperatures, pressure and intensive use. The main working element is a pair of toothed gears that move fuel from the tank to the nozzle.

The housing has a place for mounting the heater. The preheating device is switched on in advance to reduce the viscosity of the fuel. Cold start of the pump is prohibited when working with fuel oil and other viscous fuels due to the risk of damage to the clutch. The installation location of the heating element is selected taking into account the prevention of contact with the fuel and maximum heat transfer.

The burner pump in the factory assembly is ready for a 2-pipe connection. With a one-pipe wiring scheme, remove the bypass plug and completely close the return drain. In this case, the fuel will flow back to the gears, and not into the tank.

Retrofitting

The standard package does not include a coarse filter. To protect the nozzle from early wear and clogging, it is recommended to install a 200 µm filter after the pump. To work with fuel oil, a degasser flask is required to minimize the negative impact of light fractions of heated fuel on the working components and increase the service life of the equipment.

Advantages:

  • special design with increased reliability for severe conditions;

  • pumping fuel of different viscosity, including fuel oil;

  • high performance;

  • sealed shaft seals;

  • flange connection;

  • wear-resistant gear mechanism;

  • place for placing the heater;

  • use in two- and single-pipe systems;

  • pressure adjustment in the range of 7-40 bar.

You can buy fuel oil pumps for burners of various purposes from us, as well as additional components (if necessary).

Characteristics

Manufacturer Part Number: 3006158Shaft design: one cavityModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 780 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 620 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 40 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
