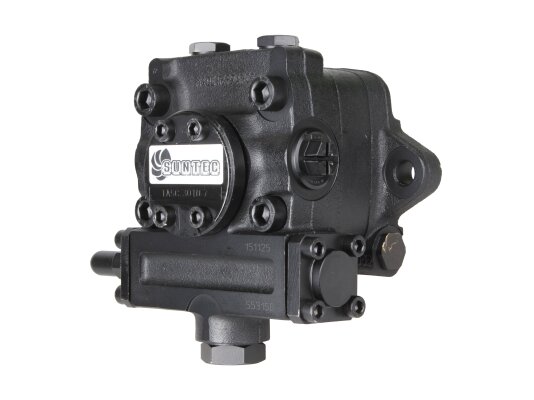

Burner Pump Riello TA 5 C 3010 7

Riello3006410
AED 20,600
  1. Oil Burner Pumps

Description

The Riello TA 5 C 3010 7 burner pump, art.: 3006410, is a specially designed device for heavy industrial applications. It pumps fuel with a viscosity of 3-75 cSt under high pressure. It is built into combustion systems with a capacity of 3000-30000 kW. The pump is resistant to high temperatures and is designed for installation of a preheating device to facilitate start-up when pumping high-viscosity oil products. The feed rate reaches 1400 l/h (30 bar/ 75 cSt).

Main parameters and features:

  • working medium – fuel oil, oil, diesel fuel;

  • pressure regulating valve without shut-off function;

  • hole for mounting an 80-100 W heater, facilitating start-up (optional);

  • heat resistance, temperature of the pumped fuel: 0...+150 ºC;

  • nozzle feed pressure adjustment within 7-30 bar;

  • use in two-pipe and one-pipe configuration systems;

  • factory design for 2-pipe units;

  • gear mechanism with increased wear resistance;

  • flange connection, ∅54 mm;

  • ports for measuring devices.

Start-up assistance

A hole is drilled in the housing for installing a heater. The preheater is switched on in advance to reduce the viscosity of the fuel and the load on the clutch. The installation location of the heating element eliminates contact with the fuel and ensures maximum heat transfer.

Retrofitting

Fuel oil pumps for Riello TA burners are supplied without a built-in mesh filter. It is recommended to install a filter with 200 µm holes after the pump to protect the nozzle from damage. When using fuel oil, it is necessary to retrofit a degasser flask to reduce the harmful effects of light fractions of heated fuel on structural elements and minimize equipment wear.

Characteristics

Manufacturer Part Number: 3006410By-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withModel type: without electromagnetic valveOil temperature: from 0 to 150 °C in the pumpPump series: TA: Pressure controlPerformance at 30 bar pressure and 75 cSt viscosity: 1400 l/hPerformance at 30 bar pressure and 5 cSt viscosity: 1150 l/hPressure gauge port: ¼ inchVacuum gauge port: ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityFactory pressure setting: 30 barValve function: pressure regulatingNozzle pressure range: from 7 to 30 barShaft diameter: 12 mmReturn pressure: 5 barInlet pressure: 5 barNozzle outlet: ½ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ½ inchTorque: 0.3 N·mOperating viscosity: from 3 to 75 mm²/sType of pumped liquid: sea ​​water, diesel
