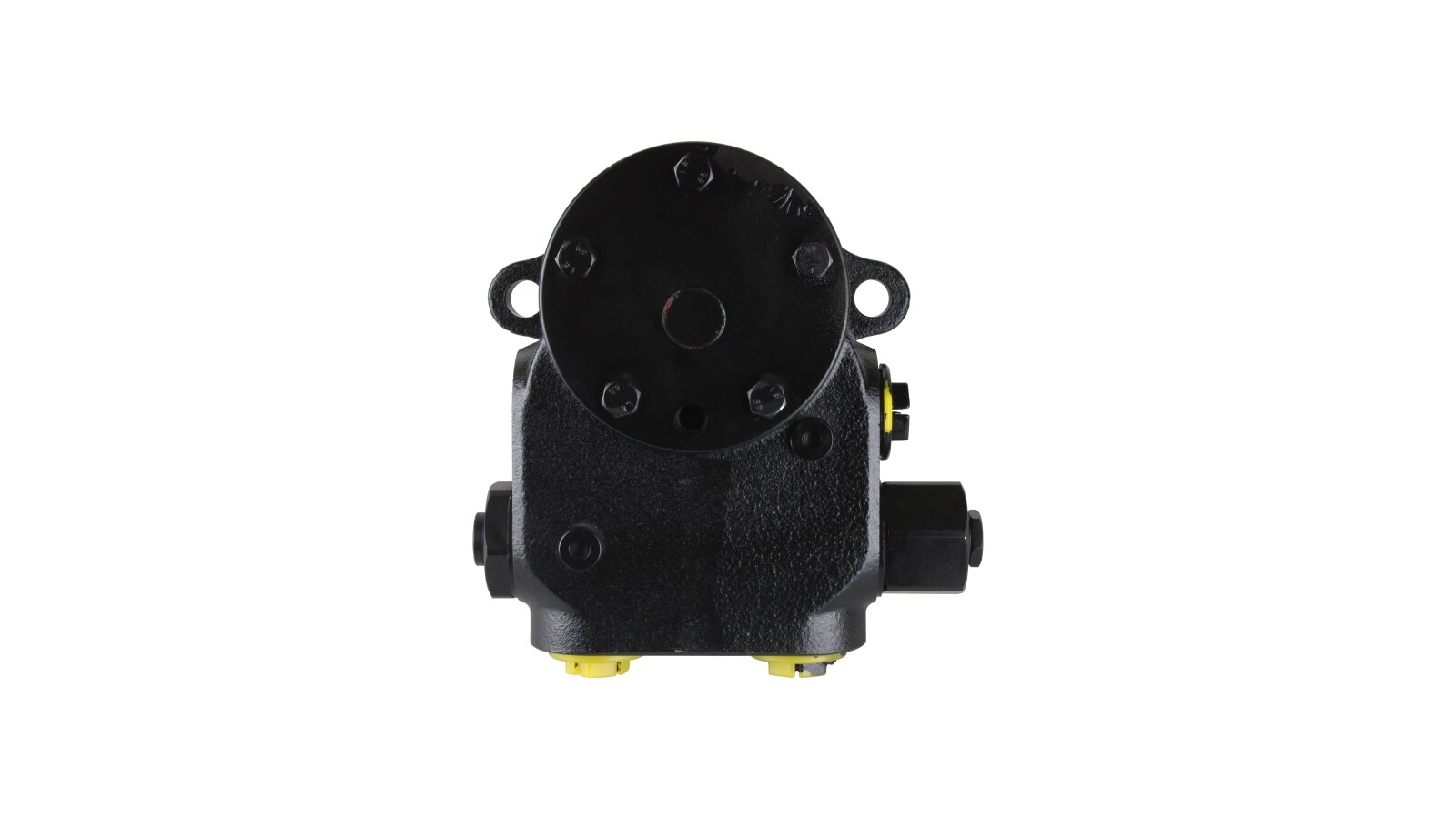

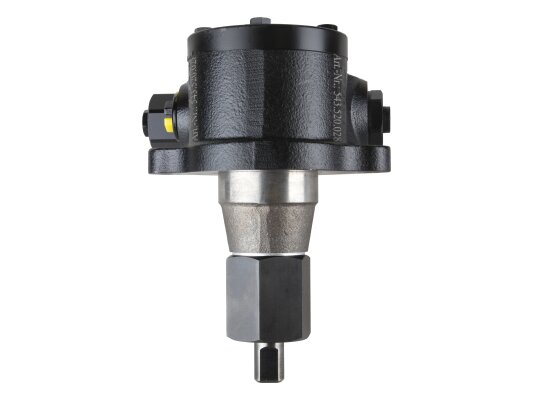

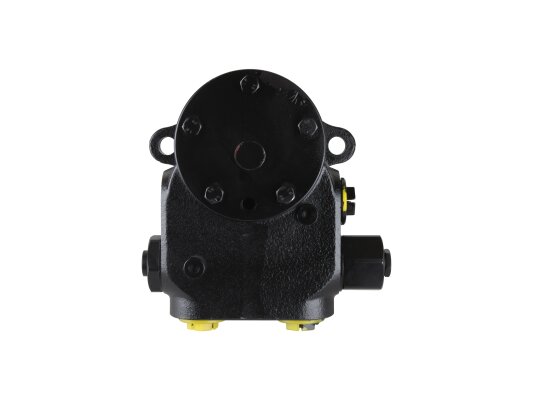

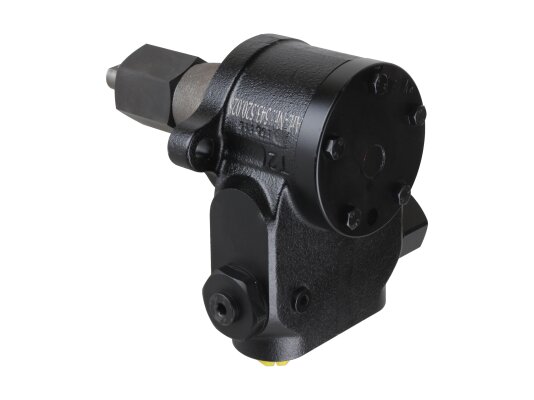

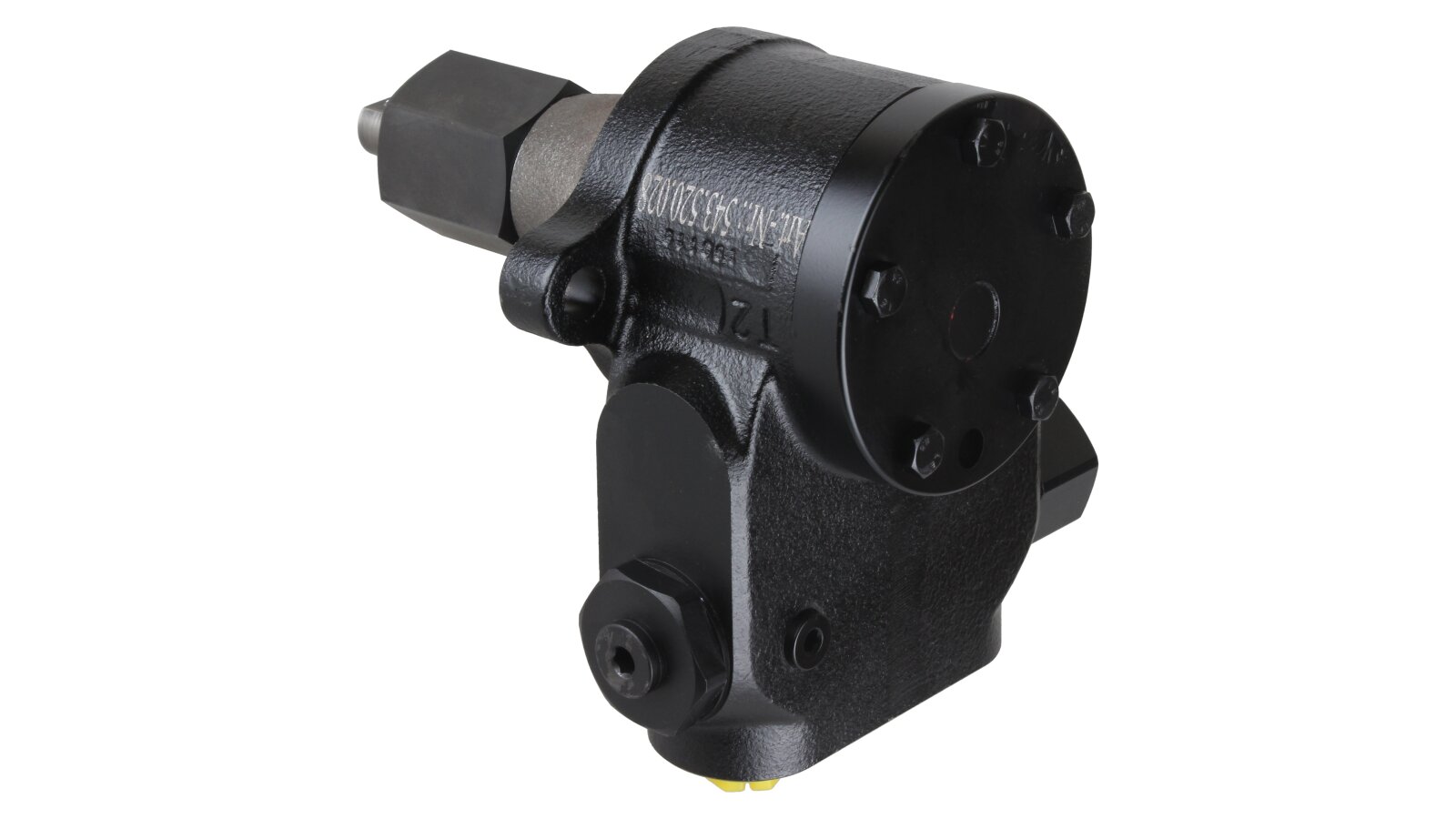

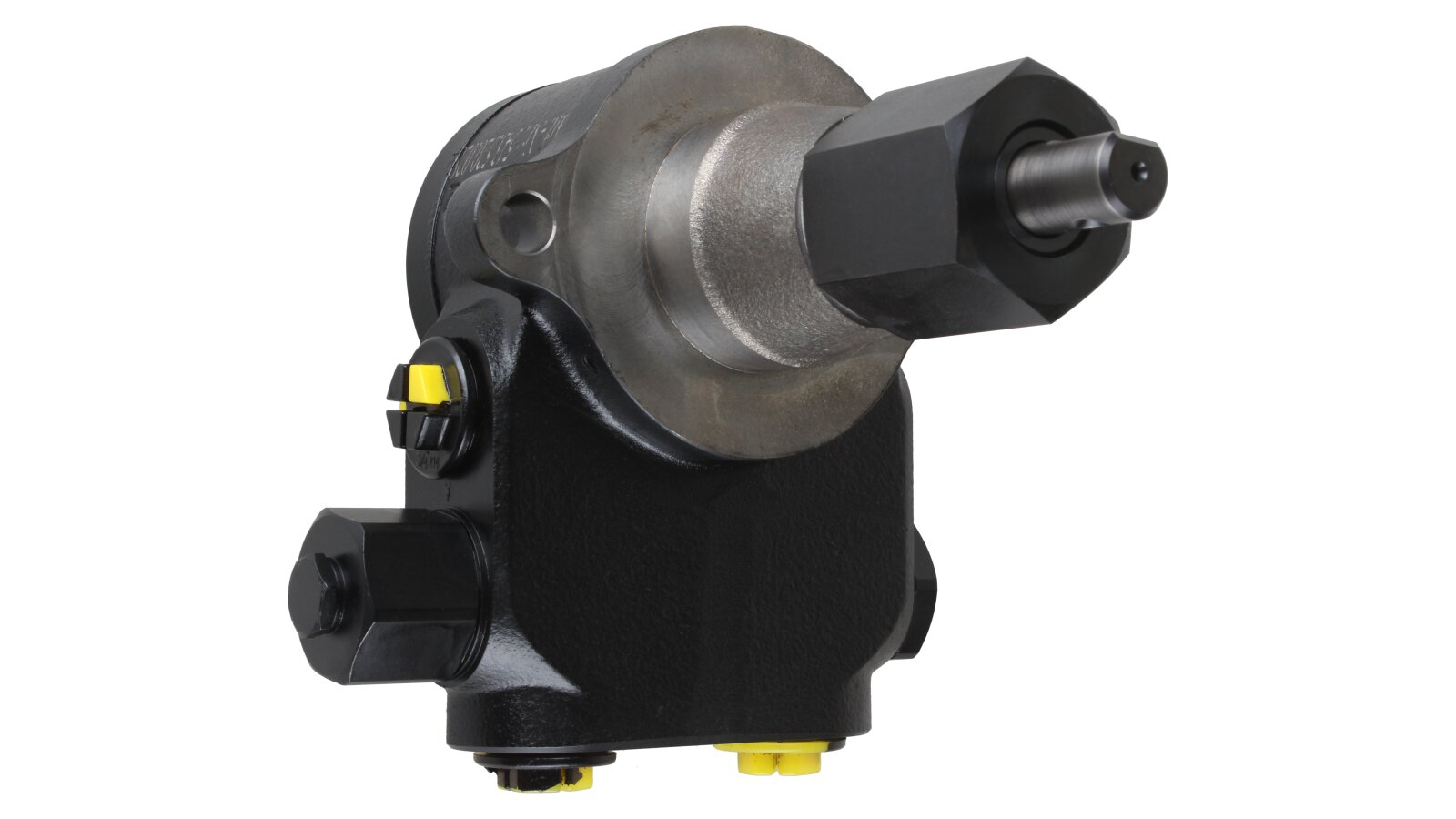

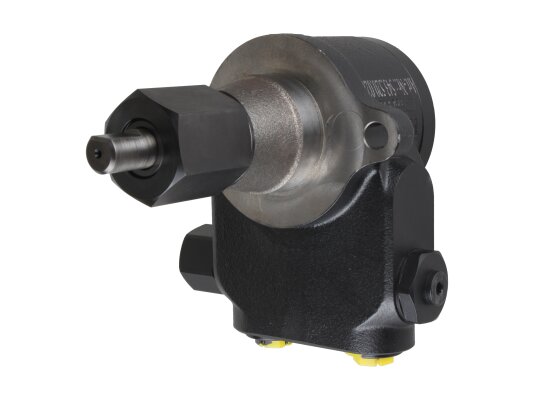

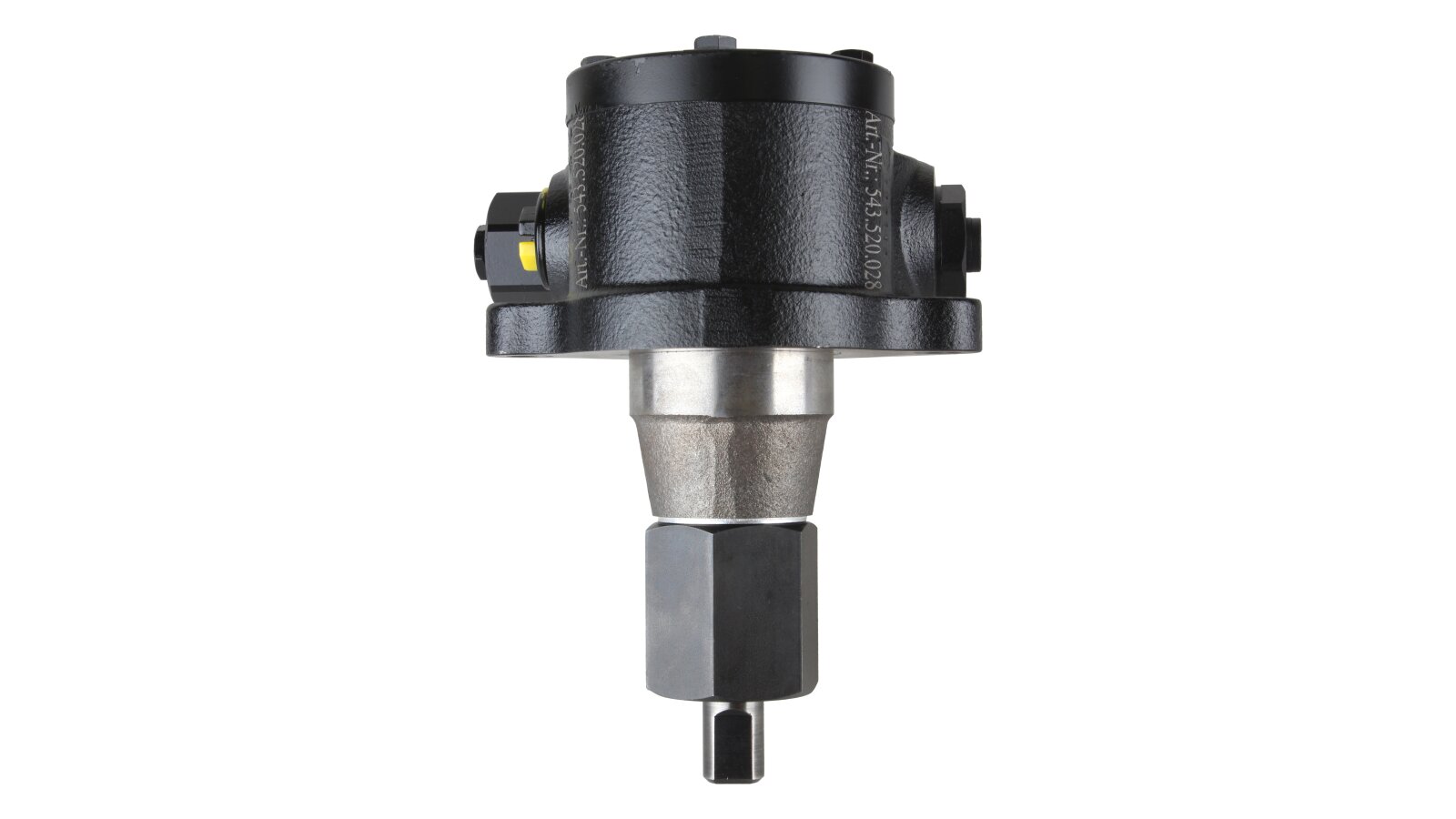

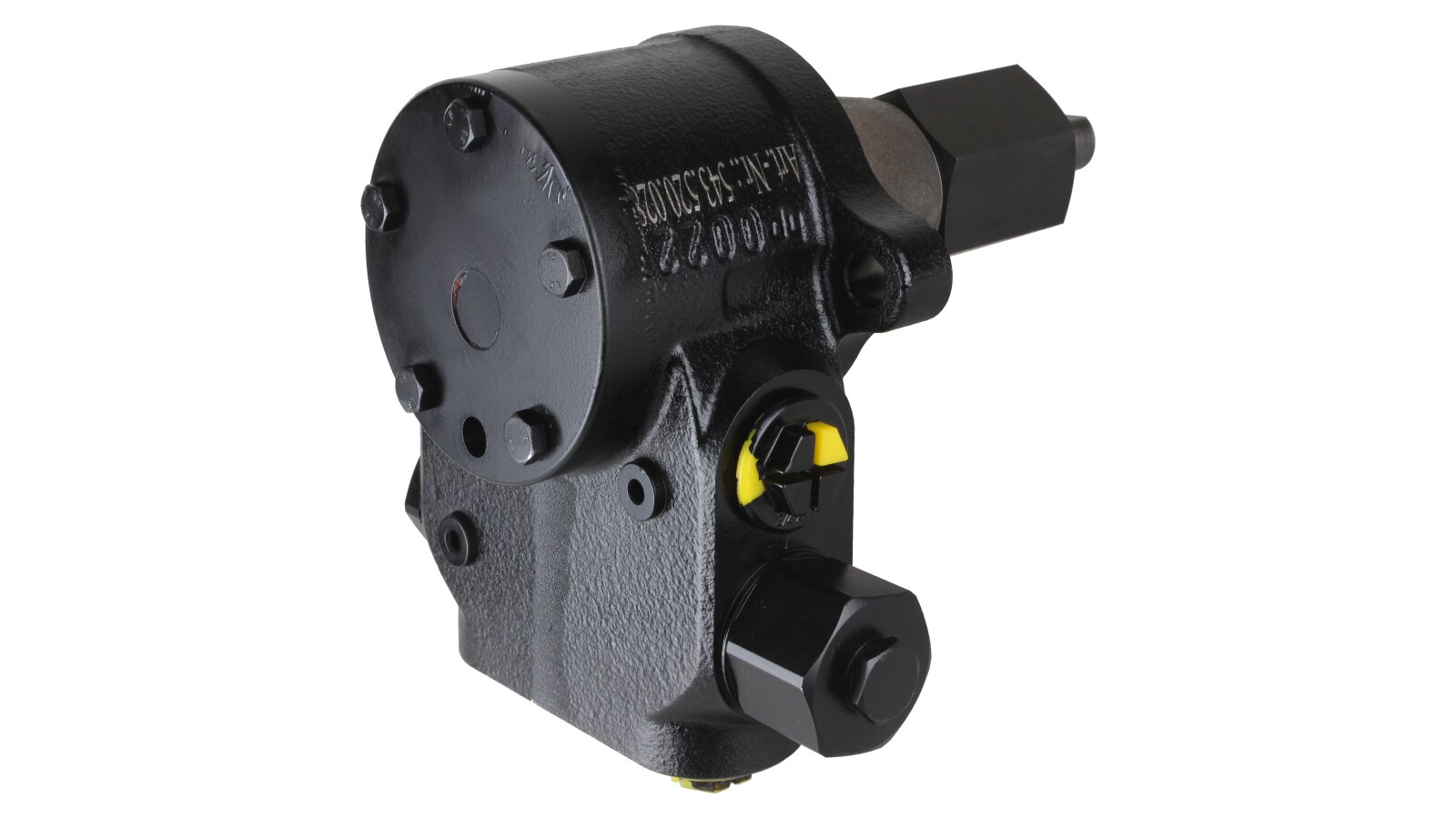

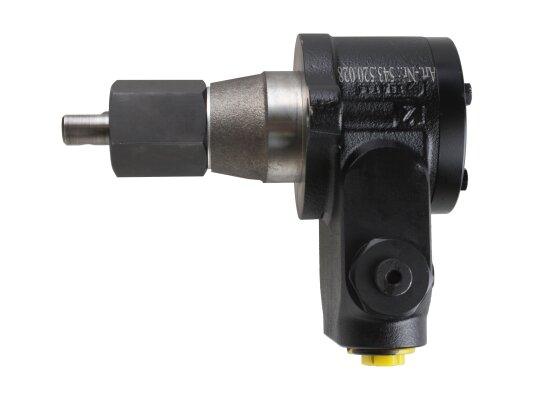

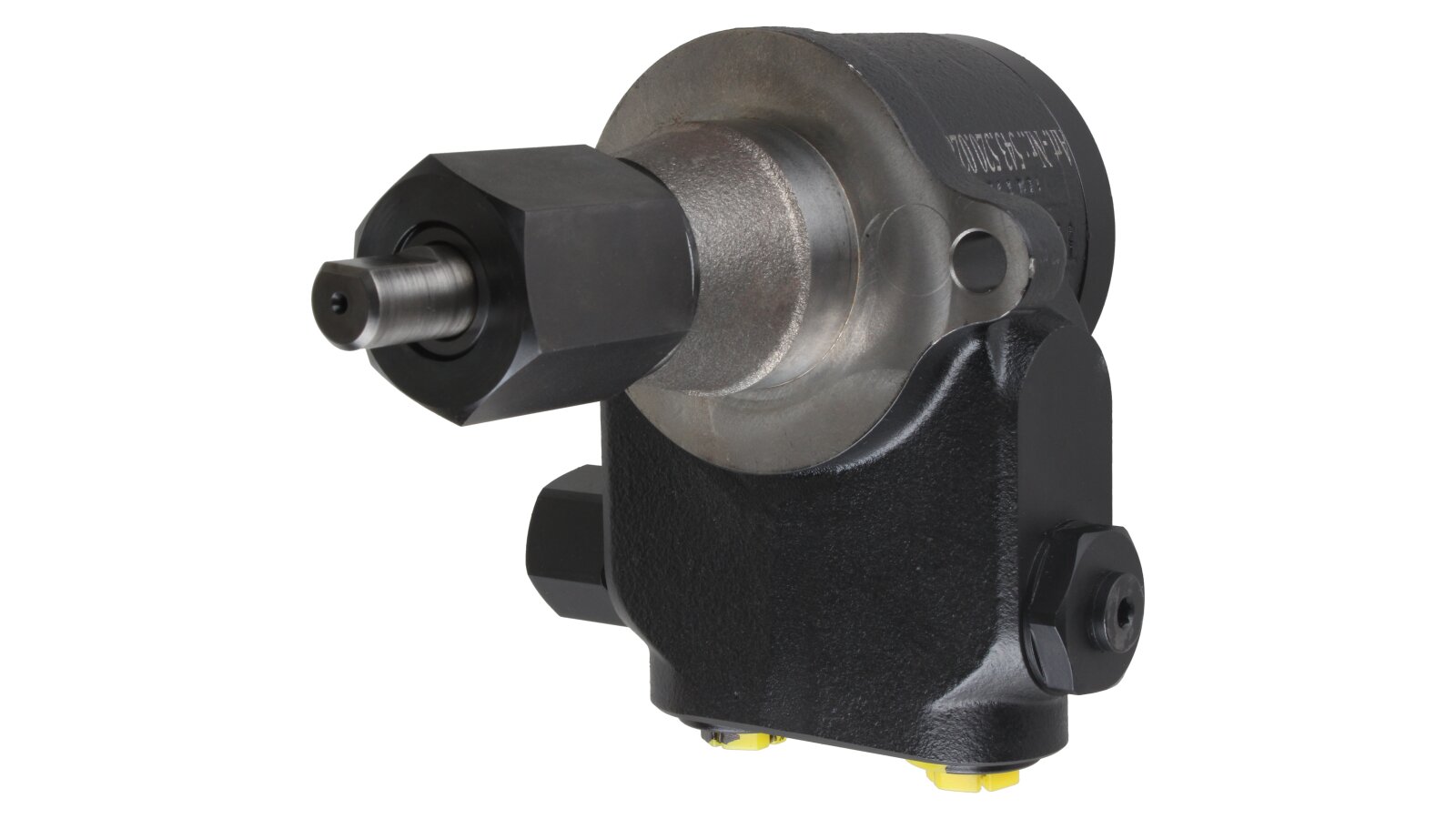

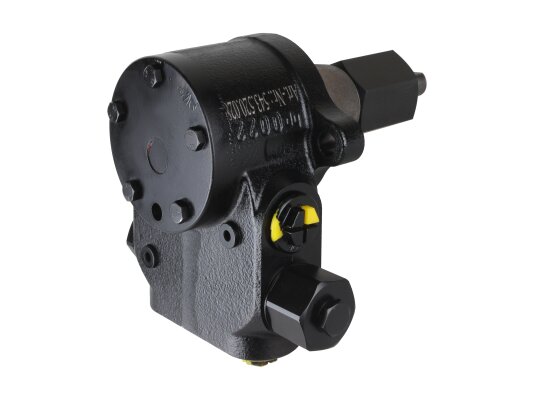

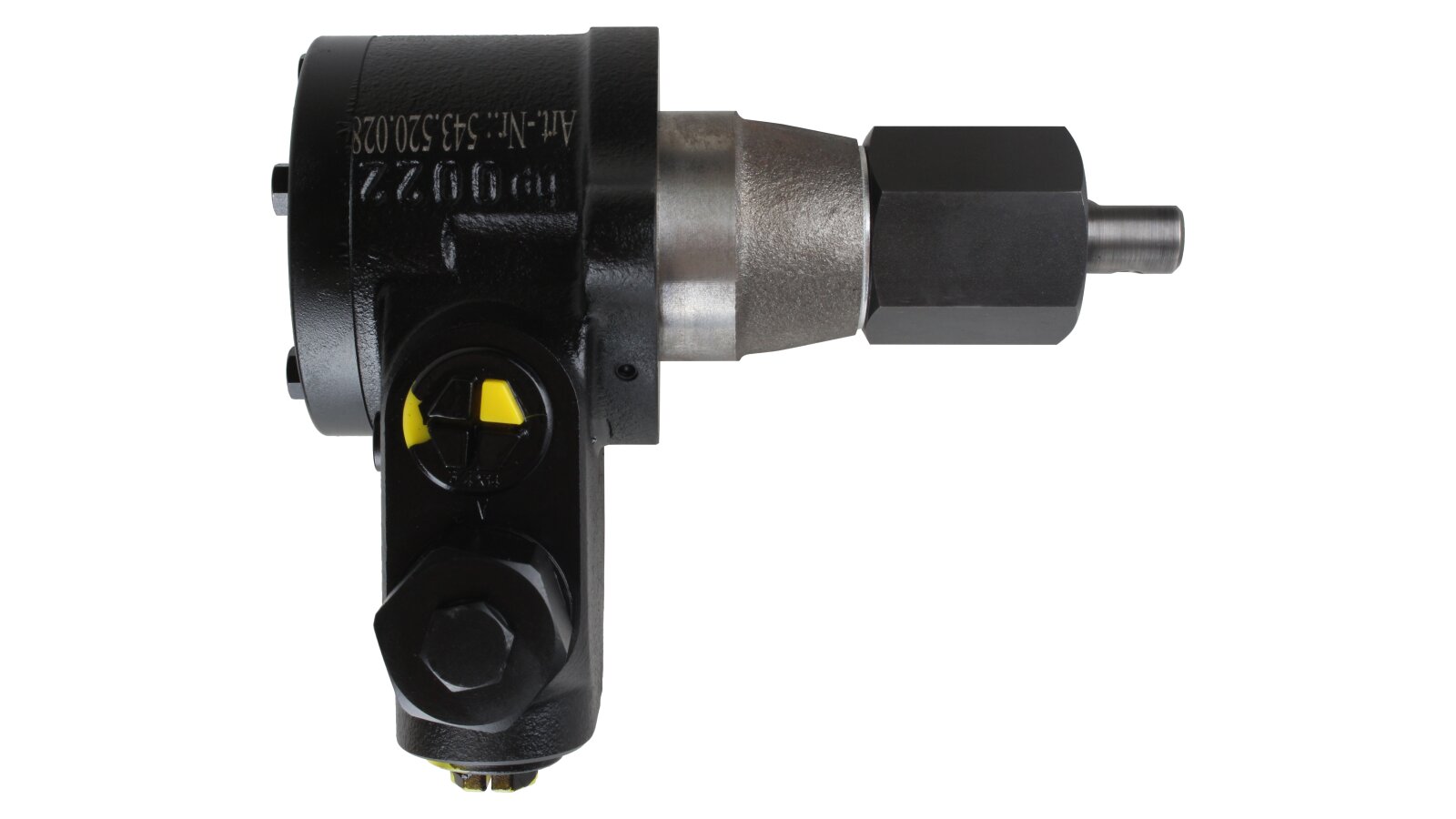

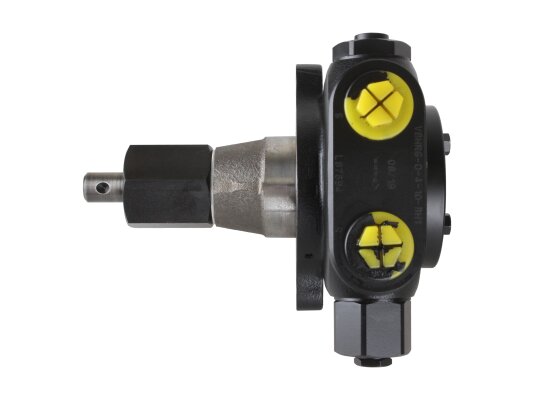

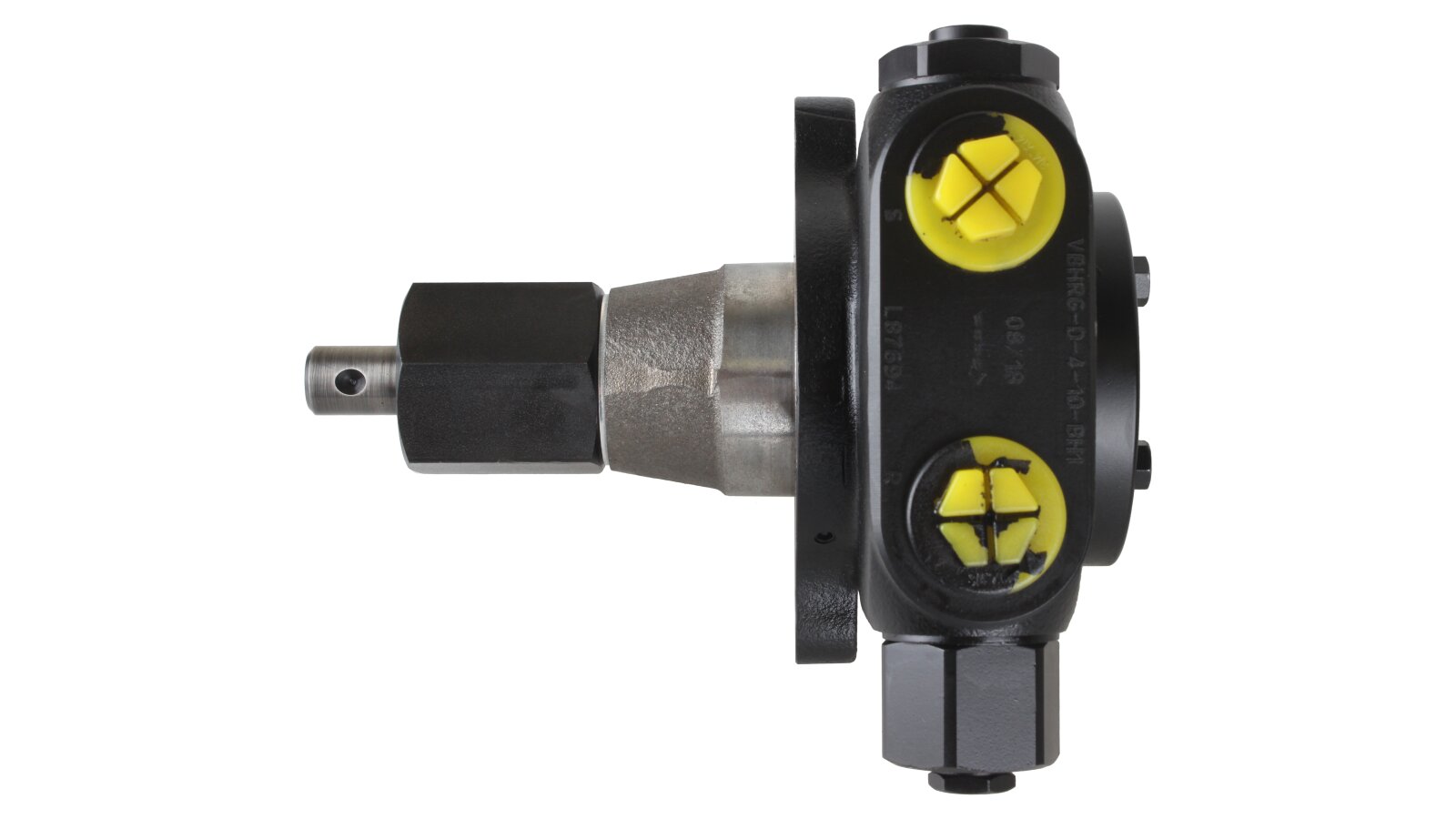

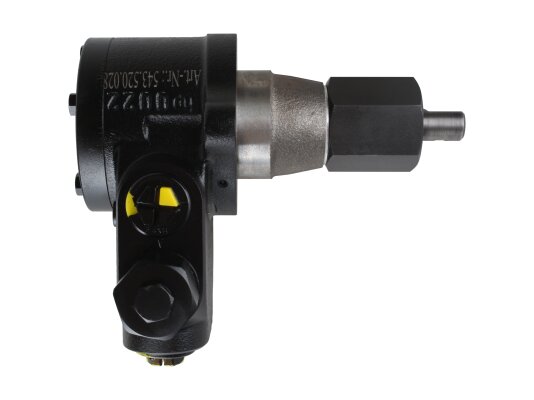

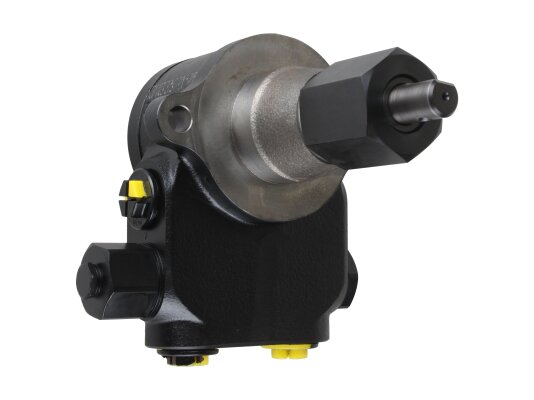

Burner Pump Riello VBHRG-D-4-10-BH1

Riello3013211
AED 31,000
  1. Oil Burner Pumps

Description

The Riello VBHRG-D-4-10-BH1 burner pump, art.: 3013211, is designed for large volumes of fuel pumping under pressure up to 40 bar. It features high performance, versatility, and stable operation. It is used to equip powerful Riello industrial burners. The flow rate reaches 1700 l/h (30 bar/ 5 cSt).

Features:

  • versatility, wide range of application;

  • high wear resistance and reliability of the design;

  • equipped with a bypass valve and bypass;

  • wide range of nozzle pressure adjustment: 15-40 bar;

  • maintenance-free wear-resistant gear mechanism;

  • treatment with a special compound for pumping certain types of fuel (optional);

  • possibility of installing a heater to prepare the fuel before starting;

  • additional filter installation;

  • flange connection ∅ 54 mm;

  • self-priming device, low noise and vibration levels.

Application

The burner pumps of this series pump fuel oil, diesel, marine fuel, oil and lubricants, kerosene, oil, gas condensate. They are used in heat supply systems and technological cycles of production, where significant volumes of burned fuel are required. They are in demand for equipping boiler houses, pumping stations, industrial burners.

Characteristics

Manufacturer Part Number: 3013211Torque: 3.2 N·mShaft diameter: 18 mmMaximum rotation speed: 1700 rpmNominal rotation speed: 1400 rpmPerformance at 30 bar pressure and 5 cSt viscosity: 1700 l/hFuel consumption: 1690 l/hModel type: without electromagnetic valveSuction and return line: ¾ inchNozzle outlet: ¾ inchNozzle pressure range: from 15 to 40 barFactory pressure setting: 15 barInstallation method: flange ∅ 54 mmDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftType of pumped liquid: diesel, kerosene, sea ​​water
