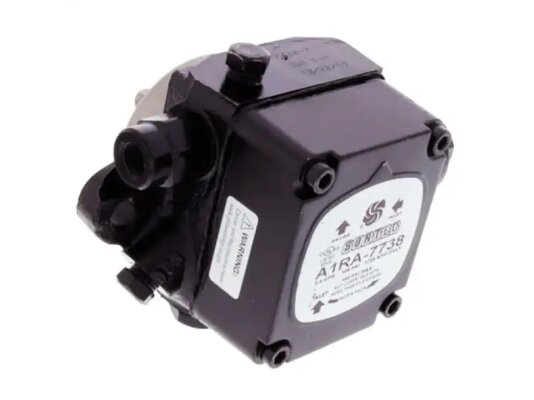

Burner Pump Suntec A1RA 7738 SP
Suntec
About product
Go to descriptionShaft design one cavityInstalling the bypass plug P: bypass plug installed in return line for two-pipe systemModel type without electromagnetic valveStrainer: Opening size 150 µmStrainer: Open area 20 cm²Pump series A1RA
Description
The Suntec A1RA 7738 SP burner pump is a universal equipment for pumping liquid fuel under pressure up to 10 bar. It is equipped with a pressure regulating valve with a shut-off function.
Features of the ALE series:
for pumping diesel fuel, kerosene, waste oil;
use in single-pipe systems;
an external filter is required at the inlet.
Main differences of the model:
clockwise rotation of the drive shaft;
right-hand outlet to the nozzle;
standard flange connection, ∅54 mm;
performance – 9 l/h (pressure 7 bar/viscosity 5 cSt);
inlet/outlet pressure – 0.7 bar.
The Suntec A1RA 7738 SP burner pump is designed for installation in a single-pipe system.
Characteristics
Shaft design: one cavityInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: A1RAPerformance at 7 bar pressure and 5 cSt viscosity: 9 l/hNominal rotation speed: 1725 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3450 rpmNozzle pressure range: from 7 to 10 barShaft diameter: 8 mmReturn pressure: 0.7 barInlet pressure: 0.7 barTorque: 0.14 N·mType of pumped liquid: diesel, kerosene, waste oilNozzle outlet: ¼ inch
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
