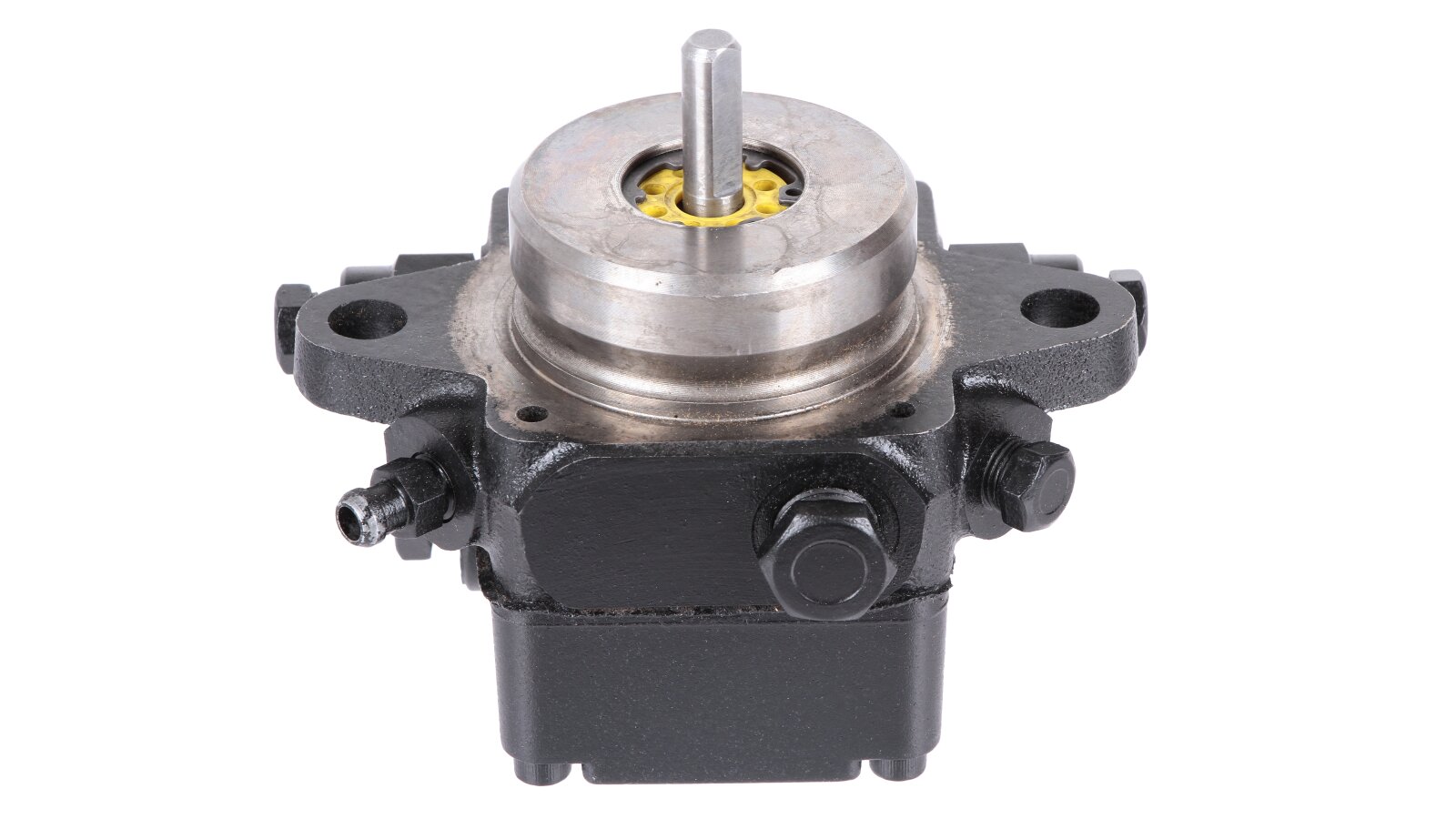

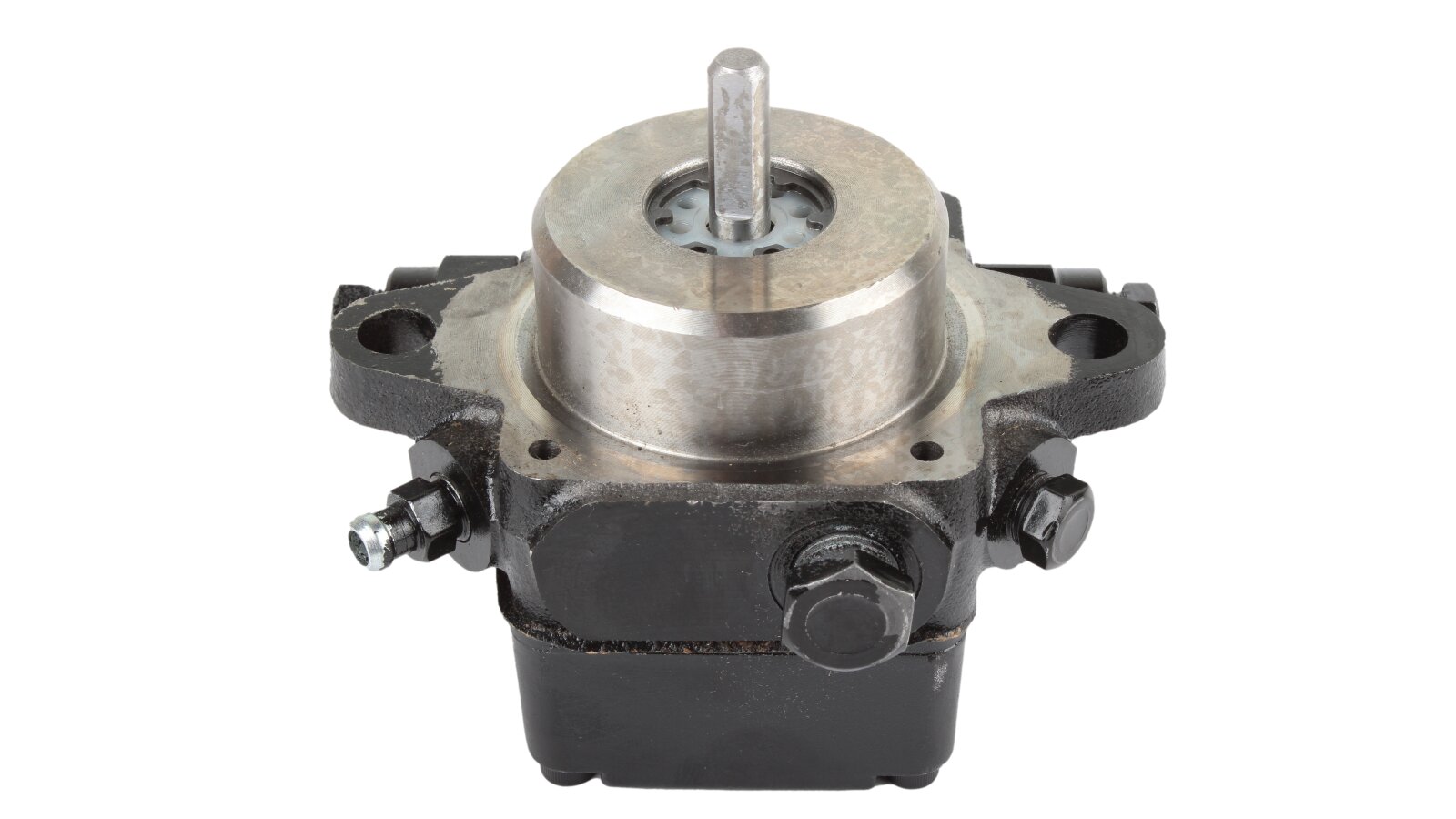

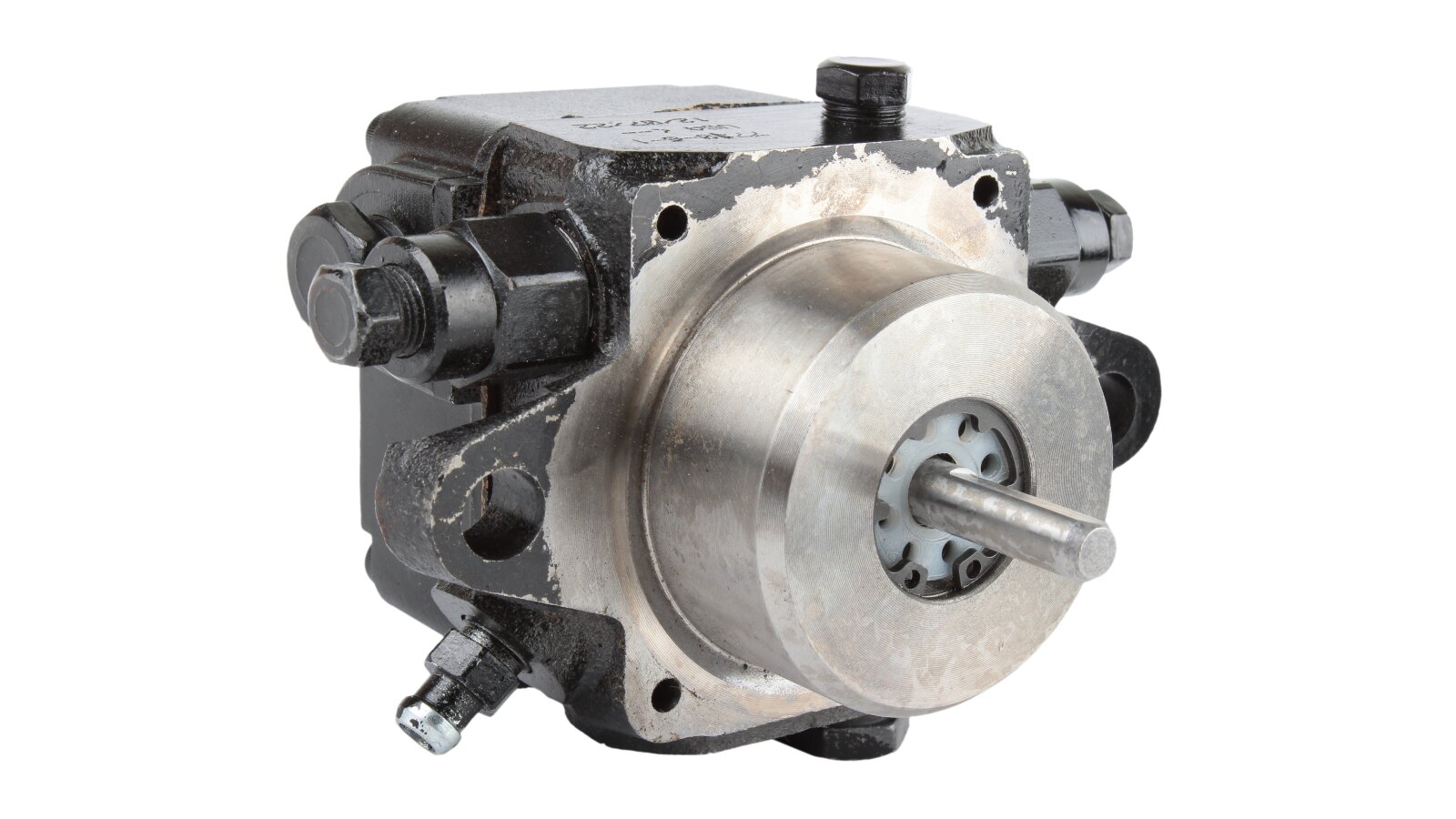

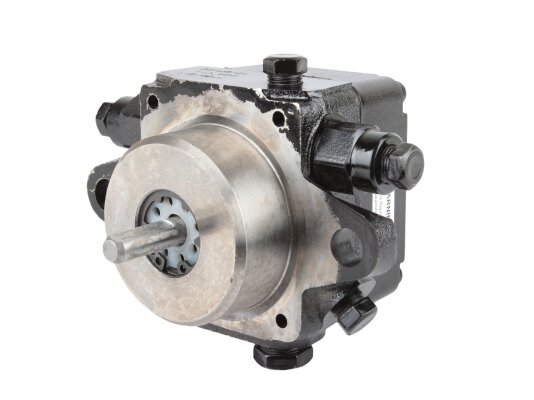

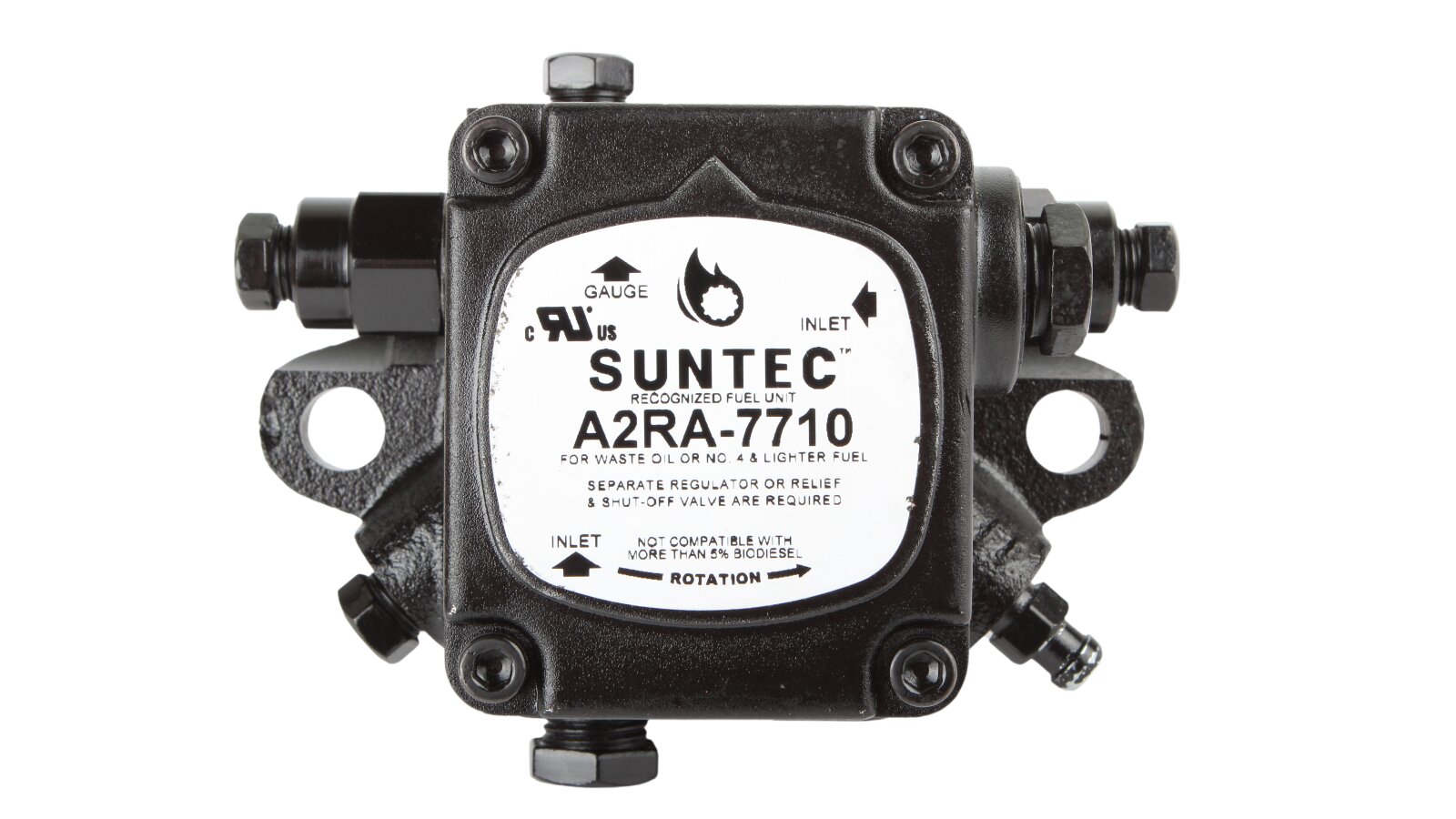

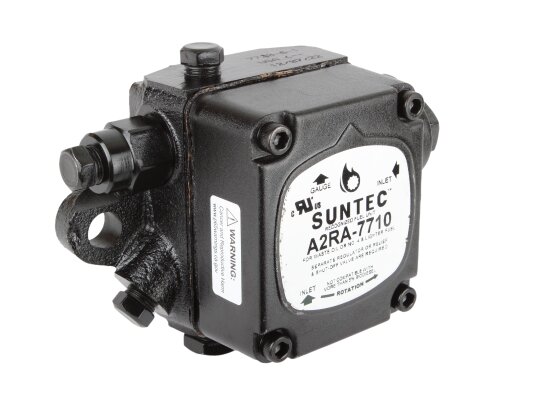

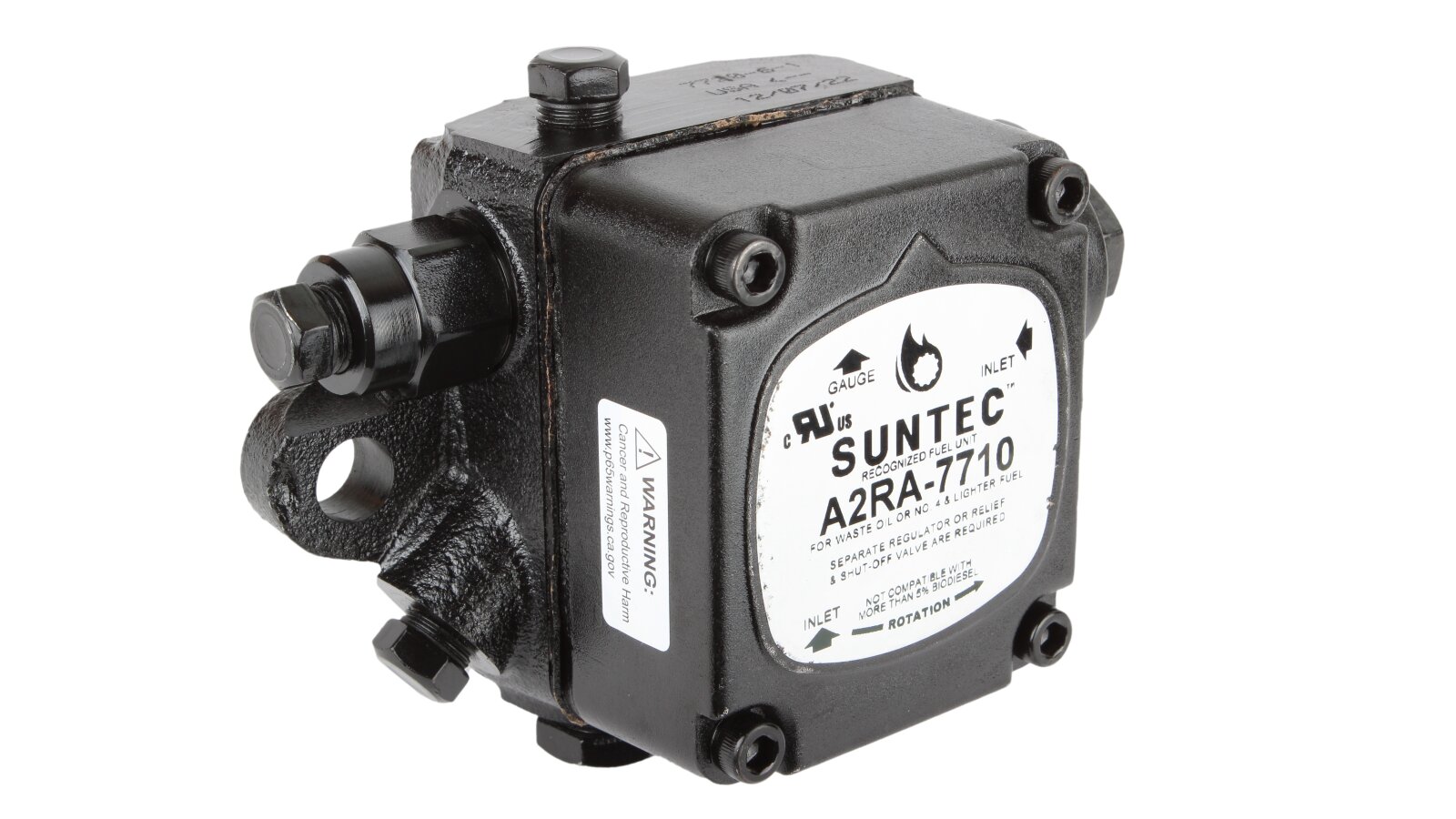

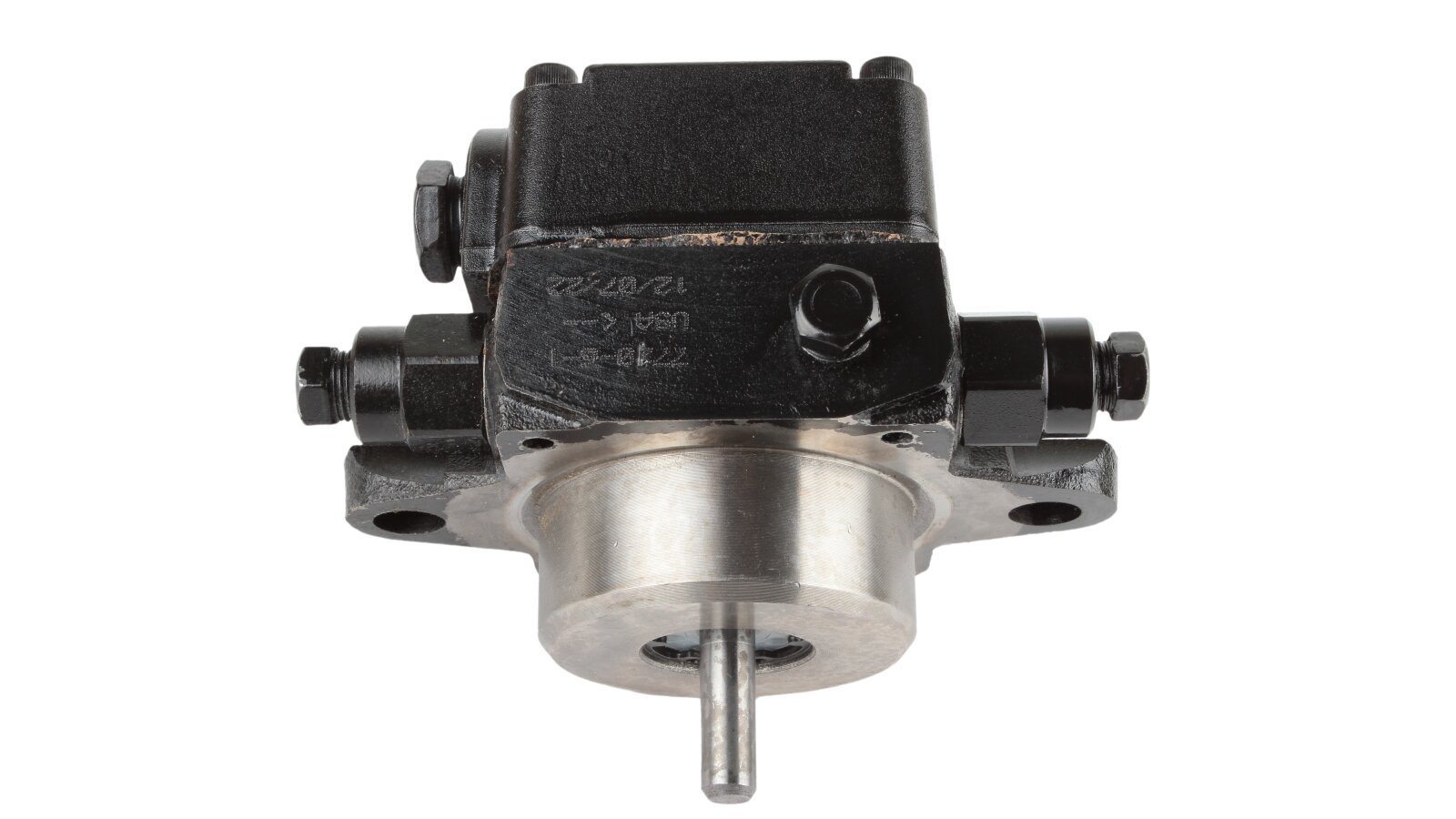

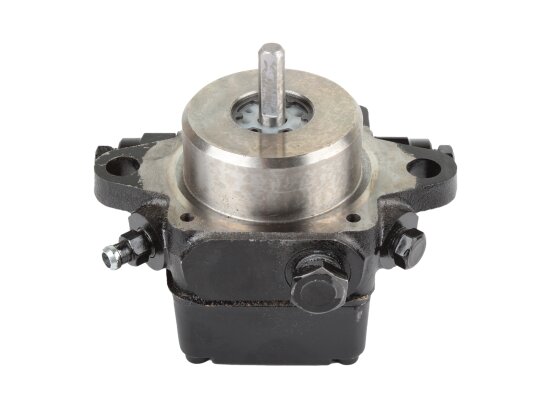

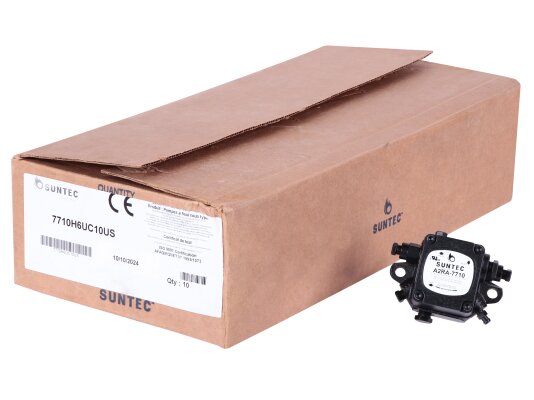

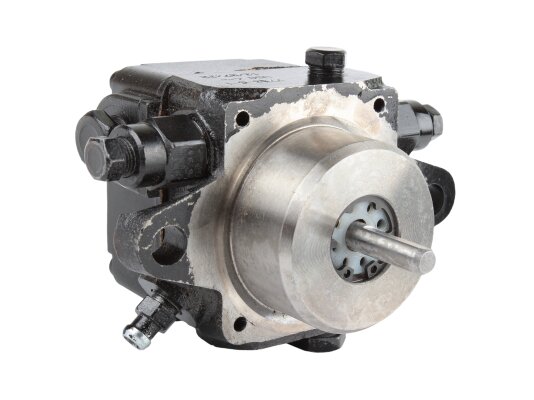

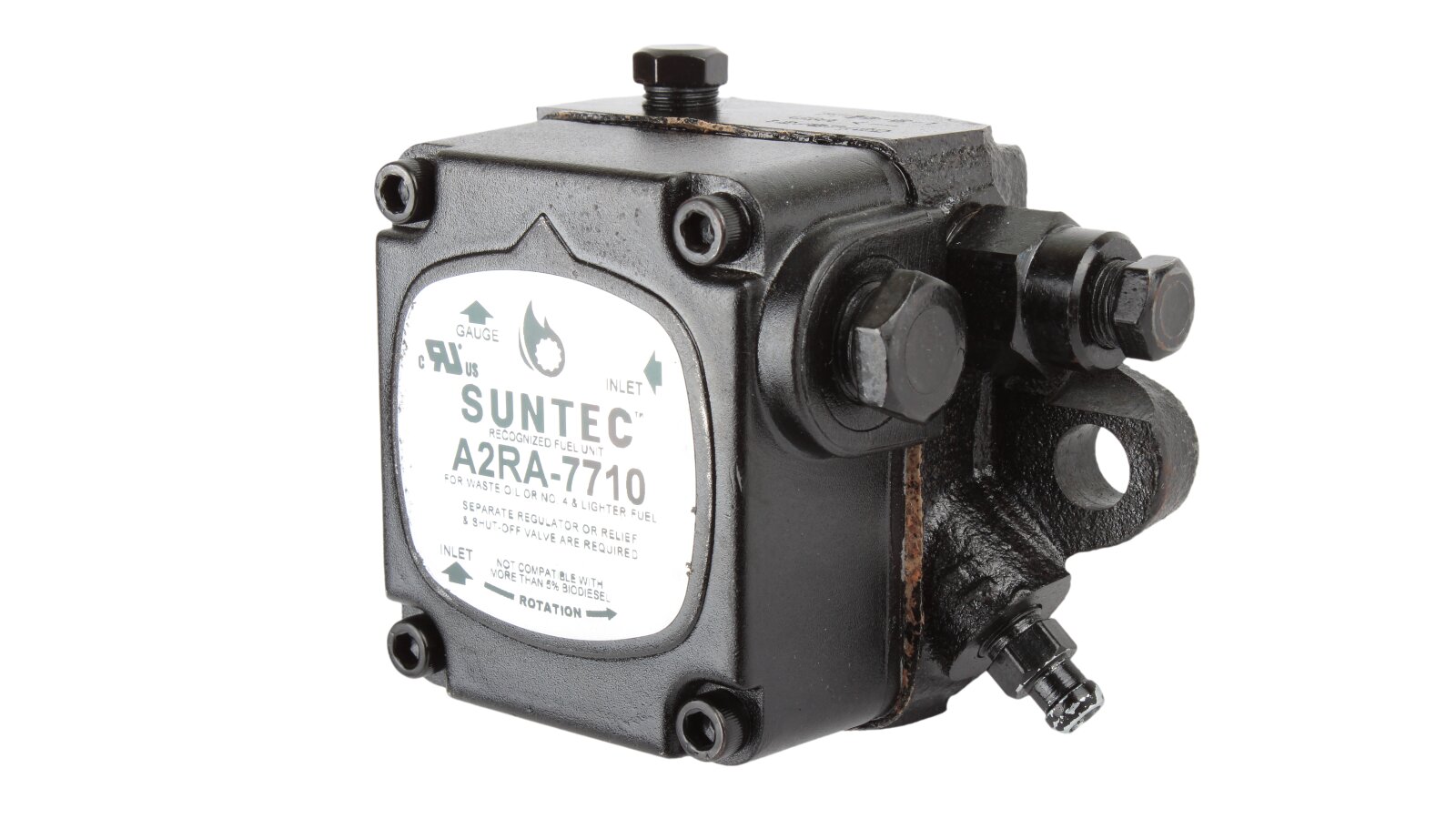

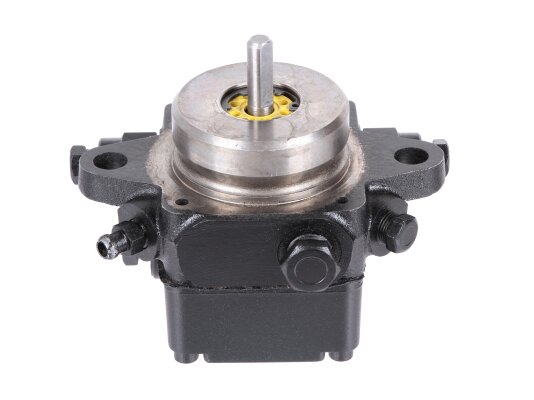

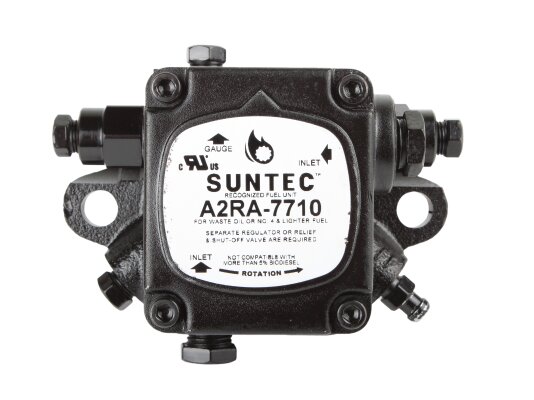

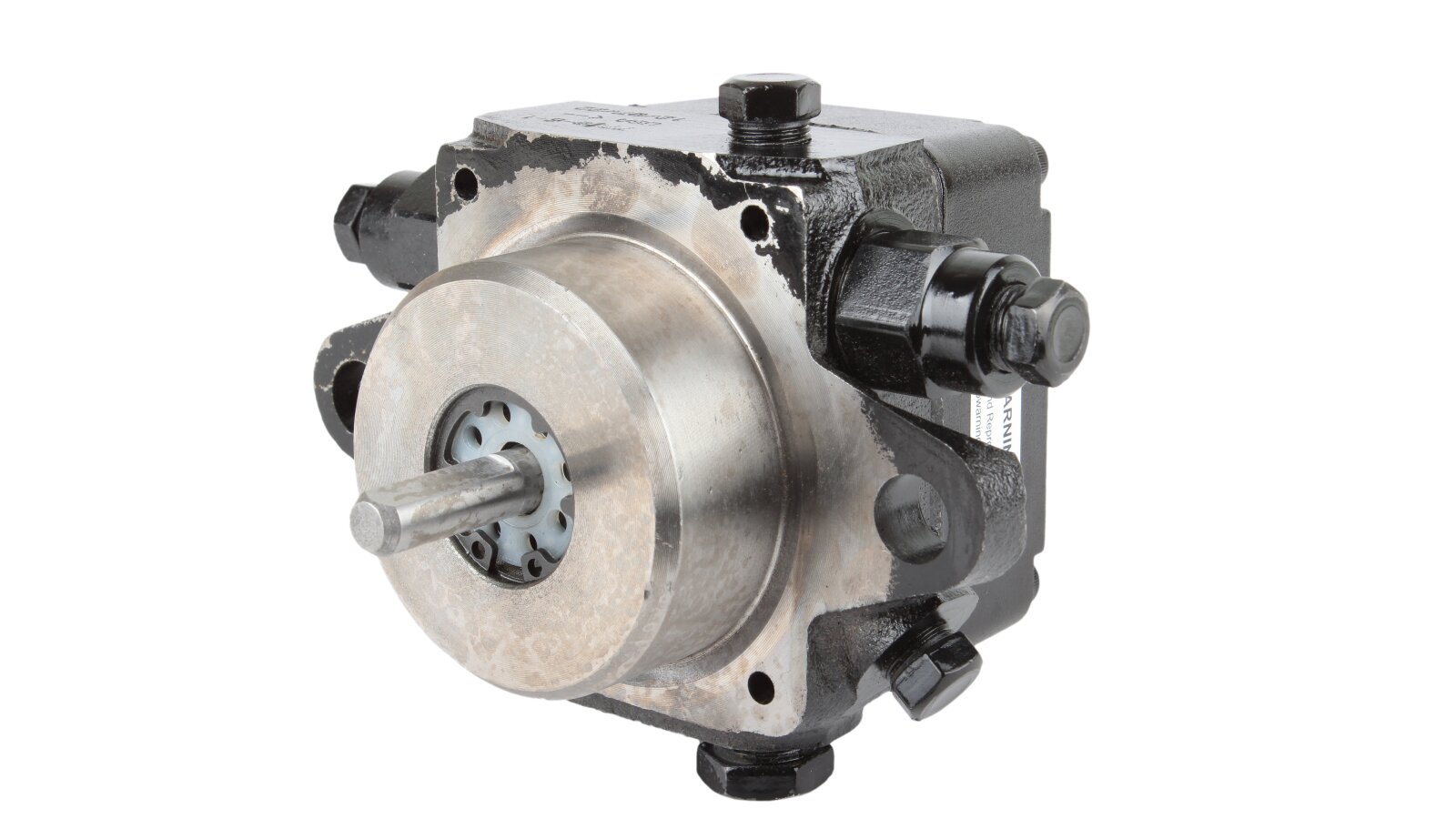

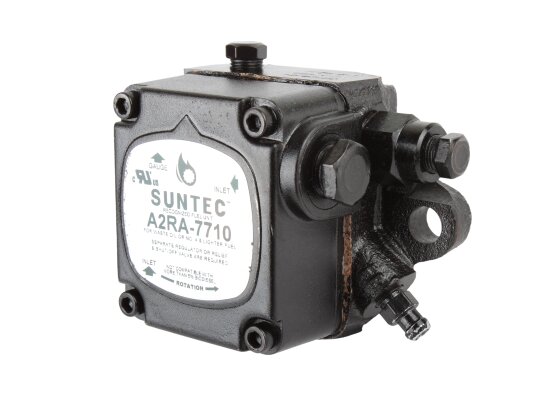

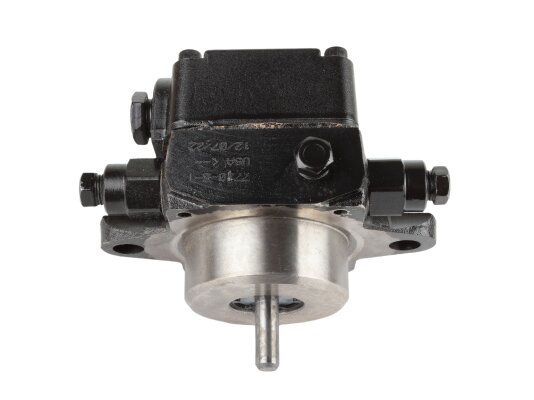

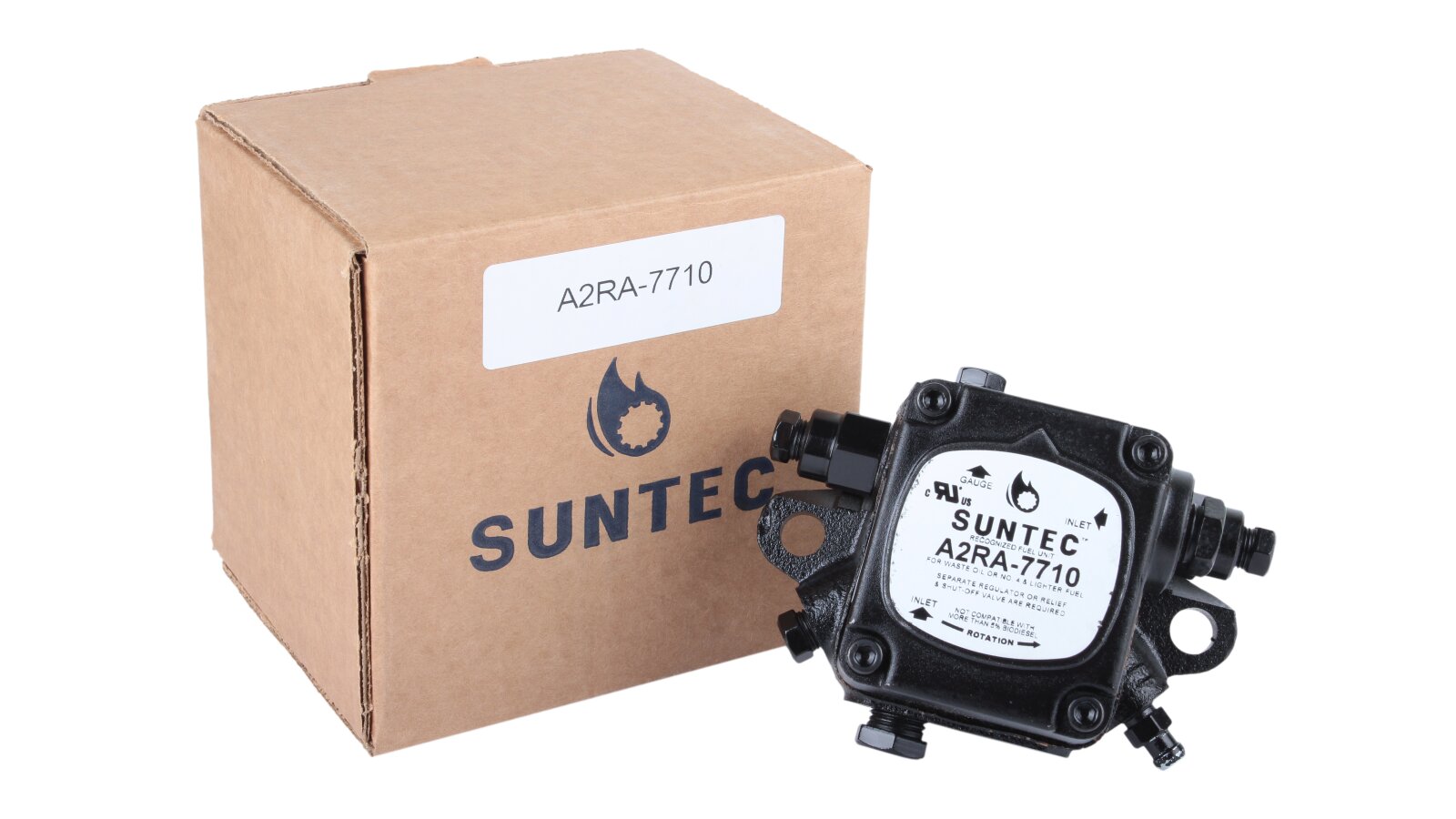

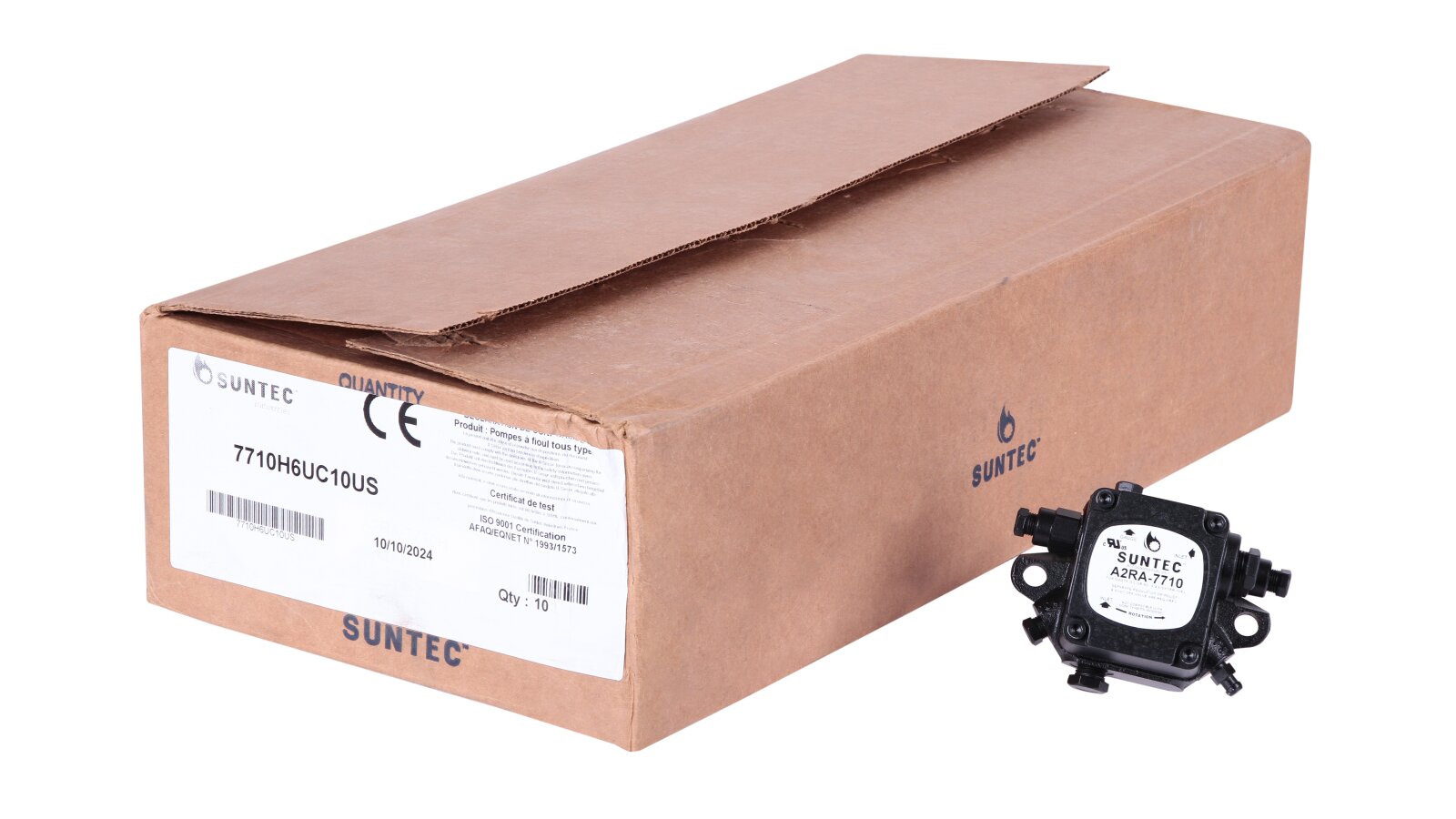

Burner Pump Suntec A2 RA 7710

Suntec

AED 2,100

Oil Burner Pumps
Products code: 7453

Description

The Suntec A2 RA 7710 liquid fuel pump is a reliable universal device of basic design for installation in low-power heating systems. Provides fuel supply under pressure of 1-10 bar. A special feature of the A2 RA series is the presence of a control valve with a locking function.

Main characteristics

  • Working fluid - diesel fuel and biodiesel.

  • Performance - 9.5 l / h when the pressure is set to 7 atm.

  • Permissible fuel temperature in the pump: 10- +45 degrees.

  • Inlet-outlet pressure - 0.7 atmospheres.

  • The shaft rotates clockwise.

  • Maximum speed - 3450 rpm.

Design and features

A gear mechanism is responsible for moving fuel from the tank to the regulator, and then to the nozzle. To protect the gear pair from abrasive particles, a pre-filter with an increased working area of ​​20 cm² is mounted at the inlet to the system. All foreign impurities in the form of sand, debris, rust with a size of 150 microns are retained by a mesh insert, which should be regularly cleaned of contaminants.

The feed pressure can be adjusted independently within the permissible norm using the screw on the body. The valve maintains the pressure at a given level and locks the flow.

The pump is installed in the system using a flange with a diameter of 54 mm. The European standard EN 225, according to which the design is made, is supported by many burner manufacturers.

The device can be used not only with diesel fuel, but also with biodiesel, thanks to a special shaft seal made of Viton. This product is incompatible with fuel mixtures containing more than 5% biodiesel.

You can check the correctness of the system settings by connecting a pressure gauge and a vacuum gauge, for which ports with a tapered thread of ⅛ inch NPTF diameter are provided.

Let's highlight the main advantages:

  • universal purpose - working with diesel fuel and biodiesel;

  • built-in pressure regulation and flow shut-off valve;

  • easy adjustment of the feed pressure in the range of 1-10 bar;

  • installation in the system in a standard way - using a flange ∅ 54 mm;

  • increased filtration area - 20 cm²;

  • standard openings for control and measuring instruments

To equip burners of popular brands, we offer to buy a Suntec A2 RA 7710 pump and the necessary accessories at the best prices. All products comply with quality and safety standards.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B5Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 10 to 45 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance at 7 bar pressure and 5 cSt viscosity: 9.5 l/hPressure gauge port: ⅛ inch NPTF, ⅛ inchNominal rotation speed: 135 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3450 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 7 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 1 to 10 barShaft diameter: 8 mmReturn pressure: 0.7 barInlet pressure: 0.7 barNozzle outlet: ⅛ inch NPTFSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.14 N·mVacuum gauge port: ⅛ inch NPTFPump series: A2RA: basic model with locking function
