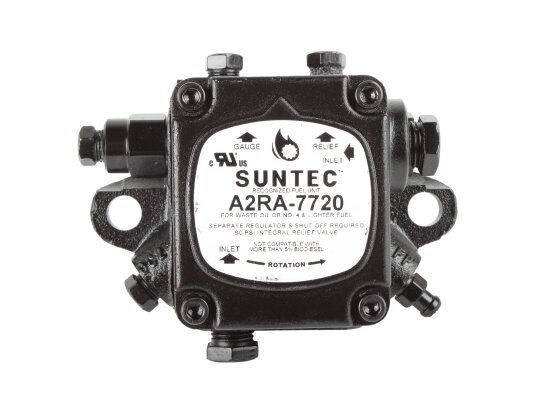

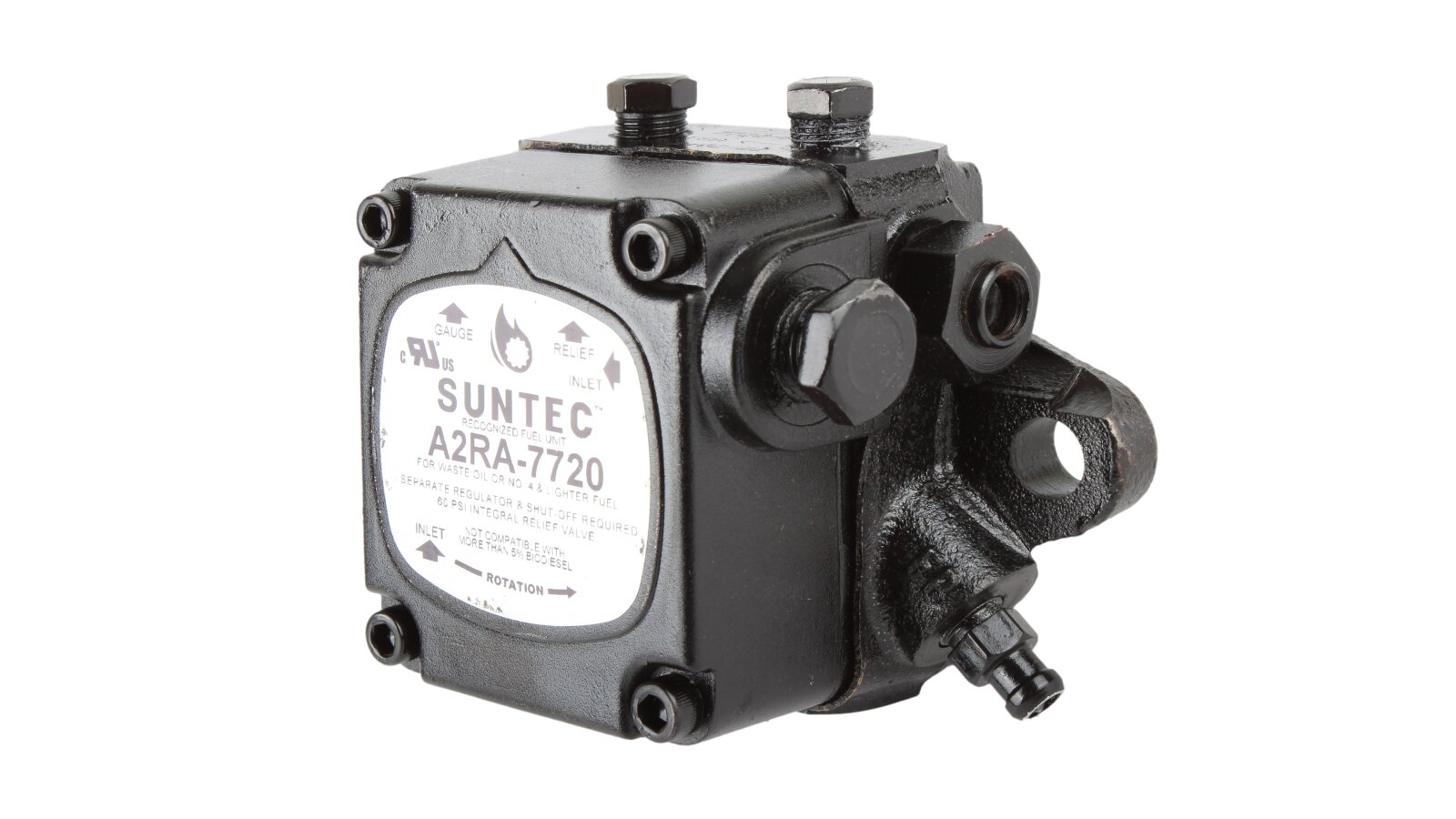

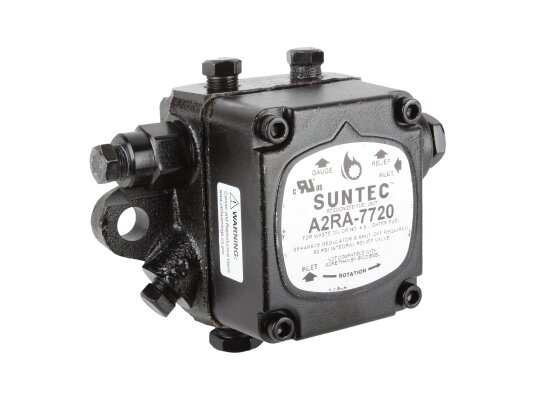

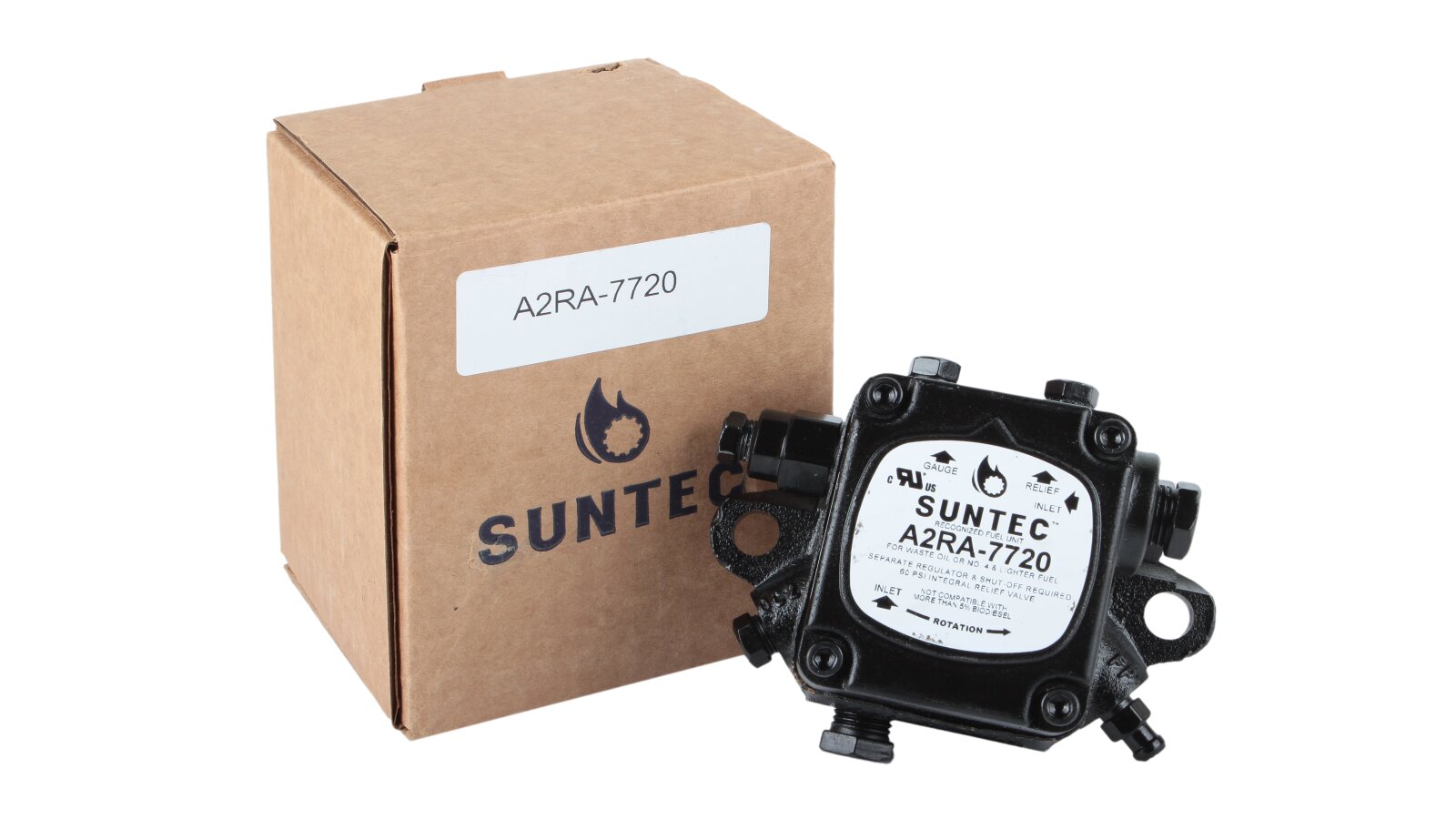

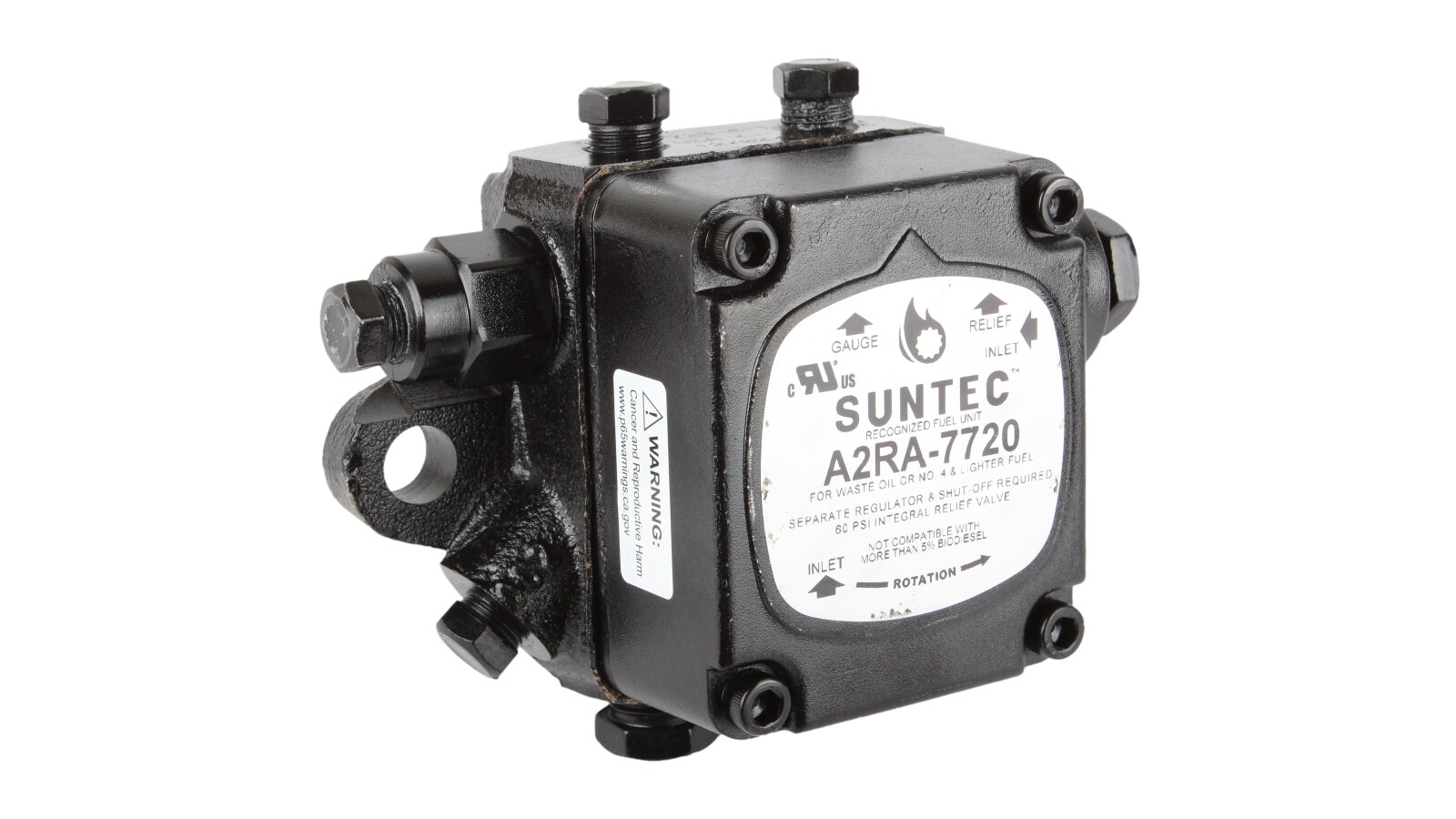

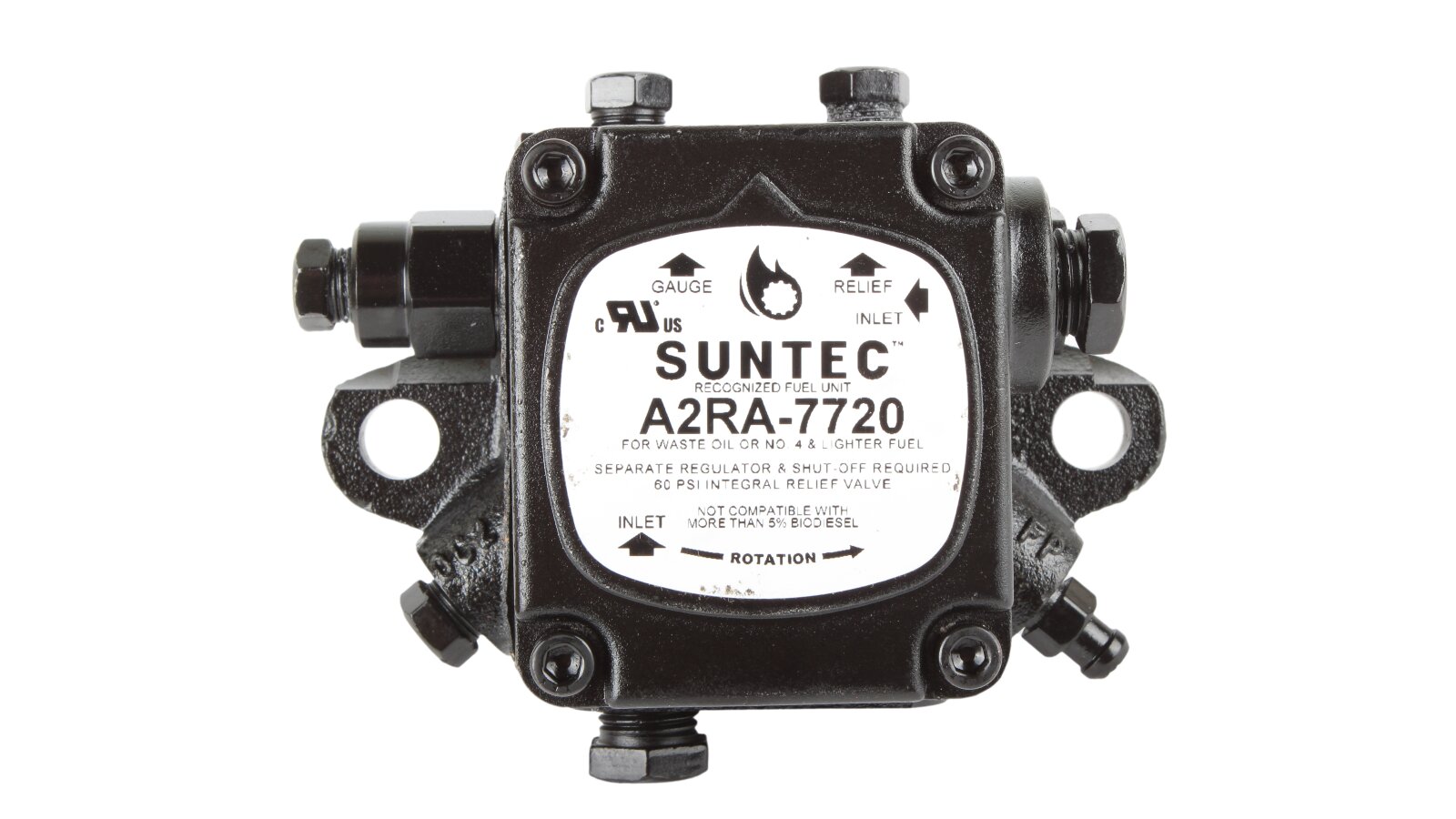

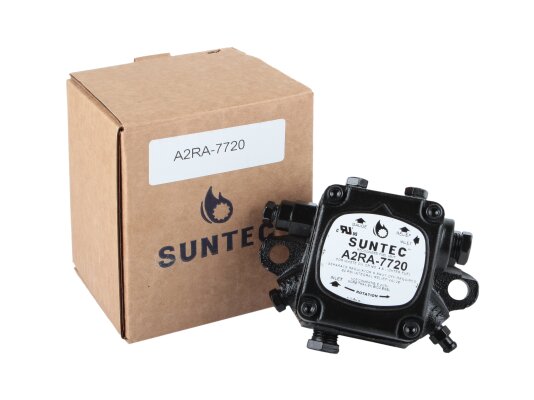

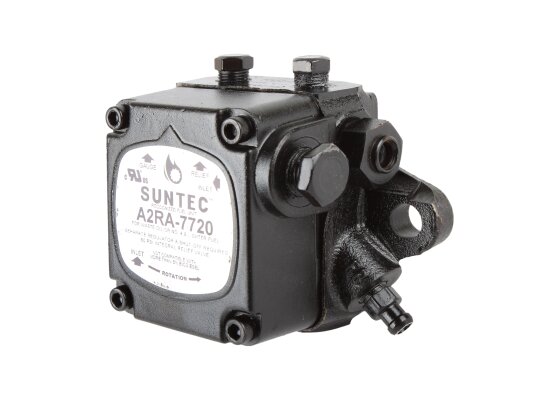

Burner Pump Suntec A2 RA 7720

Suntec

AED 2,375

Oil Burner Pumps
Products code: 7455

Description

Universal liquid fuel pump Suntec A2 RA 7720 is a compact low-performance equipment for installation in low-power burners. The fuel supply rate is 9.5 l/hour at the basic pressure value (7 atm.). A special feature is the built-in control valve, which performs a shut-off function.

Working parameters

  • The pressure on the nozzle is regulated in a wide range: from 1 to 10 bar.

  • Fuel temperature inside the pump: 10-+45 degrees.

  • Inlet-outlet pressure - 0.7 atmospheres.

  • Shaft rotation is clockwise.

  • Maximum speed - 3450 rpm.

  • Working environment - diesel fuel and biodiesel.

Design and features

The main working element of the Suntec A2 RA 7720 pump is a gear mechanism, for the protection of which a filter is mounted at the inlet of the working fluid. A mesh with 150 microns cells prevents abrasive impurities from penetrating into the device. The mesh insert capture area is 20 cm². During operation of the unit, maintenance should be performed - the filter should be washed from impurities.

The gear pair is responsible for supplying fuel to the nozzle. Fuel is sucked from the tank, moved to the regulator, and then pumped into the heating burner under a given pressure. The pressure can be changed independently using the screw. The valve also performs a locking function.

A special sealing material is used for working with biodiesel, ensuring the safety of operations. This product is incompatible with fuel mixtures containing more than 5% biodiesel.

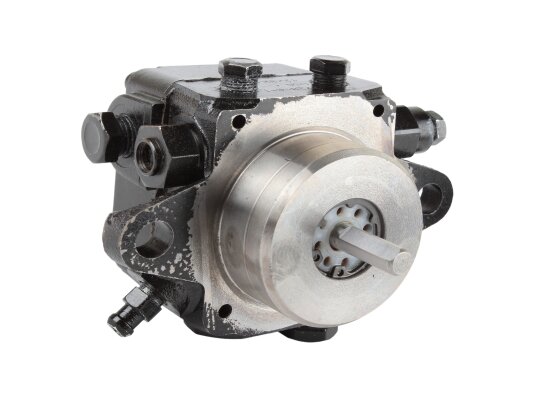

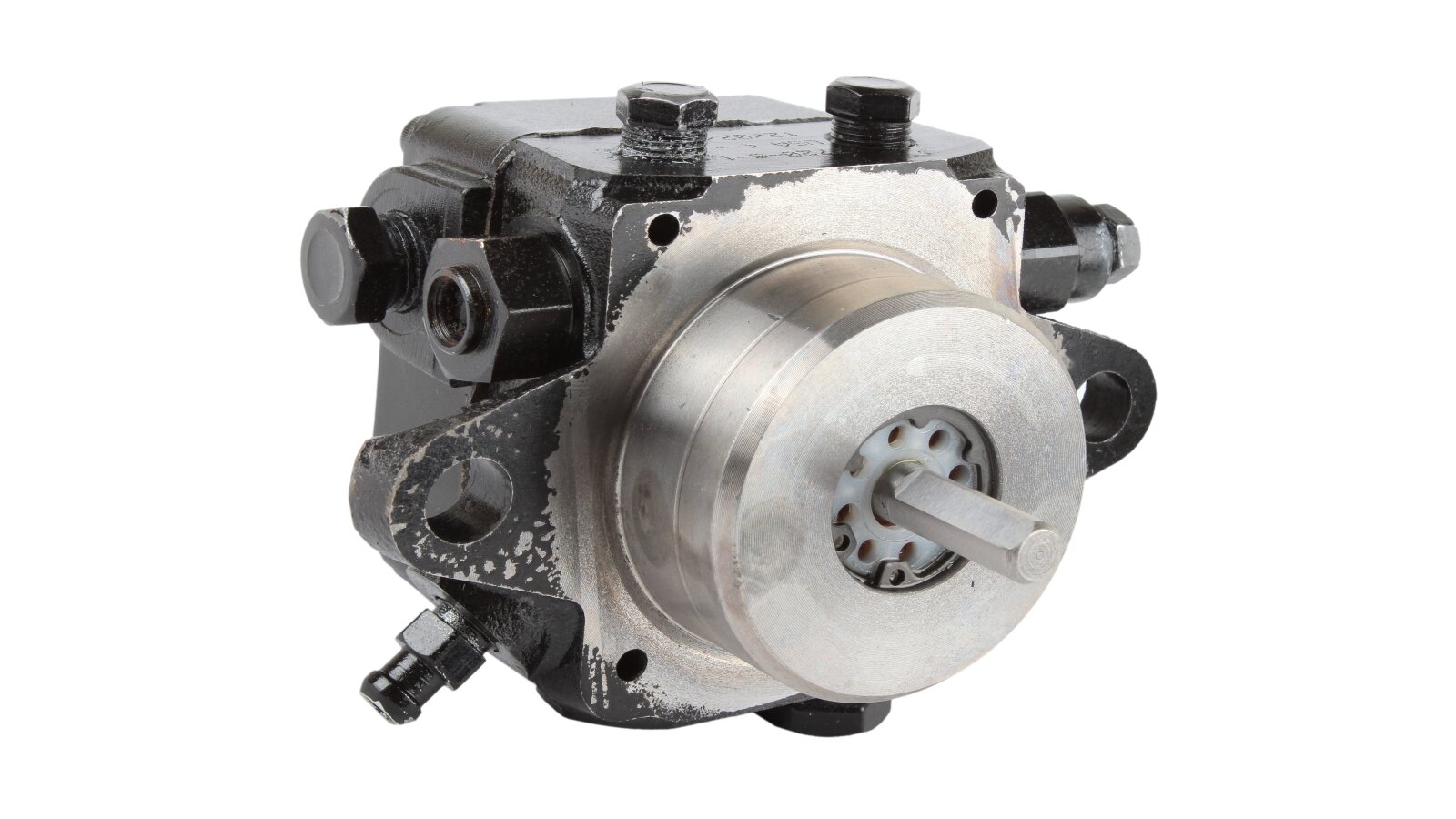

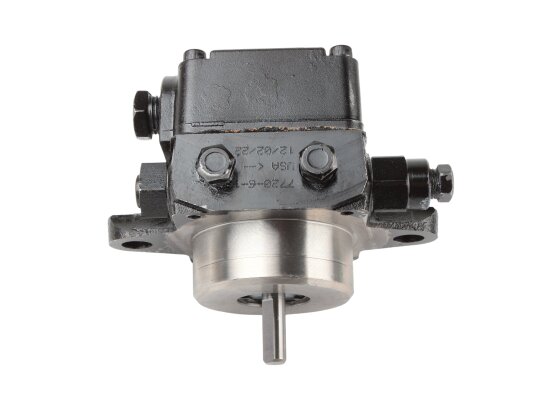

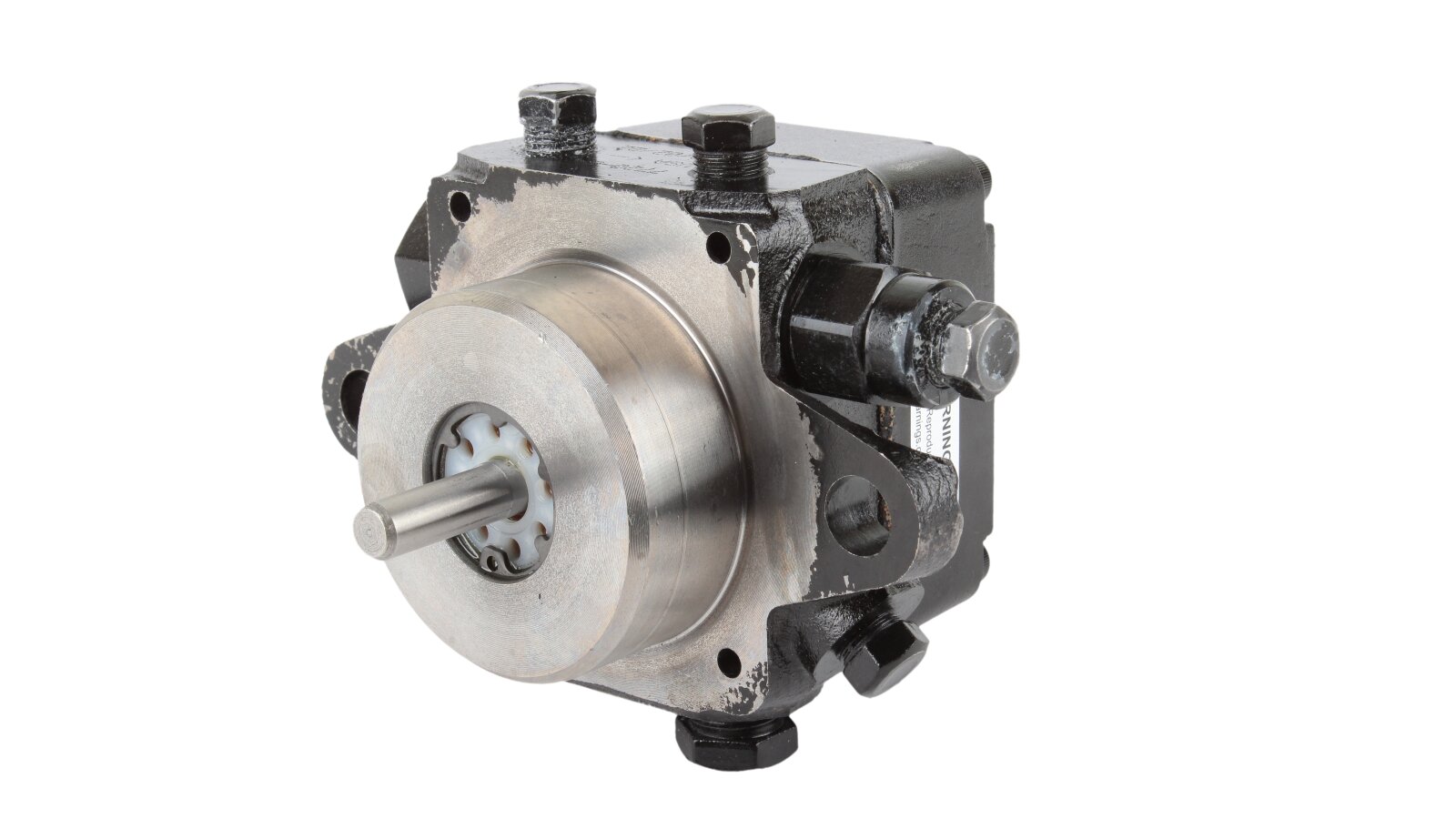

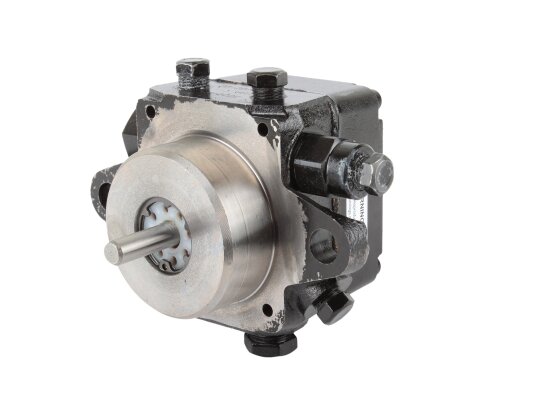

The pump is attached to the electric motor using a flange connection of a standard diameter (54 mm, EN 225 standard), which allows the equipment to be used to complete burners of many brands.

To monitor the correct operation of the equipment, ports with a conical thread with a diameter of ⅛ inch NPTF are provided on the body, to which devices are connected: a pressure gauge and a vacuum gauge.

Let's note the advantages:

  • universal purpose - work with two types of fuel (diesel fuel, biodiesel);

  • shut-off function of the control valve;

  • fuel cleaning from mechanical impurities of 150 microns;

  • the ability to independently adjust the pressure on the nozzle, from 1 to 10 bar;

  • standard connection method, according to EN 225;

  • holes for connecting pressure gauge and vacuum gauge devices;

  • compact dimensions, low weight of the structure.

Before buying a Suntec A2 RA 7720 pump, we recommend checking the conformity of the model characteristics with the technical conditions of the burner. Our line includes Suntec equipment at affordable prices for the formation of effective heating systems for any purpose. Call us, we will help you choose the components.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B5Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 10 to 45 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance at 7 bar pressure and 5 cSt viscosity: 9.5 l/hPressure gauge port: ⅛ inch NPTF, ⅛ inchNominal rotation speed: 135 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3450 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 7 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 1 to 10 barShaft diameter: 8 mmReturn pressure: 0.7 barInlet pressure: 0.7 barNozzle outlet: ⅛ inch NPTFSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Torque: 0.14 N·mVacuum gauge port: ⅛ inch NPTFPump series: A2RA: basic model with locking function
