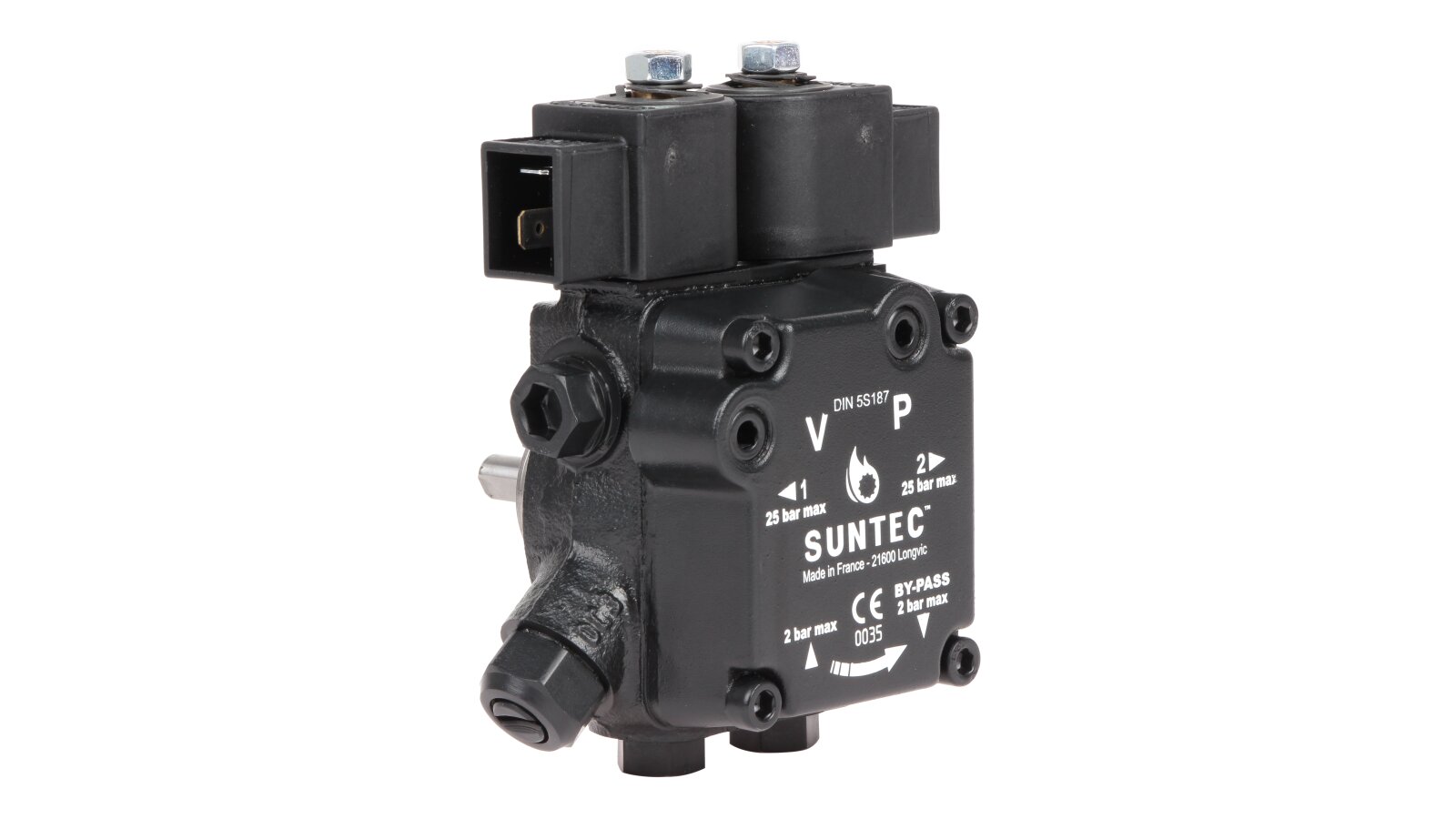

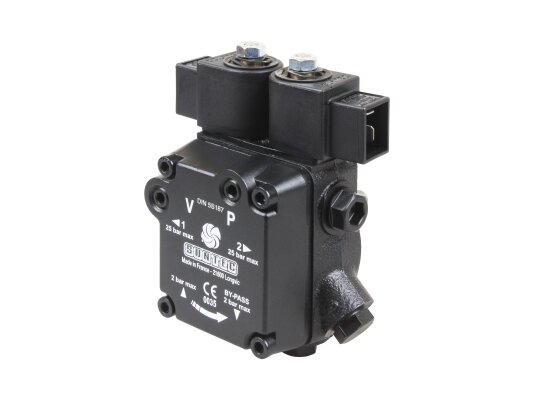

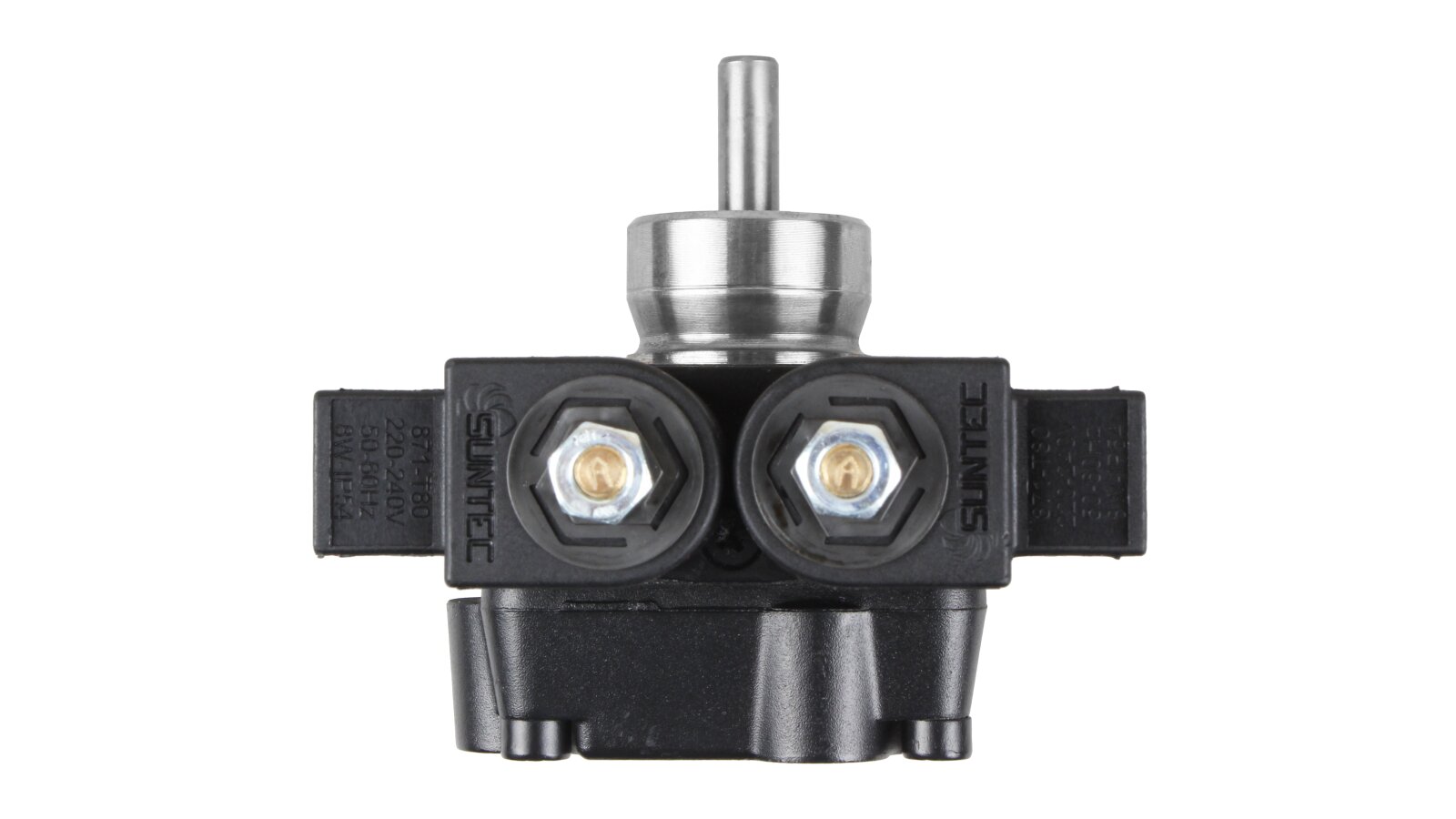

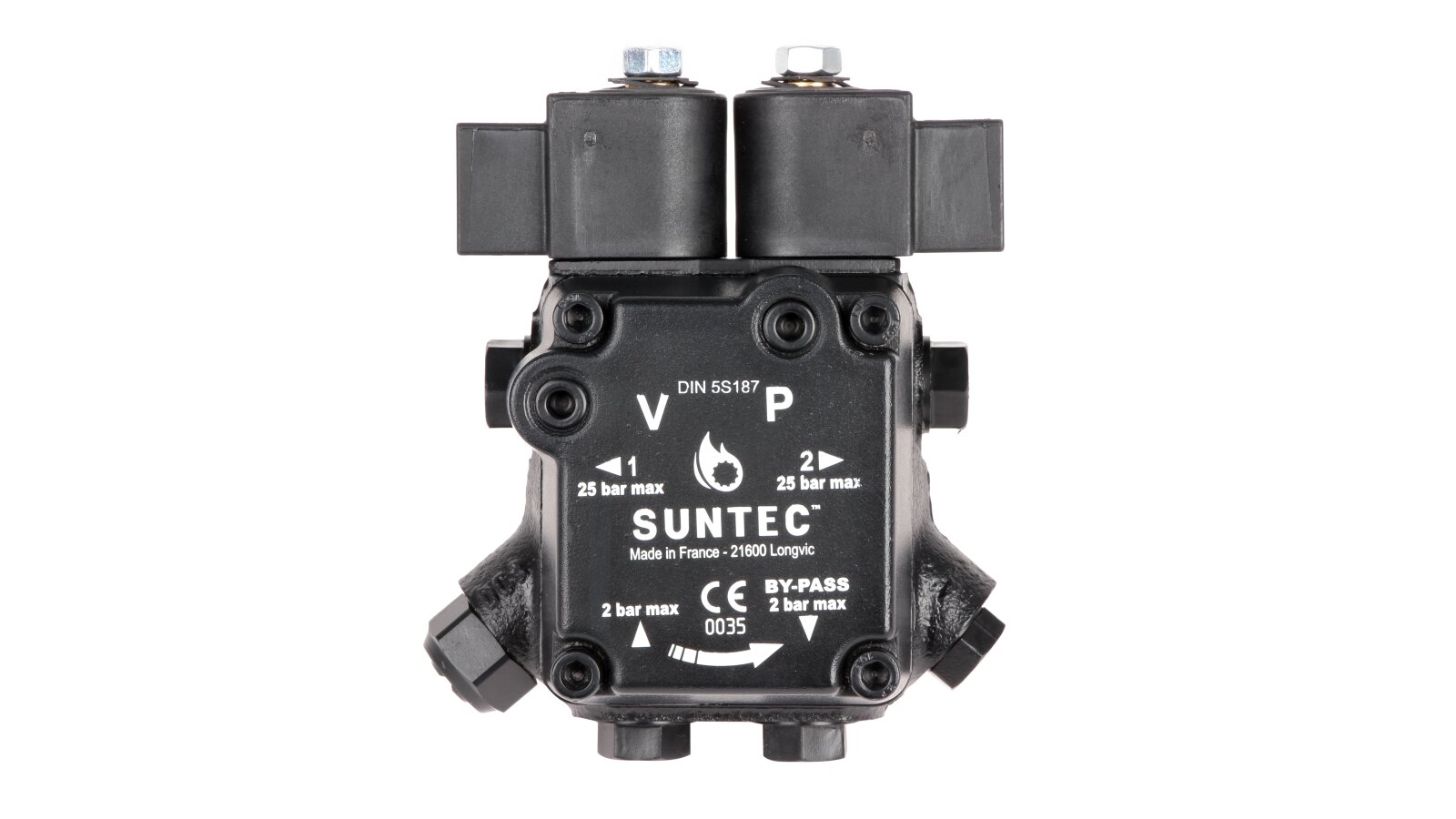

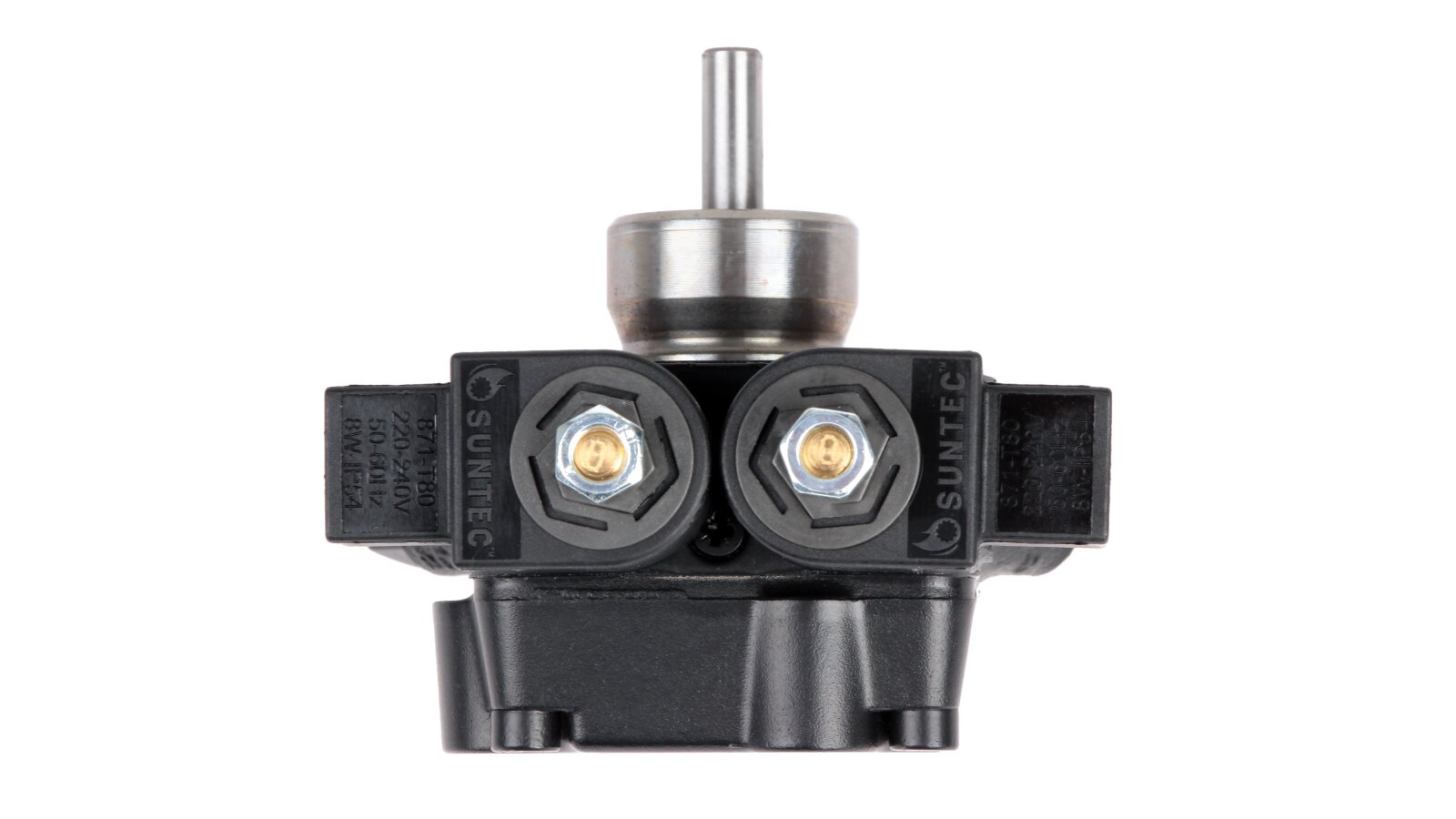

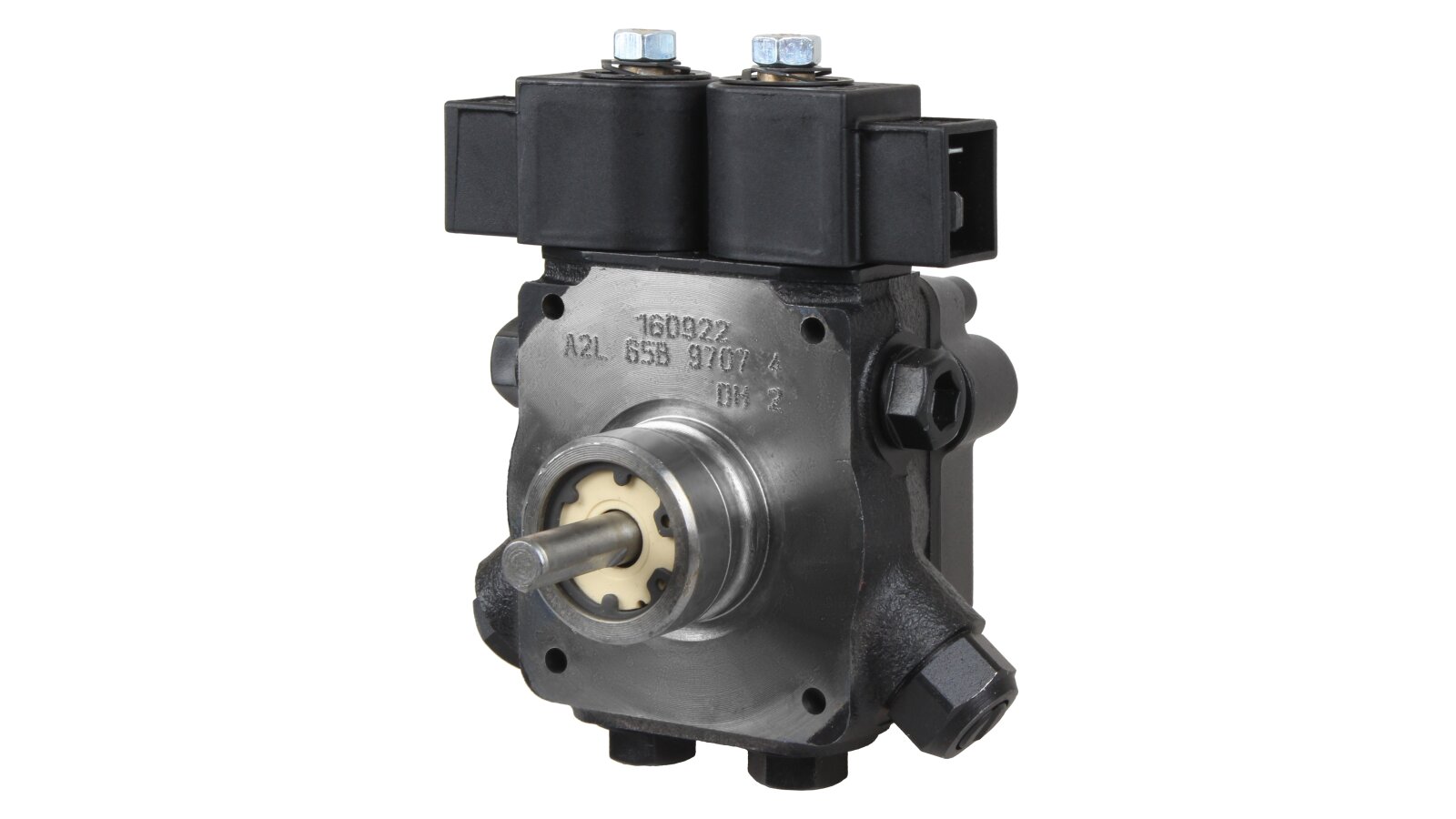

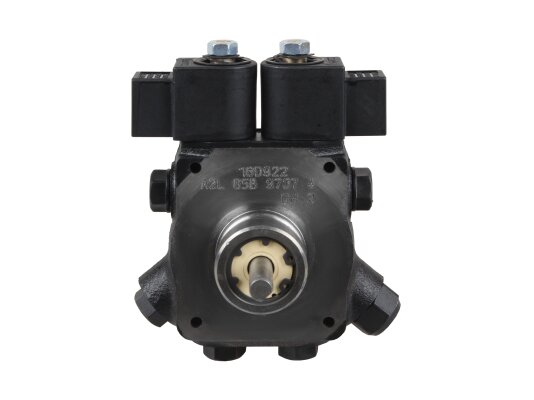

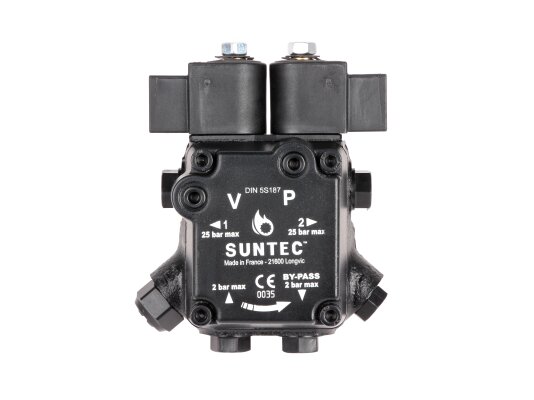

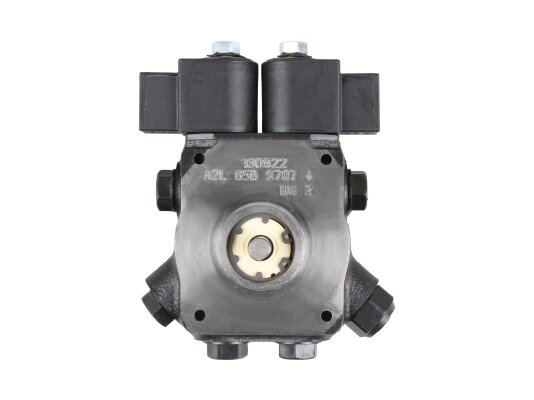

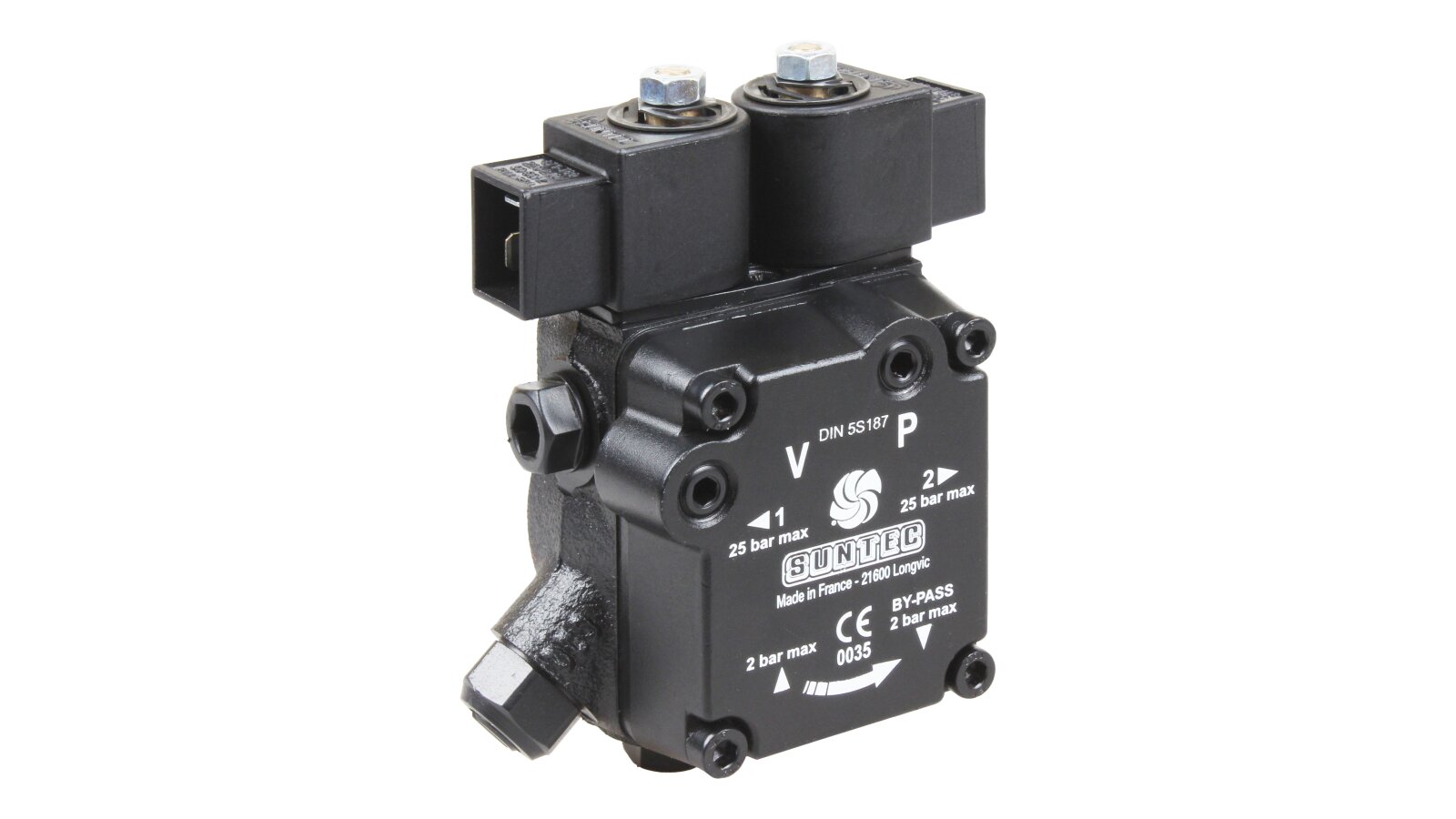

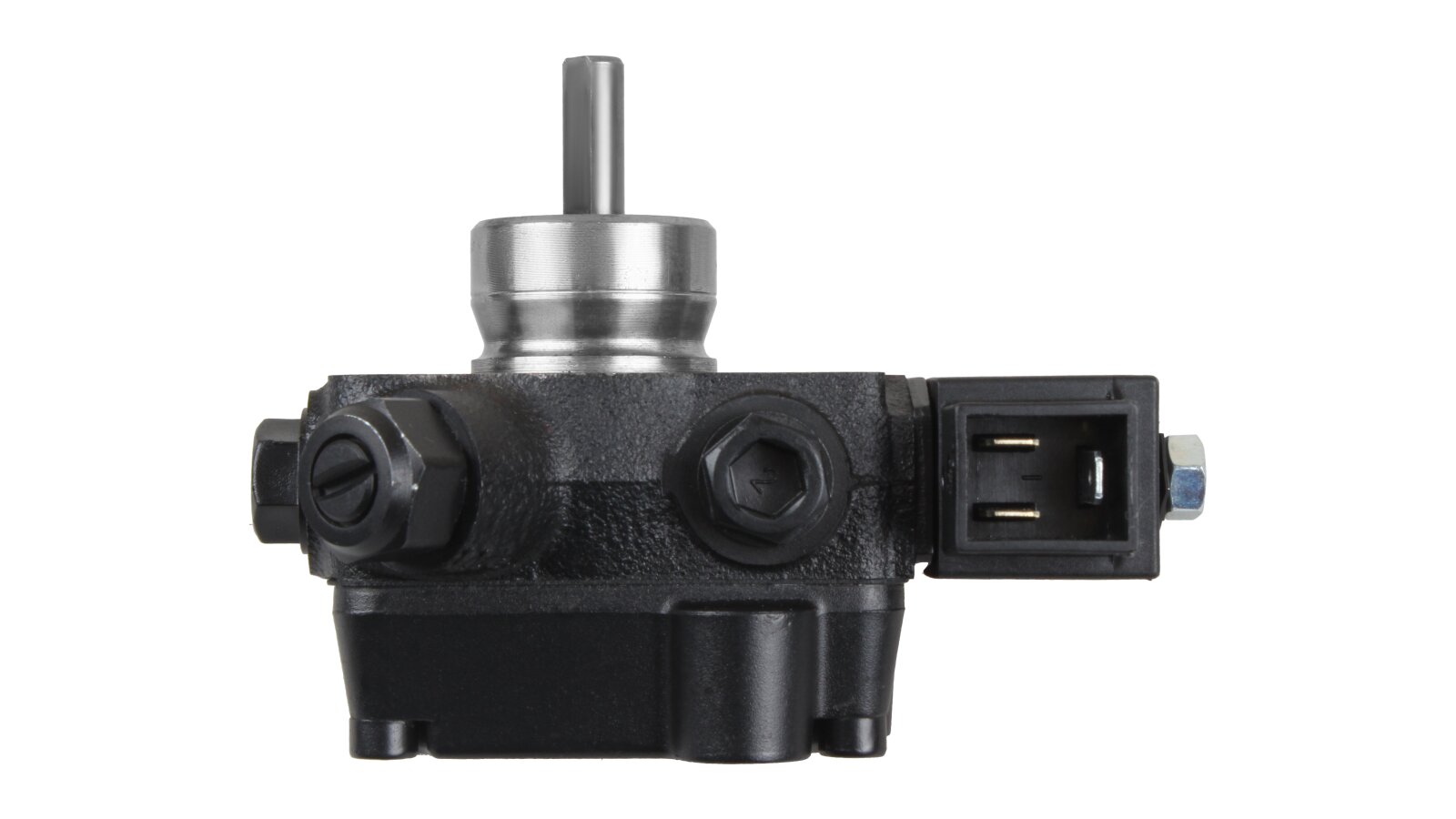

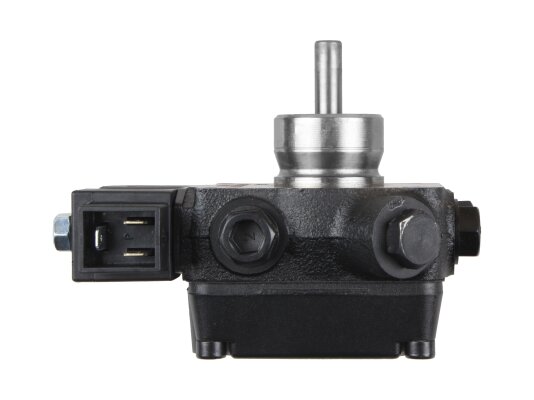

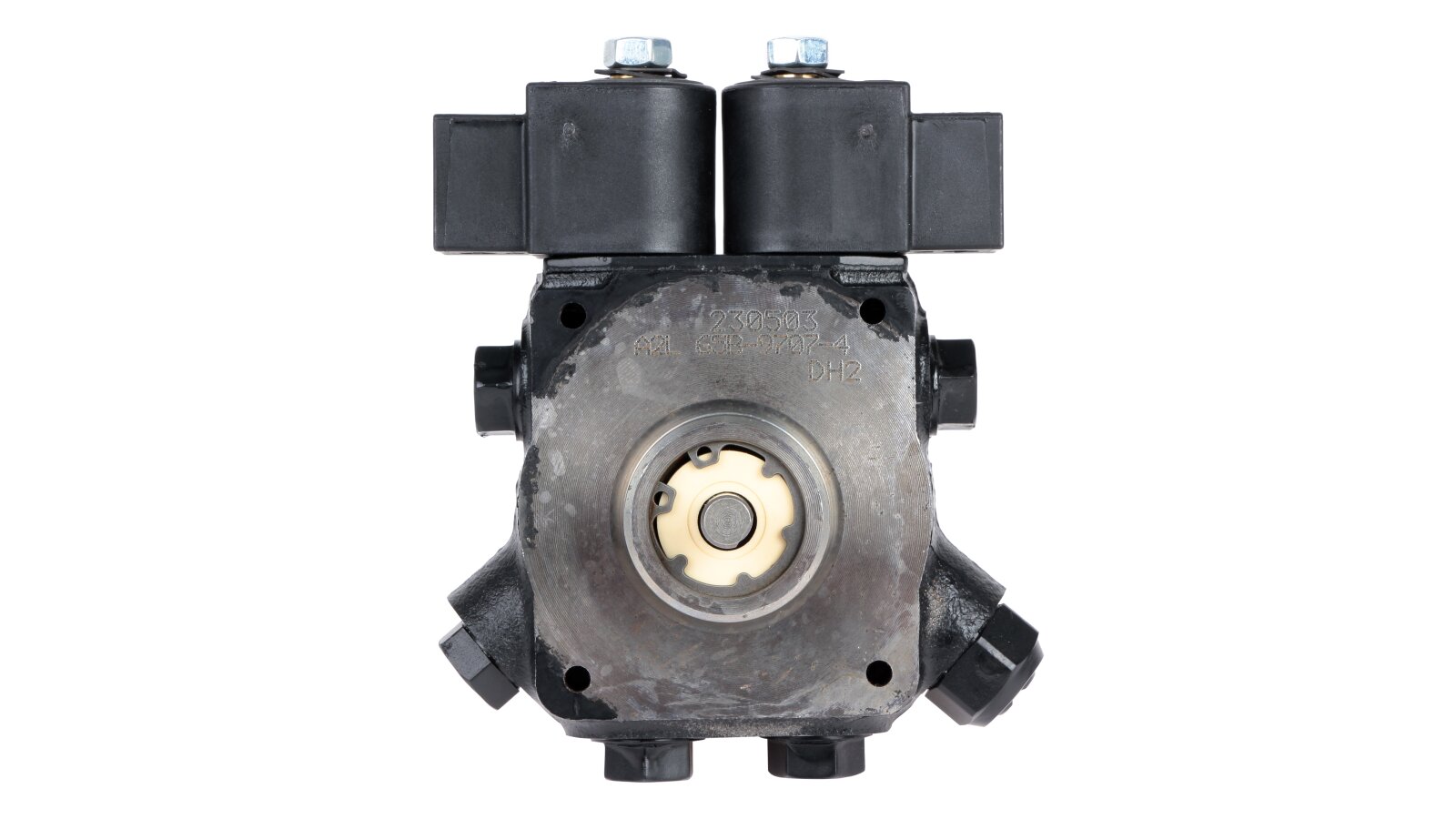

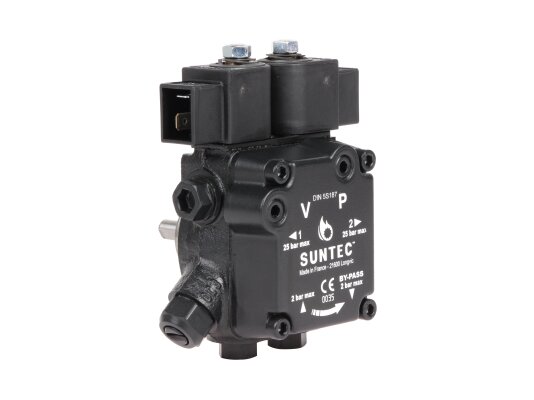

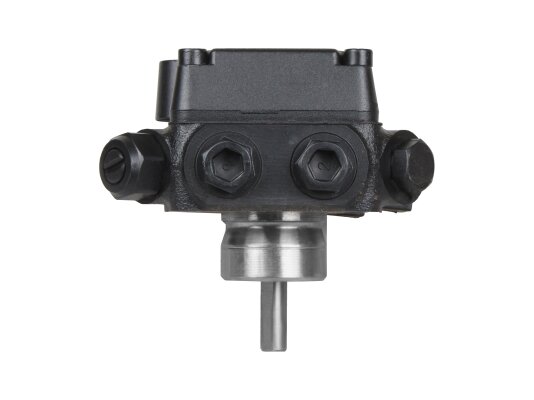

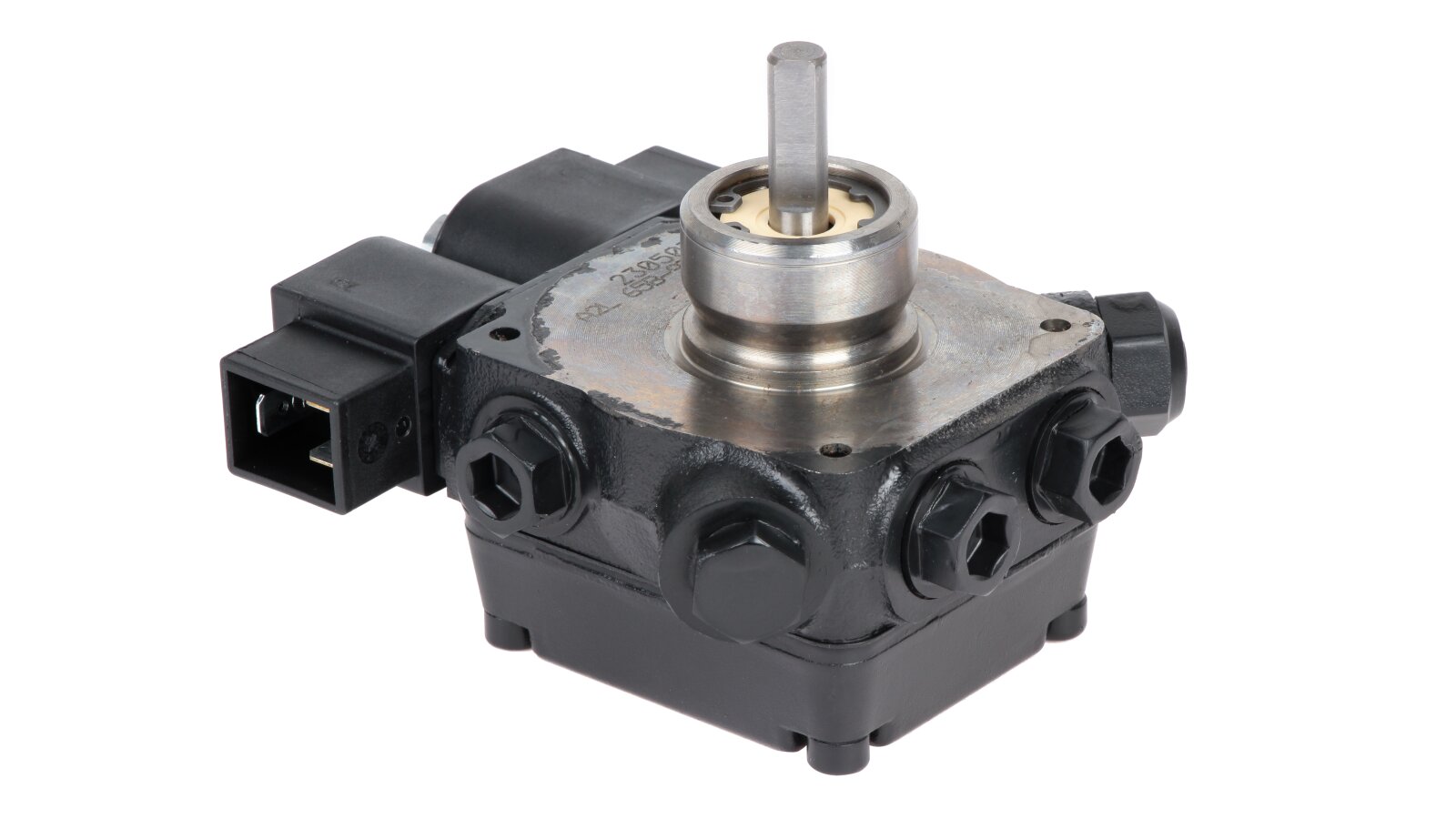

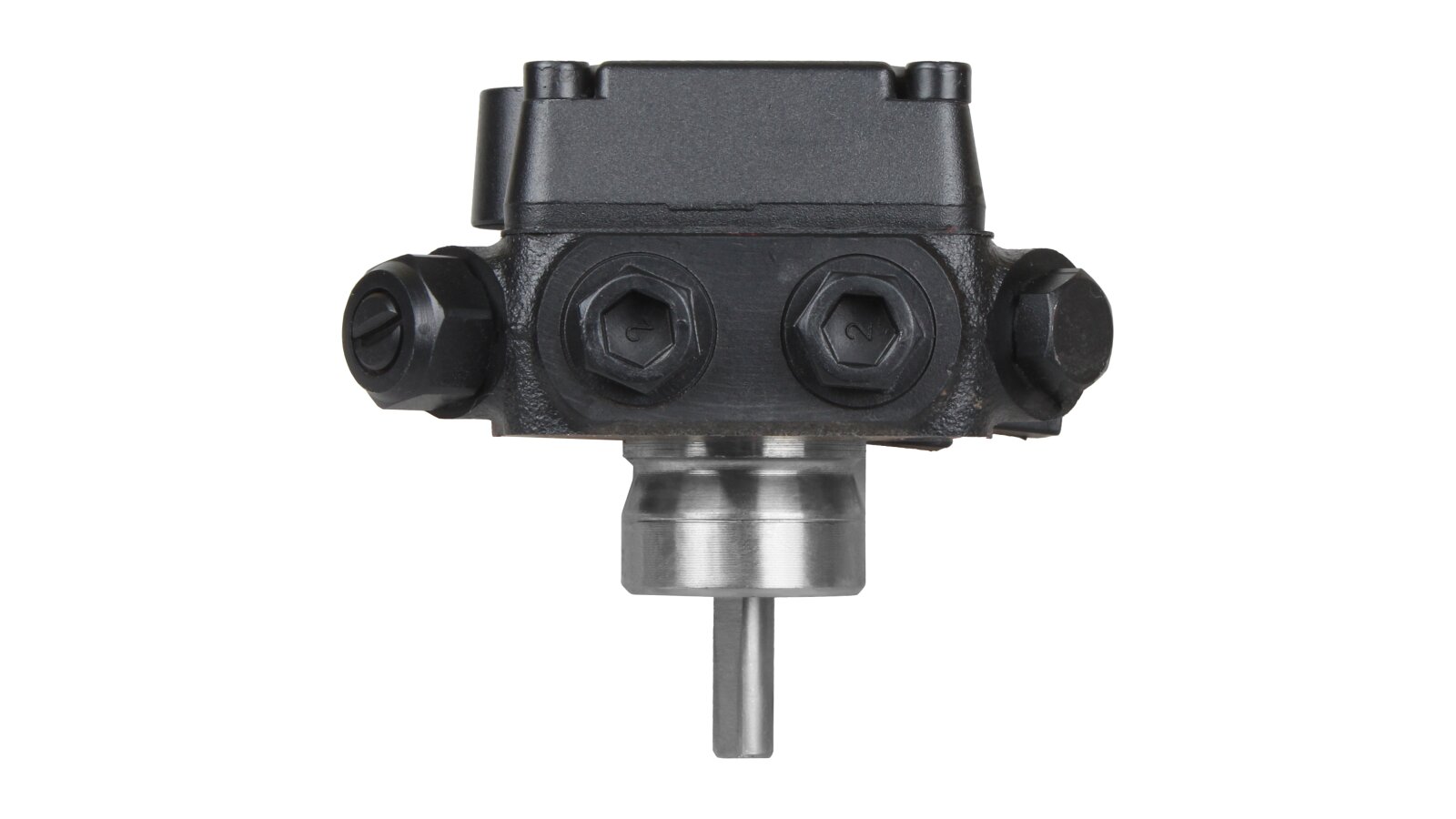

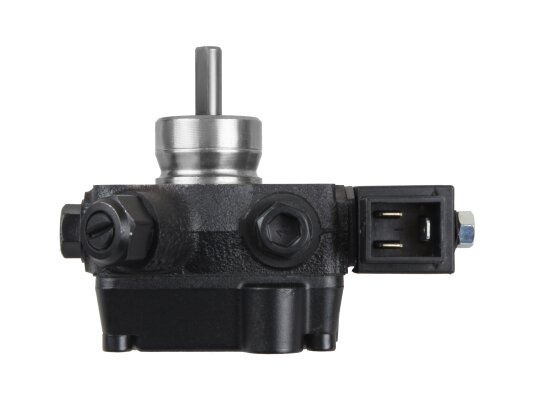

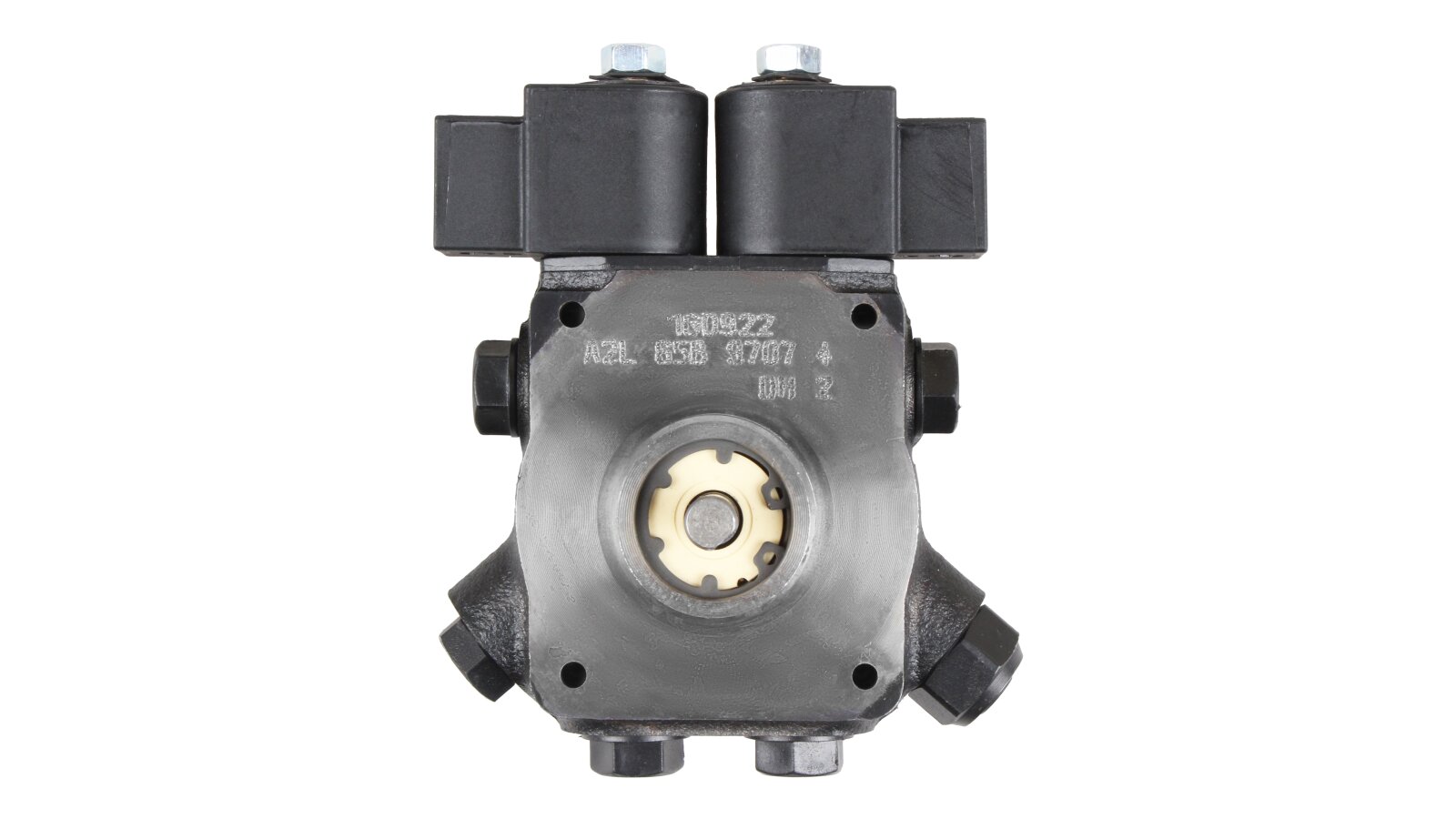

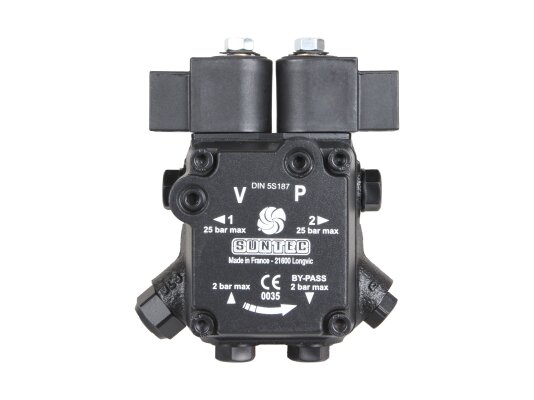

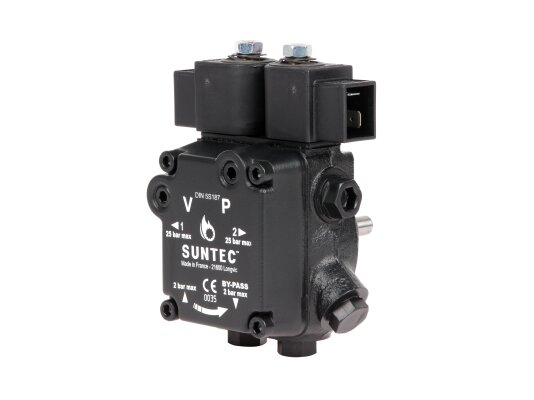

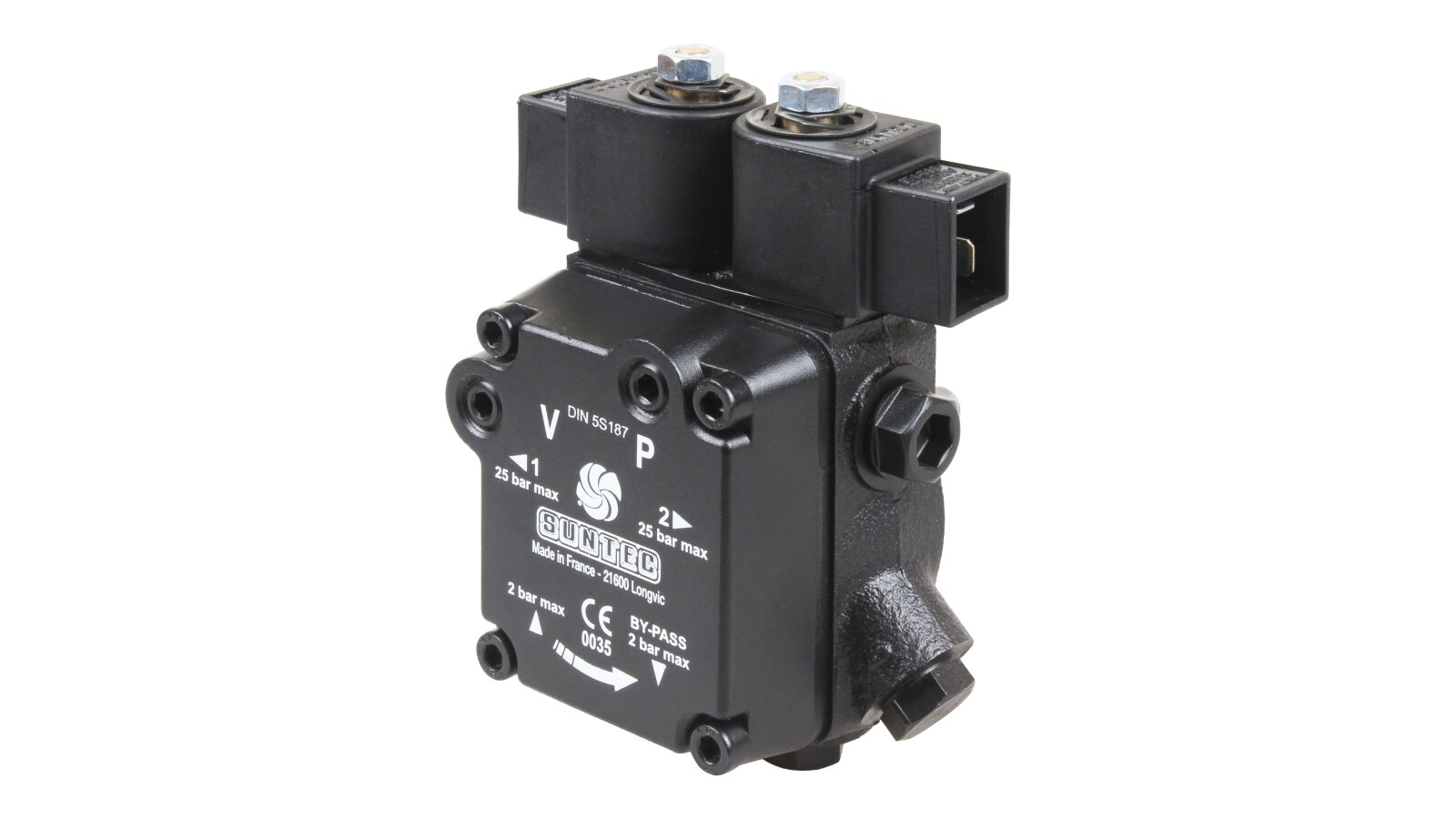

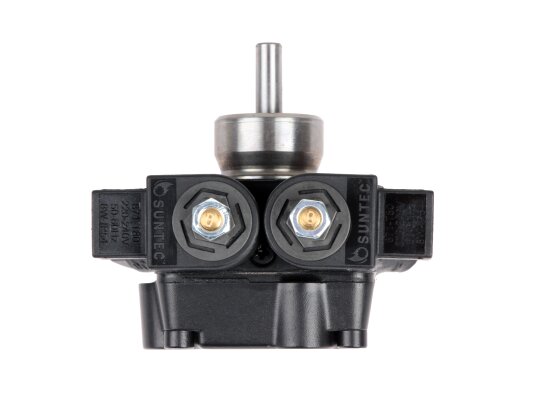

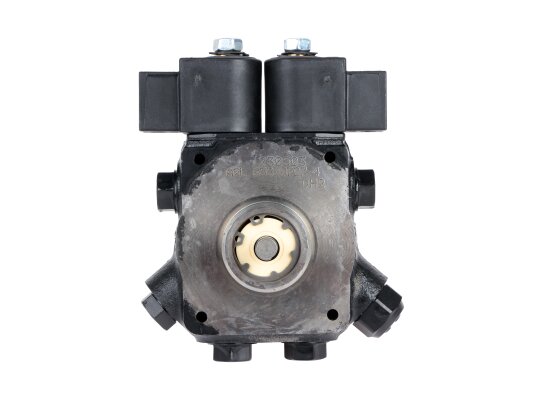

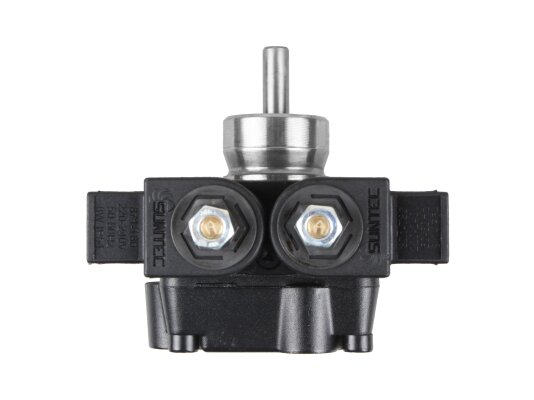

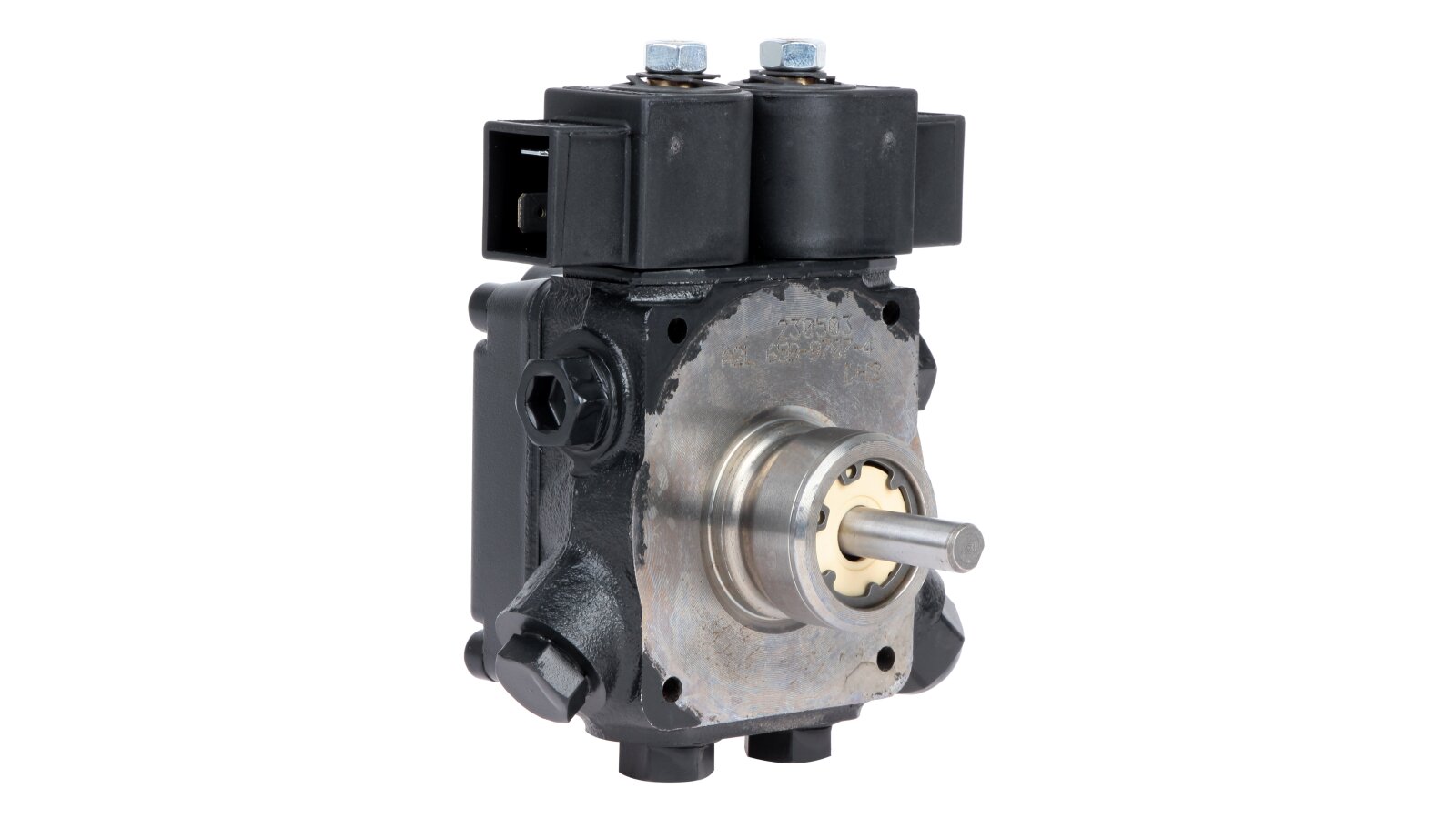

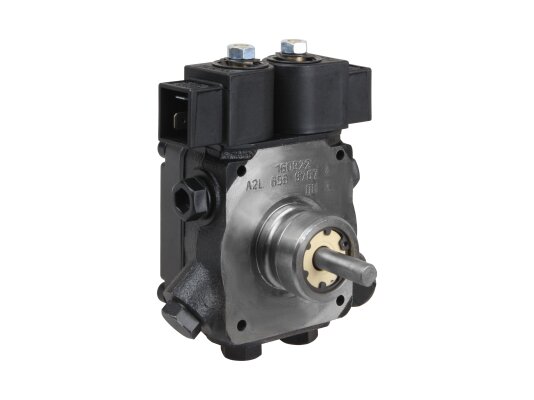

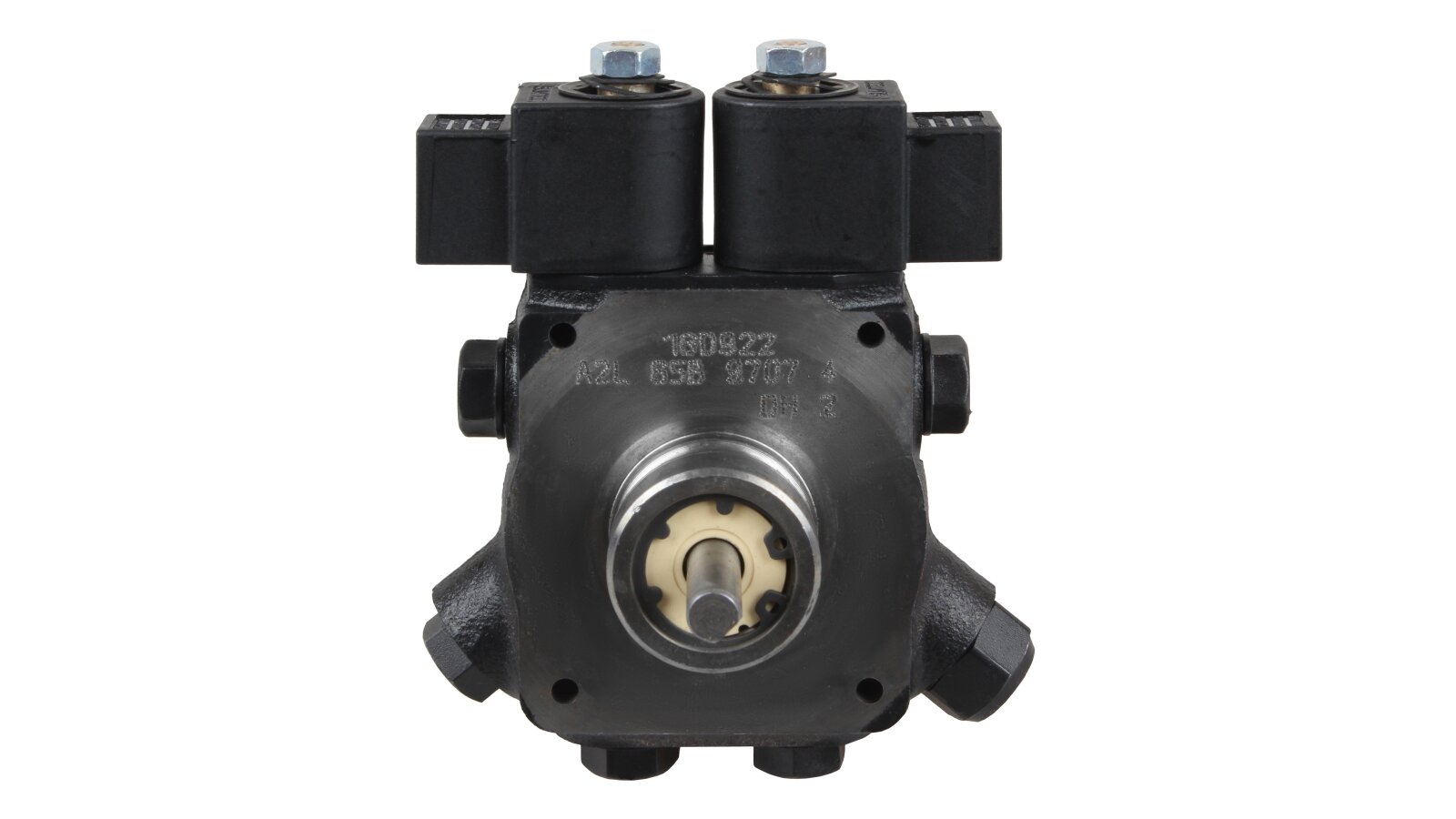

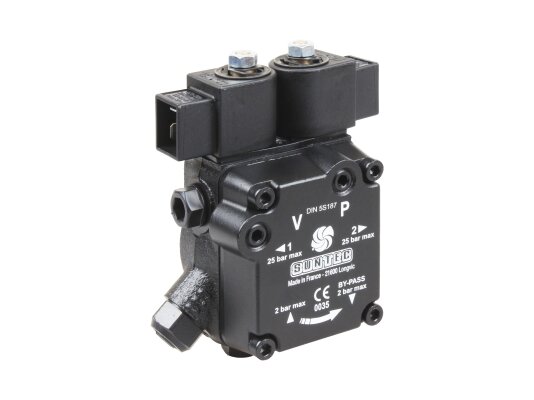

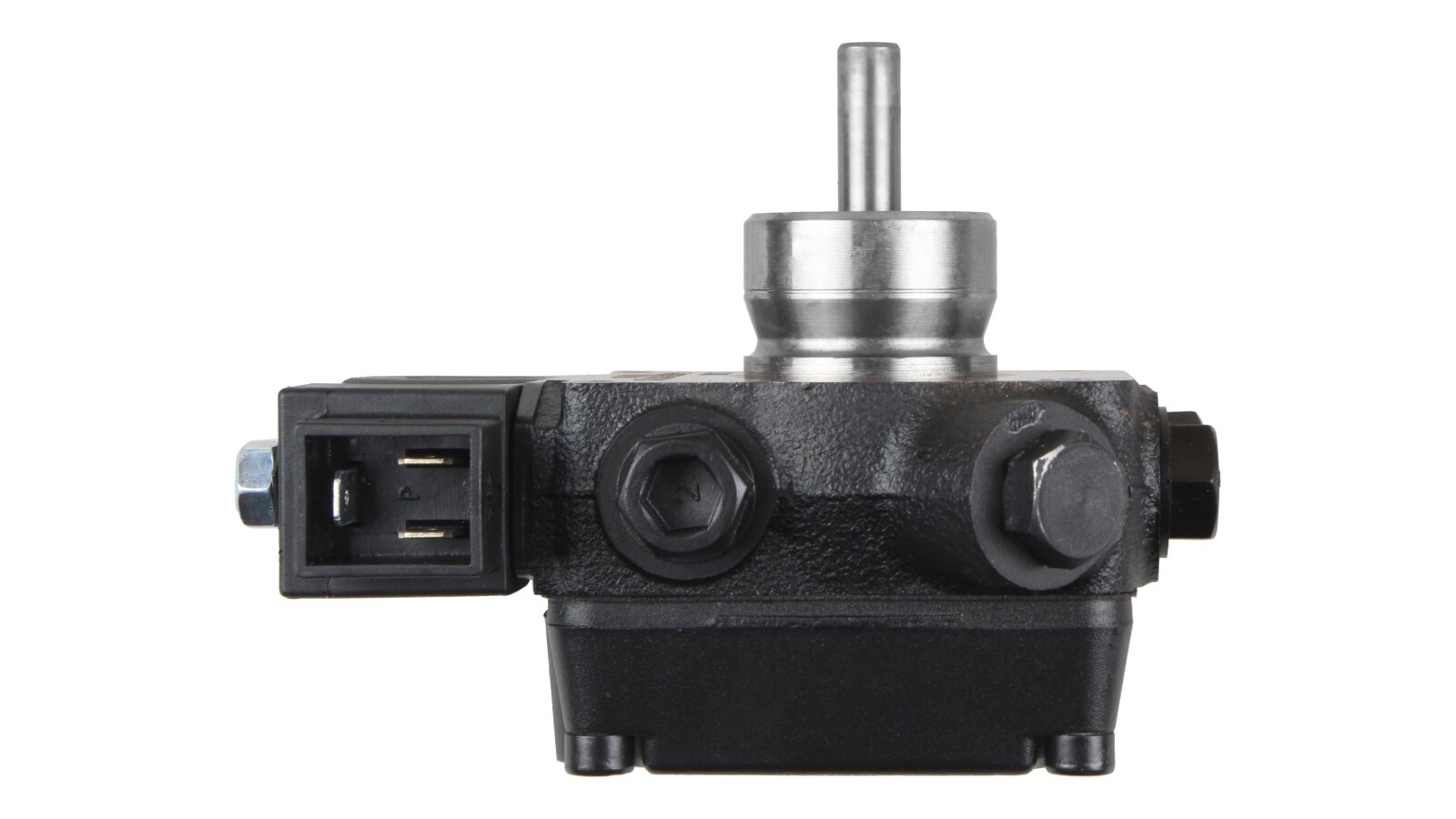

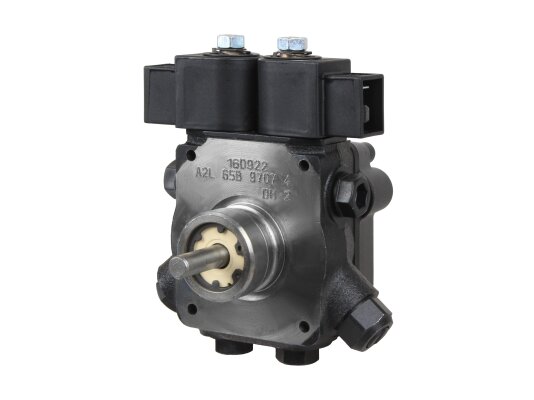

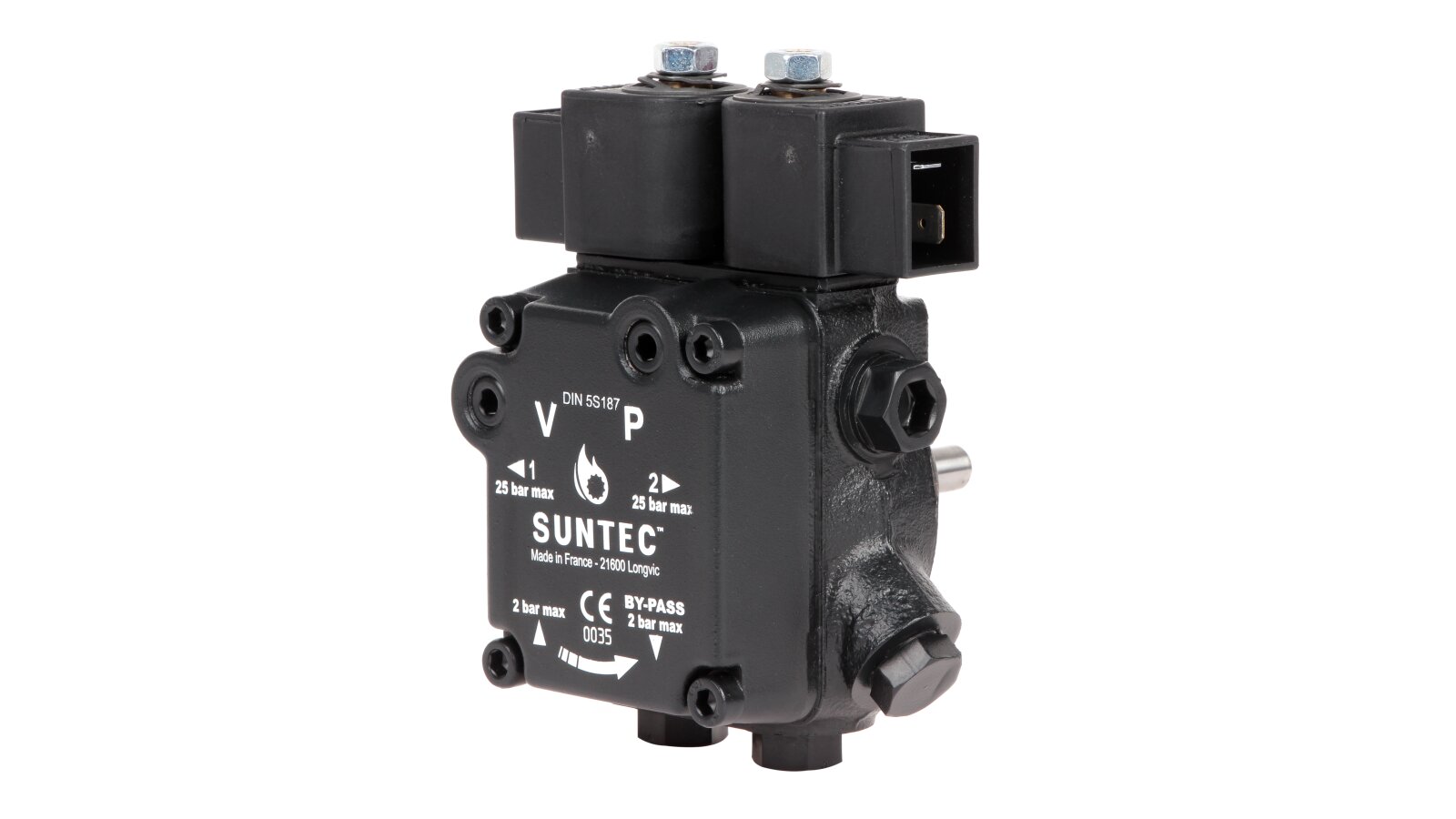

Burner Pump Suntec A2L 65 B 9707 4P 0700

Suntec

AED 1,825

Oil Burner Pumps
Products code: 2352

Description

Diesel pump A2L 65 B 9707 4P 0500 is designed to supply fuel to two injector lines simultaneously. Built-in electromagnetic valves with a locking function operate independently of each other. The pressure setting in the range of 8-15 atmospheres is carried out by the regulating valve. In one hour, the device pumps 81 liters of diesel fuel at a pressure of 11 bar and a viscosity of 5 cSt.

Design features

The working element that moves fuel from the tank to the injector lines is a gear mechanism. Before entering the gear pair, the fuel is cleaned by a filter with an open area of ​​20 cm², which retains rust, sand and other abrasive particles of 150 microns in size.

The electromagnetic valves instantly close the fuel supply upon receiving a signal from the control unit, regardless of the rotation speed of the drive shaft.

The factory pressure setting is 10 bar. It can be adjusted within 8-15 atmospheres using the adjusting screw.

The pump in the factory version is ready for a 2-pipe connection. When installing in a single-pipe unit, it is necessary to first remove the bypass plug, replacing it with a steel one to close the return line hole.

The main advantages are:

  • fuel injection into 2 lines simultaneously;

  • built-in EM valves with a shut-off function;

  • easy pressure adjustment;

  • high performance;

  • standard ports for connecting measuring devices according to ISO 228/1;

  • sleeve installation method (EN 225);

  • removal of foreign impurities from the pumped fuel.

The company "ANKAS" offers to buy a fuel pump Suntec A2L 65 B 9707 4P 0500 and other equipment for heating systems. Suntec equipment is distinguished by high quality workmanship, trouble-free service and affordable price. You can place an order directly on the website by filling in your contact information.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 81 l/hDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Pump series: A2L: 2 nozzle outlets and two integrated shut-off solenoid valves with locking functionSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 10 barTorque: 0.14 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
