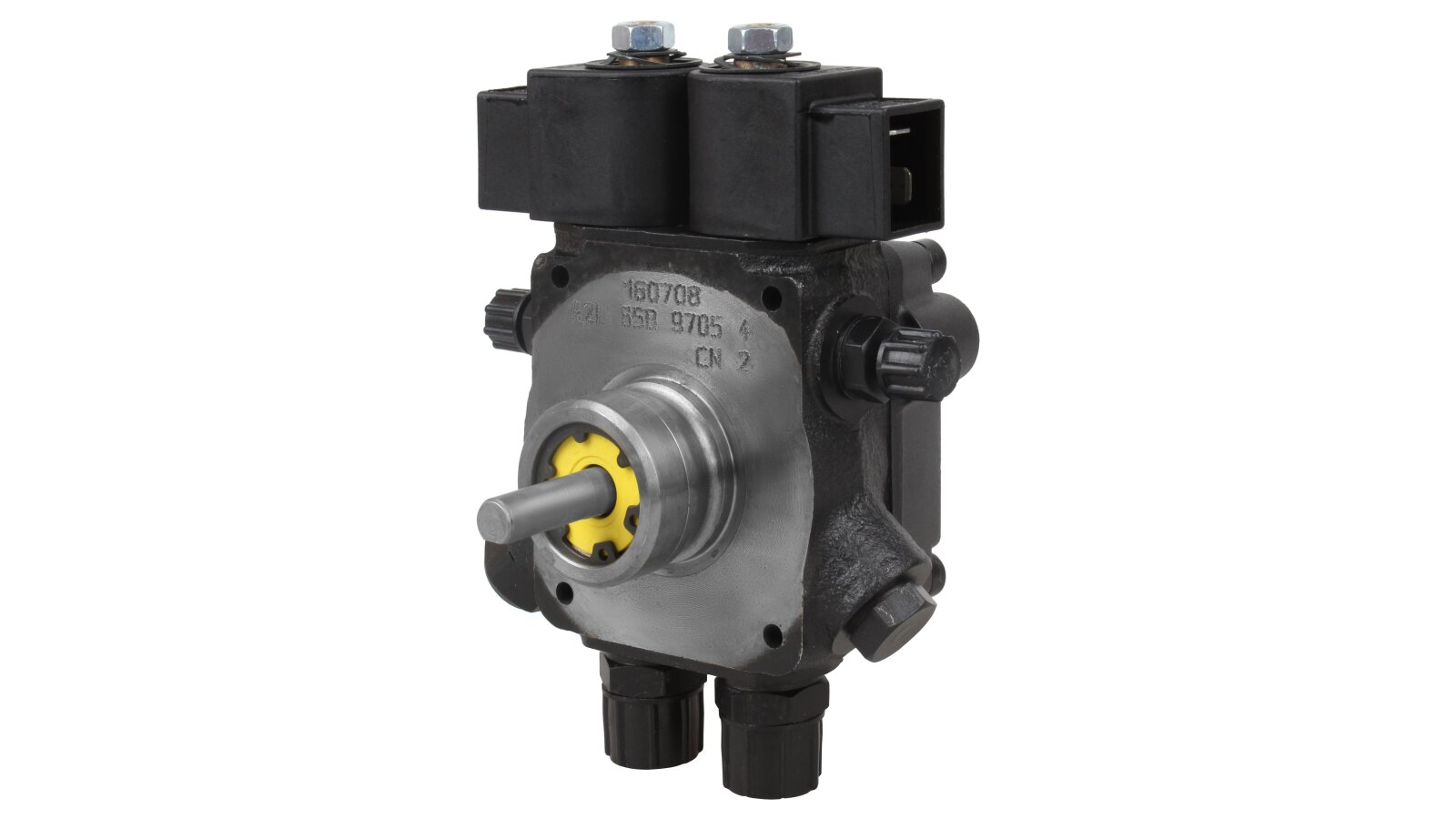

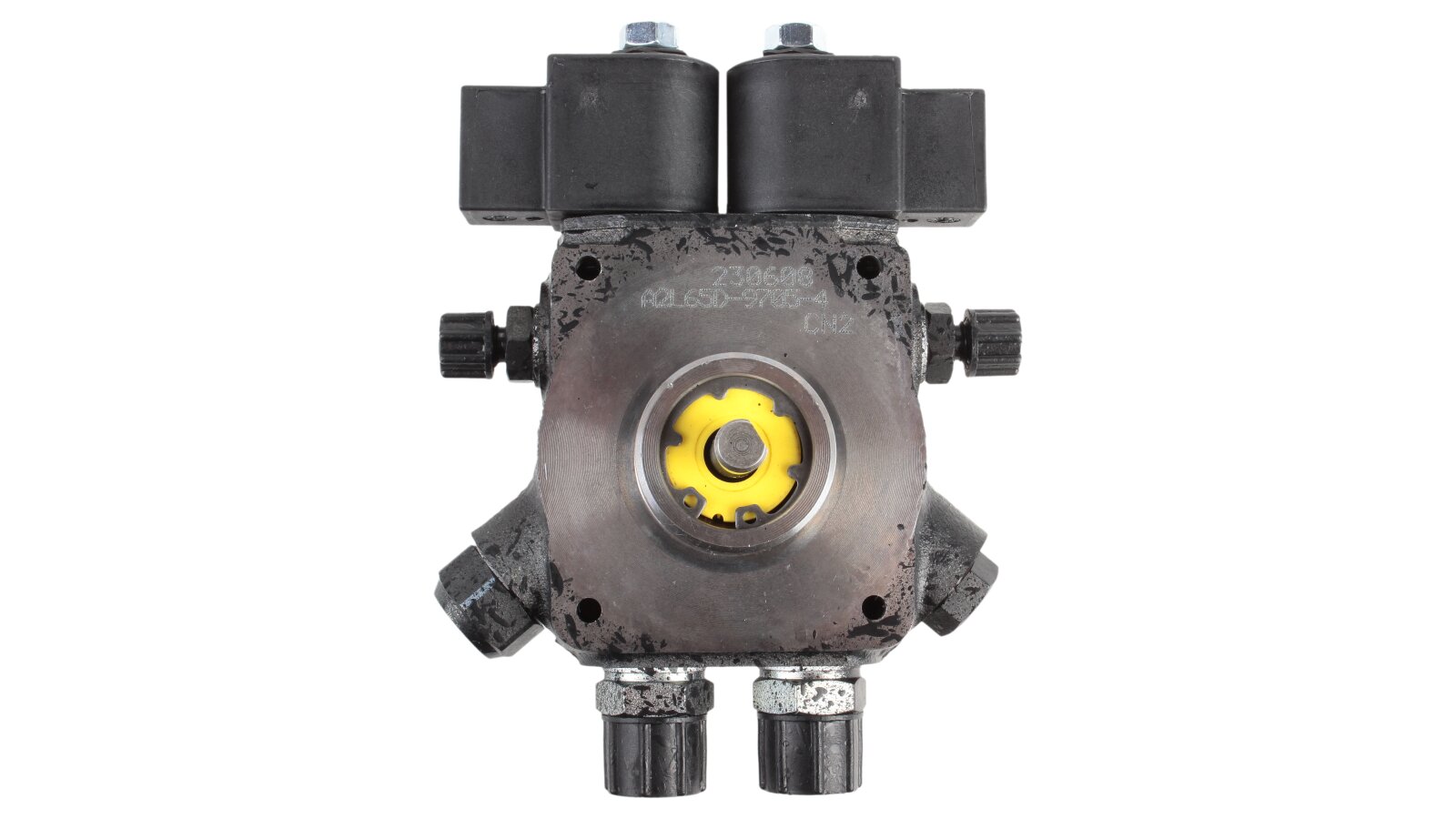

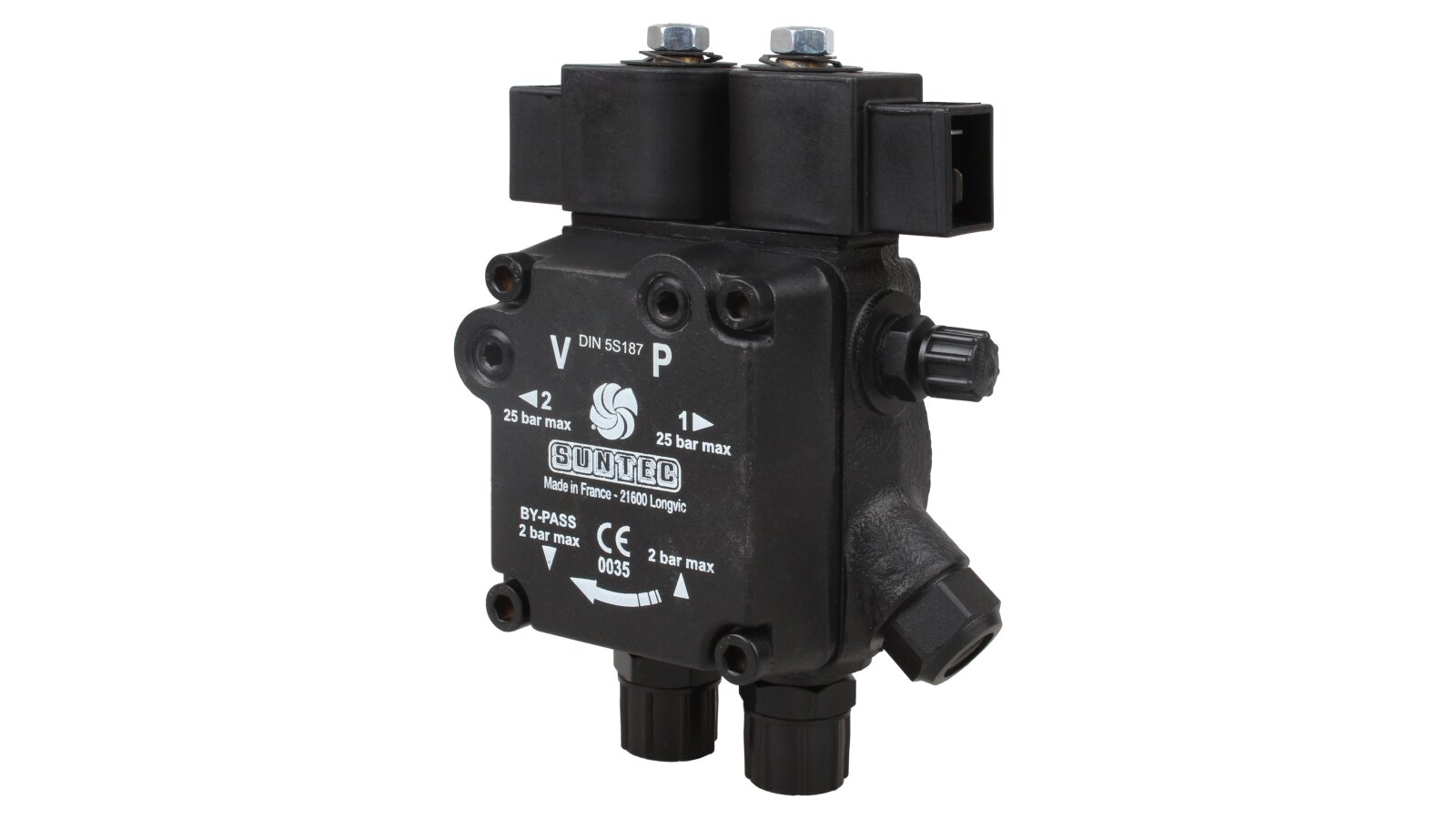

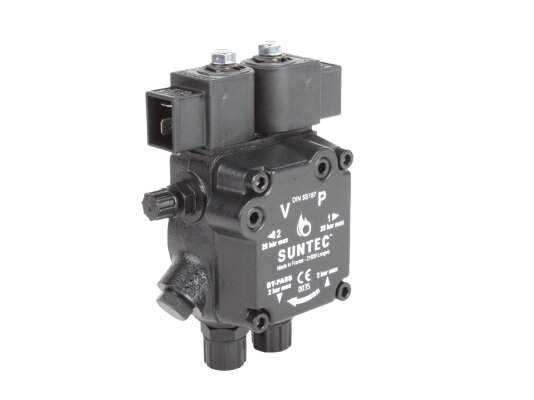

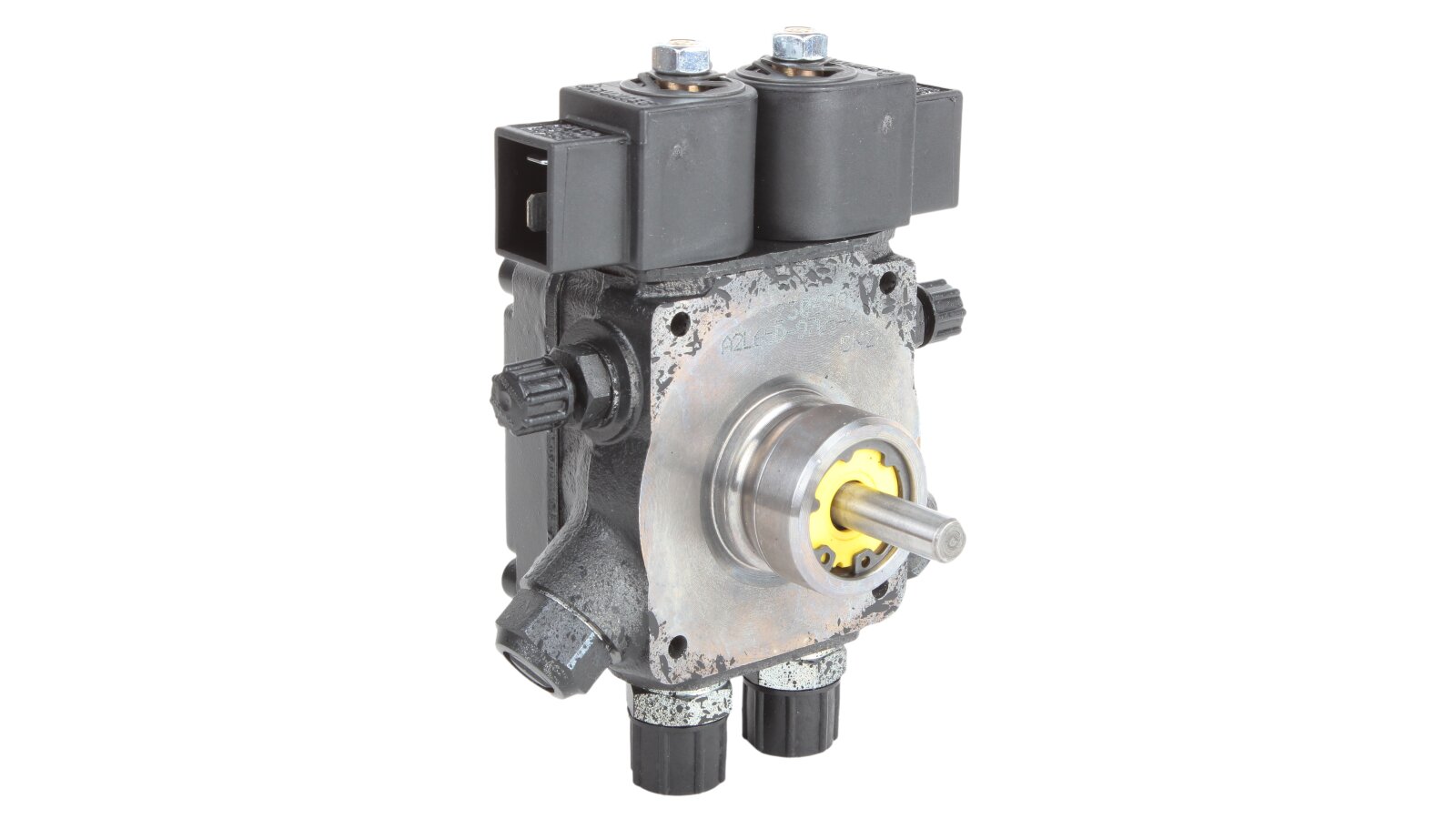

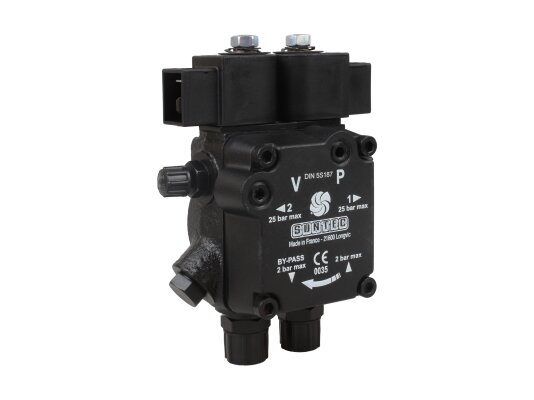

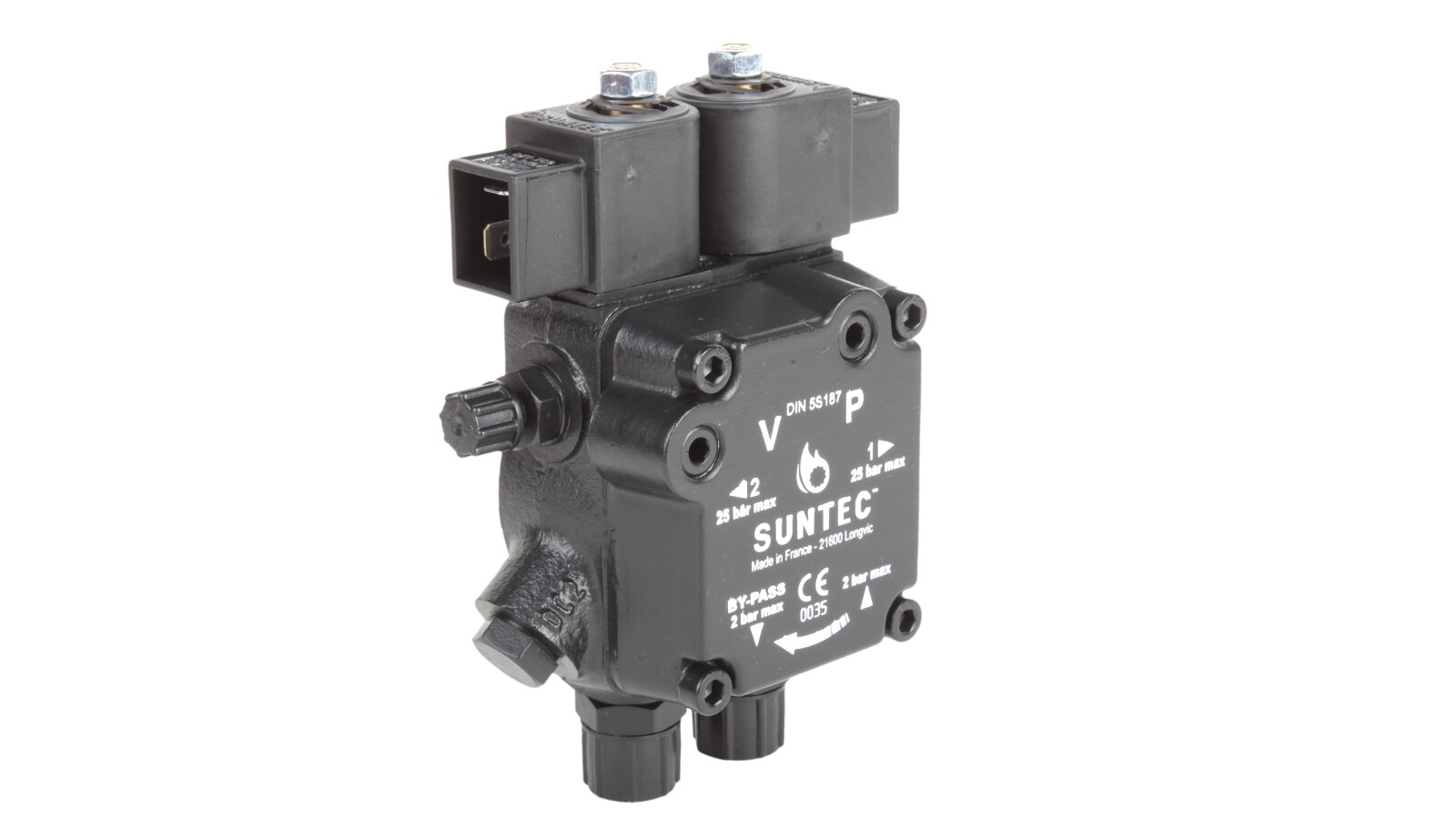

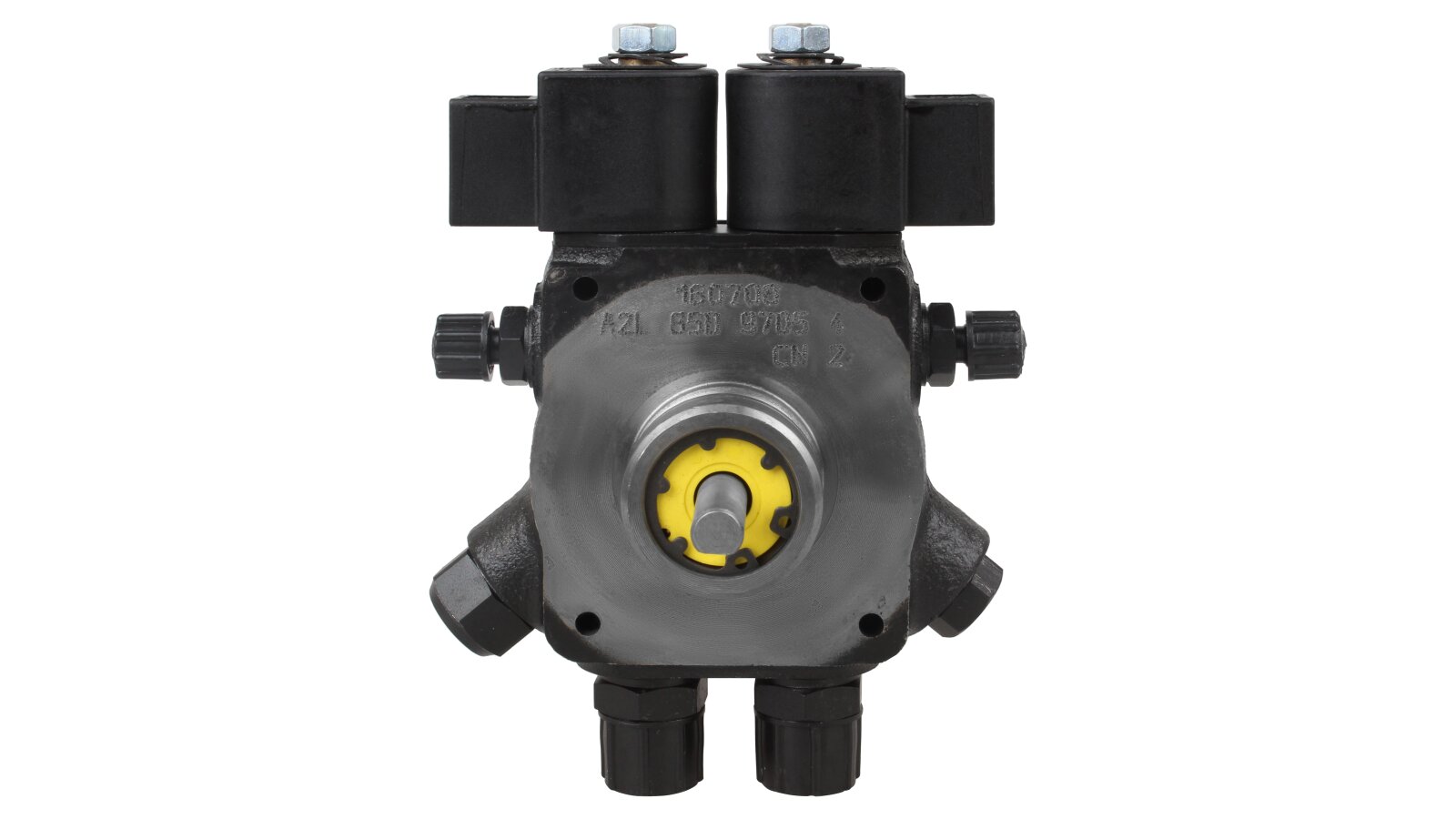

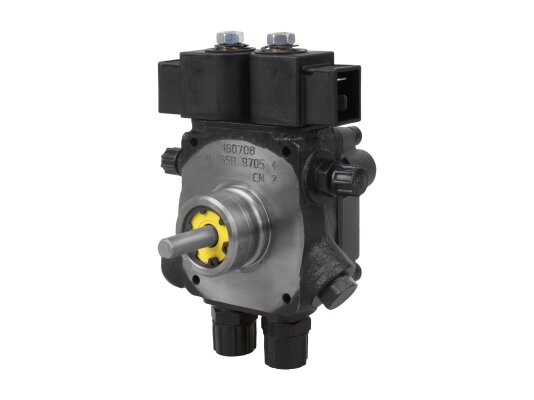

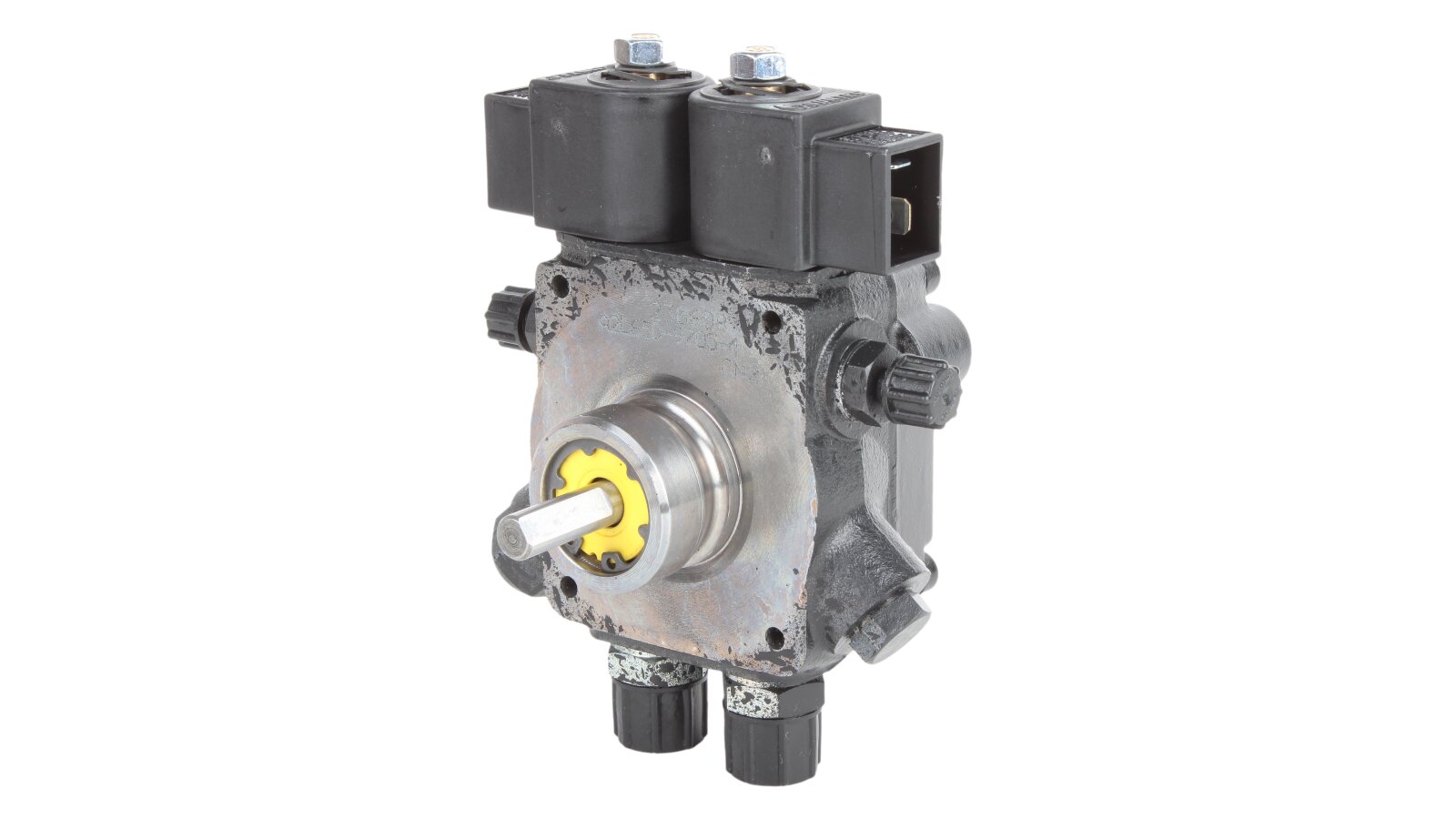

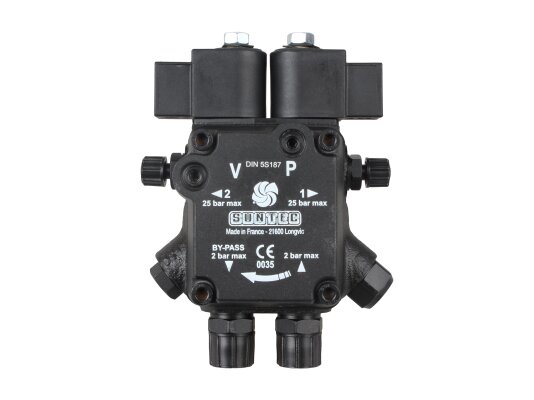

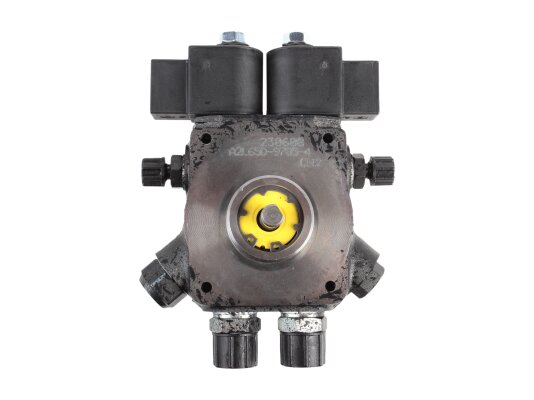

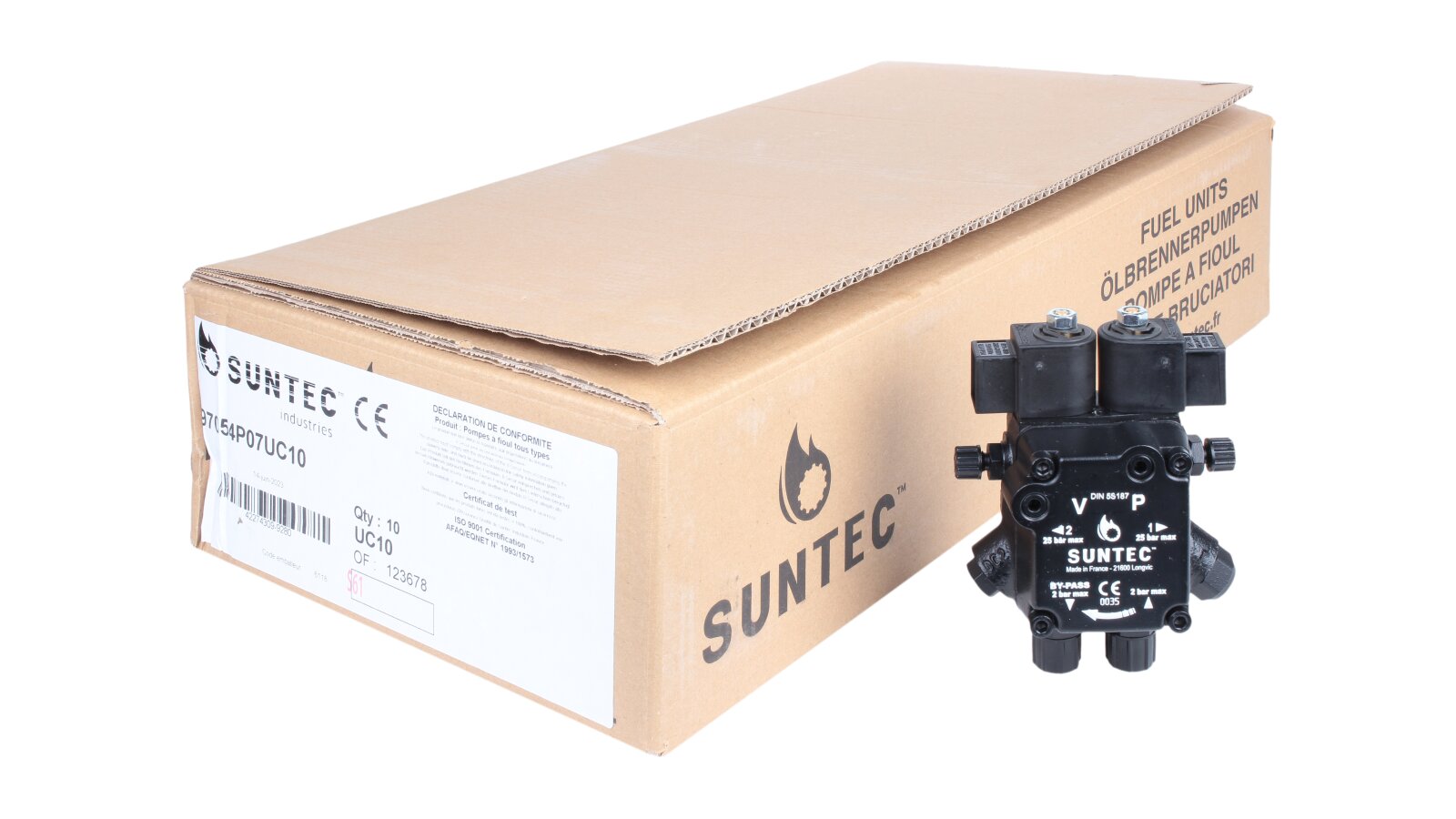

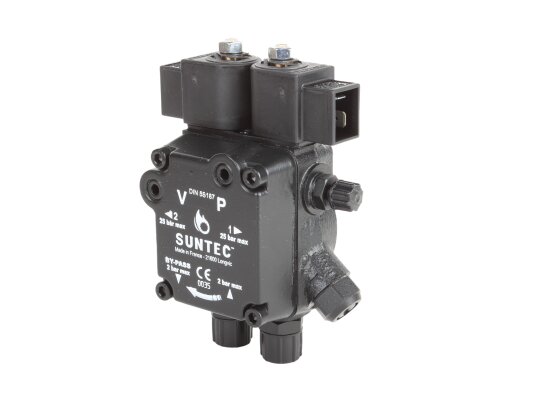

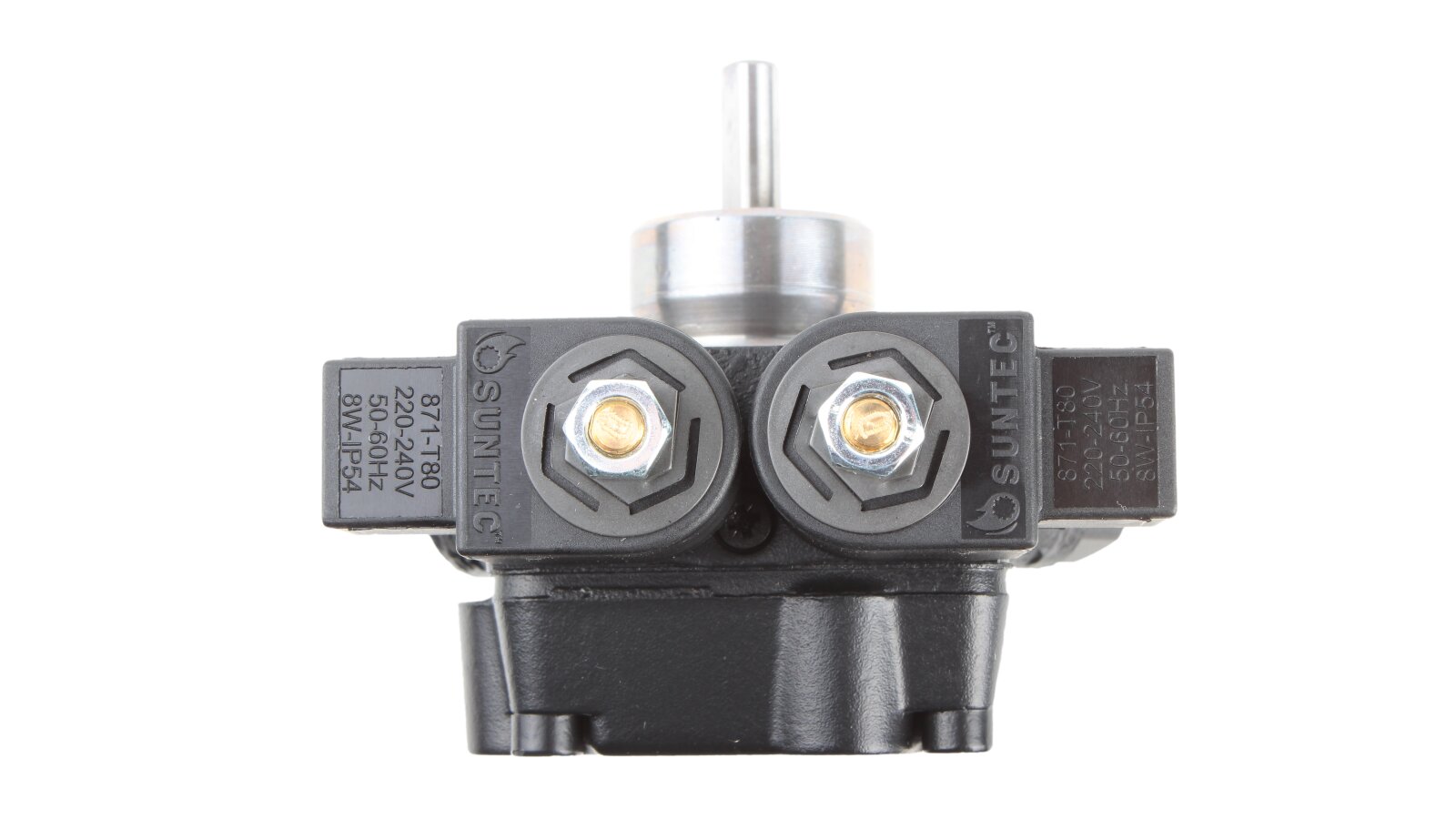

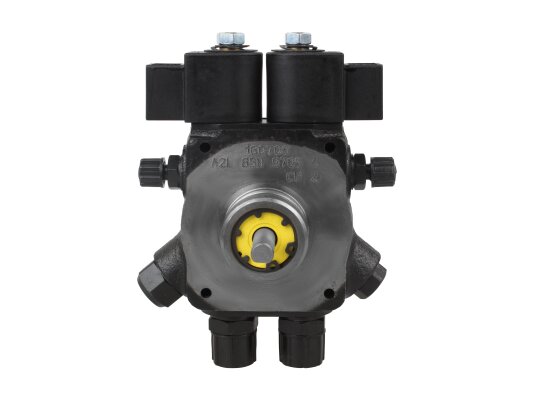

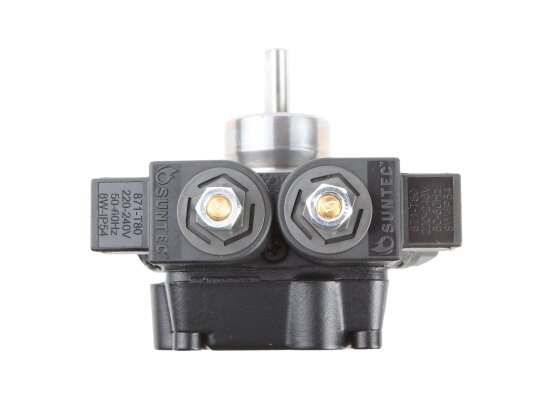

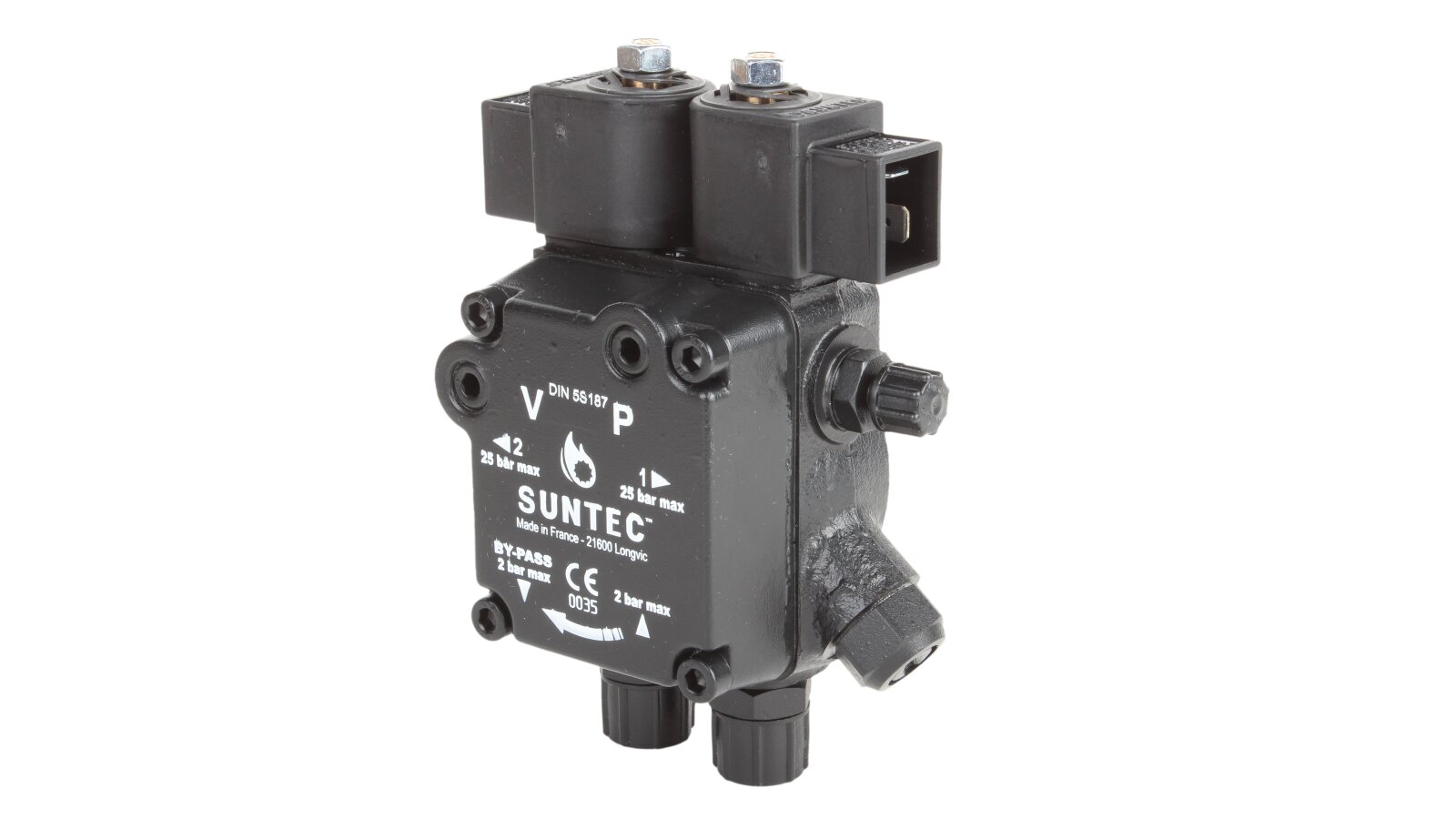

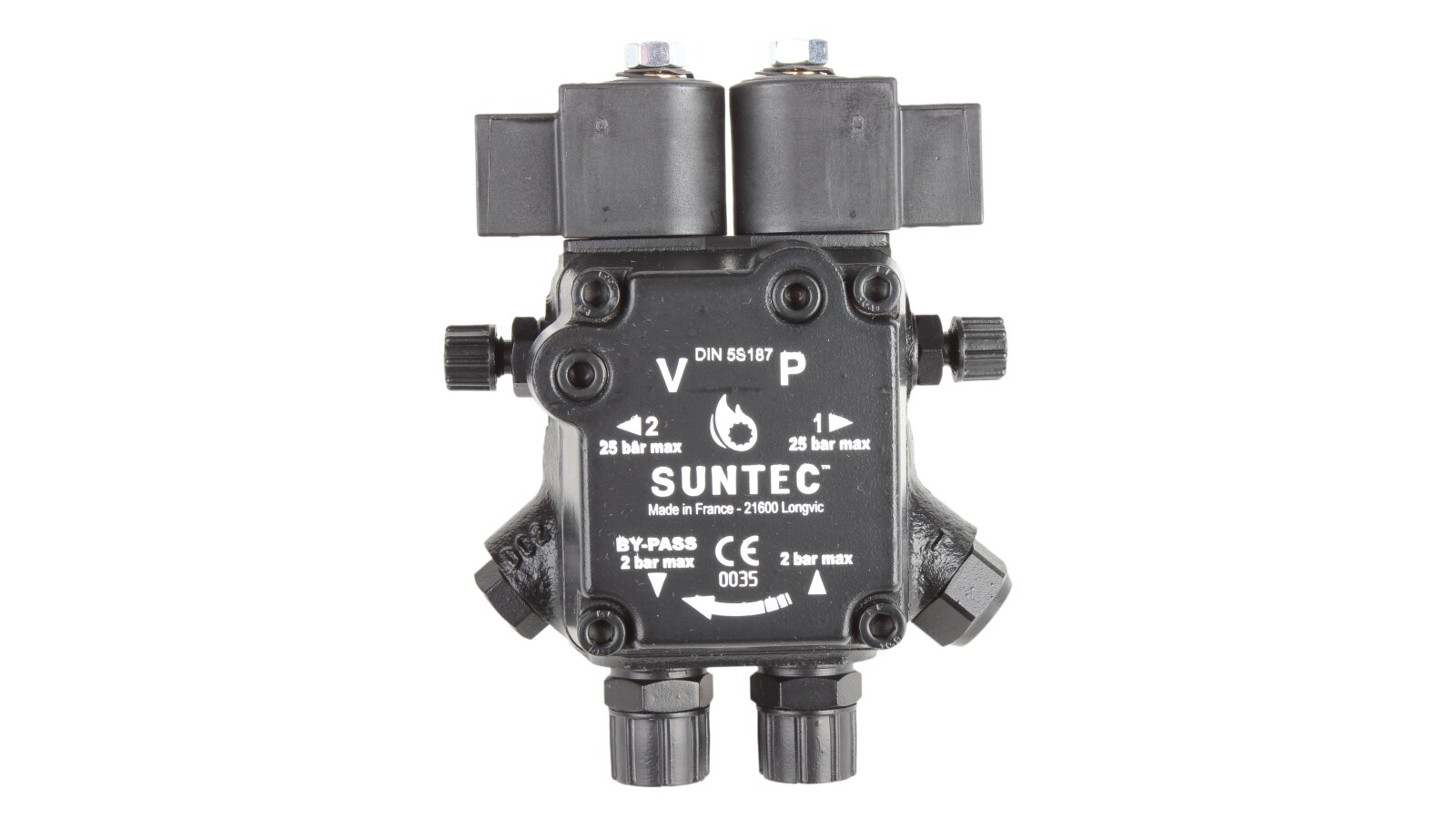

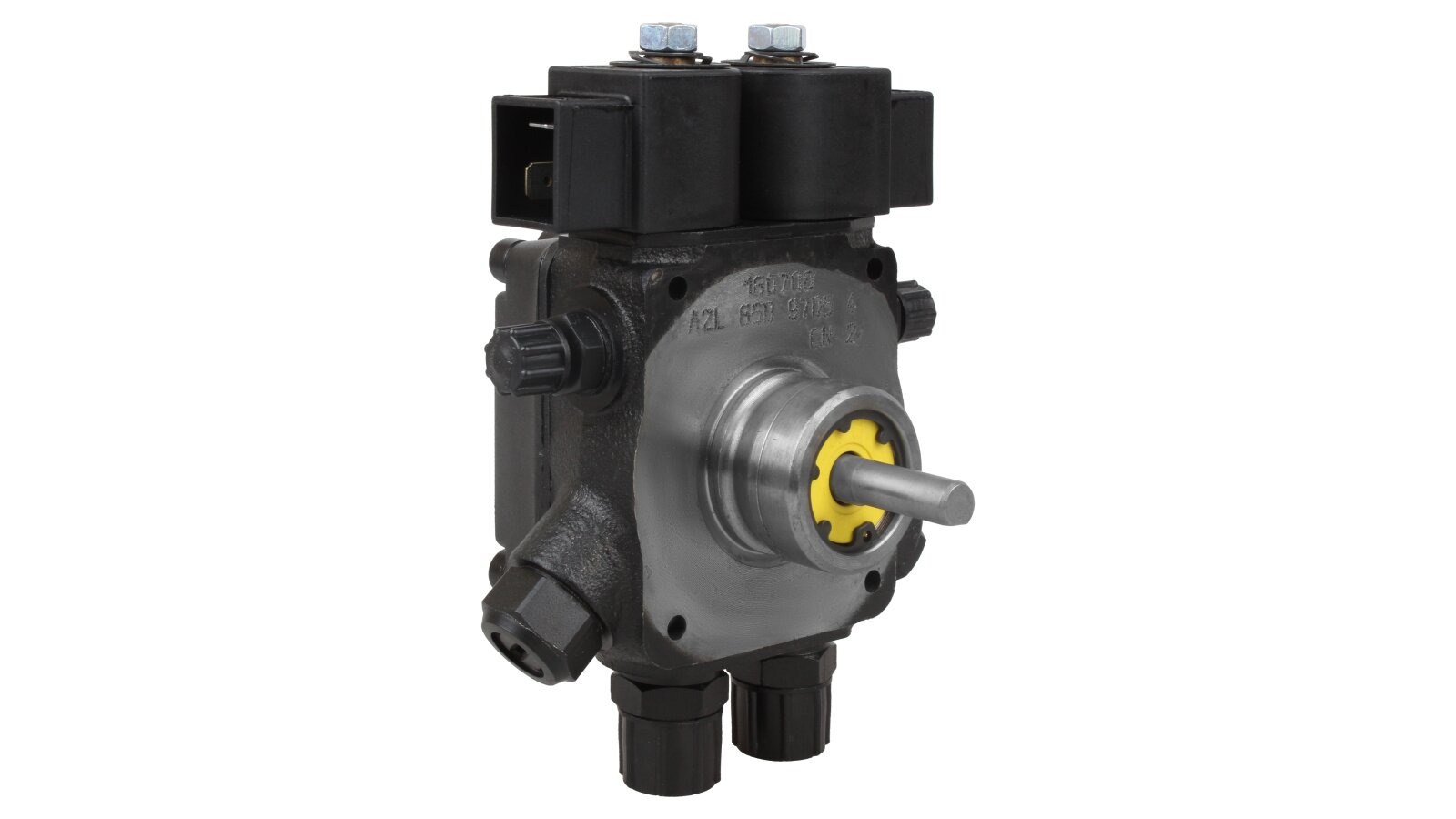

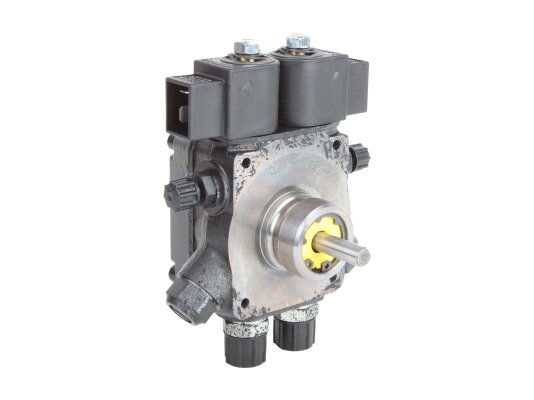

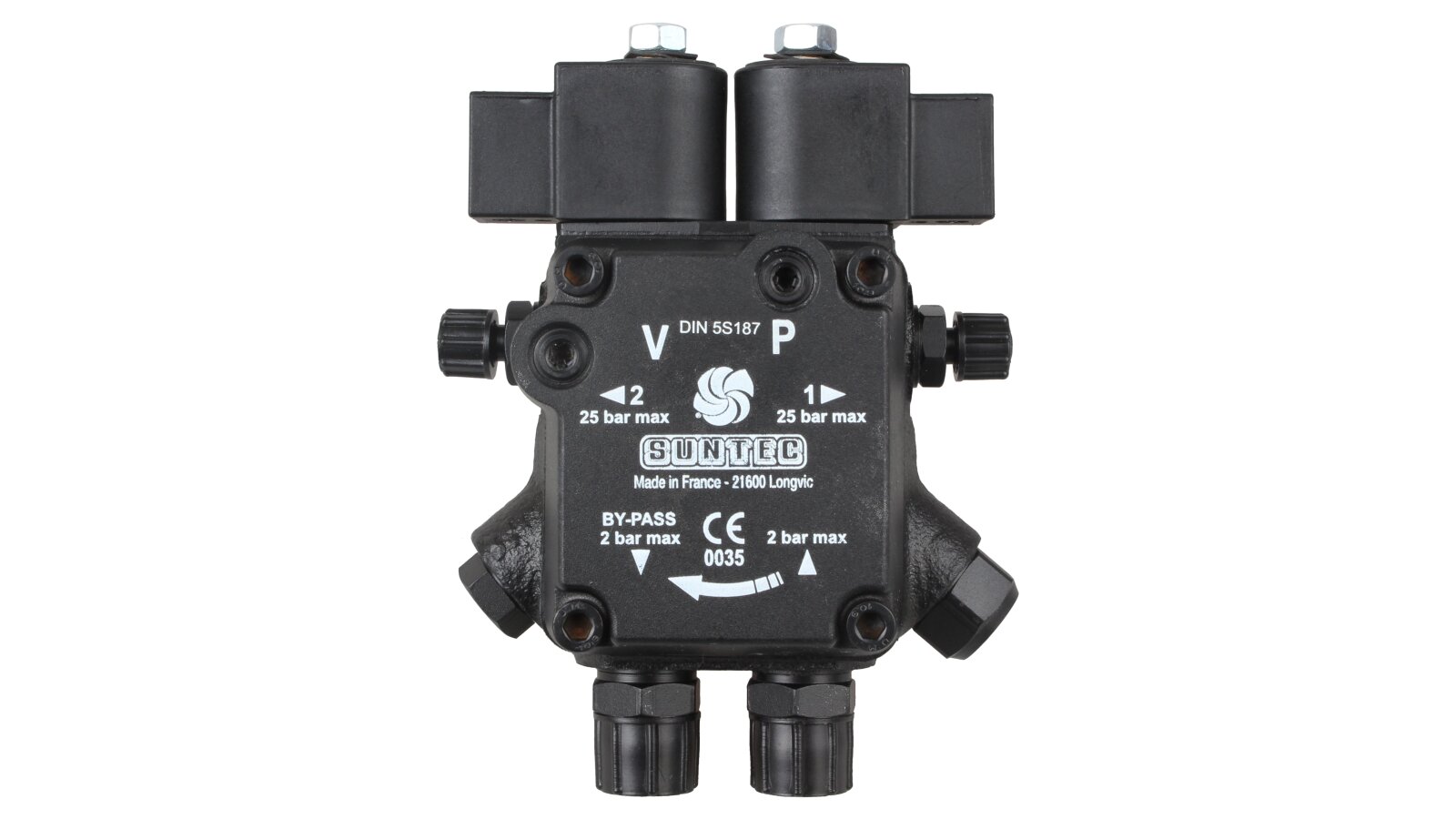

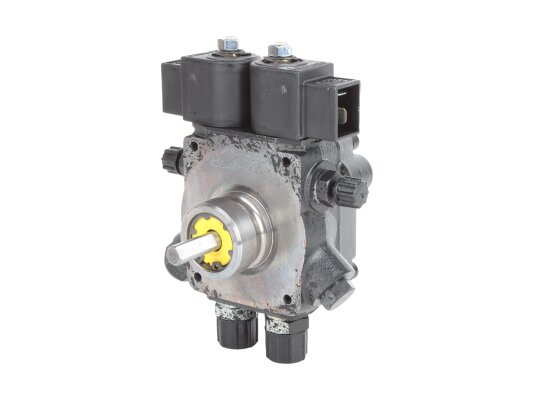

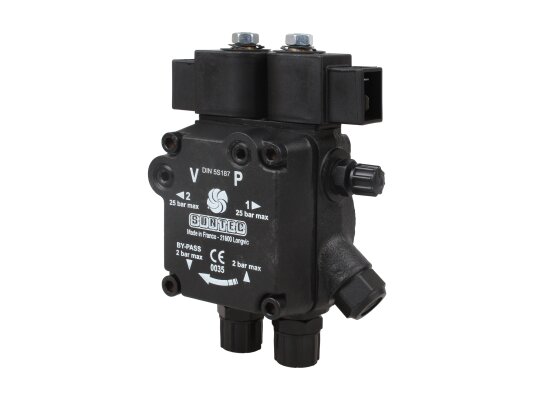

Burner Pump Suntec A2L 65 D 9705 4P 0700

Suntec

Alternative Part Number

0150134

Elco

13016444

1318683347

1318595817

AED 1,225

Oil Burner Pumps
Products code: 1244

Description

The A2L 65 D 9705 4P 0700 gear pump from the French company Suntec is designed to pump a large volume of fuel (81 l/h) under high pressure in two directions at once. Each injector line can operate independently of the other thanks to shut-off electromagnetic valves. The set pressure is maintained by a spool pressure reducing valve with an adjusting screw.

The ANKAS company website offers to buy a heating burner pump at an affordable price. To order equipment, contact the manager by phone or fill out a short feedback form.

Design features

  • All the hard work of moving fuel to the injectors is performed by the gear mechanism. It includes a gear pair: a straight-toothed gear and a wheel. Their mutual counterclockwise rotation causes a vacuum in the suction pipe. The entrained fuel is pushed into the high-pressure channel, and then to the injectors.

  • The pump controls include electromagnetic solenoids and a slide valve. The former are responsible for the order of switching on the feed and locking the channel by a signal from the burner control unit. The latter acts as a pressure level regulator in the range from 8 to 15 bar. The adjustment process does not require stopping the drive rotation, which makes it more comfortable and faster.

Model advantages:

  • high-performance model for supplying different grades of diesel fuel;

  • each outlet to the injectors operates independently;

  • wide adjustment range — from 8 to 15 bar;

  • excess fuel discharge through an additional pipe into the tank (two-pipe system);

  • inlet and outlet threads comply with the European standard ISO 228/1;

  • unified sleeve connection with the burner with a landing diameter of 32 mm;

  • there is a built-in fuel filter that retains mechanical particles from 150 microns and more.

Suntec devices are designed to increase the convenience of assembling the entire fuel system. Model A2L 65 D 9705 4P 0700 is a multifunctional pump, in which all the main elements are installed: electromagnetic valves, pressure reducing valve, ports for instrumentation, mesh filter. Their compact placement in the device body gives an aesthetic appearance and significantly reduces the dimensions of the assembly.

Characteristics

Direction of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightPerformance at 11 bar pressure and 5 cSt viscosity: 81 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: A2L: 2 nozzle outlets and two integrated shut-off solenoid valves with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 81 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240 or 110-120 or 24 VInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.12 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
