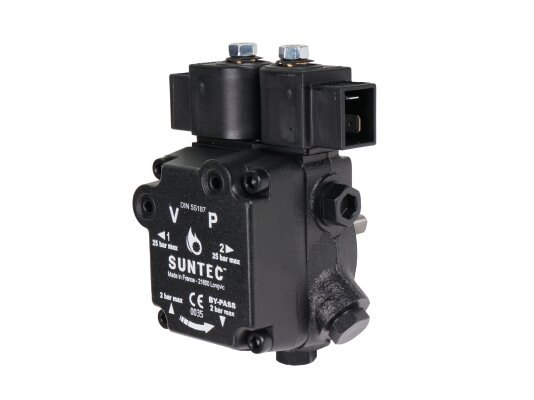

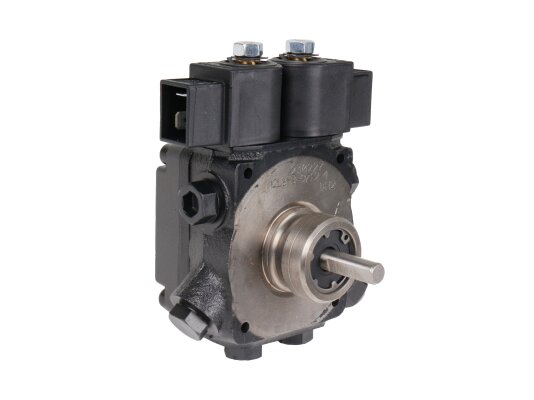

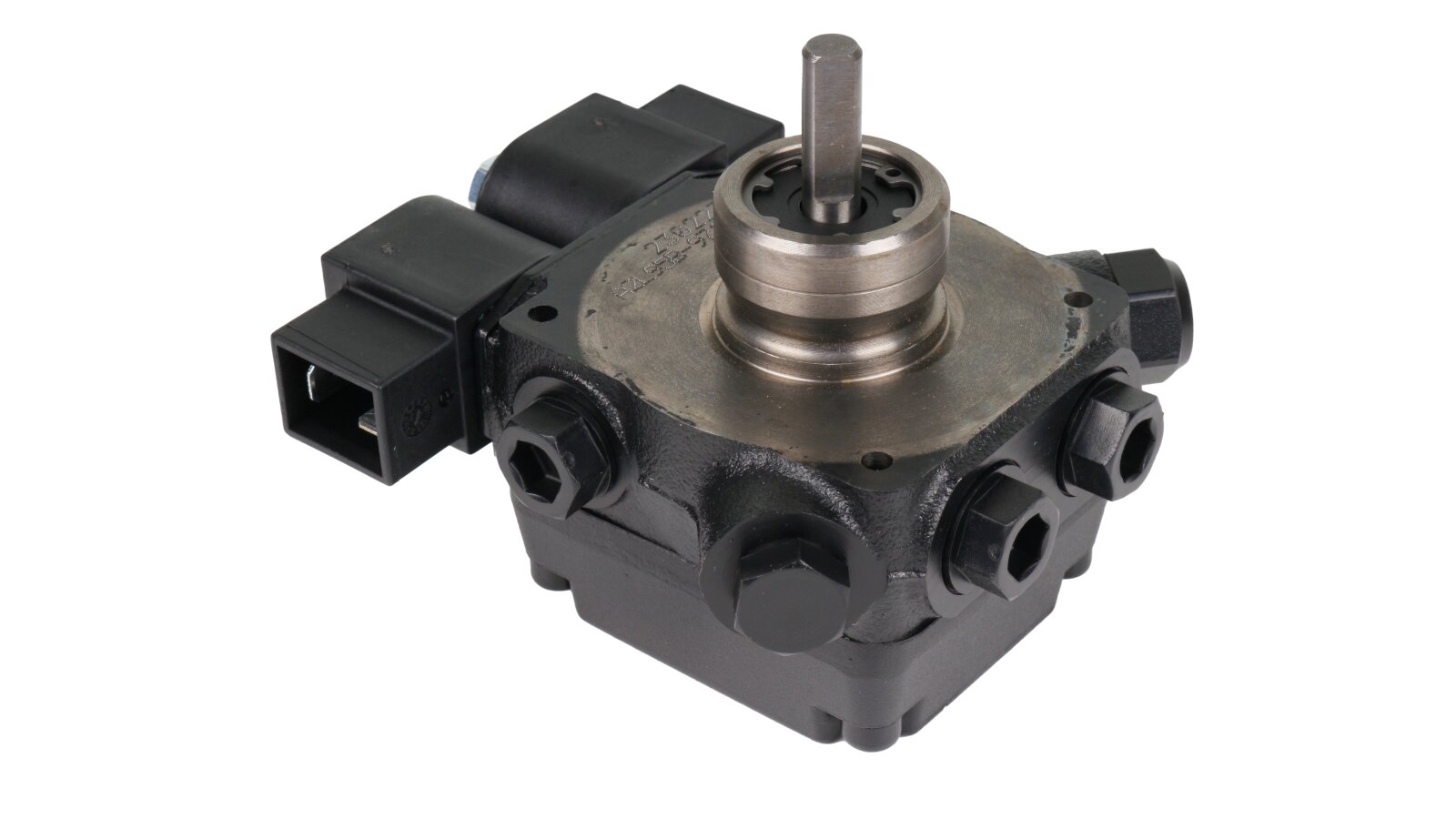

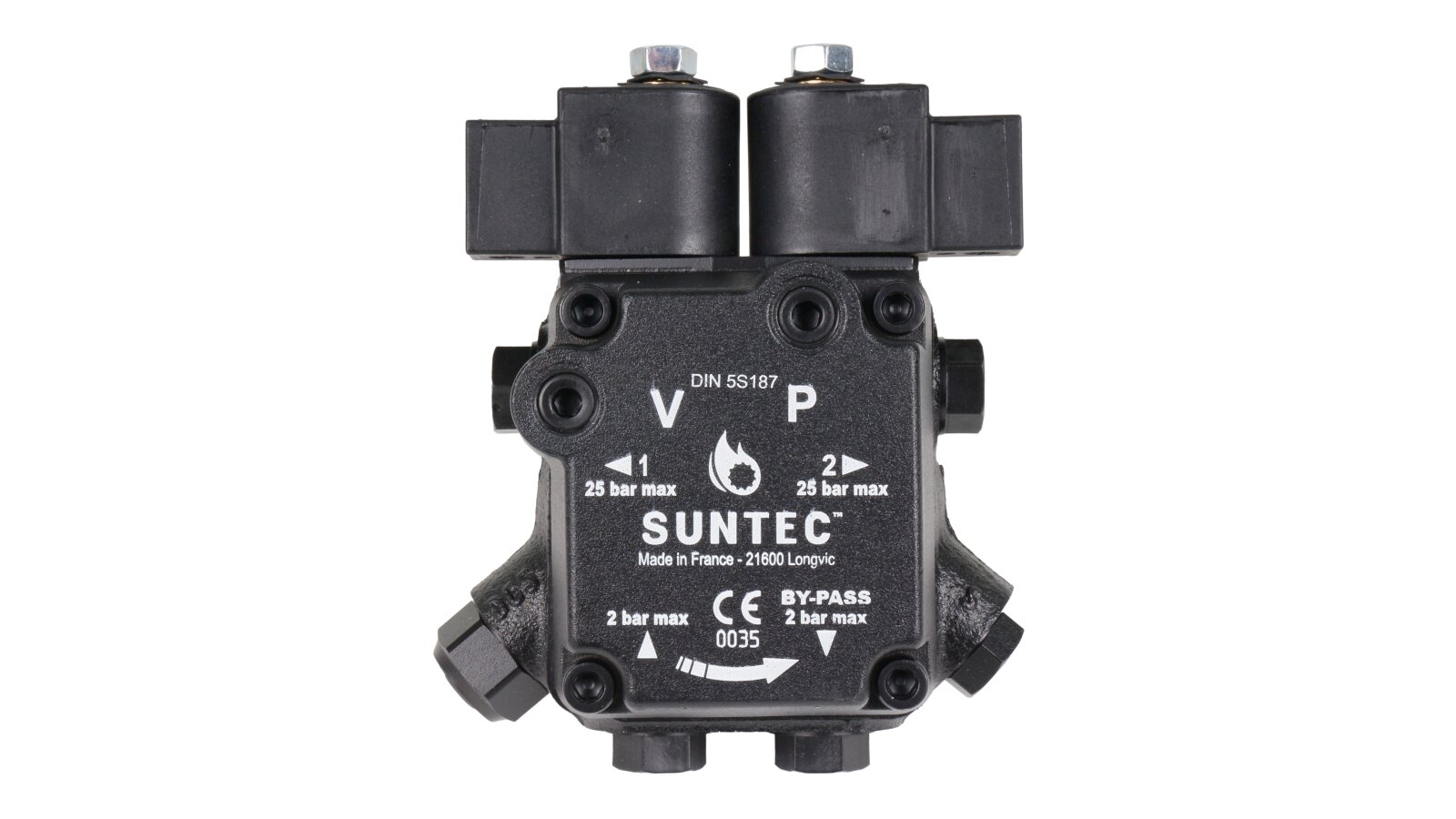

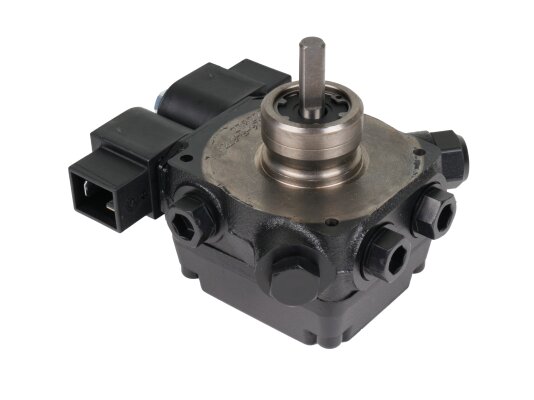

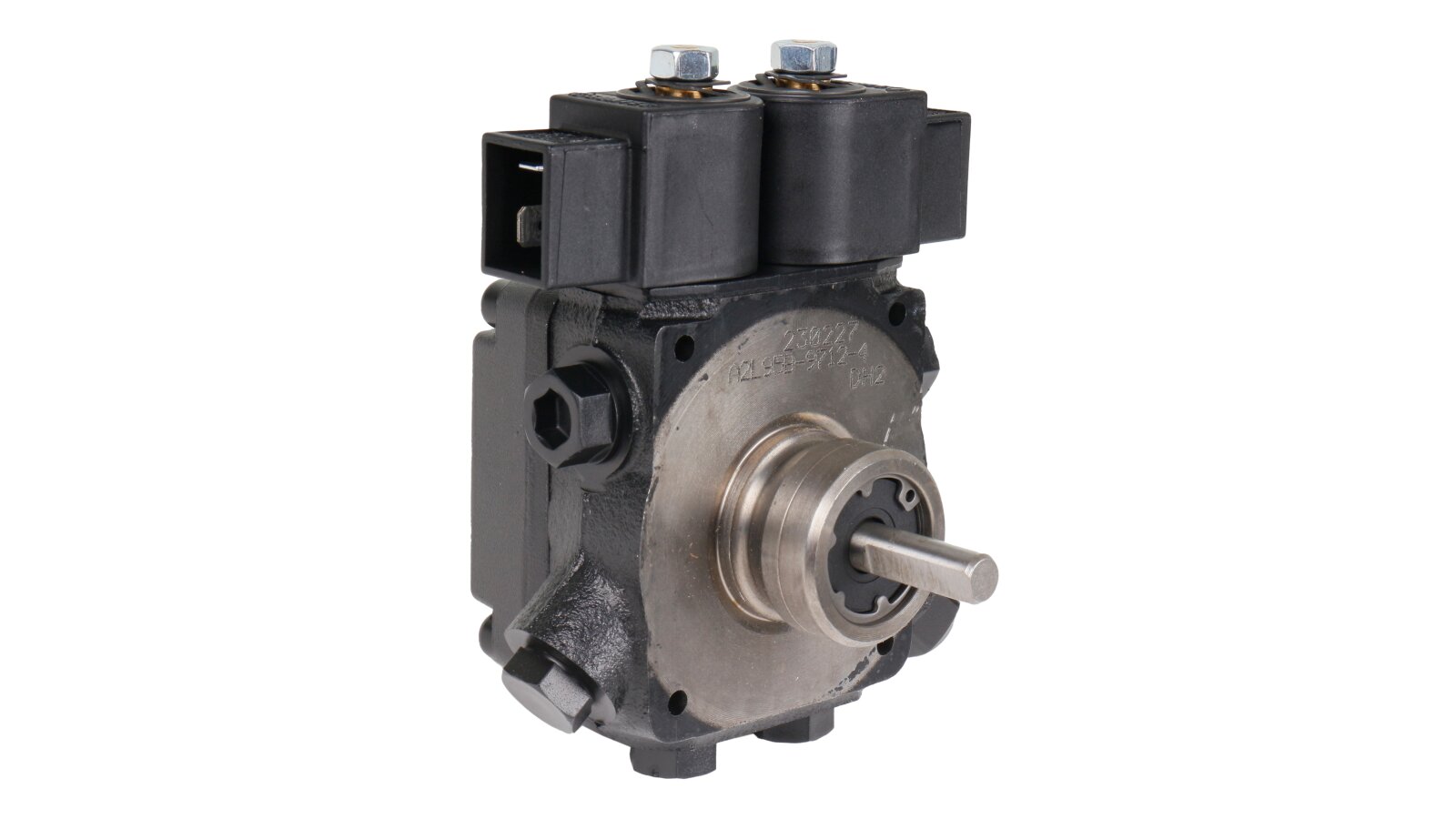

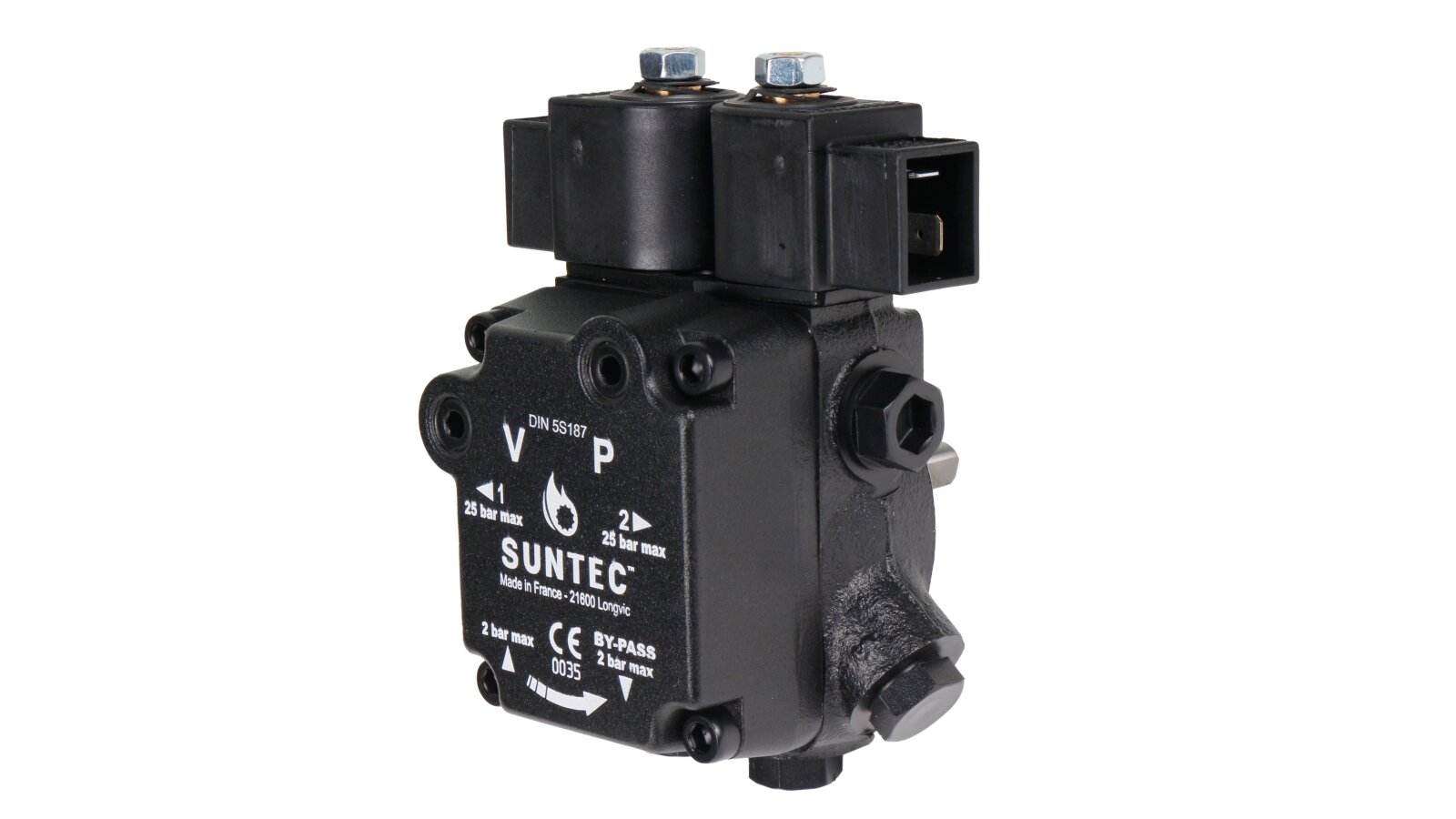

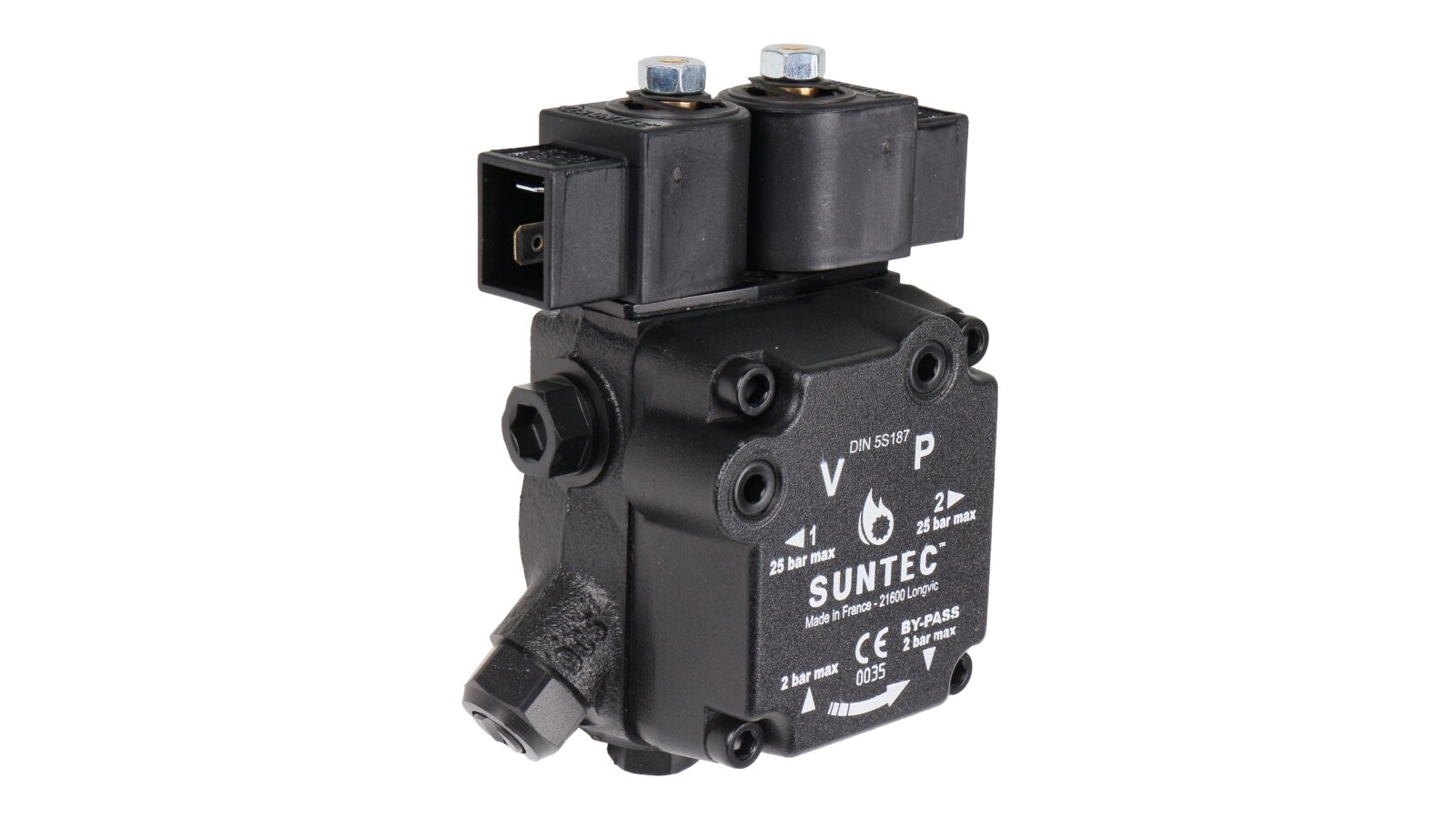

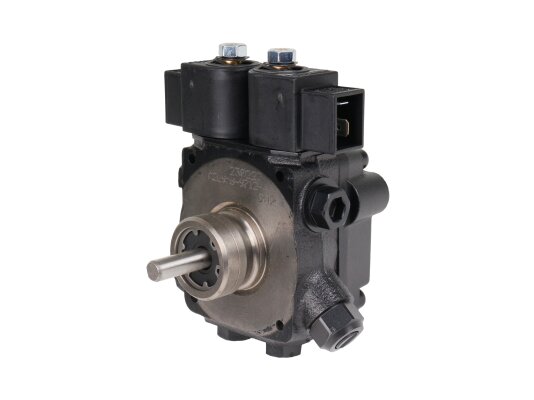

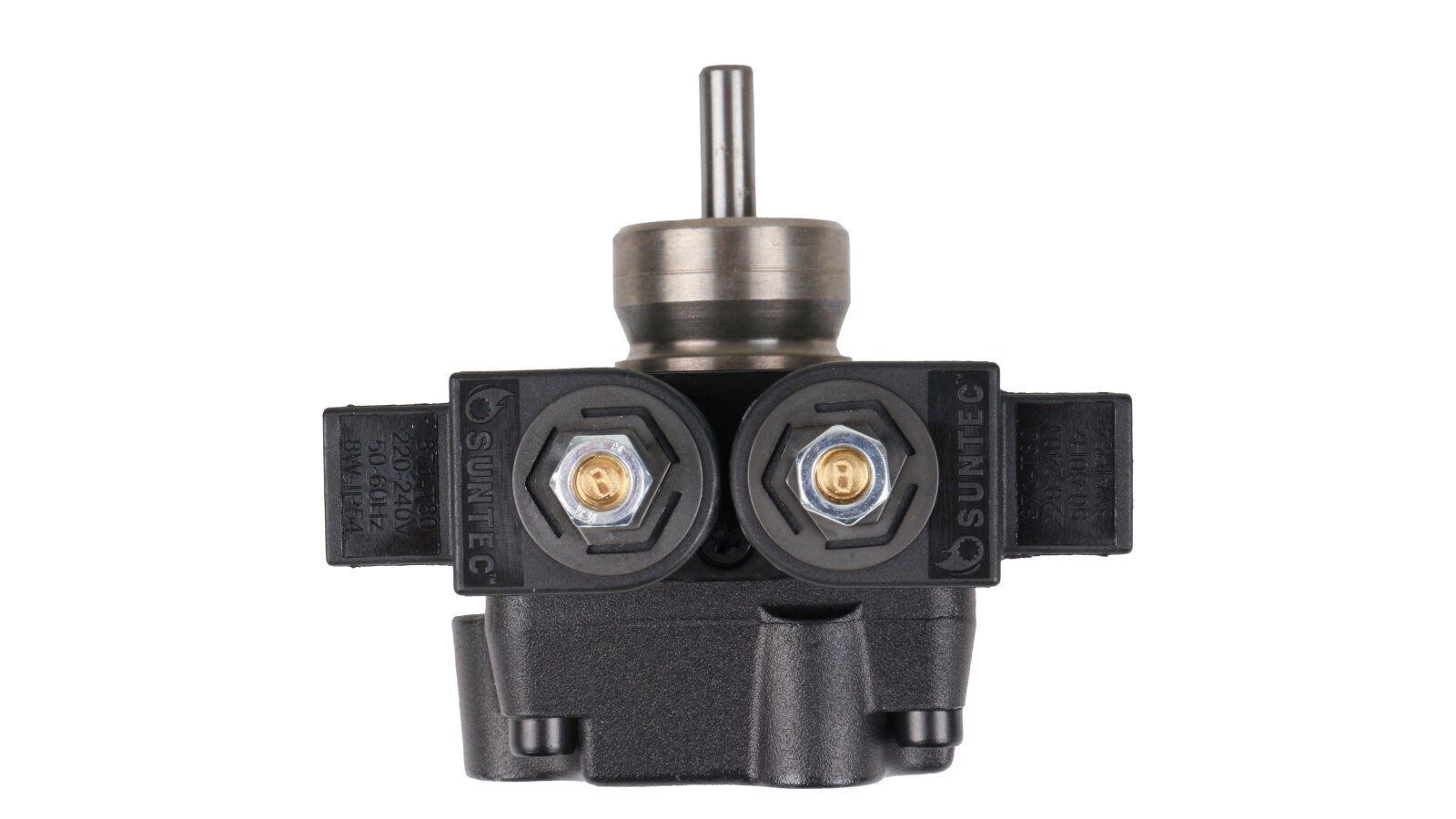

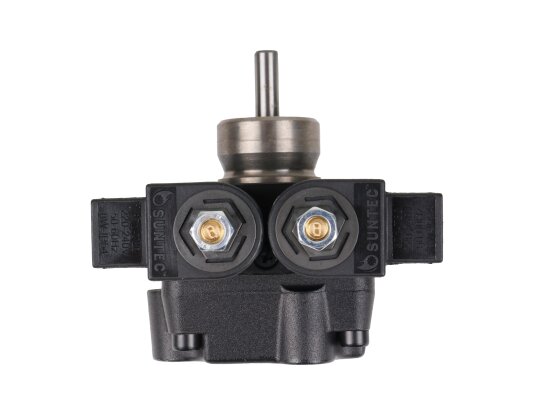

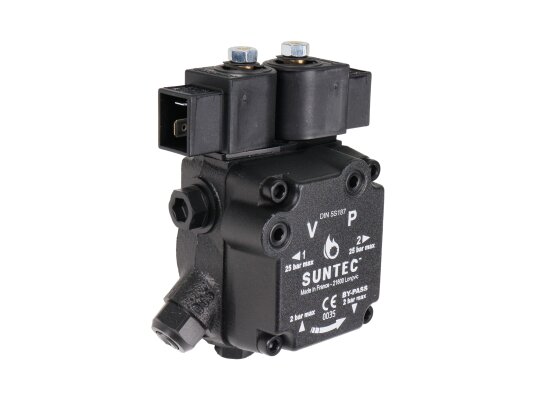

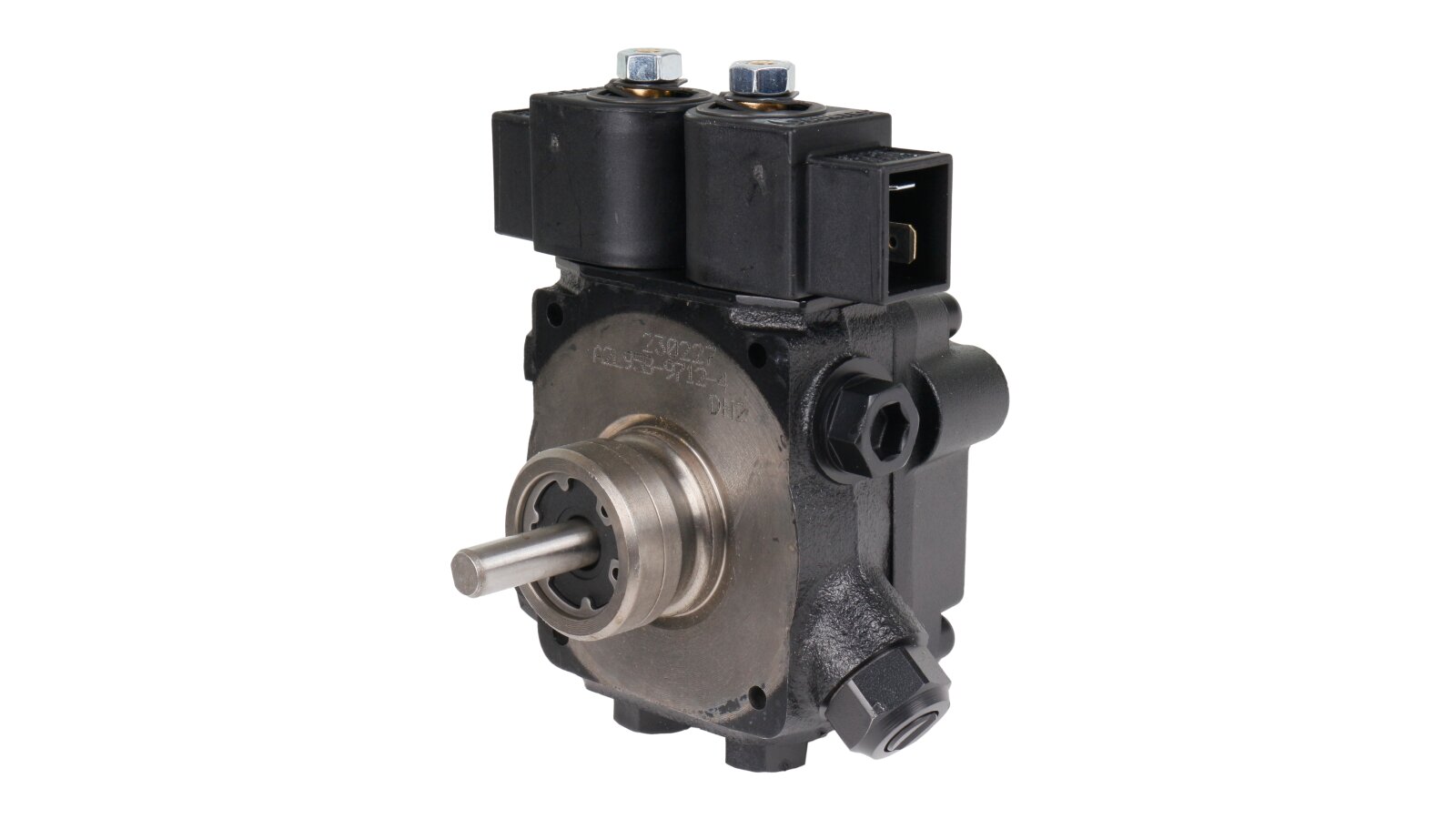

Burner Pump Suntec A2L 95 B 9712 4P 0700

Suntec

Alternative Part Number

De Dietrich

97955379

AED 1,275

Oil Burner Pumps
Products code: 6863

Description

The Suntec A2L 95 B 9712 4P 0700 pump is designed to pump diesel fuel to two injectors at once. It is equipped with two electromagnetic valves with a flow interruption function for each outlet on the injector line. The performance depends on the pressure setting and the viscosity of the fuel.

Features

  • The pump is equipped with a dust- and moisture-proof housing that meets the IP54 standard. A mesh filter is installed at the fuel inlet. The mesh removes abrasive inclusions from the pumped diesel fuel, the size of which is more than 150 microns, which contributes to the long service life of the equipment, prevents early wear and tear and breakage.

  • At the factory, the pump is set to a pressure of 9 bar. It can be adjusted in the range from 8 to 15 bar, taking into account your own needs. To maintain a given pressure level, the pump is equipped with a slide valve with an adjusting screw.

  • "Normal closed" electromagnetic valves block the injector line channels and are characterized by fast response.

  • The pump is ready for installation in a 2-pipe system. When used for a single-pipe configuration, remove the bypass plug and plug the drain hole. Excess fuel passes through the return line to the tank or goes to the gears, depending on the fuel line layout.

  • The pump is designed to operate with diesel fuel, the temperature of which does not exceed +60 ºC.

Advantages:

  • high performance;

  • fuel supply to 2 injectors;

  • the ability to adjust the pressure without turning off the engine;

  • fast response of electromagnetic valves with the flow cut-off function;

  • fuel filtration from abrasive inclusions;

  • single-pipe and two-pipe layout;

  • standard ports for instrumentation devices.

The Suntec A2L 95 B 9712 4P 0700 pump, like other equipment from the French manufacturer, has passed stress tests and trials and fully complies with safety standards. We offer to buy a burner pump and other components in the online store of the ANKAS company.

Characteristics

Direction of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 130 l/hOperating viscosity: from 2 to 12 mm²/sValve function: pressure regulatingInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: 2-stage with electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pump series: A2L: 2 nozzle outlets and two integrated shut-off solenoid valves with locking functionPerformance for stage 2 at 11 bar and 5 cSt viscosity: 130 l/hSolenoid valve consumption: 9 WPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmMaximum pressure of the solenoid valve: 25 barMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barTorque: 0.12 N·mNozzle pressure range: from 8 to 15 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselDegree of protection: IP54
