Description

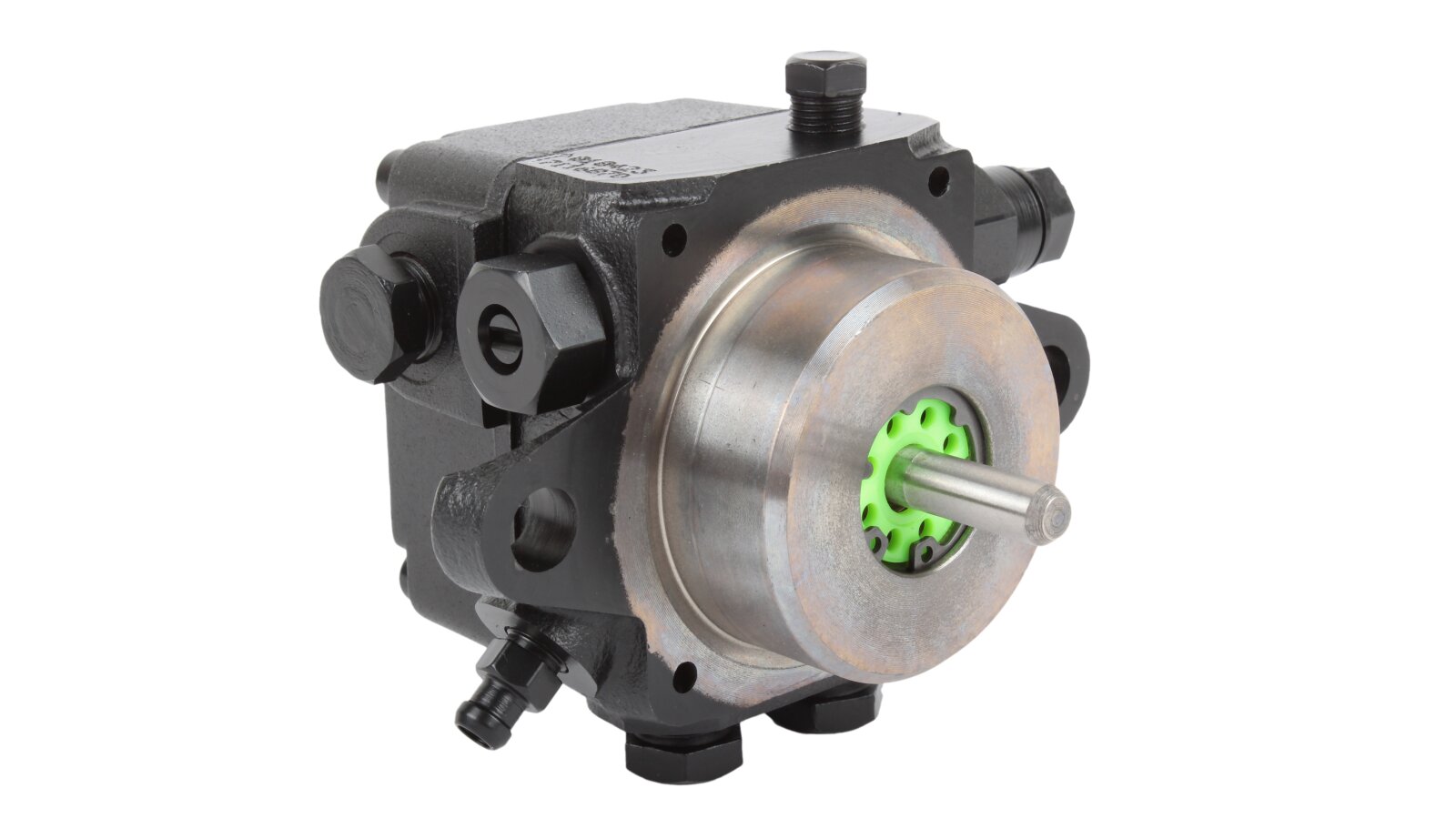

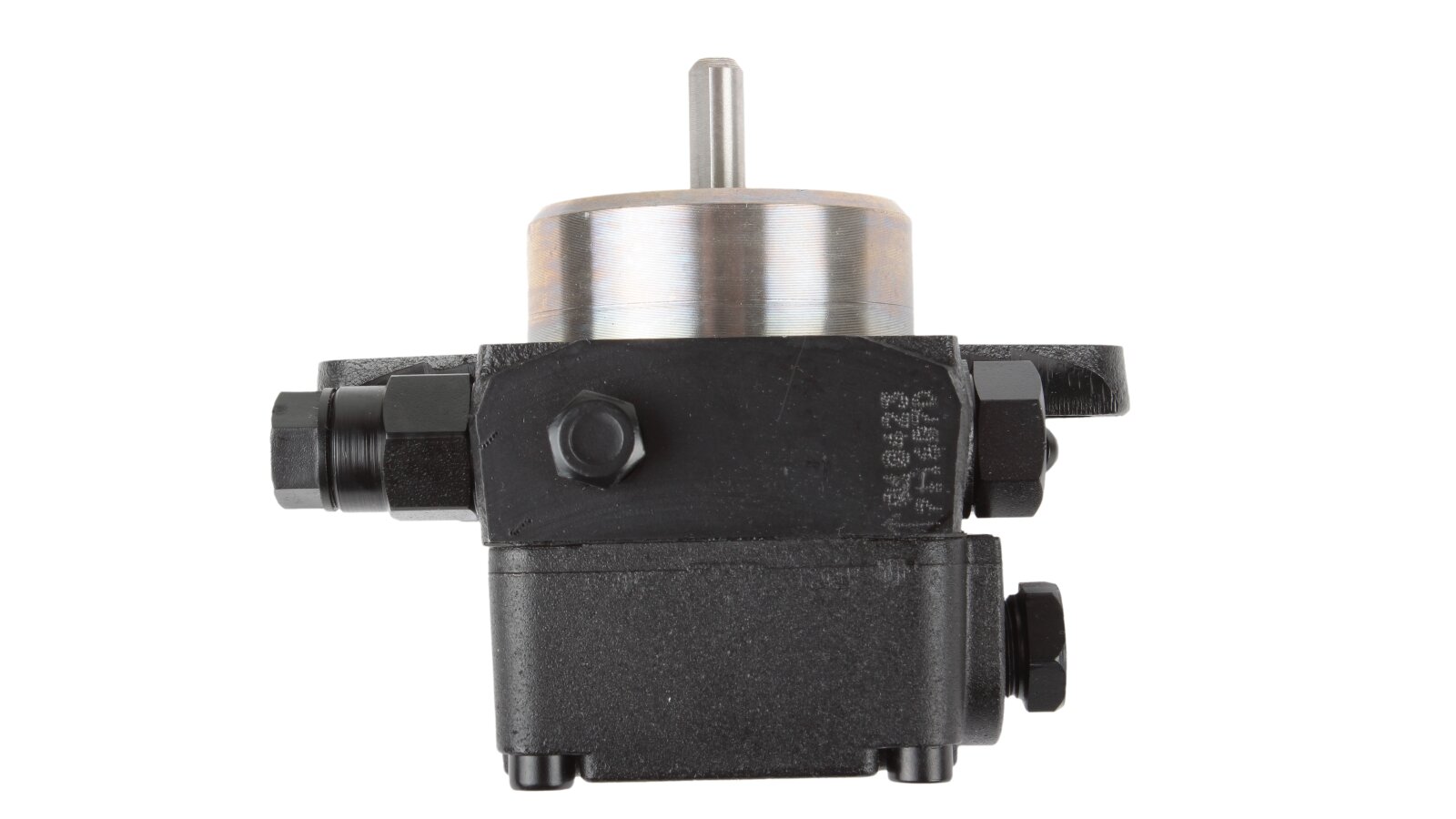

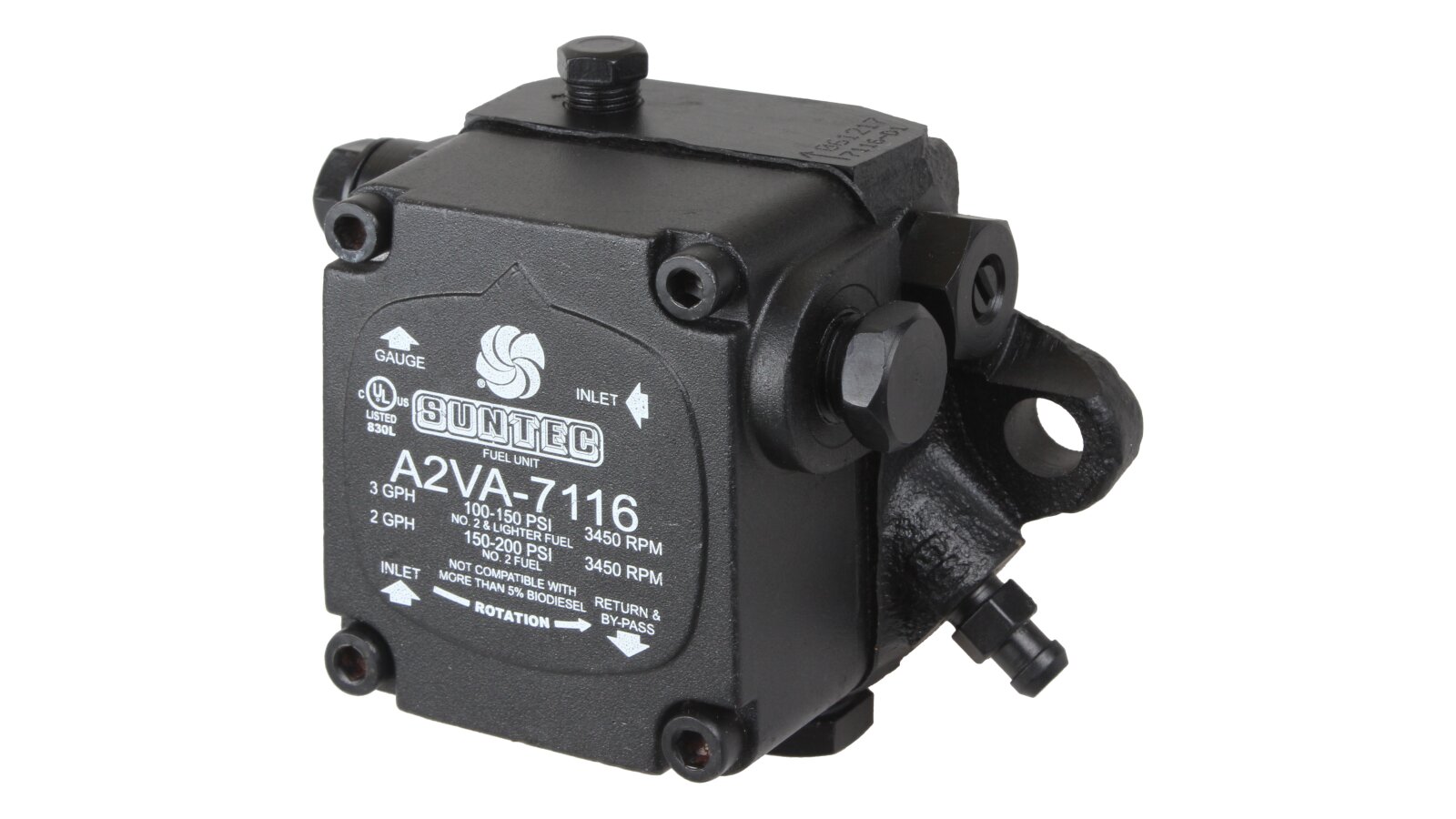

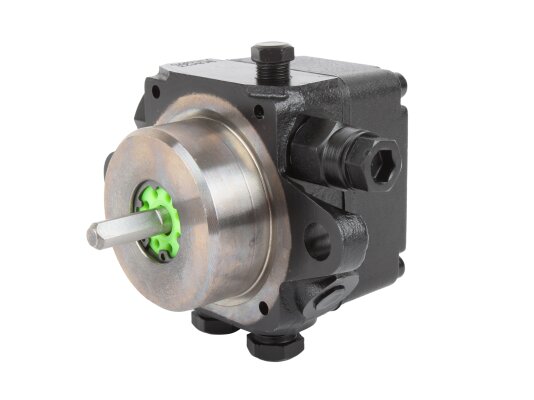

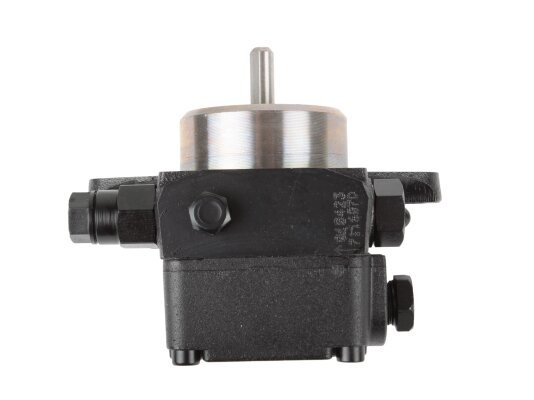

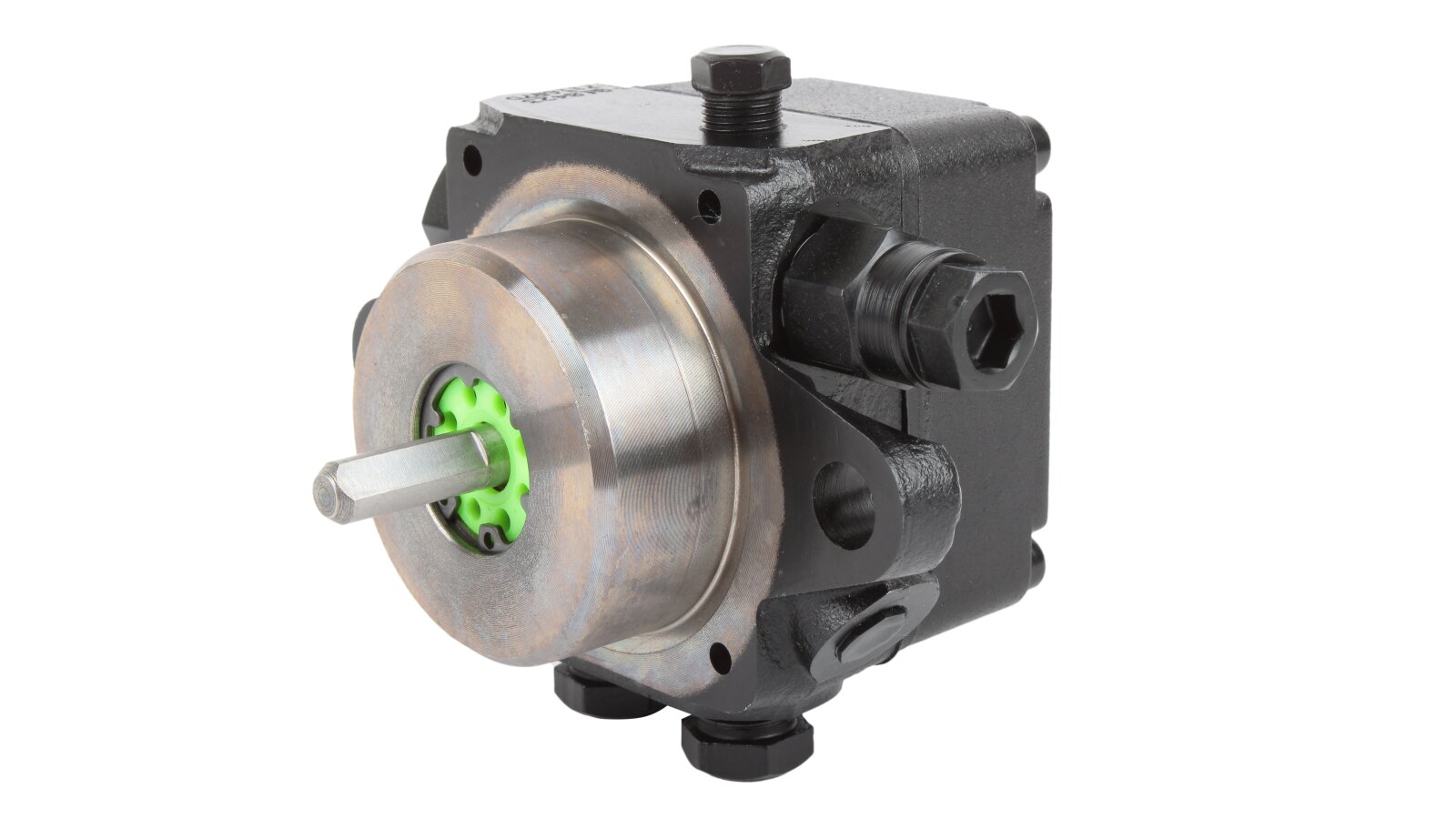

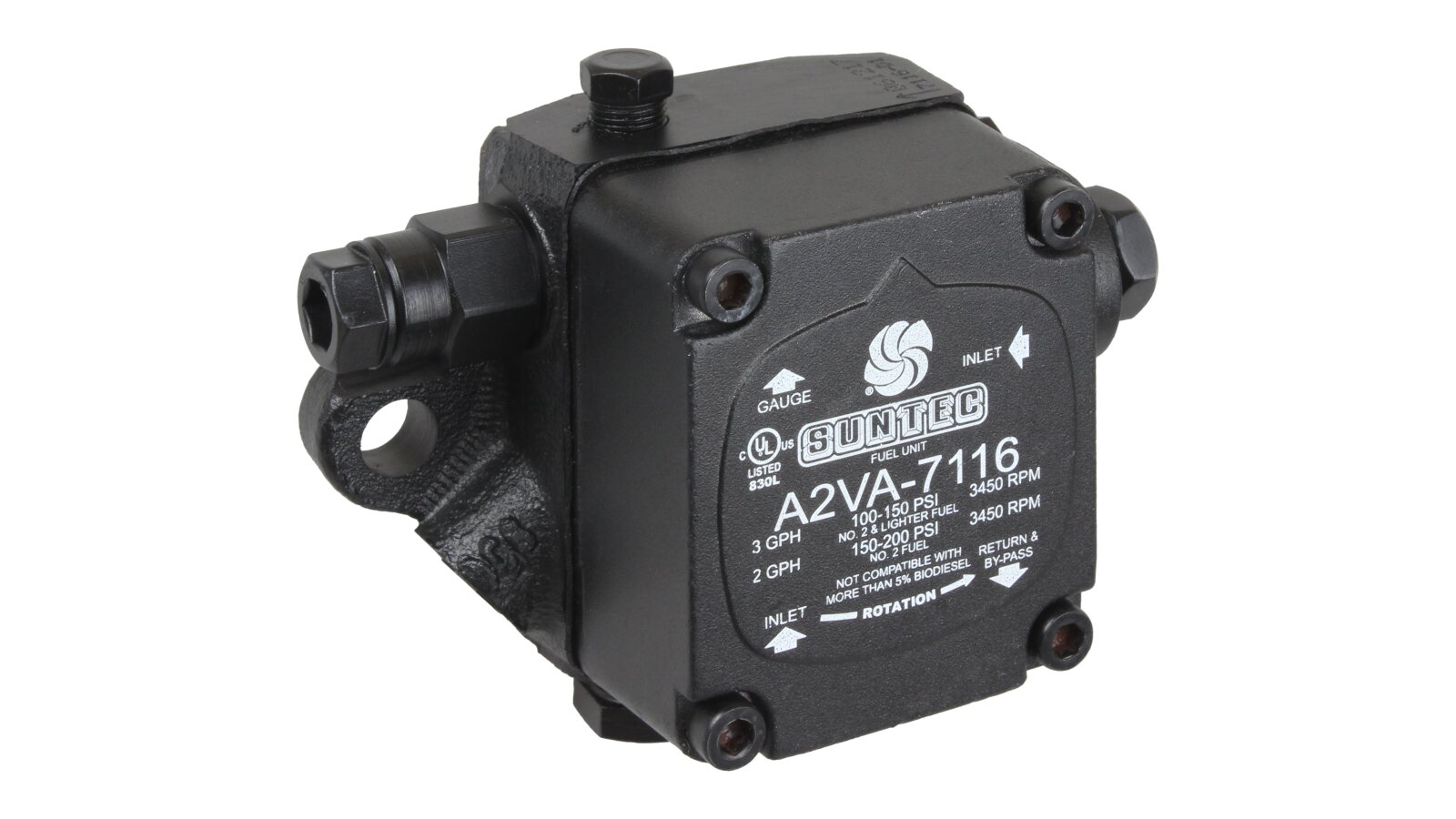

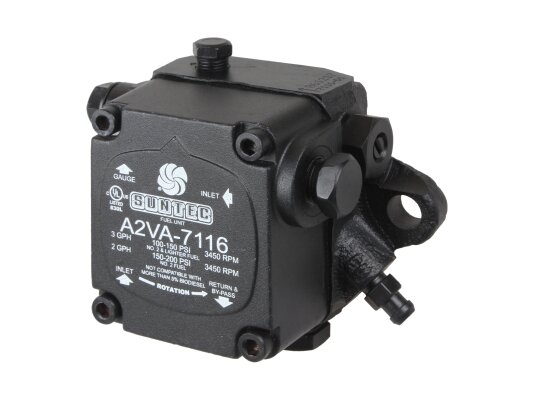

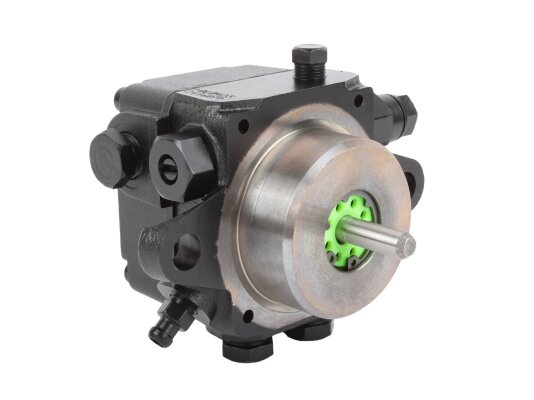

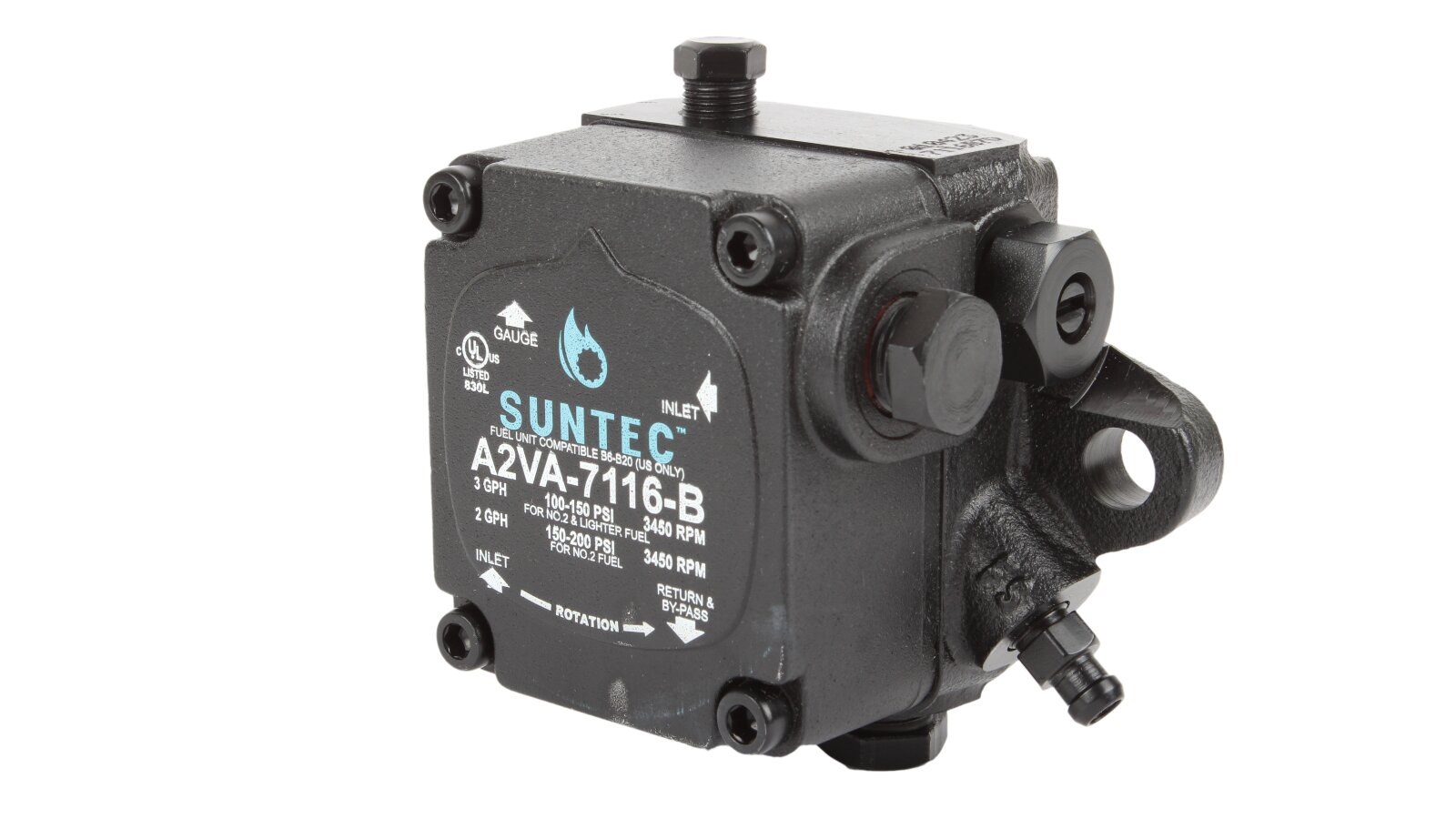

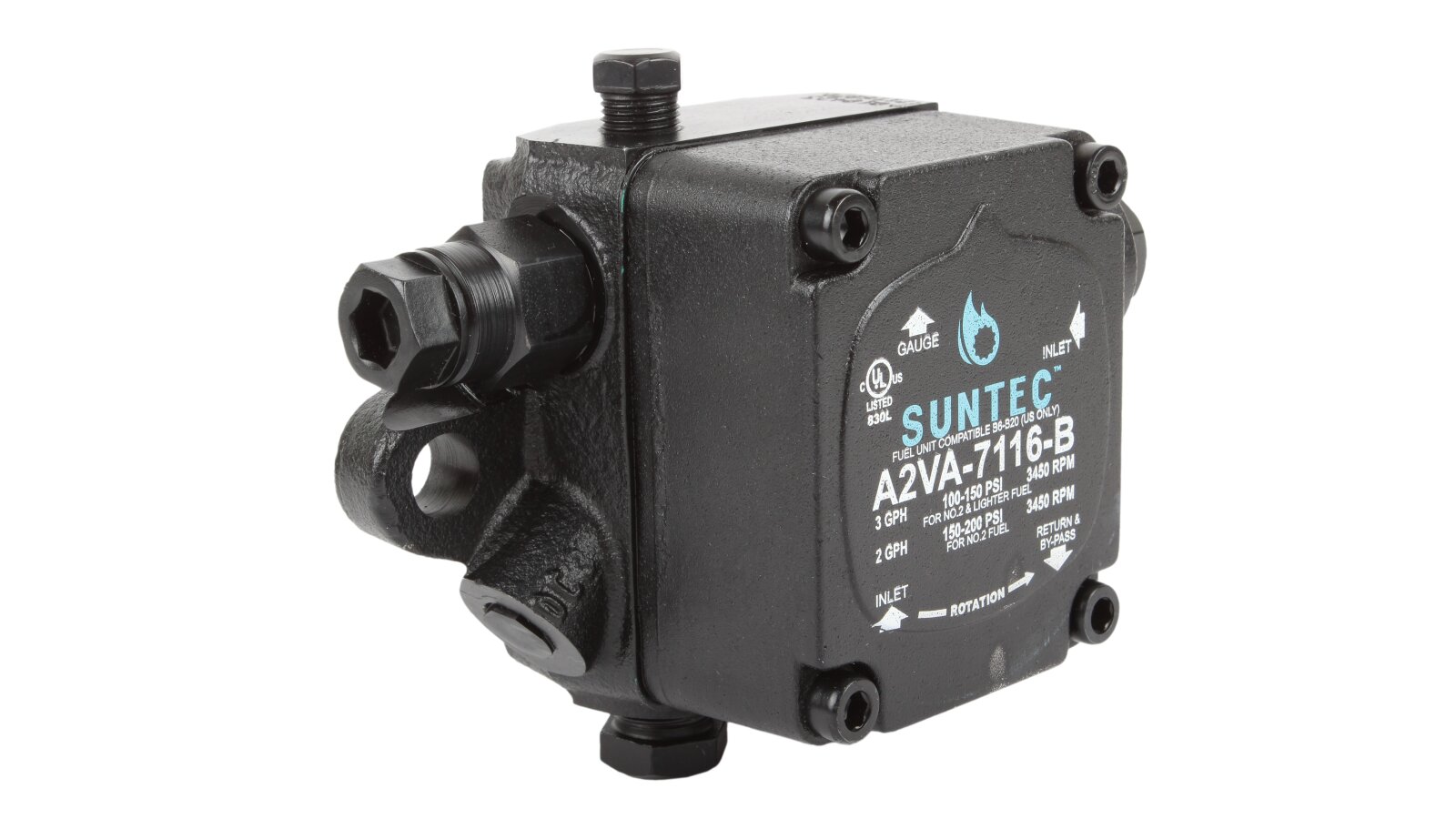

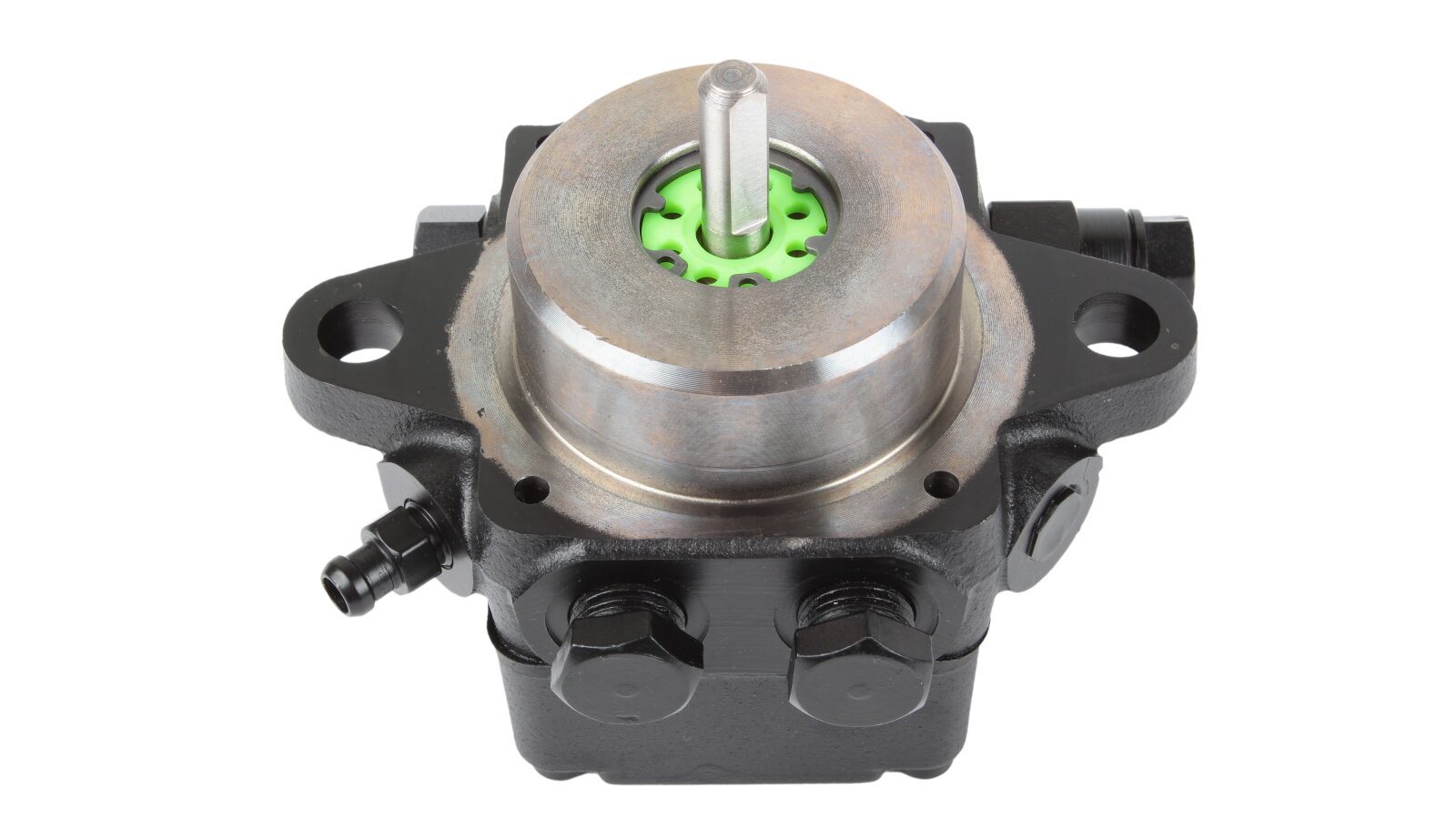

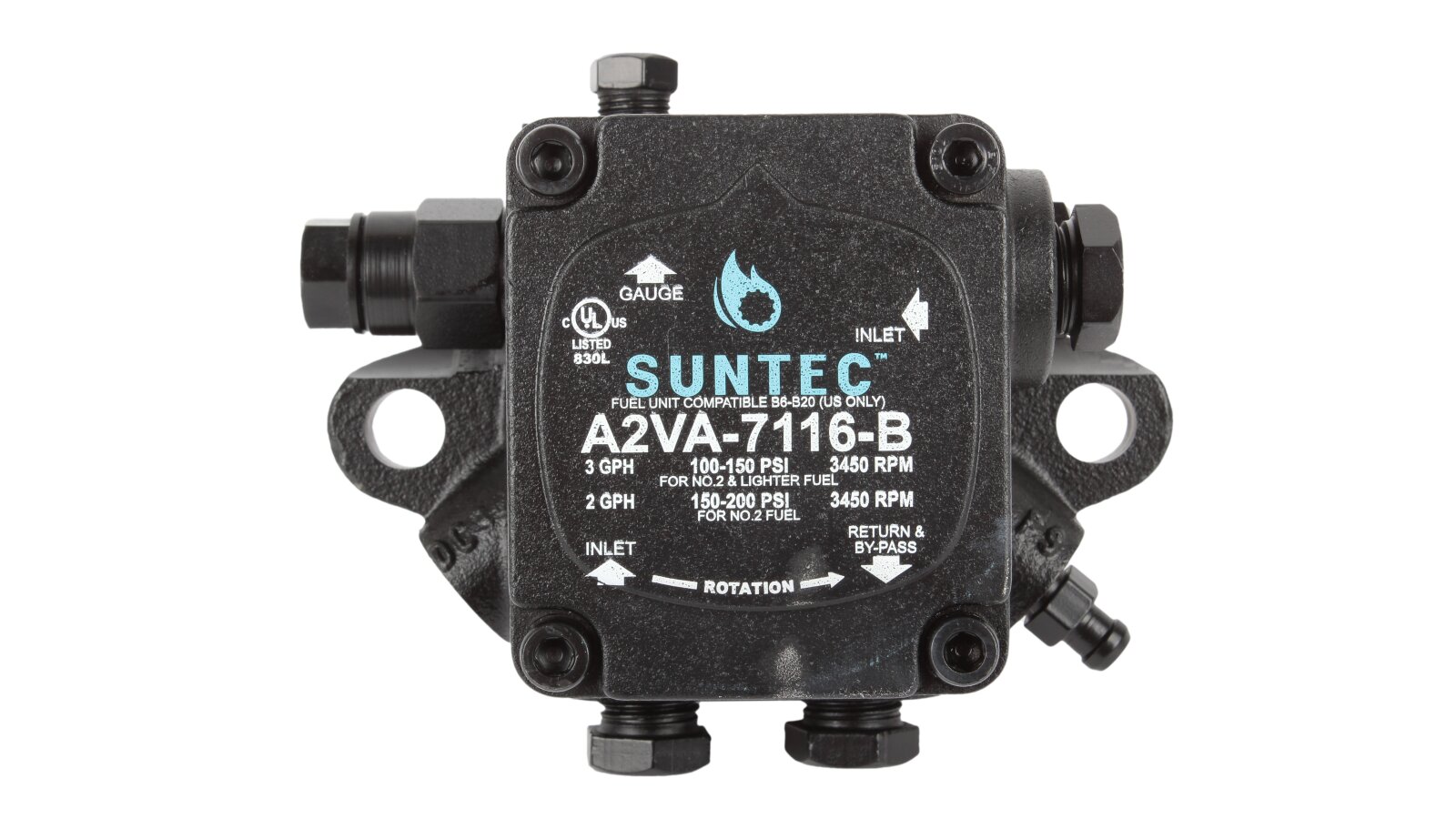

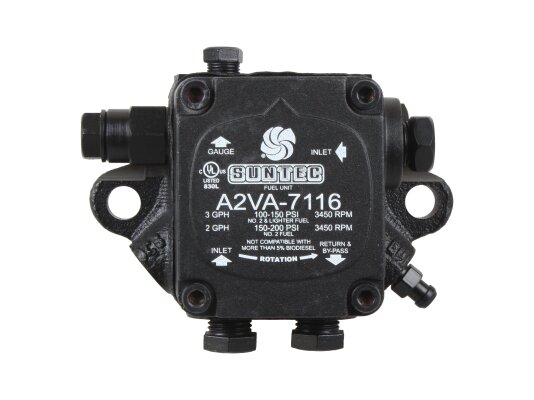

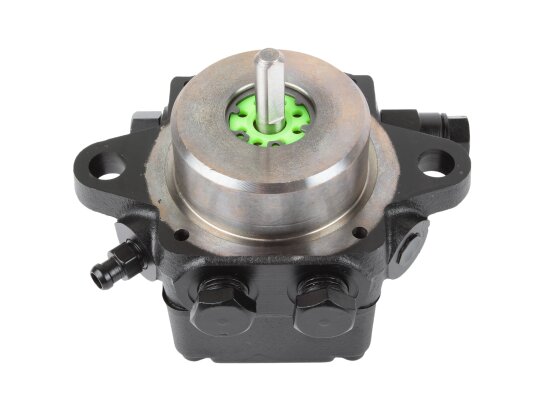

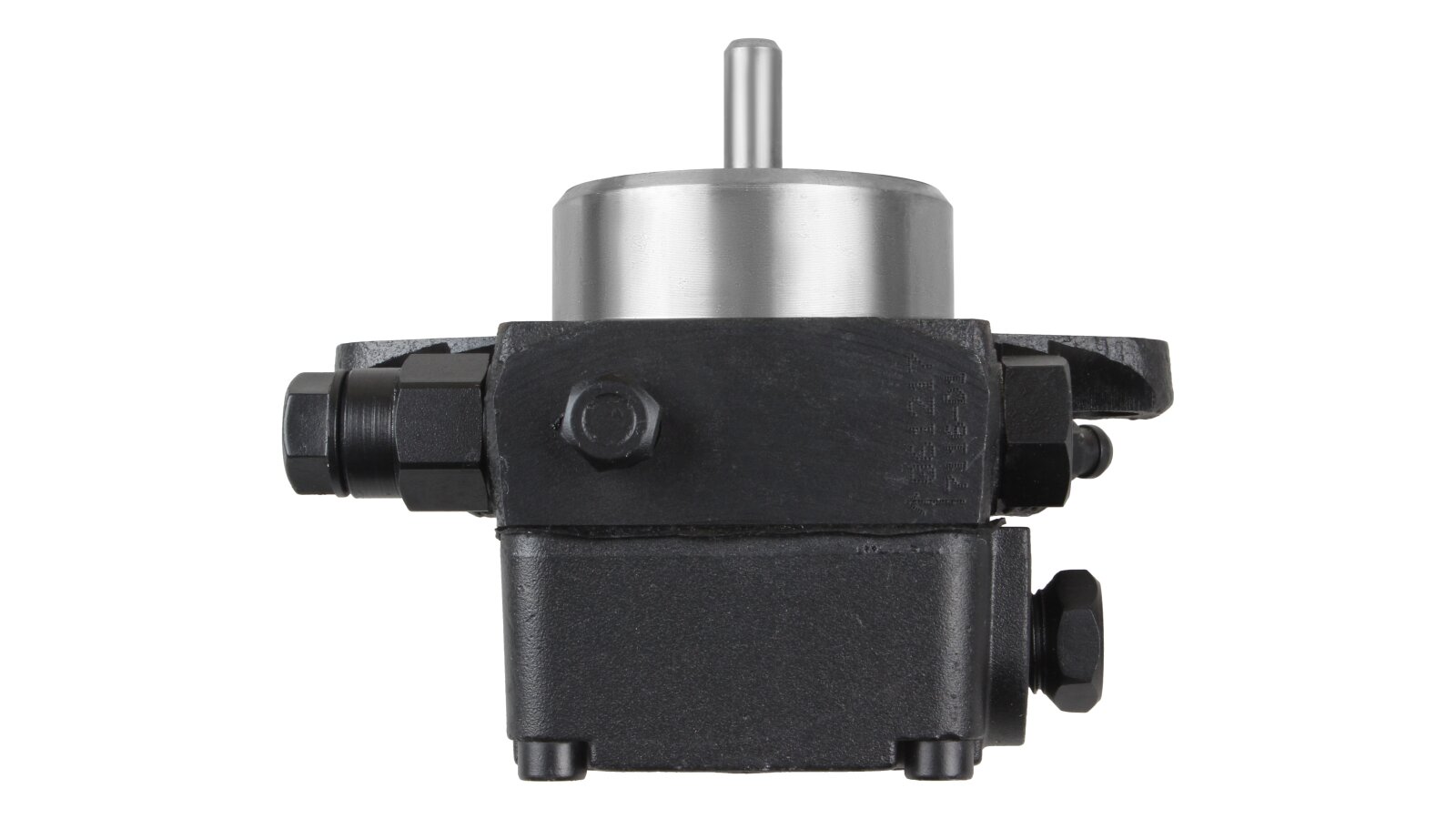

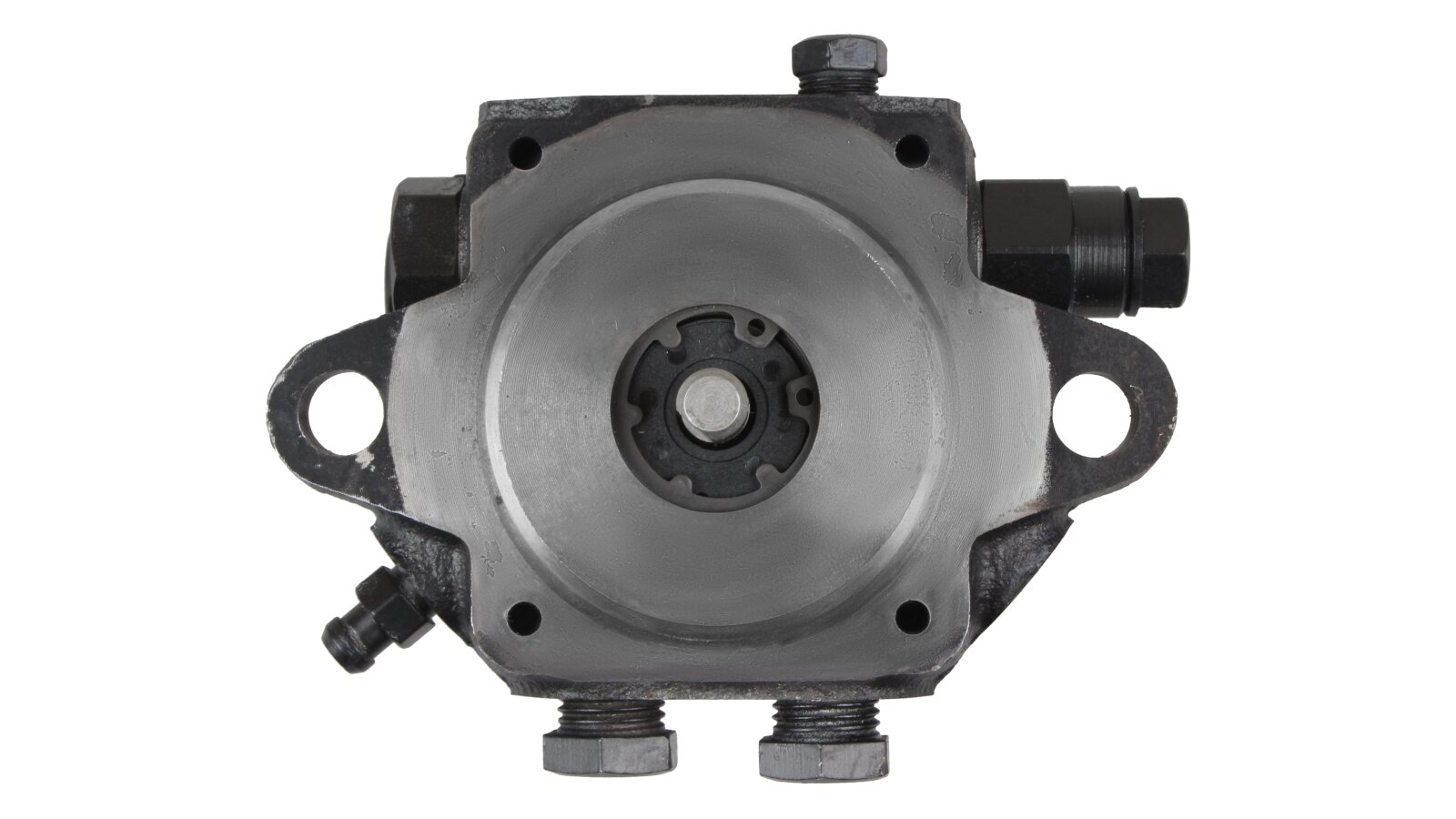

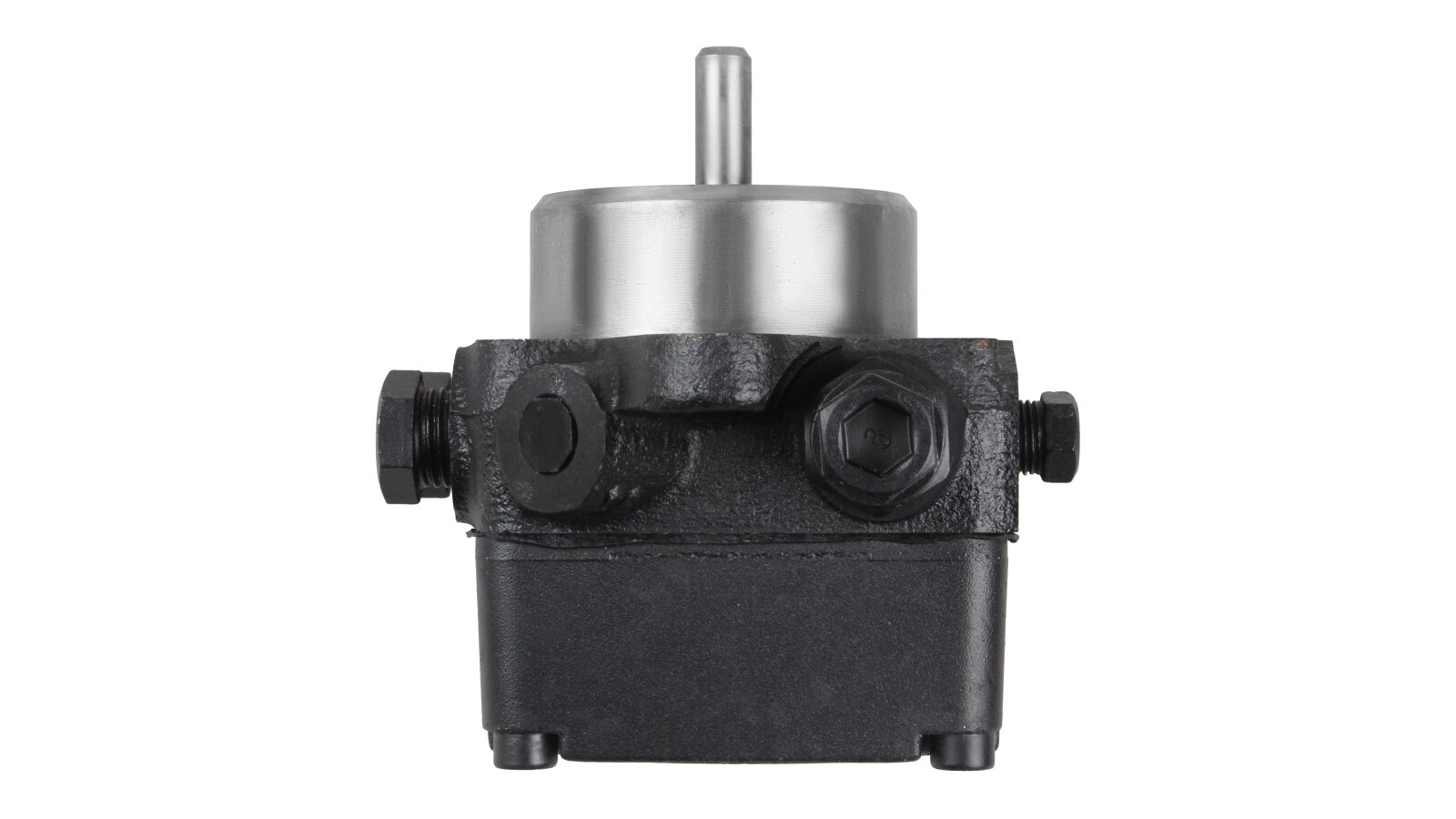

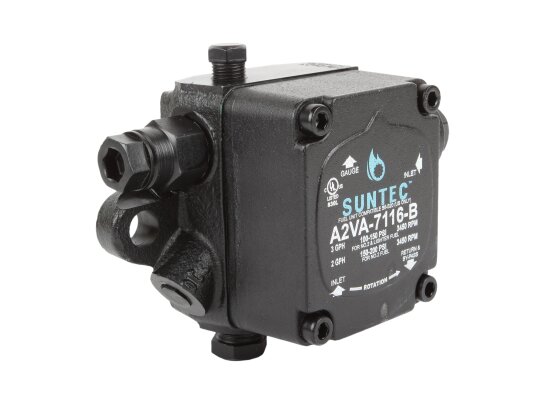

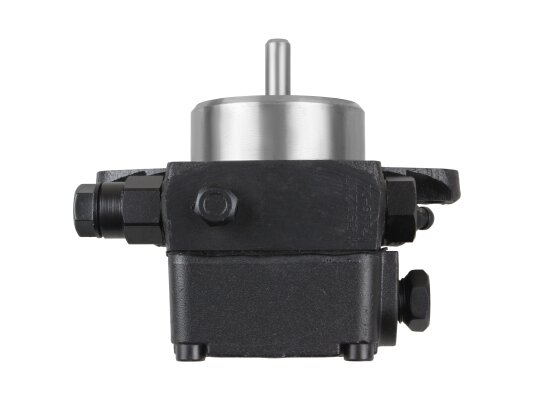

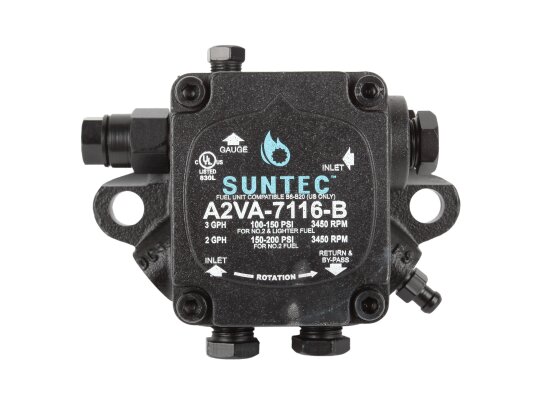

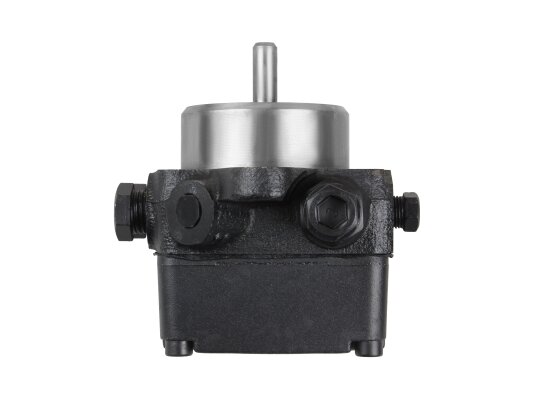

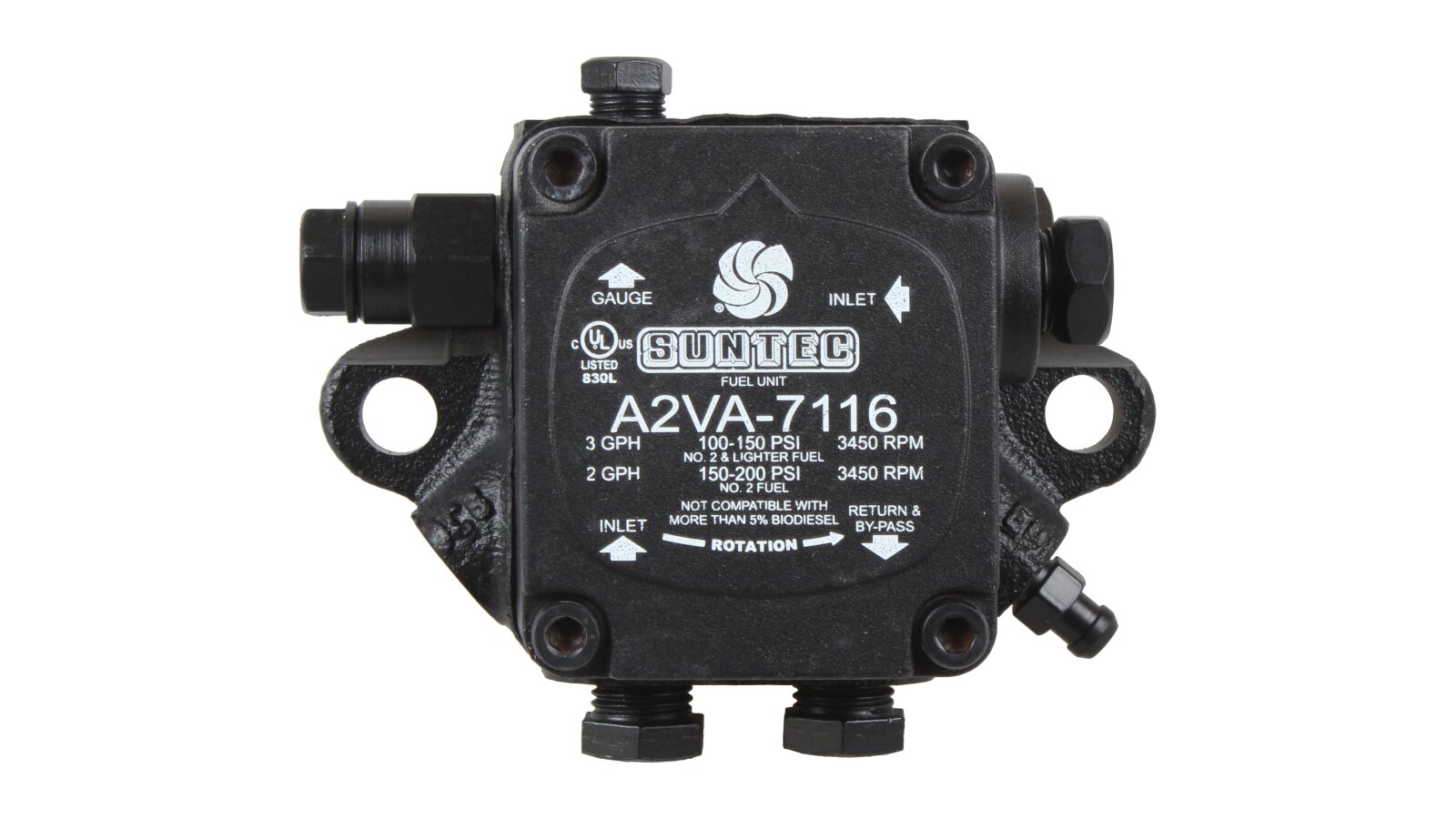

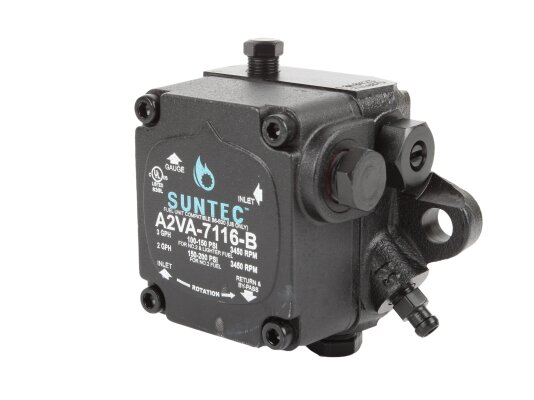

The Suntec A2VA-7116 1M burner fuel pump has a unique design that provides reliable shut-off, high performance, automatic purging and stable operation when pumping viscous fuels. The discharge pressure range to the nozzle: from 7 to 14 bar. The liquid fuel pump is equipped with two regulating valves. It is used for pumping fuel oil and lighter fuel. Incompatible with fuel containing more than 5% biodiesel. Suitable for equipping one-pipe and two-pipe systems. The pump is mounted using a flange connection. The suction and return lines are connected using a ¼ inch NPTF tapered thread. Ports with a diameter of ⅛ inch are provided on the body for taking pressure gauge and vacuum gauge readings.
Characteristics
Shaft diameter: 8 mmNominal rotation speed: 3450 rpmSuction and return line: ¼ inch NPTF (taper thread)Nozzle outlet: ⅛ inchNozzle pressure range: from 7 to 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withVacuum gauge port: ⅛ inchPressure gauge port: ⅛ inchOil temperature: from 10 to 46 °C in the pumpValve function: pressure regulatingPump series: A2VA: base model with locking functionType of pumped liquid: sea water
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
