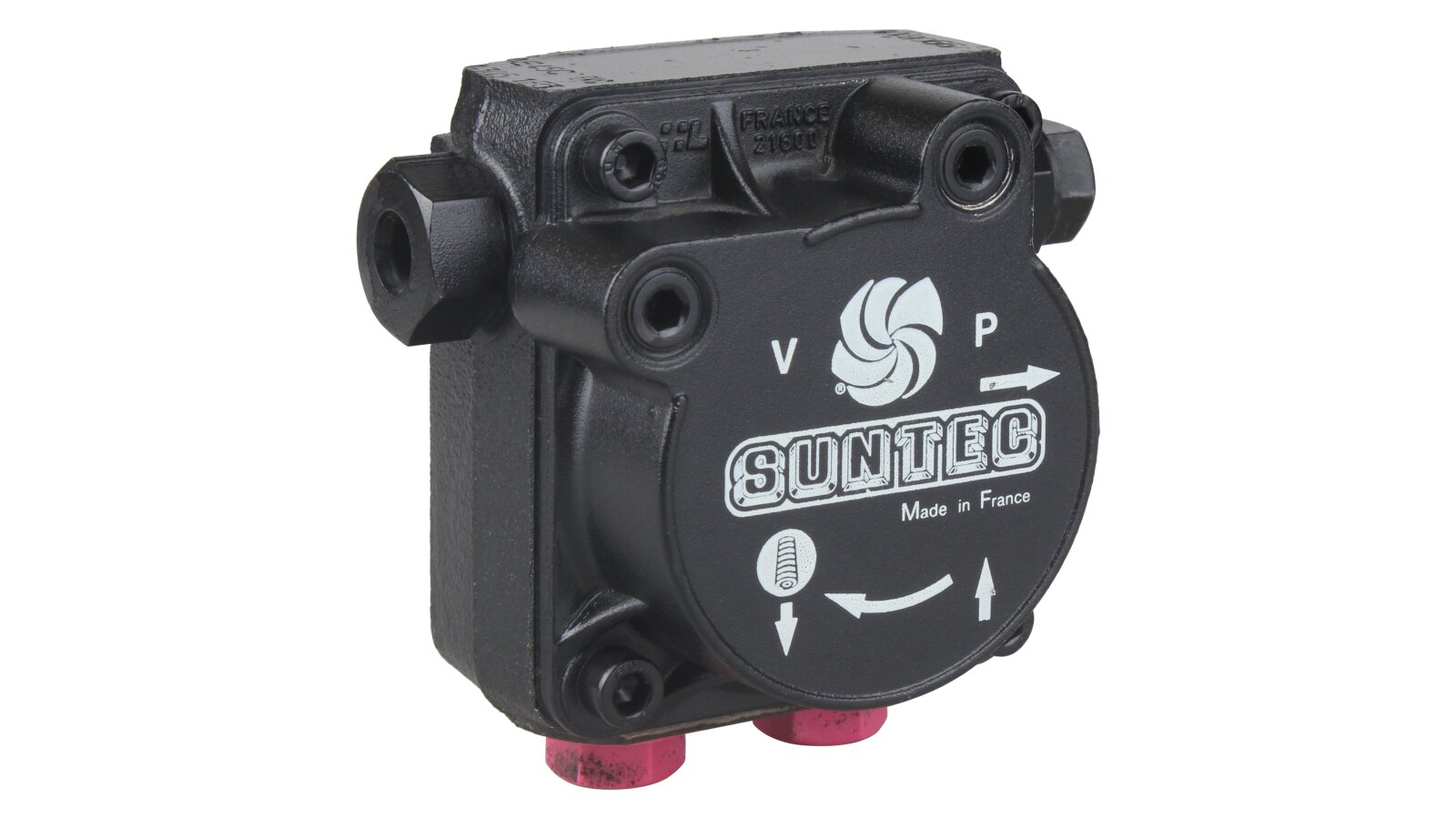

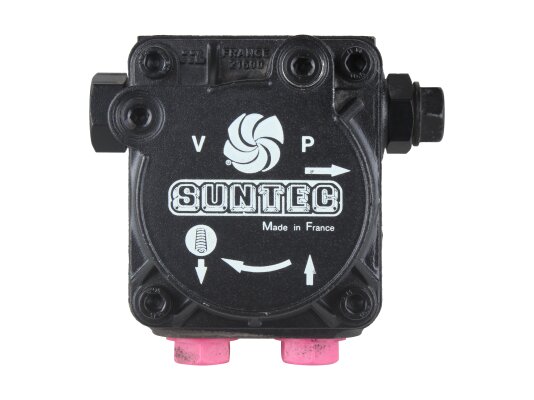

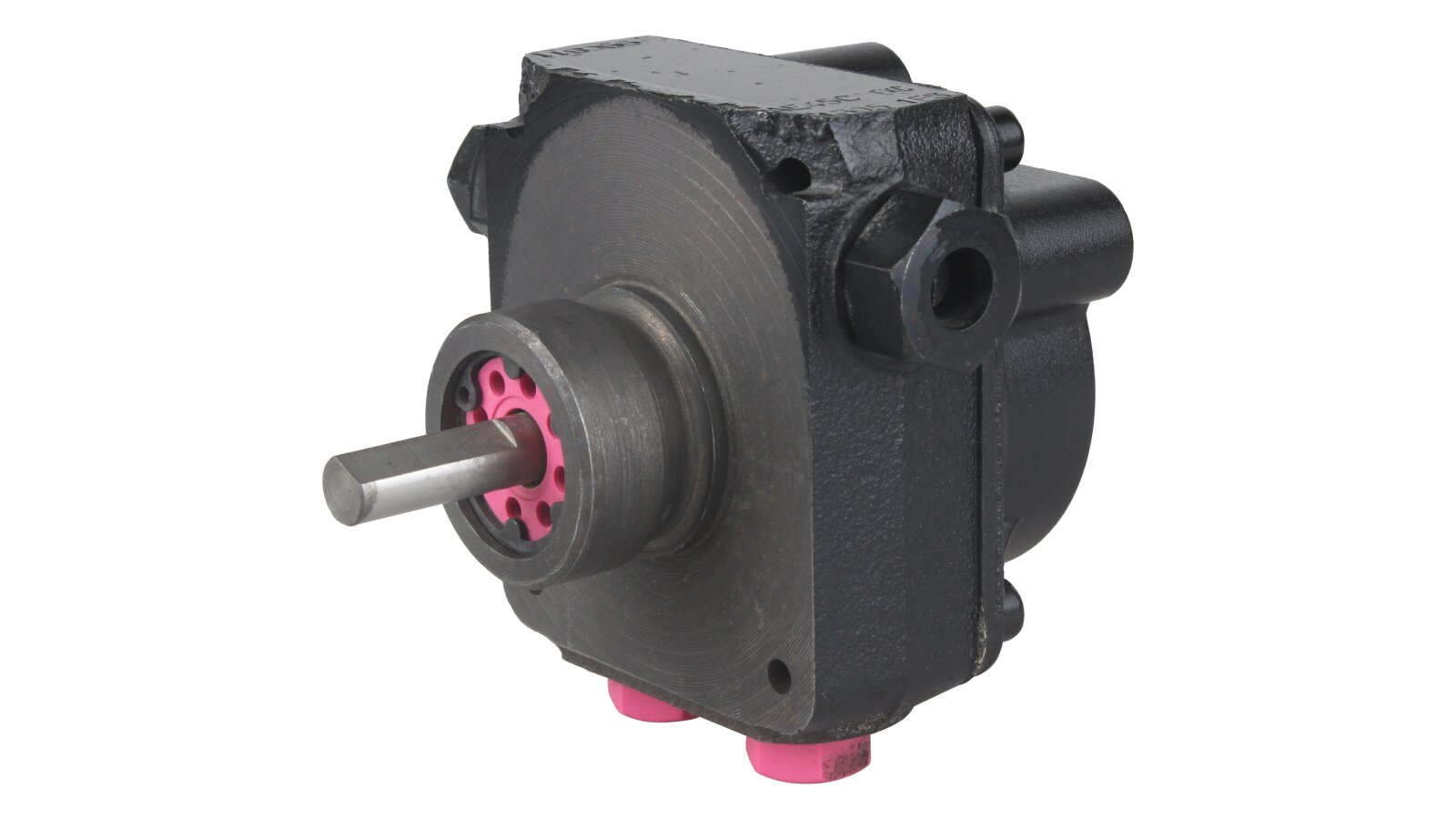

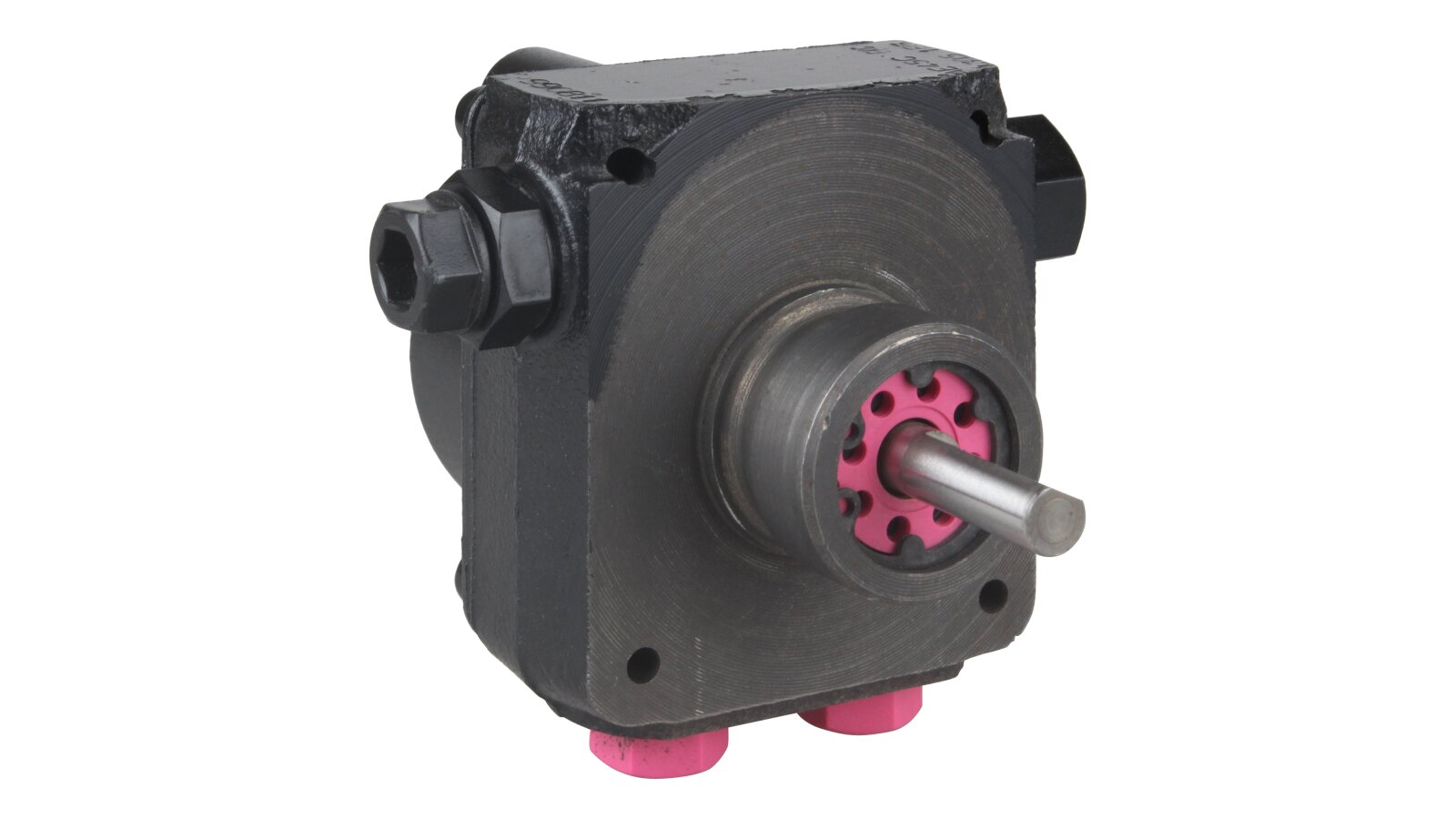

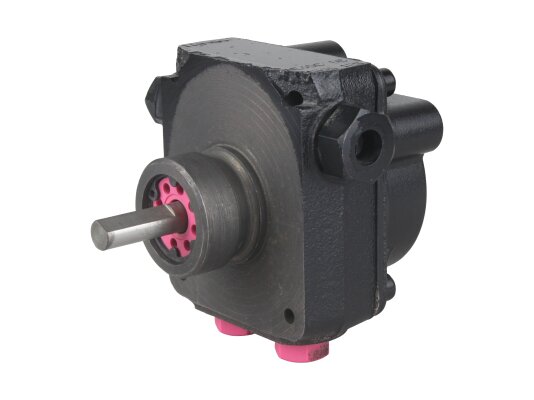

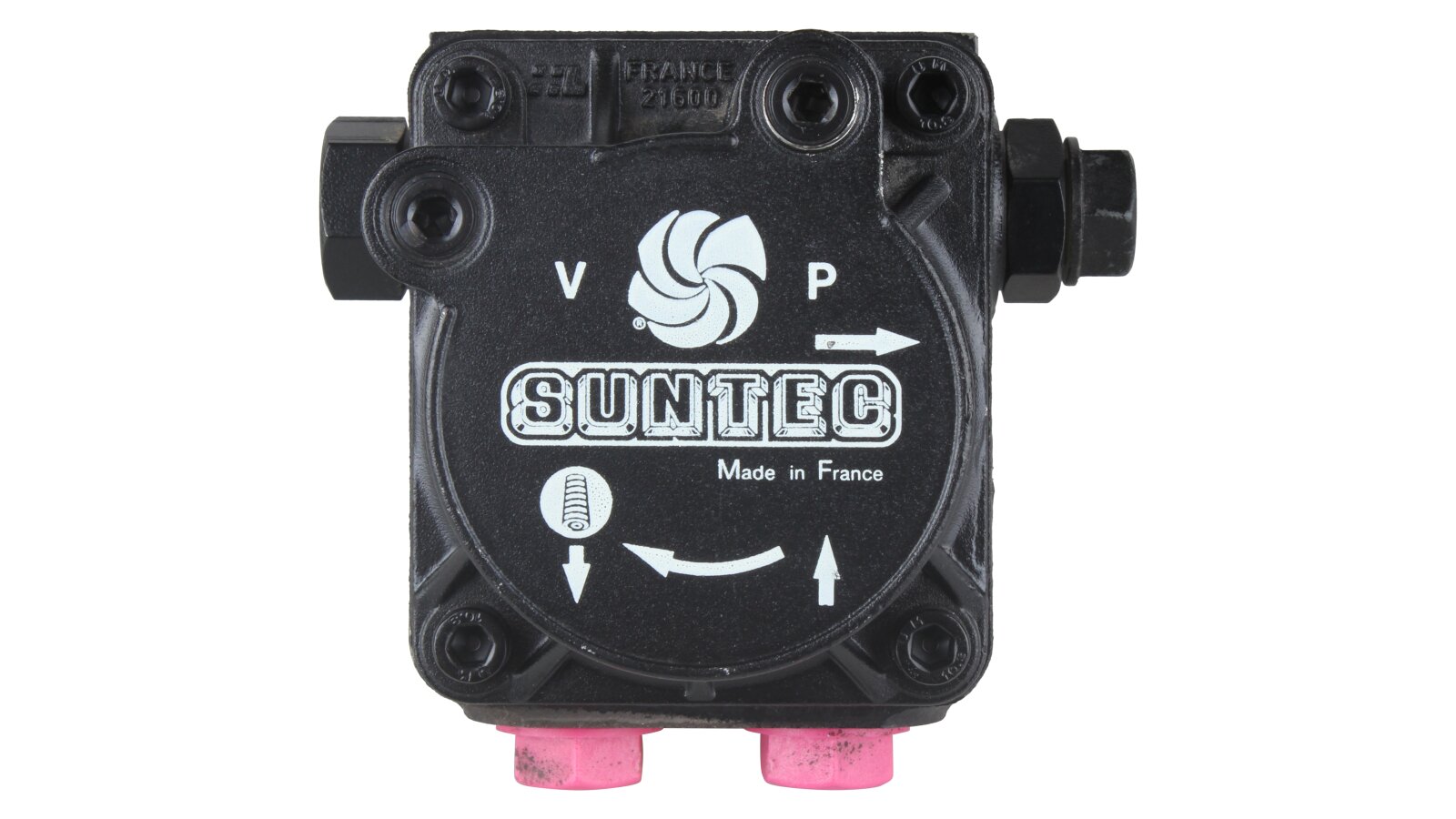

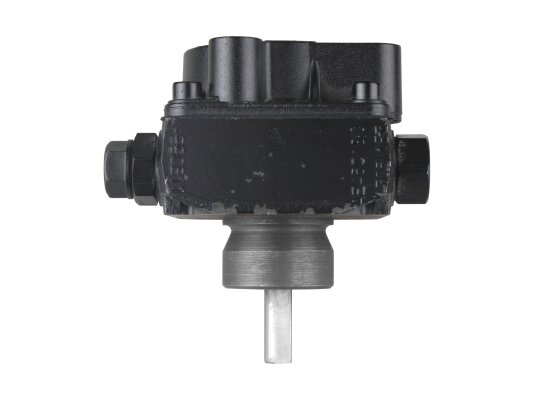

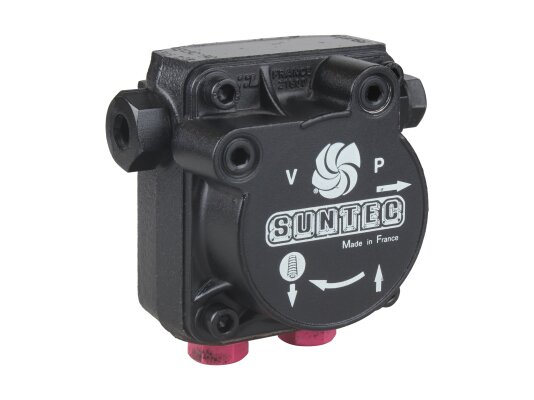

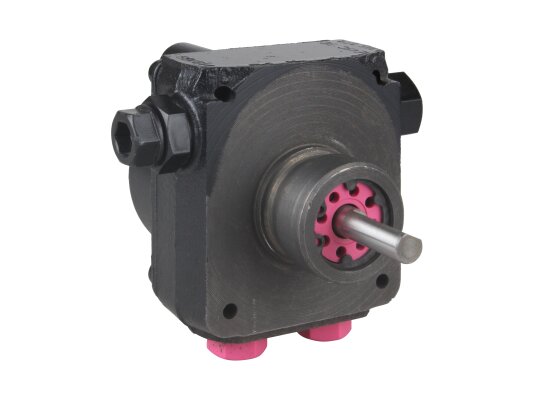

Burner Pump Suntec AE 45 C 1305 6P

Suntec

Alternative Part Number

Cuenod POM104077Elco 13013136
  • Discontinued
  1. Oil Burner Pumps

Description

The gear pump without a locking function Suntec AE 45 C 1305 6P was developed by a French company specifically for the assembly of liquid fuel burners Baltur, Elco, Lamborghini and others. The device is designed for installation in domestic heating systems.

The equipment can be used with a two-pipe or one-pipe connection. The second option is implemented by removing the standard bypass plug with a 4 mm Allen key and installing a plug with a steel washer on the return line connection.

Achieving optimal performance is possible with a fuel viscosity from 2 to 75 mm² / s and maintaining a temperature regime within the range from 0 to + 60 ° C.

Features of operation

The pump is based on the operation of a gear pair, which sucks in fuel from the fuel tank, runs it through a mesh filter with an opening size of 150 µm, after which it is fed directly to the injectors.

The discharge line has a pressure control valve, which is necessary to return excess fuel to the tank with a two-pipe connection, or to direct it to the suction system of the pipeline - with a single-pipe connection.

Characteristics:

  • device weight - 1 kg;

  • fuel liquid pressure on the injector - from 7 to 14 atm;

  • torque - 0.10 N m;

  • connected to the motor using a sleeve method - diameter 32 mm.

The pump is adjusted by the manufacturer to an operating pressure of 9 bar, but this value can be changed using a manual regulator.

The device can be additionally equipped with an electromagnetic valve. This solves the lack of a shut-off function. To buy a liquid fuel pump in our online store "Ankas", just fill out the form or call the phone numbers listed.

Characteristics

Torque: 0.1 N·mOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Pressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: sleeve ∅ 32 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 9 barNozzle pressure range: from 7 to 14 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: dieselPump series: AE: base model without locking function
