Description

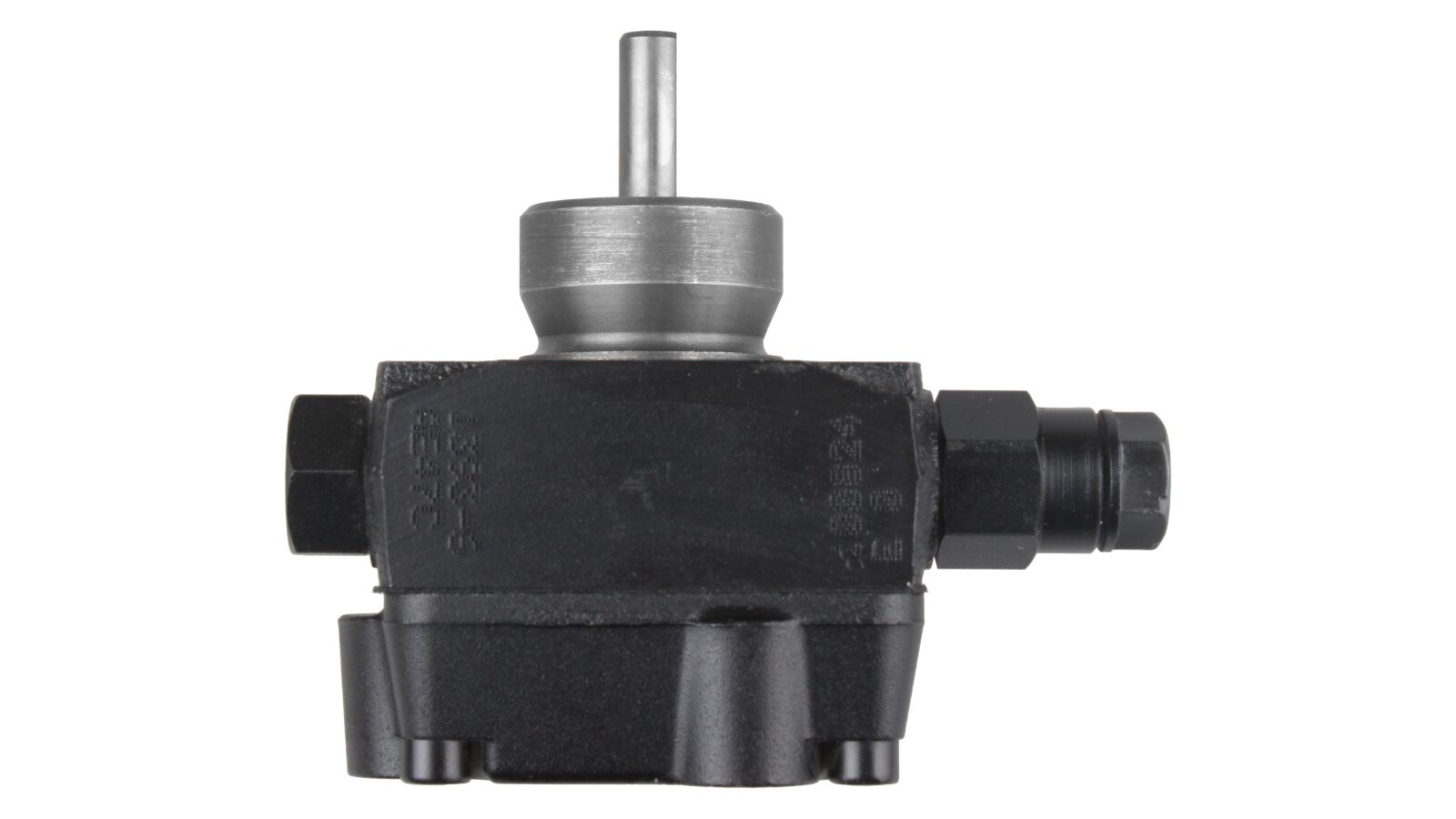

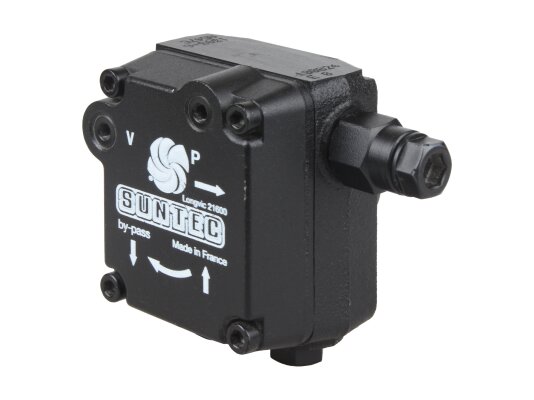

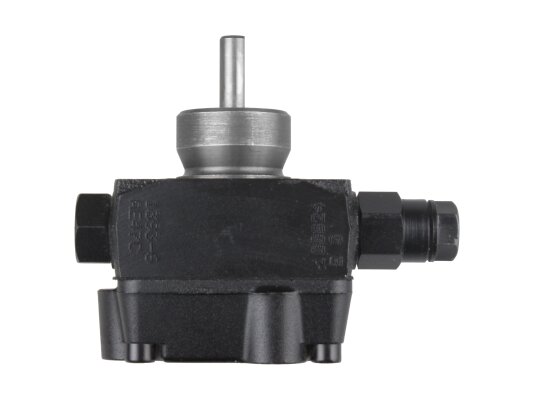

The Suntec AE 47 C 1393 6P burner pump is supplied with a pressure regulating valve. It is used in the operation of domestic heating equipment for pumping diesel fuel. The locking function, not provided by the design, is performed by an external electromagnetic valve. The advantages of the model are efficient operation, compatibility with burners of many manufacturers, protection of the working unit from damage by a mesh filter, simple installation and adjustment.
Features:
wear-resistant gear mechanism with an impressive service life;
discharge pressure range of 7-14 bar, adjustment by an adjusting screw, the set parameter is 14 bar,
filtering of dirt particles by a 150 µm mesh filter with a cleaning zone of 6 cm²;
built-in regulating valve for pressure supply taking into account the setting, without a locking function;
air outlet through the nozzle line;
sleeve connection, ∅ 32 mm according to European standard EN 225;
factory assembly for a two-pipe configuration, with a single-pipe connection scheme it is necessary to replace the bypass plug, tightly closing the fuel drain hole;
fixation in any position, but not with the axis up (do not allow axial or radial load on the shaft);
temperature of the external environment and pumped fuel: 0…+60 °C;
connection parameters with the inlet and return lines - thread G¼" (with the possibility of using conical gaskets);
standard ports according to ISO 228/1 for connecting a pressure gauge and vacuum gauge;
automatic air bleed in two-pipe installations.
Additional placement of the fuel filter after the Suntec AE 47 C 1393 6P pump will provide reliable protection of the injector from damage, extending its service life.
