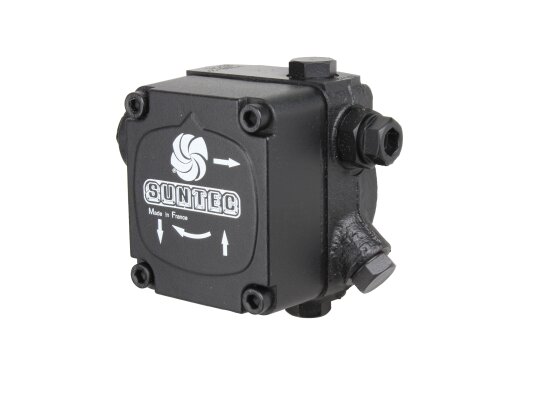

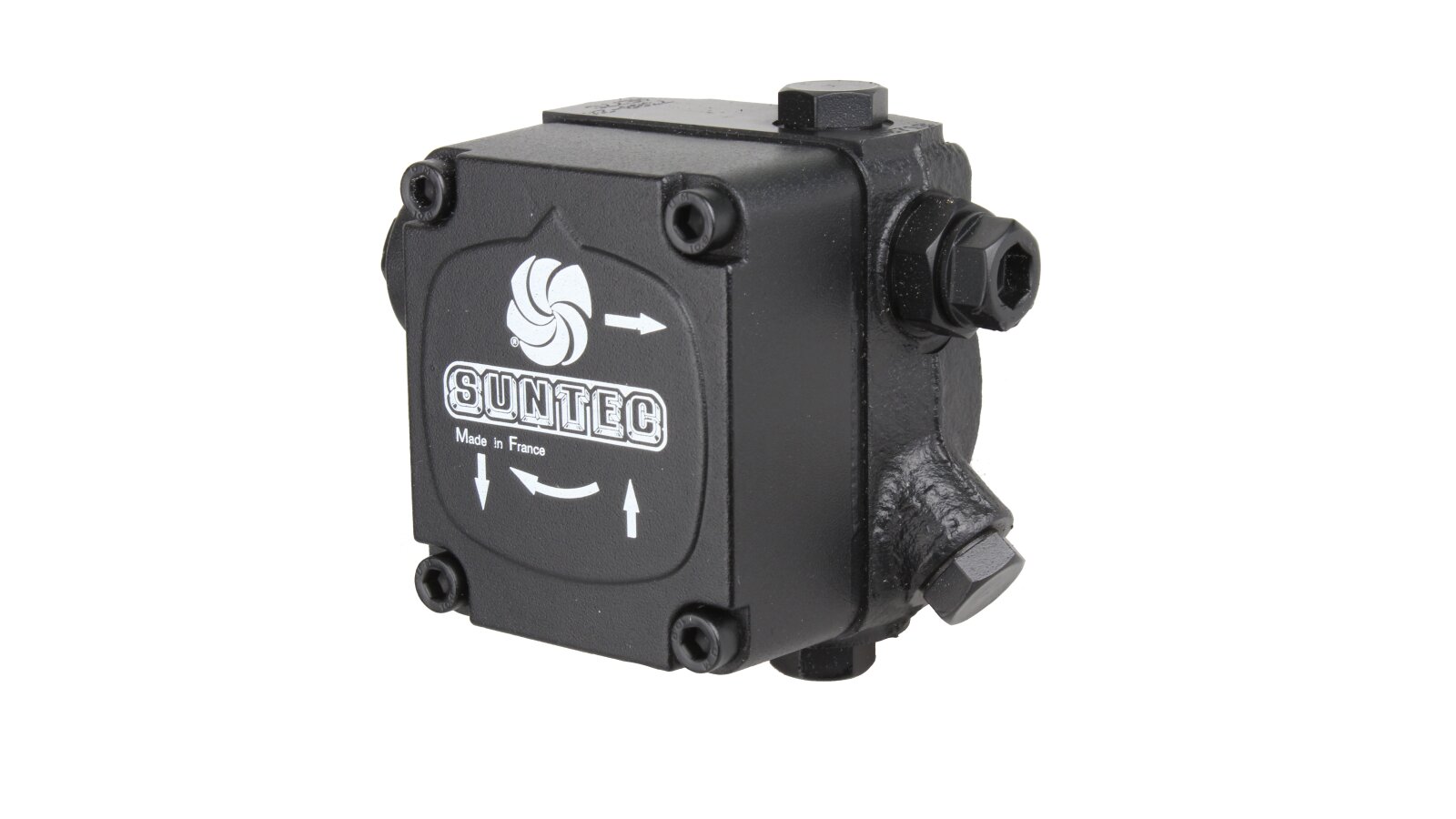

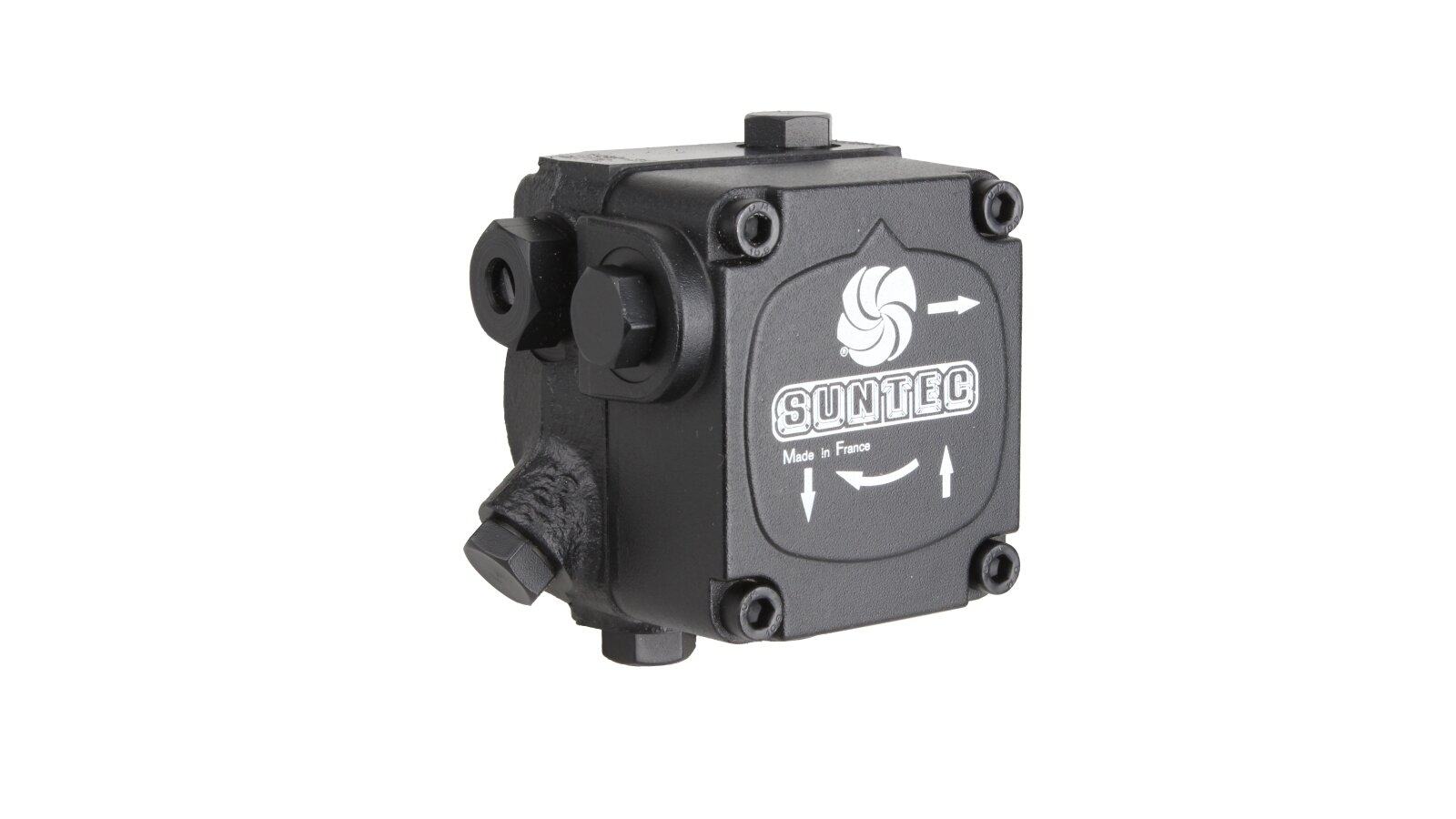

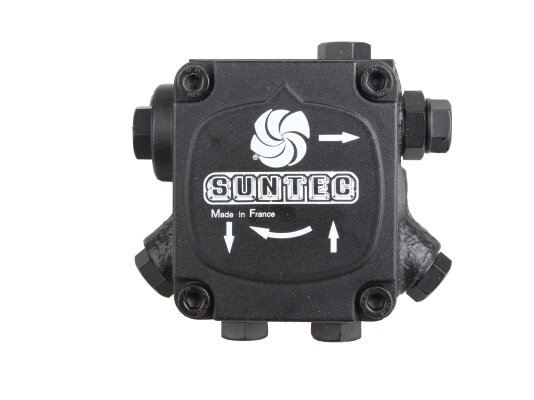

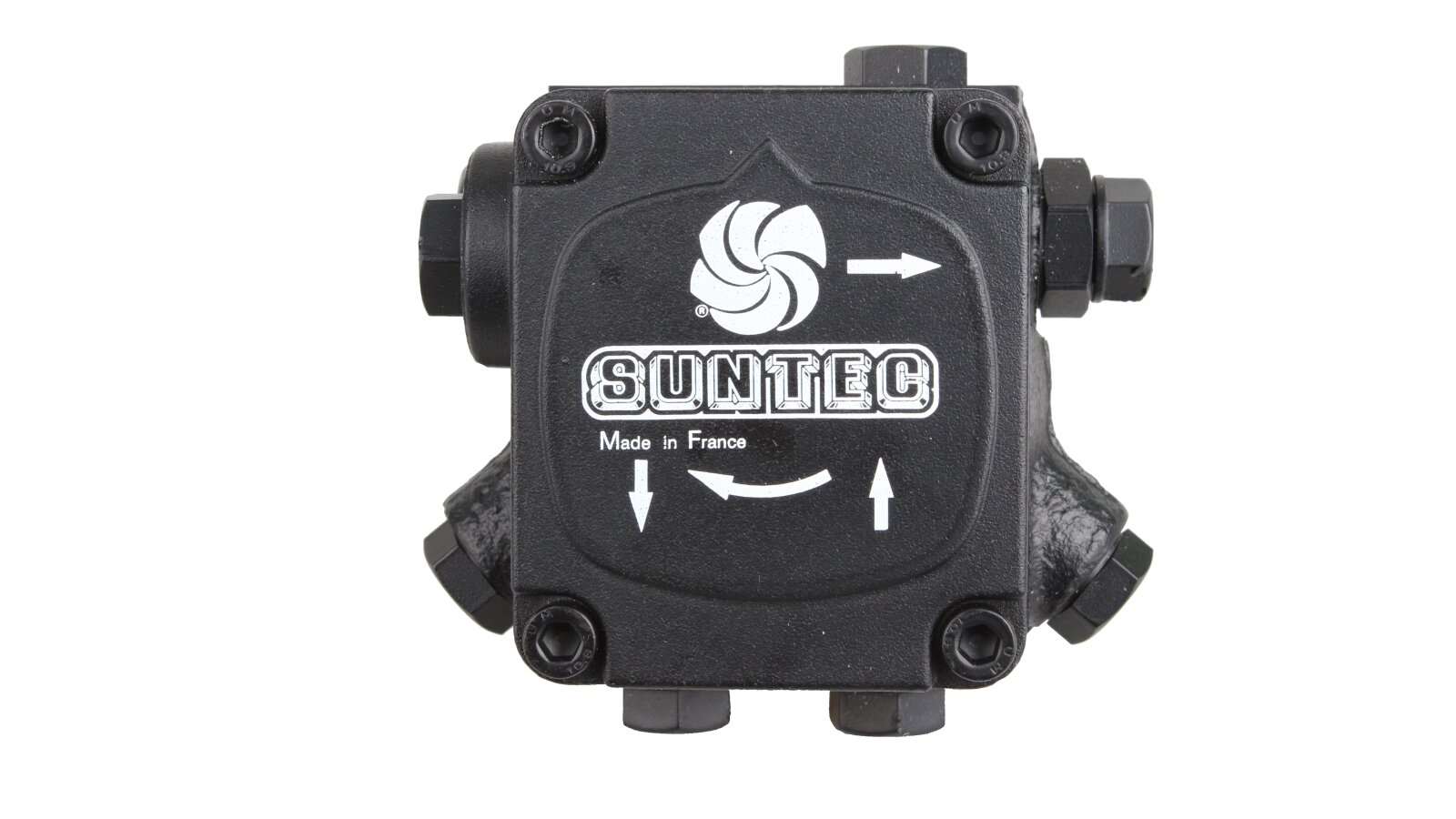

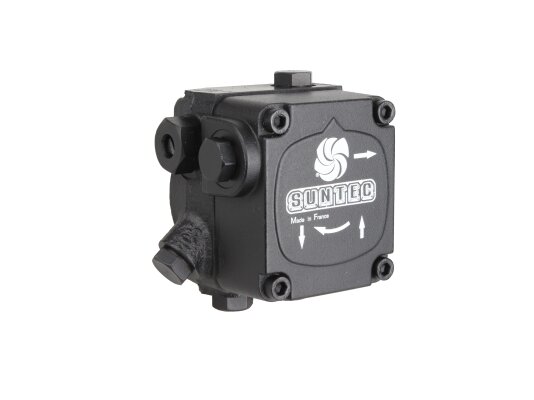

Burner Pump Suntec AE 57 B 1364 6M

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

The gear pump for liquid fuel burners AE 57 B 1364 6M with a pressure regulating valve was developed by the French concern Suntec, which is popular due to its functional products for heating systems. The presented model with a capacity of 62 l / h is the optimal solution for completing boiler equipment used for heating residential and industrial premises. The company "ANKAS", which is an official supplier of European equipment, offers to buy a pump for burners at an affordable price.

Design features:

  • the pump can be used in a wide temperature range of the working fluid - from 0 to + 60 ° C;

  • the device is designed to pump fuel with a kinematic viscosity of 2-75 cSt, which include diesel fuel, diesel oil, fuel oil and others;

  • the model has a sleeve type of mounting to an electric motor with a connection diameter of 32 mm;

  • for preliminary cleaning of fuel, a mesh filter with a flow cross-section of 6 cm² and a cell size of 150 microns is provided; ports with a standard ISO 228/1 cylindrical thread G⅛" are provided for connecting a pressure gauge and vacuum gauge.

By default, the factory sets the operating mode with a pressure of 9 bar, but this value can be changed manually by the regulator: when rotating clockwise - to increase, counterclockwise - to decrease.

Advantages of the model:

  • no significant effort is required to rotate the axis;

  • manual adjustment of the pressure on the nozzle is possible within the range from 7 to 14 atm;

  • nominal shaft rotation speed is 2850 rpm;

  • automatic air bleed when connected to a two-pipe circuit;

  • small weight of the device - 1.1 kg.

Liquid fuel pump for burners Suntec AE 57 B 1364 6M is a reliable high-class heating equipment, which is manufactured in accordance with international safety requirements, and its components comply with European quality standards EN 225 and ISO 228/1.

Characteristics

Direction of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 62 l/hOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: M: no bypass plug, return line closed to single pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 62 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: sleeve ∅ 32 mmShaft diameter: 8 mmTorque: 0.1 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barMaximum rotation speed: 3600 rpmNozzle pressure range: from 7 to 14 barFactory pressure setting: 9 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityType of pumped liquid: dieselPump series: AE: base model without locking function
