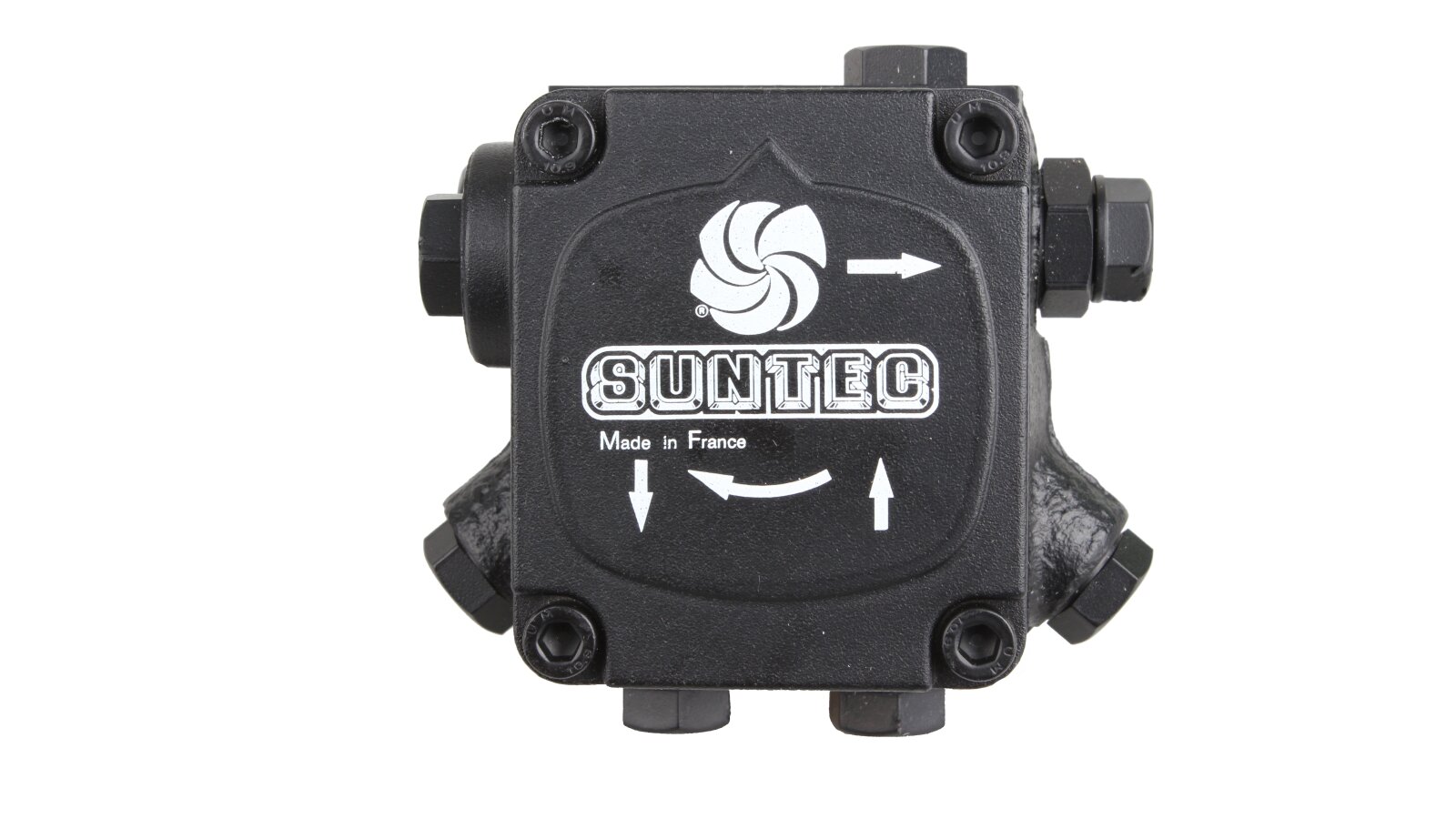

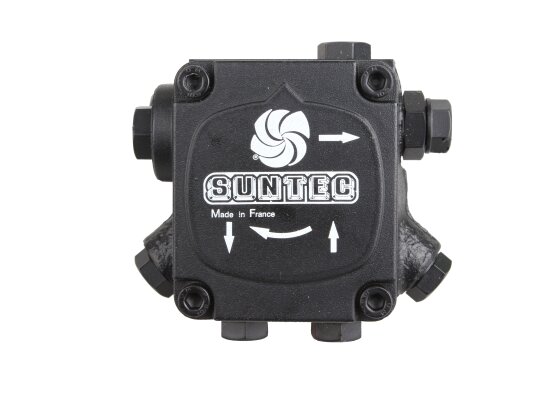

Burner Pump Suntec AE 67 C 7361 4P

Suntec

AED 1,050

Oil Burner Pumps
Products code: 6835

Description

The Suntec AE 67 C 7361 4P pump is a basic model with a pressure regulating valve, without a locking function. It is used to pump diesel fuel, kerosene, and biofuel. The locking function is provided by an external electromagnetic valve (purchased separately).

Features

  • The pump is designed to pump fuel with a temperature of up to +60 ºC. The design includes a valve that regulates the fuel pressure. The locking function is not available in the basic version.

  • The gear mechanism sucks fuel from the tank through a mesh filter, feeds it to the regulating valve, and then to the injector line.

  • The built-in filter with a working surface of 6 cm² retains all abrasive inclusions of 150 µm, which protects the working unit from damage and early wear.

  • The pump is suitable for assembling systems with and without a return line. With a single-pipe connection, the bypass plug is removed using a 4 mm socket wrench, and the drain hole is closed with a steel plug and washer.

  • Excess air is released automatically in a two-pipe system. If there is no return line when the pump is started, air is released through the nozzle line. The bleeding process can be accelerated during the first start by loosening the plug of the pressure gauge hole.

  • The pump is factory-set to a pressure of 14 bar. You can independently change the setting to suit individual needs within the range from 10 to 20 bar.

  • Installation is carried out using a flange connection ∅ 54 mm. Standard ports are provided for connecting measuring devices.

Advantages:

  • for pumping diesel fuel, biofuel and kerosene;

  • removal of abrasive impurities to protect gears;

  • one- and two-pipe connection;

  • easy installation in the system;

  • standard ports for connecting measuring devices;

  • uninterrupted, long-lasting service.

On the ANKAS website you can buy a Suntec AE 67 C 7361 4P pump and additional equipment (external electromagnetic valve, mounting accessories, measuring instruments, etc.) for assembling, connecting and setting up a boiler unit.

Characteristics

Torque: 0.12 N·mOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 6 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 79 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withFactory pressure setting: 14 barNozzle pressure range: from 10 to 20 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilSuction and return line: ¼ inch NPTF (taper thread)Type of pumped liquid: dieselPump series: AE: base model without locking function
