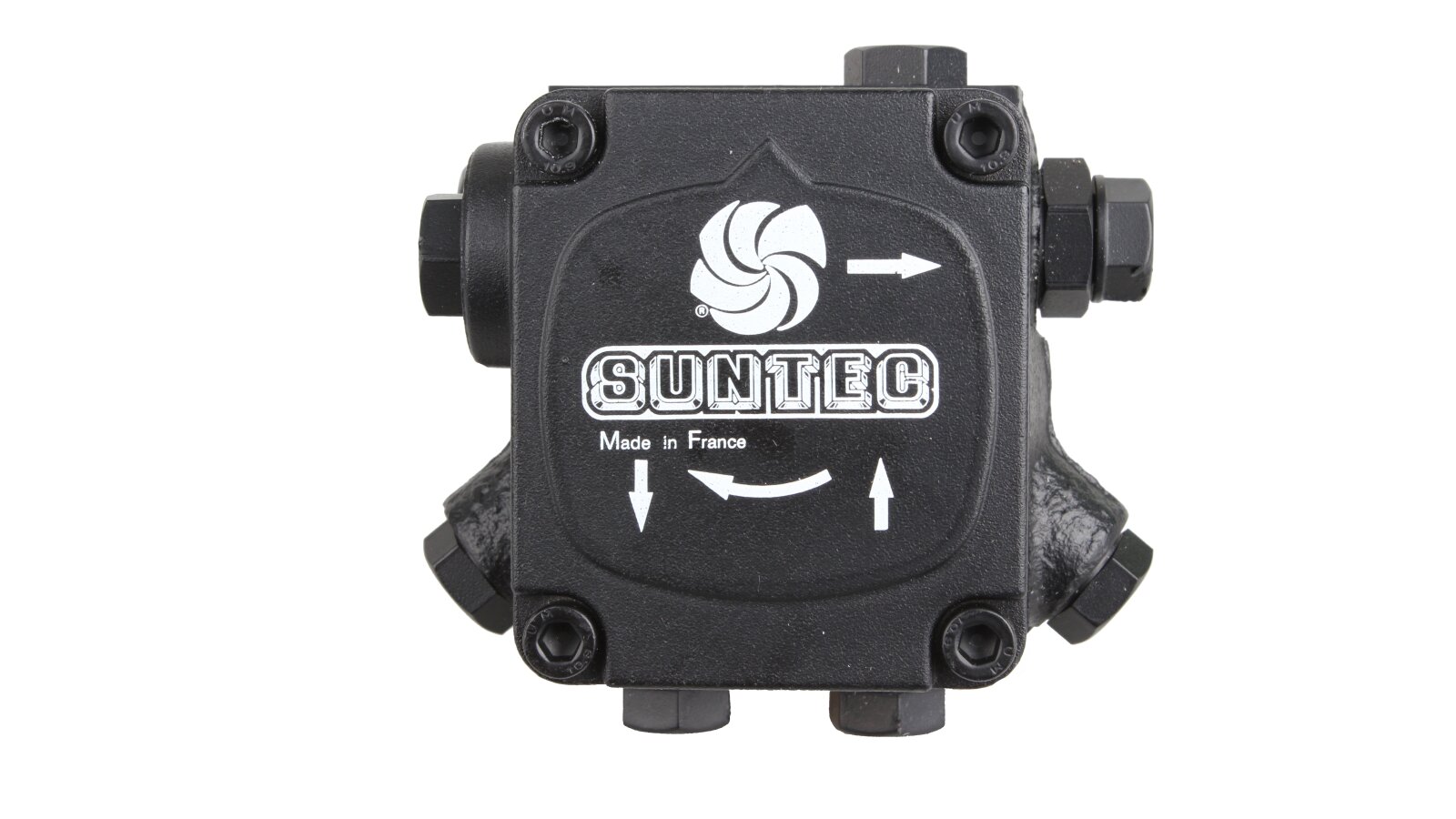

Burner Pump Suntec AE 97 B 7283 3P

Suntec
  • Discontinued
  1. Oil Burner Pumps

Description

The Suntec AE 97 B 7283 3P pump is a basic model with a pressure regulating valve, without a flow shut-off function. The shut-off function is provided by an external electromagnetic valve (purchased separately). The pump is designed for assembling diesel burners.

Features

  • The pump has a reliable design, with solid assembly and high-quality seals. It is designed for pumping fuel, the temperature of which does not exceed +60 ºC.

  • The design includes a valve that regulates the fuel pressure to the injector. The locking function is missing in the basic version. The shut-off function is performed by an external electromagnetic valve.

  • Wear-resistant gears suck fuel from the tank through a mesh filter, feed it to the regulating valve, and then to the injector line.

  • The built-in filter has an increased working area of ​​20 cm², retains all coarse mechanical particles from 150 microns in size, which contributes to the stable operation of the pump, eliminates jamming and damage to the gear pair.

  • The pump can be built into systems with one or two pipes. For a single-pipe connection, the bypass plug is removed using a 4 mm socket wrench, and the return line is blocked with a steel plug and washer.

  • Excess air is released automatically in a two-pipe system. If there is no return line when the pump is started, air is released through the nozzle channel. Loosening the plug of the pressure gauge hole allows you to bleed air faster during the first start-up.

  • The pump is factory-set to a pressure of 14 bar. You can independently adjust the pressure within the range from 8 to 28 atm.

  • Installation is carried out using a flange ∅ 54 mm. Standard ports are provided in the housing for connecting control and measuring devices.

Advantages:

  • high performance;

  • protection of gears from abrasive particles from 150 µm in size;

  • increased cleaning area;

  • single- and double-pipe connection;

  • easy installation into the system;

  • standard ports for connecting measuring devices;

  • uninterrupted, long-lasting service.

On the ANKAS website you can buy a Suntec AE 97 B 7283 3P pump and additional accessories (external EM valve, control and measuring devices, accessories for installation) for assembling, connecting and adjusting boiler equipment.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 132 l/hDirection of rotation (looking at the drive shaft): B: clockwise rotation / nozzle on the leftOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulation without locking functionInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: flange ∅ 54 mmShaft diameter: 8 mmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barMaximum rotation speed: 3600 rpmNozzle pressure range: from 8 to 28 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityType of pumped liquid: dieselPump series: AE: base model without locking function
