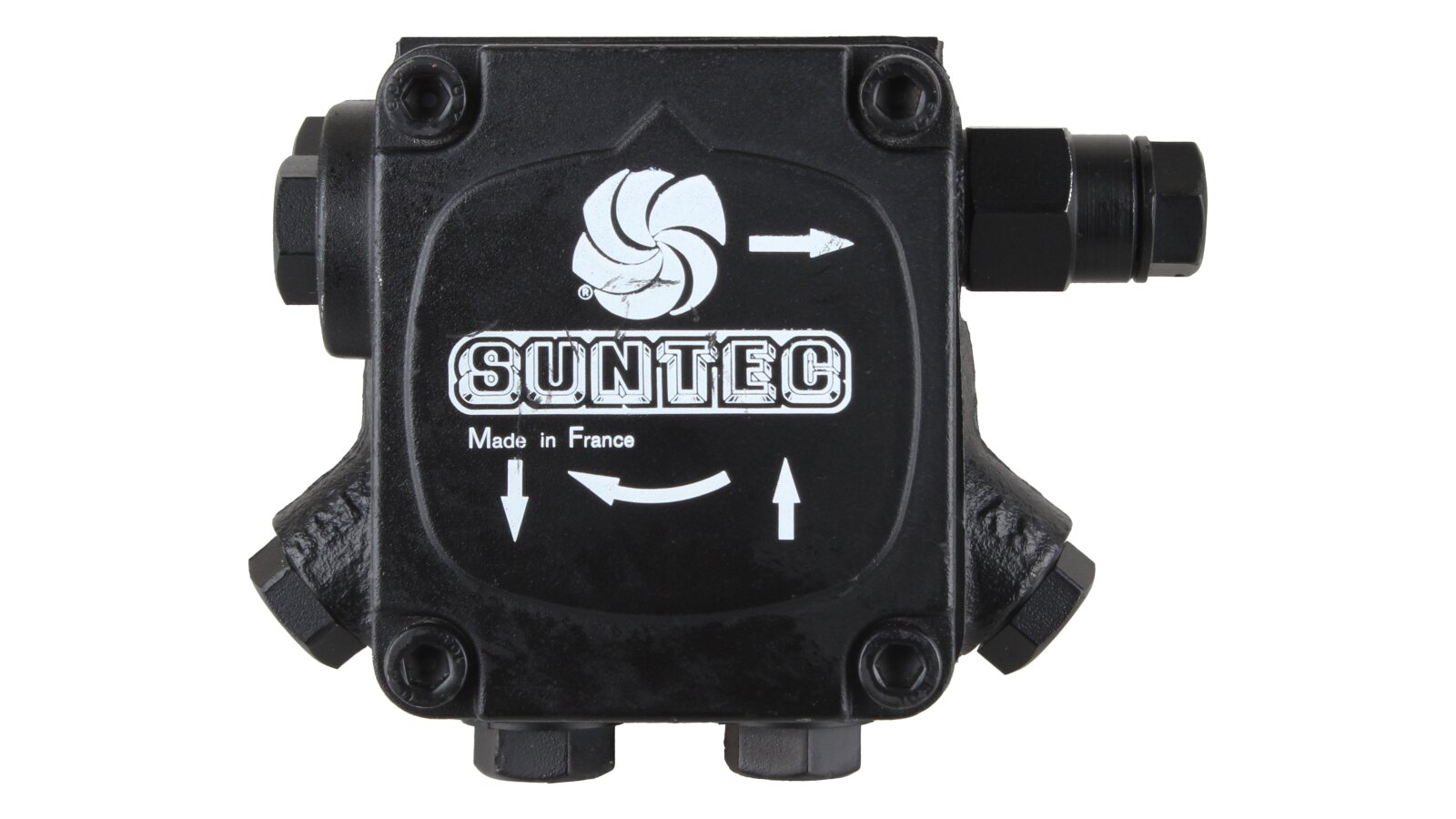

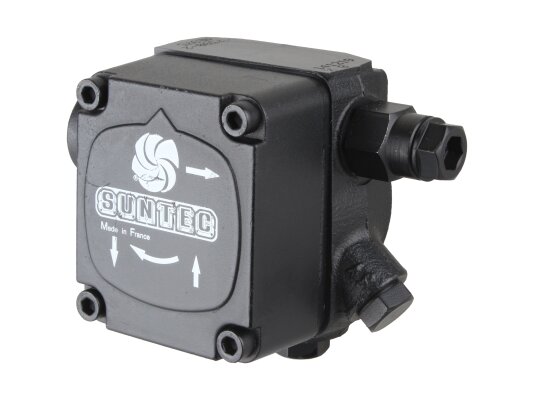

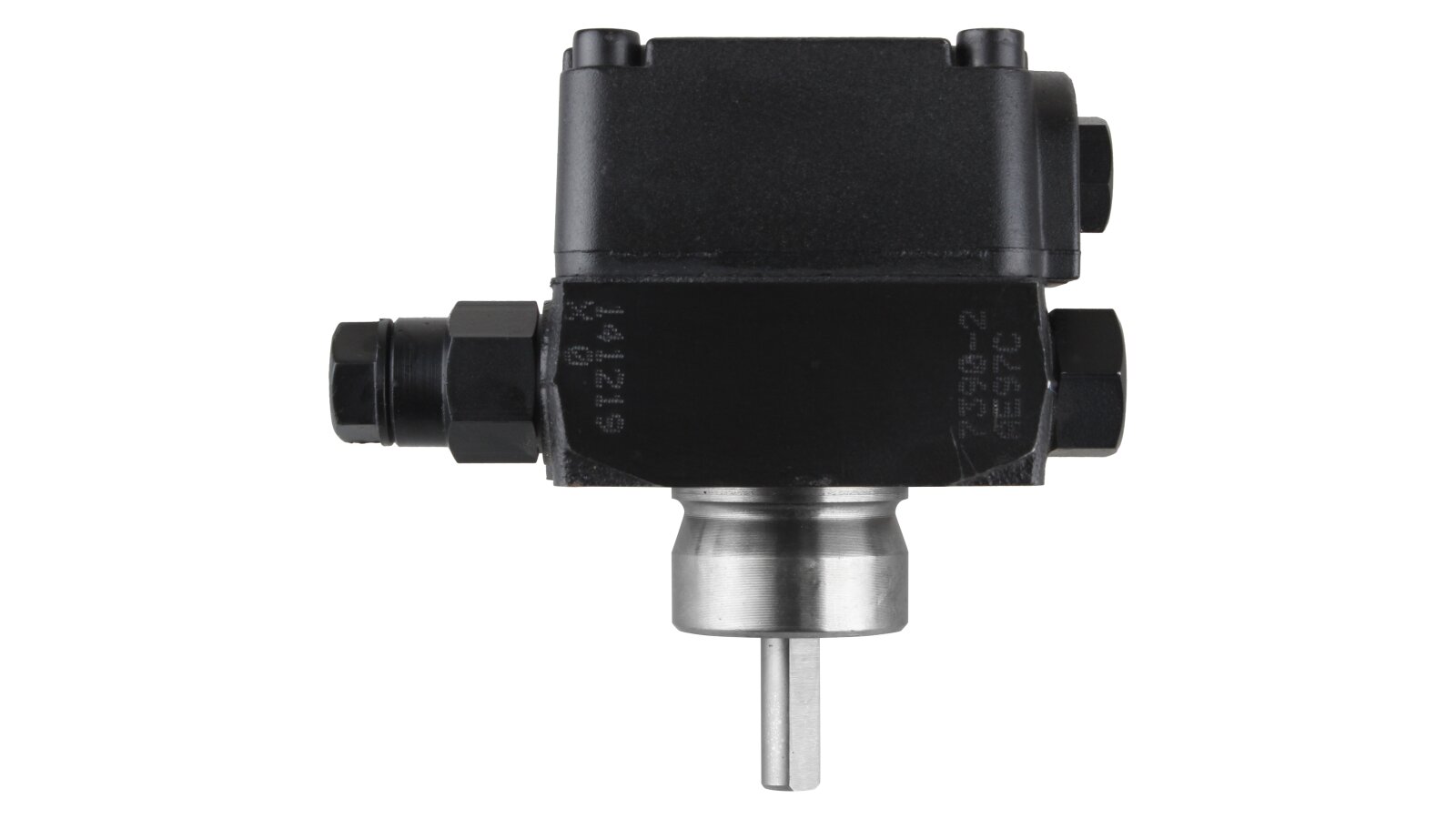

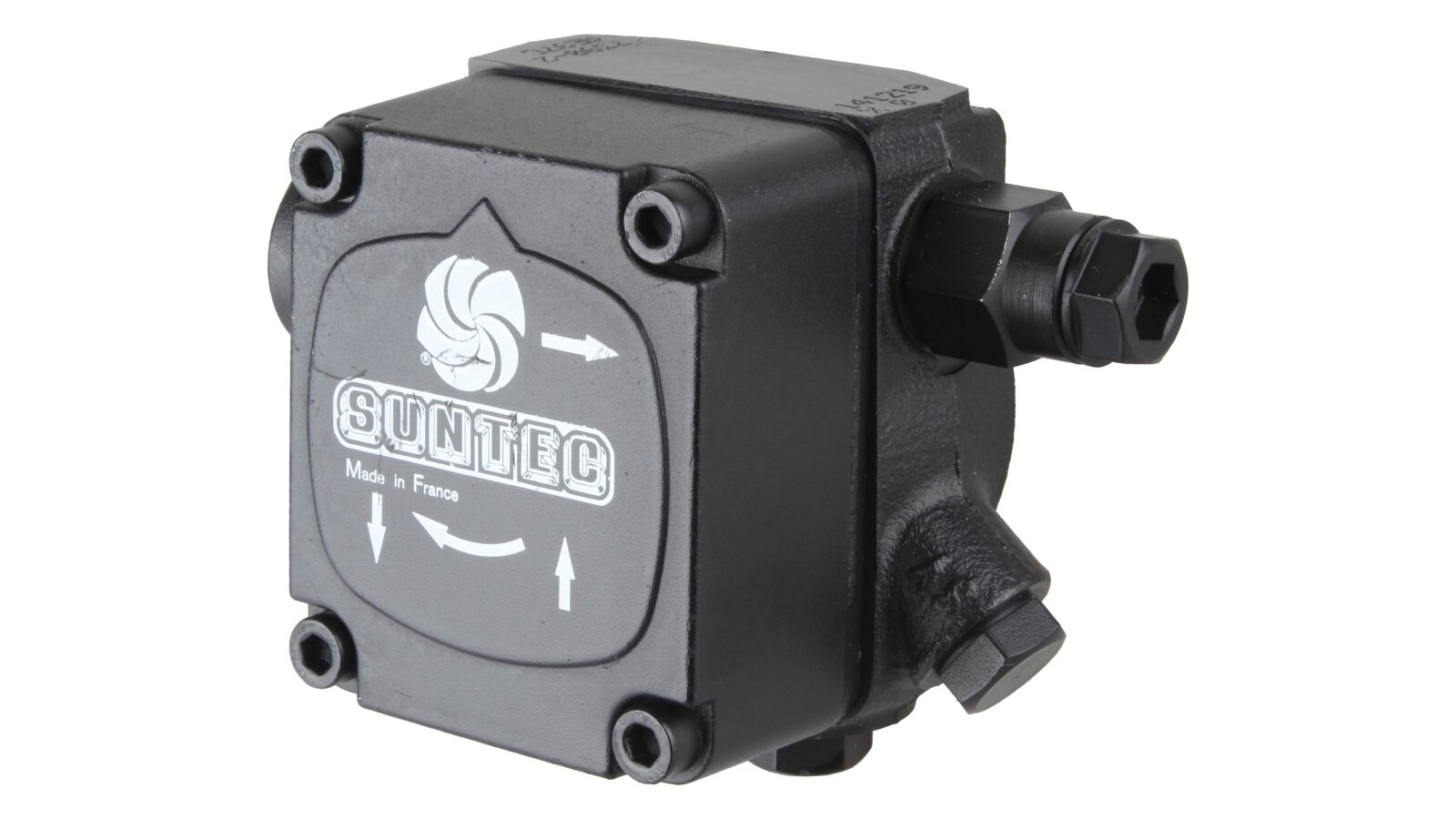

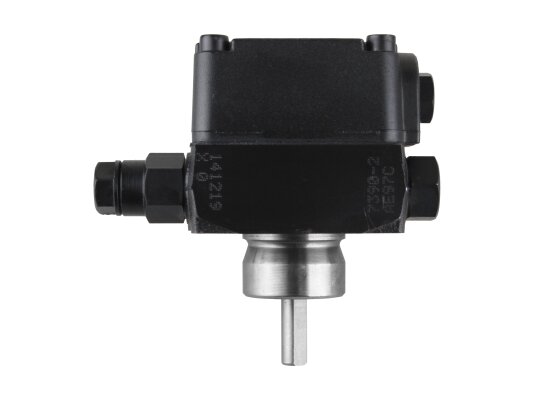

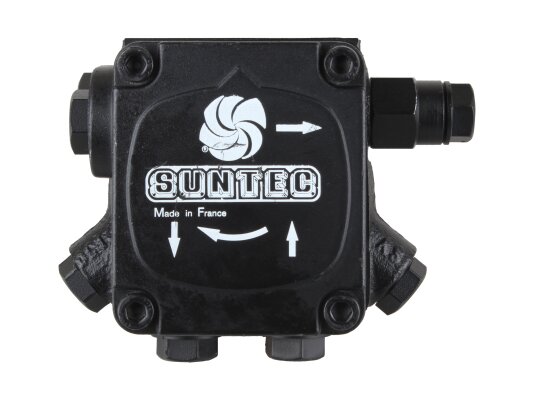

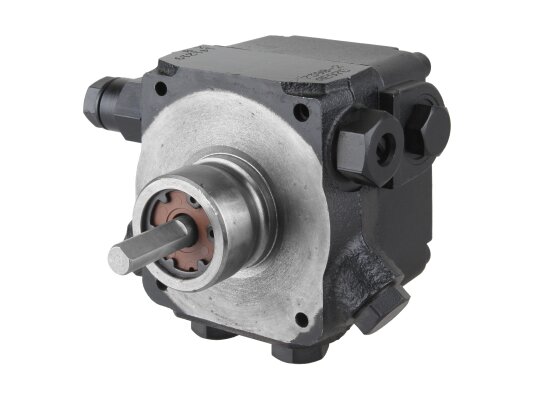

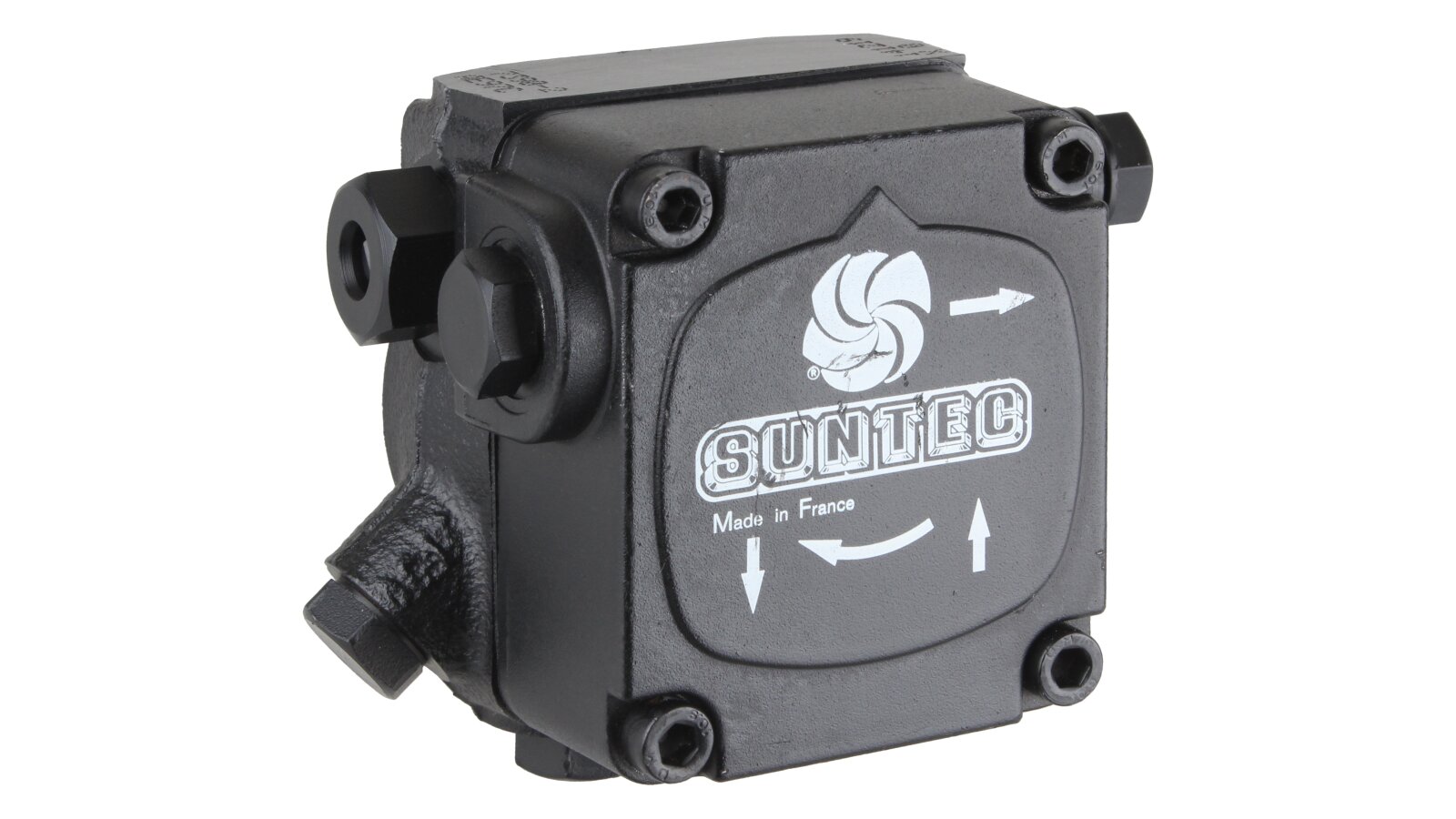

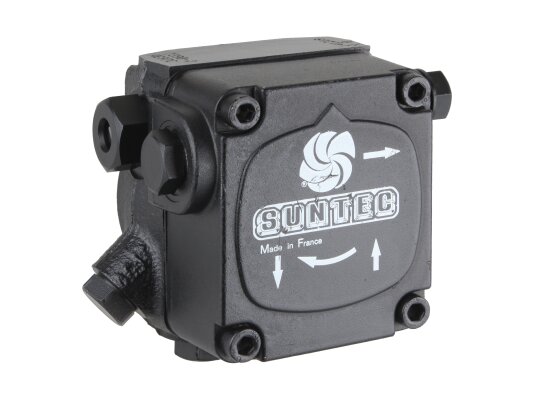

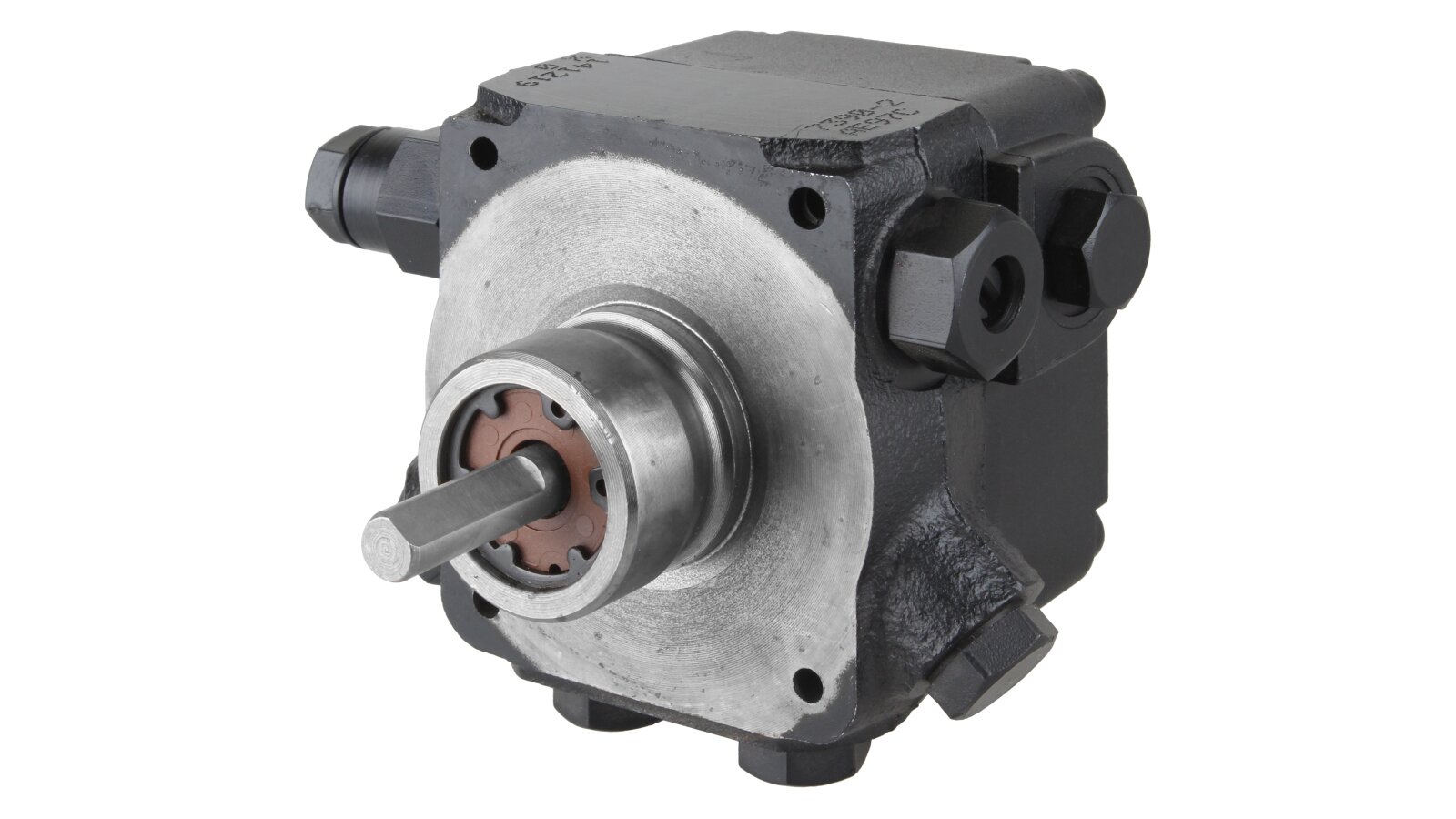

Burner Pump Suntec AE 97 C 7390 2P

Suntec
AED 1,100
  1. Oil Burner Pumps

Description

The well-known French manufacturer Suntec offers its customers the AE 97 C 7390 2P gear pump for liquid fuel burners installed in industrial heating systems. The model with a capacity of 132 l/hour does not have a shut-off function, so the fuel supply is shut off manually. It is possible to improve the unit by installing a shut-off electromagnetic valve.

Device Features

This equipment can be classified as universal. It is suitable for installation in both two-pipe and single-pipe fuel supply systems of most burner models: Elco, Baltur, Lamborghini and others. To integrate into a single-pipe circuit, it is necessary to dismantle the bypass plug, which is present in the factory package, and install a steel plug with a washer on the "return".

Fuel is supplied to the injectors using a gear pair, which distills it from the tank through a filter with a mesh size of 150 µm. The factory setting of the fuel pressure is 14 atm, but it can be adjusted manually depending on the requirements. For these purposes, a valve is provided through which excess fuel is returned to the tank in case of a two-pipe connection or moved to the suction system in case of a single-pipe connection.

Technical information

  • the unit is designed to pump liquid with a temperature from 0 to +60 °C with its operational viscosity from 2 to 75 mm²/s;

  • with high productivity, the weight of the equipment is 1.3 kg, which simplifies its installation in the system;

  • the nominal pressure of the fuel mixture on the injector is from 8 to 28 atm;

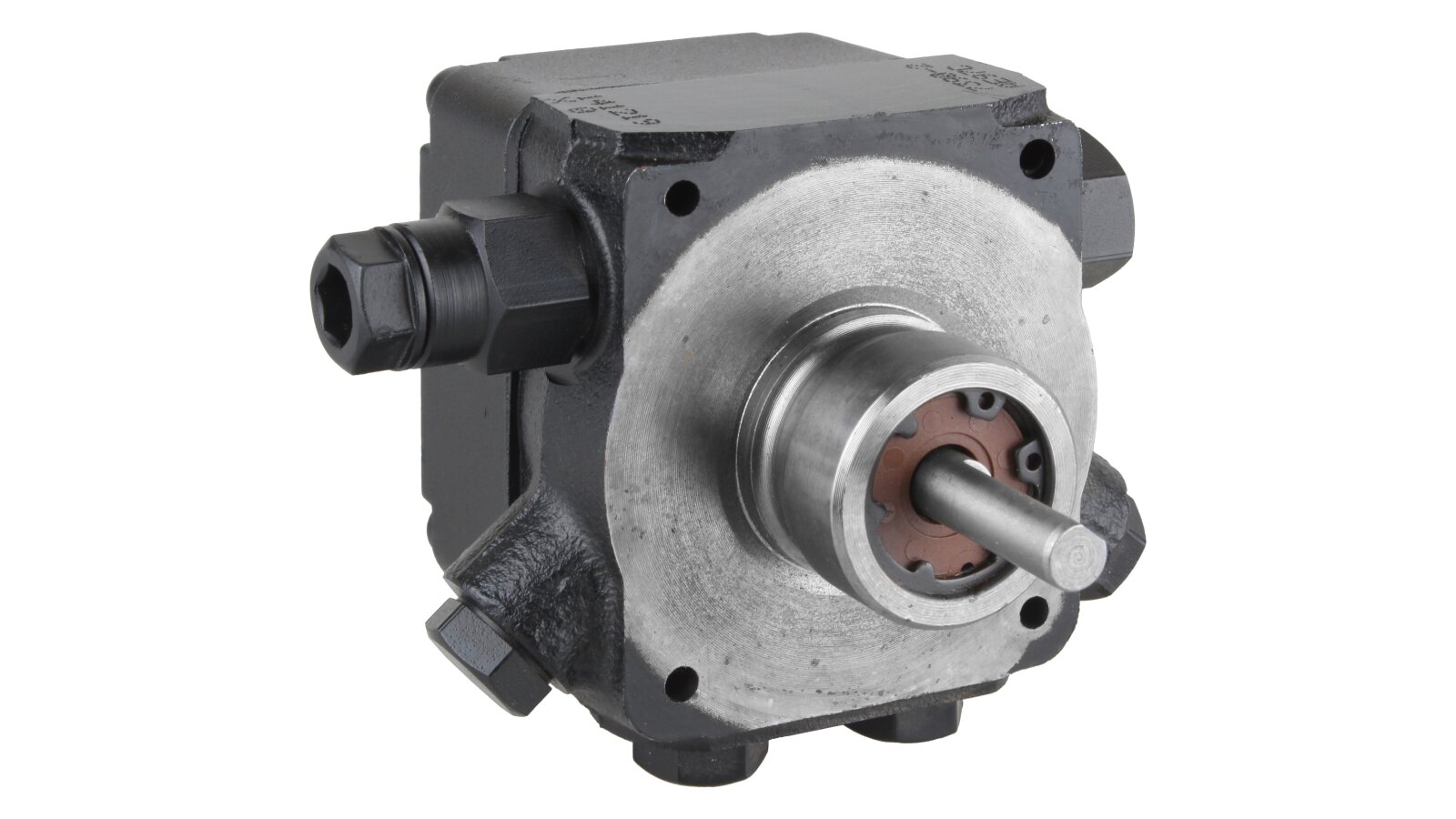

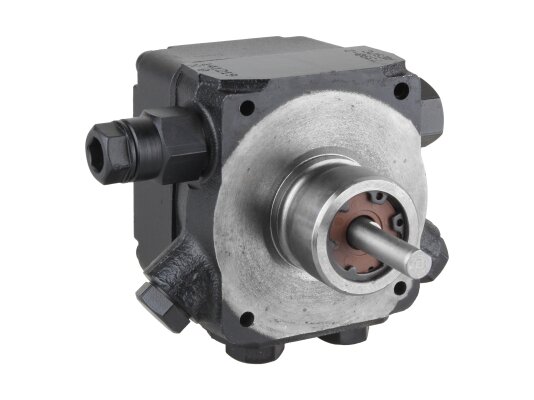

  • the connection to the electric motor is a sleeve, with a diameter of 32 mm;

  • the lightweight housing has holes with G¼ "threads for connecting the suction and return lines, as well as G1 / 8" ports for the discharge line and pressure control devices.

The online store of the company "ANKAS" sells pumps for burners Suntec AE 97 C 7390 2P at an affordable price. In comparison with competitors, we offer a favorable price from the manufacturer.

Characteristics

Direction of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftPerformance at 11 bar pressure and 5 cSt viscosity: 132 l/hOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmInstallation method: sleeve ∅ 32 mmShaft diameter: 8 mmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barMaximum rotation speed: 3600 rpmNozzle pressure range: from 8 to 28 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityType of pumped liquid: dieselPump series: AE: base model without locking function
