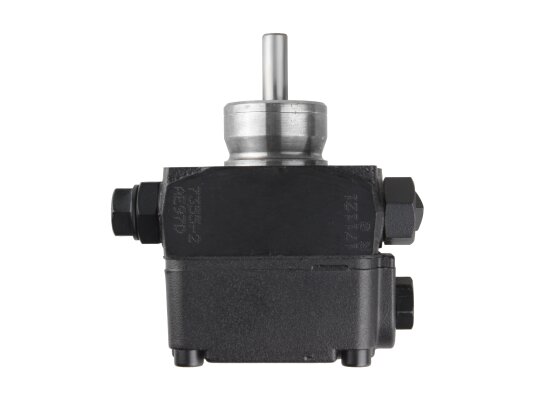

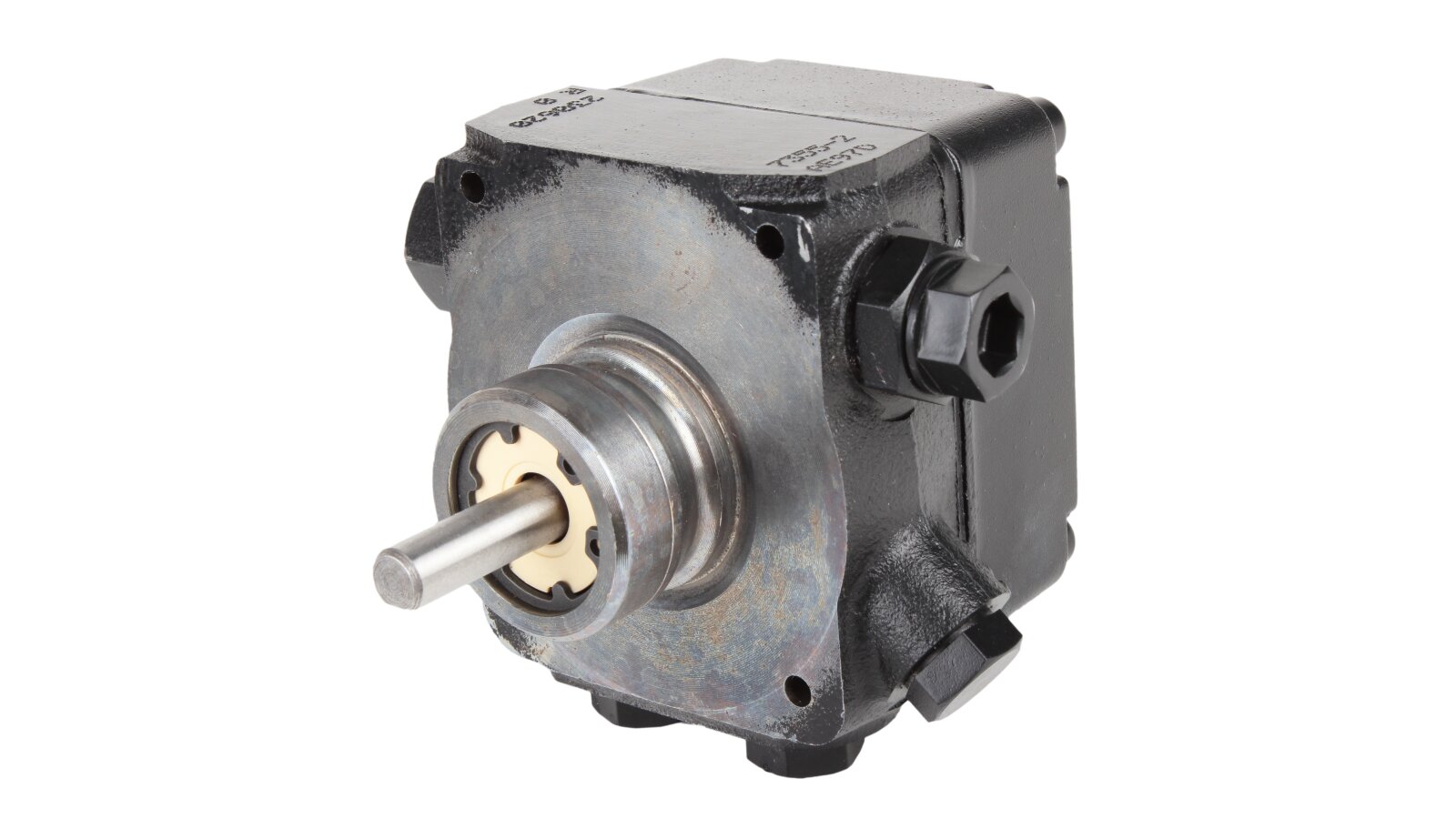

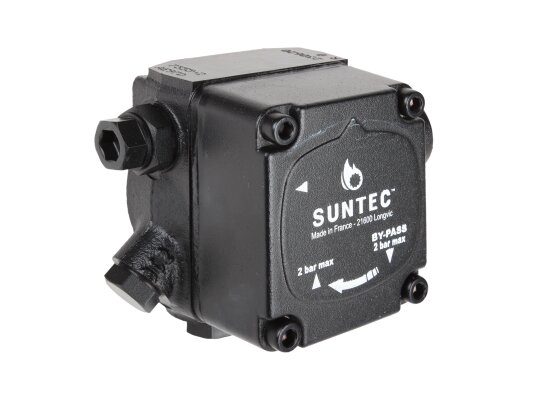

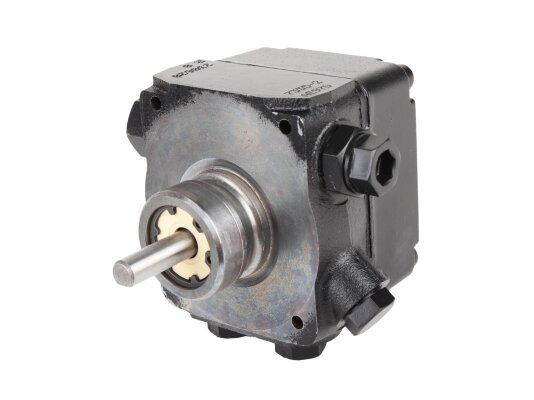

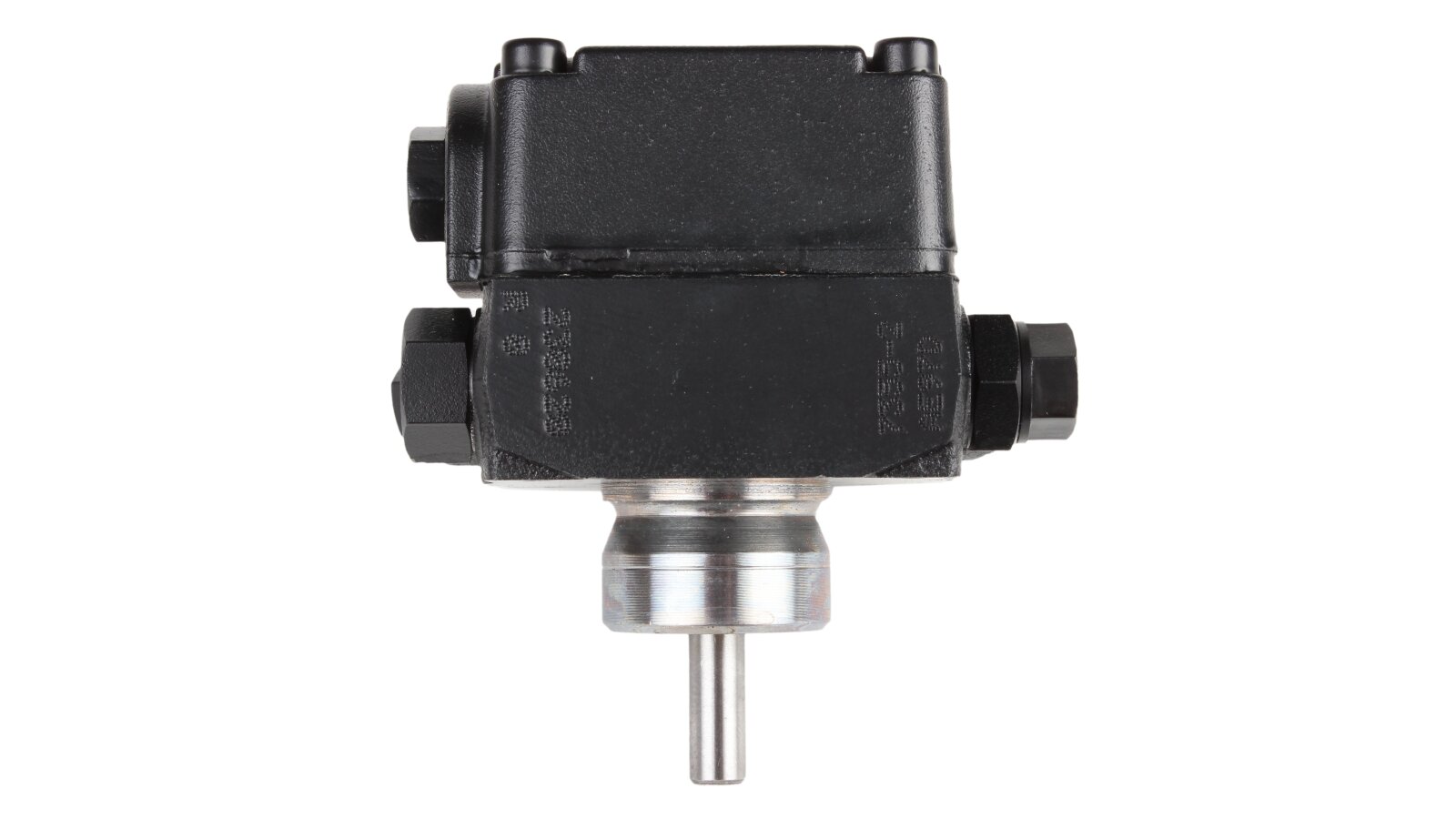

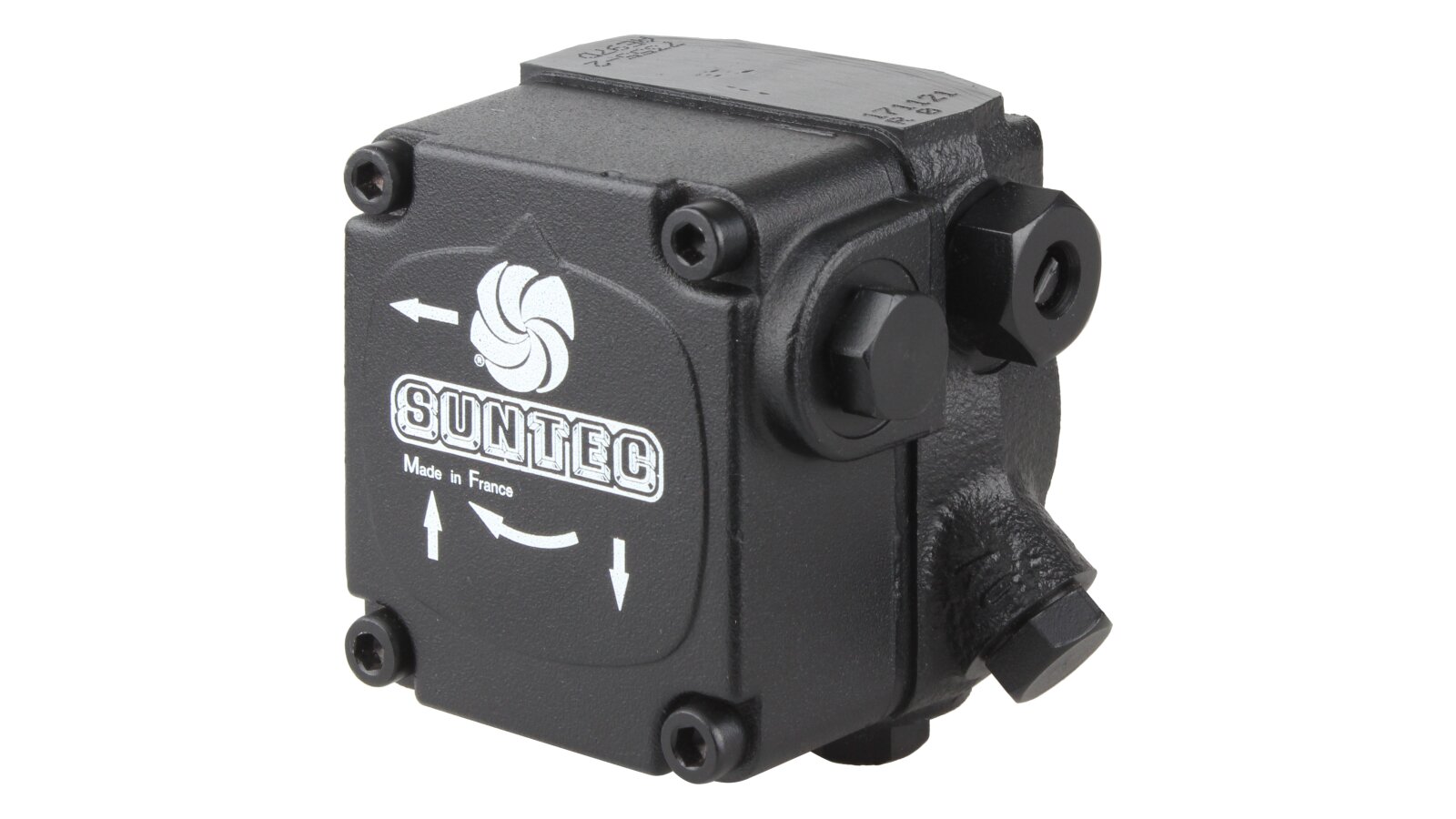

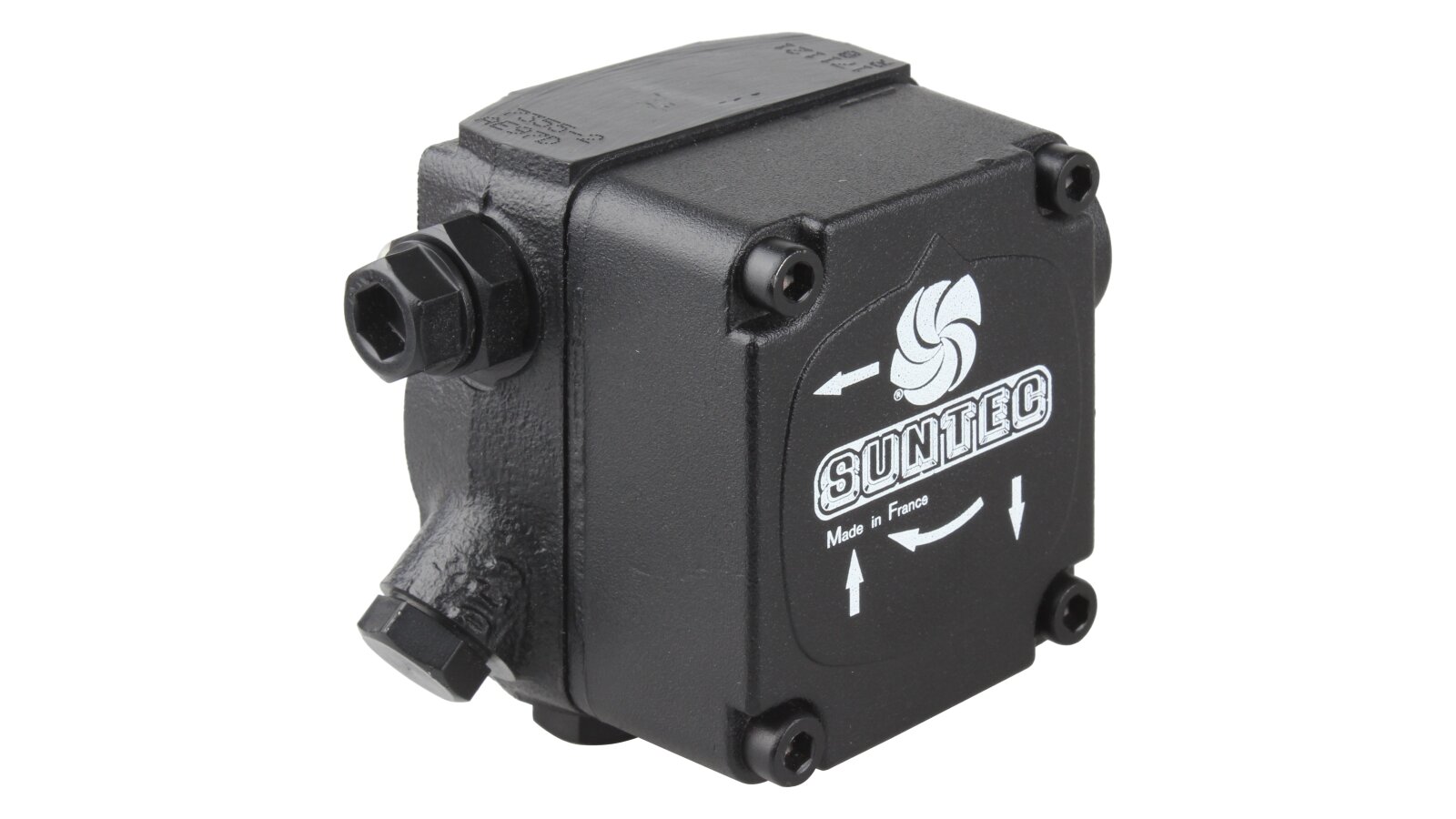

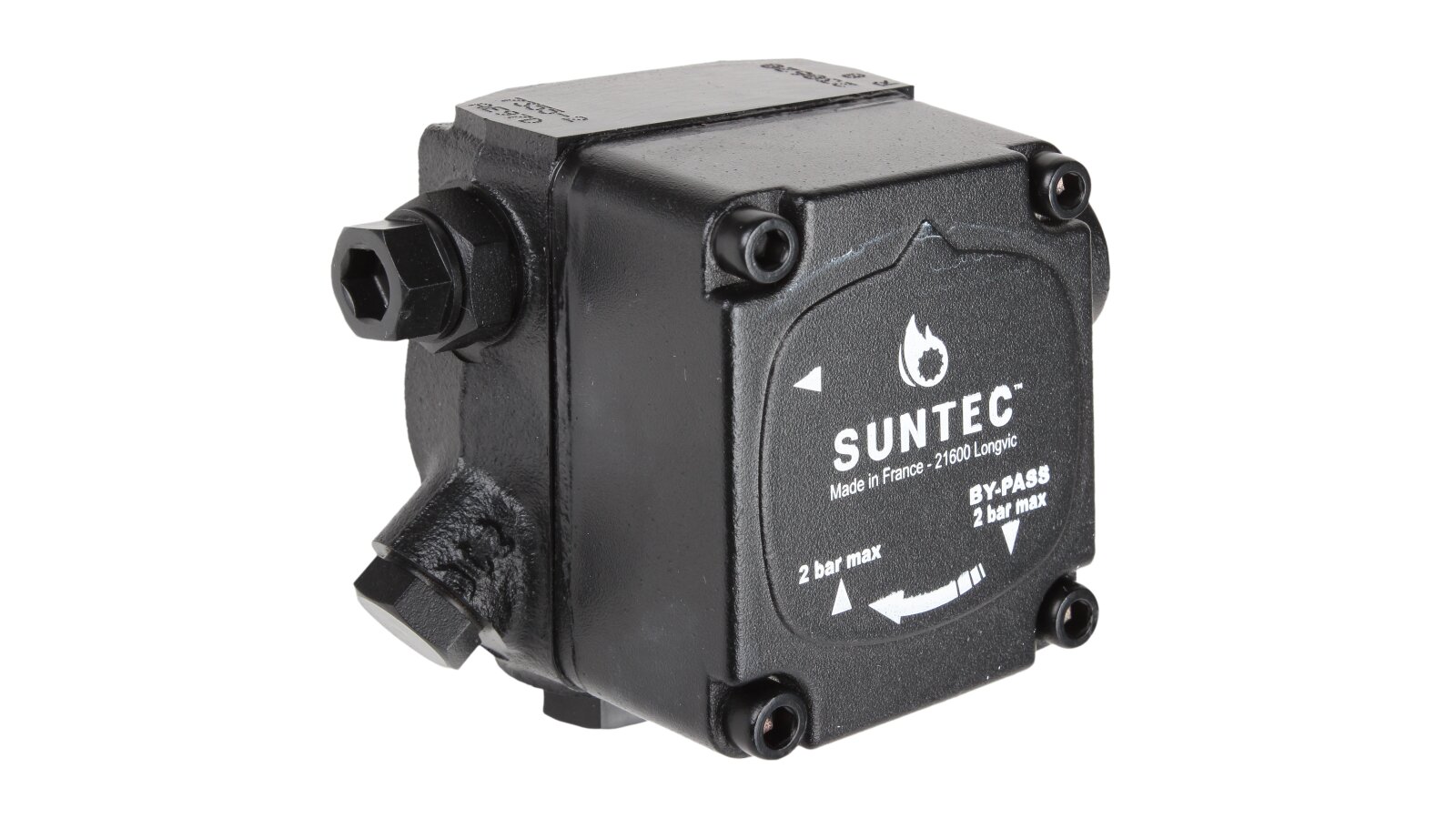

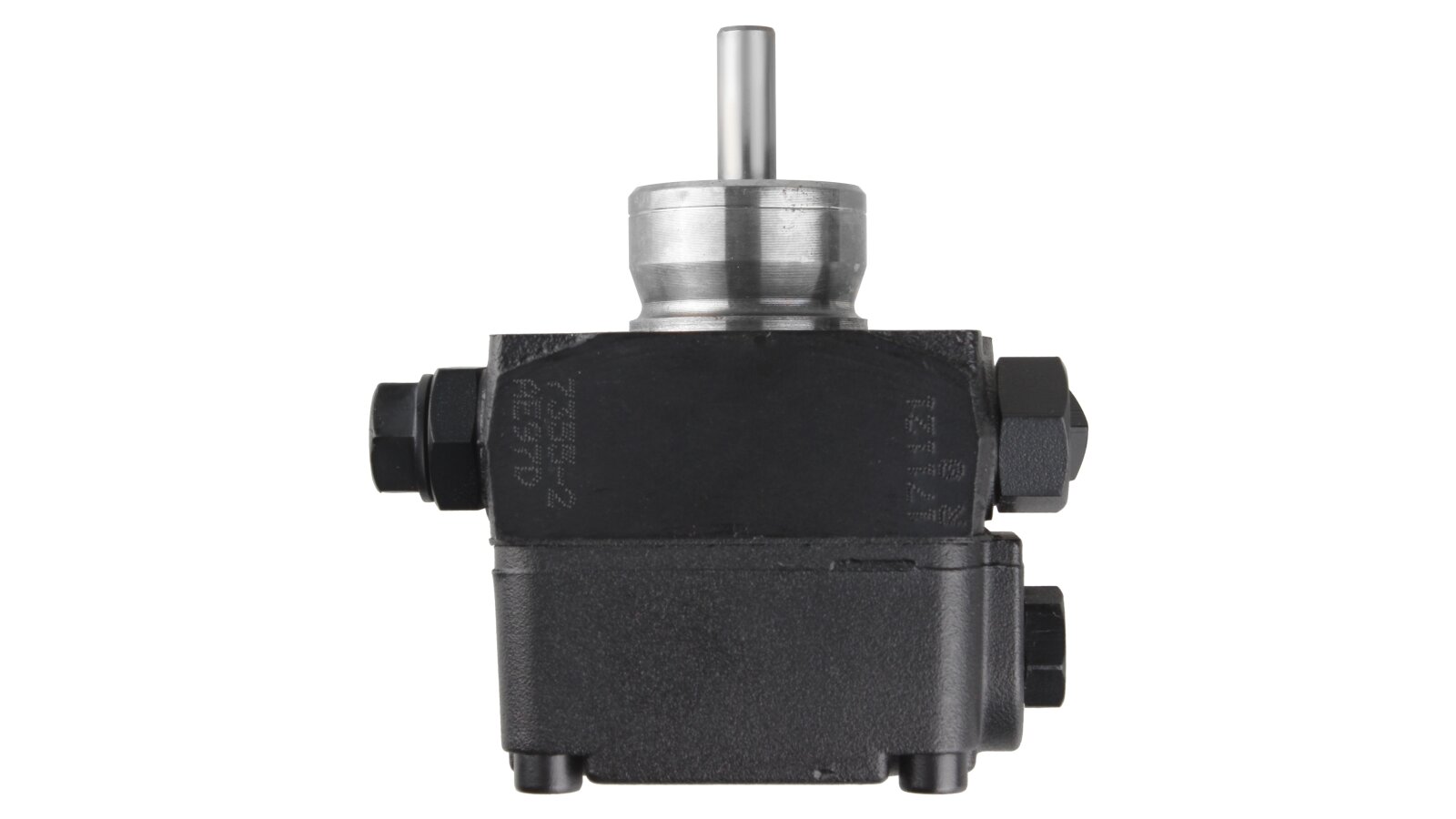

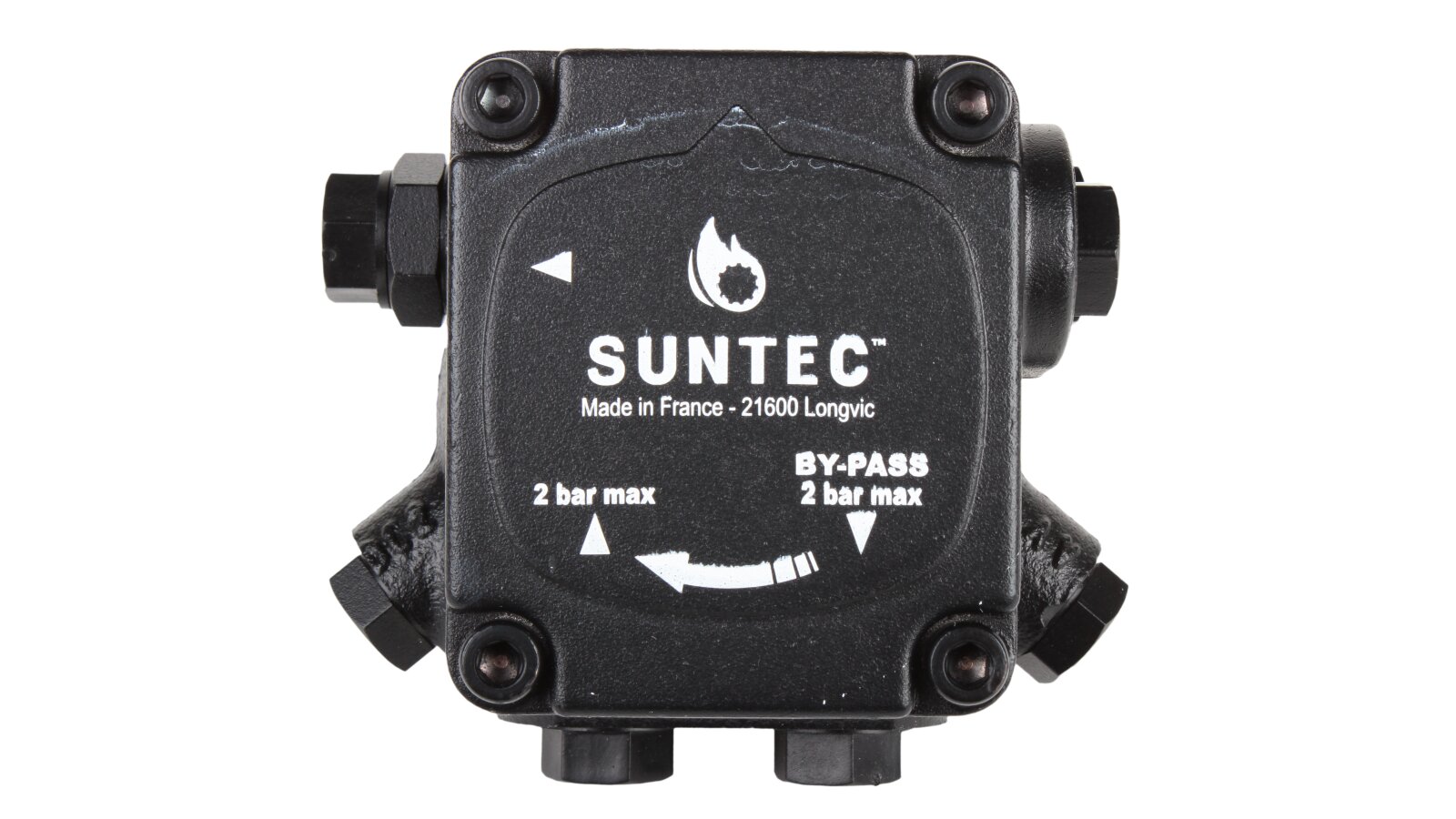

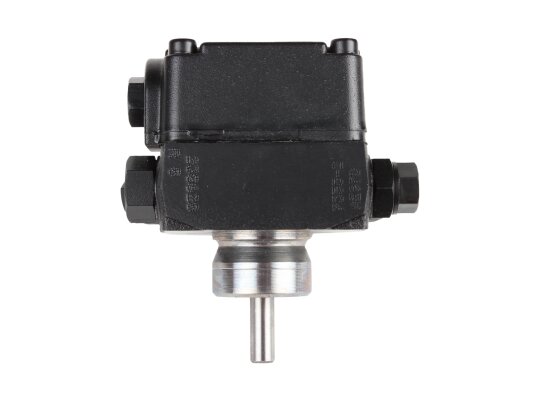

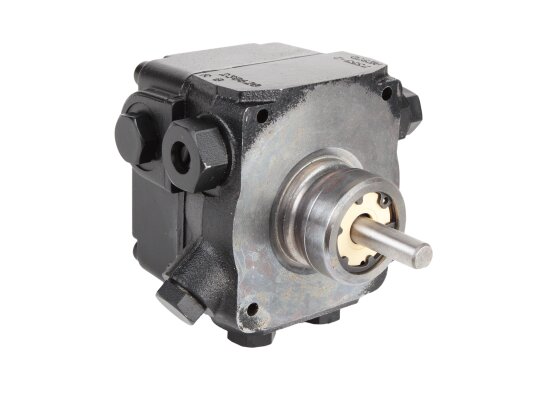

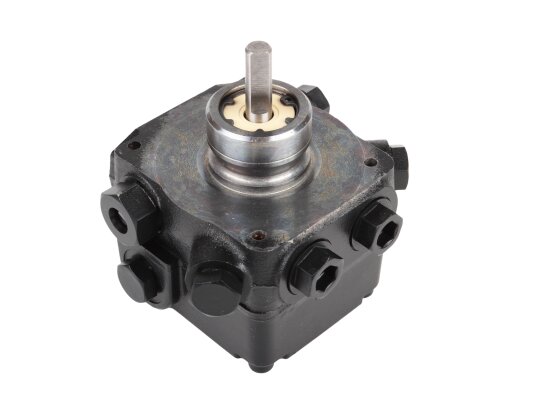

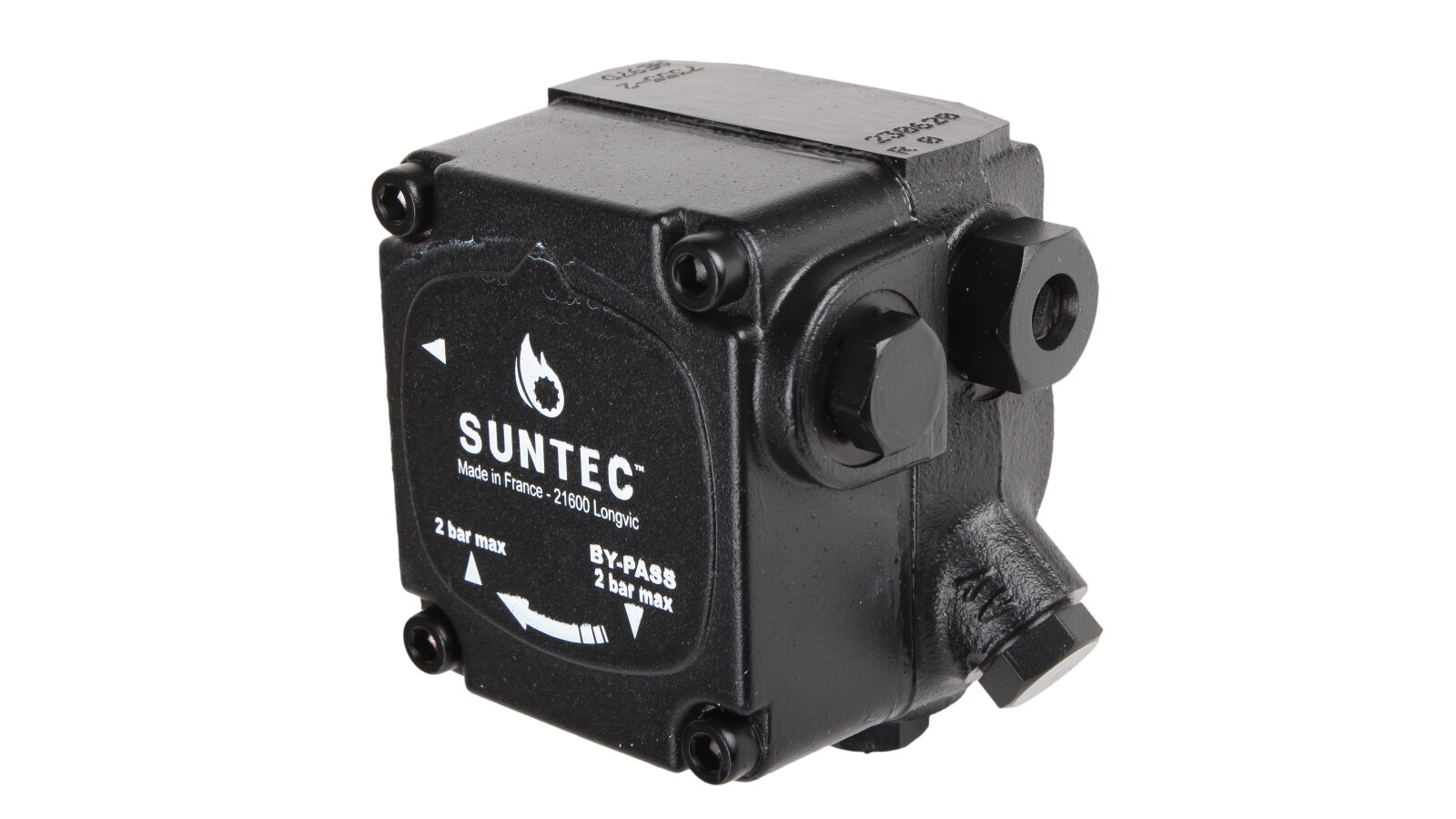

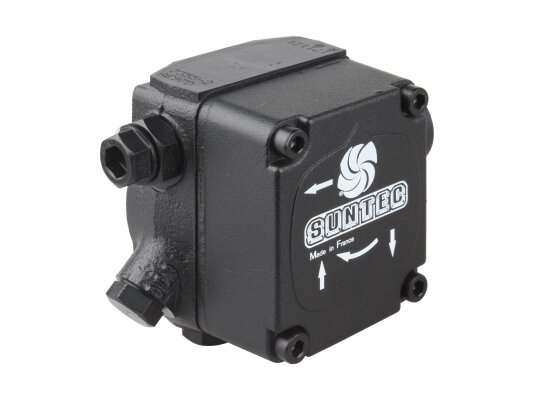

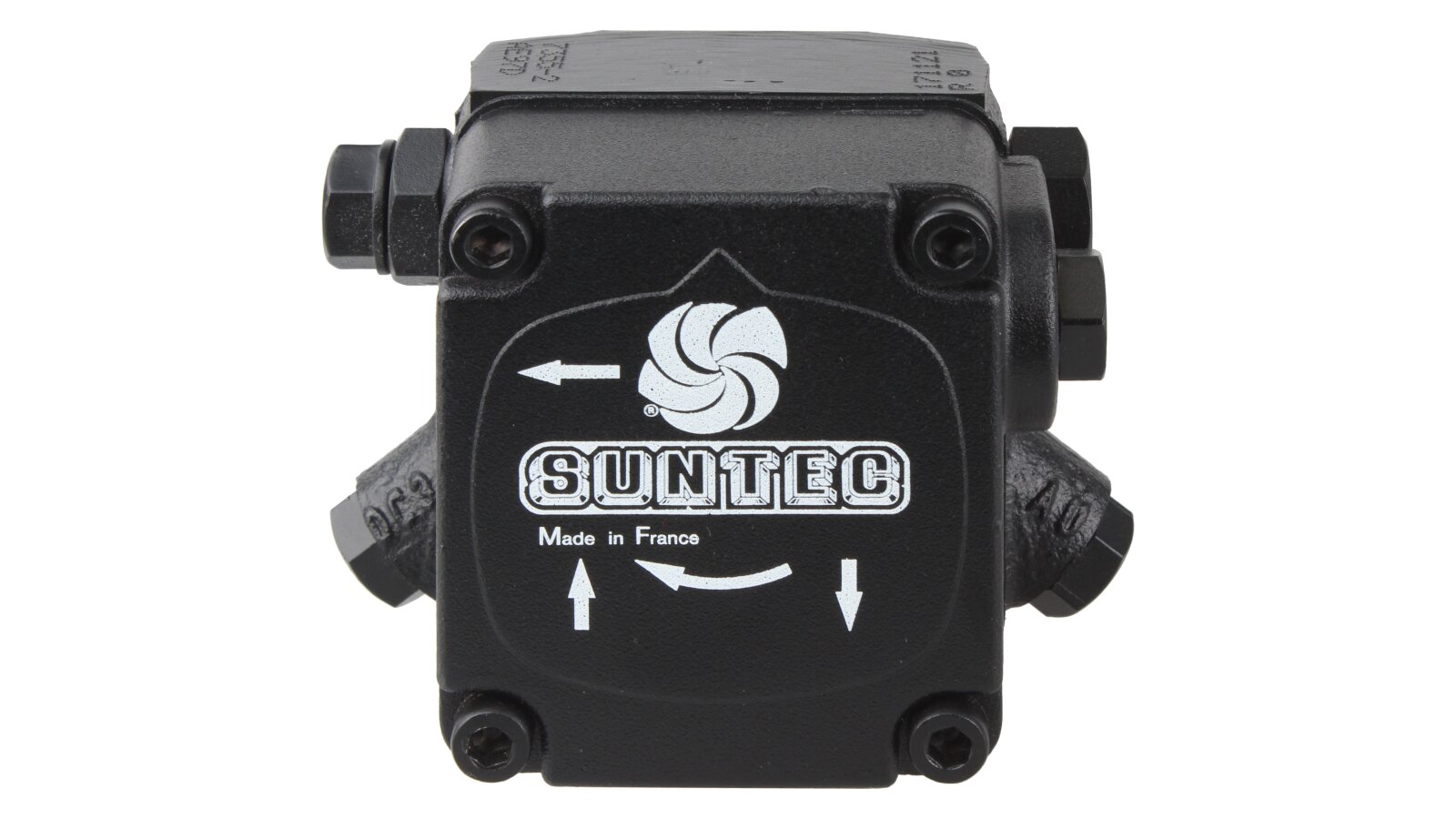

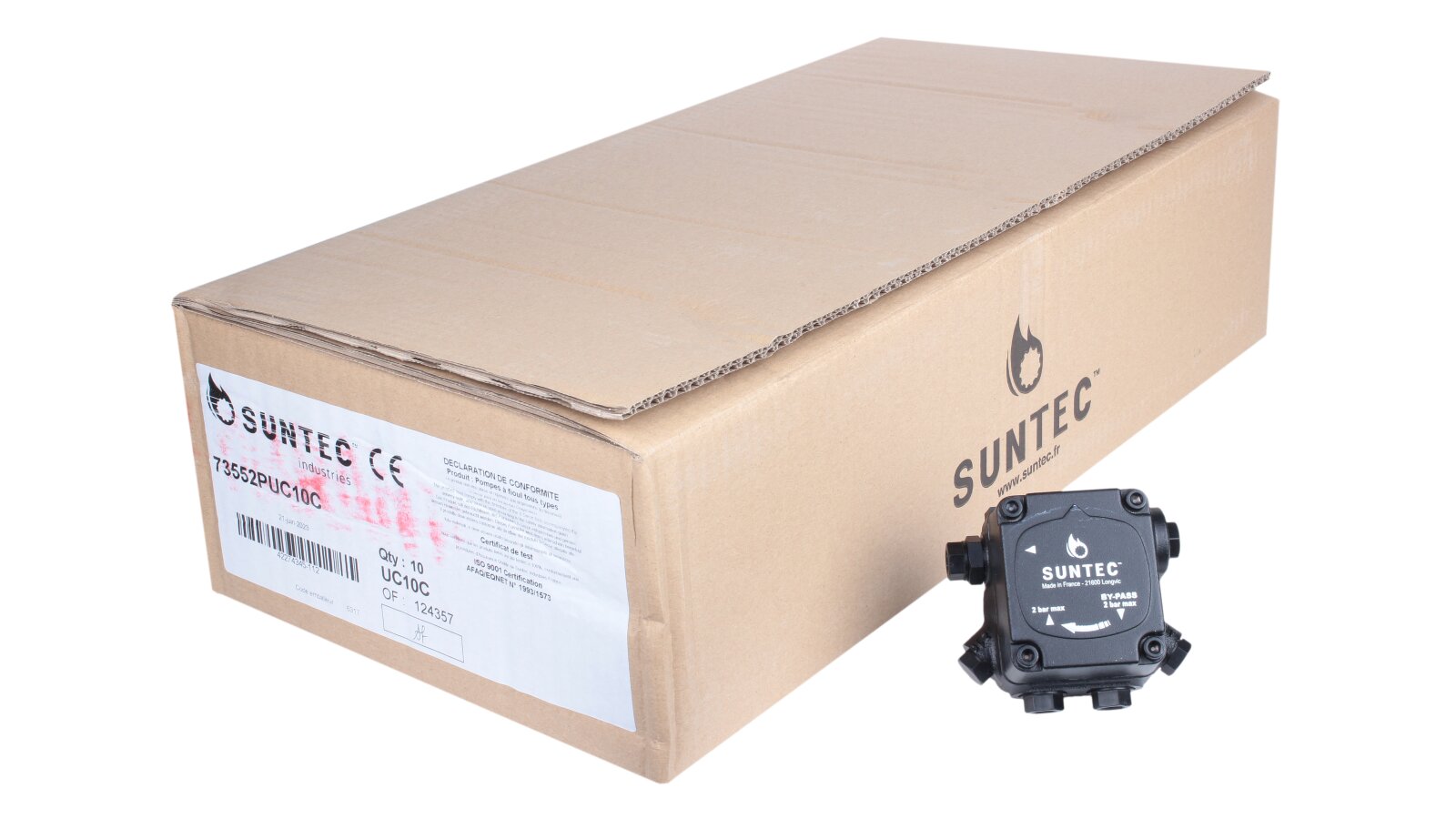

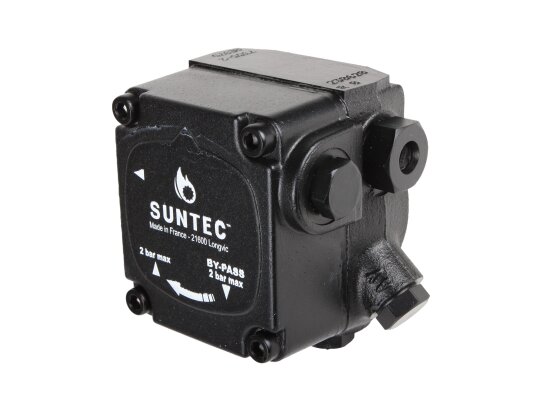

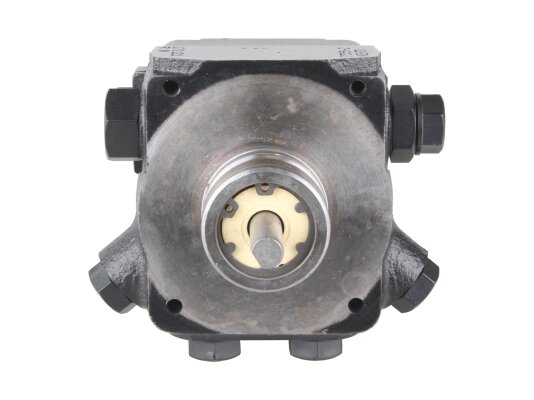

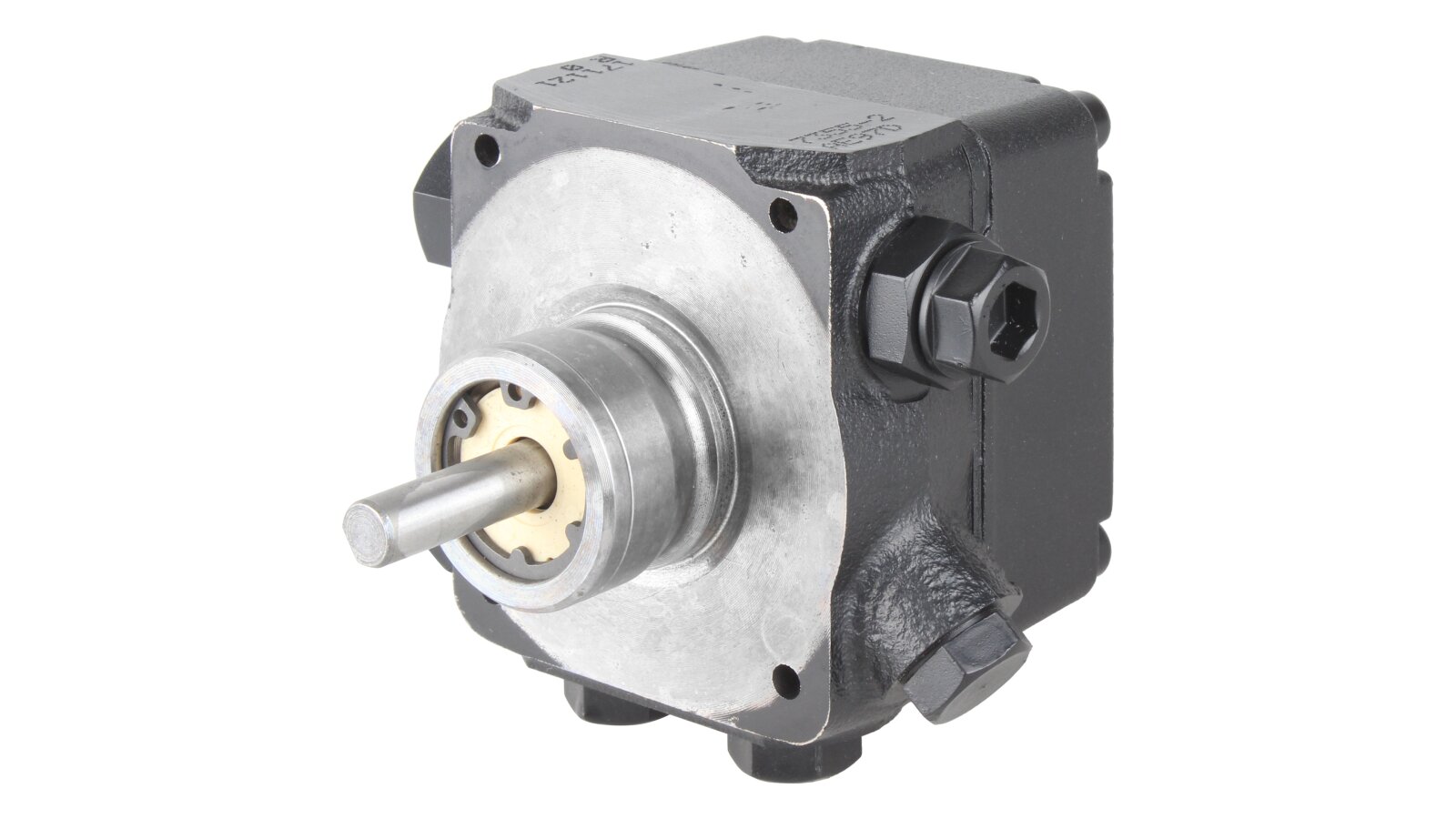

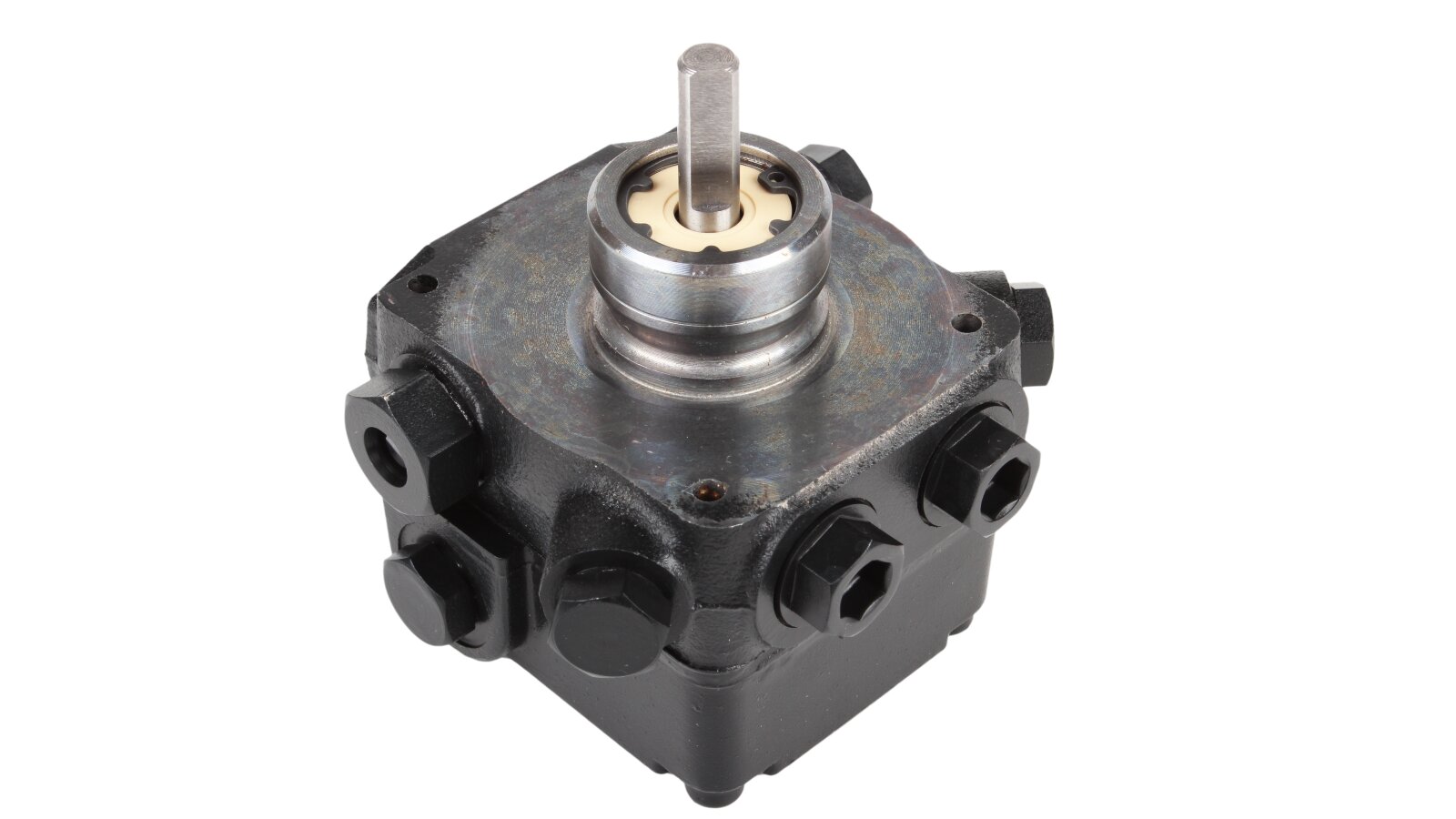

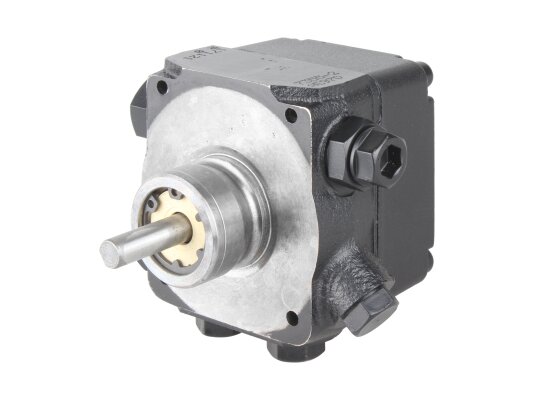

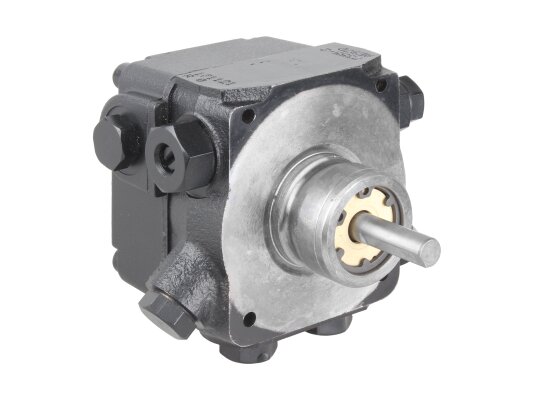

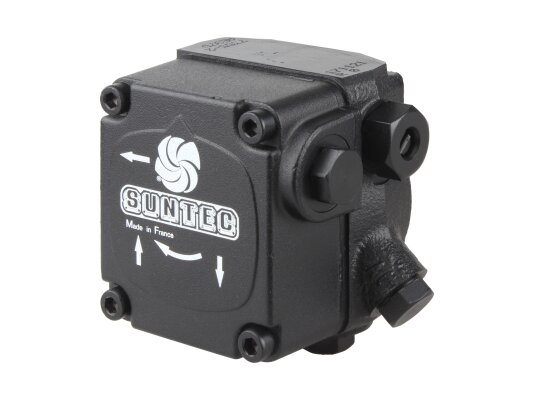

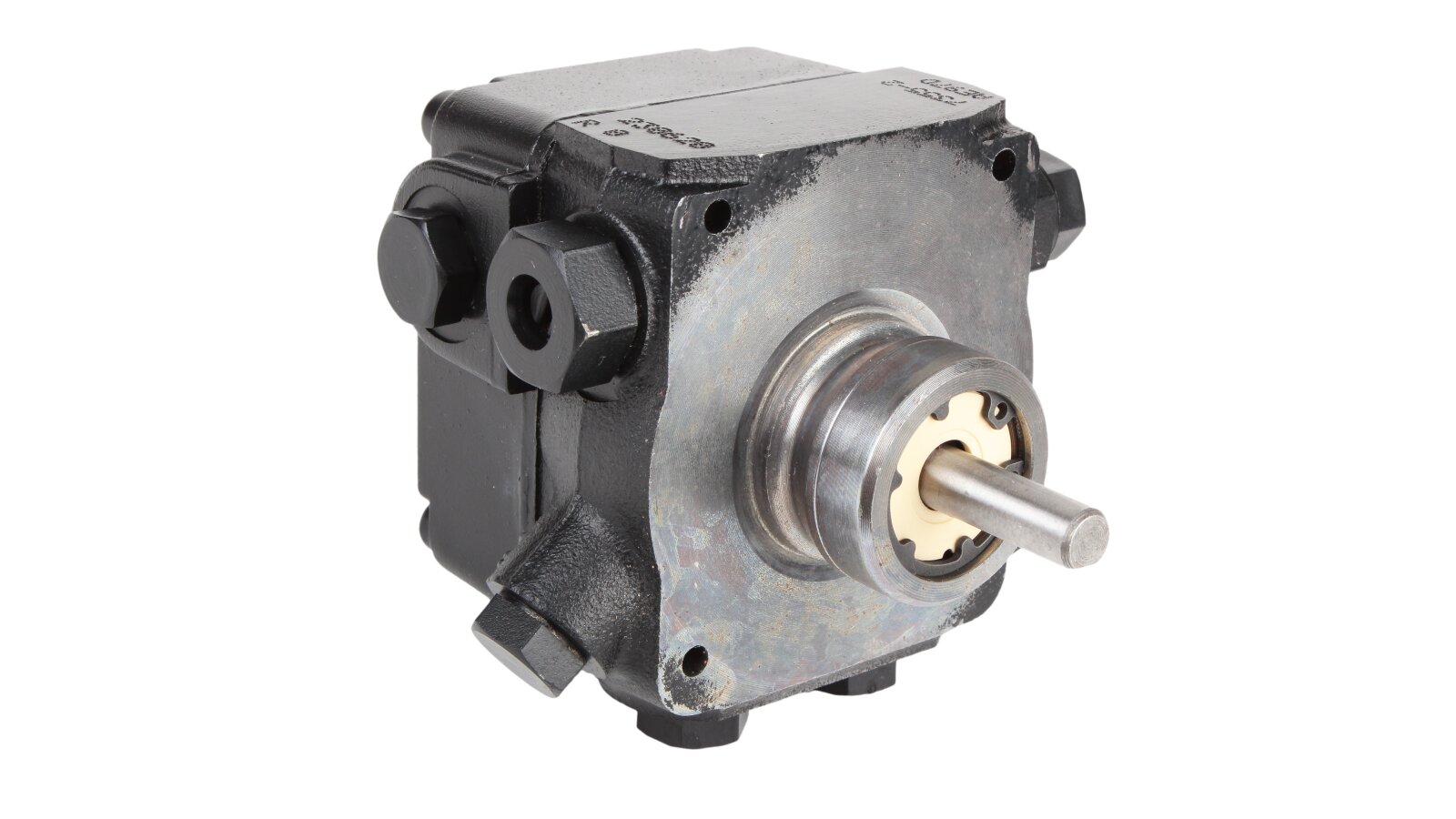

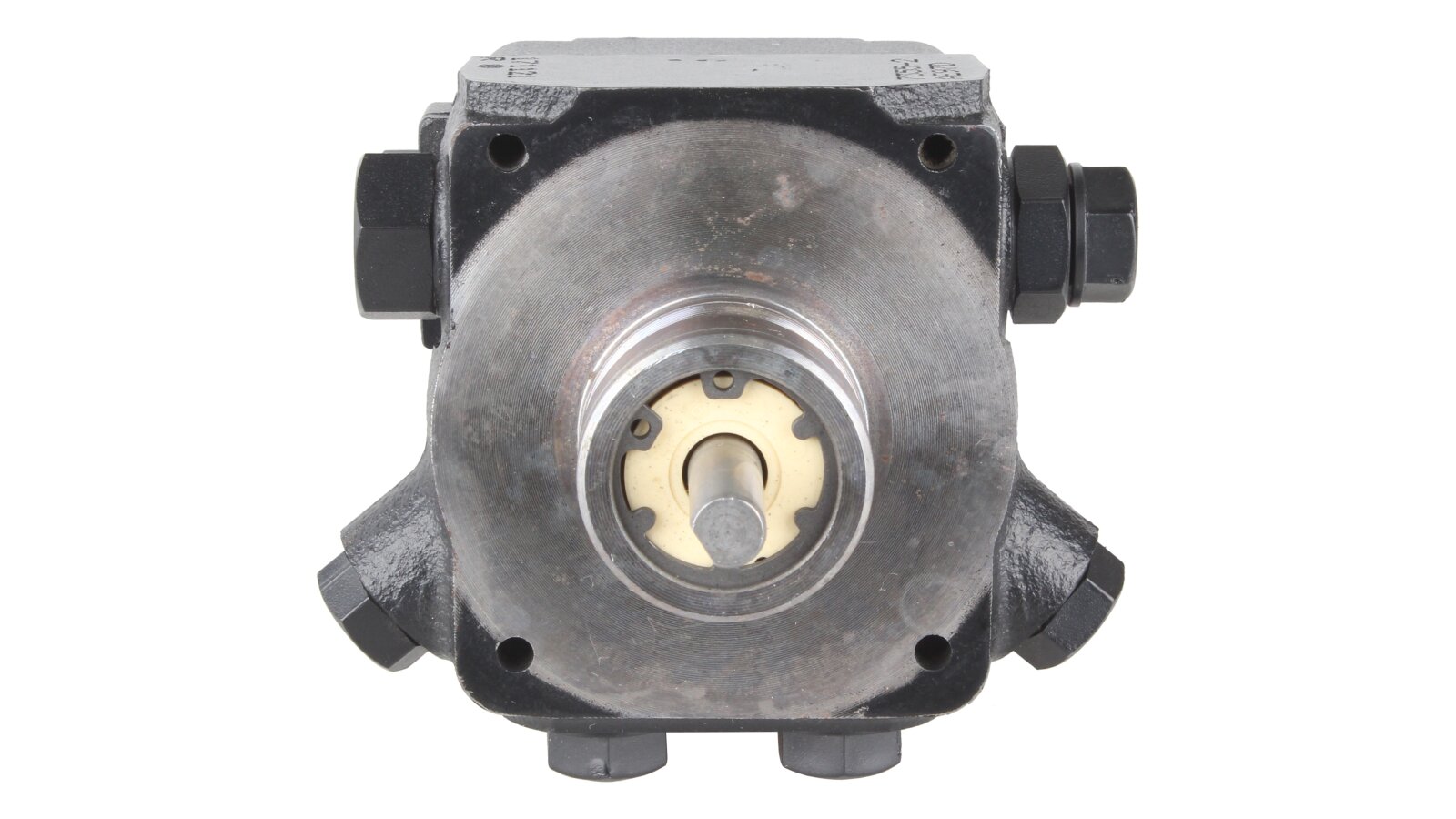

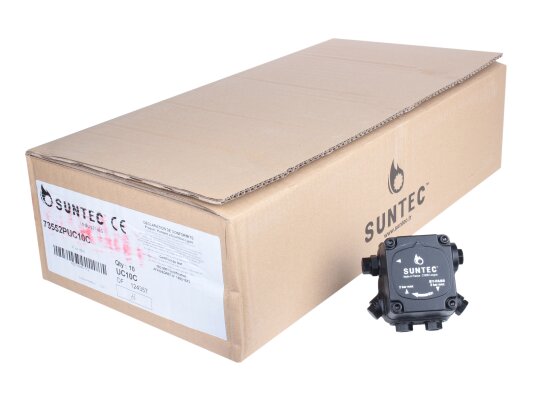

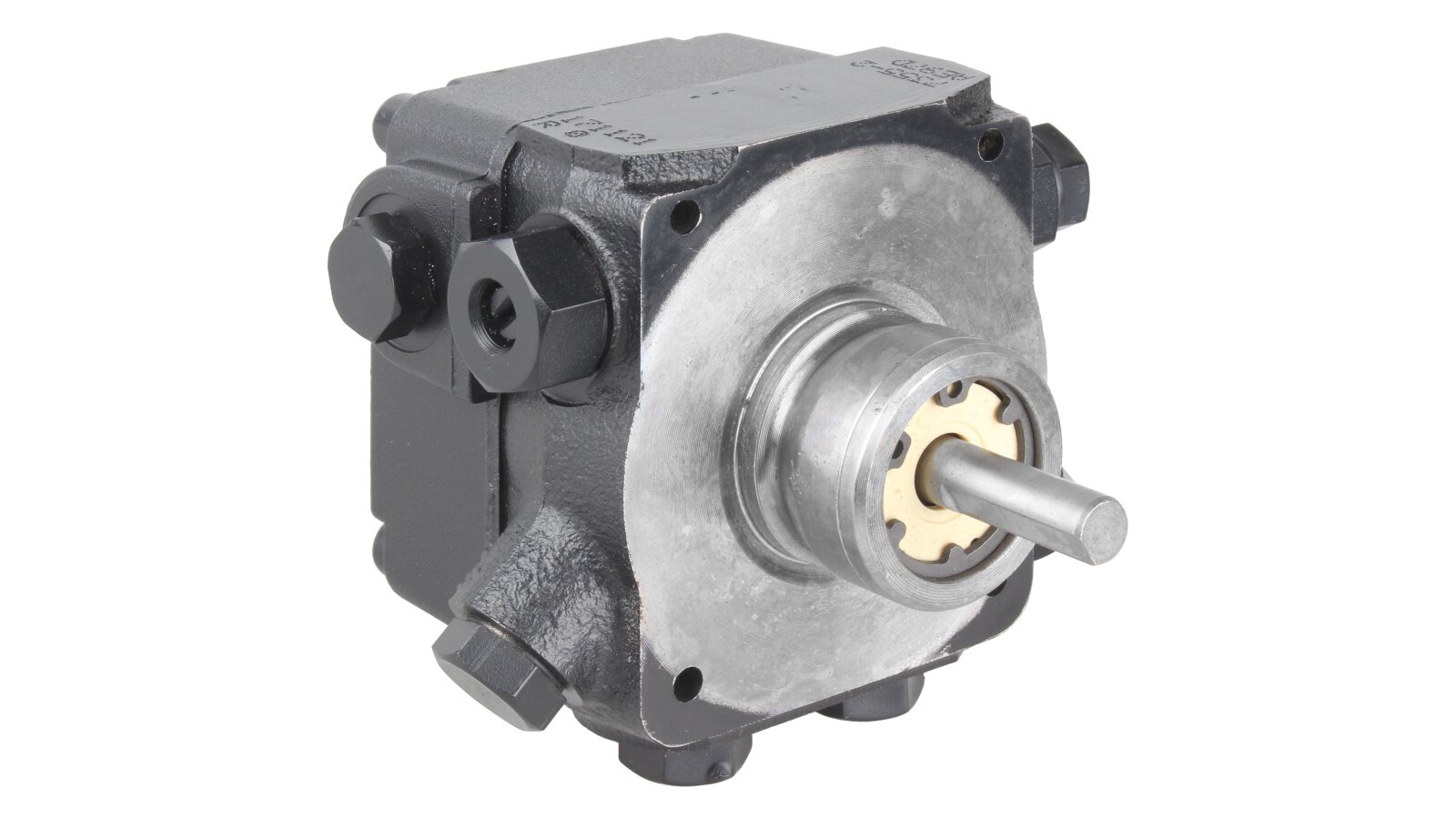

Burner Pump Suntec AE 97 D 7355 2P

Suntec

AED 1,325

Oil Burner Pumps
Products code: 10014

Description

The Suntec AE 97 D 7355 2P pump is a high-performance basic series equipment with a control valve without a shut-off function. The diesel fuel feed rate reaches 132 l/h at a pressure of 11 bar and a viscosity of 5 cSt. Additionally, an external electromagnetic valve can be installed to implement the shut-off function.

Device and features

  • The pump is designed for integration into a two-pipe system. When installing in a one-pipe system, the bypass plug should be unscrewed and the fuel drain should be closed.

  • The function of moving diesel fuel from the tank to the discharge line is carried out by a gear mechanism. The fuel is pre-cleaned from large particles of dirt, sand, debris using a built-in mesh filter with 150 µm cells, which protects the gear pair from jamming. Cleaning area - 20 cm².

  • The pressure on the nozzle is regulated in a wide range of 8-28 bar by a screw tightening. The factory setting of the model is 14 bar.

  • Fuel that does not pass through the nozzle is sent to the tank with a 2-pipe connection or behind the gears in a 1-pipe installation.

  • The pump has a standard connection method, the hole diameter is 32 mm. Suitable for burners of most brands.

Advantages:

  • highly efficient supply of diesel fuel;

  • simple and reliable installation;

  • manual pressure adjustment in the range of 8-28 bar;

  • mesh filter to protect the mechanism from coarse particles;

  • compatibility with burners of many brands;

  • installation in a system with one or two pipes.

The Suntec AE 97 D 7355 2P pump is reliable, trouble-free equipment from a French manufacturer. It is supplied with a factory warranty and a detailed installation and operation manual.

Characteristics

Performance at 11 bar pressure and 5 cSt viscosity: 130 l/hDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmSolenoid valve voltage: 220-240V~, 50-60HzInstallation method: sleeve ∅ 32 mmShaft diameter: 8 mmTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barMaximum rotation speed: 3600 rpmNozzle pressure range: from 8 to 28 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withShaft design: one cavityType of pumped liquid: dieselPump series: AE: base model without locking function
