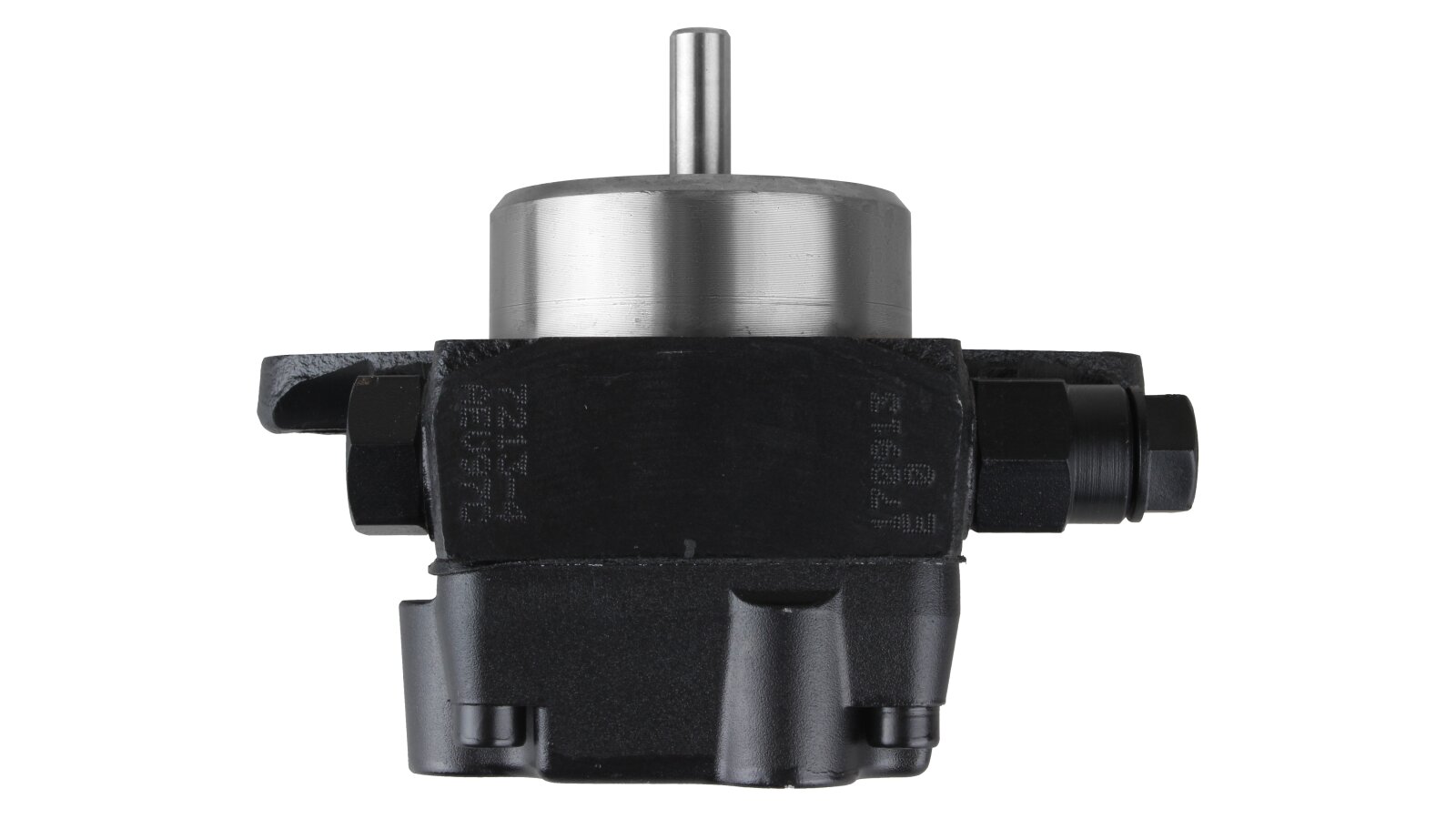

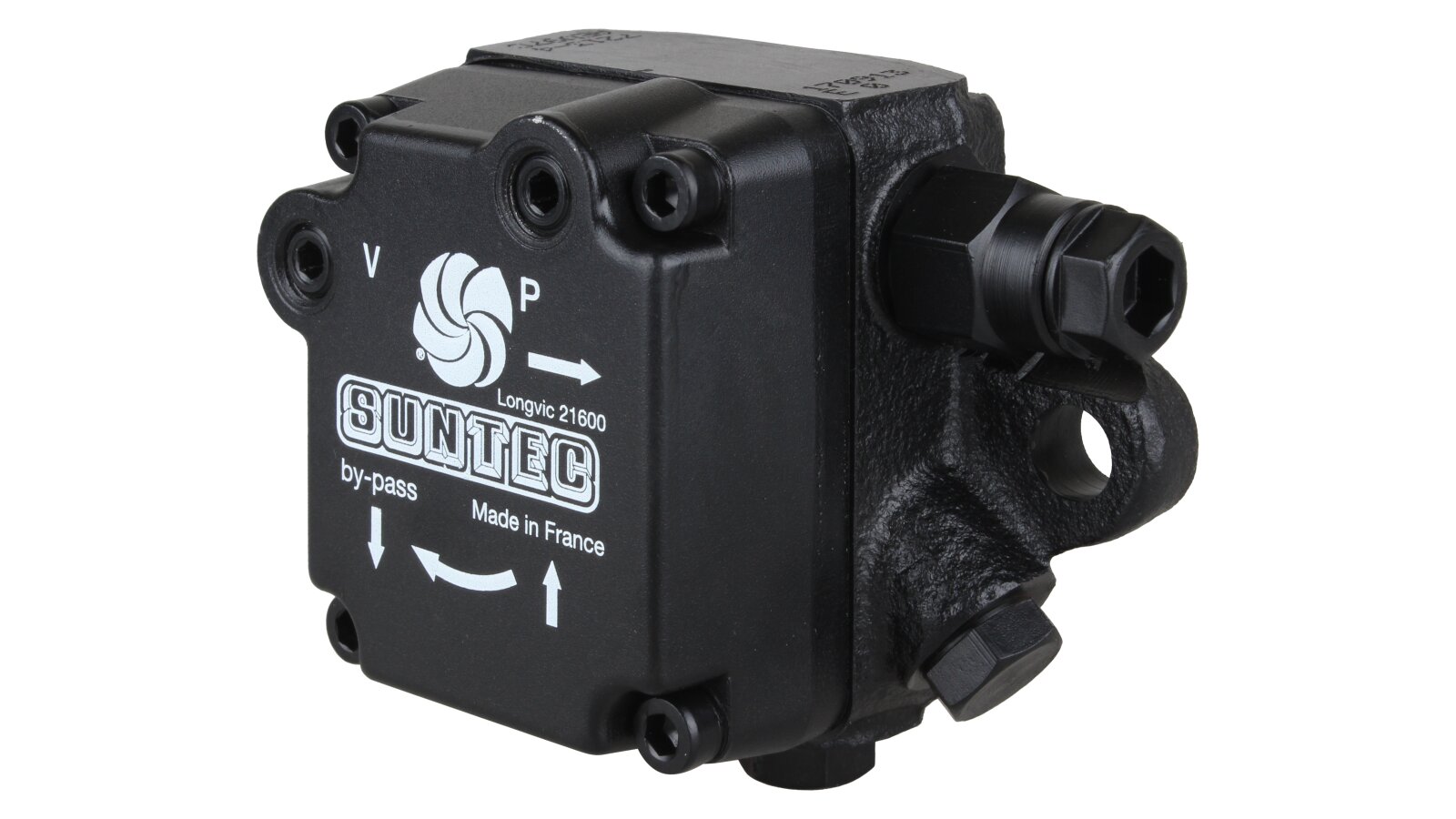

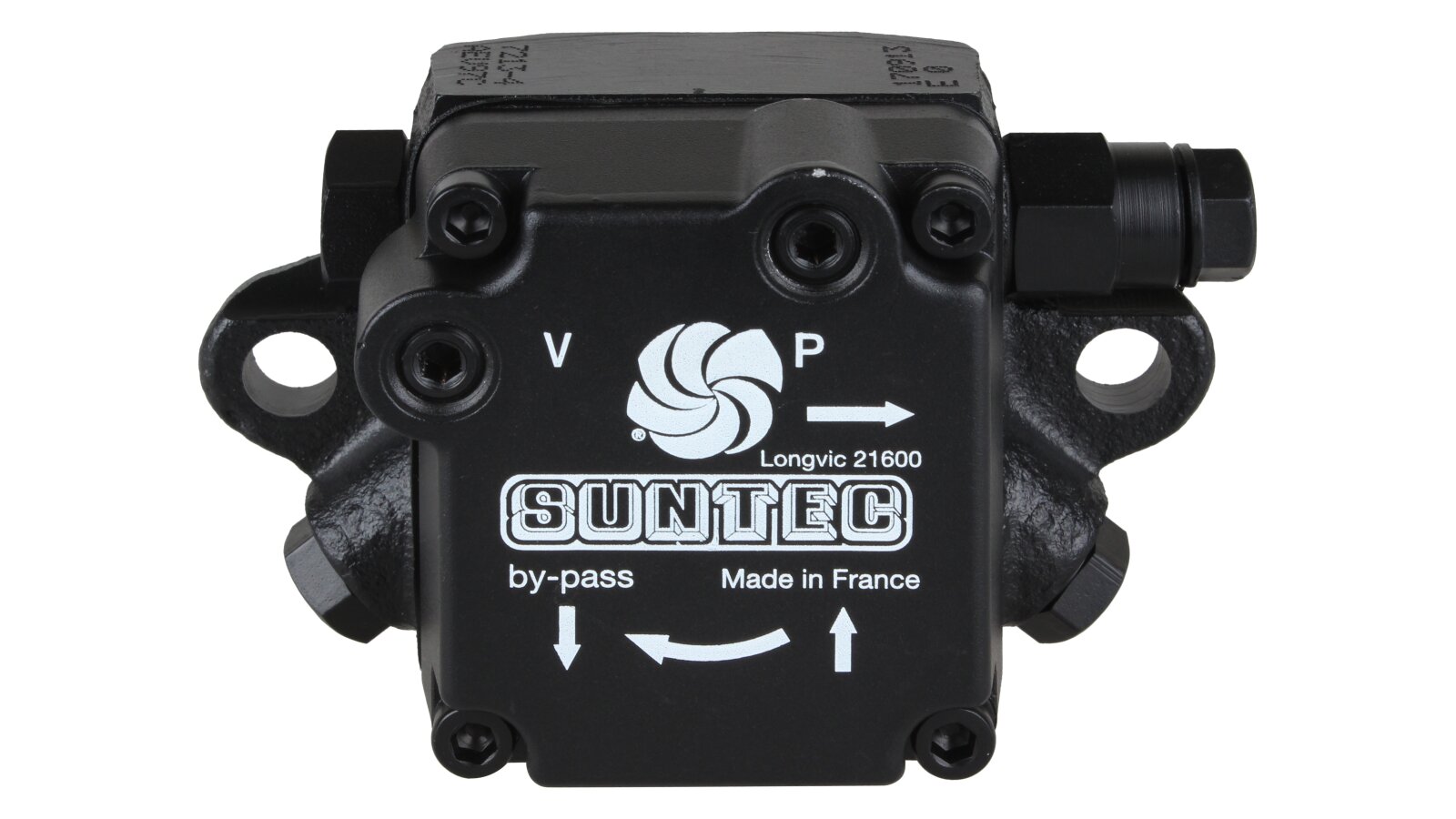

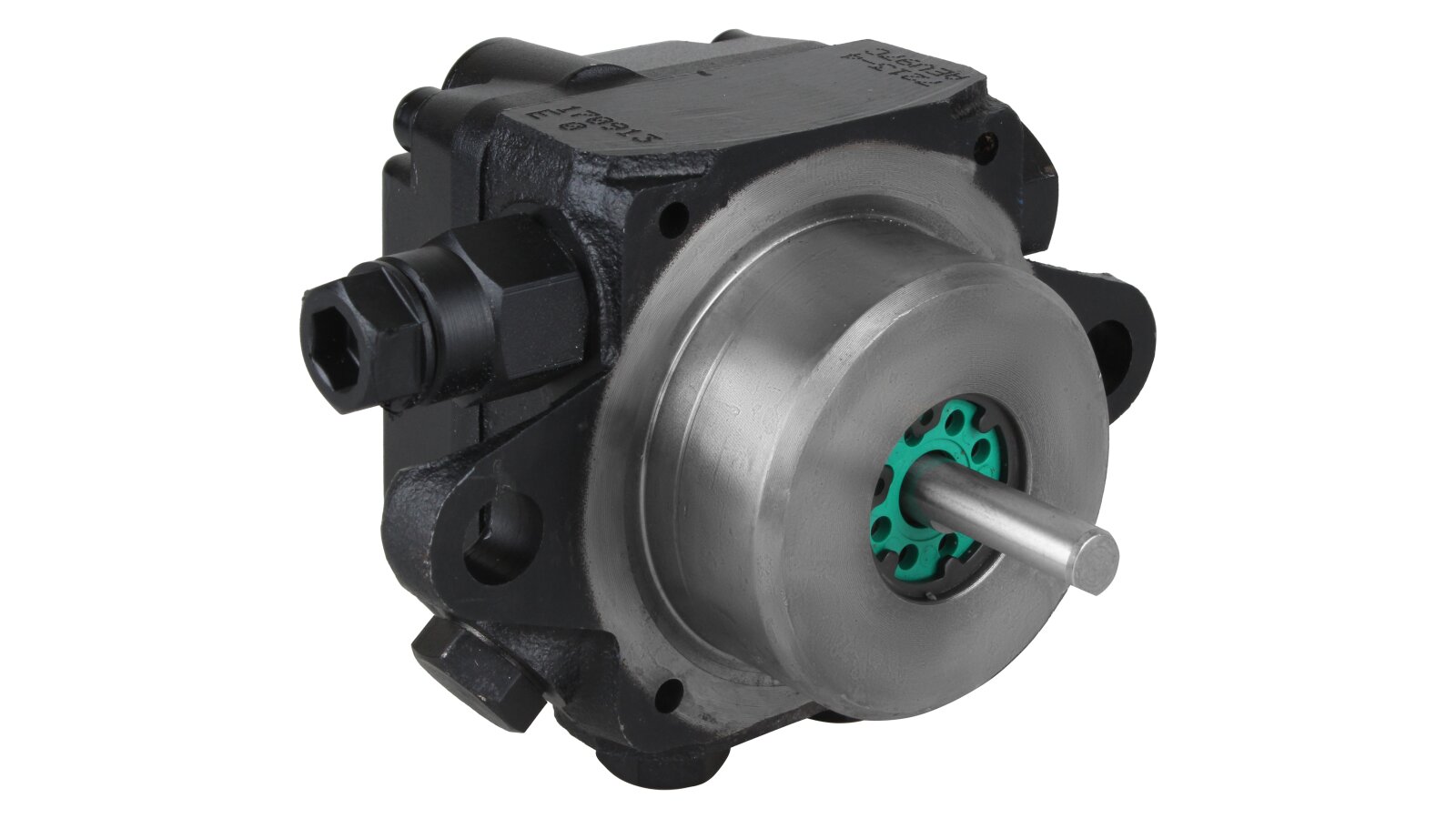

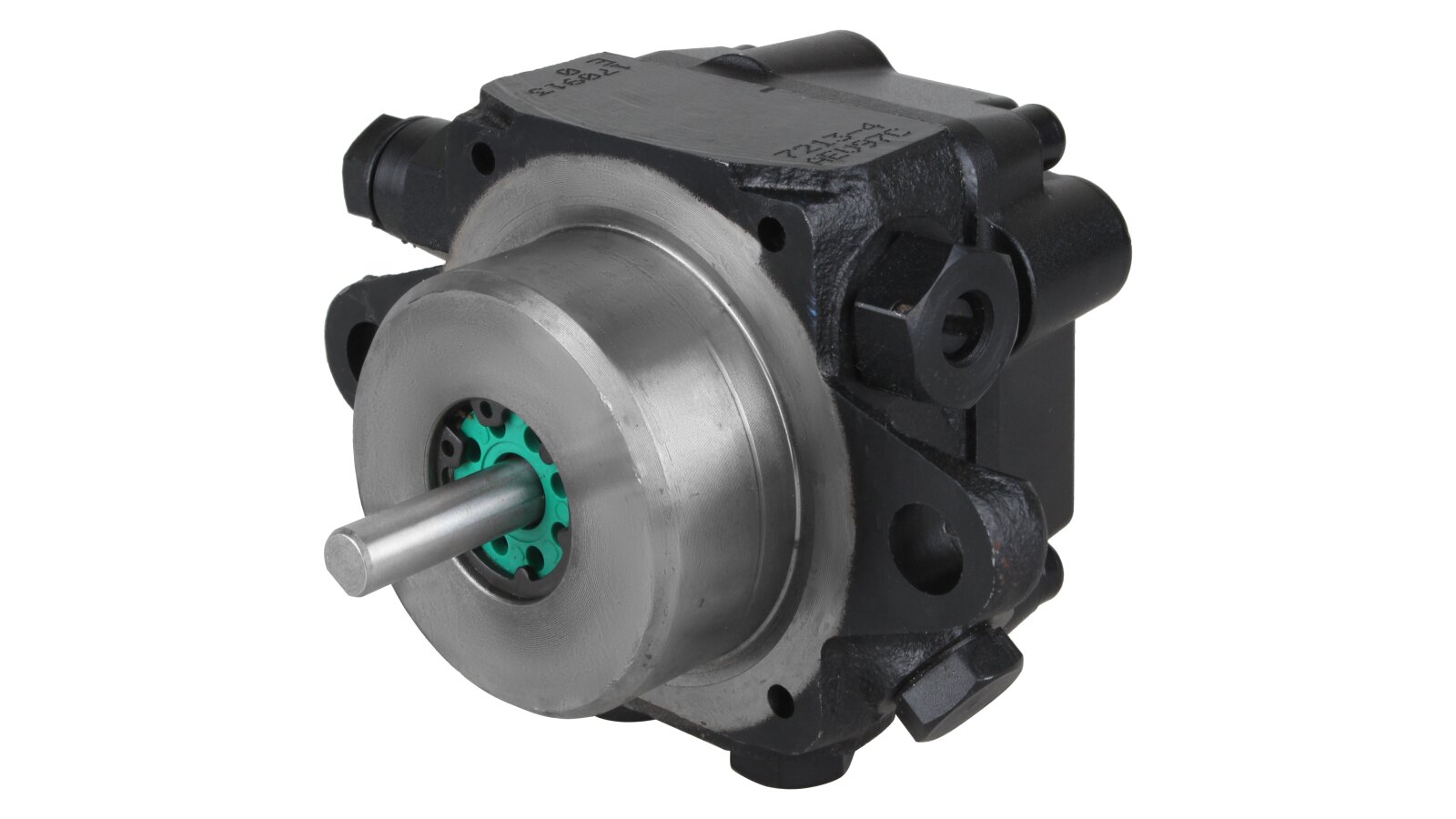

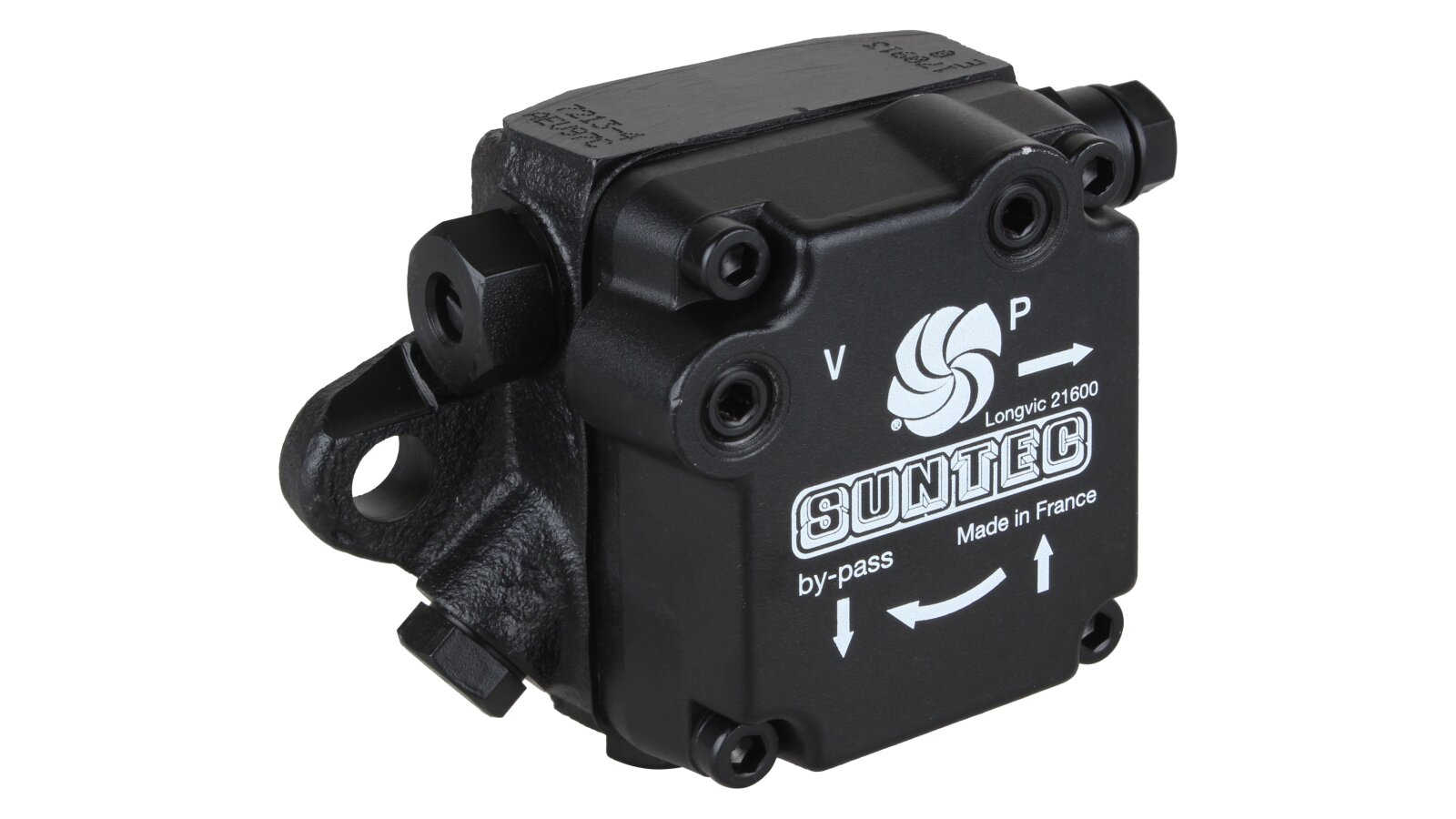

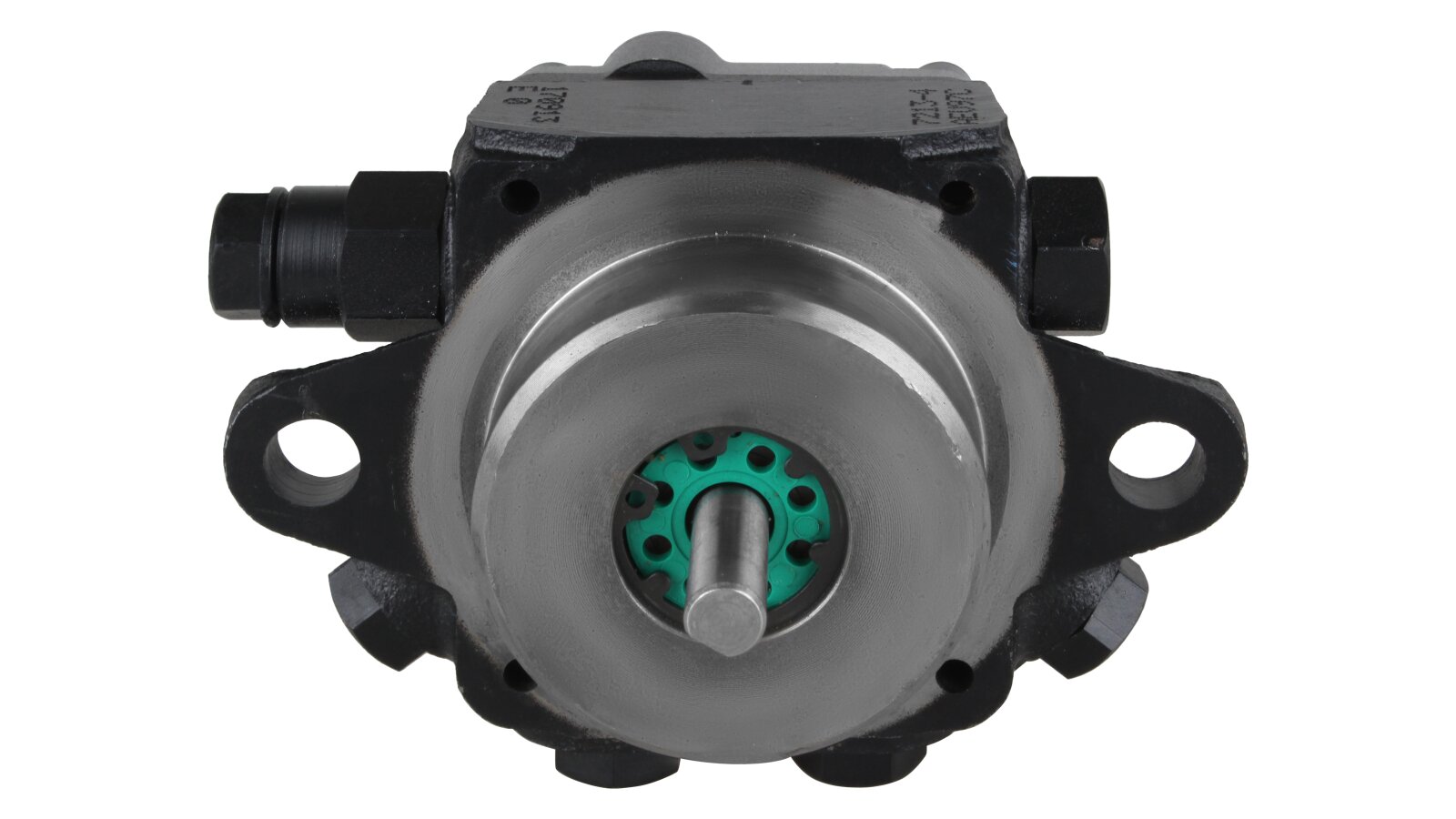

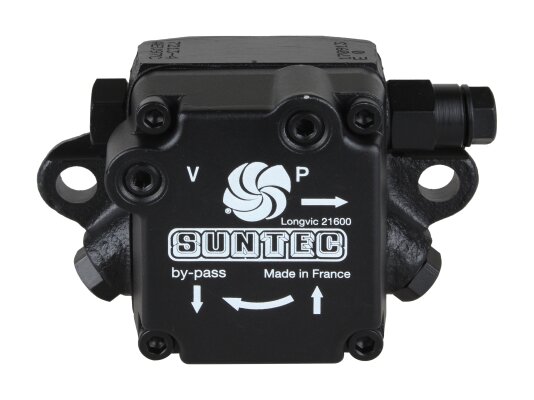

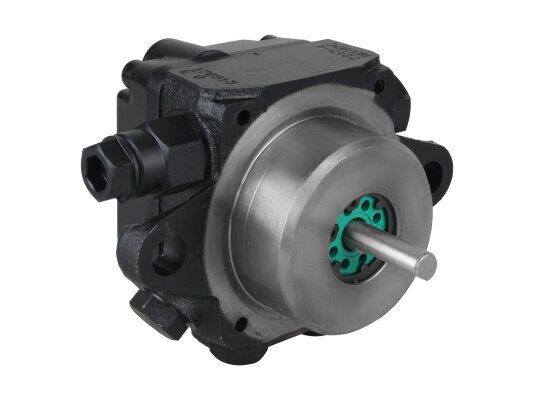

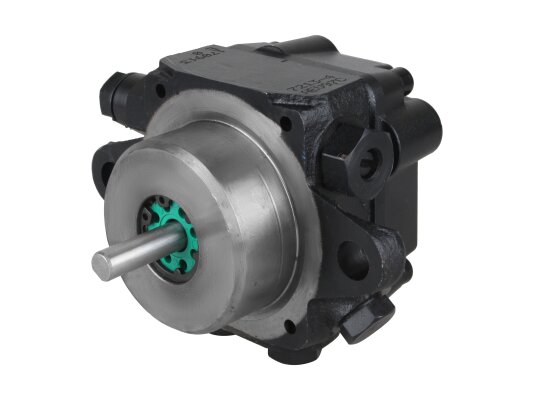

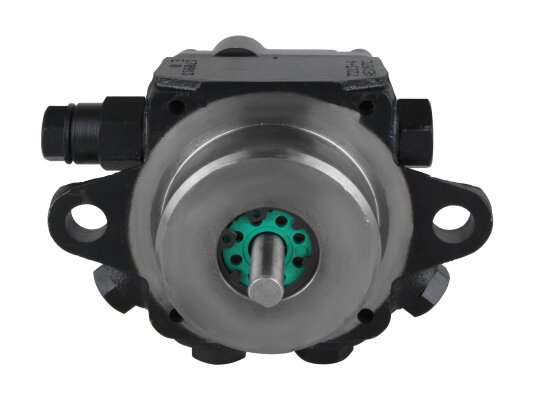

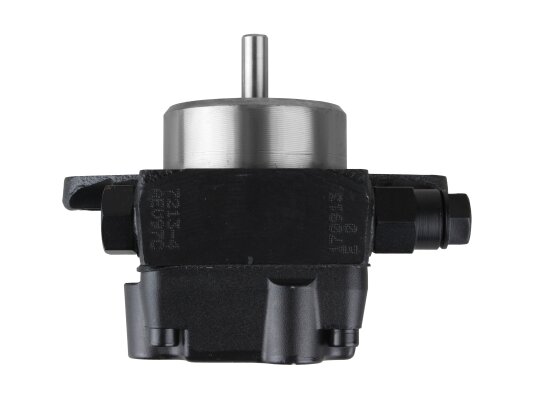

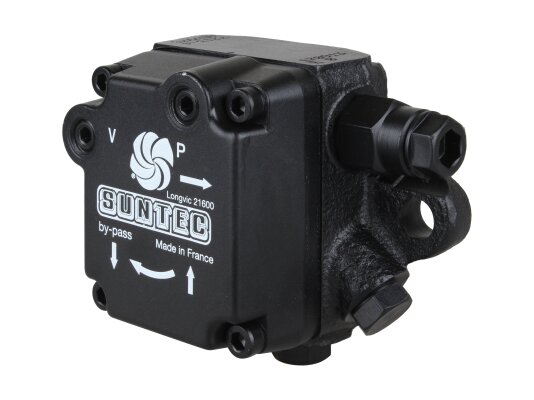

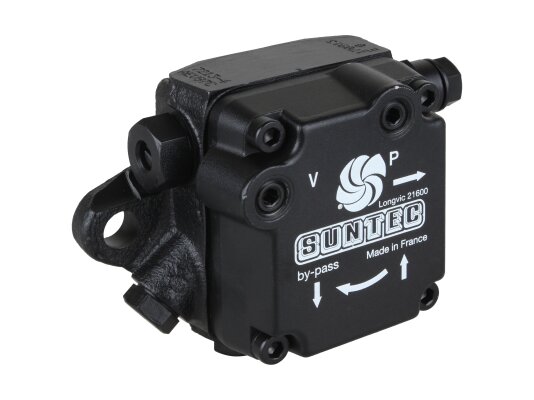

Burner Pump Suntec AE V 97 C 7213 4P

Suntec
AED 900
  1. Oil Burner Pumps

Description

The AE 97 V C 7213 4P gear pump model for pumping diesel and biodiesel is presented by the French developer Suntec and has a wide range of applications. It is installed in industrial heating systems designed to heat large production areas. The equipment is integrated with an electric motor via a ∅54 mm flange connection in most Elco, Baltur and Lamborghini liquid fuel burners.

Design features

  • The pump can be connected to both a two-pipe and a single-pipe fuel system. In the first case, the pump is used in a standard assembly, in the second, the bypass plug is removed, and another one is installed on the return line - a steel one with a washer.

  • The operating principle of the device is based on the movement of fuel from the fuel tank to the burners by means of a gear pair. During the process, it passes through a mesh filter with a cross section of 20 cm², which pre-cleans the working mixture. Normal operation of the pump is possible at a fuel temperature from 0 to +60°C and a viscosity of 2-75 cSt.

  • The nominal working pressure set by the manufacturer is 14 bar. This value can be changed depending on individual requirements. A manual regulator is provided for these purposes.

Main technical data:

  • Pump's own weight is 1.3 kg;

  • Axle torque is 0.14 N m;

  • Fuel injection rate at a viscosity of 5 cSt is 132 l/h;

  • Permissible fuel pressure at the injectors is from 8 to 28 atm.

Excess air is removed from the system automatically with a two-pipe connection or through the injectors with a single-pipe connection. In the second case, the process can be accelerated by loosening the plug of the pressure gauge port.

The ANKAS company sells Suntec AE 97 V C 7213 4P pumps at the manufacturer's price. In addition, there is a large selection of other equipment for heating systems on sale, which can be purchased on the website. The order is made through an online application or a phone call. If necessary, managers will consult and help you choose a device with optimal parameters according to technical requirements.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installation method: flange ∅ 54 mmPerformance at 11 bar pressure and 5 cSt viscosity: 132 l/hOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 150 µmStrainer: Open area: 20 cm²Performance for stage 2 at 11 bar and 5 cSt viscosity: 132 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftShaft design: one cavityTorque: 0.14 N·mSuction and return line: ¼ inch NPTF (taper thread)Suction height: 0.45 bars max. vacuum to prevent air separation from oilNozzle outlet: ⅛ inchInlet pressure: 2 barReturn pressure: 2 barShaft diameter: 8 mmNozzle pressure range: from 8 to 28 barFactory pressure setting: 14 barBy-pass plug: It is installed in the return line for a two-pipe system and is removed with a hexagonal wrench withMaximum rotation speed: 3600 rpmPump series: AE: base model without locking function
