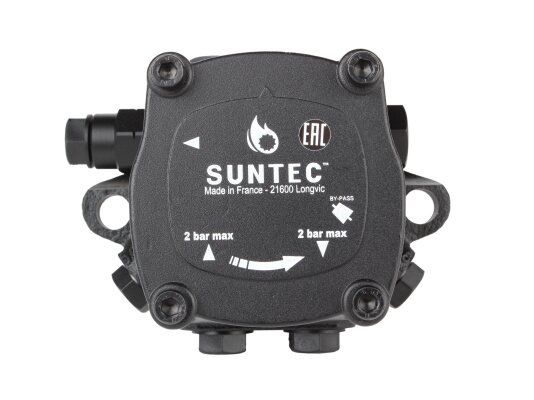

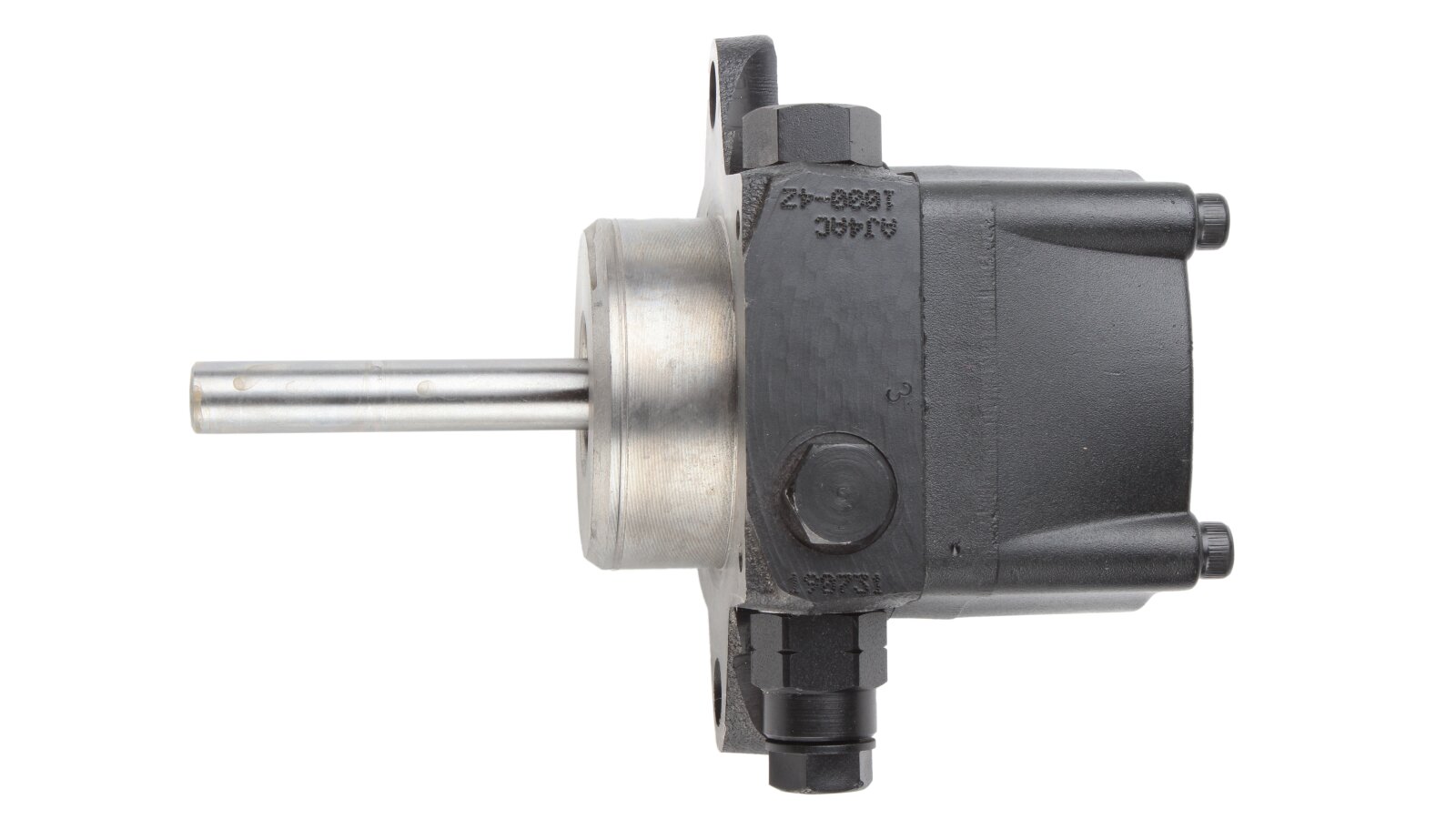

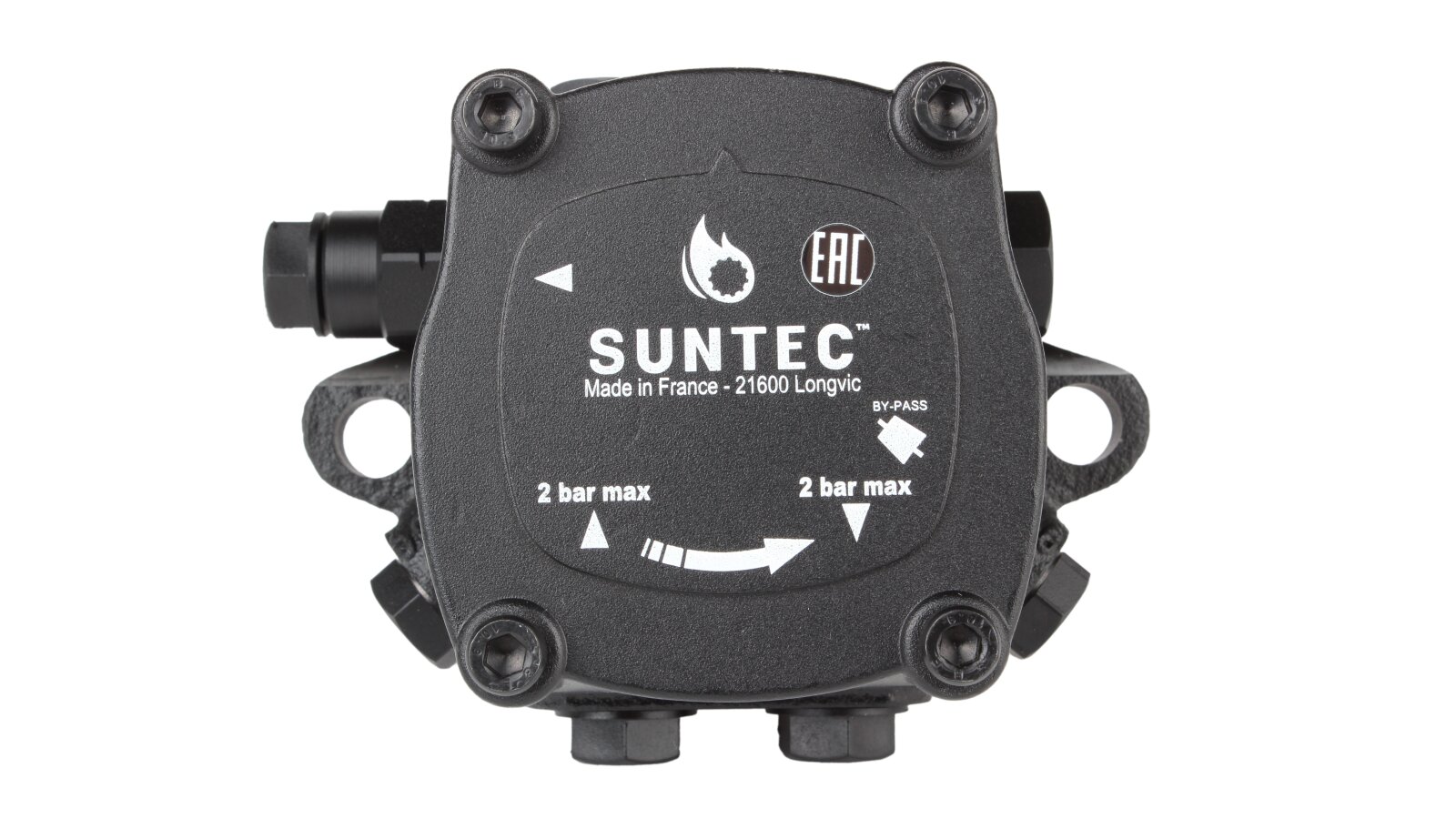

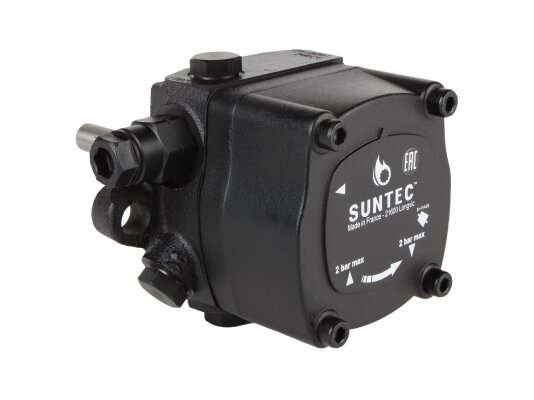

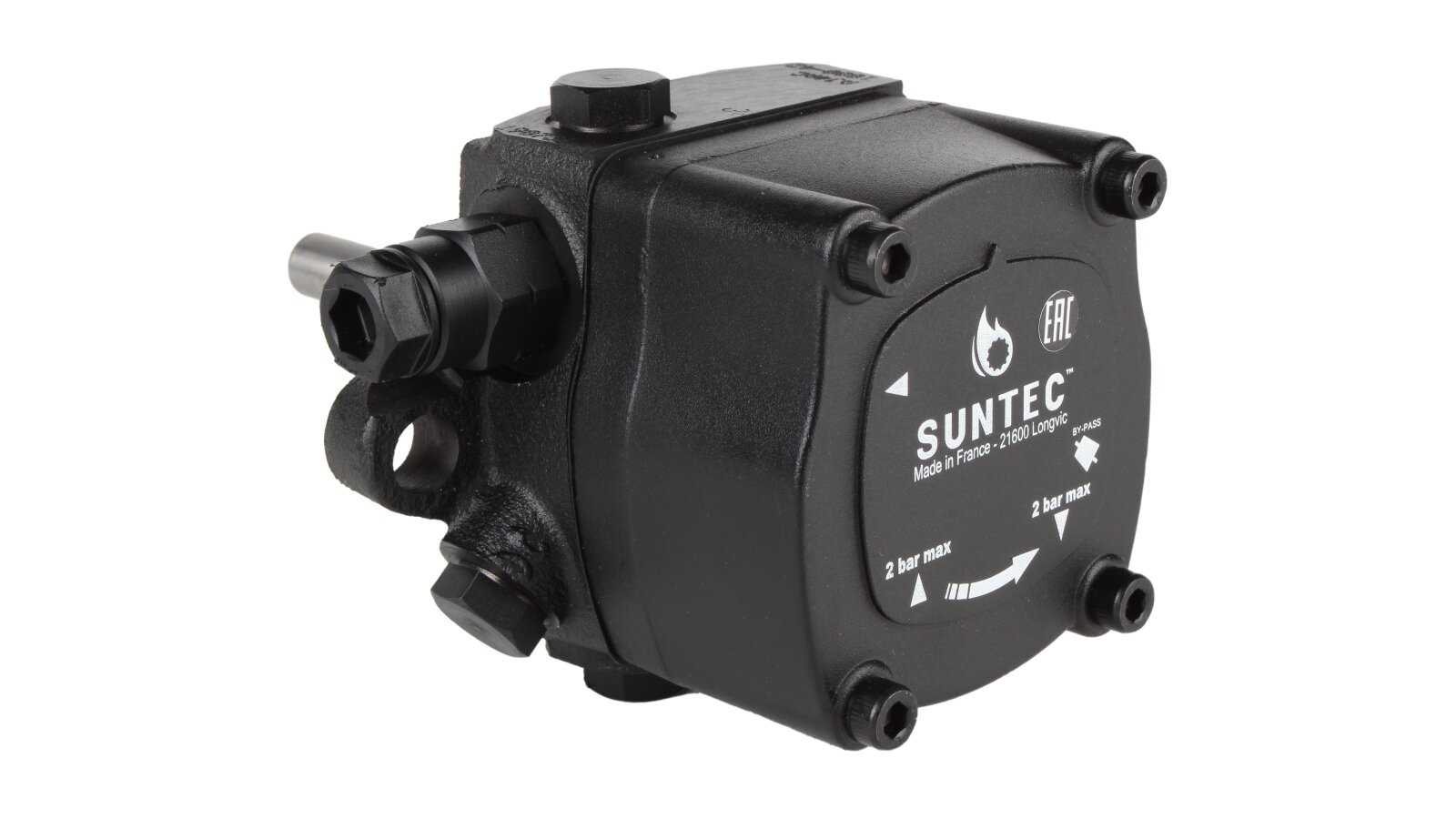

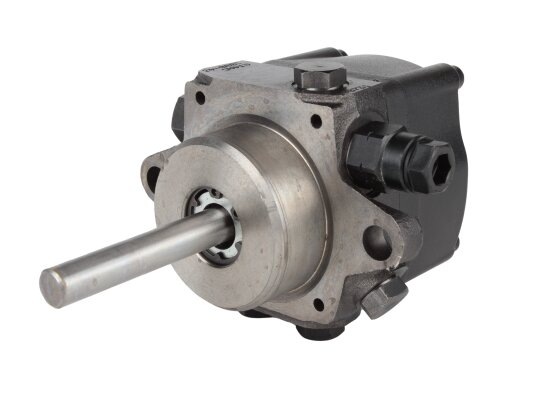

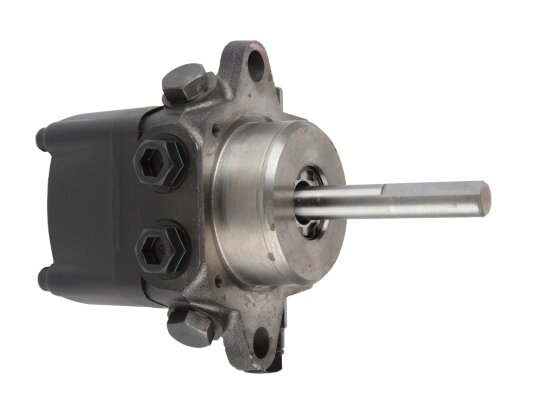

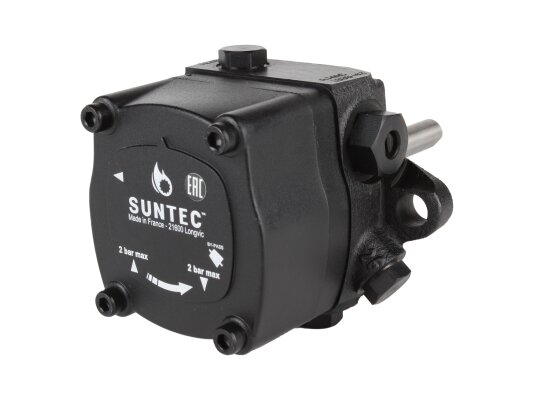

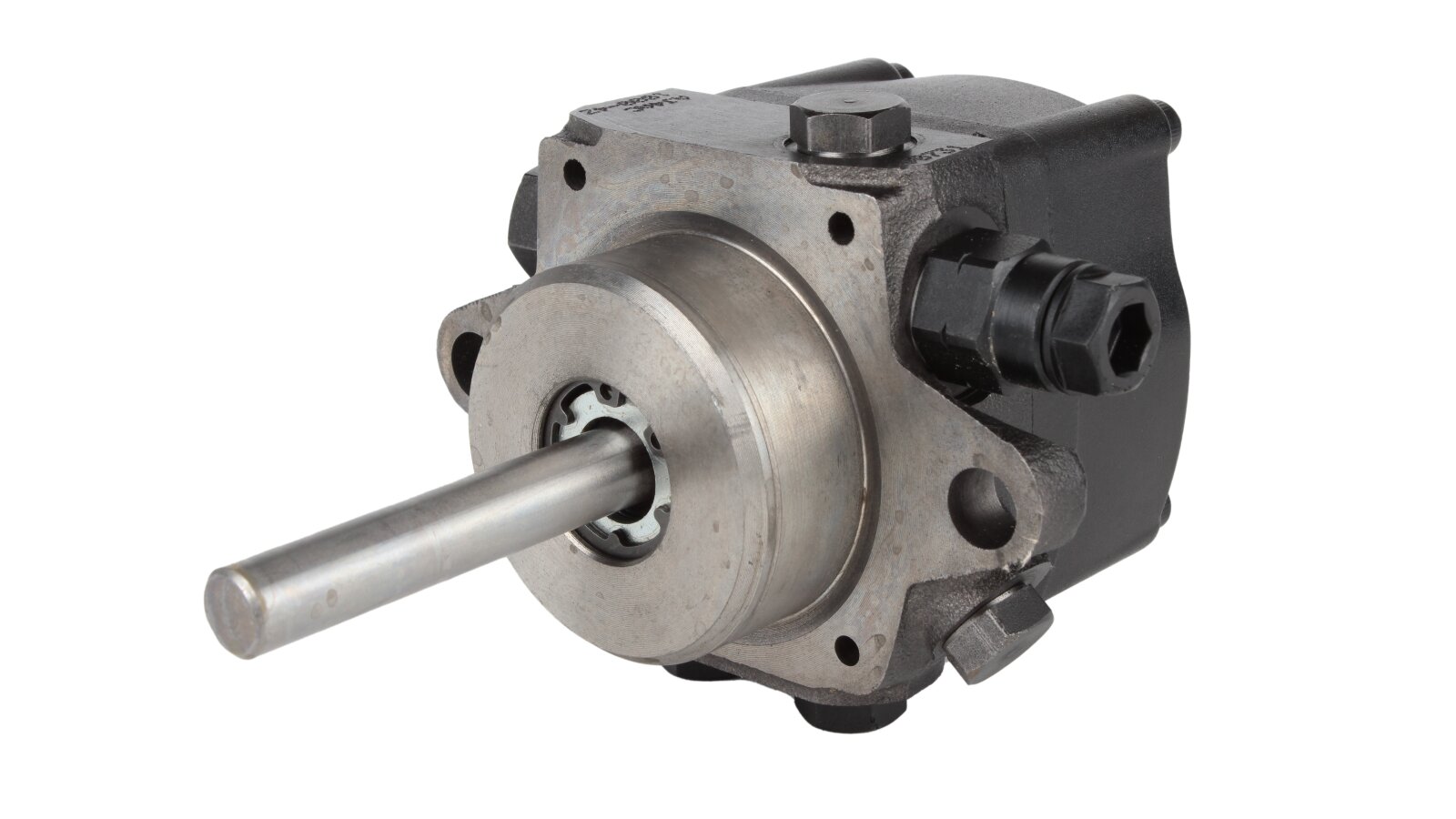

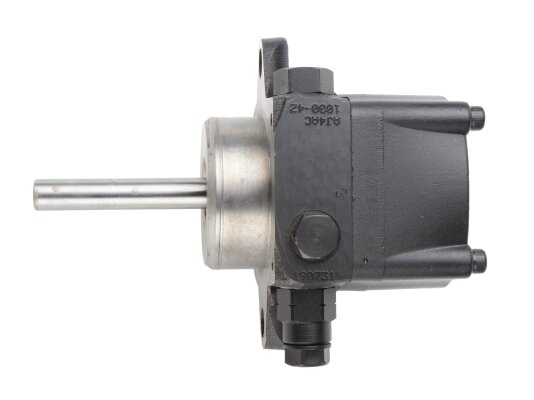

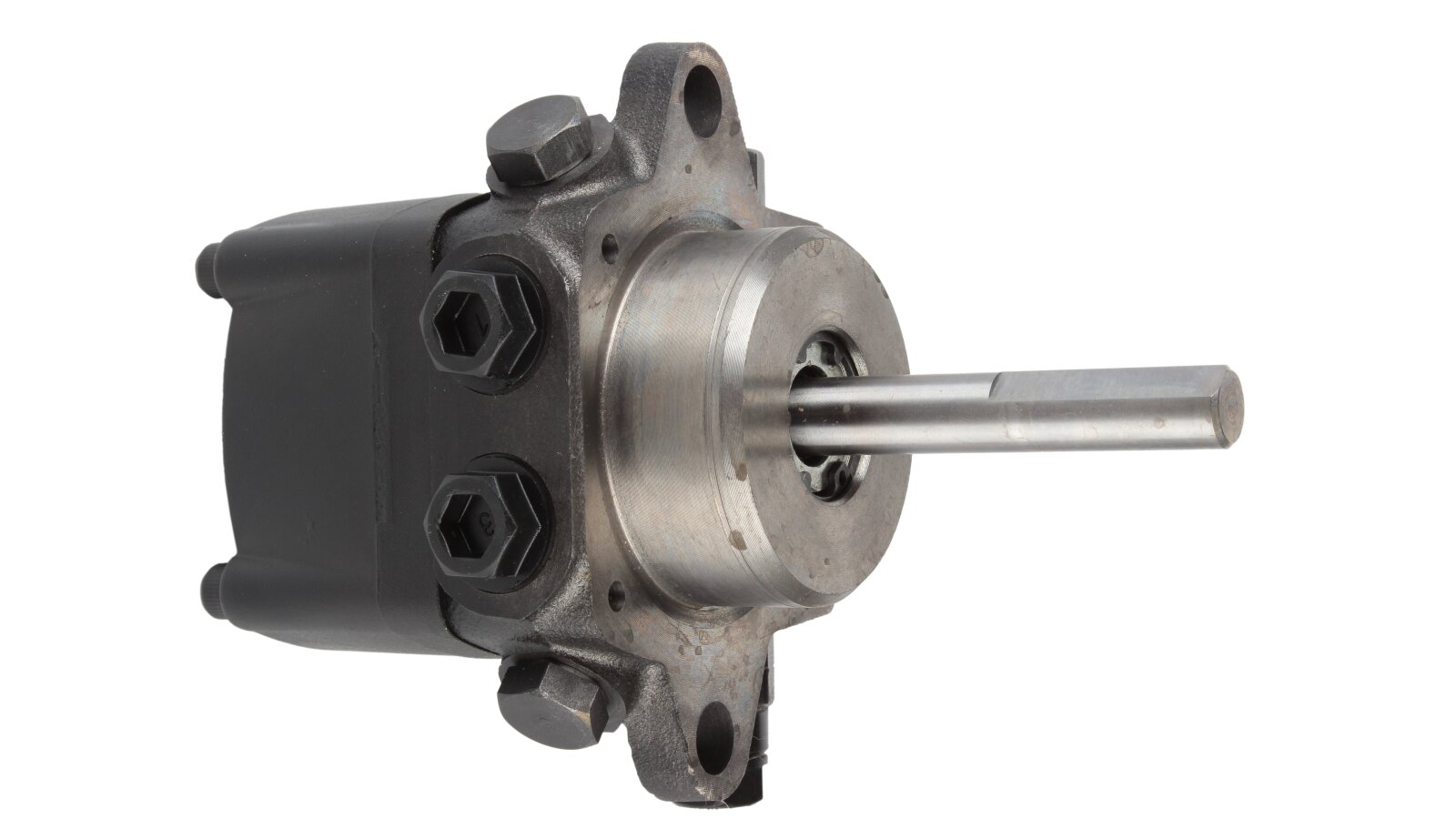

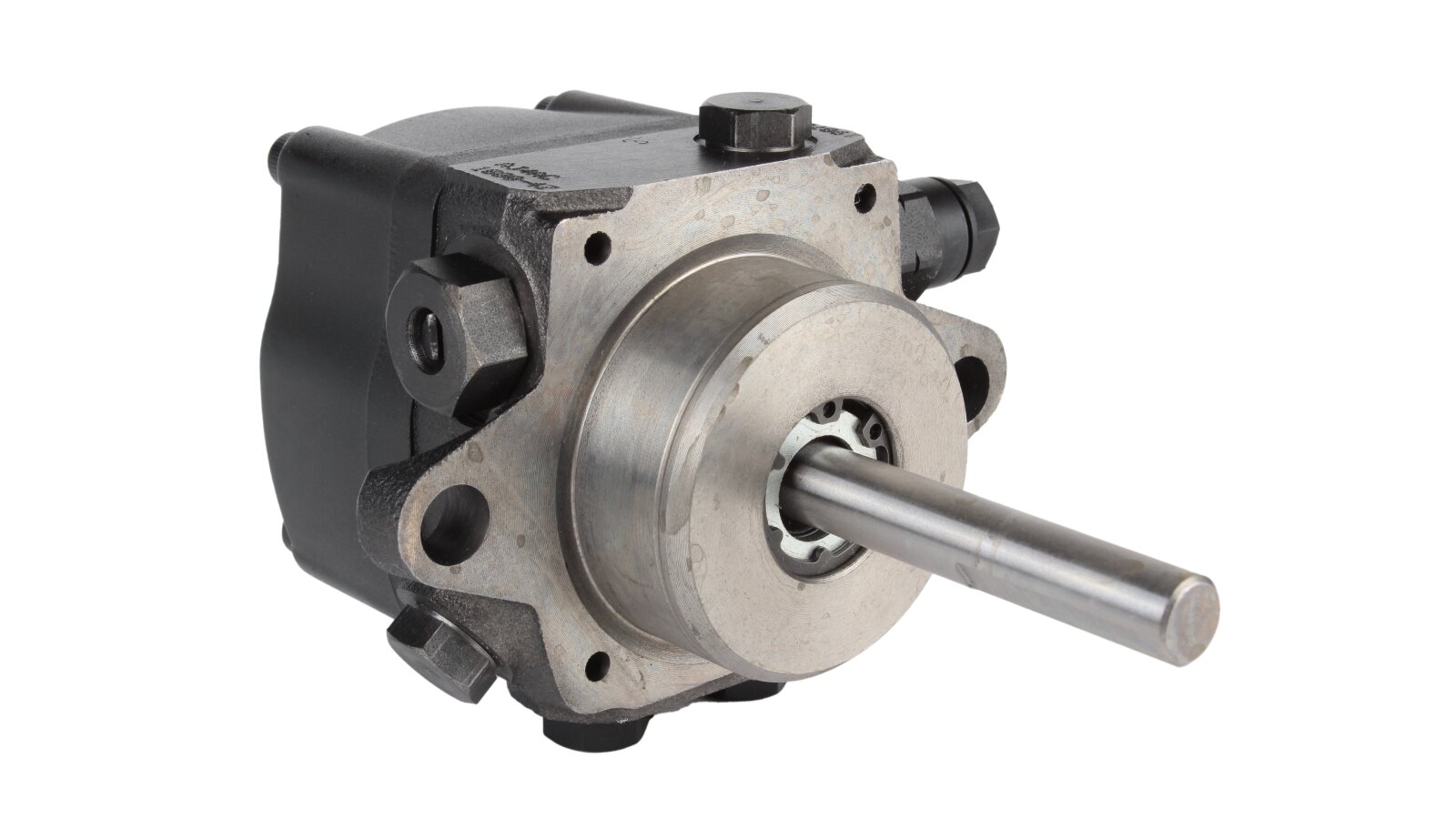

Burner Pump Suntec AJ 4 AC 1000 4P

Suntec

Alternative Part Number

Baltur

R30740

AED 1,250

Oil Burner Pumps
Products code: 1249

Description

The Suntec AJ 4 AC 1000 4P fuel pump is used as a component for diesel boiler units that heat offices, warehouses, production facilities and large domestic premises. The feed rate is 158 l/hour at a nozzle pressure of 20 atm. The device is suitable for burners with a power of no more than 3000 kW.

Design and features

The liquid fuel pump is set to 12 atm. The nozzle pressure can be adjusted using the regulator, turning it left / right. Permissible range: 10-20 bar. The valve performs 2 functions: pressure regulation and flow shut-off.

A feature of modifications with the number "4" is the ring seals on the supporting surfaces of the connections with the suction / return lines, as well as a significant reduction in internal pressure losses.

A bypass plug is mounted in the return line hole - the basic assembly is designed for a 2-pipe connection. The pump can also be installed in single-pipe designs if the diesel fuel drain channel is closed by first unscrewing the bypass plug.

A gear pair is responsible for moving the working fluid from the tank to the nozzle. To increase the service life of the gears, a mesh filter with an increased collection area of ​​30 cm² is placed in the suction line.

The Suntec AJ 4 AC 1000 4P fuel pump has a right-hand outlet to the nozzle, which is important to consider when selecting equipment.

Operating principle

The gear device pumps diesel fuel from the tank to the pressure regulating valve, and then to the nozzle. Before entering the gear pair, the fuel is cleaned of abrasive impurities larger than 120x150 microns. Excess fuel is sent to the tank or to the gears - depending on the selected pipeline scheme.

Main advantages:

  • optimal performance;

  • built-in fuel flow shut-off function;

  • smooth pressure adjustment using a regulator;

  • pre-filtration of diesel fuel;

  • installation in systems with one/two pipes;

  • automatic air bleed from 2-pipe designs;

  • standard flange connection.

You can choose and buy the Suntec AJ 4 AC 1000 4P fuel pump at a reasonable price on our website. Products of the European brand Suntec are a model of reliability and durability in operation.

Characteristics

Torque: 0.3 N·mOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 158 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barNozzle pressure range: from 10 to 20 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselSuction and return line: ¼ inch NPTF (taper thread)
