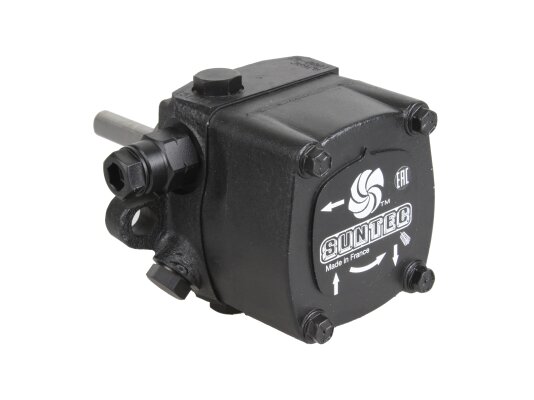

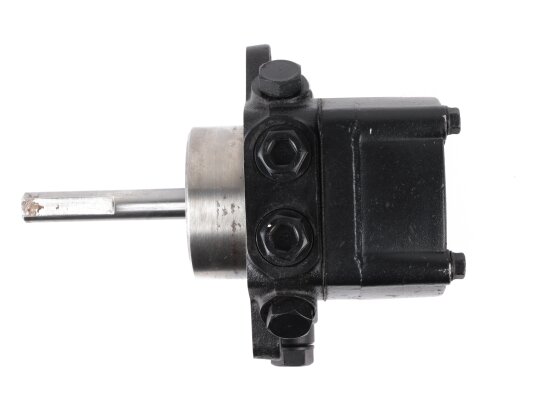

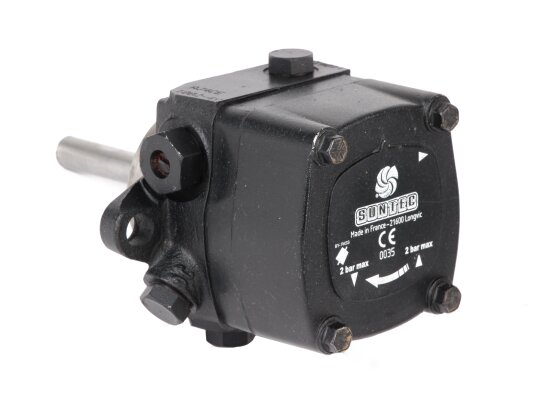

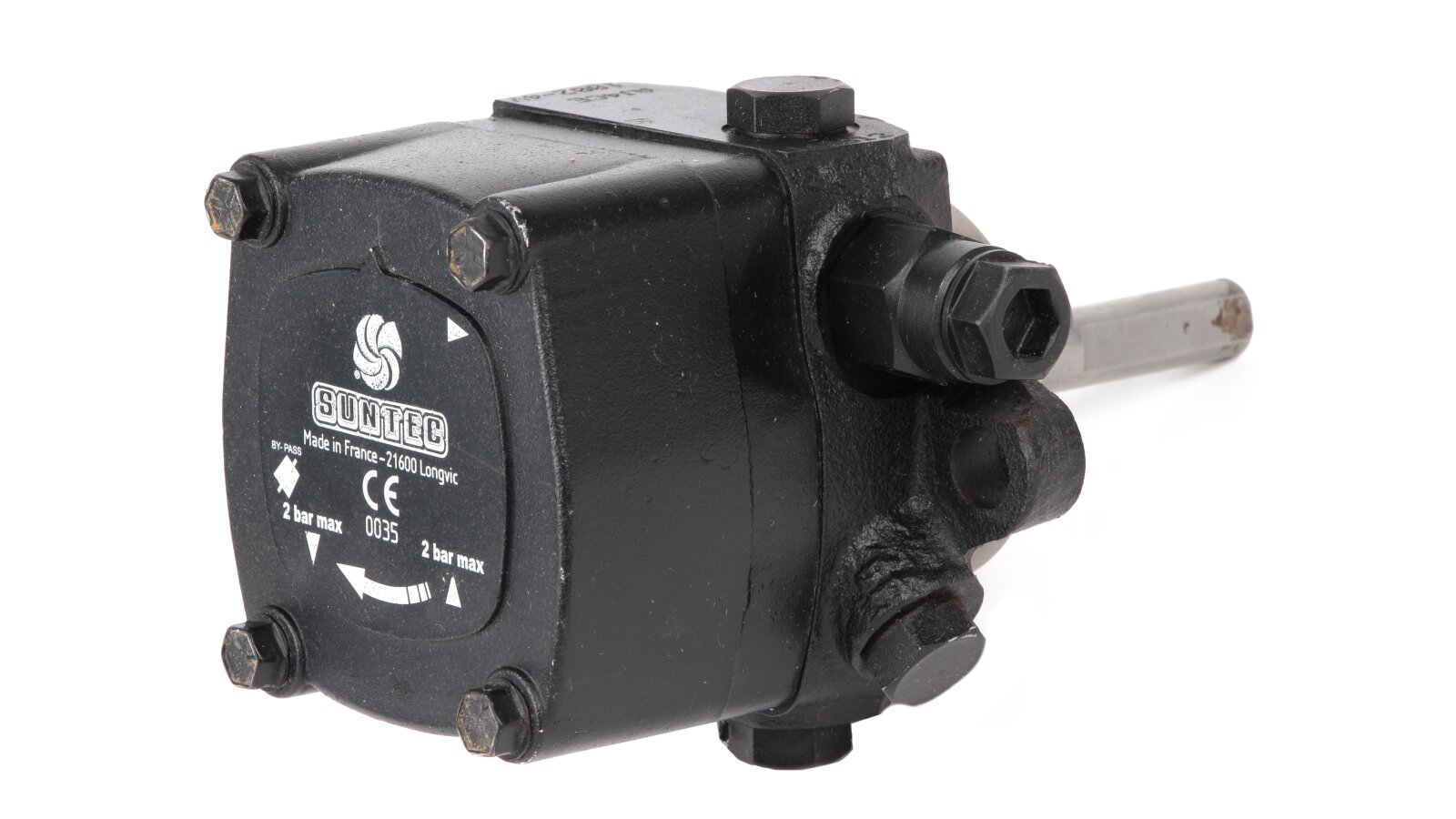

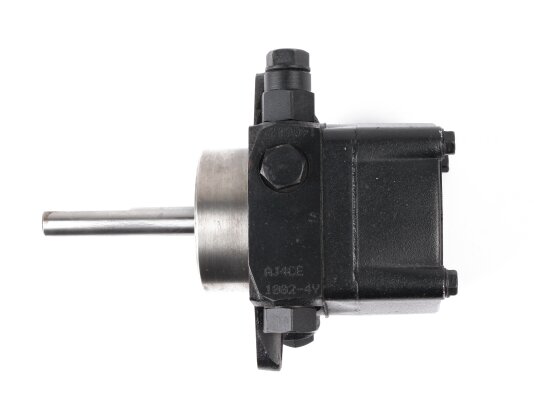

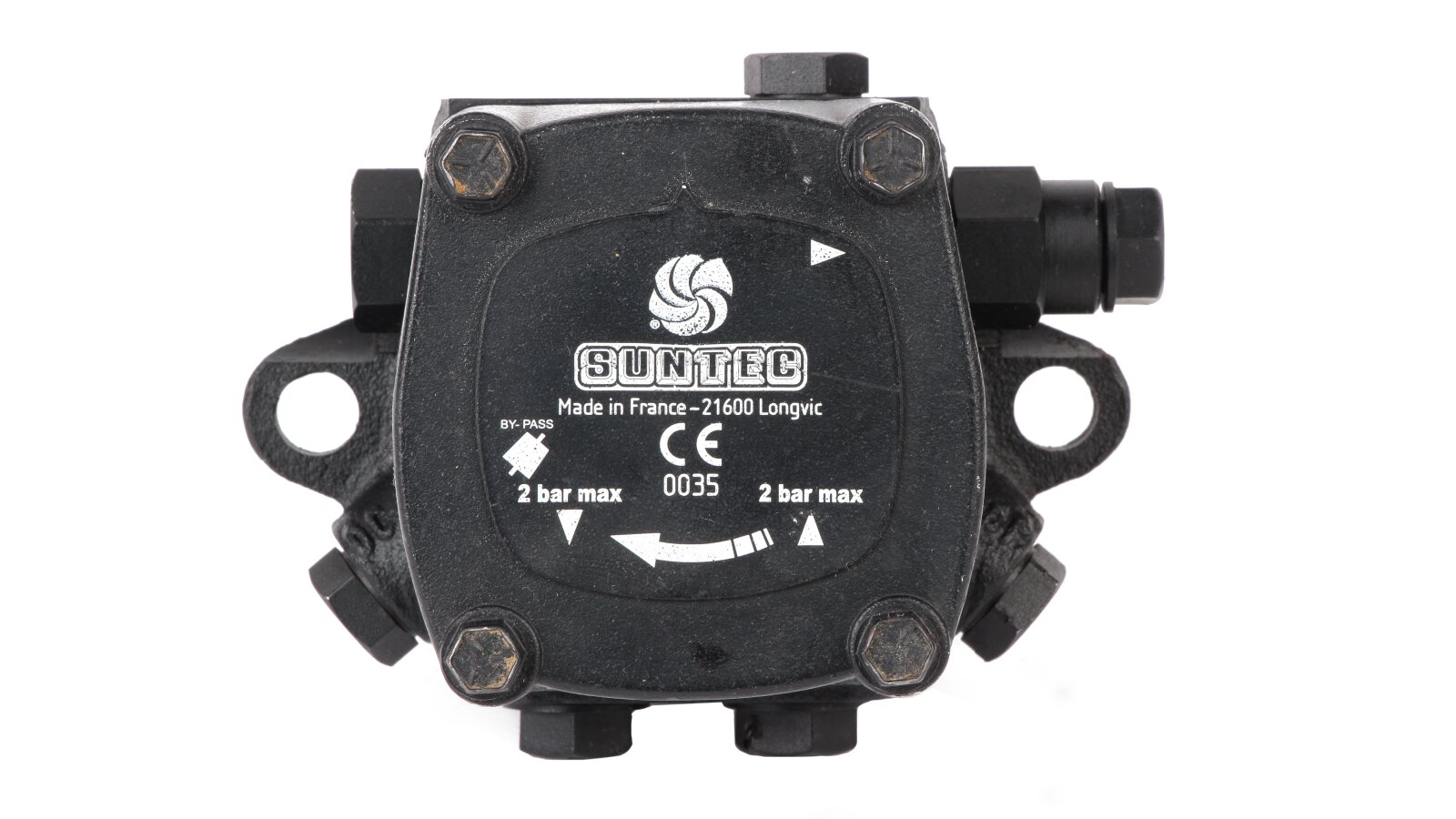

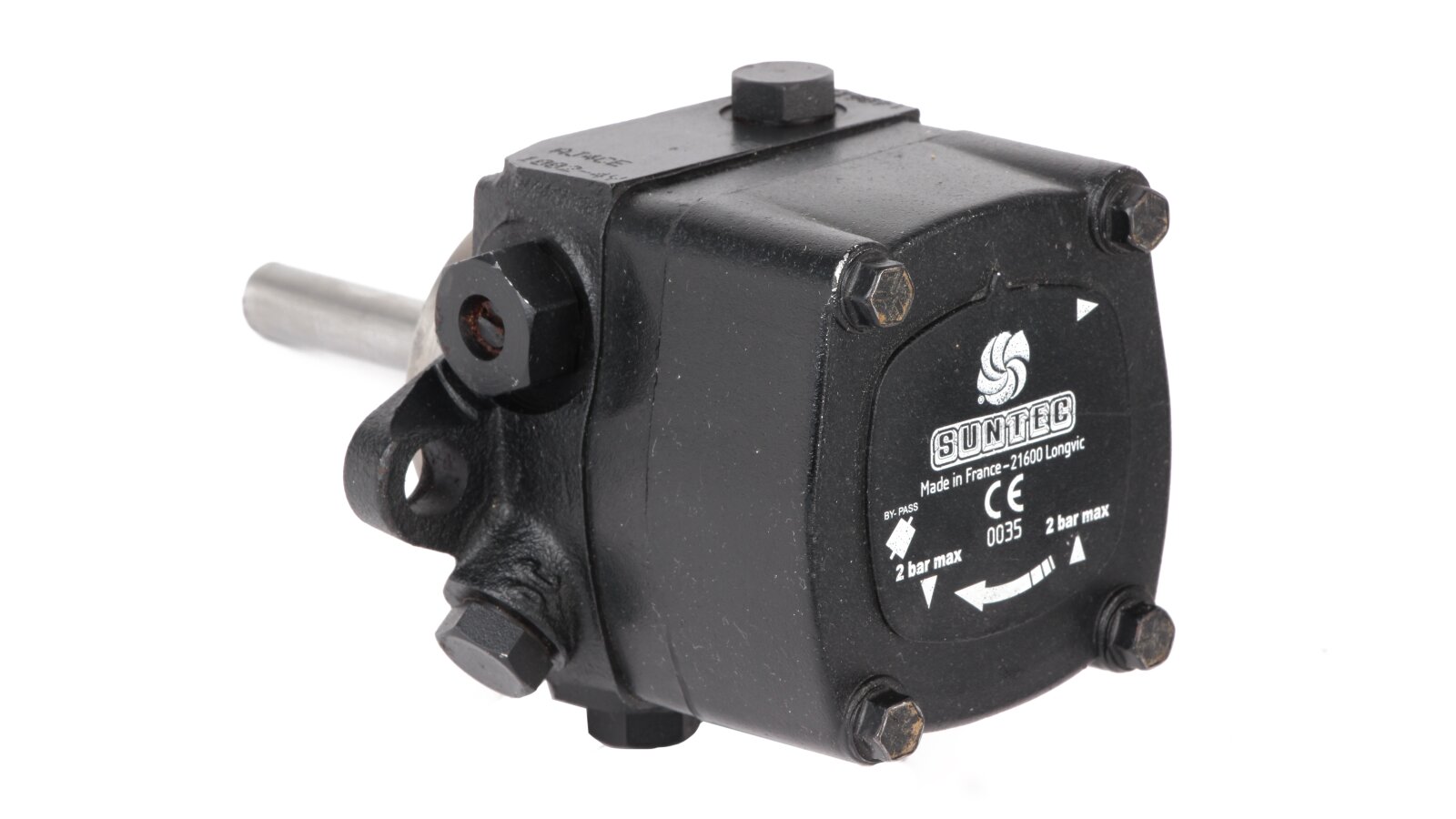

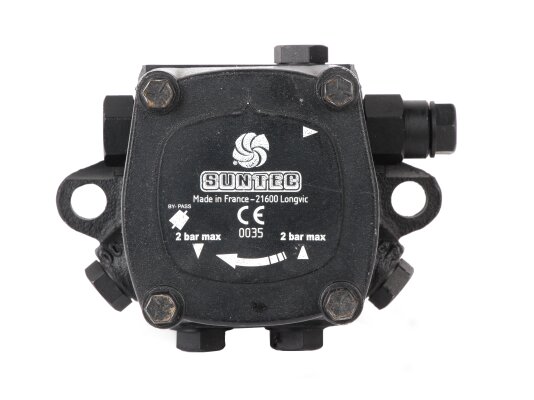

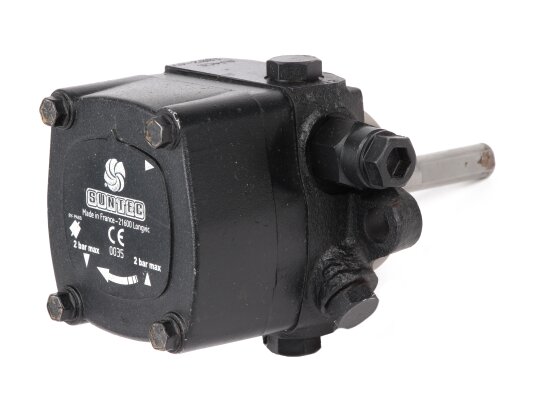

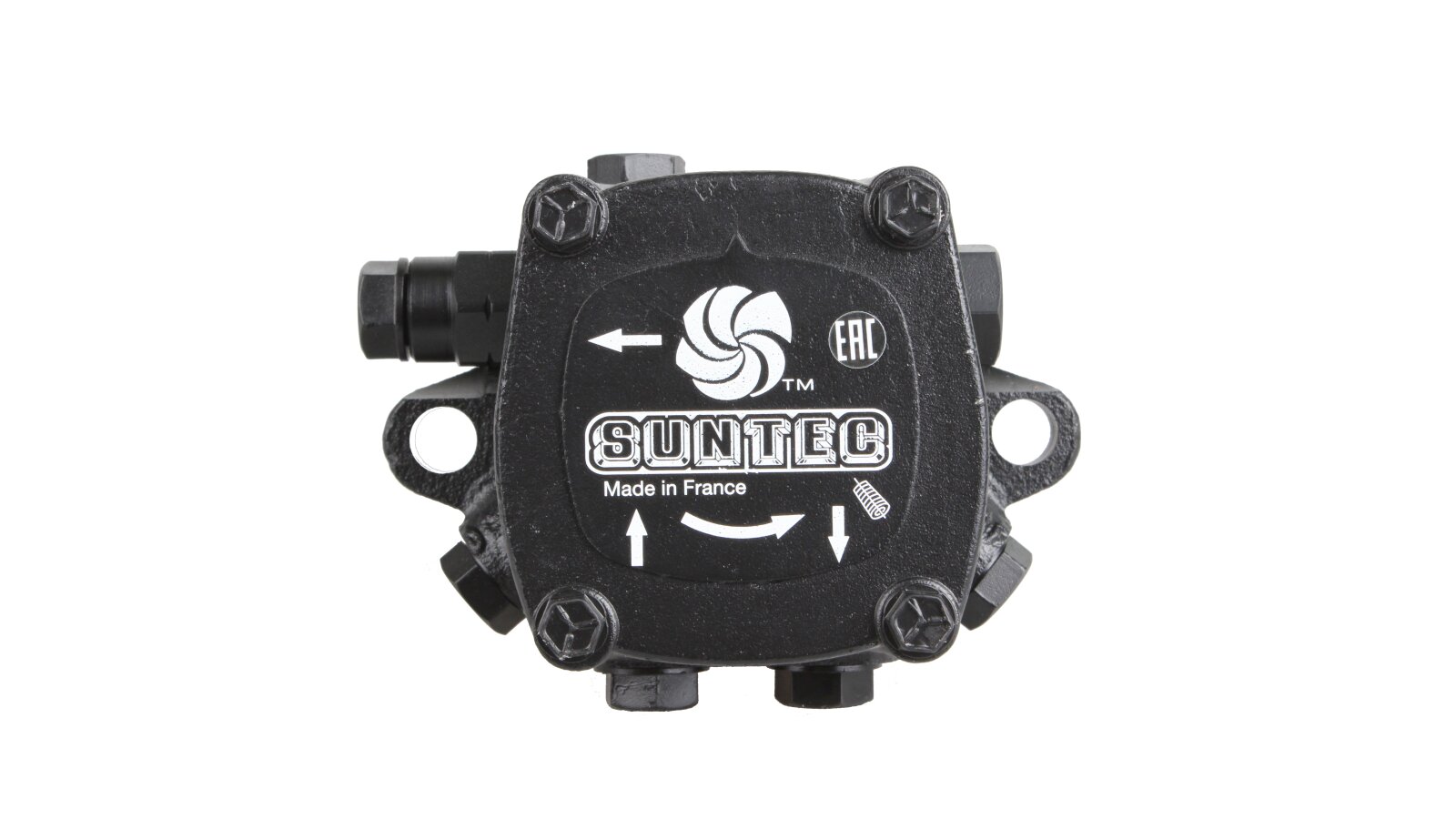

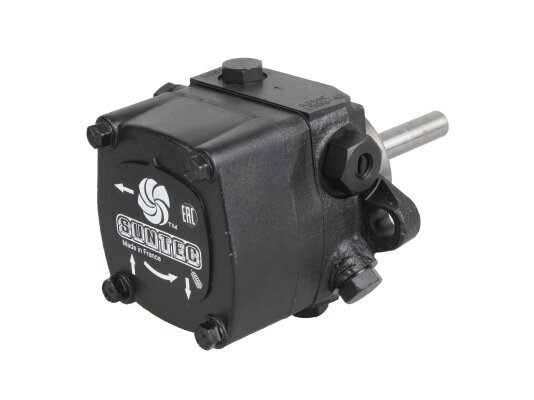

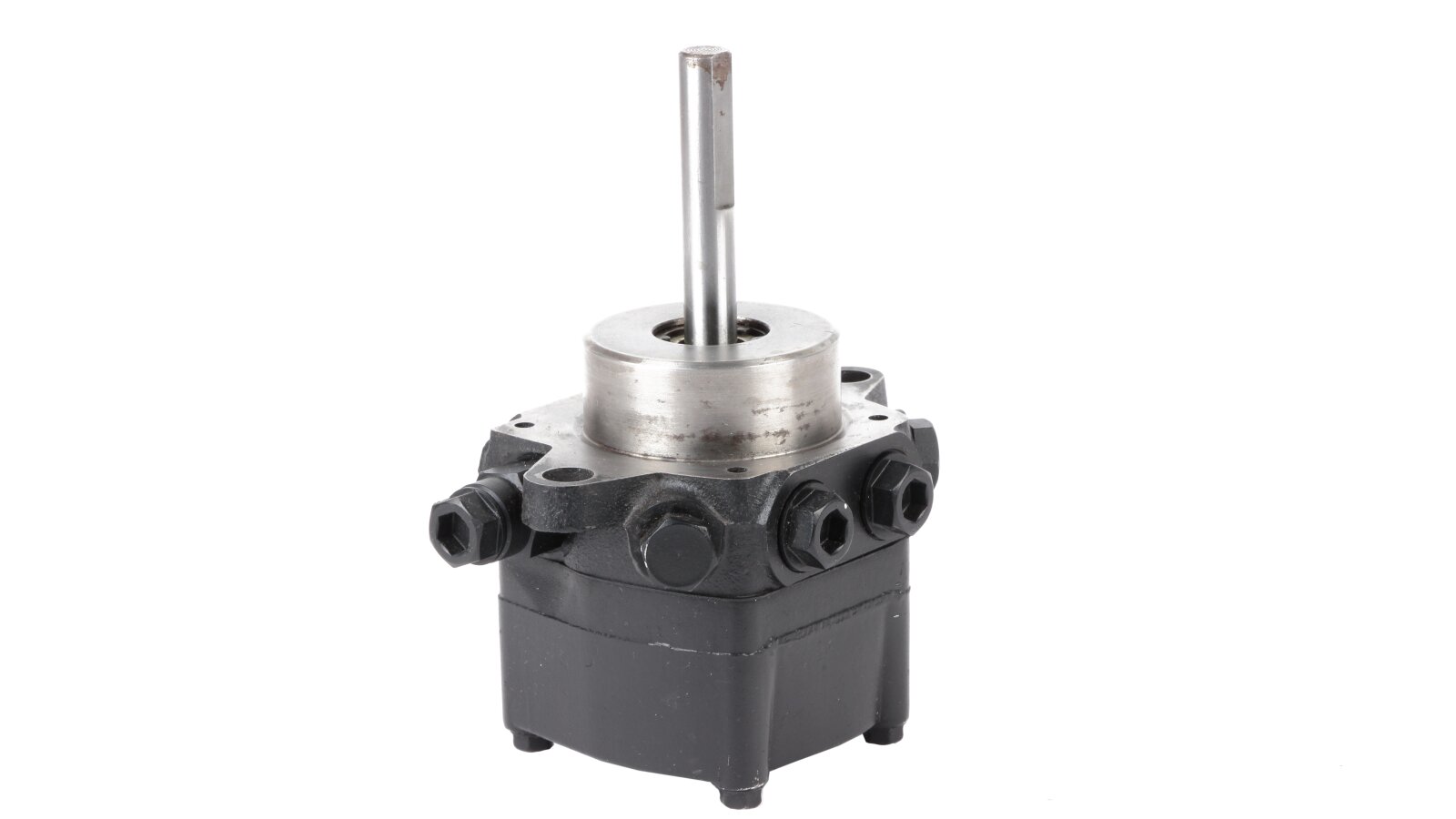

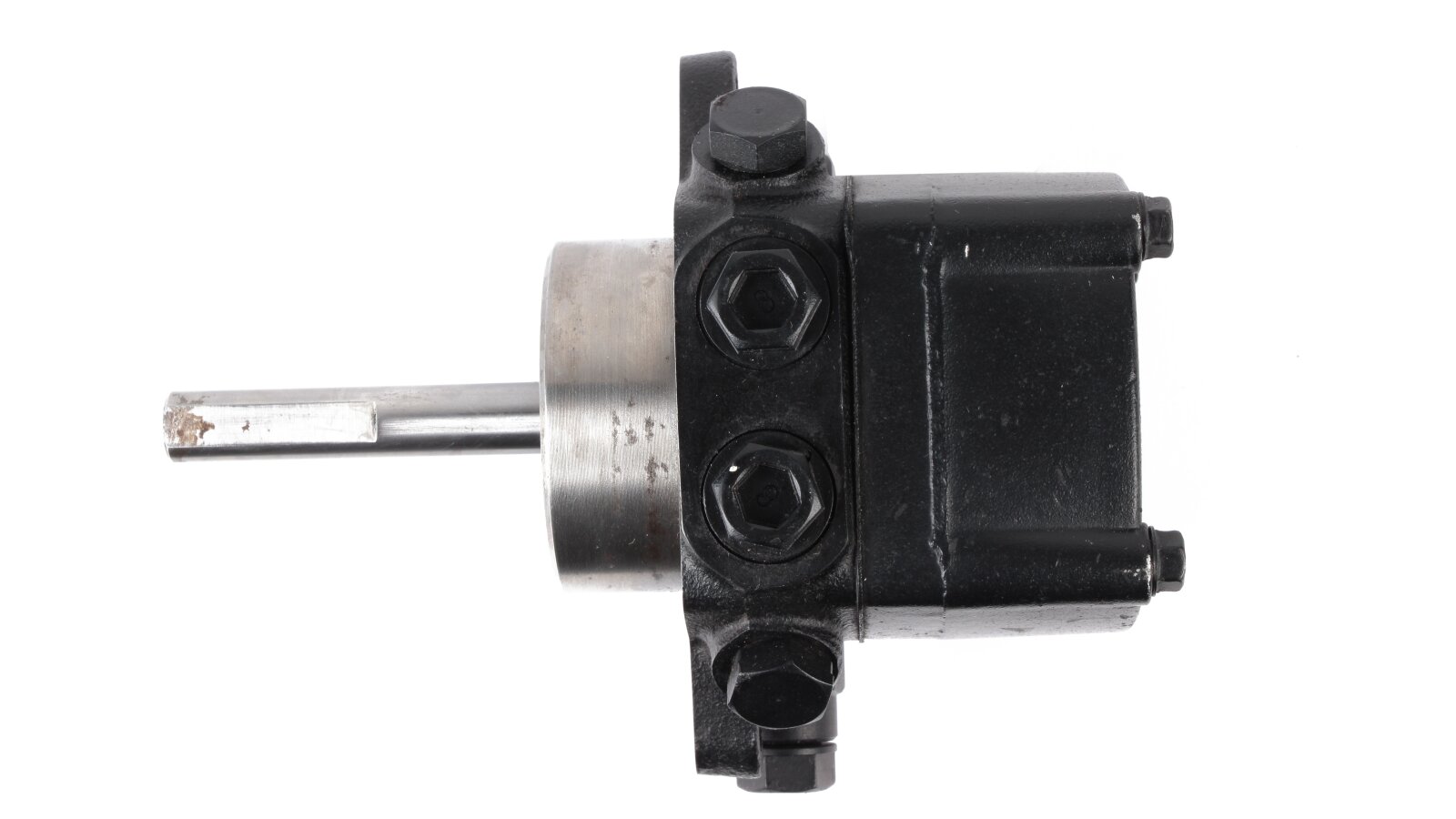

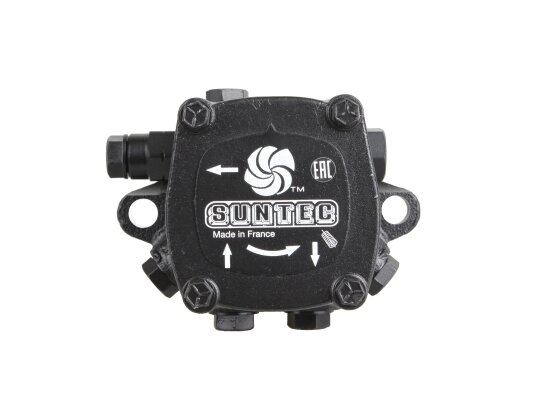

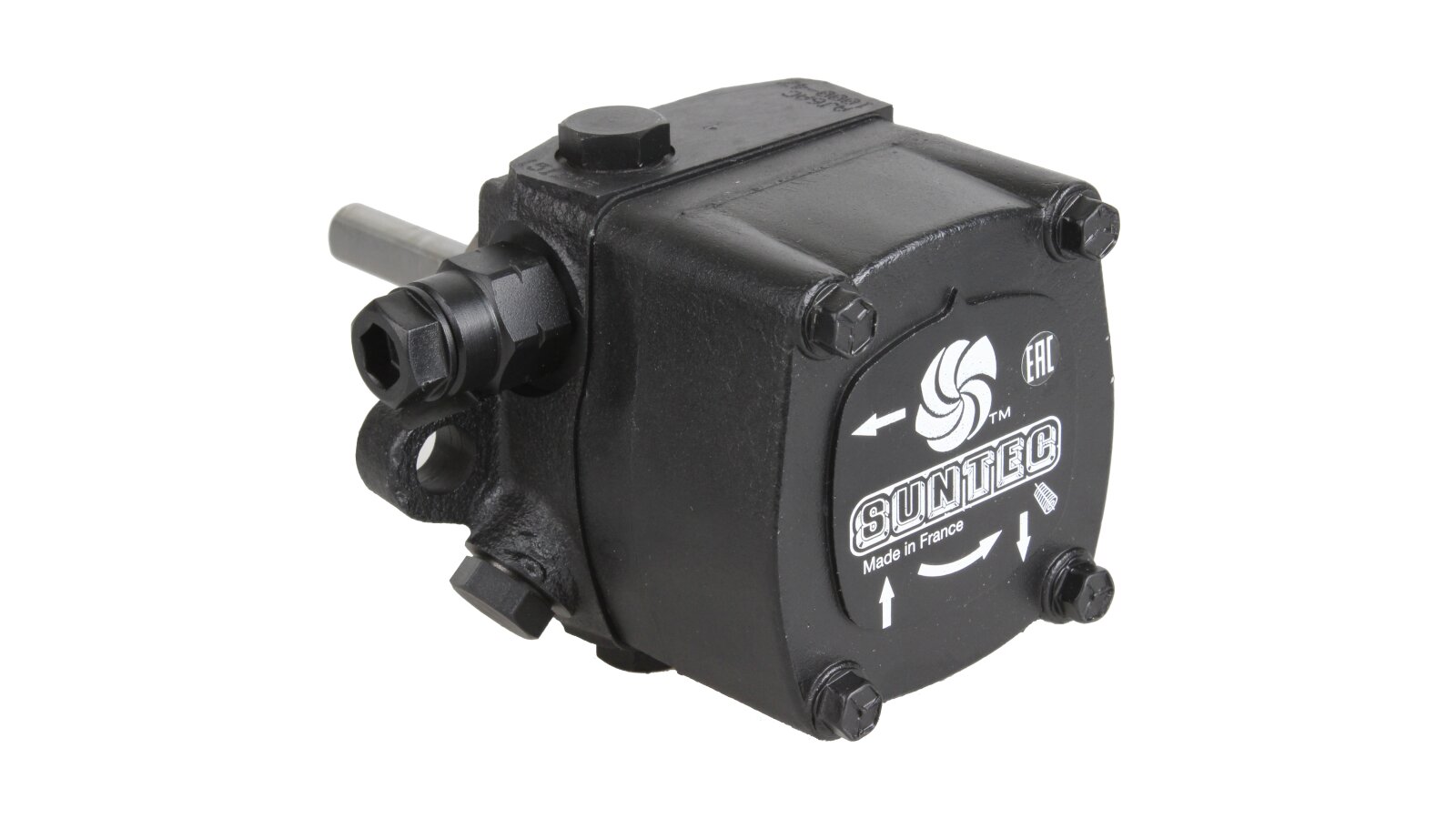

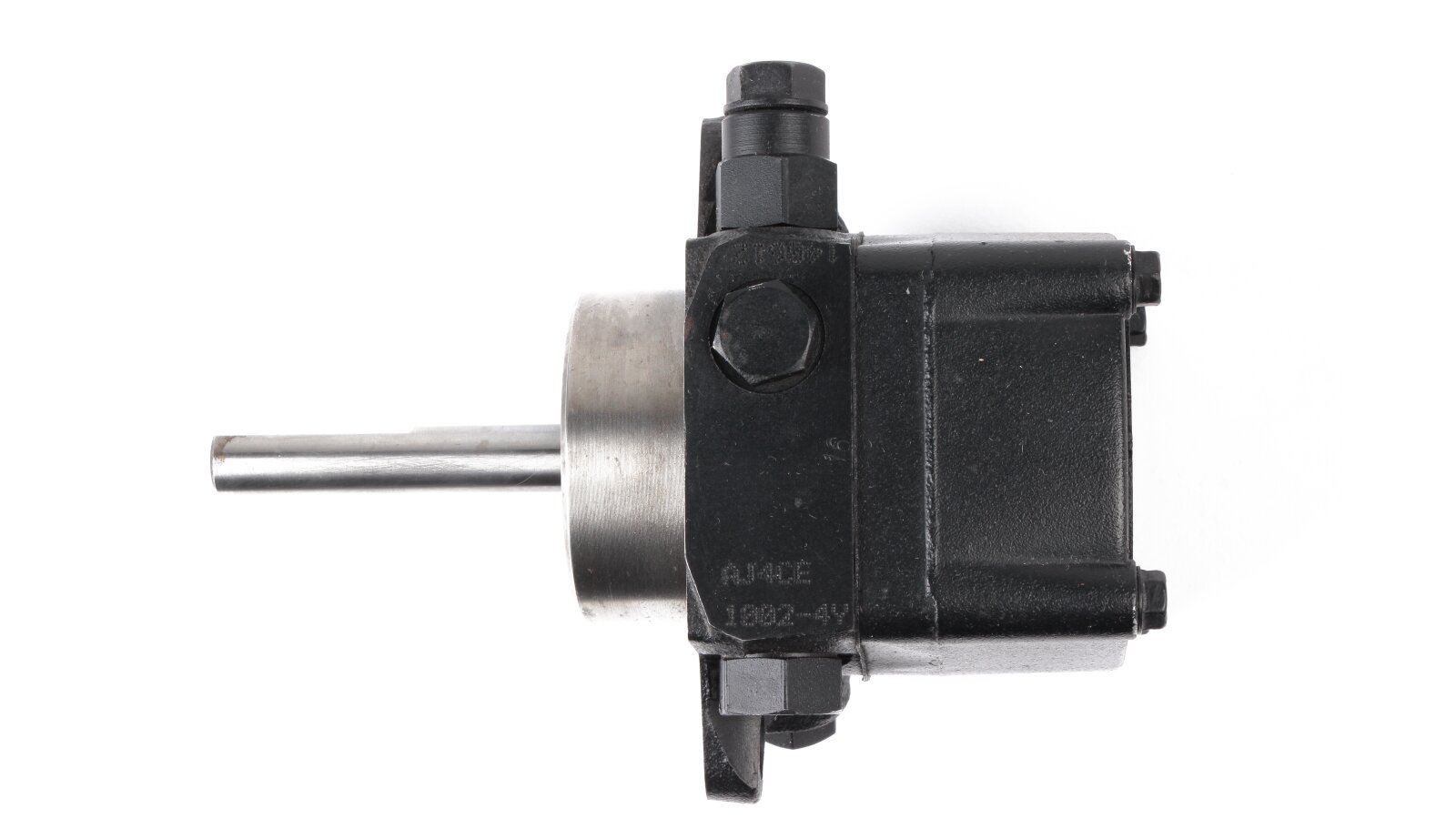

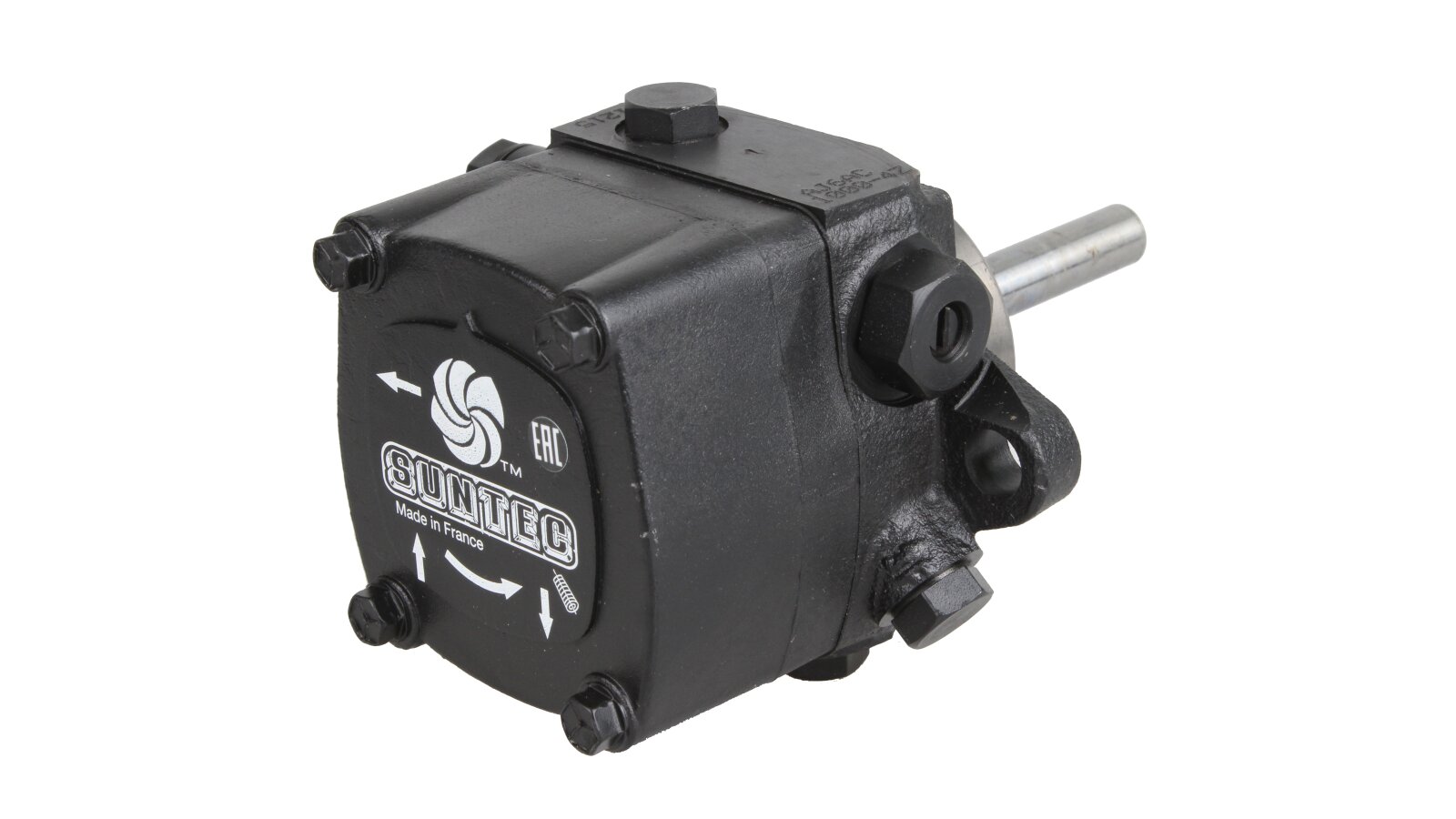

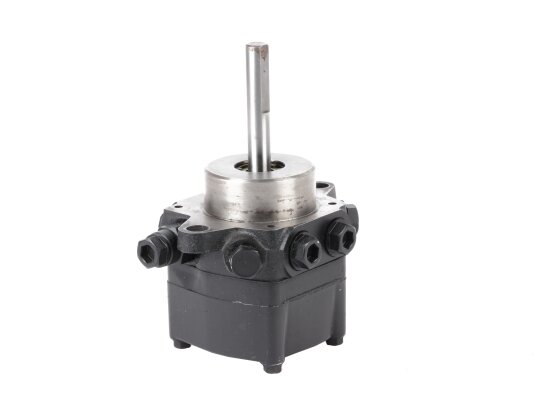

Burner Pump Suntec AJ 4 CE 1002 4P

Suntec

AED 1,300

Oil Burner Pumps
Products code: 1251

Description

The Suntec AJ 4 CE 1002 4P fuel pump is part of the basic series - it includes a valve that regulates the pressure within 10-30 atmospheres. The shut-off function is not implemented, it is provided by an external device (optional). The equipment is suitable for completing medium-power burners, from 400 to 3000 kW, and is a universal component for boiler plants operating on diesel fuel. The feed rate is 158 l / h at a pressure of 20 atmospheres on the nozzle.

Features and parameters of the device

The main difference of the AJ "1002" pump is the location of the bypass hole, which is made in the nozzle line, and not on the piston. As a result, the shut-off function is not provided.

During the manufacture of the model, pressure losses inside the system are reduced and ring seals are installed on the supporting surfaces of the "return" and the suction line.

The factory assembly is designed to connect the pump to a 2-pipe system. If the unit is used in single-pipe designs, the bypass plug should be unscrewed with a hex key and the fuel drain channel should be blocked.

The main working element - the gear mechanism is protected from the effects of abrasive particles by a built-in mesh filter with an increased cleaning area of ​​30 cm².

It allows you to cope with any foreign particles measuring 120x150 microns that can damage the structural elements of the device.

How the pump works

When rotating, the gear pair sucks diesel fuel from the tank, passes it through the mesh filter to the pressure control valve, and then to the injector. Excess fuel is drained into the tank or directed to the gear teeth, depending on the connection option. Locking is performed by an external EM valve.

Main advantages:

  • optimal performance;

  • wide pressure setting range, from 10 to 30 bar;

  • increased filtration area - 30 cm²;

  • minimization of internal pressure losses;

  • standard threaded outlets for connecting a vacuum gauge and a pressure gauge;

  • flange connection method according to the European standard EN 225.

Along with the Suntec AJ 4 CE 1002 4P fuel pump, we recommend purchasing an external EM valve at the manufacturer's price to implement the locking function. You can get advice from a specialist in any convenient way: by phone, through an online assistant or in the feedback form.

Characteristics

Torque: 0.3 N·mOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 158 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barNozzle pressure range: from 10 to 30 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselSuction and return line: ¼ inch NPTF (taper thread)
