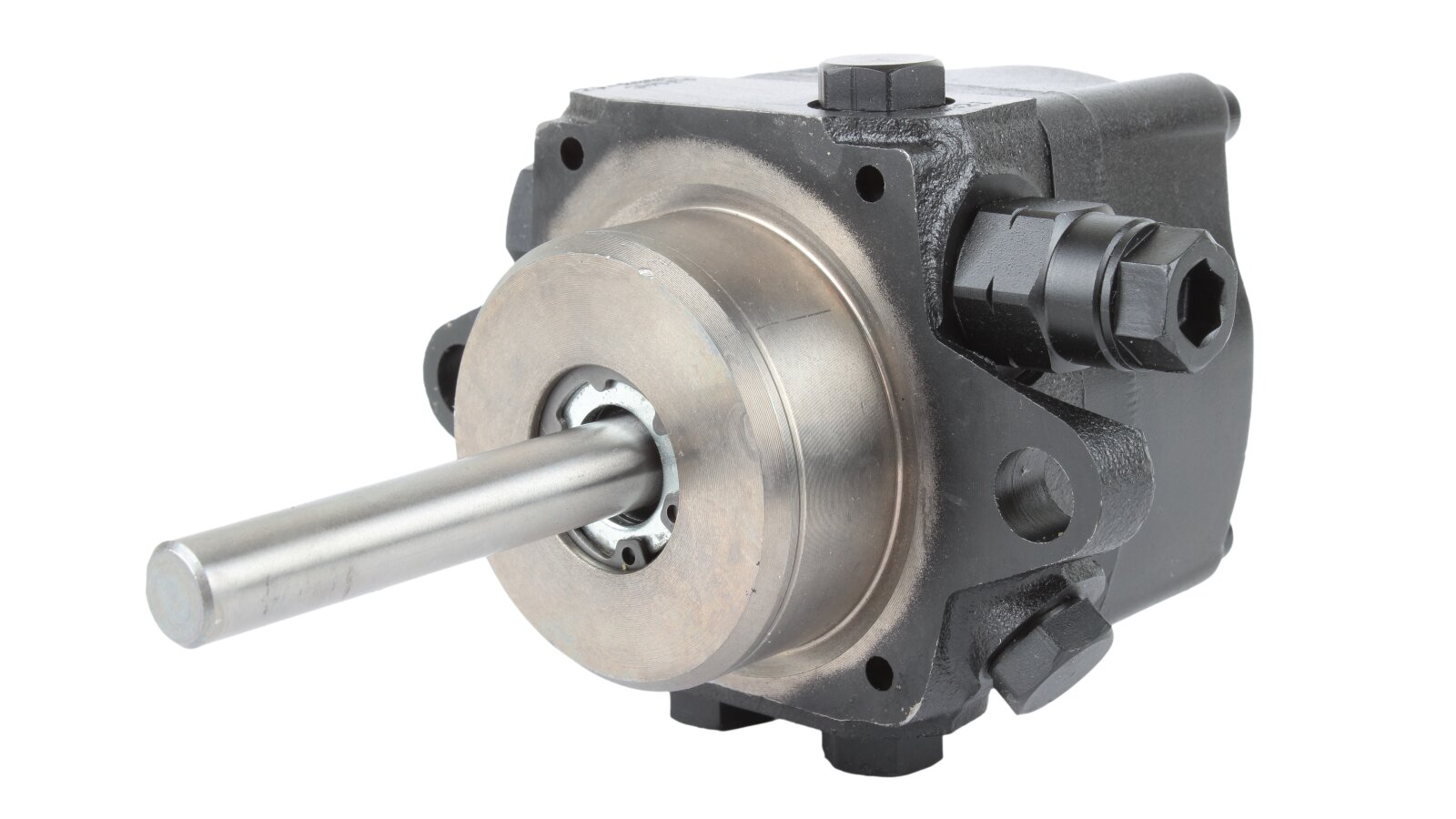

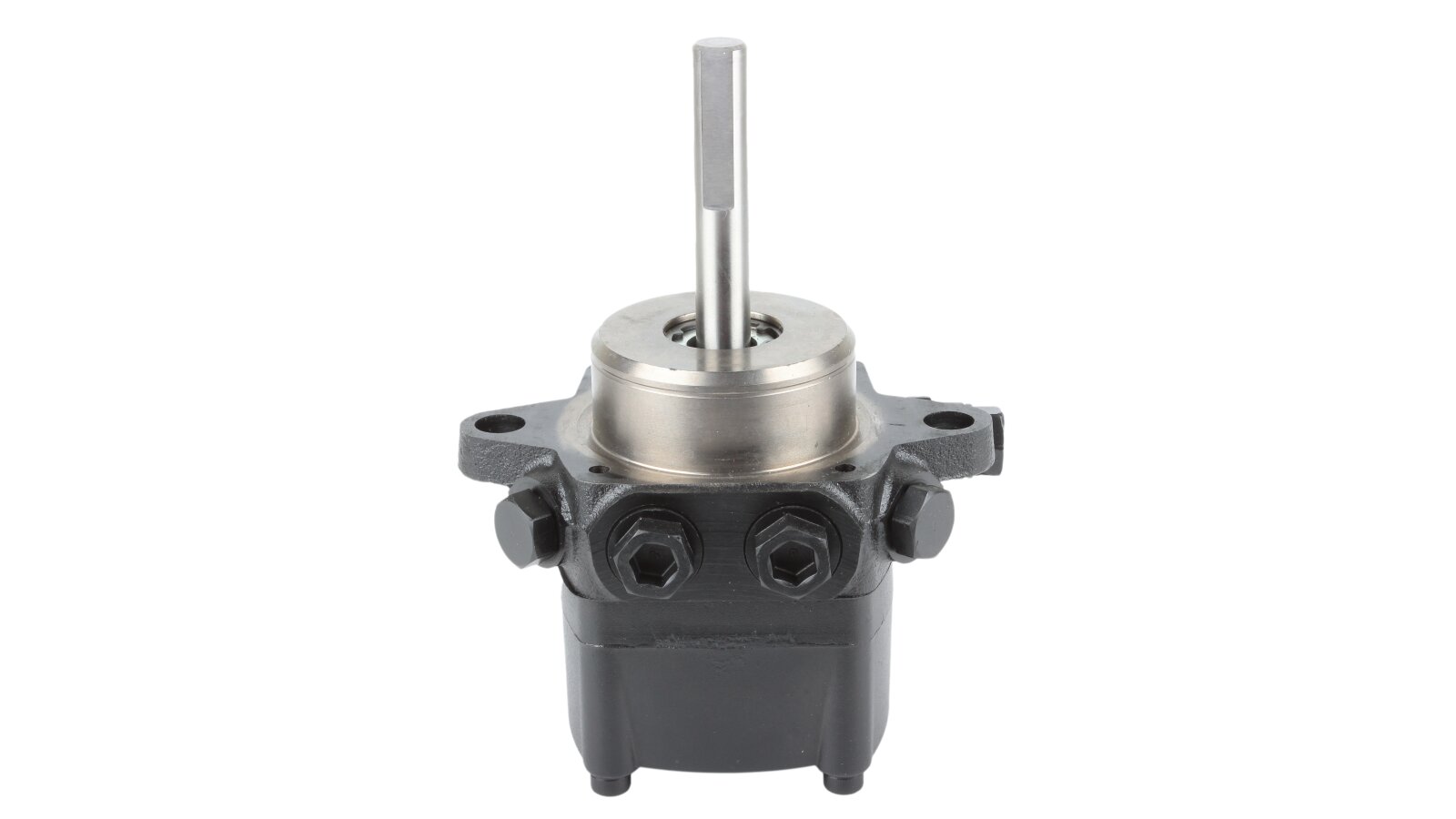

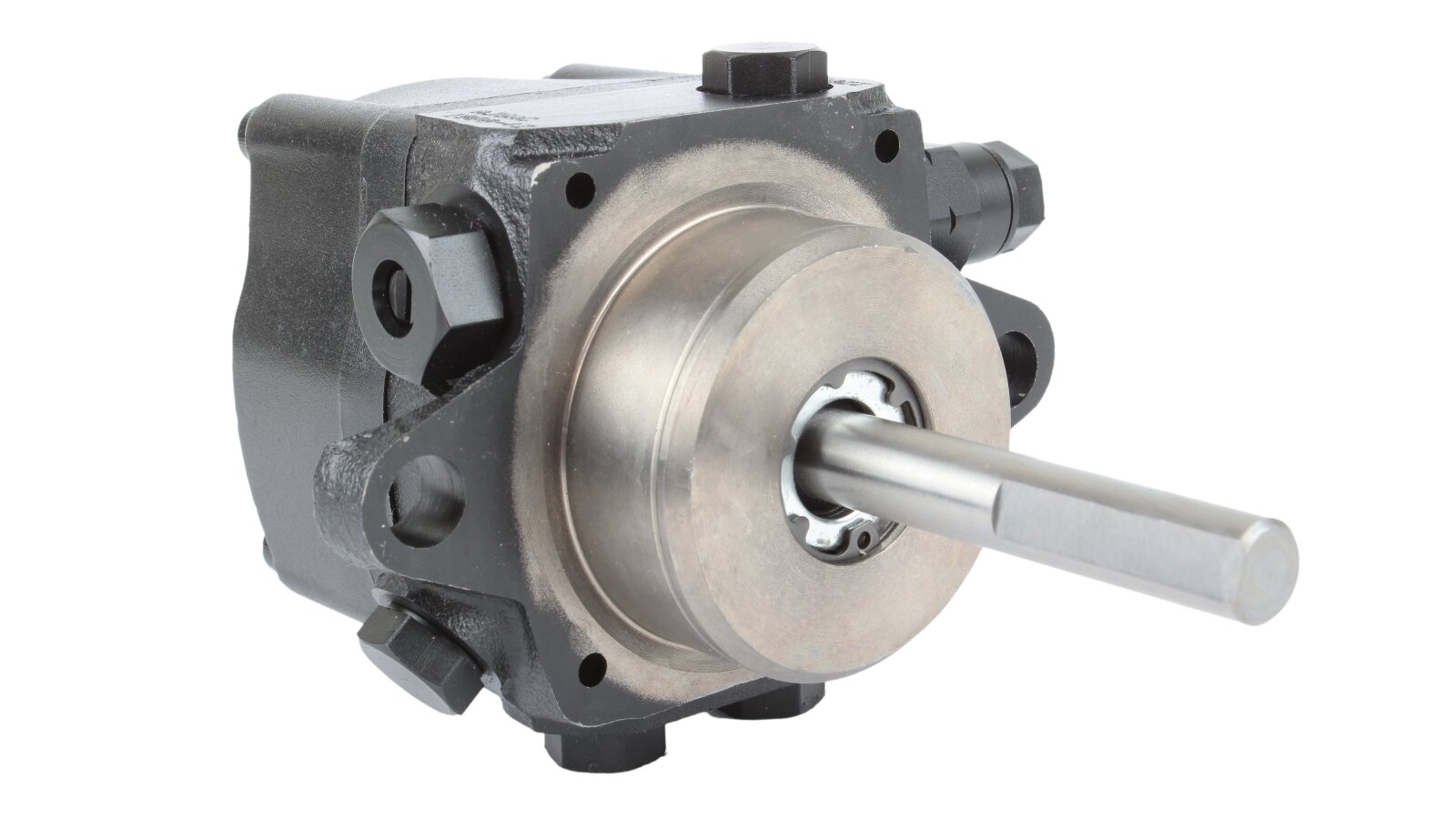

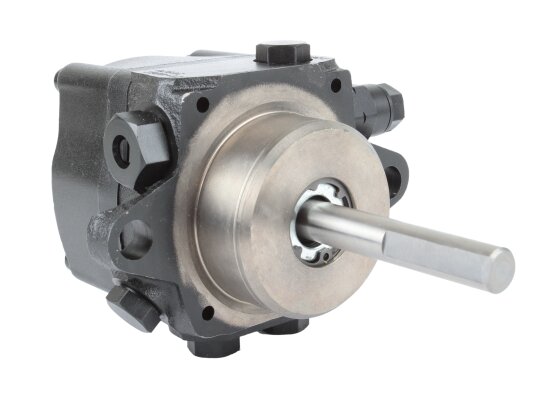

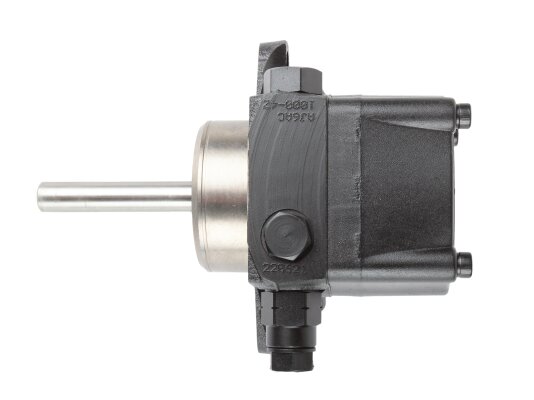

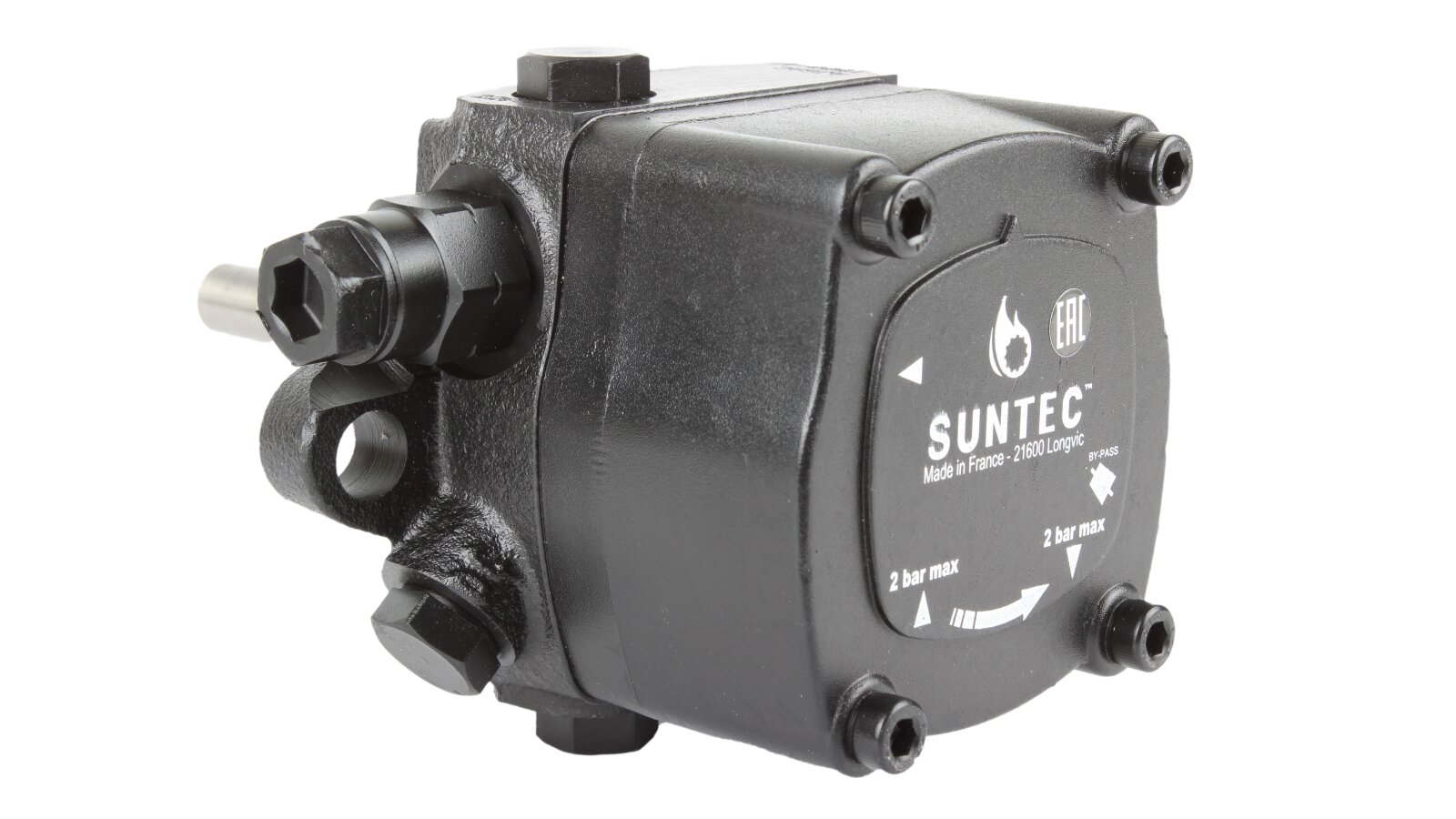

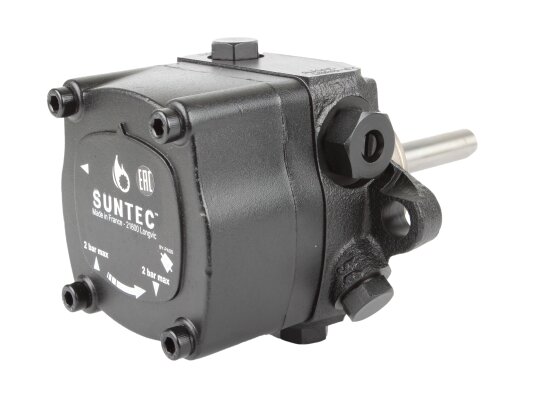

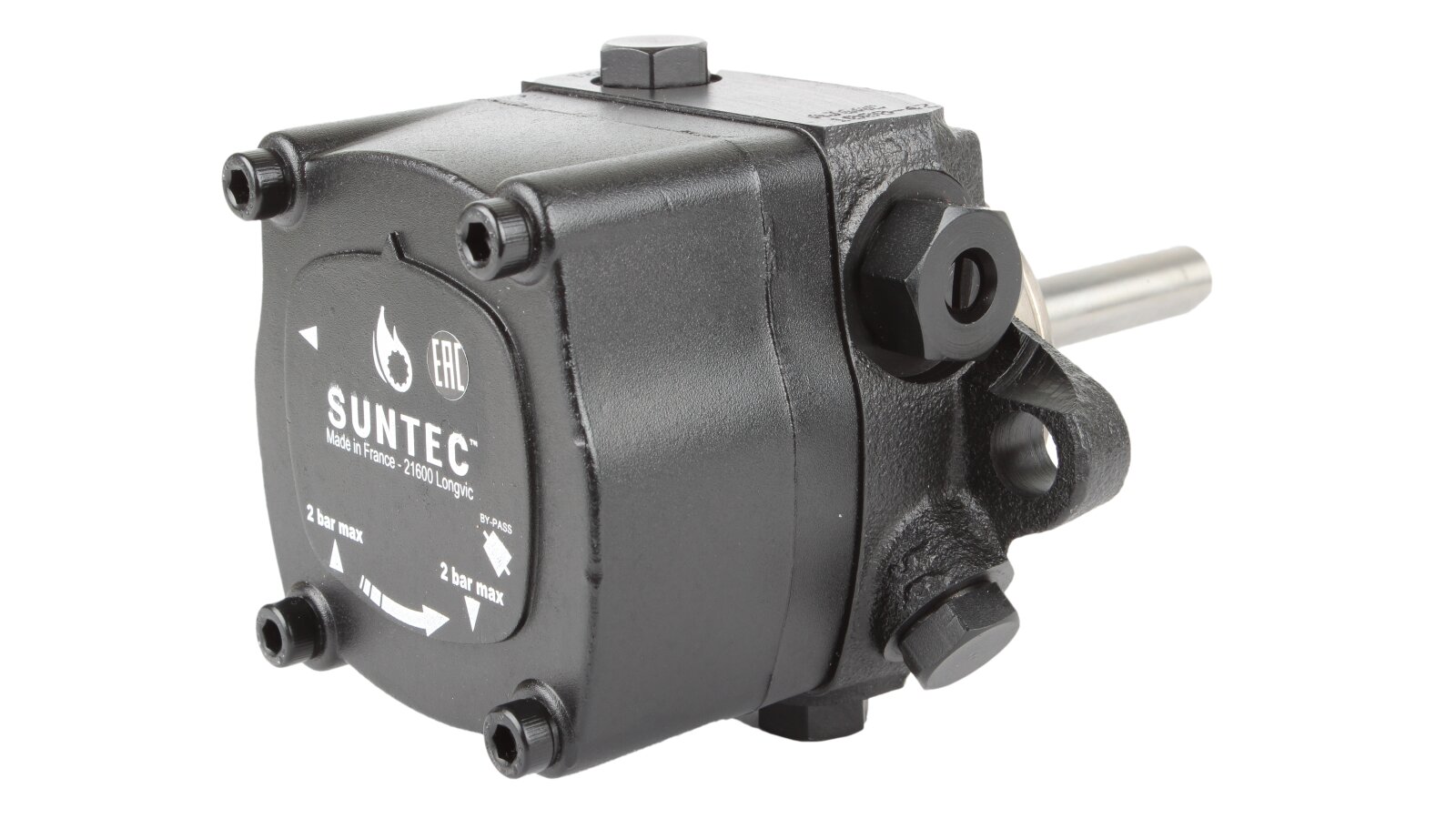

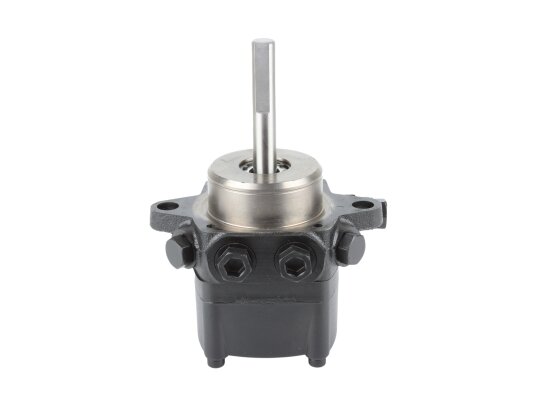

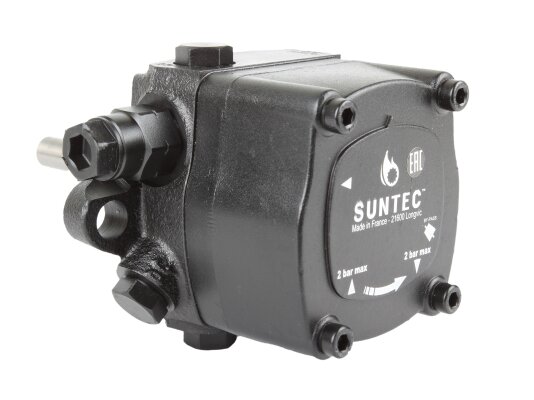

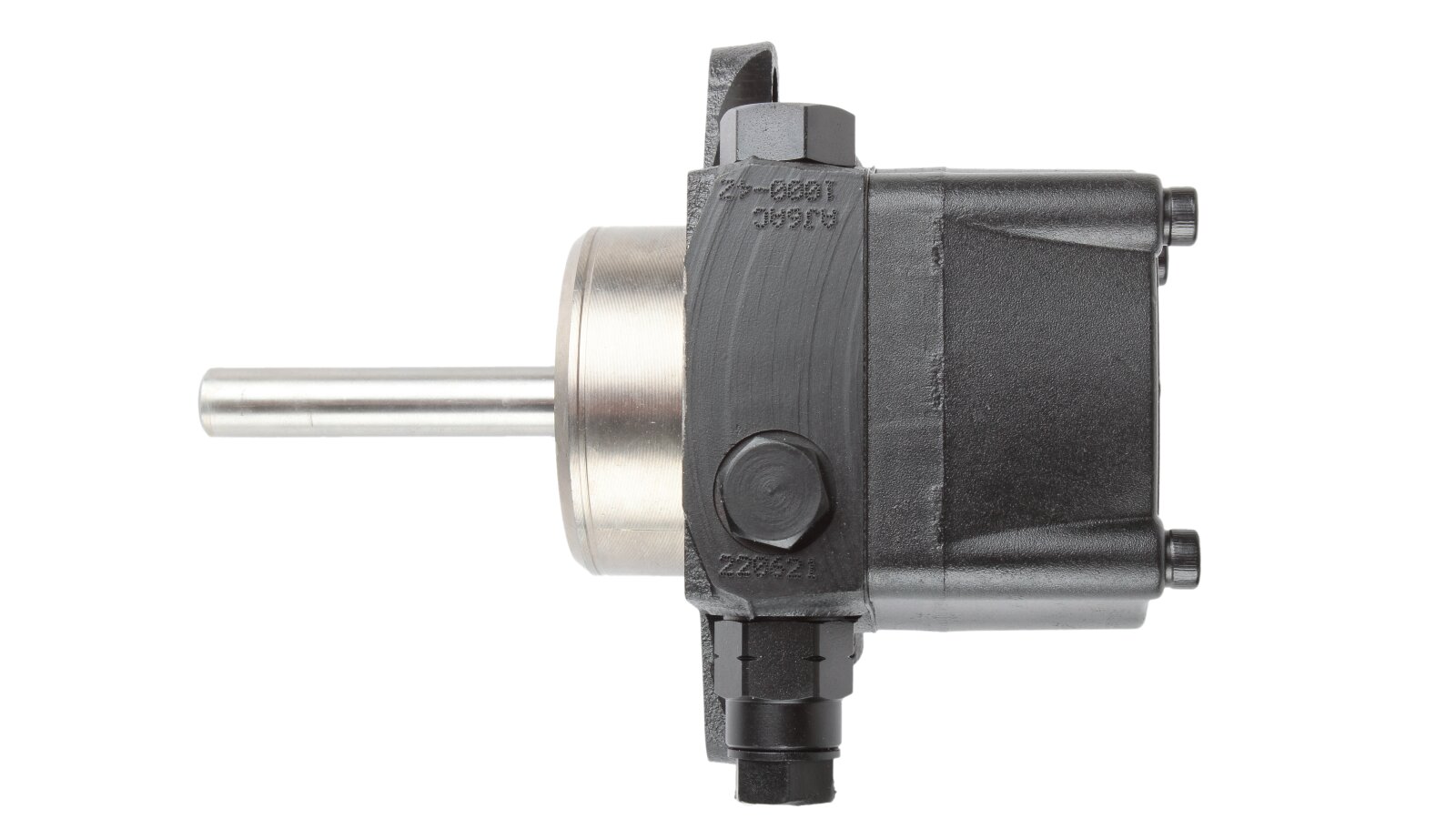

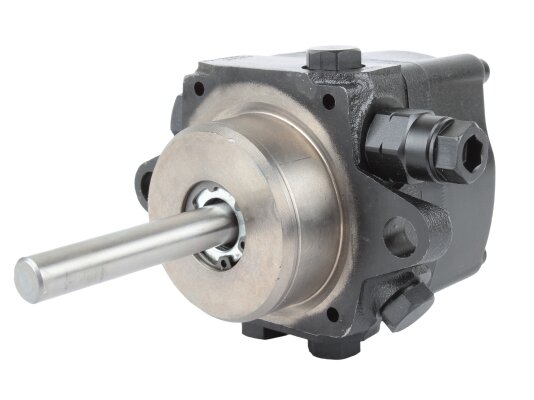

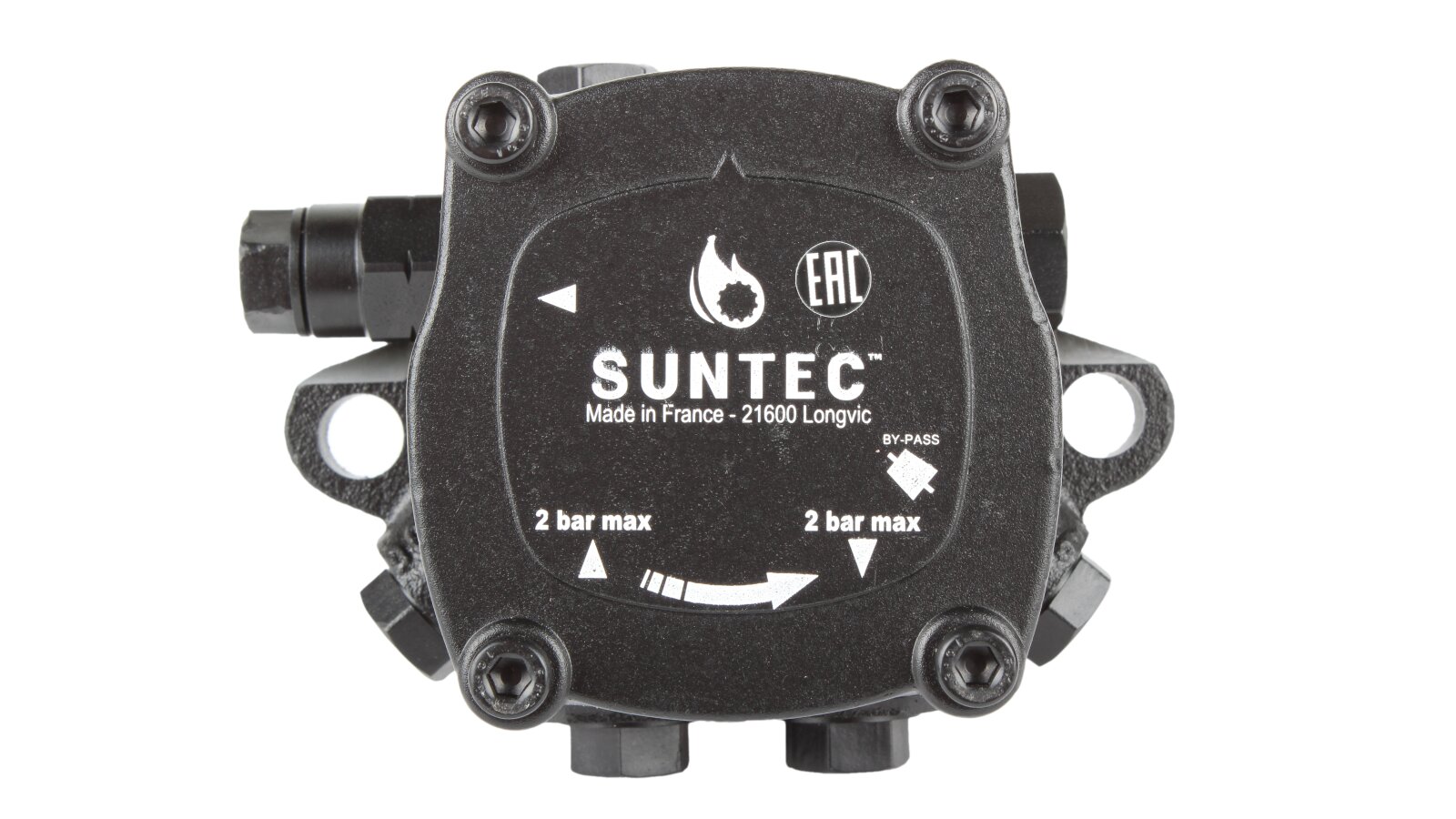

Burner Pump Suntec AJ 6 AC 1000 4P

Suntec

Alternative Part Number

Ecoflam

65322978

Lamborghini

04031260

FBR

258007

Baltur

30752

AED 1,300

Oil Burner Pumps
Products code: 1252

Description

The high-performance Suntec AJ 6 AC 1000 4P fuel pump allows pumping diesel fuel into medium-power burners under a pressure of 10-20 atmospheres. The speed depends on the viscosity of the pumped liquid and the pressure setting.

Device and features

The liquid fuel pump has a built-in valve that regulates the pressure on the injector and simultaneously performs a shut-off function. To automate the fuel supply mode, regardless of the shaft speed, we recommend buying the Suntec AJ 6 AC 1000 4P fuel pump together with an external electromagnetic valve.

This model has an outlet to the injector on the right and an 11-mm shaft that rotates clockwise. A special feature of the device is the reduction of internal pressure losses and the use of ring seals at the junctions with the intake line and the return line.

The main functional element of the pump - the gear mechanism is protected from jamming and premature wear with a built-in filter. A mesh insert with 120x150 microns cells prevents dirt, sand, rust and other contaminants from entering the unit. It is recommended to systematically clean the mesh from accumulated dirt and change the cover gasket.

The pressure on the injector can be adjusted independently by tightening the screw. In this case, be sure to use a pressure gauge so as not to break the equipment. Ports for measuring instruments comply with the ISO 228/1 standard.

Installation in the system is carried out using a flange connection. The basic version involves the use of a Suntec AJ 6 AC 1000 4P fuel pump for 2-pipe systems. The bypass plug should be unscrewed and the fuel drain channel closed if connecting the pump to a 1-pipe installation.

The main advantages of the device:

  • high fuel supply rate to the injector - 248 l / h at a pressure of 20 atm.;

  • automatic air bleed from 2-pipe installations;

  • wide range of kinematic viscosity of fuel, 2-75 cSt;

  • valve locking function;

  • flexible pressure adjustment in manual mode;

  • detachable pre-filter;

  • choice of installation option - in the system in one or two pipes.

On our website you can buy pumps for boiler units at an affordable price. Suntec products will serve reliably for many years due to the use of high-tech equipment and modern developments.

Characteristics

Torque: 0.3 N·mOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barNozzle pressure range: from 10 to 20 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselSuction and return line: ¼ inch NPTF (taper thread)
