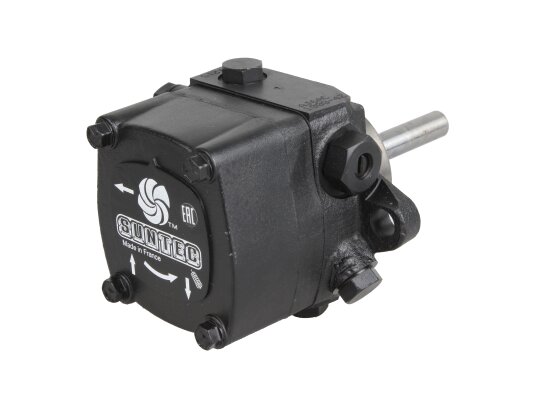

Burner Pump Suntec AJ 6 CE 1002 4P

Suntec

Alternative Part Number

120229

AED 1,550

Oil Burner Pumps
Products code: 1255

Description

High-efficiency fuel pump Suntec AJ 6 CE 1002 4P – basic model with pressure regulating valve. Pumps diesel fuel at a rate of 248 l/hour (at a pressure of 20 bar), ensuring stable operation of boiler equipment. It is used to maintain a comfortable climate in industrial, commercial and office premises.

Features and operating parameters

The pump has an increased pressure amplitude on the nozzle – 10-30 atm. Adjustment is performed using a screw – turning clockwise increases the pressure and vice versa. The main thing is to use a pressure gauge to prevent damage to the device.

The model is equipped with a regulating valve. Flow locking is not provided, since the bypass hole is in the nozzle line. Installation of an external device (EM valve) is required.

When creating the design, engineers achieved a reduction in pressure losses, and also used ring seals on the supporting surfaces of the connections with the return line and the suction line.

The basic assembly option is designed for a 2-pipe system configuration. For 1-pipe installations, remove the bypass plug, then securely close the drain channel.

The gears of the Suntec AJ 6 CE 1002 4P fuel pump are protected from early wear by a detachable filter. The 120x150 µm mesh insert holds sand, dirt and other abrasive inclusions. Regular cleaning of the mesh is required to avoid deterioration in the unit's performance.

How the pump works

The gear pair pumps diesel fuel out of the tank, passes it through the filter mesh, directs it to the valve, and after adjusting the pressure - to the injector. Excess fuel is drained into a tank with fuel in a 2-pipe connection or passes to the gears in installations with one pipe.

Advantages:

  • high efficiency;

  • minimization of pressure losses;

  • installation variability (single- or double-pipe connection);

  • wide filter catching area;

  • large pressure adjustment amplitude;

  • standard ports for pressure gauge and vacuum gauge;

  • optimal quality/price balance.

You can buy the Suntec AJ 6 CE 1002 4P fuel pump and any other equipment for the heating system in one click. If you need a specialist consultation, ask your question by phone, through the online assistant or in the feedback form.

Characteristics

Torque: 0.3 N·mOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): C: counterclockwise rotation / nozzle on the leftInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barNozzle pressure range: from 10 to 30 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselSuction and return line: ¼ inch NPTF (taper thread)
