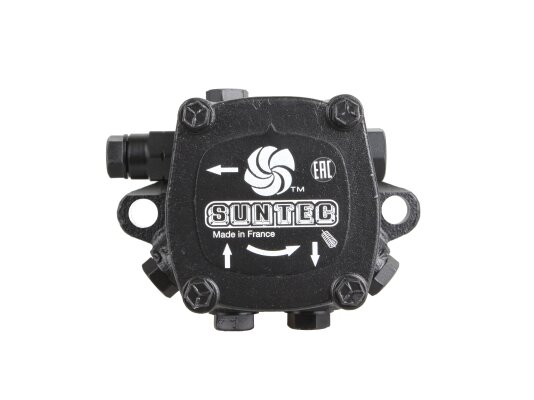

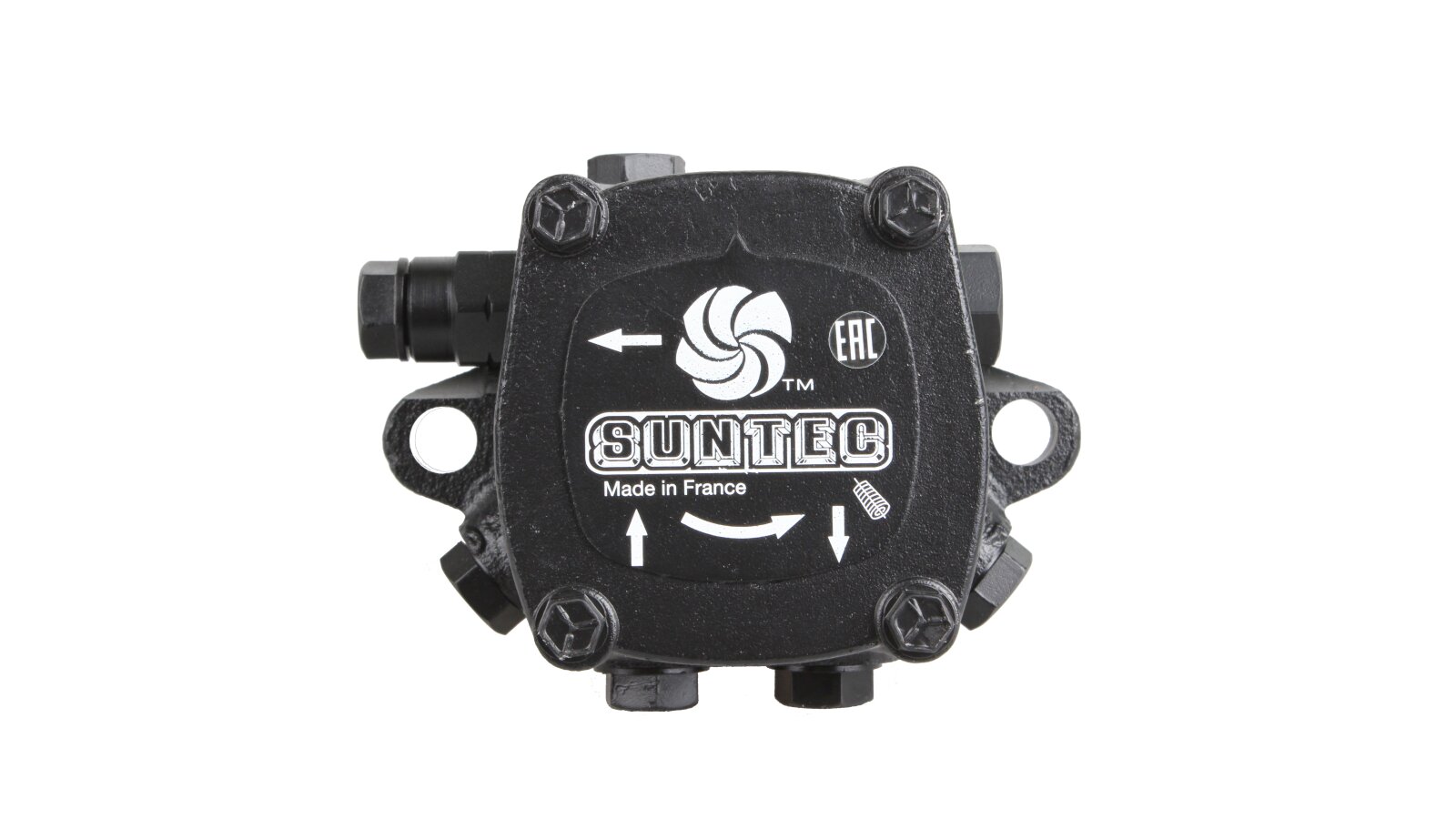

Burner Pump Suntec AJ 6 DC 1000 4P

Suntec

AED 1,475

Oil Burner Pumps
Products code: 6924

Description

The universal fuel pump Suntec AJ 6 DC 1000 4P solves the problem of equipping medium-power boiler units. It is used to supply diesel fuel and biodiesel to heating burners under pressure of 10-20 atm. Due to its high productivity (248 l/h at maximum pressure and fuel viscosity of 5 cSt), the equipment copes with heating office, warehouse, retail and large domestic premises.

Design and features

  • For safe operation with biofuel, a special material for sealing the drive axle was used in the manufacture of the product.

  • The Suntec AJ 6 DC 1000 4P fuel pump is a basic model and is equipped with a built-in valve that regulates the pressure in accordance with a predetermined value.

  • You can adjust the discharge pressure yourself using a screw regulator. To avoid damage to the pump, use a pressure gauge when adjusting the pressure. For instrumentation, holes with threads are made according to ISO 228/1.

  • The valve locks the fuel. The flow opening/closing speed depends on the pressure settings. The burner operation can be automated by installing an EM valve (optional).

  • A special feature of the modification with the digital designation "4" is the use of O-ring seals for connections to the "return" and intake line, as well as a reduction in internal pressure losses.

  • The basic package is designed for 2-pipe units. For pipeline configurations without a "return", it is necessary to close the drain hole, having previously removed the bypass plug.

  • The main functional unit of the pump is a gear pair rotating counterclockwise. The gears move the fuel from the tank to the nozzle, having previously passed it through a filter mesh and a regulating valve.

The advantages are:

  • efficient fuel supply to the nozzle;

  • work with various types of fuel with a viscosity of 2-75 cSt;

  • versatility - diesel fuel and biodiesel;

  • a serviceable filter for removing abrasive impurities;

  • adjustable feed pressure, range 10-20 atm.;

  • compatibility with burners of most brands;

  • optimal price/quality balance.

Before buying a Suntec AJ 6 DC 1000 4P fuel pump, read the characteristics and requirements of the burner manufacturer. Stable operation of the entire heating system depends on the correct selection of components.

Characteristics

Torque: 0.3 N·mOperating viscosity: from 2 to 75 mm²/sValve function: pressure regulating and cut-offInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barNozzle pressure range: from 10 to 20 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselSuction and return line: ¼ inch NPTF (taper thread)
