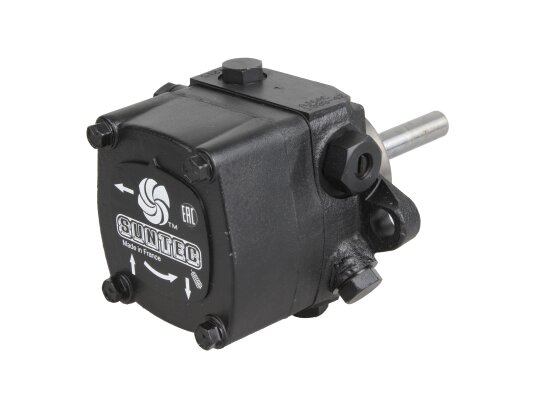

Burner Pump Suntec AJ 6 DE 1002 4P

Suntec

AED 1,600

Oil Burner Pumps
Products code: 1256

Description

The Suntec AJ 6 DE 1002 4P fuel pump is high-performance equipment for creating modern heating systems. It is used as part of medium-power burners for heating industrial premises, offices, warehouses, and retail spaces. The built-in valve regulates the supply pressure, the setting range is 10-30 atm. To lock the fuel, an external EM valve must be installed. Capacity - 248 l/h at a pressure of 20 bar.

Device and features

When creating the pump, the developers achieved a reduction in internal pressure losses. Ring seals are used to connect to the return line and the suction line.

The bypass hole is located not on the piston, but in the nozzle line. This location eliminates the presence of a locking function. Closing/opening of the supply is regulated by an external EM valve, supplied upon a separate request.

The pump is configured for a 2-pipe connection. When choosing a circuit without a return line, the bypass plug should be removed from the hole and the fuel drain should be closed.

The main working unit of the unit is a wear-resistant pair of gears. Thanks to the built-in filter, the gear pair is not subject to early wear and serves reliably for many years. The mesh insert with a working area of ​​30 cm² must be washed regularly so that the fuel supply rate does not decrease.

The pressure is adjusted by simply tightening the screw on the housing. Use a pressure gauge each time you adjust the parameters.

The Suntec AJ 6 DE 1002 4P fuel pump is installed in the system using a flange connection that meets the European standard EN 225.

Main advantages:

  • Efficient supply of diesel fuel;

  • large amplitude of pressure adjustment, 10-30 bar;

  • dismountable mesh filter with a collection area of ​​30 cm²;

  • threaded ports and outlets according to ISO 228/1;

  • choice of connection scheme – 2 or 1 pipe;

  • minimization of pressure losses;

  • automatic air outlet in 2-pipe units;

  • excellent characteristics and affordable price.

The manufacturer recommends buying the Suntec AJ 6 DE 1002 4P fuel pump together with an electromagnetic valve to ensure the shut-off function. If you have any questions, contact the company consultant for help.

Characteristics

Torque: 0.3 N·mOperating viscosity: from 2 to 75 mm²/sInstalling the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): D: counterclockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barNozzle pressure range: from 10 to 30 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ⅛ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilType of pumped liquid: dieselSuction and return line: ¼ inch NPTF (taper thread)
