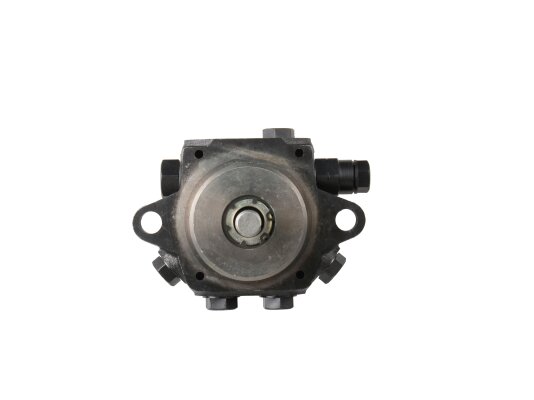

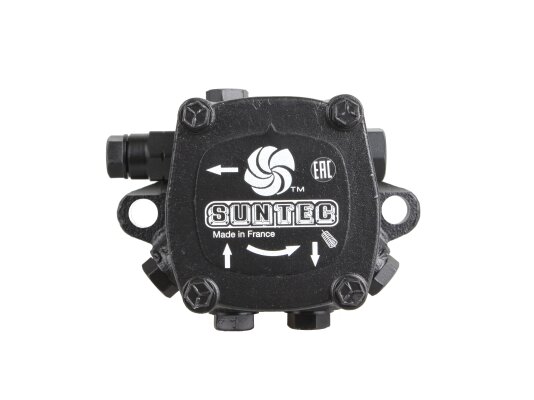

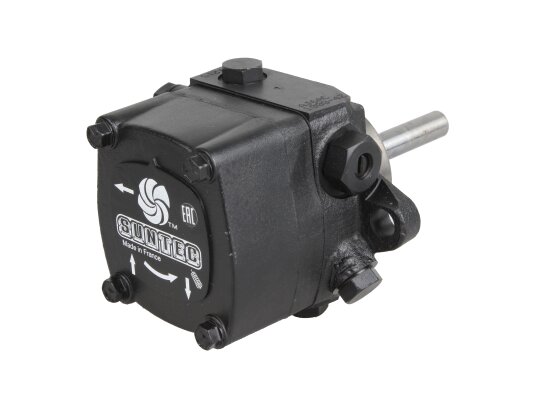

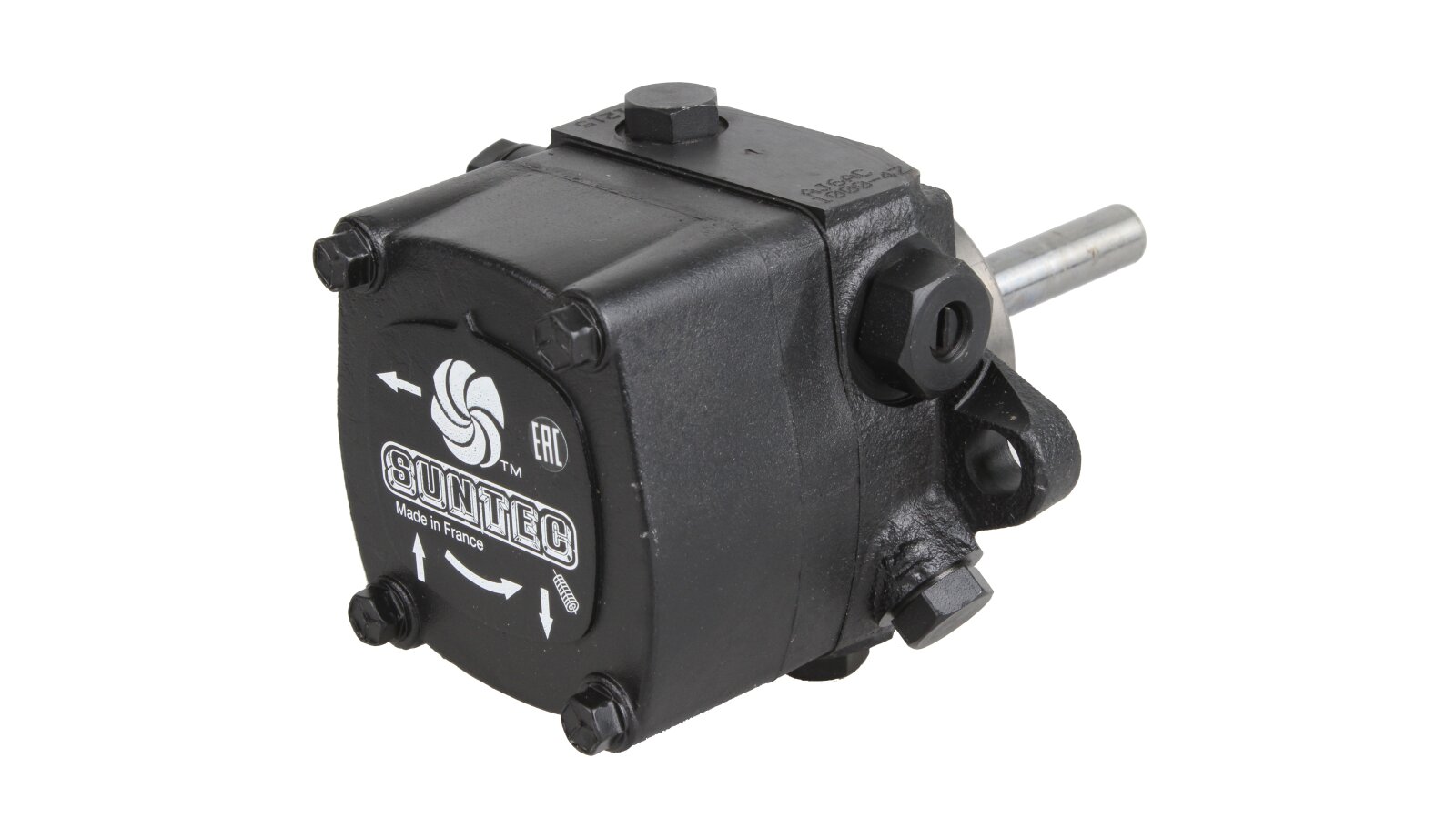

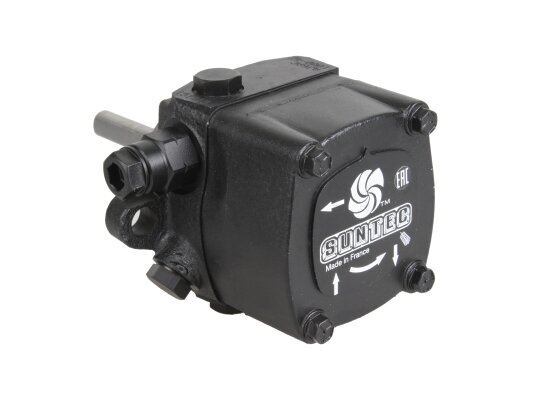

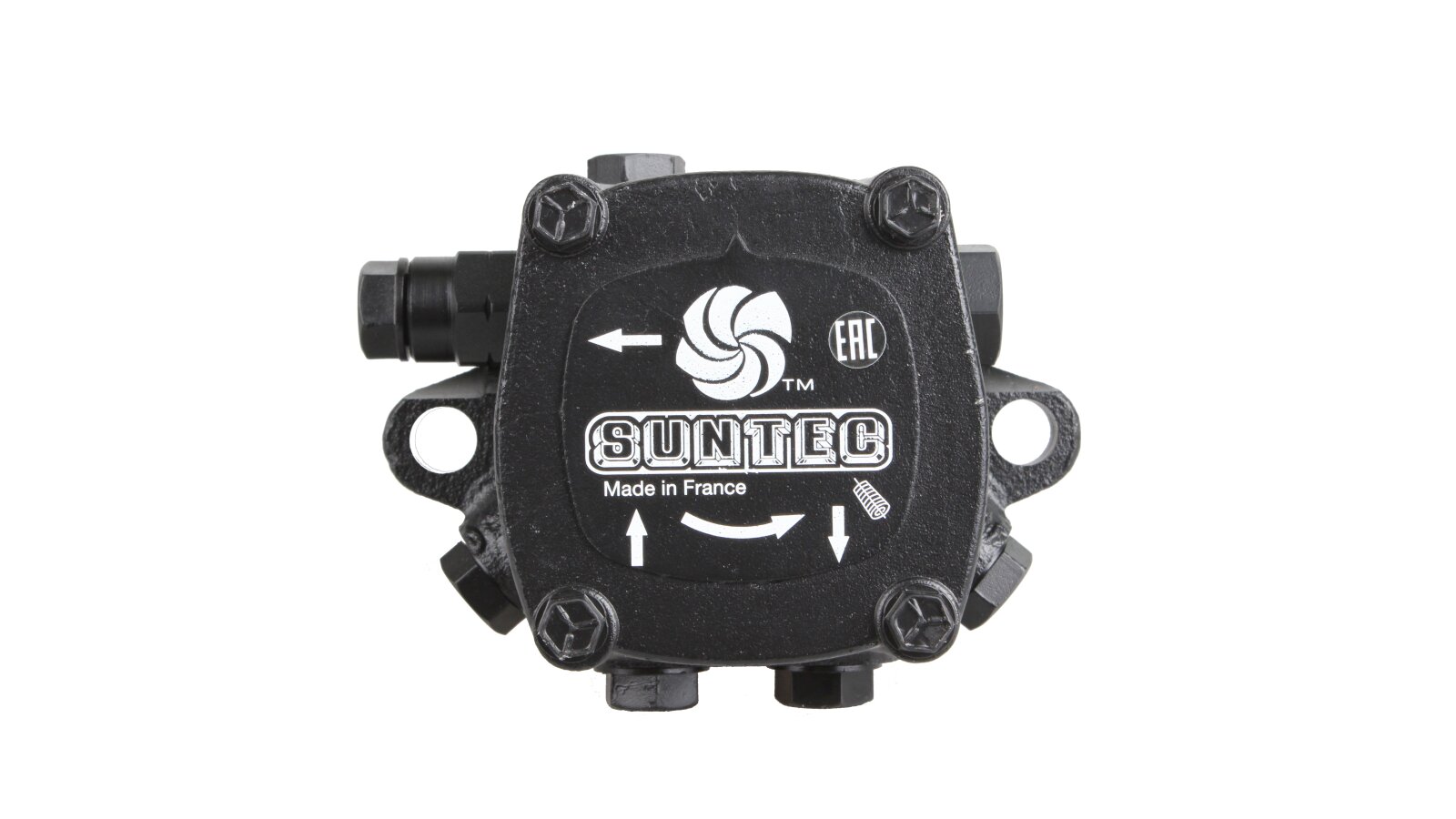

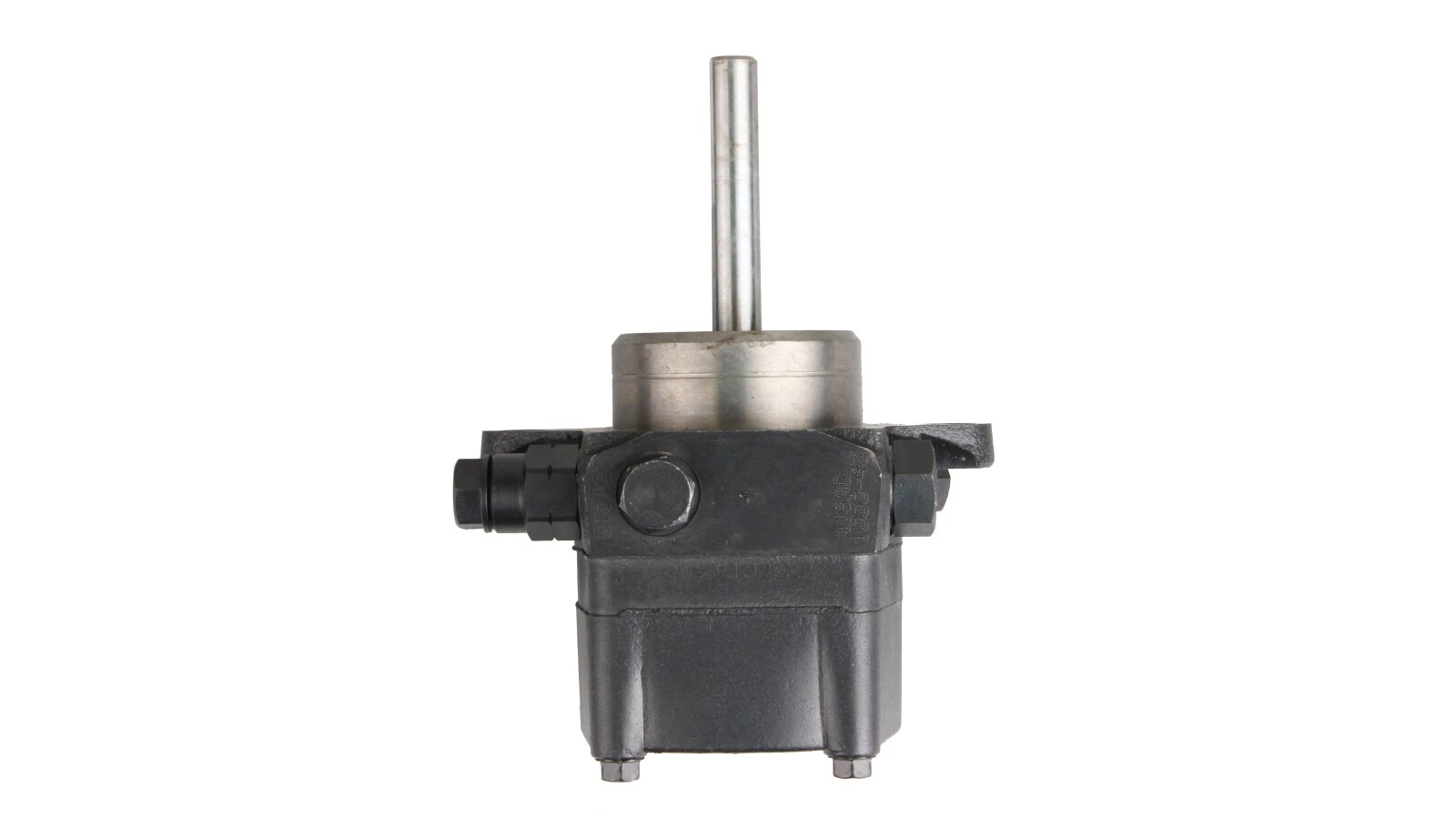

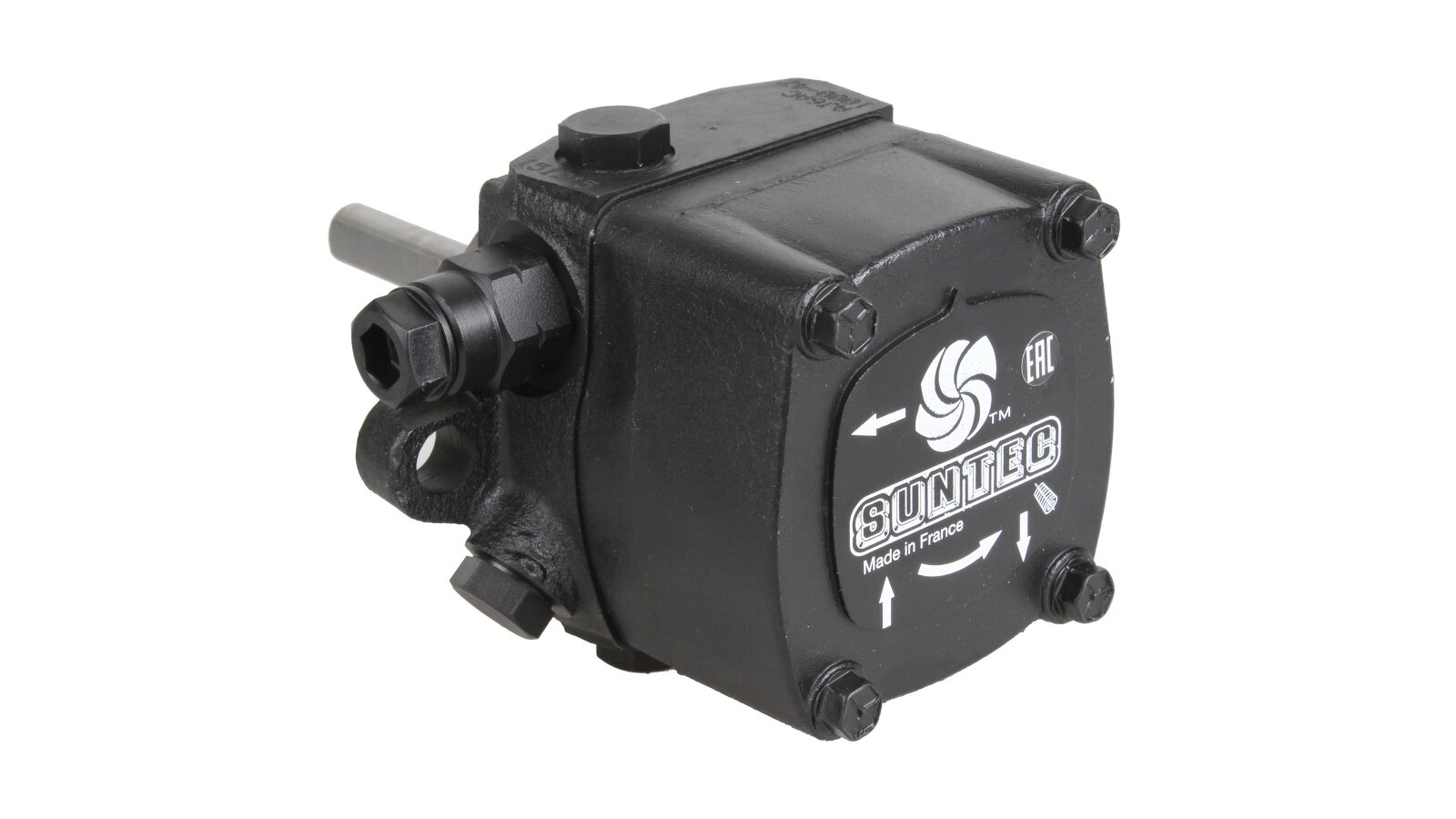

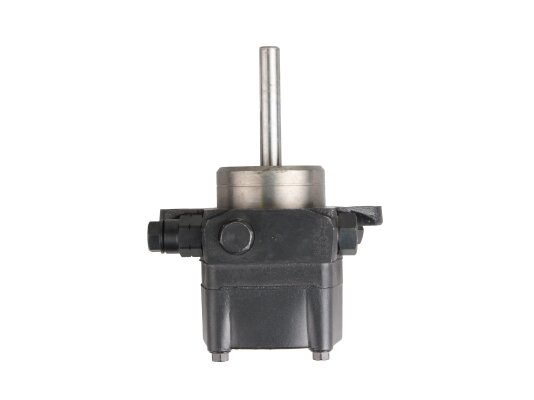

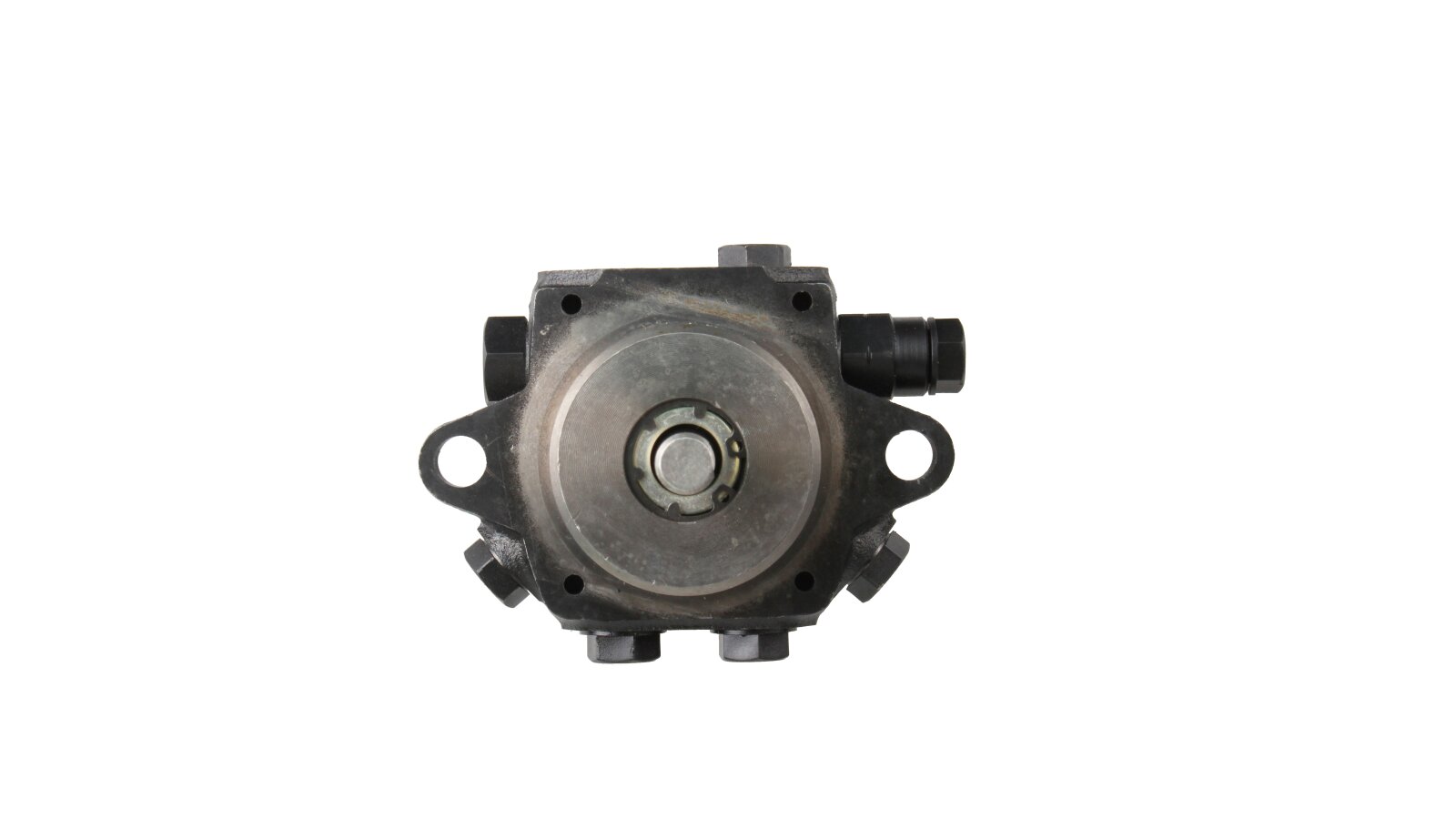

Burner Pump Suntec AJ V 6 AC 1000 4P

Suntec

AED 1,575

Oil Burner Pumps
Products code: 2555

Description

The high-performance pump AJ V 6 AC 1000 4P is part of a series of devices equipped with a regulating valve with a shut-off function. This equipment is installed in medium-power burners of many manufacturers, including Lamborghini, Baltur, Weishaupt, Ecoflam, Cib Unigas. The model has a right-hand outlet to the nozzle, stands out for its universal purpose - it pumps diesel fuel and biodiesel. The capacity is 248 l / h at a pressure of 20 atm. and a viscosity of 5 cSt.

Features

A pair of gears rotating clockwise sucks fuel from the tank and moves it to the nozzle through a pressure regulating valve. It also performs a shut-off function.

A mesh filter with an open area of ​​​​30 cm² is mounted at the liquid inlet. It blocks the path of small dirt particles, protecting the moving parts of the pump.

The regulating valve maintains the fuel pressure at a given value. The pump is factory set to 12 atmospheres. Using the screw regulator, you can change this indicator within 10-20 atm, turning it clockwise / counterclockwise.

The pumped liquid that does not reach the nozzle is sent back: to the tank in a 2-pipe connection scheme or to the suction line in systems with 1 pipe.

Additionally, you can mount an external electromagnetic valve that automates the process of locking the fuel.

When creating the design, special shaft seals made of Viton were used, which allows pumping biodiesel in addition to diesel fuel.

Installation in the system is carried out using a flange connection with a diameter of 54 mm, according to the European standard EN225.

Advantages:

  • works with biofuel and diesel fuel;

  • high productivity (248 l / h);

  • the presence of a pressure control valve with a locking function;

  • fuel cleaning from contaminants of 120x150 microns;

  • easy adjustment of the feed pressure;

  • standard outputs and ports for pressure gauge and vacuum gauge according to ISO 228/1;

  • possibility of installation in 2- and 1-pipe systems.

To equip medium-power heating systems, we offer to buy the Suntec AJ V 6 AC 1000 4P pump and other components at an affordable price. Suntec brand products meet European reliability requirements, operate smoothly under intensive use. Comes with certificates and manufacturer's warranty.

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 20 barShaft diameter: 11 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.3 N·mSuction and return line: ¼ inch NPTF (taper thread)
