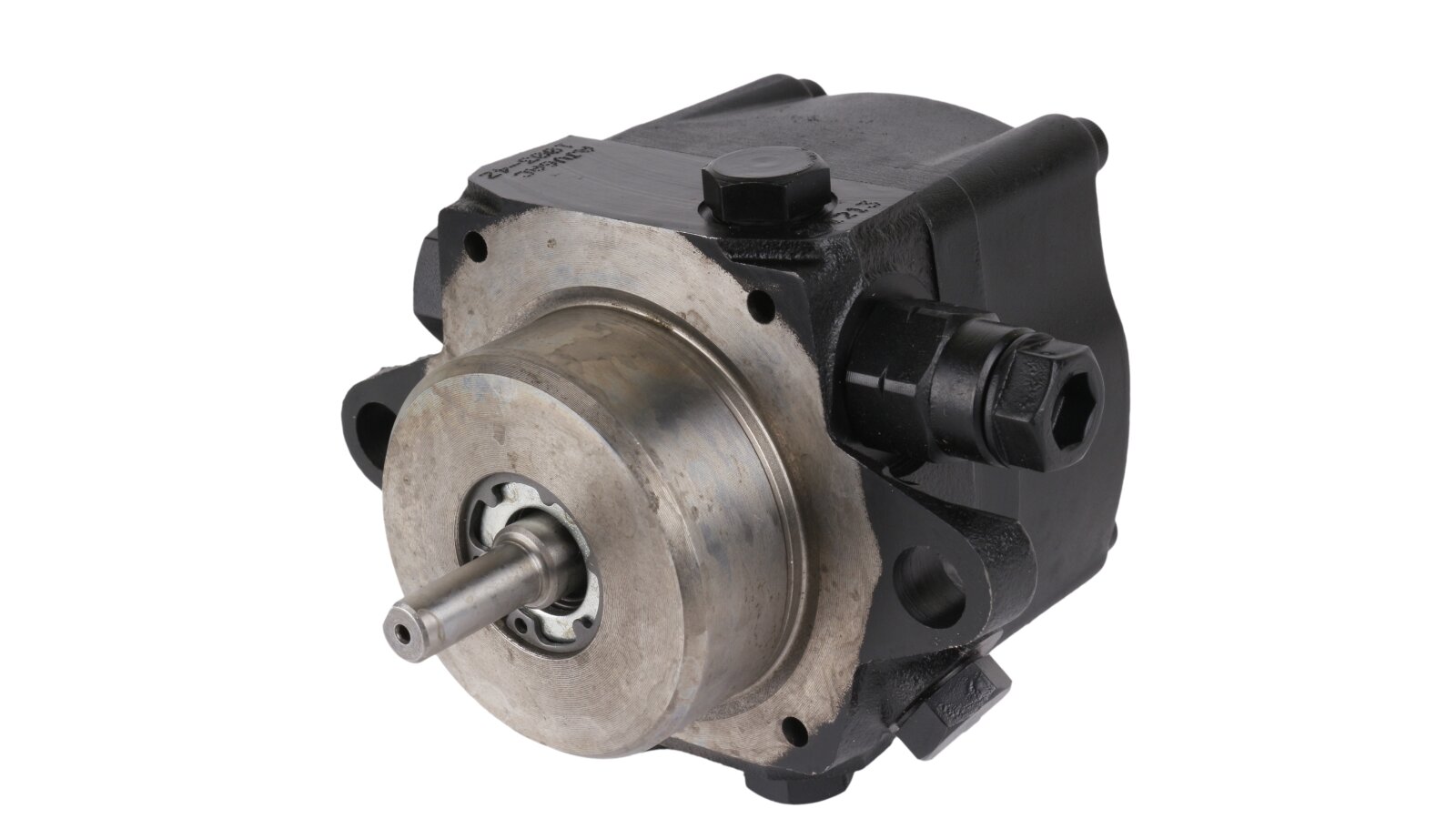

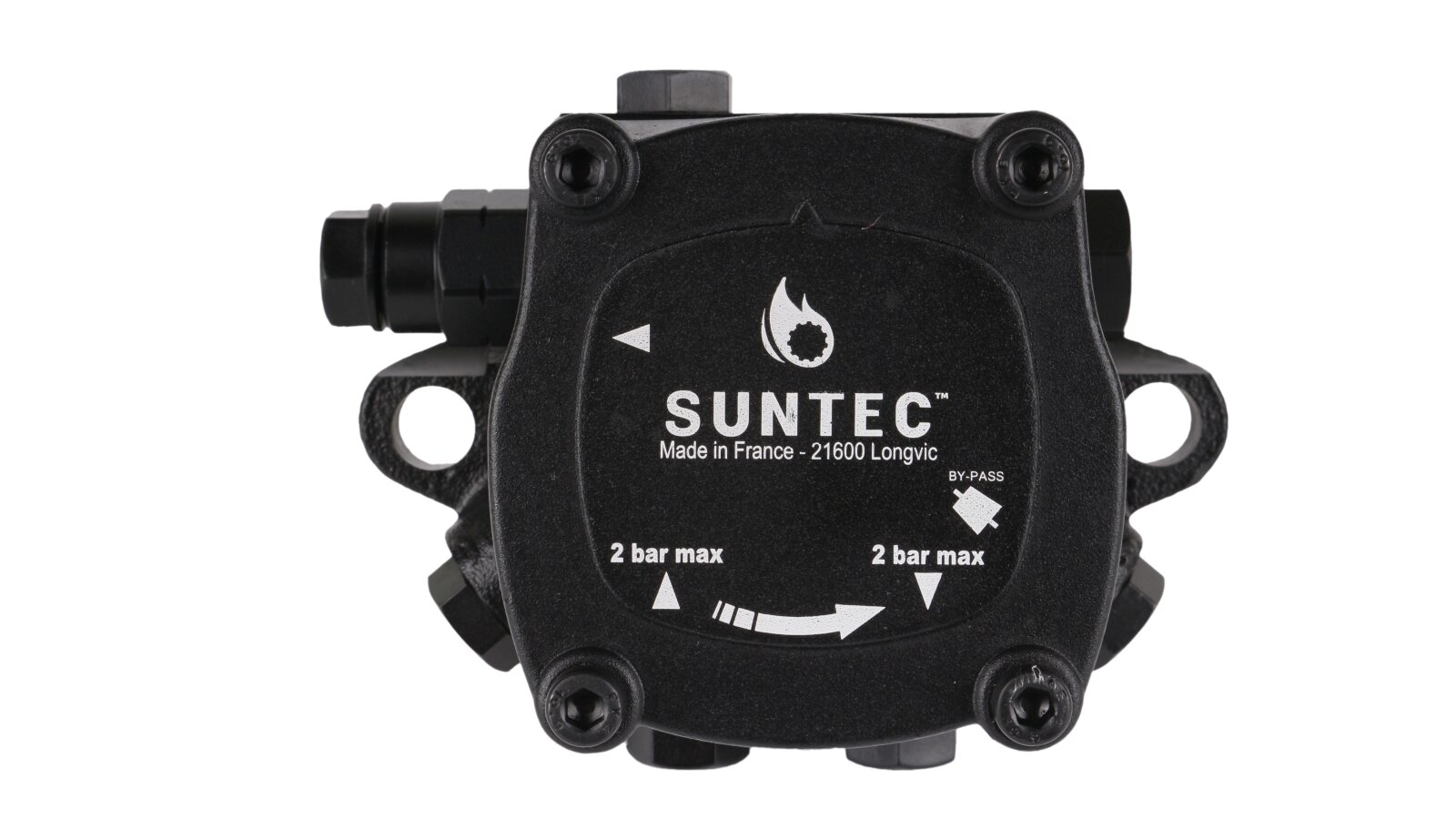

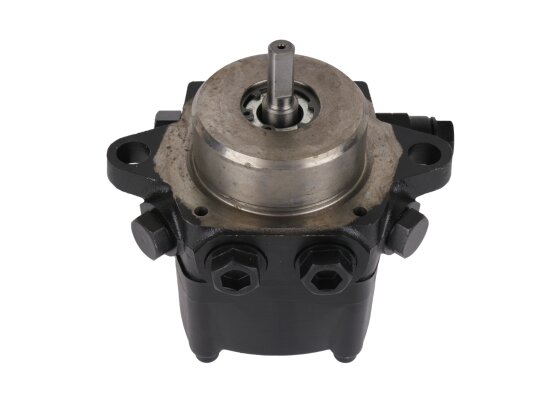

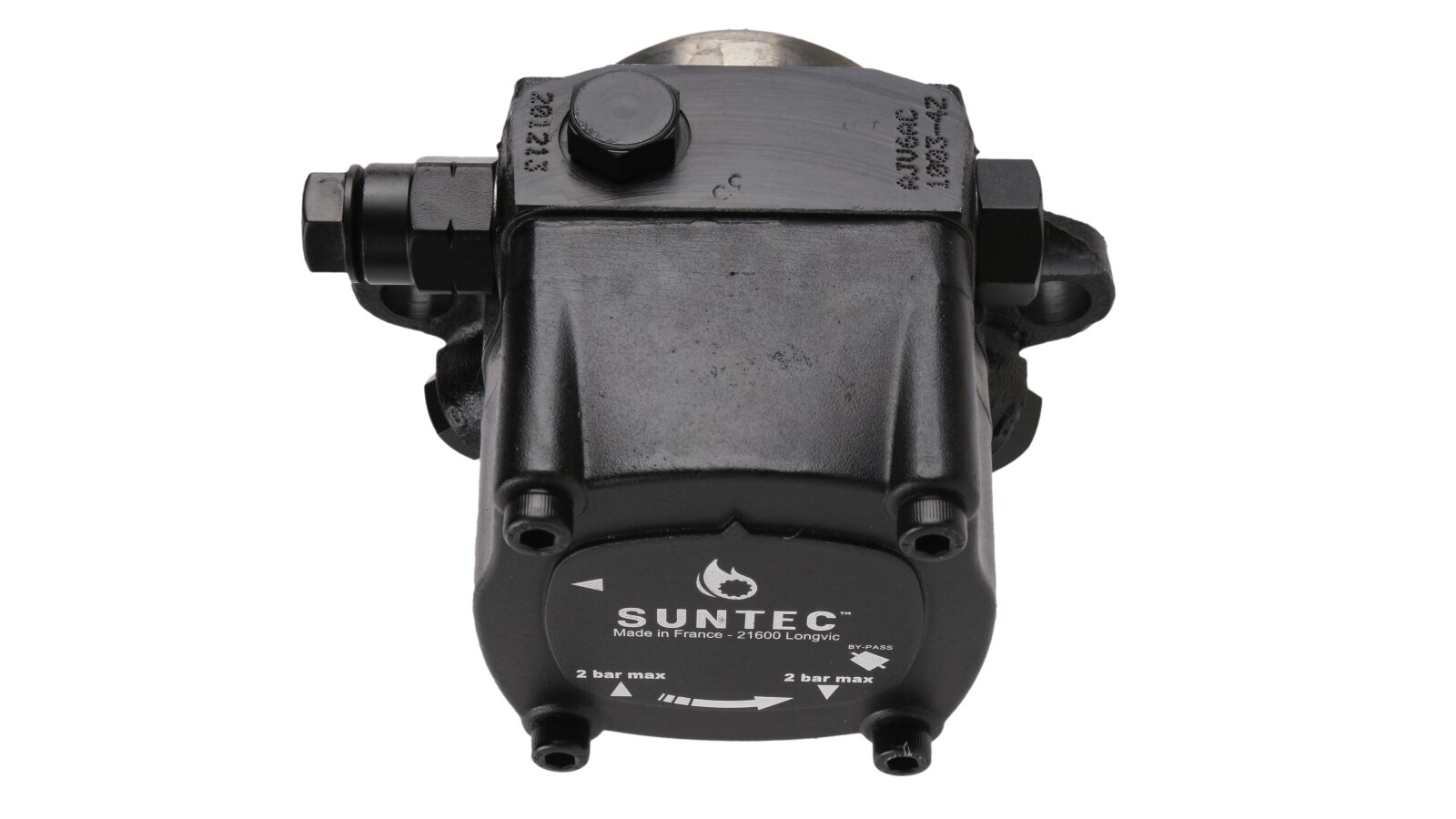

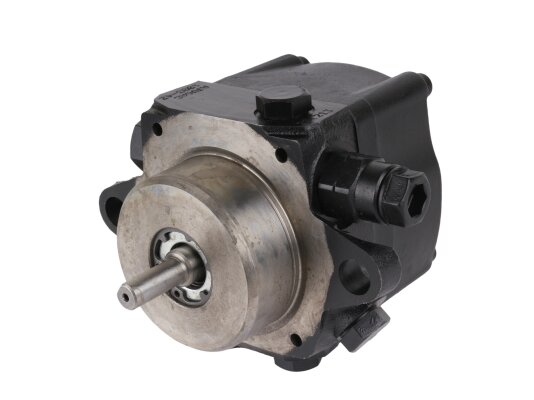

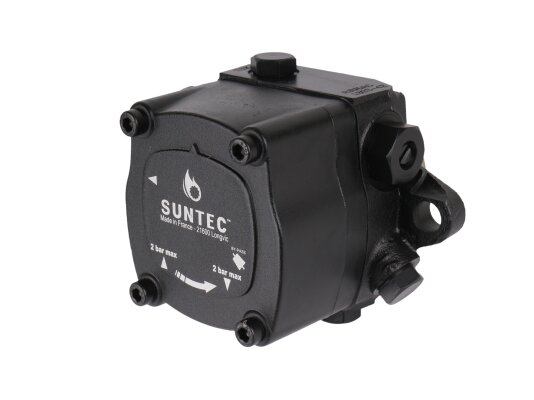

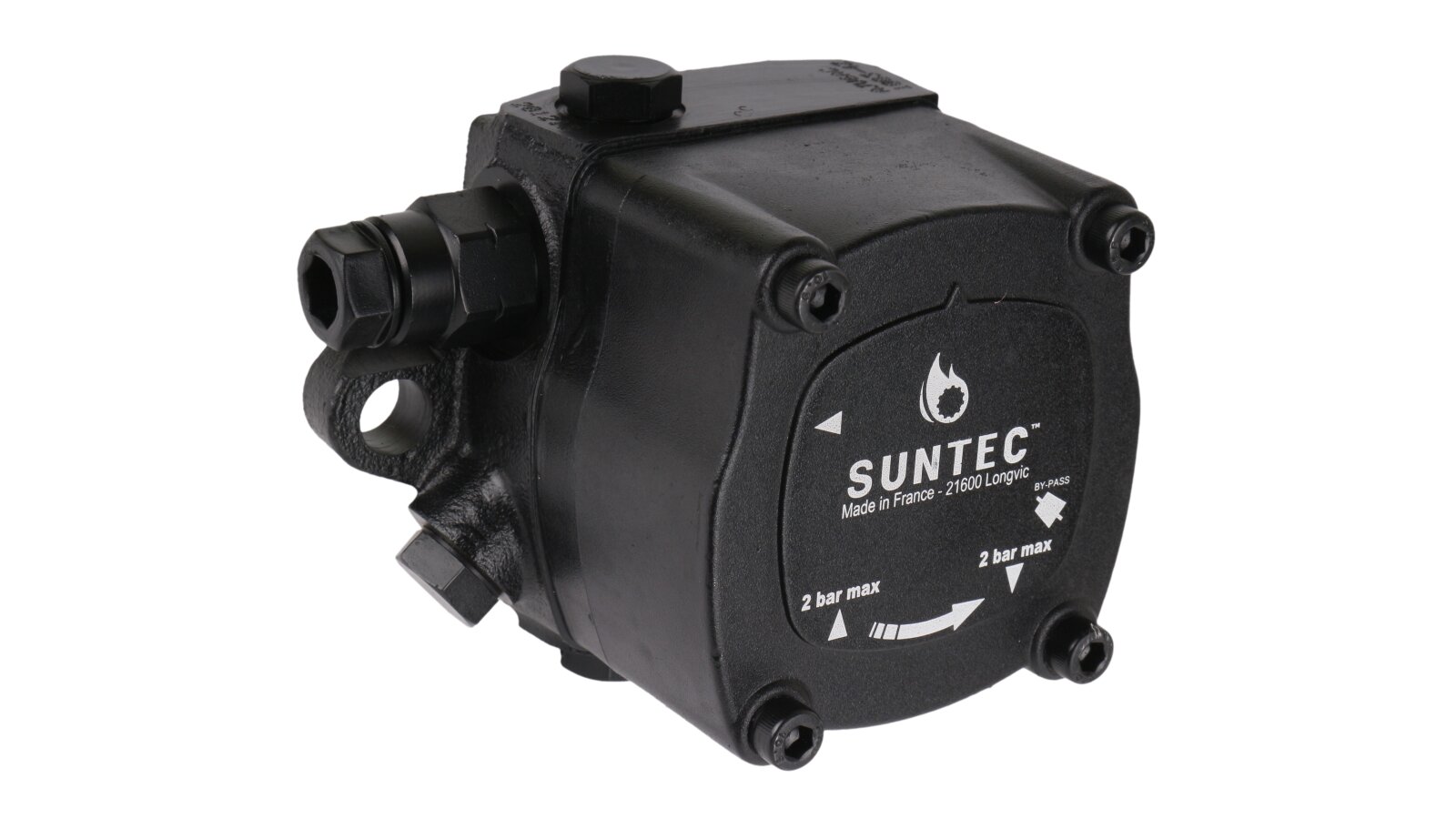

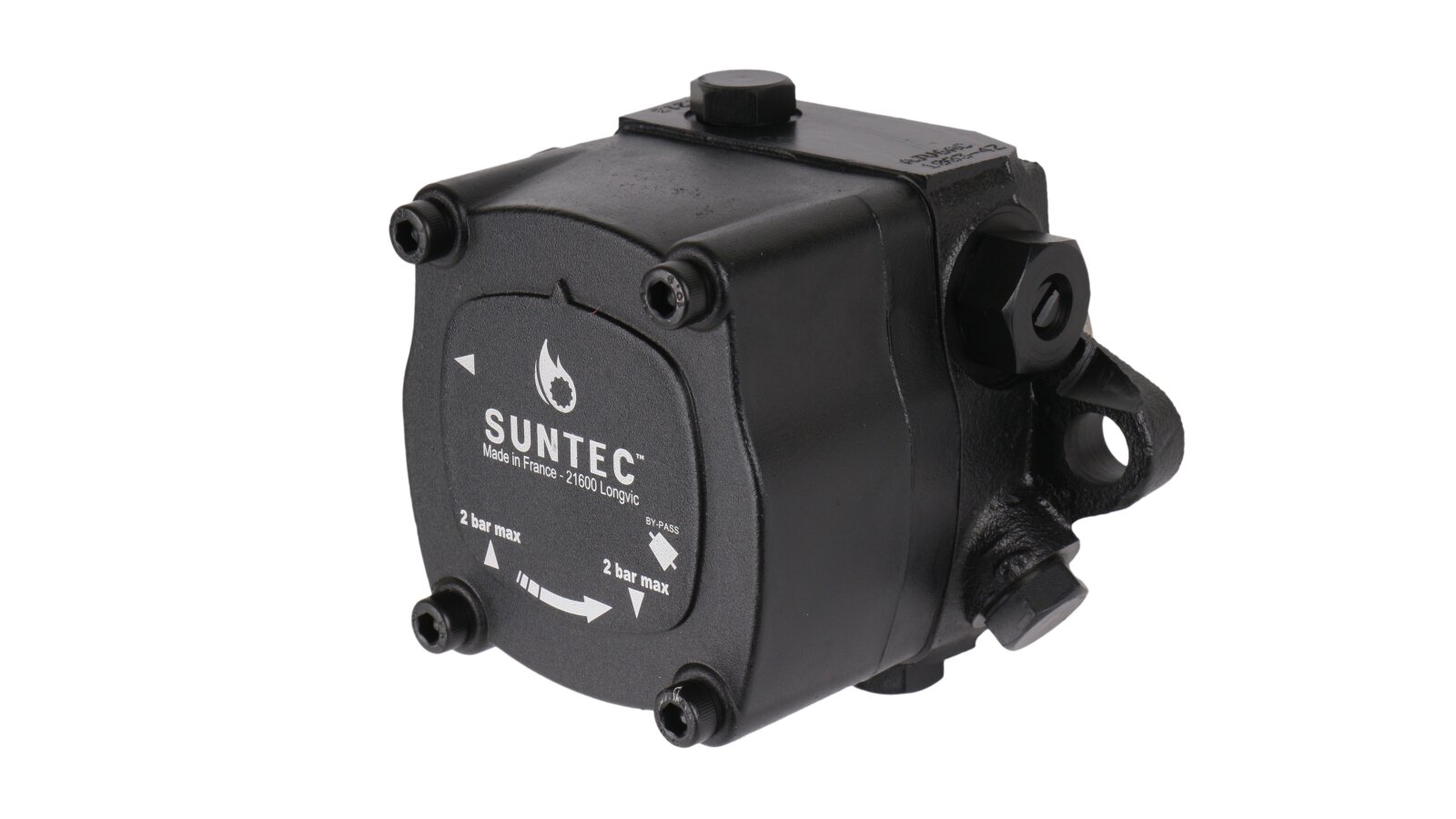

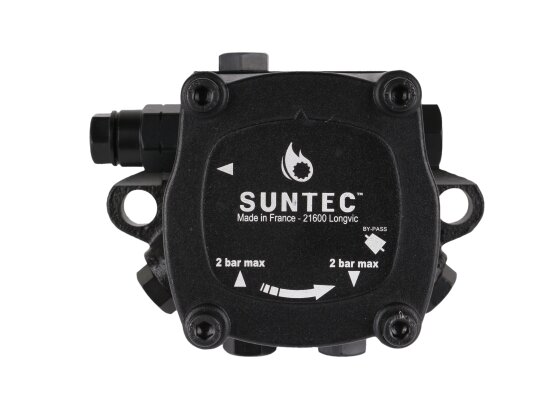

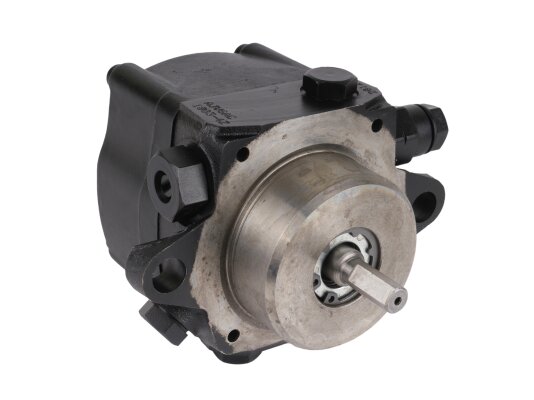

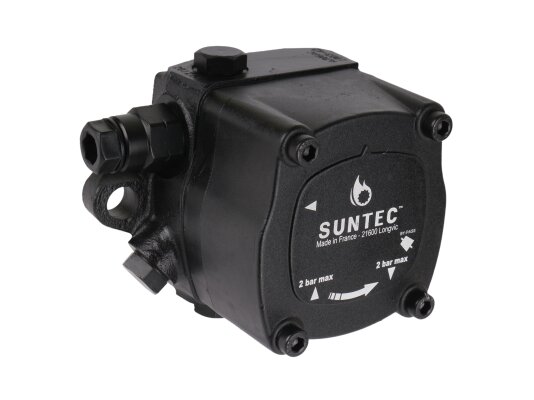

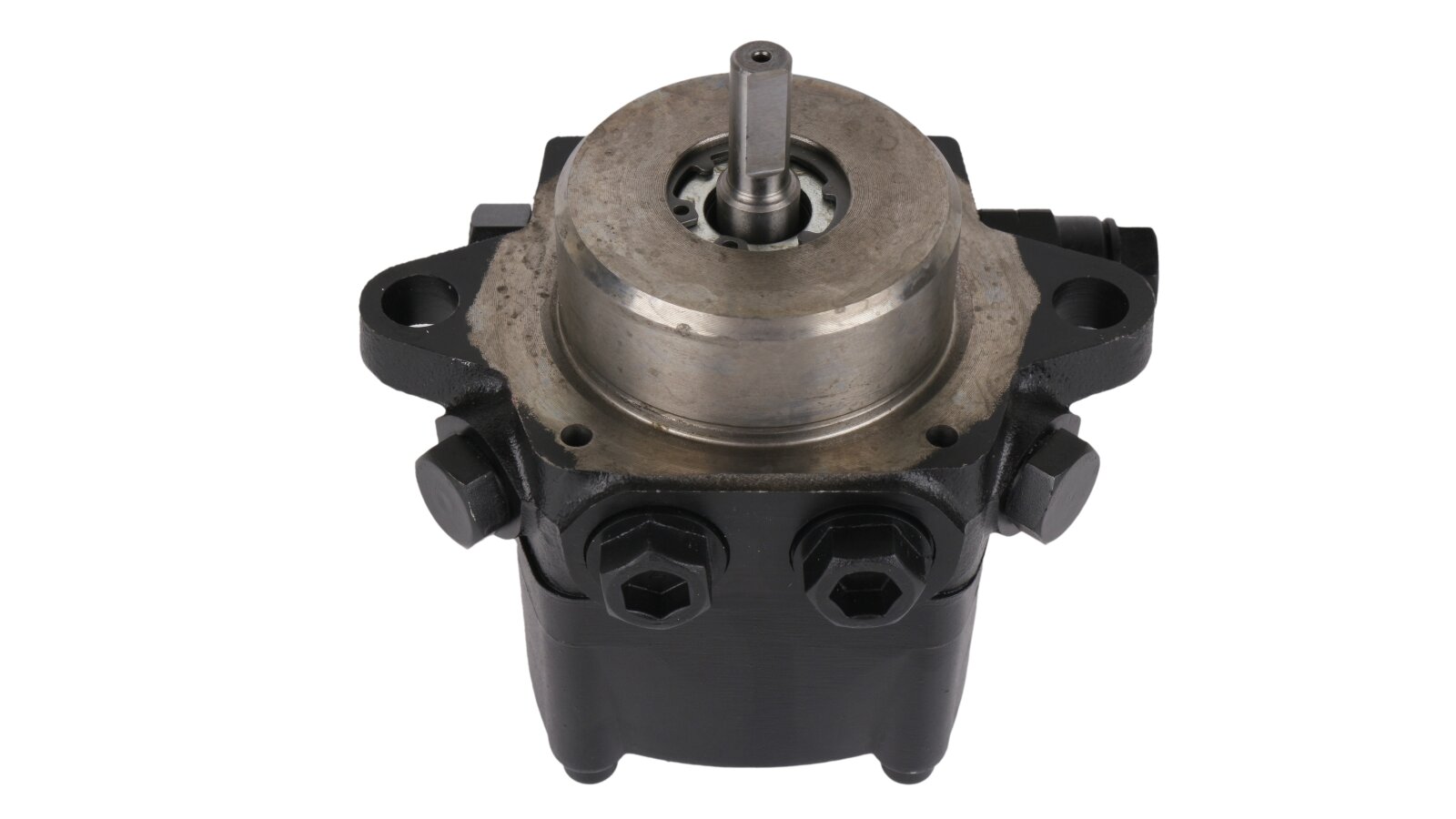

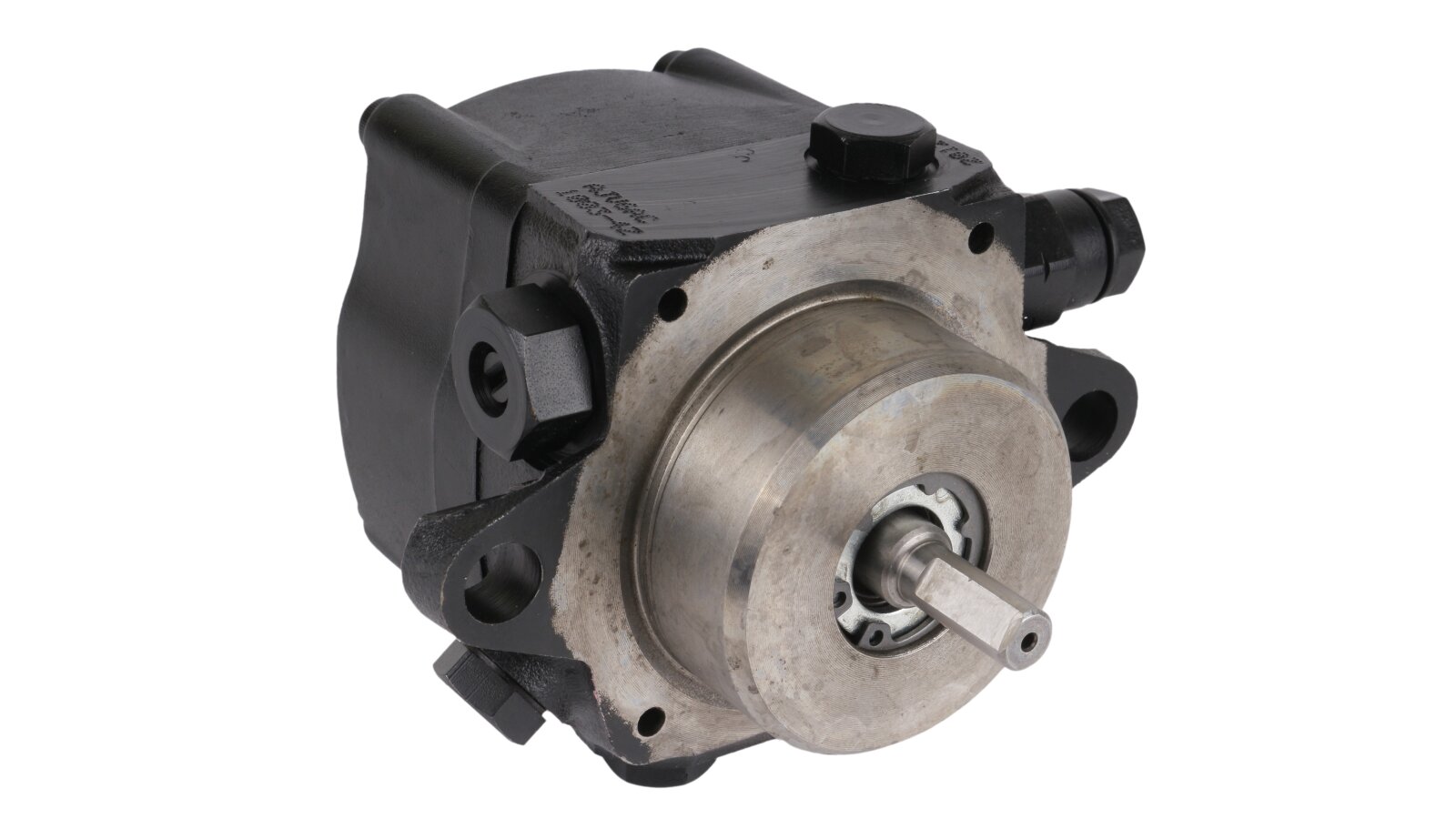

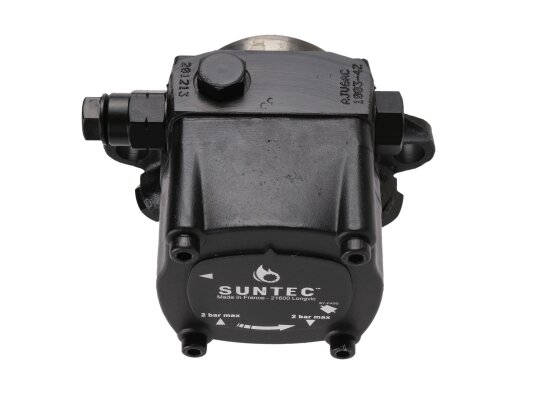

Burner Pump Suntec AJ V 6 AC 1003 4P

Suntec

Alternative Part Number

Baltur

0005060097

AED 1,575

Oil Burner Pumps
Products code: 1383

Description

A worthy option for equipping medium-power burners is the universal fuel pump Suntec AJ V 6 AC 1003 4P. Thanks to the use of special seals, the unit can be used not only for diesel fuel, but also for biodiesel. The pumping speed of the working fluid is 248 l / h at a pressure of 20 atm.

Design and features

  • The Suntec AJ V 6 AC 1003 4P fuel pump is equipped with a valve that regulates the pressure on the nozzle taking into account predetermined parameters and closes / opens the feed channel. The locking speed depends on the pressure settings.

  • By default, a bypass plug is inserted into the return hole and the pump is ready for a 2-pipe connection. The plug should be removed and the channel blocked if the unit is used for a single-pipe installation.

  • A design feature is the use of ring seals on the supporting surfaces of the connections with the return and suction line. The pressure loss in the modification with the number "4" is reduced.

  • Thanks to the standard flange connection (EN 225), the pump can be integrated into almost any burner of popular brands.

  • The fuel moves from the tank to the control valve when the gear rotates. The initial pressure setting is 12 bar, but this value can be adjusted independently using a screw regulator.

  • A dismountable filter is used to protect the working mechanism. A mesh with 120x150 micron cells prevents various abrasive particles from entering the device, which can cause equipment failure.

Recommendation: when using the pump, perform filter maintenance and change the cover gasket.

The advantages are:

  • high performance;

  • versatility - works with diesel fuel, biodiesel;

  • dual valve function - adjustment and locking;

  • serviceable filter with a large usable area;

  • connection of measuring instruments to a standard thread;

  • reduction of internal pressure losses.

To complete the burners of most manufacturers, we offer to buy the fuel pump Suntec AJ V 6 AC 1003 4P at an affordable price. You can choose accessories to increase the reliability and efficiency of the equipment (external electromagnetic valve, filters, etc.).

Characteristics

Type of pumped liquid: diesel, biodiesel fuel blend B10Installing the bypass plug: P: bypass plug installed in return line for two-pipe systemModel type: without electromagnetic valveValve function: pressure regulating and cut-offOil temperature: from 0 to 60 °C in the pumpStrainer: Opening size: 120х150 µmStrainer: Open area: 30 cm²Pump series: AJ: control valve with locking functionPerformance at 20 bar pressure and 5 cSt viscosity: 248 l/hPressure gauge port: ⅛ inchVacuum gauge port: ⅛ inch or ¼ inchNominal rotation speed: 2850 rpmDirection of rotation (looking at the drive shaft): A: clockwise rotation / nozzle on the rightInstallation method: flange ∅ 54 mmMaximum rotation speed: 3600 rpmShaft design: one cavityBy-pass plug: It is installed in the port of the vacuum gauge for a two-pipe system and is removed with a hexagonaFactory pressure setting: 12 barOperating viscosity: from 2 to 75 mm²/sNozzle pressure range: from 10 to 20 barShaft diameter: 8 mmReturn pressure: 2 barInlet pressure: 2 barNozzle outlet: ¼ inchSuction height: 0.45 bars max. vacuum to prevent air separation from oilTorque: 0.3 N·mSuction and return line: ¼ inch NPTF (taper thread)
